21/11
|
A-RAM 64GB U130 Flash Drive - Read 65MB/s, Write 35MB/s, USB3.0 - Red64GB U130 Flash Drive - Read 65MB/s, Write 35MB/s, USB3.0 - Red
|
|
|
|
21/11
|
Panasonic PT-VW431D LCD Projector - 1280x800, 4300 Lumens, 3500;1, 4000Hrs, VGA, HDMI, Speaker PT-VW431D
Advanced portable projector for ceiling-mounted and other permanent installations.
- No halogenated flame retardants are used in the cabinet.
- Non-coated cabinet for easy recycling.
- Lead-free glass is used for the lens.
- Lamp power switching further reduces power consumption.
- Standby power consumption of only 0.3 W* has been achieved.
All Panasonic projectors comply with the standards of the RoHS Directive.
What is RoHS?
RoHS is the acronym for Restriction of Hazardous Substances. RoHS, also known as Directive 2002/95/EC, originated in the European Union and restricts the use of specific hazardous materials found in electrical and electronic products. All applicable products in the EU market after July 1, 2006 must pass RoHS compliance.
What are the restricted materials mandated under RoHS?
The substances banned under RoHS are lead (Pb), mercury (Hg), cadmium (Cd), hexavalent chromium (CrVI), polybrominated biphenyls (PBB) and polybrominated diphenyl ethers (PBDE).
Why is RoHS compliance important
The restricted materials are hazardous to the environment and pollute landfills, and are dangerous in terms of occupational exposure during manufacturing and recycling.
Specifications:
| Model |
PT-VW431D |
| Power supply |
100-240 V AC, 50/60 Hz |
| Power consumption |
365 W [0.3 W when standby mode set to Eco*1, 12.5 W when standby mode set to Network.
(19.7 W with DIGITAL LINK, 27.5 W when standby mode of sound set to ON.)] |
| LCD panel |
Panel size |
15 mm (0.59 inches)diagonal (16:10 aspect ratio) |
| Display method |
Transparent LCD panel (x 3, R/G/B) |
| Pixels |
1,024,000 (1,280 x 800) x 3, total of 3,072,000 pixels |
| Lens |
1.6x manual zoom (throw ratio: 1.18-1.90:1),
manual focus, F 1.60-2.12, f 15.28-24.62 mm |
| Lamp |
280 W x 1,
lamp replacement cycle (lamp power: Normal/Eco): 2,500 hours/4,000 hours*2 |
| Screen size (diagonal) |
0.76-7.62 m (30-300 inch), 16:10 aspect ratio |
| Brightness*3 |
4,300 lm (lamp power: Normal) |
| Center-to-corner uniformity*3 |
85 % |
| Contrast*3 |
3,500:1 (full on/full off, lamp power: Normal, Iris: On) |
| Resolution |
1,280 x 800 pixels*4 |
| Scanning frequency |
HDMI/
DIGITAL LINK |
fH: 2580 kHz, fV: 2485 Hz, dot clock: 162 MHz or lower |
| RGB (analog) |
fH: 15-100 kHz, fV: 50-100 Hz, dot clock: 140 MHz or lower
(Signals exceeding the dot clock rate of 140 MHz are downsampled.) |
| YPBPR (YCBCR) |
fH: 15.75 kHz, fV: 60 Hz [480i(525i)]
fH: 31.50 kHz, fV: 60 Hz [480p(525p)]
fH: 45.00 kHz, fV: 60 Hz [720(750)/60p]
fH: 33.75 kHz, fV: 60 Hz [1080(1125)/60i]
fH: 15.63 kHz, fV: 50 Hz [576i(625i)]
fH: 31.25 kHz, fV: 50 Hz [576p(625p)]
fH: 37.50 kHz, fV: 50 Hz [720(750)/50p]
fH: 28.13 kHz, fV: 50 Hz [1080(1125)/50i]
|
| Video/S-Video |
fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60],
fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM] |
| Optical axis shift |
Vertical: +48 % |
| Keystone correction range |
Vertical: 30 (20 when Real-Time Keystone) |
| Installation |
Ceiling/floor, front/rear |

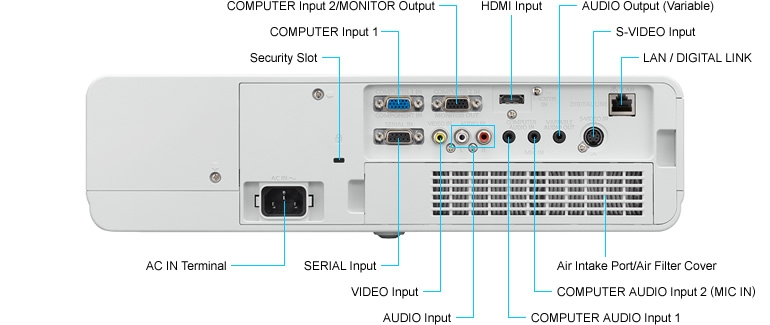

| Terminals |
HDMI IN |
HDMI 19-pin x 1 (Deep Color, compatible with HDCP)
480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i,
1080/24p, 1080/60p, 1080/50p, VGA (640 x 480)-WUXGA (1,920 x 1,200),*5
audio signal: linear PCM (sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz) |
| COMPUTER IN 1 |
D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR x 1) |
COMPUTER IN 2 /
MONITOR OUT |
D-sub HD 15-pin (female) x 1 (RGB x 1), (input/output selectable using on-screen menu)
(When Monitor Out is selected, the COMPUTER IN 1 signal is output.) |
| VIDEO IN |
RCA pin x 1 (Composite VIDEO) |
| S-VIDEO IN |
Mini DIN 4-pin x 1 (S-VIDEO) |
| AUDIO IN |
RCA pin x 2 (L/R x 1) for VIDEO/S-VIDEO input |
COMPUTER
AUDIO IN 1 |
M3 x 1 (L-R x 1) |
COMPUTER
AUDIO IN 2
(MIC IN) |
M3 x 1 (L-R x 1) for audio input or for microphone connection (variable) |
| AUDIO OUT |
M3 x 1 (L-R x 1) for output (variable) |
| SERIAL IN |
D-sub 9-pin (female) x 1 for external control (RS-232C compliant) |
LAN/
DIGITAL LINK |
RJ-45 x 1 for network/DIGITAL LINK connection (Video, audio and control signals),
10Base-T/100Base-TX, compliant with PJLink (class 1),
Deep Color, compatible with HDCP |
| Built-in speaker |
4 cm round shape x 1, output power: 10.0 W (monaural) |
| Noise level |
37 dB (lamp power: Normal), 29 dB (lamp power: Eco) |
| Cabinet materials |
Molded plastic |
| Dimensions (W x H x D) |
379 x 107 x 305 mm (14.9 x 4.2 x 12.0)
(with legs at shortest position, not including protruding parts) |
| Weight |
Approximately 4.8 kg (10.6 lbs) |
| Operating temperature |
0C-40C [32F-104F]*6
(less than 1,200 m [3,937 ft] above sea level, Fan control: OFF),
0C-30C [32F-86F]
(between 1,200 m and 2,000 m [3,937 ft and 6,562 ft] above sea level, Fan control: ON1),
0C-30C [32F-86F]
(between 2,000 m and 2,700 m [6,562 ft and 8,858 ft] above sea level, Fan control: ON2) |
| Operating humidity |
20 %-80 % (no condensation) |
| Supplied accessories |
Power cord x 1*7, power cord holder x 1, wireless remote control unit,
batteries (AAA/R03/LR03 type x 2), carrying bag x 1, computer cable (1.8 m, for VGA) x 1,
software CD-ROM(Logo Transfer Software,Multi Projector Monitoring & Control Software) |
|
|
|
|
21/11
|
Panasonic PT-DX810ES DLP Projector - 1024x768, 8200 Lumens, 2000;1, Dual-Lamp System, VGA, DVI, HDMI PT-DX810ES
- A compact body with 8,200 lm of brightness.
- The RGB Booster significantly improves color reproduction.
- Dual-Lamp system prevents image interruptions.
- Liquid cooling system attains a high level of reliability.
- Multi-Screen support system seamlessly connects multiple screens.
Features
Bright 8,200 lm from Compact Body
New lamp drive system has helped to make the body as compact as PanasonicsPT-DZ770 Series, while providing high brightness of 8,200 lm
RGB Booster significantly improves color reproduction
The RGB Booster achieves high image quality with levels of color reproduction and brightness that make each color stand out.It combines Panasonics proprietary Vivid Color Control technology with a newly engineered Lamp Modulation Drive System for a 1-chip DLP projector that produces bright and vivid colors.
Vivid Color Control
This unique control technology optimizes the use of the color segment areas of the color wheel. It increases the brightness of each RGB color by minimizing the unallocated portions between the colors, to achieve truly vivid coloring.
Lamp Modulation Drive System
With the advanced lamp modulation technology, the projector is able to control the lamp intensity for each of the red, green, blue, and white segments of the color wheel separately. Because the actual light output is controlled in relation to each color segment, light usage is optimized and color balance is obtained without lowering the brightness. This results in bright vivid images with increased color fidelity.
Detail Clarity Processor Brings Depth and Clarity to Details
This advanced image-processing circuit analyzes the video signal frequency range for each scene by extracting data on the distribution of high, mid, and low-frequency components, and brings out fine details accordingly. The resulting images have a more natural, three-dimensional appearance with crisp, clear detail.
System Daylight View 2 for Enhanced Color Perception
Image details are less clear when a projector is used in a room with the lights on. Panasonics System Daylight View 2 improves brightness perception by adjusting sharpness, gamma curves, and color corrections. This produces crisper, more stunning images with vivid colors even under bright conditions.
DICOM Simulation Mode
This imaging mode is similar to DICOM part 14, which is a medical imaging standard. It reproduces X-ray images with remarkable clarity.
This product is not a medical instrument. Do not use it for actual medical diagnosis.
Rec. 709 Mode for HDTV Projection
Optimal color reproduction can be achieved by selecting this mode, compliant with ITU-R Recommendation BT.709, when images from an HDTV source are projected.
Eco filter that needs no maintenance for up to 12,000 hours
The original Eco Filter consists of two Micro Cut Filters (electrostatic filters), a pre-filter and a main filter, which use an ion effect to collect extremely small dust particles. The pre-filter has a honeycomb configuration and the main filter is pleated to achieve a large surface area that raises its dust collecting performance. Thanks to these features, the Eco Filter has a replacement cycle of up to 12,000 hours, * which reduces the hassle of maintenance. And, as an environmental consideration, the filter can be washed with water and reused.**
The usage environment affects the duration of the filter.
When washing with water, please follow the procedures listed in the operating instructions.
Also, we recommend replacing the filter with a new one after it has been washed and reused twice.
If the filter is not sufficiently clean after washing, replace it with a new one.
The original Eco Filter consists of two Micro Cut Filters (electrostatic filters), a pre-filter and a main filter, which use an ion effect to collect extremely small dust particles. The pre-filter has a honeycomb configuration and the main filter is pleated to achieve a large surface area that raises its dust collecting performance. Thanks to these features, the Eco Filter has a replacement cycle of up to 12,000 hours, * which reduces the hassle of maintenance. And, as an environmental consideration, the filter can be washed with water and reused.**
The usage environment affects the duration of the filter.
When washing with water, please follow the procedures listed in the operating instructions.
Also, we recommend replacing the filter with a new one after it has been washed and reused twice.
If the filter is not sufficiently clean after washing, replace it with a new one
Dual-Lamp System Prevents Image Interruptions
The Dual-Lamp System eliminates the need to interrupt a presentation if a lamp should burn out (in dual-lamp operation mode). The Lamp Relay mode also operates the lamps alternately to enable 24/7 projector operation.
Flexible Installation
The wide adjustment range of the powered horizontal/vertical lens shift function assures convenience and versatility during installation. It lets you easily make adjustments with the remote control. The unit can also be rotated 360 degrees vertically. This means you can install it at any angle you want, to accommodate different installation conditions.
A Wide Range of Optional Lenses
Choose from a wide lineup of optional lenses for your system, including short-throw, long-throw zoom and fixed-throw lenses for rear projection use. The additional lenses make it easy to adapt your projector to the installation site. The lenses attach and detach with one-touch ease.
Lens-centered design
A lens-centered, symmetrical design provides ease of installation, eliminating the need for any special considerations when planning the installation site.
Easy replacement of Filter and Lamp
An Eco Filter is replaced from the side and lamps are replaced from the back panel. Both of them are replaced very easily even after the projector is installed on the ceiling.
Multi-Screen Support System Seamlessly Connects Multiple Screens
The Multi-Screen Support System optimally adjusts multiple screens: Edge blending, color matching and multi-screen processor.
Edge Blending
The edges of adjacent screens can be blended and their luminance controlled.
Color Matching
This function corrects for slight variations in the color reproduction range of individual projectors.
Multi-Screen Processor
The PT-DZ770 Series projectors can project large, multi-screen images without any additional equipment. Up to 100 units (10 x 10) can be edge-blended at a time.
Versatile System Configurations Match a Variety of Applications
The wide-ranging terminals include 2 sets of RGB inputs (compatible with Y/PB/PRsignals), an HDMI input,
and a DVI-D input. A serial input/output terminal (RS-232C compliant) that allows remote operation from a PC,similar to that of a wireless remote control, and a remote terminal for input switching by contact control andstandby ON/OFF operation also make it possible to configure a remote operation system.
Easy Remote Monitoring and Control over a LAN
Web browser on a computer connected through a wired LAN system lets you remotely operate projectors and check their status. An e-mail messaging function can also notify you when a lamp needs replacement, and indicate the overall projector status.
In addition, Multi Projector Monitoring and Control Software is available for monitoring and controlling multiple Panasonic projectors from a single PC.
The wired LAN terminal is compatible with PJLink (class1), an open protocol that is used by many manufacturers, to enable integrated control of systems that contain different brands of projectors.
Crestron RoomView and AMX Device Discovery
The LAN terminal allows a computer connected to the network to use Crestron RoomView application software to manage and control system devices. Besides, The AMX Device Discovery technology is built in thePT-DZ770 Series.
Wireless Remote Control with a Maximum Operating Range of 30m (98ft)
Wireless Remote Control provides greater convenience for large conference rooms, lecture halls and gymnasiums with large audiences. Also, two signal transmission ports are provided to enable a large operating area.
Standby Mode: Eco
The PT-DZ770 Series projectors have attained a low standby power level of 0.2 W** (standby mode: eco). It also helps to slash running costs, and reduces environmental impact.
When the standby mode is set to eco, network functions such as power on over the LAN will not operate. Also, only certain commands can be received for external control using the serial terminal.
For 120 V AC power supply. 0.3 W for 200-240 V AC power supply.
Made in Japan
The PT-DZ770 Series projectors are carefully manufactured at the Panasonic factory in Japan, under strict quality control. This is another, very important advantage of a Panasonic projector.
Other Valuable Features
3D color management system
HD IP conversion
Digital noise reduction
Dynamic sharpness control
Mechanical lens shutter
Direct Power Off allows unplugging the power cord right after use
Specifications:
| General |
| Power supply |
120 V AC, 7.5 A, 50/60 Hz, 220-240 V AC, 4.3 A, 50/60 Hz
|
| Power consumption |
|
| 120 V AC |
790 W (830 VA) (0.2 W when STANDBY MODE set to ECO*1, 6 W when STANDBY MODE set to NORMAL)
|
| 220-240 V AC |
760 W (950 VA) (0.3 W when STANDBY MODE set to ECO*1, 8 W when STANDBY MODE set to NORMAL)
|
| Dissipation BTU |
U models: max. 2,754 BTU/hour E, EJ models: max. 2,686 BTU/hour
|
| DLP chip |
|
| Panel size |
17.8 mm (0.7 inches) diagonal (4:3 aspect ratio)
|
| Display method |
DLP chip x 1, DLP projection system
|
| Pixels |
786,432 (1,024 x 768) pixels
|
| Lens |
|
| PT-DX810ES |
Powered zoom (throw ratio 1.8-2.5:1), powered focus F 1.7-1.9, f 25.6-35.7 mm
|
| PT-DX810ELS |
Optional powered zoom/focus lenses and fixed-focus lens
|
| Lamp |
300 W (max. 310 W) UHM lamp x 2
|
| Screen size (diagonal) |
1.27-15.24 m (50-600 inches), 1.27-5.08 m (50-200 inches) with the ET-DLE055, 4:3 aspect ratio
|
| Brightness*2 |
8,200 lm (dual-lamp, LAMP MODE: NORMAL)
|
| Center-to-corner uniformity ratio*2 |
90%
|
| Contrast ratio*2 |
2,000:1 (full on/full off, CONTRAST MODE: HIGH*4)
|
| Resolution |
1,024 x 768 pixels (Input signals that exceed this resolution will be converted to 1,024 x 768 pixels.)
|
| Scanning frequency |
|
| HDMI/DVI-D |
fH: 15-91 kHz, fV: 50-85 Hz, dot clock: 25-162 MHz
|
| RGB |
fH: 15-91 kHz, fV: 50-85 Hz, dot clock: 162 MHz or lower
|
| YPBPR (YCBCR) |
fH: 15.75 kHz, fV: 60 Hz [480i (525i)]
fH: 31.50 kHz, fV: 60 Hz [480p (525p)]
fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p]
fH: 33.75 kHz, fV: 60 Hz [1035 (1125)/60i]
fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i]
fH: 27.00 kHz, fV: 24 Hz [1080 (1125)/24p]
fH: 33.75 kHz, fV: 30 Hz [1080 (1125)/30p]
fH: 56.25 kHz, fV: 50 Hz [1080 (1125)/50p]
fH: 15.63 kHz, fV: 50 Hz [576i (625i)]
fH: 31.25 kHz, fV: 50 Hz [576p (625p)]
fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p]
fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i]
fH: 28.13 kHz, fV: 25 Hz [1080 (1125)/25p]
fH: 27.00 kHz, fV: 48 Hz [1080 (1125)/24sF]
fH: 67.50 kHz, fV: 60 Hz [1080 (1125)/60p]
|
| Video/ S-Video |
fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60],
fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]
|
| Optical axis shift*5,/sup> |
|
| Vertical |
+50% from center of screen (powered)*6
|
| Horizontal |
10% from center of screen (powered)
|
| Keystone correction range |
Vertical: 40 (30 with the ET-DLE055/DLE080)
|
| Installation |
Ceiling/floor, front/rear
|
| Terminals |
|
| HDMI IN |
HDMI 19-pin x 1 (Deep Color*7, compatible with HDCP) 480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/24p, 1080/24sF, 1080/25p, 1080/30p, 1080/60p, 1080/50p, VGA (640 x 480)-WUXGA (1,920 x 1,200)*8, compatible with non-interlaced signals only, dot clock: 25-162 MHz
|
| DVI-D IN |
DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only) 480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/24p, 1080/24sF, 1080/25p, 1080/30p, 1080/60p, 1080/50p, VGA (640 x 480)-WUXGA (1,920 x 1,200)*8, compatible with non-interlaced signals only, dot clock: 25 -162 MHz
|
| RGB 1 IN |
BNC x 5 (RGB/YPBPR/YCBCR x 1)
|
| RGB 2 IN |
D-Sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR x 1)
|
| VIDEO IN |
BNC x 1 (composite video)
|
| S-VIDEO IN |
Mini DIN 4-pin x 1 (S-Video)
|
| SERIAL IN |
D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
|
| SERIAL OUT |
D-sub 9-pin (male) x 1 for link control (RS-232C compliant)
|
| REMOTE 1 IN |
M3 x 1 for wired remote control
|
| REMOTE 1 OUT |
M3 x 1 for link control (for wired remote control)
|
| REMOTE 2 IN |
D-sub 9-pin (female) x 1 for external control (parallel)
|
| LAN |
RJ-45 x 1 (for network connection, 10Base-T/100Base-TX, compliant with PJLink)
|
| Cabinet materials |
Cabinet materials
|
| Dimensions (W H D) |
|
| PT-DX810ES |
498 x 175*9 x 466 mm (19-19/32" x 6-7/8"*9 x 18-11/32")(with supplied lens)
|
| Dimensions (W x H x D) |
|
| PT-DX810ELS |
498 x 175*9 x 432 mm (19-19/32" x 6-7/8"*9 x 17") (without lens)
|
| Weight*10 |
|
| PT-DX810ES |
Approximately 16.3 kg (35.9 lbs) (with supplied lens)
|
| PT-DX810ELS |
Approximately 15.4 kg (34.0 lbs) (without lens)
|
| Operating environment |
Operating temperature: 0-45 C (32-113 F)*11, operating humidity: 20-80 % (no condensation)
|
| Supplied accessories |
Power cord, power cord secure lock, wireless/wired remote control unit, batteries (R6/AA type x 2), software CD-ROM (Logo Transfer Software, Multi Projector Monitoring & Control Software) (x 1) |
|
|
|
|
21/11
|
BenQ W7000+ Cinematic Home Theatre DLP Projector - 1080P, 1920x1080, 2000 Lumens, 50000;1, 2500Hrs, VGA, HDMI, Component Video, S-Video, RS232 W7000+
Professional Cinematic Projection Quality for Your Home Entertainment System
Designed to give you top-of-the-line enjoyment, the W7000+ offers professional-grade visual performances that you crave for your home entertainment system, including 3D Full HD, 2000 ANSI lumen high brightness, 50000:1 high contrast ratio, BrilliantColor, VIDI, Rec.709 color gamut and more!
Features
Brilliant and Beautiful Visual Performance 3D Full HD Perfection
The W7000+ is the first projector in the world to be accredited with the TUV Rheinland 3D Full HD Certification. Designed to offer the best 3D cinema experience at home, the projector is powered by DLP Link™ to delivers ultra-smooth 1080p Full HD images to both eyes – crosstalk free. Everything is much simpler and more enjoyable when you can just wear 3D glasses without setting up additional emitters. The W7000+ is compatible with the latest HDMI standard – Ver. 1.4a, which means it is able to play 3D movies from a Blu-ray DVD player, live sports via cable or satellite and 3D video games on PS3 directly without additional setup.

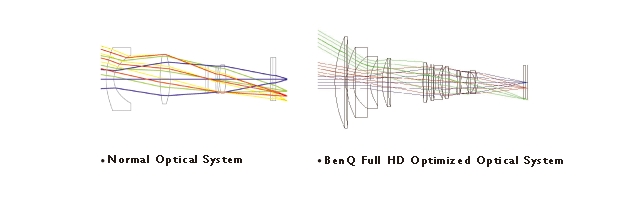

Full HD Optimized Optical System
The W7000+ features BenQs very own Full HD optimized optical system to ensure the best clarity and sharpness in every Full HD image. With the projection lens comprised with only glass-made lens elements, the optical system outperforms others with far more image details and better brightness performance.
50000:1 Ultra High Contrast Ratio
The combined expertise of BenQ’s projector know-how, Texas Instruments’ DynamicBlack™ and Philip’s VIDI™ lamp technology delivers an astounding 50,000:1 contrast ratio for superbly rendered image definition, even in the darkest scenes, and a brilliant 2,000AL to counter any ambient room lighting.
Rec. 709 Color Gamut
For optimal color precision, the W7000+ is built to match one of the highest high-definition video standards seen in professional-grade home projectors today: native Rec. 709 color gamut. This enables the projector to deliver colors so real that it reflects what the human eye perceives.
Thoughtful Features

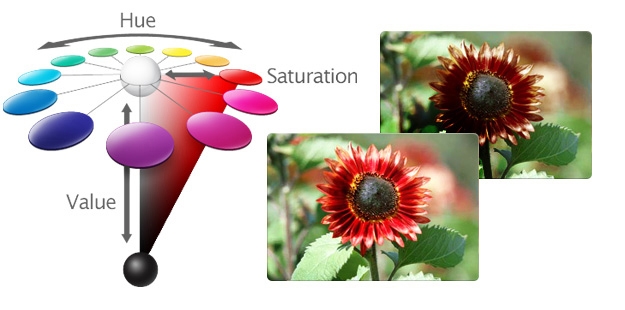

Adjustable Color Management
BenQ’s unique color management system gives you the freedom to fine-tune hues, contrast, brightness, color temperature, gamma and white balance levels to best match your unique viewing preferences.
Independent 3D Color Control for 6 Primary Colors
For 100% uncompromised color customization, this color management tool allows you to fine-tune the gain, saturation and hue of six primary colors (R/G/B/C/M/Y) individually.
Preset Mode and User Mode Adjustment
Adjust the three preset modes and user modes to fit your 2D and 3D viewing preference. BenQ gives you the additional flexibility you need to personalize your cinematic experience completely.
Movies in Full Screen
Panamorph™ lenses allow you to show 2.35:1 aspect format video – such as major studio movies - in their original widescreen format at maximum resolution with no image distortion or letterboxing.
ISFccc Certification
Obtaining professional results is easy with the Imaging Science Foundation's highly reputed ISFccc calibration service. Thanks to ISF technicians during the delivery process, it allows you to enjoy a perfectly calibrated picture quality, along with two optimized modes-- ISF Day and Night mode--for a viewing experience that is pure pleasure.
ecoFACTS Label
ecoFACTS can tell you how eco-friendly BenQ products are!
Development of eco-friendly products, BenQ doesn't just want to comply with green regulations passively, but also to actively develop eco-friendly products!
ecoFACTS declares BenQ's greatest efforts on the replacement of hazardous substances, material selection, packaging design, energy-saving design and other aspects of the products.
Arsenic-free optical glass
BFR/PVC-free casing plastics
PVC-free plastic packaging
Specifications:
| Projection System |
DLP |
| Native Resolution |
1080P (1920 x 1080) |
| Brightness* |
2000 ANSI lumens |
| Contrast Ratio |
50000:1 |
| Display Color |
1.07 Billion Colors |
| Lens |
F=2.48-2.81, f=24.1-36.15mm |
| Aspect Ratio |
Native 16:9 (5 aspect ratio selectable) |
| Throw Ratio |
1.62-2.43 (55.7@2m) |
| Image Size (Diagonal) |
28-300 |
| Zoom Ratio |
1.50:1 |
| Lamp(Normal/Economic Mode/SmartEco Mode)* |
2000/2500 hours |
| Keystone Adjustment |
1D, Vertical 10 degrees |
| Resolution Support |
VGA (640 x 480) to WUXGA (1920 x 1200) |
| Horizontal Frequency |
31K-92KHz |
| Vertical Scan Rate |
23-120Hz |
| Lens Shift |
V: 125% Max, H: 40% Max |
| Interface |
Computer in (D-sub 15pin) x 1
HDMI v1.4 x 2
Component Video x 1
S-Video (Mini Din 4 pin) x 1
DC 12V Trigger x 1
RS232 (9pin) x 1 |
| Dimensions(W x H x D) |
428 x 317 x 145 mm |
| HDTV Compatibility |
720@50P/60P, 1080@50i/60i/24p/30p/50p/60p |
| Video Compatibility |
NTSC, PAL, SECAM, YPbPr (480i/480p/576i/576p) |
| Weight |
6.7kg (14.8lbs) |
| Audible Noise |
33/28 dBA (Normal/Economic mode) |
| Power Supply |
100 to 240 VAC |
| Power Consumption |
416W, Standby<1W |
| On-Screen Display Languages |
English/Franais/Deutsch /Italiano/Espaol//////svenska/Nederlands/Trke/ etina/Portugus//polski (17 Languages) |
| Picture Modes |
Cinema Mode/Dynamic Mode/Standard/User 1/User 2/User 3/3D |
| Accessories (Standard) |
Remote Control w/ Battery
Power Cord (by region)
User Manual CD
Quick Start Guide
VGA (D-sub 15pin) Cable |
| Accessories (Optional) |

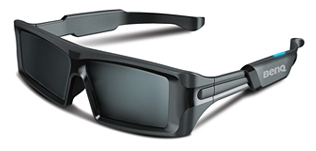

3D Glasses
Spare Lamp Kit
Ceiling Mounting Kit |
| 3D Support and Compatibility |
Frame packing and top bottom format up to 1080p/24Hz, side by side up to 1080/60i, frame sequentical 720p 120Hz
*Please chlick to know more details about 3D support and compatibility. |
|
|
|
|
21/11
|
Addonics UDFH7 1:7 USB HDD/Flash Duplicator - 80W - LCD Display With Functional Control Panel, 8xUSB Type A Female Connectors, Low Noise 80x80mm Fan, Sturdy Metal Frame Construction - Black 1:7 USB HDD / Flash Duplicator (UDFH7)
Overview
This family of USB HDD / Flash duplicator is designed to operate as stand alone appliance for copying data from a single USB drive onto multiple USB drives at one time. The USB drive can be any Flash drive, hard drive, SSD, or flash media via Addonics' family of USB flash reader/writer. Comes in choice of models to duplicate data onto seven, fifteen and thirty-one targets, this USB HDD/Flash duplicator is an ideal tool for distributing contents on flash drive, flash card or USB hard drive. The source and target can be any USB storage or flash media, thus making this family of duplicator a convenient tool for transferring content between hard drive, flash drive and different type of flash media.
About This Model
This 1:7 USB duplicator copies up to as many as seven USB drives at one time from a single USB source. Each USB port is designed to provide adequate power to operate self powered USB storage device including most 2.5" USB hard drives.
There is no computer or software needed to run this USB HDD/Flash duplicator. Simply attach the master USB drive to the source USB port and other USB drives into any target USB ports, press the copy button and the duplication process starts automatically.
Supported USB storage copying options
| From source |
To target
|
model:UDHF7,UDHF15,UDHF31
|
| USB hard drive / SSD |
USB hard drive / SSD |
Yes
|
| USB hard drive / SSD |
USB Flash drive |
|
| USB hard drive / SSD |
ATA Flash via Addonics Pocket UDD (AEPUDDU) |
|
| USB hard drive / SSD |
CF, SD, SDHC, SDXC,MS, MS DUO, MS PRO, MS PRO DUO, MMC,SM (require USB reader/writer, Addonics USB/eSATA DigiDrive or Addonics 9-in-1 Pocket UDD. model AEPUDDU9) |
|
| USB hard drive / SSD |
Micro SATA Drive via Addonics Micro SATA reader/writer (model: MSXUDDEU) |
|
| USB hard drive / SSD |
mSATA memory card, CFast card
(require Addonics family of micro SATA adapter and Micro SATA reader/writer) |
Yes |
| USB Flash drive |
USB hard drive / SSD |
Yes |
| USB Flash drive |
USB Flash drive |
Yes |
| USB Flash drive |
ATA Flash via Addonics Pocket UDD (AEPUDDU) |
Yes |
| USB Flash drive |
CF, SD, SDHC, SDXC,MS, MS DUO, MS PRO, MS PRO DUO, MMC,SM (require USB reader/writer, Addonics USB/eSATA DigiDrive or Addonics 9-in-1 Pocket UDD. model AEPUDDU9) |
Yes |
| USB Flash drive |
Micro SATA Drive via Addonics Micro SATA reader/writer (model: MSXUDDEU) |
Yes |
| USB Flash drive |
mSATA memory card, CFast card
(require Addonics family of micro SATA adapter and Micro SATA reader/writer) |
Yes |
| ATA Flash via Addonics Pocket UDD (AEPUDDU) |
USB hard drive / SSD |
Yes |
| ATA Flash via Addonics Pocket UDD (AEPUDDU) |
USB Flash drive |
Yes |
| ATA Flash via Addonics Pocket UDD (AEPUDDU) |
ATA Flash via Addonics Pocket UDD (AEPUDDU) |
Yes |
| ATA Flash via Addonics Pocket UDD (AEPUDDU) |
CF, SD, SDHC, SDXC,MS, MS DUO, MS PRO, MS PRO DUO, MMC,SM (require USB reader/writer, Addonics USB/eSATA DigiDrive or Addonics 9-in-1 Pocket UDD. model AEPUDDU9) |
Yes |
| ATA Flash via Addonics Pocket UDD (AEPUDDU) |
Micro SATA Drive via Addonics Micro SATA reader/writer (model: MSXUDDEU) |
Yes |
| ATA Flash via Addonics Pocket UDD (AEPUDDU) |
mSATA memory card, CFast card
(require Addonics family of micro SATA adapter and Micro SATA reader/writer) |
Yes |
| CF, SD, SDHC, SDXC,MS, MS DUO, MS PRO, MS PRO DUO, MMC,SM (require USB reader/writer, Addonics USB/eSATA DigiDrive or Addonics 9-in-1 Pocket UDD. model AEPUDDU9) |
USB hard drive / SSD |
Yes |
| CF, SD, SDHC, SDXC,MS, MS DUO, MS PRO, MS PRO DUO, MMC,SM (require USB reader/writer, Addonics USB/eSATA DigiDrive or Addonics 9-in-1 Pocket UDD. model AEPUDDU9) |
USB Flash drive |
Yes |
| CF, SD, SDHC, SDXC,MS, MS DUO, MS PRO, MS PRO DUO, MMC,SM (require USB reader/writer, Addonics USB/eSATA DigiDrive or Addonics 9-in-1 Pocket UDD. model AEPUDDU9) |
ATA Flash via Addonics Pocket UDD (AEPUDDU) |
Yes |
| CF, SD, SDHC, SDXC,MS, MS DUO, MS PRO, MS PRO DUO, MMC,SM (require USB reader/writer, Addonics USB/eSATA DigiDrive or Addonics 9-in-1 Pocket UDD. model AEPUDDU9) |
CF, SD, SDHC, SDXC,MS, MS DUO, MS PRO, MS PRO DUO, MMC,SM (require USB reader/writer, Addonics USB/eSATA DigiDrive or Addonics 9-in-1 Pocket UDD. model AEPUDDU9) |
Yes |
| CF, SD, SDHC, SDXC,MS, MS DUO, MS PRO, MS PRO DUO, MMC,SM (require USB reader/writer, Addonics USB/eSATA DigiDrive or Addonics 9-in-1 Pocket UDD. model AEPUDDU9) |
Micro SATA Drive via Addonics Micro SATA reader/writer (model: MSXUDDEU) |
Yes |
| CF, SD, SDHC, SDXC,MS, MS DUO, MS PRO, MS PRO DUO, MMC,SM (require USB reader/writer, Addonics USB/eSATA DigiDrive or Addonics 9-in-1 Pocket UDD. model AEPUDDU9) |
mSATA memory card, CFast card
(require Addonics family of micro SATA adapter and Micro SATA reader/writer) |
Yes |
| Micro SATA Drive via Addonics Micro SATA reader/writer (model: MSXUDDEU) |
USB hard drive / SSD |
Yes |
| Micro SATA Drive via Addonics Micro SATA reader/writer (model: MSXUDDEU) |
USB Flash drive |
Yes |
| Micro SATA Drive via Addonics Micro SATA reader/writer (model: MSXUDDEU) |
ATA Flash via Addonics Pocket UDD (AEPUDDU) |
Yes |
| Micro SATA Drive via Addonics Micro SATA reader/writer (model: MSXUDDEU) |
CF, SD, SDHC, SDXC,MS, MS DUO, MS PRO, MS PRO DUO, MMC,SM (require USB reader/writer, Addonics USB/eSATA DigiDrive or Addonics 9-in-1 Pocket UDD. model AEPUDDU9) |
Yes |
| Micro SATA Drive via Addonics Micro SATA reader/writer (model: MSXUDDEU) |
Micro SATA Drive via Addonics Micro SATA reader/writer (model: MSXUDDEU) |
Yes |
| Micro SATA Drive via Addonics Micro SATA reader/writer (model: MSXUDDEU) |
mSATA memory card, CFast card
(require Addonics family of micro SATA adapter and Micro SATA reader/writer) |
Yes |
mSATA memory card, CFast card
(require Addonics family of micro SATA adapter and Micro SATA reader/writer) |
USB hard drive / SSD |
Yes |
mSATA memory card, CFast card
(require Addonics family of micro SATA adapter and Micro SATA reader/writer) |
USB Flash drive |
Yes |
mSATA memory card, CFast card
(require Addonics family of micro SATA adapter and Micro SATA reader/writer) |
ATA Flash via Addonics Pocket UDD (AEPUDDU) |
Yes |
mSATA memory card, CFast card
(require Addonics family of micro SATA adapter and Micro SATA reader/writer) |
CF, SD, SDHC, SDXC,MS, MS DUO, MS PRO, MS PRO DUO, MMC,SM (require USB reader/writer, Addonics USB/eSATA DigiDrive or Addonics 9-in-1 Pocket UDD. model AEPUDDU9) |
Yes |
mSATA memory card, CFast card
(require Addonics family of micro SATA adapter and Micro SATA reader/writer) |
Micro SATA Drive via Addonics Micro SATA reader/writer (model: MSXUDDEU) |
Yes |
mSATA memory card, CFast card
(require Addonics family of micro SATA adapter and Micro SATA reader/writer) |
mSATA memory card, CFast card
(require Addonics family of micro SATA adapter and Micro SATA reader/writer) |
Yes |
Features:
- Copy from one USB drive to as many as seven USB drives at one time
- Support following USB storage devices: hard drive, SSD, flash drive
- Support following flash media:
- CF, SD, SDHC, SDXC, MS. MS PRO, MS PRO DUO, MMC, SM via following Addonics flash reader/writer (Mini DigiDrive IV, eSATA/USB DigiDrive, Pocket UDD 9)
- ATA Flash, PCMCIA hard drive via Addonics Pocket UDD and Pocket UDD II
- Micro SATA hard drive via Addonics Micro SATA UDD
- CFast card, mSATA flash card - via 1.8" micro SATA adapter and Micro SATA UDD
- Stand alone appliance, no computer or software required
- Compatible with USB 3.0 / 2.0
- Support any type of file format, including encrypted data
- Option to automatically encrypted data copied onto any USB target drive byadding the AddonicsCipherUSBinline to the target USB port
- Maximum transfer rate* ~ 33 MB/sec
- Maximum drive size or media capacity 2TB
- Drive sanitization options:
- QUICK ERASE - erase the file system (applies to FAT32 only)
- Full ERASE - set all the data blocks to 00
- DoD OVERWRITE - the duplicator writes a string of pattern onto each data blockaccording to the specification in5220.22-M,the DoD standard for drive sanitizationand. This overwrite process is repeated three times
- LCM control module provides a rich set of robustmenu options
Specifications:
- Writing mode : Sector to Sector
- Maximum transfer rate ~ 33 MB/sec
- Sturdy metal frame construction
- Eight USB type A female connectors
- LCD display with functional control panel
- Low noise 80 x 80 mm high CFM ball bearing cooling fan
- Integrated 80W 110/240 auto-sense power supply
- Compact size(W x D x H)- 7.48 x 10.63 x 6.5 in. (190 x 270 x 16.5 mm.)
- Weight: ~ 7.45 lb. (3.38 Kg.)
- Operating environment: 0 - 50 degree C, 15% - 90% RH
- Storage environment: (- 20) - 65 degree C, 0% - 95% RH non-condensing
|
|
|
|
Previous Page
|
Next Page
|
|
