MX815ST
Ultra-Sharp Images in a Short Distance
Designed for disruption-free learning in small-sized classrooms, the MX815ST offers a 78” XGA picture in only 1 meter with a 0.6 ultra short-throw ratio. Together with 13000:1 ultra-sharp contrast ratio and 2700 ANSI lumen brightness, this projector has the most dynamic image quality to offer!
Features:
world-leading smarteco technology for a greener environment
as the first dlp brand to incorporate philips’ imagecare technology into its projector lamp system, benq has taken a further leap, developing its own smarteco technology to perfect what dlp can do for energy saving in the 21st century classroom. built with this brand new invention, the mx815st brings together uncompromised brightness, exquisite picture quality and optimized lamp life through innovative features.
eco blank mode
the eco blank mode allows teachers to blank the projection screen whenever they need to direct their students’ focus back on them – or simply when the projector is not in use. when activated, this special feature dims the lamp power automatically, lowering the total power consumption by up to 70%.
full power on
100% lamp power
attention on the projection screen
eco blank mode on
30% lamp power at the lowest
attention on the class instructor
smarteco mode
the smarteco mode, which cleverly adjusts the lamp power to maximize power saving by delivering the best contrast and brightness performance using only as much light as needed.
normal mode
296w projector power consumption by average
smart eco mode
enhanced details in darkened scenes
163w projector power consumption by average
no source detected mode
the automatic switch to eco blank mode after the projector is turned on for over three minutes without a display source, eliminating unnecessary energy waste and prolonging the life of the projector lamp.
source detected
100% lamp power
no source detected
30% lamp power
long lamp life at up to 5000 hours
enjoy a lamp life performance of up to 5000 hours in eco mode– longer lamp life expectancy of average projector lamps on the market! this certainly lowers the number of lamp changes and keeps all maintenance to a minimum.
lamp life results will vary depending on environmental conditions and usage.

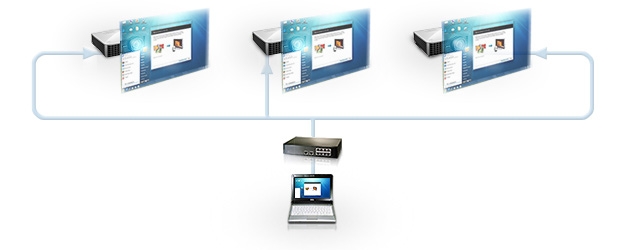

lan control with crestron and pj-link
lan control is designed to help it managers perform day-to-day projector maintenance and repair tasks efficiently and effectively – offering them full access and control over every projector directly from their workstations. the mx815st offers seamless support for the crestron and pj-link lan control system.
the perfect sound solution

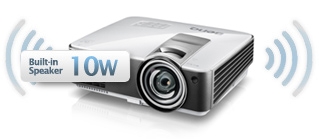

built-in 10w big audio power
the mx815st features one built-in 10w speaker to help enrich every lesson with top quality audio performances.
closed captioning
display subtitles in video content without the need for an external closed-captioning device with the mx815st. it's perfect for viewing in educational settings such as language classes where a transcript of onscreen dialog is desirable.
ecofacts label
ecofacts can tell you how eco-friendly benq products are!
development of eco-friendly products, benq doesn't just want to comply with green regulations passively, but also to actively develop eco-friendly products!
ecofacts declares benq's greatest efforts on the replacement of hazardous substances, material selection, packaging design, energy-saving design and other aspects of the products.
Arsenic-free optical glass
BFR/PVC-free casing plastics
PVC-free plastic packaging
Specifications:
| Projection System |
DLP |
| Native Resolution |
XGA(1024 x 768) |
| Brightness* |
2700 ANSI lumens |
| Contrast Ratio |
13000 : 1 |
| Display Color |
1.07 Billion Colors |
| Lens |
F=2.6, f=6.9mm |
| Aspect Ratio |
Native 4:3 (5 aspect ratio selectable) |
| Throw Ratio |
0.61 ([email protected]) |
| Image Size (Diagonal) |
40~300 |
| Zoom Ratio |
Fixed |
| Lamp Type |
210W |
| Lamp(Normal/Economic Mode/SmartEco Mode)* |
4000/5000/6500 hours |
| Keystone Adjustment |
1D, Vertical 40 degrees |
| Projection Offset |
130% 5% |
| Resolution Support |
VGA(640 x 480) to UXGA(1600 x 1200) |
| Horizontal Frequency |
31K~102KHz |
| Vertical Scan Rate |
23~120Hz |
| Interface |
Computer in (D-sub 15pin) x 2 (Share with component video)
Monitor out (D-sub 15pin) x 1
HDMI (v1.3) x 1
Composite Video in (RCA) x 1
S-Video in (Mini DIN 4pin) x 1
Audio in (Mini Jack) x 2
Audio L/R in (RCA) x 1
Audio out (Mini Jack) x 1
Speaker 10W x 1
LAN (RJ45) x 1
USB (Mini B) x1 (Download & page up/down)
RS232 (DB-9pin) x 1
IR Receiver x2 |
| Dimensions(W x H x D) |
287.3x114.4x232.6mm |
| HDTV Compatibility |
480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Video Compatibility |
NTSC, PAL, SECAM |
| Weight |
2.8kg (6.2lbs) |
| Audible Noise |
34/27 dBA (Normal/Economic mode) |
| Power Supply |
AC 100 to 240 V, 50/60 Hz |
| Power Consumption |
270W, Standby<1W |
| On-Screen Display Languages |
Arabic/Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese (28 Languages) |
| Picture Modes |
Dynamic/Presentation/sRGB/Cinema/User 1/User 2 |
| Accessories (Standard) |
Remote Control w/ Battery
Power Cord (by region)
User Manual CD/Quick Start Guide
Warranty Card (by region)
VGA(D-sub 15pin) Cable |
| Accessories (Optional) |
Presentation Plus
Spare Lamp Kit
3D Glasses
Ceiling Mount
Wall Mount 0.6 T/R |
| 3D Support and Compatibility |
PC: 120Hz Frame Sequential 3D for resolutions up to XGA,
PC: 60Hz Top-bottom 3D for resolutions up to SXGA+
Video: 60Hz Frame Sequential 3D for resolutions up to 480i
*Please click to know more details about 3D Support and Compatibility. |
