07/08

GeoVision GV-MDR520 5 Megapixel H.264 Mini Fixed Rugged Dome - 1/2.5" Progressive Scan CMOS, Megapixel Lens, IP66 Rating, Built-In Microphone, Motion Detection, Memory Card Slot, IK7 Rating - White


  • 1/2.5" progressive scan CMOS
  • Megapixel lens
  • Dual video streams: Stream 1 from H.264 and MJPEG; Stream 2 from H.264, MPEG4 and MJPEG
  • Up to 10 frames per second in megapixel resolution (2560 x 1920)
  • IK7 rating
  • IP66rating
  • 3-axis mechanism: pan (-45 ~ +45), tilt (0 ~ 90), rotate (0 ~ 360)Built-in microphone
  • Memory Card Slot
  • Motion detection
  • Tampering alarm
  • Privacy mask
  • Text overlay
  • IP address filtering
  • Endurable to low environment temperatures
  • (-20C ~ 50C / -4F ~ 122F)
  • Supports iPhone, iPad, Android & 3GPP
  • 31 languages on Web interface
* No memory card slot & local storage function for Argentina

Active Tampering Alarm

Tampered


Focus Change


Camera Shift


Specifications:

Camera
Image Sensor 1/2.5" progressive scan CMOS
Picture Elements 2560 (H) x 1920 (V)
Minimum Illumination Color
B/W		 0.5 Lux at F/2.8
Shutter Speed Automatic, Manual (1/5 ~ 1/8000 sec)
White Balance Automatic, Manual (2800K ~ 8500K)
Gain Control Automatic
S/N Ratio 50 dB
BLC Yes
Lens
Megapixel Yes
Day/Night Yes (Electronic)
Iris Fixed
Focal Length 2.54 mm
Maximum Aperture F/2.8
Mount M12, Pitch 0.5 mm
Image Format 1/2.5"
Operation Focus No
Zoom No
Iris Fixed
Operation
Video Compression H.264, MPEG4 and MJPEG
Video Streaming Stream 1 from H.264 or MJPEG;Stream 2 from H.264, MPEG4 or MJPEG
Frame Rate 10 fps at 2560 x 1920
* The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes).
Image Setting Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker-less 50/60 Hz, Image Orientation, Shutter Speed, Backlight Compensation, D/N sensitivity, WDR, Defog
Audio Compression G.711, AAC (16 kHz / 16 bit)
* AAC is only supported by GV-System V8.5 or later.
Video Resolution
Main Stream 4:3 2560 x 1920, 2048 x 1536, 1600 x 1200, 1280 x 960, 640 x 480, 320 x 240
16:9 1920 x 1080, 1280 x 720, 640 x 360, 448 x 252
5:4 1280 x 1024, 640 x 512, 320 x 256
Sub Stream 4:3 640 x 480, 320 x 240
16:9 640 x 360, 448 x 252
5:4 640 x 512, 320 x 256
Network
Interface 10/100 Ethernet
Ethernet Protocol HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, RTSP, PSIA, SNMP, QoS (DSCP)
Mechanical
Lens Mounting M12, Pitch 0.5 mm
Temperature Detector Yes
Camera Angle Adjustment Pan -45 ~ 45
Tilt 0 ~ 90
Rotate 0 ~ 360
Connectors Power PoE
Ethernet Ethernet (10/100 Base-T), RJ-45
Audio Built-in microphone
Local Storage Micro SD / SDHC / SDXC memory card slot (for Class 6 card or above)
LED Indicator 4 LEDs: Link, ACT, Power, Status
General
Operating Temperature -20 C ~ 50 C / -4 F ~ 122 F
Humidity 10% to 90% (no condensation)
Power Source PoE
Max. Power Consumption 4.2 W
Dimensions Camera Body 115 x 59.2 mm / 4.5 x 2.3 in
Cable Length 1.054 m / 4.15 ft
Max. Cable Diameter 6.2 mm / 0.24 in
Max. Connector Diameter 30 mm / 1.18 in
Weight 568 g / 1.3 lb
Protection Classification IP66
Vandal Resistance IK7
Regulatory CE, FCC, C-Tick, EN50155, RoHS compliant
Power over Ethernet
PoE Standard IEEE 802.3af Power over Ethernet / PSE
PoE Power Supply Type End-Span
PoE Power Output Per Port 48V DC, 350mA. Max. 15.4 watts
Web Interface
Installation Management Web-based configuration
Maintenance Firmware upgrade through Web Browser or Utility
Access from Web Browser Camera live view, video recording, change video quality, bandwidth control, image snapshot, digital I/O control, audio, Wide Angle Lens Dewarping, Picture in Picture, Picture and Picture, Privacy Mask, Text Overlay
Language Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian / Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish
Applications
Network Storage GV-NVR, GV-System, GV-Backup Center, GV-Recording Server
* GV-Backup Center and GV-Recording Server are supported in V1.08 or later
Smart Device Access - GV-Eye for Android smartphone, tablet, iPhone, and iPod Touch
- GV-Eye HD for iPad
Live Viewing IE , GV-MultiView
CMS Server support GV-Control Center, GV-Center V2, GV-VSM
Link contains in-depth information about this product Link contains a picture of this product    NA
07/08

GeoVision GV-MDR320 3 Megapixel H.264 Mini Fixed Rugged Dome - 1/2.5" Progressive Scan CMOS, Megapixel Lens, IP66 Rating, Built-In Microphone, Motion Detection, Memory Card Slot, IK7 Rating - White


  • 1/2.5" progressive scan CMOS
  • Megapixel lens
  • Dual video streams: Stream 1 from H.264 and MJPEG; Stream 2 from H.264, MPEG4 and MJPEG
  • Up to 20 frames per second in megapixel resolution (2048 x 1536)
  • IK7 rating
  • IP66 rating
  • 3-axis mechanism: pan (-45 ~ +45), tilt (0 ~ 90), rotate (0 ~ 360)
  • Built-in microphone
  • Memory Card Slot
  • Motion detection
  • Tampering alarm
  • Privacy mask
  • Text overlay
  • IP address filtering
  • Endurable to low environment temperatures
  • (-20C ~ 50C / -4F ~ 122F)
  • Supports iPhone, iPad, Android & 3GPP
  • 31 languages on Web interface
  • * No memory card slot & local storage function for Argentina

Camera
Image Sensor 1/2.5" progressive scan CMOS
Picture Elements 2048 (H) x 1536 (V)
Minimum Illumination Color
B/W		 0.5 Lux at F/2.8
Shutter Speed Automatic, Manual (1/5 ~ 1/8000 sec)
White Balance Automatic, Manual (2800K ~ 8500K)
Gain Control Automatic
S/N Ratio 50 dB
BLC Yes
Lens
Megapixel Yes
Day/Night Yes (Electronic)
Iris Fixed
Focal Length 2.54 mm
Maximum Aperture F/2.8
Mount M12, Pitch 0.5 mm
Image Format 1/2.5"
Operation Focus No
Zoom No
Iris Fixed
Operation
Video Compression H.264, MPEG4 and MJPEG
Video Streaming Stream 1 from H.264 or MJPEG;Stream 2 from H.264, MPEG4 or MJPEG
Frame Rate 20 fps at 2048 x 1536
* The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes).
Image Setting Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker-less 50/60 Hz, Image Orientation, Shutter Speed, Backlight Compensation, D/N sensitivity, WDR, Defog
Audio Compression G.711, AAC (16 kHz / 16 bit)
* AAC is only supported by GV-System V8.5 or later.
Video Resolution
Main Stream 4:3 2048 x 1536, 1600 x 1200, 1280 x 960, 640 x 480, 320 x 240
16:9 1920 x 1080, 1280 x 720, 640 x 360, 448 x 252
5:4 1280 x 1024, 640 x 512, 320 x 256
Sub Stream 4:3 640 x 480, 320 x 240
16:9 640 x 360, 448 x 252
5:4 640 x 512, 320 x 256
Network
Interface 10/100 Ethernet
Ethernet Protocol HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, RTSP, PSIA, SNMP, QoS (DSCP)
Mechanical
Lens Mounting M12, Pitch 0.5 mm
Temperature Detector Yes
Camera Angle Adjustment Pan -45 ~ 45
Tilt 0 ~ 90
Rotate 0 ~ 360
Connectors Power PoE
Ethernet Ethernet (10/100 Base-T), RJ-45
Audio Built-in microphone
Local Storage Micro SD / SDHC / SDXC memory card slot (for Class 6 card or above)
LED Indicator 4 LEDs: Link, ACT, Power, Status
General
Operating Temperature -20 C ~ 50 C / -4 F ~ 122 F
Humidity 10% to 90% (no condensation)
Power Source PoE
Max. Power Consumption 4.2 W
Dimensions Camera Body 115 x 59.2 mm / 4.5 x 2.3 in
Cable Length 1.054 m / 4.15 ft
Max. Cable Diameter 6.2 mm / 0.24 in
Max. Connector Diameter 30 mm / 1.18 in
Weight 568 g / 1.3 lb
Protection Classification IP66
Vandal Resistance IK7
Regulatory CE, FCC, C-Tick, EN50155, RoHS compliant
Power over Ethernet
PoE Standard IEEE 802.3af Power over Ethernet / PSE
PoE Power Supply Type End-Span
PoE Power Output Per Port 48V DC, 350mA. Max. 15.4 watts
Web Interface
Installation Management Web-based configuration
Maintenance Firmware upgrade through Web Browser or Utility
Access from Web Browser Camera live view, video recording, change video quality, bandwidth control, image snapshot, digital I/O control, audio, Wide Angle Lens Dewarping, Picture in Picture, Picture and Picture, Privacy Mask, Text Overlay
Language Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian / Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish
Applications
Network Storage GV-NVR, GV-System, GV-Backup Center, GV-Recording Server
* GV-Backup Center and GV-Recording Server are supported in V1.08 or later
Smart Device Access - GV-Eye for Android smartphone, tablet, iPhone, and iPod Touch
- GV-Eye HD for iPad
Live Viewing IE , GV-MultiView
CMS Server support GV-Control Center, GV-Center V2, GV-VSM
Link contains in-depth information about this product Link contains a picture of this product    NA
07/08

GeoVision GV-MDR220 2 Megapixel H.264 Mini Fixed Rugged Dome - 1/2.5" CMOS, Megapixel Lens, IP66 Rating, Built-In Microphone, Motion Detection, Memory Card Slot, IK7 Rating - White


  • 1/2.5" progressive scan CMOS
  • Megapixel lens
  • Dual video streams: Stream 1 from H.264 and MJPEG; Stream 2 from H.264, MPEG4 and MJPEG
  • Up to 30 frames per second in megapixel resolution (1920 x 1080)
  • IK7 rating
  • IP66 rating
  • 3-axis mechanism: pan (-45° ~ +45°), tilt (0° ~ 90°), rotate (0° ~ 360°)
  • Built-in microphone
  • Memory Card Slot
  • Motion detection
  • Tampering alarm
  • Privacy mask
  • Text overlay
  • IP address filtering
  • Endurable to low environment temperatures
  • (-20°C ~ 50°C / -4°F ~ 122°F)
  • Supports iPhone, iPad, Android & 3GPP
  • 31 languages on Web interface
  • * No memory card slot & local storage function for Argentina

Active Tampering Alarm

Tampered


Focus Change


Camera Shift


Specifications:

Camera
Image Sensor 1/2.5" progressive scan CMOS
Picture Elements 1920 (H) x 1080 (V)
Minimum Illumination Color
B/W		 0.5 Lux at F/2.8
Shutter Speed Automatic, Manual (1/5 ~ 1/8000 sec)
White Balance Automatic, Manual (2800K ~ 8500K)
Gain Control Automatic
S/N Ratio 50 dB
BLC Yes
Lens
Megapixel Yes
Day/Night Yes (Electronic)
Iris Fixed
Focal Length 2.54 mm
Maximum Aperture F/2.8
Mount M12, Pitch 0.5 mm
Image Format 1/2.5"
Operation Focus No
Zoom No
Iris Fixed
Operation
Video Compression H.264, MPEG4 and MJPEG
Video Streaming Stream 1 from H.264 or MJPEG;Stream 2 from H.264, MPEG4 or MJPEG
Frame Rate 30 fps at 1920 x 1080
* The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes).
Image Setting Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker-less 50/60 Hz, Image Orientation, Shutter Speed, Backlight Compensation, D/N sensitivity, WDR, Defog
Audio Compression G.711, AAC (16 kHz / 16 bit)
* AAC is only supported by GV-System V8.5 or later.
Video Resolution
Main Stream 4:3 1600 x 1200, 1280 x 960, 640 x 480, 320 x 240
16:9 1920 x 1080, 1280 x 720, 640 x 360, 448 x 252
5:4 1280 x 1024, 640 x 512, 320 x 256
Sub Stream 4:3 640 x 480, 320 x 240
16:9 640 x 360, 448 x 252
5:4 640 x 512, 320 x 256
Network
Interface 10/100 Ethernet
Ethernet Protocol HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, RTSP, PSIA, SNMP, QoS (DSCP)
Mechanical
Lens Mounting M12, Pitch 0.5 mm
Temperature Detector Yes
Camera Angle Adjustment Pan -45 ~ 45
Tilt 0 ~ 90
Rotate 0 ~ 360
Connectors Power PoE
Ethernet Ethernet (10/100 Base-T), RJ-45
Audio Built-in microphone
Local Storage Micro SD / SDHC / SDXC memory card slot (for Class 6 card or above)
LED Indicator 4 LEDs: Link, ACT, Power, Status
General
Operating Temperature -20 C ~ 50 C / -4 F ~ 122 F
Humidity 10% to 90% (no condensation)
Power Source PoE
Max. Power Consumption 4.1 W
Dimensions Camera Body 115 x 59.2 mm / 4.5 x 2.3 in
Cable Length 1.054 m / 4.15 ft
Max. Cable Diameter 6.2 mm / 0.24 in
Max. Connector Diameter 30 mm / 1.18 in
Weight 568 g / 1.3 lb
Protection Classification IP66
Vandal Resistance IK7
Regulatory CE, FCC, C-Tick, EN50155, RoHS compliant
Power over Ethernet
PoE Standard IEEE 802.3af Power over Ethernet / PSE
PoE Power Supply Type End-Span
PoE Power Output Per Port 48V DC, 350mA. Max. 15.4 watts
Web Interface
Installation Management Web-based configuration
Maintenance Firmware upgrade through Web Browser or Utility
Access from Web Browser Camera live view, video recording, change video quality, bandwidth control, image snapshot, digital I/O control, audio, Wide Angle Lens Dewarping, Picture in Picture, Picture and Picture, Privacy Mask, Text Overlay
Language Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian / Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish
Applications
Network Storage GV-NVR, GV-System, GV-Backup Center, GV-Recording Server
* GV-Backup Center and GV-Recording Server are supported in V1.08 or later
Smart Device Access - GV-Eye for Android smartphone, tablet, iPhone, and iPod Touch
- GV-Eye HD for iPad
Live Viewing IE , GV-MultiView
CMS Server support GV-Control Center, GV-Center V2, GV-VSM
Link contains in-depth information about this product Link contains a picture of this product    NA
07/08

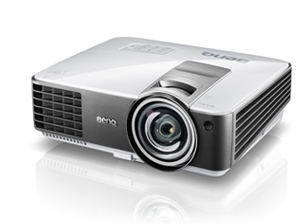

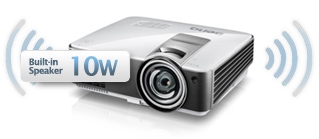

BenQ MX816ST Ultra-Sharp DLP Projector - 1024x768, 3000 Lumens, 13000;1, 6500Hrs, VGA, HDMI, RS232, USB, LAN, Speakers

MX816ST


Ultra-Sharp Images in a Short Distance

Designed for disruption-free learning in small-sized classrooms, the MX816ST offers a 78” XGA picture in only 1 meter with a 0.6 ultra short-throw ratio. Together with 13000:1 ultra-sharp contrast ratio and 2700 ANSI lumen brightness, this projector has the most dynamic image quality to offer!

Features


world-leading smarteco technology for a greener environment

as the first dlp brand to incorporate philips’ imagecare technology into its projector lamp system, benq has taken a further leap, developing its own smarteco technology to perfect what dlp can do for energy saving in the 21st century classroom. built with this brand new invention, the mx816st brings together uncompromised brightness, exquisite picture quality and optimized lamp life through innovative features.


eco blank mode

the eco blank mode allows teachers to blank the projection screen whenever they need to direct their students’ focus back on them – or simply when the projector is not in use. when activated, this special feature dims the lamp power automatically, lowering the total power consumption by up to 70%.


full power on
100% lamp power
attention on the projection screen


eco blank mode on
30% lamp power at the lowest
attention on the class instructor

smarteco mode

the smarteco mode, which cleverly adjusts the lamp power to maximize power saving by delivering the best contrast and brightness performance using only as much light as needed.


normal mode
296w projector power consumption by average


smart eco mode
enhanced details in darkened scenes
163w projector power consumption by average

no source detected mode

the automatic switch to eco blank mode after the projector is turned on for over three minutes without a display source, eliminating unnecessary energy waste and prolonging the life of the projector lamp.


source detected
100% lamp power


no source detected
30% lamp power


long lamp life at up to 5000 hours

enjoy a lamp life performance of up to 5000 hours in eco mode– longer lamp life expectancy of average projector lamps on the market! this certainly lowers the number of lamp changes and keeps all maintenance to a minimum.

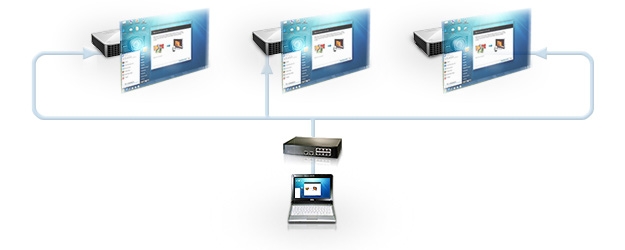

lan control with crestron and pj-link

lan control is designed to help it managers perform day-to-day projector maintenance and repair tasks efficiently and effectively – offering them full access and control over every projector directly from their workstations. the mx816st offers seamless support for the crestron and pj-link lan control system.


the perfect sound solution

built-in 10w big audio power

the mx816st features one built-in 10w speaker to help enrich every lesson with top quality audio performances.



closed captioning

display subtitles in video content without the need for an external closed-captioning device with the mx816st. it's perfect for viewing in educational settings such as language classes where a transcript of onscreen dialog is desirable.

ecofacts label

ecofacts can tell you how eco-friendly benq products are!

development of eco-friendly products, benq doesn't just want to comply with green regulations passively, but also to actively develop eco-friendly products!

ecofacts declares benq's greatest efforts on the replacement of hazardous substances, material selection, packaging design, energy-saving design and other aspects of the products.

Specifications:
Projection System DLP
Native Resolution XGA(1024 x 768)
Brightness* 3000 ANSI lumens
Contrast Ratio 13000 : 1
Display Color 1.07 Billion Colors
Lens F=2.6, f=6.9mm
Aspect Ratio Native 4:3 (5 aspect ratio selectable)
Throw Ratio 0.61 ([email protected])
Image Size (Diagonal) 40~300
Zoom Ratio Fixed
Lamp Type 210W
Lamp(Normal/Economic Mode/SmartEco Mode)* 4000/5000/6500 hours
Keystone Adjustment 1D, Vertical 40 degrees
Projection Offset 130% 5%
Resolution Support VGA(640 x 480) to UXGA(1600 x 1200)
Horizontal Frequency 31K~102KHz
Vertical Scan Rate 23~120Hz
Interface Computer in (D-sub 15pin) x 2 (Share with component video)
Monitor out (D-sub 15pin) x 1
HDMI (v1.3) x 1
Composite Video in (RCA) x 1
S-Video in (Mini DIN 4pin) x 1
Audio in (Mini Jack) x 2
Audio L/R in (RCA) x 1
Audio out (Mini Jack) x 1
Speaker 10W x 1
LAN (RJ45) x 1 (LAN Control)
USB (Type B) x1 (Download & page up/down)
RS232 (DB-9pin) x 1
IR Receiver x2
Dimensions(W x H x D) 287.3x114.4x232.6mm
HDTV Compatibility 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Video Compatibility NTSC, PAL, SECAM
Weight 2.8kg (6.17lbs)
Audible Noise 33/29 dBA (Normal/Economic mode)
Power Supply AC 100 to 240 V, 50/60 Hz
Power Consumption 270W, Standby<1W
On-Screen Display Languages Arabic/Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese (28 Languages)
Picture Modes Dynamic/Presentation/sRGB/Cinema/User 1/User 2
Accessories (Standard) Remote Control w/ Battery
Power Cord (by region)
User Manual CD/Quick Start Guide
Warranty Card (by region)
VGA(D-sub 15pin) Cable
Accessories (Optional) Carry bag
Spare Lamp Kit
3D Glasses
Ceiling Mount
Wall Mount 0.6 T/R
3D Support and Compatibility PC: 120Hz Frame Sequential 3D for resolutions up to WXGA,
PC: 60Hz Top-bottom 3D for resolutions up to SXGA+
Video: 60Hz Frame Sequential 3D for resolutions up to 480i
*Please click to know more details about 3D Support and Compatibility.
Link contains in-depth information about this product Link contains a picture of this product    NA
07/08

Liquid Image 727BLK Ego Series Mountable Camera - Black


- HD 1080p, WiFi
Liquid Image Ego Series- Mountable Camera HD1080P Wifi - Blk
 Link contains in-depth information about this product Link contains a picture of this product    NA
07/08

View Sonic Replacement Lamp - To Suit Viewsonic PJD5112, PJD6211, PJD6221, PJD6211P Projectors

RLC-050

Replacement Lamp

Features

PJD5112, PJD6211, PJD6221, and PJD6211P Replacement Lamp Module


 Link contains in-depth information about this product Link contains a picture of this product    NA
Previous Page Next Page
