Using advanced USB 3.0 technology, the extremely fast JetFlash 760/770 allows you to transfer, store and share numerous or large files quicker than ever before. For added style and convenience, a brightly-colored sliding USB connector not only protects the drive and its contents, but also ensures there is no cap to lose.



• Capless design with a sliding USB connector
• Fully compatible with SuperSpeed USB 3.0 & Hi-Speed USB 2.0
• Easy Plug and Play installation
• USB powered. No external power or battery needed
• Offers a free download of Transcend Elite data management tools
• Limited lifetime warranty*



*Please access www.transcend-info.com/warranty for more information about Transcend Warranty Policy.



** 1GB=1,000,000,000 Bytes. In OS system, it would be displayed as 1,000,000,000 Bytes/1024/1024/1024 = 0.93GB. A certain portion (1~3%) of the storage capacity might be reserved for firmware and maintenance use.
*** All brand names are registered trademarks of their respective owners. Specifications subject to change without notice. Please see Transcend website for warranty details and limitations.



Capacity	JF760: 4GB, 8GB, 16GB, 32GB, JF770: 8GB, 16GB, 32GB
Size	69.6mm x 20.9 mm x 8.9 mm
Weight	12g
Interface	USB 3.0 (backwards compatible with USB 2.0)
Certificates	CE, FCC, BSMI
*Note	Speed may vary due to host hardware, software and usage.

JetFlash®760



Using advanced USB 3.0 technology, the extremely fast JetFlash 760/770 allows you to transfer, store and share numerous or large files quicker than ever before. For added style and convenience, a brightly-colored sliding USB connector not only protects the drive and its contents, but also ensures there is no cap to lose.



Please access www.transcend-info.com/warranty for more information about Transcend Warranty Policy.



** 1GB=1,000,000,000 Bytes. In OS system, it would be displayed as 1,000,000,000 Bytes/1024/1024/1024 = 0.93GB. A certain portion (1~3%) of the storage capacity might be reserved for firmware and maintenance use.
*** All brand names are registered trademarks of their respective owners. Specifications subject to change without notice. Please see Transcend website for warranty details and limitations.



Capacity	JF760: 4GB, 8GB, 16GB, 32GB, JF770: 8GB, 16GB, 32GB
Size	69.6mm x 20.9 mm x 8.9 mm
Weight	12g
Interface	USB 3.0 (backwards compatible with USB 2.0)
Certificates	CE, FCC, BSMI
*Note	Speed may vary due to host hardware, software and usage.



Using advanced USB 3.0 technology, the extremely fast JetFlash 760/770 allows you to transfer, store and share numerous or large files quicker than ever before. For added style and convenience, a brightly-colored sliding USB connector not only protects the drive and its contents, but also ensures there is no cap to lose.



Capless design with a sliding USB connector
Fully compatible with SuperSpeed USB 3.0 & Hi-Speed USB 2.0
Easy Plug and Play installation
USB powered. No external power or battery needed
Offers a free download of Transcend Elite data management tools
Limited lifetime warranty*



*Please access www.transcend-info.com/warranty for more information about Transcend Warranty Policy.



** 1GB=1,000,000,000 Bytes. In OS system, it would be displayed as 1,000,000,000 Bytes/1024/1024/1024 = 0.93GB. A certain portion (1~3%) of the storage capacity might be reserved for firmware and maintenance use.
*** All brand names are registered trademarks of their respective owners. Specifications subject to change without notice. Please see Transcend website for warranty details and limitations.



Capacity	JF760: 4GB, 8GB, 16GB, 32GB, JF770: 8GB, 16GB, 32GB
Size	69.6mm x 20.9 mm x 8.9 mm
Weight	12g
Interface	USB 3.0 (backwards compatible with USB 2.0)
Certificates	CE, FCC, BSMI
*Note	Speed may vary due to host hardware, software and usage.

LCD	Type 0.65" Digital Micromirror Device (DLP)   Resolution 1920x1080   Lens 1.2x (Manually)
Display	Size     Throw Distance 1.5 - 5m   Lamp 2000 hour rating   Brightness 1600 Lumens Contrast Ratio 100000:1   Keystone Vertical digital keystone correction: +/ 30degrees   Correction     Aspect Ratio 16:9 (native)
Audio	Speakers     10W *2
Input Signal	Computer and Video     Sync      Frequency
Compatibility	PC       Mac
Connector	RGB Input       RGB Output       Composite Video     RCA S Video       Component       Digital     HDMI x2 Audio       Control     RS232c USB       Network
Power	Voltage     Consumption
Operating Conditions	Temperature Altitude
Dimensions	Physical   32.1(cm) x 11.0(cm)  x 24.7(cm) Packaging
Weight	Net   4 kg   Gross
Regulations

Short Throw Networkable WXGA Projector Short Distance–Big Presentations



The ViewSonic® PJD6683ws is an advanced networkable, wide format, short throw DLP® projector ideal for classroom and corporate environments. With its short throw lens, the projector can project a 90" image from only 3 feet away. Having the projector close to the screen eliminates cast shadows and blinding light for presenters. PJD6683ws delivers amazingly bright, clear widescreen with WXGA 1280x800 native resolution, 3,000 ANSI lumens and 15,000:1 high contrast ratio, while BrilliantColor™ technology provides vivid, vibrant colors. This networkable projector is equipped with Crestron® e-Control™ and RoomView Express™, making it easy for IT managers to monitor and control the projector from their workstations. In addition, the projector is AMX® Device Discovery™ certified which enhances it to be a robust network projector for any size of campus or enterprise. With the new DynamicEco™ technology, presenters can control audiences’ focus by dimming the brightness down to 30% with a simple click of the remote. The PJD6683ws also comes standard with multiple PC and video inputs including HDMI, 120Hz/3D-Ready and 10w integrated speaker. The PJD6683ws widescreen, networkable, short throw WXGA DLP® projector delivers outstanding projection performance for both education and businesses.







Using less watts per lumen than other comparable projectors. And with a 15,000:1 dynamic contrast ratio, it´s the bright choice for education and business.





Classrooms - lectures, videos, presentations, lesson plans and even auditorium presentations.
Business - conference rooms, meeting rooms, boardrooms.
Small area with space constraint





Native 1280x800 resolution ideal for HD 720p and widescreen brilliance



1280x800 (WXGA) resolution offers a tremendous degree of flexibility and compatibility. Whether you are connecting your widescreen notebook in a conference room, or watching the latest HD 720p / 1080p multimedia content in a classroom, you are guaranteed a distortion-free image with a matching aspect ratio.







Advanced DLP (Digital Light Processing) technology allows you to experience crystal clear, razor-sharp and lifelike images with the same DLP technology that Hollywood relies on. For fast action, the response time is also on the order of 1,000 times faster than similiar LCD based projectors. And with no air filters to clean or change, the latest generation of DLP based projectors from ViewSonic offer amongst the lowest TCO (total cost of ownership) in the industry.







Color is one of the most important characteristics of a good projection system, and the latest BrilliantColor technology delivers stunning all-digital clarity with lifelike color, sharp graphics and outstanding video. The sophisticated 6-segment color wheel enhances the yellow color performance that is key to accurate and vivid color reproduction. With multi-color processing, colors are richer and more vibrant with exquisite and precise detail.

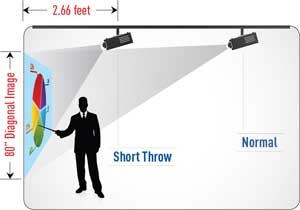

No space constraints- Projector large images from half the distance of a standard throw projector slowing flexibility for any room size
No shadows- No distracting shadows on the projected image since the light source is much closer to the screen
No blinding lights- Allows presenters to focus on their presentation and audience without eyestrain and glare
No reflective glare from whiteboards- Many classrooms project on traditional or interactive whiteboards. Over time, traditional projectors can create hotspots on the board – giving off a distracting glare and reducing the visibility of the presentation

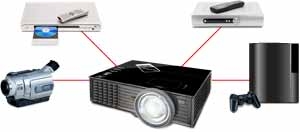

Delivers the best high-definition video and audio quality without losing any degradation. It’s perfect for connecting to any high definition sources like HD multimedia files, Blu-ray DVD players, HD gaming consoles and HD receivers.

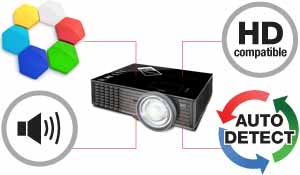

6-segment color wheel design improves color performance and accuracy to provide natural, vivid colors
Auto source detection senses the source input and syncs with your computer automatically
Supports wide range of digital signals from SD (480i/480p) to HD (720p/1080i/1080p)
Integrated speaker ideal for multimedia applications, videos, audio-enabled presentations

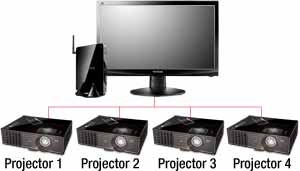

Take advantage of network control and monitoring capabilities to help IT personnel managing projectors efficiently and effectively – from having full remote access and control to saving valuable time and money. The ViewSonic PJD6683ws offers seamless integration and full support for Crestron and AMX control systems.

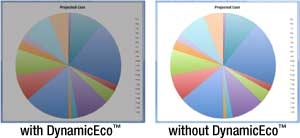

Take command of presentations by dimming the screen image - up to 70% - with DynamicEco button on the remote. With a click of the remote, the presenters are able to easily control audience focus by dimming the projected image, or when the projector is not in use. When DynamicEco is activated, it instantly reduces the lamp power consumption up to 70% - a great energy-saving design for low total cost of ownership (TCO).









With support for TI´s DLP Link technology, you´ll have amazing 3D capabilities at your disposal. The projector´s embedded emitter function means all that´s required to unlock 3D capabilities is a pair of DLP Link compatible glasses, such as the optional ViewSonic PGD-250 active shutter glass kit.







The new advanced lamp technology extends the lamp life up to 5,000 hours and saves you on maintenance costs.





With only a slight 20% decrease in brightness, the Eco-mode function can extend the life of your lamp by almost 50%* and up to 5,000 hours* in some cases. Other benefits of Eco-mode operation include reduced power consumption, as well as less heat and audible noise output. It´s good for the environment and great for your budget. The Eco-mode function will definitely help lower your total cost of ownership (TCO).







Backed by our 25-year reputation for quality and reliability, ViewSonic offers one of the industry´s best overall projector warranty with 3-year limited parts, 1-year lamp and first year free Express Exchange Service**. Don´t be fooled by seemingly longer warranties out there in the market that exclude the more vulnerable systems and moving parts.







Lamp life and energy savings may vary based on actual usage and other factors. **One year Express Exchange Service requires product registration. Program specifications and availability are subject to change without notice. Corporate names, trademarks stated herein are the property of their respective companies, DLP and DLP logo are registered trademarks of Texas Instruments and BrilliantColor is a trademark of Texas Instruments. HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. Copyright© 2012 ViewSonic Corporation. All rights reserved.





Full HD1080p Business Projector



Case Colour: Black





The ViewSonic® Pro8300 is a Full HD 1080p DLP® projector that delivers high 1920x1080 native resolution, making it ideal to present the clearest and highest image. The native wide format aspect ratio is perfect for widescreen applications and devices as well as HD viewing. The Pro8300 combines state-of-the art DLP® and BrilliantColor™ technology with powerful Pixelworks® 10-bit image processor to deliver a stunning visual experience for any business applications, while 3000 ANSI lumens and 4000:1 high contrast ratio make this 1080p 1920x1080 business projector shine in any ambient light. With extensive connectivity options, including dual HDMI and dual VGA inputs, make it easy to connect to any business devices like desktops, laptops, tablets, smart phones and more. The Pro8300 1080p DLP projector is the perfect projector for corporate environments.





A widescreen projector sporting a full HD 1920x1080 (1080p) native resolution offers a tremendous degree of flexibility and compatibility. Whether you are connecting your widescreen notebook in a conference room, or viewing 720p / 1080p HD content, you are guaranteed a distortion-free image with matching aspect ratio.

Packs 3,000 lumens with 4000:1 high contrast (DCR) make this the perfect choice for conference rooms and board rooms.

High performance Pixelworks® PW980 image processor

With full 10-bit image color processing, detail enhancement and noise reduction technology for crisper, sharper presentations.

HDMI True Digital Connectivity

Equipped with dual HDMI inputs, it delivers the highest picture and sound quality without losing any degradation. It's perfect for connecting to any HDMI-enabled devices from smart phones, tablets, laptops, computers to Blu-ray® DVD players.

BrilliantColor® technology

Latest BrilliantColor technology delivers stunning all-digital clarity with life-like colors, sharp graphics and outstanding images. The advanced 6-segment color wheel enhances the yellow color performance that is key to accurate and vivid color reproduction.

Long Lamp Life up to 4,000 hours

The new advanced lamp technology extends the lamp life up to 4,000 hours* and saves on maintenance costs.

Give greener presentations and save

Use energy-saving eco-mode to lower power consumption, extend lamp life and reduce noise. Filter-less design for saving maintenance costs and labor.



DISPLAY
	Type	0.65" Digital Micromirror Device (DLP)
	Resolution	1920x1080 (1080p)
	Lens	1.5 Manual optical zoom / Manual optical focus
	Keystone	Vertical digital keystone correction (Auto, +/- 40)
	Display size	30"300" / 0.76m7.6m
	Throw Distance	3ft32.8ft / 0.9m10m
	Throw Ratio	1.4 2.14:1
	Lamp type	230 watt
	Lamp life (normal/eco-mode)	2500 / 4000* hours
	Brightness	3000 Lumens
	Contrast Ratio	4000:1 (dynamic)
	Aspect Ratio	16:9 (native), 4:3, Auto
	Color Wheel	6-seg RGBCYW/7200rpm
	Color Gamut	70% NTSC 1931 CIE
	Color Depth	30 bits, 1.07B Color (10+10+10)



INPUT SIGNAL
	Computer and Video	NTSC M (3.58 MHz), 4.43MHz, PAL (B, D, G, H, I, M, N, 60), SECAM (B, D, G, K, K1, L), SD 480i and 576i, ED 480p and 576p, HD 720p, 1080i and 1080p
	Frequency	Fh: 30-100KHz, Fv: 5085Hz
COMPATIBILITY
	PC	VGA to 1080p
	Mac	Up to 1080p

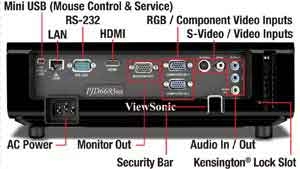

CONNECTOR
	Digital	HDMI 1.3 (x2)
	Composite Input	RCA jack
	S-Video Input	4-pin mini-DIN
	Component	RCA (x3)
	Control	RS-232 (DB-9)
	RGB (input/output)	15-pin mini D-sub (x2) / 15-pin mini D-sub
	Audio (input/output)	3.5mm mini jack (x2), RCA (L/R) x1 / 3.5mm mini jack
	USB	Type A for firmware update
	Mic-In	3.5mm mini jack
	Screen Trigger	3.5mm (12V/1A)

AUDIO
	Speakers	10W (x2)
POWER
	Voltage	100~240VAC (Auto Switching), 50/60Hz (universal)
	Consumption	310W (max) / <1W (stand-by mode)

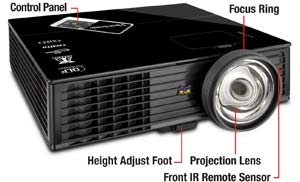

ViewSonics PJD6383s multimedia DLP short-throw projector shows images with high brightness and a defined resolution. The included Crestron RoomView network management software facilitates processes by a centralized monitor and allows management of multiple projectors monitoring over LAN or WLAN. DynamicEcoTM mode reduces power consumption and extends the projector s lifespan where Dynamic Movie mode automatically adjusts the image brightness and contrast with the changing environments, saving total cost of ownership with optimal performance. PJD6383s also comes with versatile connectivity and an HDMI interface which allow for connection with multimedia devices and increases presentation efficiency.



ViewSonic’s PJD6383s DLP® projector integrates a 10W speaker to provide high volume audio without the need for external speakers.




With its XGA resolution and 3,000 ANSI lumens, the PJD6383s delivers a sharp projection image and displays video contents with splendid quality.


Versatile connectivity including HDMI and RGB interfaces offer diversity and high efficiency when displaying multi-media contents to enhance presentation.


With Dynamic Movie mode, the projector’s lamp automatically dims to strengthen and reveals fine details when displaying darker images. Dynamic Movie mode enhances image clarity, increases lamp life, reduces power consumption, and noise.

With its high quality short throw zoom lens, the PJD6383s delivers a 100-inch projected image at a distance of only 1.2 meters. Such a short distance allows users to share projected contents in limited space and enjoy larger projections without interruption.

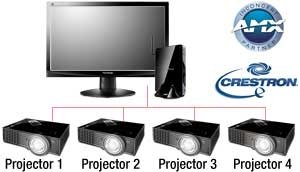

Crestron RoomView® provides an advanced, real-time alert system that sends status updates regarding power to your PC, lamp life and unit presence to simplify maintenance efforts. It also automates device scheduling, such as power on/off, and broadcast urgent messages via closed captioning. With smart network management, you’ll be able to save time, save money and save maintenance effort.




ViewSonic’s exclusive DynamicEco™ mode reduces power consumption of the lamp up to 70% which extends lamp life as well as the projector’s lifespan. DynamicEco™ mode automatically kicks in when no signal is present or it can be manually enabled through a button on the remote. This feature also reduces fan noise and ultimately eliminates distractions. It also advances contrast ratio to 15,000:1 to tailor for professional projection performance.



Display	Type	TI DMD 0.55 (DLP)
	Resolution	1024x768
	Lens	Fixed
	Size	30 - 300 inch
	Throw Distance	0.4m - 3.7m
	Lamp	OSRAM 240W / 5000 hours (Eco mode)1
	Brightness	3000 ANSI Lumens
	Contrast Ratio	15000:1
	Keystone Correction	+/- 40 (Vertical)
	Aspect Ratio	4:3
Audio	Speakers	10W *1
Input Signal	Analog	NTSC M (3.58 MHz), 4.43MHz PAL (B, D, G, H, I, M, N, 60) SECAM (B, D, G, K, K1, L) 480i and 576i, 480p and 576p 720p,1080i, 1080p
Compatibility	PC	1024 x 768 @ 60 / 72 / 75 / 85 / 120Hz (Native)
	Mac	Analog(*MayrequireaMACadaptor) Support up to 1600 x 1200 @ 60Hz (Same as in PC)
Connector	RGB Input	DB-15 *2
	RGB Output	*1
	Composite Video	RCA-1 *1
	S Video	*1
	Component Video	Shared with RGB * 2
	Digital	HDMI 1.3 *1
	Audio	3.5mm mini-mono jack *2
	Control	RS-232 (DB-9 x1)
	USB	Mini type B *1 (For firmware upgrade and mouse control)
	Network	RJ-45
Power	Voltage	100V ~ 240Vac 50 / 60Hz
	Consumption	350W (Max.)
Operating Conditions	Temperature	10%-90% (non-condensing)
	Altitude	0 ~ 40 C / 32 ~ 100 F
Dimensions	Physical	294mm (width) x 242mm (height) x 84mm (depth)
Weight	Net	3.0 kg
Regulations		CB, UL, cUL, FCC (including ICES-003), CE, Argentina, NOM, GS, GOST-R, SASO, Ukraine, PSB, C-Tick, Korean-KC, CCC, CECP, WEEE, RoHS



Networkable XGA Projector

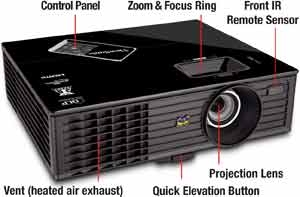

ViewSonic’s PJD6223 is an advanced networkable DLP® projector which is equipped with Crestron® built-in e-Control™ and RoomView Express™, making it ideal for classroom and corporate environments. The new PJD6223 incorporates BrilliantColor™ technology to produce more vibrant colors, while 2700 ANSI lumens and 15,000:1 high contrast ratio make this XGA 1024x768 projector shine in virtually any lighting situation. With ECOView™ technology, it allows the presenters to dim the image for control of audience focus, while saving up to 70% energy in use. It’s also packed with features like HDMI, network management, 120Hz/3D-ready and 10-watt speaker.



PJD6223



Uses less watts per lumen than other comparable projectors. And with a 15,000:1 dynamic contrast ratio (with ECOView), it´s the bright choice for education and business.







Classrooms - lectures, videos, presentations, lesson plans and even auditorium presentations.
Business - conference rooms, meeting rooms, boardrooms.







Advanced DLP (Digital Light Processing) technology allows you to experience crystal clear, razor-sharp and lifelike images with the same DLP technology that Hollywood relies on. For fast action, the response time is 1,000 times faster than similar LCD based projectors. And with no air filters to clean or change, the latest generation of DLP based projectors from ViewSonic offer one of the lowest TCO (total cost of ownership) in the industry.







Color is one of the most important characteristics of a good projection system, and the latest BrilliantColor technology delivers stunning all-digital clarity with lifelike color, sharp graphics and outstanding video. The sophisticated 6-segment color wheel enhances the yellow color performance that is key to accurate and vivid color reproduction. With multi-color processing, colors are richer and more vibrant with precise detail.

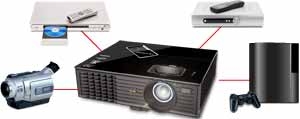

Delivers the best high-definition video and audio quality without losing any degradation. It?s perfect for connecting to any high definition sources like HD multimedia files, Blu-ray DVD players, HD gaming consoles and HD receivers.









6-segment color wheel design improves color performance and accuracy to provide natural, vivid colors

Auto source detection senses the source input and syncs with your computer automatically

Support wide range of digital signals from SD (480i/480p) to HD (720p/1080i/1080p)

integrated speaker ideal for multimedia applications, videos, audio-enabled presentations





Take advantage of network control and monitoring capabilities to help IT personnel manage projectors efficiently and effectively – from having full remote access and control to saving valuable time and money. The ViewSonic PJD6223 offers seamless integration and full support for Crestron and AMX control systems.









Take command of presentations by dimming the screen image - up to 70% - with ECOView button on the remote. With a click of the remote, the presenter can easily control audience focus by dimming the projected image. The projector will also activate ECOView when the unit is not in use. When ECOView is activated, it instantly reduces the lamp power consumption up to 70% - a great energy-saving design for low total cost of ownership (TCO).







With support for TI´s DLP Link technology, you´ll have amazing 3D capabilities at your disposal. The projector´s embedded emitter function means all that´s required to unlock 3D capabilities is a pair of DLP Link compatible glasses, such as the optional ViewSonic PGD-250 active shutter glass kit.





The new advanced lamp technology extends the lamp life up to 6,000 hours and saves you on maintenance costs.







With only a slight 20% decrease in brightness, the ECO-mode function can extend the life of your lamp by almost 50% and up to 5,000 hours in some cases. Other benefits of ECO-mode operation include reduced power consumption, as well as less heat and audible noise output. It´s good for the environment and great for your budget. The ECO-mode function will definitely help lower your total cost of ownership (TCO).







Backed by our 25 year reputation for quality and reliability, ViewSonic offers one of the industry´s best overall projector warranty with 3-year limited parts, 1-year lamp and first year free Express Exchange service. Don't be fooled by seemingly longer warranties out there in the market that exclude the more vulnerable systems and moving parts.







DISPLAY
	Type	0.55" Digital Micromirror Device (DLP)
	Resolution	XGA 1024x768 (Native)
	Lens	1.1x Manual optical zoom / Manual optical focus
	Keystone	Vertical digital keystone correction, +/- 40
	Display size	30" - 300" / 0.8m - 7.6m (Diagonal)
	Throw Distance	4.9ft - 37.4ft / 1.5m - 11.4m
	Throw Ratio	1.86 - 2.04:1
	Lamp type	180 watt
	Lamp life (normal/eco-mode)	4500 / 6000* (hours)
	Brightness	2,700 Lumens
	Contrast Ratio	15,000:1 (w/ DynamicEco)
	Aspect Ratio	4.3 (native), 16:9, auto
	Color Wheel	6-Seg RGBCYW / 7200RPM
	Color Gamut	85% NTSC 1931 CIE
	Color Depth	30 bits, 1.07B Colors (10+10+10)
INPUT SIGNAL
	Computer and Video	NTSC M (3.58 MHz), 4.43MHz, PAL (B, D, G, H, I, M, N), SECAM ( B, D, G, K, K1, L), SD 480i and 576i, ED 480p and 576p, HD 720p, 1080i and 1080p
	Frequency	Fh: 31 -100KHz, Fv: 50 -120Hz
AUDIO OUT
	Speakers	10W
COMPATIBILITY
	PC	VGA to UXGA
	Mac	VGA to SXGA+

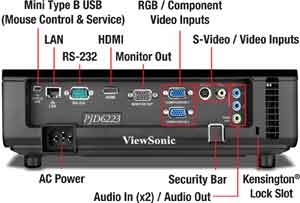

CONNECTOR
	Digital	HDMI 1.3
	Audio Input	3.5mm mini jack (x2)
	Audio Out	3.5mm mini jack
	Network	RJ-45
	RGB Input	15-pin mini D- sub (x2)
	Composite Input	RCA jack
	S-Video Input	4-pin mini-DIN
	RGB Output	15-pin mini D- sub
	Control	(DB-9)
	USB	Mini B (for mouse control & service)
POWER
	Voltage	90 ~ 240VAC (Auto Switching), 50/60Hz (universal)
	Consumption	250W (typ) <1W (stand-by mode)
CONTROLS
	Basic	Power, keystone/arrow keys, left/blank, menu/exit, right/panel key lock, auto, mode/enter, source
	OSD	Display: Screen color / Aspect Ratio / Keystone / Position / Phase / H. Size / Zoom / 3D Sync / 3D Sync Invert / Color Management Picture: Color Mode (PC: Brightest / PC / ViewMatch / Cinema / Dynamic PC / User 1 / User 2, Video: Brightest / Gaming / ViewMatch/ Cinema / Dynamic PC / User 1 / User 2) / Reference Mode (PC: Brightest / PC / ViewMatch / Cinema / Dynamic PC, Video: Brightest / Gaming / ViewMatch / Cinema / Dynamic PC) / Brightness / Contrast / Color / Tint / Sharpness / Brilliant Color / Color Temp. / Save Settings Source: Quick Auto Search / Color Space Conversion / ECOView / Timer / Smart Restart / Pattern / My Button System Setup (Basic): Language / Projector Position / Auto Power Off / Blank Timer / Panel Key Lock / Splash Screen / Screen Capture / Message / LAN Control Settings / Standby Settings (Active VGA Out / Active Audio Out) System Setup (Advanced): High Altitude Mode / DCR / Audio Settings (Mute / Volume) / Menu Settings / Closed Caption / Lamp Settings / Presentation Timer (Timer Period / Timer Display / Timer Position / Timer Counting Direction / Sound Reminder) / Security Settings / Remote Control Code / Reset All Settings Information: Current System Status (Source / Color mode / Resolution / Color System / Equivalent Lamp Hour/ MAC Address)
OPERATING CONDITIONS
	Temperature	32 F-104 F (0C-40C)
	Humidity	10%-90% (non-condensing)
	Altitude	0~6,000 ft (1,800m), operational up to 10,000 ft (3048m)
NOISE LEVEL
	Normal	32dB
	Eco-mode	27dB
DIMENSIONS (WxHxD)
	Physical	11.6" x 3.3" x 9.5" (in) / 294 x 84 x 242 (mm)
	Packaging	15" x 13.6" x 7.6" (in) / 380 x 345 x 192 (mm)
WEIGHT
	Net	5.7 lb. (2.6kg)
	Gross	9.0 lb. (4.1kg)
REGULATIONS
		CB, UL, cUL, FCC (including ICES-003), CE, UL-Argentina, NOM, TUV-GS, GOST-R, SASO, Ukraine, PSB, C-Tick, Korean-KC, CCC, CECP, WEEE, RoHS
PACKAGE CONTENTS
		ViewSonic PJD6223 projector, power cable, VGA cable, remote control with batteries, lens cap, Quick Start Guide, ViewSonic Wizard CD (with User Guide)
WARRANTY
		3-year limited warranty on parts, 1-year limited warranty on lamp, 1st year Express Exchange service.



SanDisk Ultra SDHC UHS-I card is the best choice for your point-and-shoot camera and camcorder to capture top quality Full HD  Video (1080p) and amazing pictures. Featuring speed class 10 for the highest video recording performance available and more speed to take better pictures instantly.



Not all devices support SDHC and/or SDXC memory card formats. Check with your device manufacturer for more details.
* Up to 30MB/sec read speed; write speed lower. Based on internal testing; performance may be lower depending upon host device. 1 megabyte (MB) = 1 million bytes.
** 1 gigabyte (GB) = 1 billion bytes. Some capacity not available for data storage.
*** 10 year warranty in Germany, Canada, and regions not recognizing "lifetime" warranty.
 Full HD video(1920x1080x30fps) and HD (1280x720x30fps) video support may vary based upon host device, file size, resolution, compression, bit rate, content and other factors. See www.sandisk.com/HD
 SD, SDHC and SDXC card formats up to 64 GB only. See www.sandisk.com/proof for additional information.
