The E-M5 is the first model in the new epoch-making OM Digital series. Featuring an integrated 1.44 megapixel digital viewfinder, 16 megapixel LiveMOS image sensor and OLED touchscreen, it is the world’s fastest auto-focusing camera and is equipped with the world’s most advanced image stabiliser built into its weather-proof alloy body.





The integrated 1.44 megapixel Digital Viewfinder features advanced aspherical optics, 18mm eyepoint and a 100% field of view. The Olympus E-M5 immerses the you fully into the creative process through a genuine WYSIWYG experience. Exposure, colour and filter effects are seen live, not after the picture has been taken. Built-in diopter adjustable.

The E-M5 sets a new AF speed benchmark using its FAST-AF technology with 35 AF zones and 3D AF tracking



The E-M5's groundbreaking 5-axis stabilisation system provides near foolproof shake compensation, counteracting pitch, yaw, roll, and horizontal and vertical translational movements. This new system has a maximum -5 EV stabilisation capability. It also has the ability to show a Live image-stabilised view and is effective for both stills and video shooting. The body-integrated nature of the system means that all lenses used with the camera are stabilised, eliminating the need for costly specialised lenses. Even heritage manual focus lenses that are non-electronically coupled can benefit from stabilisation

This new image sensor provides up to an ISO 25600 maximum sensitivity



The latest TruePic processor provides a new level of image quality with even better noise processing for cleaner and clearer pictures and superior video processing results with significantly reduced aliasing



The E-M5 captures broadcast quality video in Linear PCM stereo sound. Rolling shutter effects are virtually eliminated ensuring the video capture quality is aberration free



A brilliant OLED screen with 610,000 pixels provides crystal clear LiveView and image playback. Touchscreen control enables one-touch tap shooting with autofocusing as well as touch-enabled playback control. The tilt-mechanism enables an upwards angle of 80 degrees and downwards of 50 degrees.



High readout speeds and extremely quick image processing enables a very high 9 frames per second shooting speed for sports and action photography



For all-weather shooting, the E-M5 is the first weather-sealed compact system camera in the world when used with the M.Zuiko 12-50mm zoom lens







The E-M5 is the first model in the new epoch-making OM Digital series. Featuring an integrated 1.44 megapixel digital viewfinder, 16 megapixel LiveMOS image sensor and OLED touchscreen, it is the world’s fastest auto-focusing camera and is equipped with the world’s most advanced image stabiliser built into its weather-proof alloy body.



The integrated 1.44 megapixel Digital Viewfinder features advanced aspherical optics, 18mm eyepoint and a 100% field of view. The Olympus E-M5 immerses the you fully into the creative process through a genuine WYSIWYG experience. Exposure, colour and filter effects are seen live, not after the picture has been taken. Built-in diopter adjustable.



The E-M5 sets a new AF speed benchmark using its FAST-AF technology with 35 AF zones and 3D AF tracking.


The E-M5's groundbreaking 5-axis stabilisation system provides near foolproof shake compensation, counteracting pitch, yaw, roll, and horizontal and vertical translational movements. This new system has a maximum -5 EV stabilisation capability. It also has the ability to show a Live image-stabilised view and is effective for both stills and video shooting. The body-integrated nature of the system means that all lenses used with the camera are stabilised, eliminating the need for costly specialised lenses. Even heritage manual focus lenses that are non-electronically coupled can benefit from stabilisation.



This new image sensor provides up to an ISO 25600 maximum sensitivity.



The latest TruePic processor provides a new level of image quality with even better noise processing for cleaner and clearer pictures and superior video processing results with significantly reduced aliasing.



The E-M5 captures broadcast quality video in Linear PCM stereo sound. Rolling shutter effects are virtually eliminated ensuring the video capture quality is aberration free.



A brilliant OLED screen with 610,000 pixels provides crystal clear LiveView and image playback. Touchscreen control enables one-touch tap shooting with autofocusing as well as touch-enabled playback control. The tilt-mechanism enables an upwards angle of 80 degrees and downwards of 50 degrees.



High readout speeds and extremely quick image processing enables a very high 9 frames per second shooting speed for sports and action photography.

For all-weather shooting, the E-M5 is the first weather-sealed compact system camera in the world when used with the M.Zuiko 12-50mm zoom lens.





Camera type:	Compact System Camera
Effective megapixels:	16.1
Image sensor type:	LiveMOS
Image sensor size:	4/3
Sensor-self cleaning system:	Supersonic Wave
Image processing engine:	TruePic VI
ISO range:	200-25600
Lens mount:	Micro Four Thirds
Interchangeable lens types:	Micro Four Thirds + Other lenses via suitable MFT adaptors
Viewing screen type:	OLED Touch Screen
Viewing screen size:	3 inch
Screen resolution:	614,000
Image stabilisation:	Built-in
IS modes:	IS1, IS2, IS3, OFF
Autofocus system type:	Imager Contrast Detection AF system
Focus modes:	Single AF (S-AF) / Continuous AF (C-AF) / Manual Focus (MF) / S-AF + MF / AF tracking (C-AF + TR)
Low-light AF assistance:	Built-in AF illuminator
Light metering system:	TTL Image Sensor metering system
Metering modes:	(1) Digital ESP metering (324-area multi pattern metering) (2) Center weighted average metering (3) Spot metering (approx. 1% of the viewfinder screen. Highlight / shadow bias spot metering are available)
Metering range:	EV 0 - 20 (Digital ESP metering, Centre weighted average metering, Spot metering)
Shooting modes:	(1) iAuto (2) P: Programme AE (Programme shift can be performed) (3) A: Aperture priority AE (4) S: Shutter priority AE (5) M: Manual (6) Scene select AE (7) Art Filter
Scene modes:	Portrait, e-Portrait, Landscape, Landscape + Portrait, Sport, Night, Night + Portrait, Children, High Key, Low Key, DIS mode, Macro, Nature Macro, Candle, Sunset, Documents, Panorama, Fireworks, Beach & Snow, Fisheye Effect, Wide-Angle, Macro, 3D
Exposure bracketing:	2, 3 or 5 frames in 0.3/0.7/1.0EV steps selectable, 7 frames in 0.3/0.7EV steps selectable
Still picture aspect ratios:	4:3, 3:2, 16:9, 6:6, 3:4
Max. burst shooting speed:	9 frames/sec in sequential shooting; RAW: Max.15 frames (in seq. shooting H) With TOSHIBA SDHC UHS-I card R95-W80 8GB model, based on Olympus in-house measurement conditions. JPEG: Max. 19 frames ( in seq. shooting H) with same card.
Panorama recording:	In Scene select AE mode
3D recording:	Yes
Creative filter system:	Art Filters
Photo Art Filter types:	Pop Art, Soft Focus, Pale & Color, Light Tone, Grainy Film, Pin Hole, Diorama, Gentle Sepia, Cross Process, Dramatic Tone, Key Line
Video Art Filter types (Video):	Pop Art, Soft Focus, Pale & Color, Light Tone, Grainy Film, Pin Hole, Diorama, Gentle Sepia, Cross Process, Dramatic Tone, Key Line
Assisted shooting mode:	Live Guide
ShutterSpeedRange:	1/4000 - 60 sec. (1/3, 1/2, or 1EV steps selectable)
Flash sync speed:	1/250 sec or less depending on flash models or flash mode. FL-LM2: 1/250 sec., FL-50R: 1/180 sec., Exept FL-50R: 1/200 sec., Super FP: 1/125-1/4000 sec.
Self timer:	12 sec., 2 sec. (cancel available)
Remote:	RM-UC1 (optional)
Automatic WB system:	Sensor based
WB options:	6 settings (3000K - 7500K), Lamp (3000K), Fluorescent (4000K), Daylight (5300K), Flash (5500K), Cloudy (6000K), Shade (7500K)
WB bracketing:	2, 3 or 5 frames in 0.3/0.7/1.0EV steps selectable, 7 frames in 0.3/0.7EV steps selectable
Colour space:	sRGB, Adobe RGB
Flash type and power:	TTL flash, GN10 (ISO200)
Flash hotshoe for external flash:	Yes
Compatible external flash units:	FL-50R, FL-36R, FL-50, FL-36, FL-14, FL-300R, FL-600R
Wireless flash capability:	Yes
Memory card type:	SD Memory Card, SDHC, SDXC, UHS-I compatible, Eye-Fi Card compatible (class 6 or higher is recommended for movie shooting)
Internal memory:	None
Photo recording format(s):	RAW (12-bit lossless compression), JPEG, RAW+JPEG, MPO (3D still)
Photo file sizes:	RAW: 4608(H)x3456(V) (approx. 1/1.5 lossless compressed) Approx. 17MB. (LF): 4608(H)x3456(V) (1/4 compressed) Approx. 7.5MB. (LN): 4608(H)x3456(V) (1/8 compressed) Approx. 3.5MB. (MN): 2560(H)x1920(V) (1/8 compressed) Approx. 1.1MB. (SN): 1024(H)x768(V)
Video recording format:	MOV (MPEG-4AVC/H.264) , AVI (Motion JPEG)
Recording time:	Full HD : Approx. 29min (Normal) / Approx. 22min (Fine)
Video file sizes:	MOV Format : Max 4GB, Motion-JPEG Format : Max 2GB
Video with sound:	Yes
In-camera editing options:	RAW development, Gradation auto, Monochrome, Sepia, Red-eye fix, Saturation, Resize (1280x960, 640x480, 320x240), Trimming, Aspect, e-Portrait, Image Ovarlay, Postrecording
Built in microphone type:	Stereo
External microphone option:	SEMA-1 (optional)
Compatible AP accessories:	PP-1, VF-2, MAL-1, SEMA-1
Computer interface (Cable type):	CB-USB6 USB Cable
AV interface (Cable type):	Micro HDMIType-D)
Battery type (model):	BLS-1 Li-ion battery (included)
Battery charger:	BCS-1
Battery life (CIPA standard):	Approx. 330 shots
Dimensions WxHxD:	121 mm (W) x 89.6mm (H) x 41.9mm (D) (CIPA guideline compliant, excluding protrusions)
Weight:	425g with BLN-1 battery and memory card, 373g body only
Operating temperature range:	0 - +40 (operation) / -20 - +60 (storage)
Operating humidity range:	30 - 90% (operation) / 10 - 90% (storage)
Box content:	Body, Flash FL-LM2, Li-ion battery BLN-1, Li-ion battery charger BCN-1, USB cable, AV cable, Shoulder strap, OLYMPUS Viewer 2 (CD-ROM), Instruction manual, Warranty card
Available kits:	Single-lens kit with M.Zuiko Digital 14-42mm IIR $1299; Double Zoom kit with M.Zuiko Digital 14-42mm IIR & 40-150mm R $1499; Weatherproof kit with M.Zuiko Digital 12-50mm $1499; Body Only $1199
Underwater housing option:	Yes



Now you can always be one click ahead of the action. The Nikon 1 J1 is designed to be ultra-portable and simple-to-operate, capturing stunning movies and photos in any situation. No matter where you might be or what you might be doing, the Nikon 1 J1 delivers consistently brilliant results.

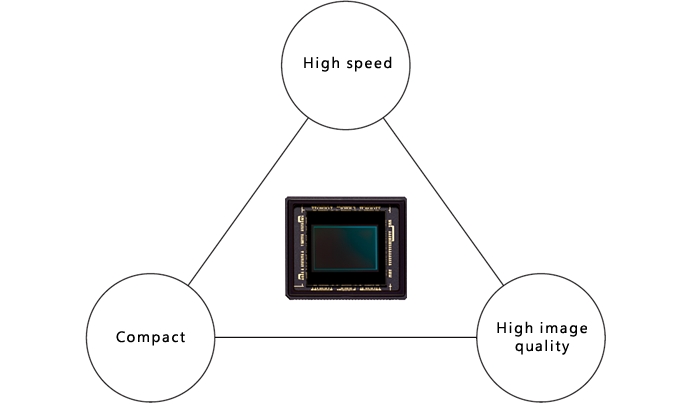

Drawing on years of advancing its proprietary technologies, Nikon has developed a truly innovative, advanced interchangeable-lens digital camera system that strikes a perfect balance between compact size, high speed, and impeccable image quality.

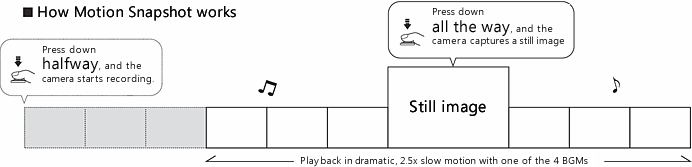

With Motion Snapshot, you can capture life’s special moments as a still image and as a 1-second movie vignette, which the camera stretches to create a 2.5-second slow motion movie and combines with the still image and a BGM.



Nikon 1 is equipped with a “focal plane phase-detection AF” great for fast-moving subjects and a “contrast-detect AF” ideal for poorly lit scenes. The advanced hybrid design automatically selects the ideal AF to capture any scene in crystal-clear focus.





Don’t you think the best moments in your life deserve to be captured in a unique and special way? With Motion Snapshot, you can capture that special moment as a still image and as a 1-second movie vignette when you press down on the shutter-release button. Then the camera stretches the movie vignette to create a 2.5-second slow motion movie and combines it with the still image and one of the 4 BGMs available. So why not preserve your heartfelt moments as a truly extraordinary short movie.

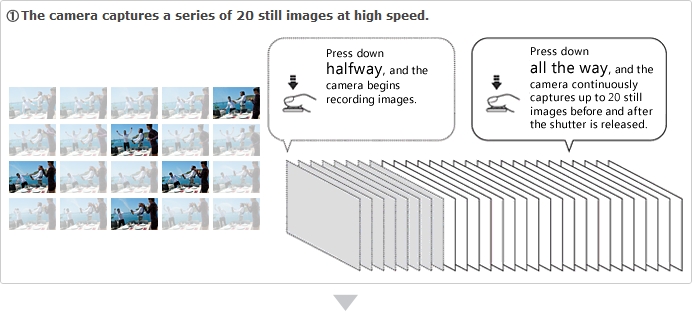

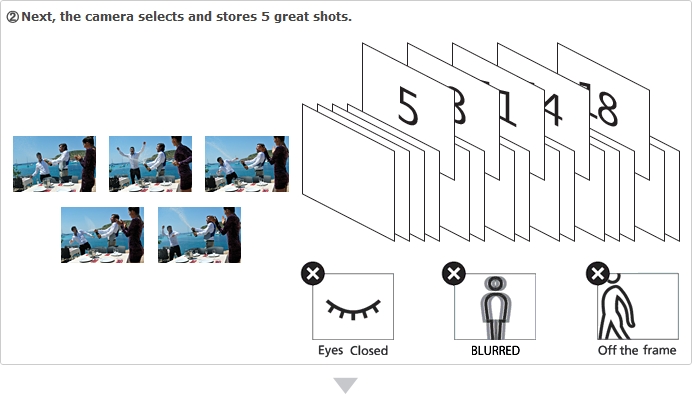

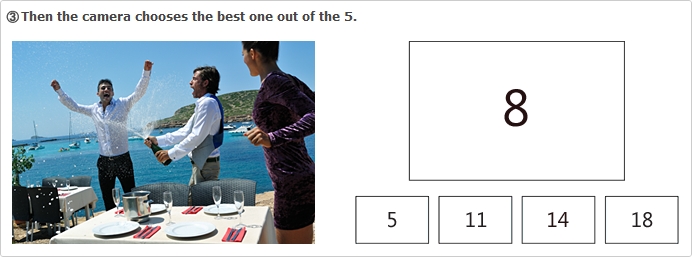

Taking great photographs has never been easier. When you start to press down on the shutter-release button, the camera, set to the Smart Photo Selector mode, instantly begins recording 20 images at high speed. Then it automatically stores 5 great shots and selects the best one out of the 5. All you have to do is point and shoot. You will never miss another perfect moment ever again.











Fastest AF x Most Focus Points in the World

From fast action to dark scenes – catch it all with Nikon AF

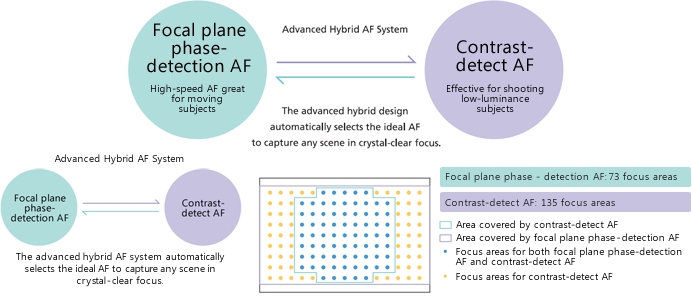

Some AFs are better at taking certain shots than others. That is why Nikon 1 is equipped with both a “focal plane phase-detection AF” superb for shooting fast action and a “contrast-detect AF” excellent for capturing subtle details in poorly lit areas. Nikon 1’s advanced hybrid AF system intelligently selects the AF that best suits the scene and unfailingly delivers crisp, sharp images. Nikon 1 also boasts a wide coverage of 73 points(*1) (41 focus areas in auto-area AF), which catches the subject with exceptional accuracy, significantly reducing blurry shots.





You can continuously capture images at approx. 10 fps while the AF constantly tracks the subject and keeps every element in razor-sharp focus. In continuous shooting at 60fps, focus is locked on the position detected in the first frame. With this innovative feature, you can unequivocally capture your once-in-a-lifetime photo opportunity. Picture perfect moments are often found in dynamic scenes such as exciting plays from a sporting match or energetic children at play. With the autofocus technology of the Nikon 1 <One>, you can capture, not just one, but a series of spectacular moments with super-crisp, high-quality images.



World's fastest continuous shooting: When the operture value is f/5.6 or smaller with the shutter speed 1/60 or fastes (as of september 5, 2011)

With default settings, you can shoot at a high speed of 10fps by pressing down on the shutter-release button all the way. While shooting, the camera will be focused on the subject within the AF area in the center of the screen. Face-priority AF is not available.

You can change the shooting speed to 30fps and 60fps by changing the settings from the shooting menu [Shutter type], [Electronic(Hi)] for V1. [Electronic(Hi)] can be selected from [continuous] for J1.







Drawing on years of advancing its proprietary technologies, Nikon has developed a truly innovative, advanced interchangeable-lens digital camera system that strikes a perfect balance between compact size, high speed, and impeccable image quality. Nikon 1 features a powerful, revolutionary new CX format CMOS sensor, a newly developed Nikon 1 mount, and EXPEED 3, the new high-speed image processing engine specifically designed for the Nikon 1. Together they bring to life state-of-the-art performance in an amazingly small, lightweight body.





If you could capture minute details of light and shadow in high contrast environment, you would have more opportunities to capture remarkable images without disappointing.
Nikon's Active D-Lighting optimizes the balance of high contrast scenes to restore details often lost under strong lighting, allowing you to capture scenes with optimal results.
Matrix metering settings enable you to adjust the exposure to produce natural results for every situation and every subject. By controlling overexposure and preserving subtle features of underexposed areas, Active D-Lighting will create well-balanced results.





You cannot only capture your special moments, but you can also transform the look and feel of your images, just as you imagine them. Picture Control is Nikon's unique system that enables you to flexibly control and adjust the image settings to suit your preferences. You can choose from among 6 different settings: Standard, Neutral, Vivid, Monochrome, Portrait, and Landscape. With these settings, you can sharpen an image by emphasizing the silhouette, or create a more vivid image by adjusting the saturation.

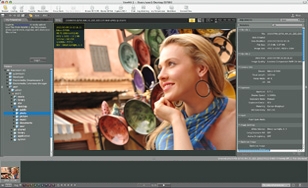

With ViewNX 2, you can also fine-tune your images even after they have been shot to match exactly what you envision. With simple settings and operation, Nikon's Picture Control will let you transform your images effortlessly and give you greater creative freedom.





Vivid





Monochrome





Neutral





Standard





Landscape





Portrait





To date, you had to choose between shooting movies or photographs to capture a special moment. With the Nikon 1 <One>, you can now shoot high-resolution still images, while shooting high-quality, full HD movies (1080/60i) simultaneously. The rich power of expression and multiple view angles of the 1 NIKKOR lens allow you to express yourself even more creatively through still images and movies. Even while you are shooting a movie, if you press the shutter-release button, you can capture high-resolution still images without interruption and without changing the mode dial. Whether it is photographs or movies, you no longer have to choose. Both can be yours with the Nikon 1 <One>.



Note: The videos shown here were taken using Movie mode, 1080/30p, then converted to Flash Video format for ease of handling. Image quality varies from the original.



By controlling the lapse of time, we have discovered a way to expose new fragments in time. With the Slow Motion Movie function of the Nikon 1 <One>, you can delay the lapse of time in your scene, revealing layers of fun and excitement that were previously undetectable by the naked eye. For example, using the Slow Motion Movie function at 400fps you can capture each flap of a bird's wings and at 1,200fps you can capture every spark of a fireworks display. With this camera's Slow Motion Movie, you can make new discoveries everywhere you look.





You may have never used some of the buttons or dial modes on your camera. Nikon 1 <One> represents the pinnacle of usability. We have intuitively simplified the functions on the mode dial. It is selectable only from four main functions: Still image mode, Movie mode, Motion Snapshot mode, and Smart Photo Selector mode. The only buttons you will find on the top of the camera are the power switch, shutter-release button, and movie-record button so you will have an amazing range of functions at your fingertips with extremely simple operability. Set free from technicalities and complicated operation, you can capture the desired image faster and more unfailingly.





Mode dial





Top of the camera



Are functions that should be helping you to capture beautiful images actually disturbing you from taking a desired picture?
Most of the functions Nikon 1 <One> is equipped with are automatic, freeing you from complicated operations so that you can focus on taking the shot. In the Scene Auto Selector mode, you don't need an elaborate set-up, nor do you need to be camera savvy. When you are taking a photograph of a person, the camera will automatically select the "Portrait" mode. When shooting at dusk or at night, it will switch to the "Night Portrait" mode. When shooting the cityscape or scenery, it will select the "Landscape" mode. And, it will choose the "Close-up" mode when shooting something very close up. The camera will detect the subject and the setting and automatically select the optimal mode for your convenience. All you have to do is find something or someone you want to shoot and press the shutter-release button.





Nikon 1 J1 comes with an i-TTL built-in flash (Guide Number: approx. 5 [ISO 100*m]).
With the slow-sync mode, you can capture both the beautifully lit nightscape and the subject at optimal exposure levels.





When shooting with the electronic shutter, you can change the settings to turn off the electronic sounds of the shutter, AF,and self-timer. Now you can shoot in stage theaters and other quiet settings without making a sound.



460k-dot, 3-inch LCD monitor with protection glass and a wide viewing angle.











The Short Movie Creator shares the joy of editing movies by making it fun and easy for all. Simply install the Short Movie Creator software included with the camera onto your PC. All you have to do next is choose the desired visual effects and music. The software will automatically edit the selected scenes so you can create remarkable, original videos in minutes. Select your favorite scene and the software will build the movie around it to suit your preferences. You can also easily upload and share the movies you create on YouTube™ and other video sharing websites. If you want to watch these movies on your camera's LCD monitor, you can transfer them onto the memory card. By using the software together with the ViewNX 2, you can fully enjoy your special moments as still images, movies, and as Motion Snapshots to the absolute fullest.



Is there a disorganized array of photographs and movies on your PC? Managing photographs and movies you have taken can be fun and easy when you use the accessory software, ViewNX 2. You can import, view, edit and share your images with this single software. Not only will you be able to rotate and change file sizes, you will also be able to adjust the brightness, crop, correct tilting, create RAW images, edit HD movies, and plot shots with GPS data. You can even create your very own original movie in HD quality, and enjoy new tools of creative expression, including the Motion Snapshot and Smart Photo Selector, to your heart's content.





Shooting still images and movies becomes significantly more fun and enjoyable when you can share your feeling of the moment you experience them. You can use Nikon's my Picturetown as your personal online album to store and organize your still images and movies, and share them with your friends and family all around the world. Membership is free and permits storage of up to 2 GB of photos and/or movies. And with an additional paid registration, you can expand your capacity of the storage memory to 200GB. The service is compatible with JPEG files, as well as RAW (NEF, NRW) files and HD movies (MOV, AVI). You can also share your favorite images captured with Nikon 1 <One>'s unique Motion Snapshot and Smart Photo Selector functions on my Picturetown.

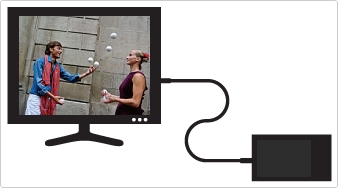

Nikon 1 <One> comes equipped with a mini HDMI pin. By connecting the camera to a high-definition TV using an HDMI cable, you can sit back and enjoy your photographs and movies on a dynamic, large screen display.
