Full featured, WXGA, energy-efficient projector designed for the budget conscious educator.





Just as teaching methods are adapted to match student ability levels, so we design our AV technology for the education sector to meet specific requirements. Working closely with teachers and students, we have created a comprehensive range of education projectors designed to ensure that schools have reliable, long lasting projectors that capture attention and enhance learning.



For great Performance, easy convenience and eco and economic responsibility the VPL-EW225 is the right choice for the classroom.



For Great Performance - Sony’s inorganic panels (BrightEra) delivers higher picture quality, substantially brighter images, higher efficiency, better contrast, consistent colour stability and longer durability and usability.



For Easy Convenience – the VPL-EW225 offers 2600lm, WXGA, 3000:1, X1.3 Zoom, 2 XRGB, HDMI, USB, S-Video, Video in, RJ45, RS232, 1X Mon. out, Mic Audio / Speaker, in a chassis that is just a little over 2.5kg



With eco conscious features that ensure outstandingly low total cost of ownership the projector provides 7000 hours of lamp life, three brightness mode, auto lamp dimming, auto picture dimming and an ECO Gauge that makes the VPL-EW225 one of the most eco-friendly projectors on the market today



Maximum 2600 lumens brightness with High, Standard and Low modes
The VPL-EW225 features three brightness modes for your different uses – High for naturally white presentations in bright rooms, Standard for everyday use, and Low for video in darkened rooms.



1.37-1.80:1 throw ratio
The VPL-EW225 offers a throw ratio that accommodates the majority of installation replacements in all education environments.



3-LDC BrightEra Technology
Sony's 0.59 inch BrightEra inorganic TFT 3-LCD panels deliver improved panel light resistance, higher resolution, high brightness and increased panel reliability.



WXGA Resolution
The VPL-EW225 has a colour light output of 2600 ANSI lumens and with a native WXGA (1280 x 800) 16:10 screen resolution panel is perfect for presentations direct from a laptop or PC.



7000 hours Lamp Life
New driving scheme reduces gap expansion that reduces brightness gradation and a new cooling system allows uniformity in the temperature of the glass bulb which prevents the glass from clouding.



Eco Mode Key
Users can easily select power-saving Eco Modes. The most energy-efficient mode is accessible through a single button-push and further adjustments are available through an easily understood menu system.



ECO Lamp Dimming
Reduce power consumption without user detection or after a user pre-set time, reduce brightness and power consumption up to 30% power usage for ultimate power eco savings.



Auto Dimming Mode
Adjust brightness depending on picture, The darker the picture, the less energy used by the lamp. (Max 70% Lamp power reduction based on image).



ECO Picture Mute - (Instant off / Instant On)
New Picture Mute reduces power consumption down to 30% power usage, saving cost and lamp hours. No need to power complete off and turn back on that does increase power consumption and time consuming.



Eco Gauge
At time of projector shut down an ECO achievement indication (gauge) appears to show the user how well they have used their projector. The more Eco features used, the better the ECO green leaf mark. (Calculated by use of Eco Functions and actual lamp wattage)



Vertical Keystone Adjustment
The projector can correct keystone distortion by +/- 20% for perfect installation adjustment to the smart board or screen. (Note that since this is an electronic correction, it will reduce the picture quality slightly).



Smart APA (Auto Pixel Alignment)
When a computer is used as a picture source, APA automatically optimizes Phase, Pitch and Shift values. These can also be adjusted manually.



Auto Input Search
Auto Input Search detects which input has an incoming signal, and automatically switches to it. This makes it easier for users to set up the projector prior to making a presentation.



Picture Muting
If the picture needs to be turned off, all it takes is a single button-press on the remote control. This will mute audio at the same time. There is also a separate “mute audio” button for audio-only muting.



Audio switcher facility
To avoid the need for a separate audio switcher, the projector can be used to select between two audio sources, routing them via a variable audio output to the room amplification system.



Picture Freeze Function
Picture Freeze is useful during presentations if you need to look at other material on your PC’s screen without the viewing audience being aware. Freeze the current image, and you can use your PC independently of the display from the projector.



Digital Zoom
With Digital Zoom, if you are displaying a computer-sourced image, you can enlarge a selected area of the screen image up to four times.



Off and Go
At the end of a presentation, you can turn off the power supply to the projector immediately, instead of going through a ‘power down’ cycle.



Direct Power On/Off
With this function, there is no need to go through ‘Standby’ mode when powering up the projector. The projector can be set to activate as soon as power is applied.



Filter replaced at the same time as lamp
The filter only needs to be changed when a new lamp is fitted, potentially halving disruption due to maintenance.



Multiple Picture Modes
The VPL-EW225 has six picture modes (Dynamic, Standard, Game, Blackboard, Cinema and Presentation) that can be selected to suite the nature of the source material.



Built-in security measures
The VPL-EW225 has a package of security measures, including password protection, and physical anti-theft anchor points.



3 LCD system



Size of effective display area
0.59” (16.0 mm) x 3, BrightEra, Aspect ratio: 16:10

Number of pixels
3,072,000 (1280 x 800 x 3) pixels



Zoom (Manual)
X1.3

Focus
Manual

Digital Zoom
X4

Light source
High-pressure mercury lamp 210 W type

Recommended lamp replacement time*1
3000 H / 5000 H / 7000 H (Lamp mode: High / Standard / Low)

Filter cleaning cycle
Max. 7000 (Lamp Mode: Low)
Same time as the lamp replacement is recommended

Screen size
30” to 300” (0.762m to 7.62m)

Light output (Lamp mode: High / Standard / Low)
2600 lm / 1900 lm / 1500 lm

Color light output
2600 lm / 1900 lm / 1500 lm

Contrast ratio (full white / full black)*3
2300:1

Speaker
16 W x 1 (mono)



Horizontal
19 kHz to 92 kHz

Vertical
48 Hz to 92 Hz



Maximum input signal resolution: UXGA 1600 x 1200 fV:60Hz (resizing display), Panel display resolution: 1280 x 800 pixels

Video signal input
Video (composite), 15k (480/60i, 576/50i), DTV (480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i 1080/60p. 1080/50p)

Color system
NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N

Keystone correction
Vertical: Max. +/- 30 degrees

OSD language
23-language
(English, French, German, Italian, Spanish, Portuguese, Japanese, Chinese(?·?), Korean, Russian, Dutch, Norwegian, Swedish, Thai, Arabic ,Turkish, Polish, Vietnamese, Farsi, Finnish*, Indonesian*, Hungary*)
* From August 2012



Computer and video signal input/output

INPUT A
RGB / Y PB PR input connector: Mini D-sub 15-pin (female), Audio: Stereo mini jack

INPUT B
RGB / Y PB PR input connector: Mini D-sub 15-pin (female),

Audio: Stereo mini jack

INPUT C
HDMI (Digital RGB/Y Pb Pr, Digital Audio) HDCP Support

VIDEO IN
Video input connector: Pin jack, Audio: Pin jack X2 (L / R) / Shared with S-Video

S VIDEO IN
Mini DIN 4-pin

Audio: Pin jack X2 (L / R) / Shared with S-Video

MONITOR OUT
Mini D-Sub 15-pin (From Input A and Input B)

AUDIO OUT
Stereo mini jack (variable out)

RS232C
D-sub 9-pin (male)

LAN
RJ-45 10BASE-T/100BASE-TX


Type A, Type B
Operating temperature (Operating humidity)

0°C to 40°C / 32°F to 104°F (35% to 85% (no condensation))
Storage temperature (Storage humidity)

-20°C to +60°C / -4°F to +140°F (10% to 90%)

Power requirements
AC 100 V to 240 V, 3.0 - 1.2A 50 Hz /60 Hz



AC 100 V to 120 V
5.9W (std) 0.1 W (Standby mode: Standard / Low)

AC 220 V to 240 V
5.9W (std)



Heat dissipation
AC 100 V to 120 V

980 BTU
AC 220 V to 240 V

945 BTU

Standard outside dimensions
W 365 x H 96.2 x D 252 mm (without protrusion)
W 365 x H 105.3 x D 252.5 mm (with protrusion)
Mass
3.9kg / 8lb 8oz

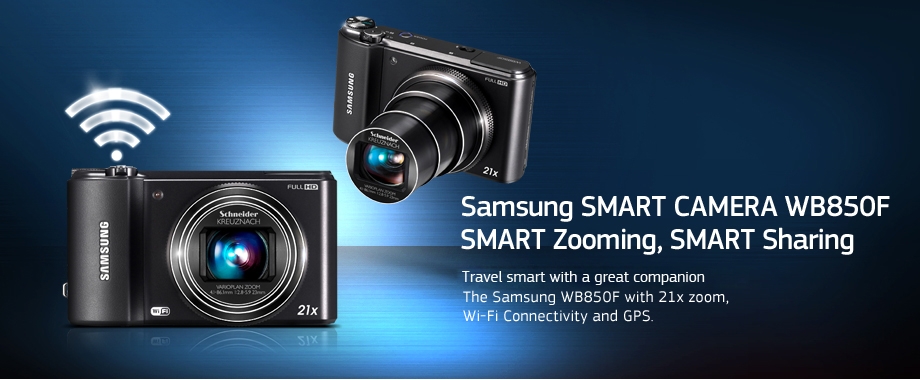

SAMSUNG WB850F





Travel smart with a great companion
The Samsung WB850F with 21x zoom, Wi-Fi Connectivity and GPS.





From historic city streets to lush rain forests, the compact Samsung WB850F makes a great traveling companion. Though it’s easy to carry, it’s equipped with 21x optical zoom and a 23mm wide-angle lens. Create memorable pictorial travelogues — filled with detailed close-ups and majestic landscapes — that you just can’t wait to share. And you won’t have to. Built-in Wi-Fi connectivity* lets you upload images to your favourite social sharing sites from virtually any accessible hotspot around the world. Good thing the WB850F also features GPS functionality* that lets you map your location and access virtually real-time location-based information. Get ready to live a smart life with the WB850F.

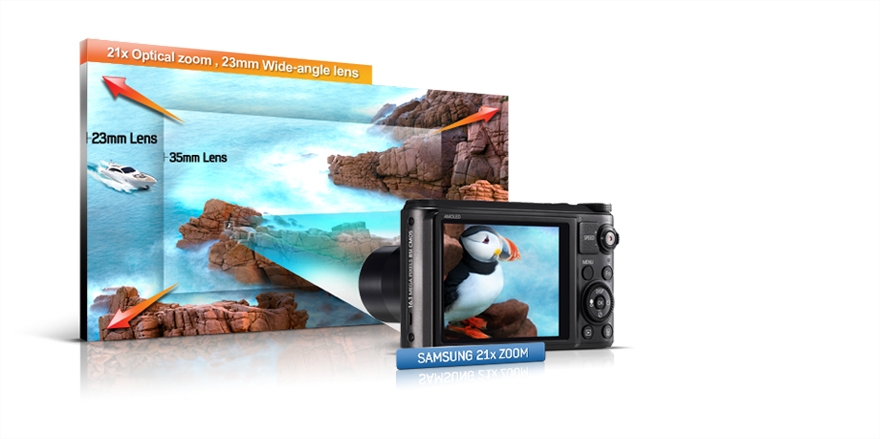

Explore the WB850F. A 21x optical zoom helps to ensure that long-distance photos are sharply rendered. The WB850F also features a 23mm wide-angle lens to help capture lots of your favourite moments.

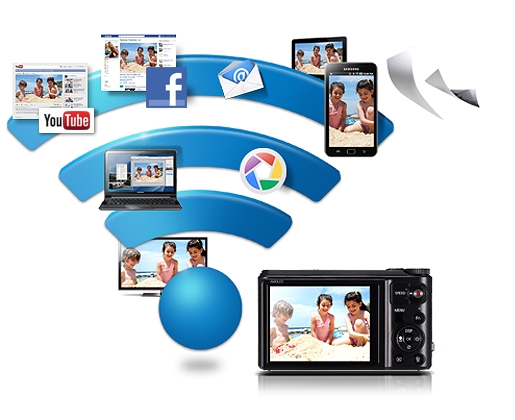

With Built-in Wi-Fi capability, you can share lots of your special and exciting moments on the move. Send photos by uploading to Facebook®, Picasa®, Photobucket® or email directly from the camera through Wi-Fi connectivity*. You can also upload videos to YouTube® then sit back to wait for the raves**. The WB150F lets you upload photos to cloud service*** and is great for when you have limited memory size. TV Link feature allows you to wirelessly display your pictures on a large TV screen. You can also save the images to your compatible PC with the click of a button with Auto Backup feature (one time initial set-up is required). No more searching for the cable, it is that easy.







Enhance your travels with GPS functionality*. Live Landmark, a location-based augmented reality feature, lets you access information about points of interest right in front of you. Need to navigate around town? Download maps and find your way with MapView*. Then use the Digital Compass to help you see which direction you’re facing and how far you are from your destination. To pinpoint the location of a photo you snapped a while back, switch to Photo View, which will seek to mark the spot on the map.







A tropical sunset, a cityscape at night … impressively capture dimly lit moments virtually wherever you travel with the WB850F. It features a 16.2-megapixel BSI (Back Side Illuminated) CMOS sensor, which does not need much light for proper exposure., So even in soft lighting, with the WB850F, your photos will help to match your memories.







Whether you’re sunbathing on a beach or sightseeing in the middle of the day, bring along the WB850F. Its thin and light 3.0'' VGA AMOLED display serves up dark blacks and vibrant colours. From almost any angle, images are sharp, vivid, and easy to view, even under the glare of the midday sun.





Leave your camcorder behind and still create home movies worthy of your 1080p HDTV. The WB850F shoots 1920x1080p Full HD video at 30 frames per second, with life-like colour and extraordinarily sharp details. Plus, its H.264 format allows long recording, so you can capture lots of the action. Then hook up your WB850F to your compatible HDTV, and watch your brilliant HD footage in the comfort of your living room.







Full Manual gives you the ability to take control and help capture the photos as you want them to be. Aperture Priority and Shutter Priority settings let you experiment with shutter speeds and depth of field, so you can shoot fast-moving images in low light. With Samsung cameras, your creativity counts most.









The WB850F‘s Dual Capture feature lets you snap up to six 10-megapixel still pictures while recording full HD video. Now you can capture thrilling long-distance relay on video along with a beautiful still of the winner’s smile — both with incredible detail.







Artistic Brush is a fun, new feature that draws on your life.. It can take portrait, landscape or candid and turn it into a black and white sketch — then colours in the picture almost as an artist would! Show off The Artist at Work animation on the camera’s LCD to your friends and family







With Live Panorama, you can practically capture the whole wide world without having to step back! Live Panorama lets you see the final image in advance, helping to ensure that you get the picture you want. It’s as simple as holding down the shutter button and sweeping the camera across the scene.







A Picture in Picture Shot lets you insert one image or video within another to capture the , glorious story you want to share. Snap a picture of a friend bowling a strike, and then combine it with an image of everyone cheering the score.





Image Sensor

Sensor Type	CMOS
Effective Pixel	Approx. 16.2 Mega pixels
Total Pixel	Approx. 16.8 Mega pixels

Lens

Focal Length	Schneider-KREUZNACH 21x Zoom Lens f = 4.1 ~ 86.1mm (35mm film equivalent: 23 ~ 483mm)
F No.	2.8 (W) ~ 5.9 (T)
digital zoom	Still Image mode: 1.0X ~ 4.0XPlay mode: 1.0X ~ 9.4X (depends on image size) Smart Zoom 1.33X

Image Stabilisation

mode	DAUL IS (Optical + Digital Image Stabilisation)

Display

type	AMOLED
Size	3.0"(7.62cm)
Features	3.0" (7.62cm) VGA ( 640X480 ) 614k dots ( PenTile )

Focusing

type	TTL Auto Focus (Centre AF, Multi AF, Tracking AF, Face Detection AF, Face Recognition AF, Selection AF)* Manual Focus
Range	Normal: 80cm ~ Infinity (Wide), 350cm ~ Infinity (Tele)Macro: 10cm ~ 80cm (Wide), 150cm ~ 350cm (Tele) Auto Macro: 10cm ~ Infinity (Wide), 150cm ~ Infinity (Tele) Manual: 10 cm ~ Infinity (Wide), 150cm ~ Infinity (Tele)

Shutter Speed

Exposure

Control	Program AE, Aperture Priority AE, Shutter Priority AE, Manual Exposure
Metering System	Multi, Spot, Centre-weighted, Face Detection AE
Compensation	2EV (1/3EV steps)
ISO Equivalent	Auto, 100, 200, 400, 800, 1,600, 3,200

Flash

mode	Auto, Auto & Red-eye reduction, Fill-in flash, Slow sync, Flash Off, Red-eye fix
Range	Wide: 0.3m ~ 4.96m (ISO auto), Tele: 0.5m ~ 2.35m (ISO auto)
Recharging Time	Approx. 6 seconds

White Balance

mode	Auto WB, Daylight, Cloudy, Fluorescent_H, Fluorescent_L, Tungsten, Custom, K

Still Image

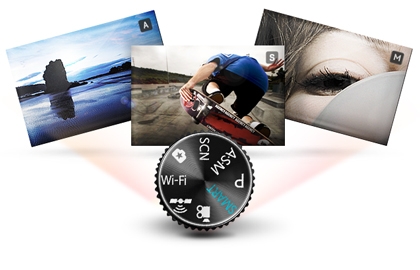

mode	* Mode (Dial) : 1) Smart Auto, 2).Program, 3) A / S / M, 4) Scene, 5) MAGIC Plus, 6) Wi-Fi, 7) GPS, 8) Movie* Smart Auto: Portrait, Night Portrait, Night, Backlight Portrait, Backlight, Landscape, White, Macro, Macro Text, Tripod, Action, Macro Colour, Natural Green, Blue Sky, Sunset, Fireworks* Scene: Beauty Shot, Night, Landscape, Text, Sunset, Dawn, Backlight, Beach & Snow* MAGIC Plus: Panorama, 3D Photo, Magic Frame, Split Shot, Self Shot, Artistic Brush, HDR, CMM* Panorama: Live Panoram / 3D Panorama / Action Panorama* Wi-Fi: MobileLink, Remote Viewfinder, Social Sharing, email, SkyDrive, Auto Backup, TV Link* Drive: Single, Continuous (8fps, 5fps, 3fps), BKT(WB, AE), Precapture* Self timer: Off, 2 seconds, 10 seconds, Double (10 seconds, 2 seconds)

Image Play

Date Imprinting

Movie Clip

Recording	* Smart Movie: Landscape, Blue Sky, Natural Green, Sunset* Movie Size: 1920 x 1080 (30fps), 1280 x 720 (30fps), 640 x 480 (30fps), WEB (QVGA, 30fps, 30s)* High Speed: 480fps (176 x 128), 240fps (384 x 288)* 18x optical zoom (Max. recording time: 20 minutes)* Audio: Mute, Normal, Sound Alive, Audio Zoom* Dual Capture (Movie 1280p@30pfs & Still 10Mpixels)
Effect	*Smart Filter: Palette Effect 1, Palette Effect 2, Palette Effect 3, Palette Effect 4, Miniature, Vignetting, Sketch, Fish Eye, Classic, Retro
Edit	Pause during recording and playing, Still Image Capture, Time Trimming

Storage

Media	Internal memory: N/A External Memory: SDSC (up to 2GB guaranteed), SDHC (up to 32GB guaranteed), SDXC (up to 64GB guaranteed)
File format	* Still Image: JPEG (DCF), EXIF 2.21, DPOF 1.1, PictBridge 1.0* Movie Clip: MP4 (Video: MPEG4, AVC / H.264, Audio: AAC)
Image Size	16M: 4608 x 3456, 14MP: 4608 x 3072 12M W: 4608 x 2592, 10M: 3648 x 2736 8M (1 : 1): 2832 x 2832 5M: 2592 x 1944, 3M: 1984 x 1488 2MW: 1920 x 1080, 1M: 1024 x 768

Interface

Digital Output Connector	USB 2.0
Audio	Microphone: StereoInternal Speaker: Mono
Video Output	AV: NTSC, PAL (User selectable)
DC Power Input	4.2V TBD

Power

Power Source	type	Rechargeable battery : SLB-10AConnector Type : micro USB (5 pin)

Physical Specifications

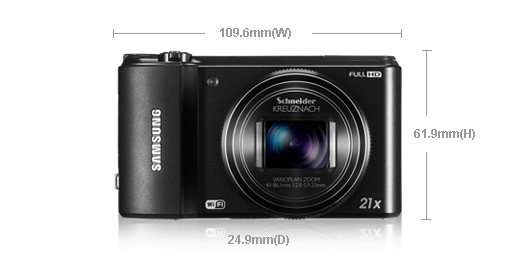

Dimension	Dimension (WxHxD)	109.6 x 61.9 x 24.9 (35.1) mm
Weight	226g (without battery and memory card media)
Operating Temperature	0 ~ 40C
Operating Humidity	5 ~ 85%

S/W and PC OS

Bundle PC S/W	Intelli-studio, Creative Movie Maker, Auto Backup, Map download manager(Download from On-line with iLinker)
Compatible OS	Windows XP SP2 / Vista / 7

System Requirement in General

For Macintosh	ntel Mac or later Mac OS 10.4 or higher Minimum 256MB RAM 110MB of available hard-disk space USB port CD-ROM drive
For Windows	PC with processor better than Intel Core 2 Duo 1.66 GHz / AMD Athlon X2 Dual-Core 2.2 GHz or higherMinimum 512MB RAM (Over 1GB recommended) Windows XP SP2 / Vista / 7250MB of available hard-disk space (Over 1GB recommend) USB 2.0 port CD-ROM drive nVIDIA Geforce 7600GT or later / Ati X1600 series or later1024768 pixels, 16-bit colour display compatible monitor (1280x1024, 32-bit colour display recommended) Microsoft DirectX 9.0c or later

Wireless

Wireless	MobileLink, Remote Viewfinder, Social Sharing, email, SkyDrive, Auto Backup, TV Link

An energy-efficient XGA resolution desktop projector for the budget conscious corporate user.



Designed for the corporate sector to enable them to work smarter and create business-driving impact, the new VPL-DX140 is the perfect desktop projector, delivering clear, crisp, bright presentations in any meeting room environment.



For great Performance, easy convenience and eco and economic responsibility the VPL-DX140 is the perfect choice for the corporate meeting room and executive boardroom.



Sony’s inorganic panels (BrightEra) delivers higher picture quality, substantially brighter images, higher efficiency, better contrast, consistent colour stability and longer durability and usability.



The VPL-DX140 offers 3200lm of brightness, XGA resolution, 1.3 times optical lens Zoom, 2500:1 contrast ratio, RGB, HDMI digital input , Video capability and all in a chassis weighing less than 2.5kg. Easy to carry, set-up and power down, they are ideal for small to medium-sized rooms.



With eco conscious features that ensure low total cost of ownership - the projector provides 7000 hours of lamp life, three brightness mode, auto lamp dimming, auto picture dimming and an ECO Gauge that makes the VPL-DX140 one of the most eco-friendly projectors on the market today.



Maximum 3200 lumens brightness with High, Standard and Low modes
The VPL-DX140 features three brightness modes for your different uses – High for naturally white presentations in bright rooms, Standard for everyday use, and Low for video in darkened rooms.



1.37 ~ 1.80:1 throw ratio
The VPL-DX140 offers a throw ratio that accommodates the majority of installation replacements in all corporate environments.



3-LCD BrightEra Technology
Sony's 0.63 inch BrightEra inorganic TFT 3-LCD panels deliver improved panel light resistance, higher resolution, high brightness and increased panel reliability.



XGA Resolution
The VPL-DX140 has a colour light output of 3200 ANSI lumens and with a native XGA (1024 x 768) 4:3 screen resolution panel is perfect for presentations direct from a laptop or PC.



7000 hours Lamp Life
New driving scheme reduces gap expansion that reduces brightness gradation and a new cooling system allows uniformity in the temperature of the glass bulb which prevents the glass from clouding.



Eco Mode Key
Users can easily select power-saving Eco Modes. The most energy-efficient mode is accessible through a single button-push and further adjustments are available through an easily understood menu system.



ECO Lamp Dimming
Reduce power consumption without user detection or after a user pre-set time, reduce brightness and power consumption up to 30% power usage for ultimate power eco savings.



Auto Dimming Mode
Adjust brightness depending on picture, The darker the picture, the less energy used by the lamp. (Max 70% Lamp power reduction based on image).



ECO Picture Mute - (Instant off / Instant On)
New Picture Mute reduces power consumption down to 30% power usage, saving cost and lamp hours. No need to power complete off and turn back on that does increase power consumption and time consuming.



Eco Gauge
At time of projector shut down an ECO achievement indication (gauge) appears to show the user how well they have used their projector. The more Eco features used, the better the ECO green leaf mark. (Calculated by use of Eco Functions and actual lamp wattage)



Vertical Keystone Adjustment
The projector can correct keystone distortion by +/- 30% for perfect installation adjustment to the smart board or screen. (Note that since this is an electronic correction, it will reduce the picture quality slightly).



Smart APA (Auto Pixel Alignment)
When a computer is used as a picture source, APA automatically optimises Phase, Pitch and Shift values. These can also be adjusted manually.



Auto Input Search
Auto Input Search detects which input has an incoming signal, and automatically switches to it. This makes it easier for users to set up the projector prior to making a presentation.



Picture Muting
If the picture needs to be turned off, all it takes is a single button-press on the remote control. This will mute audio at the same time. There is also a separate “mute audio” button for audio-only muting.



Audio switcher facility
To avoid the need for a separate audio switcher, the projector can be used to select between two audio sources, routing them via a variable audio output to the room amplification system.



Picture Freeze Function
Picture Freeze is useful during presentations if you need to look at other material on your PC’s screen without the viewing audience being aware. Freeze the current image, and you can use your PC independently of the display from the projector.



Digital Zoom
With Digital Zoom, if you are displaying a computer-sourced image, you can enlarge a selected area of the screen image up to four times.



Off and Go
At the end of a presentation, you can turn off the power supply to the projector immediately, instead of going through a ‘power down’ cycle.



Direct Power On/Off
With this function, there is no need to go through ‘Standby’ mode when powering up the projector. The projector can be set to activate as soon as power is applied.



Filter replaced at the same time as lamp
The filter only needs to be changed when a new lamp is fitted, potentially halving disruption due to maintenance.



Multiple Picture Modes
The VPL-DX140 has six picture modes (Dynamic, Standard, Game, Blackboard, Cinema and Presentation) that can be selected to suite the nature of the source material.



Built-in security measures
The VPL-DX140 has a package of security measures, including password protection, and physical anti-theft anchor points



3 LCD system



0.63” (16.0 mm) x 3, BrightEra, Aspect ratio: 4:3


2,359,296 (1024 x 768 x 3) pixels



Zoom (Manual)
X1.3

Focus
Manual

Digital Zoom
X4

Light source
High-pressure mercury lamp 210 W type

Recommended lamp replacement time*1
3000 H / 5000 H / 7000 H (Lamp mode: High / Standard / Low)

Filter cleaning cycle
Max. 1000 Hours (low mode)

Screen size
30” to 300” (0.762 m to 7.62 m)

Light output (Lamp mode: High / Standard / Low)
3200 lm / 2300 lm / 1900 lm

Color light output
3200 lm / 2300 lm / 1900 lm

Contrast ratio (full white / full black)*3
2500:1

Speaker
1 W x 1 (monaural)



Horizontal
15 kHz to 92 kHz

Vertical
48 Hz to 92 Hz



Computer signal input
Maximum input signal resolution: UXGA 1600 x 1200 (resizing display), Panel display resolution: 1024 x 768 pixels

Video signal input
Video (composite), 15k (480/60i, 576/50i), DTV (480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i 1080/60p. 1080/50p)

Color system
Auto / NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N

Keystone correction
Vertical: Max. +/- 30 degrees

OSD language
23-language

(English, French, German, Italian, Spanish, Portuguese, Japanese, Chinese(?·?), Korean, Russian, Dutch, Norwegian, Swedish, Thai, Arabic ,Turkish, Polish, Vietnamese, Farsi, Finnish*, Indonesian*, Hungary*)
* From August 2012



INPUT A
RGB / Y PB PR input connector: Mini D-sub 15-pin (female), Audio: Stereo mini jack / Shared with component video

INPUT B
HDMI HDMI (Digital RGB/Y Pb Pr, Digital Audio) HDCP Support

VIDEO IN
Video input connector: Pin jack, Audio: stereo mini jack / Shared with Input A

Operating temperature (Operating humidity)
0°C to 35°C / 32°F to 95°F (20% to 80% (no condensation))

Storage temperature (Storage humidity)
-20°C to +60°C / +4°F to +140°F (20% to 80%)

Power requirements
AC 100 V to 240 V, 2.9 A - 1.2A 50 Hz /60 Hz



AC 100 V to 120 V
283W / 226W / 192W
AC 220 V to 240 V
269W / 218W / 186W



Standby mode power consumption
AC 100 V to 120 V
AC 220 V to 240 V

Heat dissipation
AC 100 V to 120 V

990 BTU
AC 220 V to 240 V

955 BTU

Standard outside dimensions
W 315 x H 87.2 x D 233 mm (with protrusion)
W 315 x H 75 x D 230.5 mm (without protrusion)

Mass
2.5kg / 5lb 7oz



Supplied Accessories
RM-PJ8
Remote Commander (1)
CR2025
Lithium Battery (1)
Mini D-sub 15-pin cable (1)
Lens Cap (1)
Operating Instructions (1) WEEE, EU Battery Info, Service Documentation
Quick Reference Manual (1)
Carrying Case



Optional Accessories
LMP-D213
Replacement Projector Lamp

An energy-efficient XGA resolution desktop projector for the budget conscious corporate user.





Designed for the corporate sector to enable them to work smarter and create business-driving impact, the new VPL-DX120 is the perfect desktop projector, delivering clear, crisp, bright presentations in any meeting room environment



For great Performance, easy convenience and eco and economic responsibility the VPL-DX120 is the perfect choice for the corporate meeting room and executive boardroom.



Sony’s inorganic panels (BrightEra) delivers higher picture quality, substantially brighter images, higher efficiency, better contrast, consistent colour stability and longer durability and usability.



The VPL-DX120 offers 2600lm of brightness, XGA resolution, 1.2 times optical lens Zoom, 2500:1 contrast ratio, RGB, HDMI digital input , Video capability and all in a chassis weighing less than 2.5kg. Easy to carry, set-up and power down, they are ideal for small to medium-sized rooms.



With eco conscious features that ensure low total cost of ownership - the projector provides 7000 hours of lamp life, three brightness mode, auto lamp dimming, auto picture dimming and an ECO Gauge that makes the VPL-DX120 one of the most eco-friendly projectors on the market today.





Maximum 2600 lumens brightness with High, Standard and Low modes
The VPL-DX120 features three brightness modes for your different uses – High for naturally white presentations in bright rooms, Standard for everyday use, and Low for video in darkened rooms.



1.47 ~ 1.77:1 throw ratio
The VPL-DX120 offers a throw ratio that accommodates the majority of installation replacements in all corporate environments.



3-LCD BrightEra Technology
Sony's 0.63 inch BrightEra inorganic TFT 3-LCD panels deliver improved panel light resistance, higher resolution, high brightness and increased panel reliability.



XGA Resolution
The VPL-DX120 has a colour light output of 2600 ANSI lumens and with a native XGA (1024 x 768) 4:3 screen resolution panel is perfect for presentations direct from a laptop or PC.



7000 hours Lamp Life
New driving scheme reduces gap expansion that reduces brightness gradation and a new cooling system allows uniformity in the temperature of the glass bulb which prevents the glass from clouding.



Eco Mode Key
Users can easily select power-saving Eco Modes. The most energy-efficient mode is accessible through a single button-push and further adjustments are available through an easily understood menu system.



ECO Lamp Dimming
Reduce power consumption without user detection or after a user pre-set time, reduce brightness and power consumption up to 30% power usage for ultimate power eco savings.



Auto Dimming Mode
Adjust brightness depending on picture, The darker the picture, the less energy used by the lamp. (Max 70% Lamp power reduction based on image).



ECO Picture Mute - (Instant off / Instant On)
New Picture Mute reduces power consumption down to 30% power usage, saving cost and lamp hours. No need to power complete off and turn back on that does increase power consumption and time consuming.



Eco Gauge
At time of projector shut down an ECO achievement indication (gauge) appears to show the user how well they have used their projector. The more Eco features used, the better the ECO green leaf mark. (Calculated by use of Eco Functions and actual lamp wattage)



Vertical Keystone Adjustment
The projector can correct keystone distortion by +/- 30% for perfect installation adjustment to the smart board or screen. (Note that since this is an electronic correction, it will reduce the picture quality slightly).



Smart APA (Auto Pixel Alignment)
When a computer is used as a picture source, APA automatically optimises Phase, Pitch and Shift values. These can also be adjusted manually.



Auto Input Search
Auto Input Search detects which input has an incoming signal, and automatically switches to it. This makes it easier for users to set up the projector prior to making a presentation.



Picture Muting
If the picture needs to be turned off, all it takes is a single button-press on the remote control. This will mute audio at the same time. There is also a separate “mute audio” button for audio-only muting.



Audio switcher facility
To avoid the need for a separate audio switcher, the projector can be used to select between two audio sources, routing them via a variable audio output to the room amplification system.



Picture Freeze Function
Picture Freeze is useful during presentations if you need to look at other material on your PC’s screen without the viewing audience being aware. Freeze the current image, and you can use your PC independently of the display from the projector.



Digital Zoom
With Digital Zoom, if you are displaying a computer-sourced image, you can enlarge a selected area of the screen image up to four times.



Off and Go
At the end of a presentation, you can turn off the power supply to the projector immediately, instead of going through a ‘power down’ cycle.



Direct Power On/Off
With this function, there is no need to go through ‘Standby’ mode when powering up the projector. The projector can be set to activate as soon as power is applied.



Filter replaced at the same time as lamp
The filter only needs to be changed when a new lamp is fitted, potentially halving disruption due to maintenance.



Multiple Picture Modes
The VPL-DX120 has six picture modes (Dynamic, Standard, Game, Blackboard, Cinema and Presentation) that can be selected to suite the nature of the source material.



Built-in security measures
Built-in security measures



3 LCD system

Size of effective display area
0.63” (16.0 mm) x 3, BrightEra, Aspect ratio: 4:3

Number of pixels
2,359,296 (1024 x 768 x 3) pixels



Zoom (Manual)
X1.2

Focus
Manual

Digital Zoom
X4

Light source
High-pressure mercury lamp 210 W type

Recommended lamp replacement time*1
3000 H / 5000 H / 7000 H (Lamp mode: High / Standard / Low)

Filter cleaning cycle
Max. 1000 Hours (low mode)

Screen size
30” to 300” (0.762 m to 7.62 m)

Light output (Lamp mode: High / Standard / Low)
2600 lm / 1900 lm / 1700 lm

Color light output
2600 lm / 1900 lm / 1700 lm

Contrast ratio (full white / full black)*3
2500:1

Speaker
1 W x 1 (monaural)



Horizontal
15 kHz to 92 kHz

Vertical
48 Hz to 92 Hz



Computer signal input
Maximum input signal resolution: UXGA 1600 x 1200 (resizing display), Panel display resolution: 1024 x 768 pixels

Video signal input
Video (composite), 15k (480/60i, 576/50i), DTV (480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i 1080/60p. 1080/50p)

Color system
Auto / NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N

Keystone correction
Vertical: Max. +/- 30 degrees

OSD language
23-language

(English, French, German, Italian, Spanish, Portuguese, Japanese, Chinese(?·?), Korean, Russian, Dutch, Norwegian, Swedish, Thai, Arabic ,Turkish, Polish, Vietnamese, Farsi, Finnish*, Indonesian*, Hungary*)
* From August 2012



INPUT A
RGB / Y PB PR input connector: Mini D-sub 15-pin (female), Audio: Stereo mini jack / Shared with component video

INPUT B
HDMI HDMI (Digital RGB/Y Pb Pr, Digital Audio) HDCP Support

VIDEO IN
Video input connector: Pin jack, Audio: stereo mini jack / Shared with Input A

Operating temperature (Operating humidity)
0°C to 35°C / 32°F to 95°F (20% to 80% (no condensation))

Storage temperature (Storage humidity)
-20°C to +60°C / +4°F to +140°F (20% to 80%)

Power requirements
AC 100 V to 240 V, 2.9 A - 1.2A 50 Hz /60 Hz



AC 100 V to 120 V
282W / 227W / 193W

AC 220 V to 240 V
270W / 218W / 186W




AC 100 V to 120 V
AC 220 V to 240 V



AC 100 V to 120 V
990 BTU
AC 220 V to 240 V
955 BTU

W 315 x H 87.2 x D 233 mm (with protrusion)
W 315 x H 75 x D 230.5 mm (without protrusion)

Mass
2.5kg / 5lb 7oz




RM-PJ8
Remote Commander (1)
CR2025
Lithium Battery (1)
Mini D-sub 15-pin cable (1)
Lens Cap (1)
Operating Instructions (1) WEEE, EU Battery Info, Service Documentation
Quick Reference Manual (1)
Carrying Case




LMP-D213
Replacement Projector Lamp

Product Code: ATX124DX C-001-3

Description: Front Ring 12x0181-001-3 C

Product Code: 692667

Description: Cap Lens 67mm

Product Code: 692618

Description: Cap Lens PushOn f/ATX107DX Nik

Enjoy a true home-cinema experience with the Sony® VPL-HWA30ES Elevated Standard 3D Projector. A bright, vibrant picture, plus a 70,000:1 dynamic contrast ratio and whisper-quiet fan make it perfect for the living room. With SXRD® technology, 2D to 3D up-scaling, and control system compatibility, this projector provides affordable, cinema-style home entertainment.



Enjoy an immersive picture with deep black levels in just about any home theater environment through the VPLHWA30ES’s 70,000:1 dynamic contrast ratio and 1,300 ANSI lumen brightness.


Sony’s dynamic lamp control technology and rechargeable 3D glasses work together perfectly to establish vibrant, cinema-quality brightness levels on your favorite 3D movies and shows.



The 240Hz panel drive, along with dynamic lamp control technology, minimizes 3D crosstalk. This greatly diminishes the possibility of ghosting when watching 3D.

Add a new dimension to your favorite movies, shows or videos with Sony’s unique 2D to 3D upconversion algorithm, allowing any high definition 2D content connected via HDMI to be viewed in immersive Sony 3D.

Forget that the projector is even in the room. Due to the VPLHWA30ES’s advanced air discharge system, Sony’s whisper-quiet fan emits only 22db during show time.

Quickly calibrate your picture to the type of content you’re enjoying with nine unique modes including a variety of cinema, gaming, photo and standard pre-sets.

Seamlessly integrate the VPLHW30AES into virtually any major automation system via the bidirectional, industry-standard RS232 connection



The VPL-HW30AES can be adjusted to fit complex rooms with its 1.6x manual zoom, and horizontal and vertical shift features and 1/10th pixel step panel alignment

Enjoy smooth, sharp motion with Sony’s Motionflow™ technology with Dark Frame Insertion and 24p True Cinema technologies.

Rest assured that Sony has you covered. All Sony Elevated Standard (ES) projectors enjoy three-year limited warranties, including a special tech support hotline in case you run into any
problems.



2D to 3D: Yes

Effect: Yes

Supports Frame Packing, Side by Side, and Over Under formats ( see Acceptable Video Signals)



Control4 Certified, AMX Device Discovery Beacon/ Crestron Integration Partner



Lens: All range Crisp focus (ARC-F) Lens



40 to 300 inches (1,016mm to 7,620mm) (measured diagonally)



fH: 19 to 72 kHz, fV: 48 to 92 Hz, fV: 60 Hz



35 to 85% (no condensation)

5°C to 35°C (41°F to 95°F)





3D Sync:



1 (RJ45)
1 In

HDMI™: 2 In

IR Input(s): Yes

PC Video Input(s): Yes

RS-232C Input(s): Yes

RS232 Control: 2 Way Control



Focus: Yes- Manual
Shift: Yes- Manual

Shift Range: V: +/- 0.65V; H: +/- 0.25H



Ultra Low Fan Noise: 22dB

Zoom: Yes- Manual 1.6X




Ultra High
Pressure
Replacement
Lamp
(LMP-H202)
TDG-PJ1 3D
GlassesTMRPJ1 Synch
EmiitterBlack
Ceiling Mount
(PSS-H10)



1,300 Lumens
70,000:1
Dynamic
Contrast



9 Modes for 2D and 3D (Dynamic, Standard, Cinema 1-3, Game, Photo, and User 1-2)



Independent 2D and 3D Picture Settings

9 gamma adjustments, Black and White Level Adjustments, Real Color Processing v2 including Luminance Adjustment





2D:  480/60i, 576/50i, 480/60p, 576/50p, 1080/60i, 1080/50i, 1080/24psF (48i), 720/60p, 720/50p, 1080/60p, 1080/50p, 1080/24p, 720/60p (Frame Packing), 720/50p (Frame Packing),
1080/24p (Frame Packing).3D:  1080/24p FP/O/U, 1080/60p, 50p SBS/O/U, 1080/60i, 50i SBS, 720/60p, 50p FP/SBS O/U Yes- Auto



Deep Color: Yes
Film Mode: 24P Film Mode
Lens Shift: Yes (Manual), Yes with Dark Frame Insertion

Panel Driver: 240Hz

Yes with Block and Mosquito Noise Reduction 12Bit



Capacity: 32GB

Info:

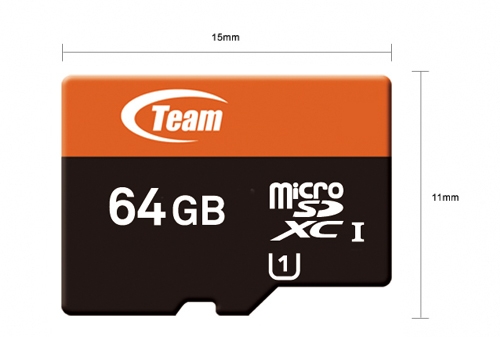

Team Group’s Xtreem microSDXC UHS-1 is a high-performance memory card designed specifically for smart phones, tablet computers, and vehicle recorders. It features speeds of 40MB/s reading and 10MB/s writing. Thanks to the improved IO access capability, IOPS is able to reach 500 MB/s reading and 150 MB/s writing, exceeding substantially the limits of the same class, enough to satisfy the requirement of smart phones to frequently access small files.







Specification	Content
Write protect	No
Weight	0.5g
Working voltage	2.7~3.6v
Operation temperature	0 to 60
Static temperature	-20 ~ +85
Data transfer rate	Read: 40MB/s Max ; Write: 10MB/s Max IOPS: 500 / 150 (Read / Write)
Warranty	Lifetime warranty
Notes	--



System requirements
Windows 2000 / XP / Vista / 7,Linux2.4,Mac



Capacity: 16GB



Info:



Support for UHS-1 ultrahigh-speed bus interface
Extreme speeds of 40MB/s reading and 10MB/s writing
IOPS reaches 500 reading and 150 writing, surpassing the same class ten fold.
Enough to satisfy the high-speed access requirement of smart phones, tablets and vehicle recorders.



Team Group’s Xtreem microSDXC UHS-1 is a high-performance memory card designed specifically for smart phones, tablet computers, and vehicle recorders. It features speeds of 40MB/s reading and 10MB/s writing. Thanks to the improved IO access capability, IOPS is able to reach 500 MB/s reading and 150 MB/s writing, exceeding substantially the limits of the same class, enough to satisfy the requirement of smart phones to frequently access small files.





Specification	Content
Write protect	No
Weight	0.5g
Working voltage	2.7~3.6v
Operation temperature	0 to 60
Static temperature	-20 ~ +85
Data transfer rate	Read: 40MB/s Max ; Write: 10MB/s Max IOPS: 500 / 150 (Read / Write)
Warranty	Lifetime warranty
Notes	--



Windows 2000 / XP / Vista / 7,Linux2.4,Mac



Bright 7,000 lm from compact body



New lamp drive system has helped to make the body as compact as Panasonic's original PT-DZ6700 Series,*1 while providing high brightness of 7,000 lm for the PT-DW730S.



The RGB Booster achieves high image quality with levels of color reproduction and brightness that make each color stand out. It combines Panasonic's proprietary Vivid Color Control technology with a newly engineered Lamp Modulation Drive System for a 1-chip DLP™ projector that produces bright and vivid colors.



This unique control technology optimizes the use of the color segment areas of the color wheel. It increases the brightness of each RGB color by minimizing the unallocated portions between the colors, to achieve truly vivid coloring.



With the advanced lamp modulation technology, the projector is able to control the lamp intensity for each of the red, green, blue, and white segments of the color wheel separately. Because the actual light output is controlled in relation to each color segment, light usage is optimized and color balance is obtained without lowering the brightness. This results in bright vivid images with increased color fidelity.





This advanced image-processing circuit analyzes the video signal frequency range for each scene by extracting data on the distribution of high, mid, and low-frequency components, and brings out fine details accordingly. The resulting images have a more natural, three-dimensional appearance with crisp, clear detail.





Image details are less clear when a projector is used in a room with the lights on. Panasonic's System Daylight View 2 improves brightness perception by adjusting sharpness, gamma curves, and color corrections. This produces crisper, more stunning images with vivid colors even under bright conditions.





The original Eco Filter consists of two Micro Cut Filters (electrostatic filters), a pre-filter and a main filter, which use an ion effect to collect extremely small dust particles. The pre-filter has a honeycomb configuration and the main filter is pleated to achieve a large surface area that raises its dust collecting performance. Thanks to these features, the Eco Filter has a replacement cycle of up to 12,000 hours*2, which reduces the hassle of maintenance. And, as an environmental consideration, the filter can be washed with water and reused.*3





The Dual-Lamp System eliminates the need to interrupt a presentation if a lamp should burn out (in dual-lamp operation mode). The Lamp Relay mode also operates the lamps alternately to enable 24/7 projector operation.





The replacement lamp unit*4 can be used with all of the Panasonic PT-DZ6700 Series*5 and PT-DZ570 Series projectors.*6 This reduces the number of lamp types that need to be kept in stock when multiple projectors are used.





The original, newly designed liquid cooling system directly cools the DLP™ chip to improve performance and enable operation up to 45°C (113°F).*7 This allows use in a wider variety of environments, while stabilizing performance and keeping the unit quiet even in harsh conditions. It also contributes to realizing the compact body. Plus, Panasonic's liquid cooling system is hermetically sealed, so you don't need to replenish the liquid.





The wide adjustment range of the powered horizontal/vertical lens shift function assures convenience and versatility during installation. It lets you easily make adjustments with the remote control. The unit can also be rotated 360 degrees vertically. This means you can install it at any angle you want, to accommodate different installation conditions.





Choose from a wide lineup of optional lenses for your system, including short-throw, long-throw zoom and fixed-throw lenses for rear projection use. The additional lenses make it easy to adapt your projector to the installation site. The lenses attach and detach with one-touch ease.





A lens centered, symmetrical design provides ease of installation, eliminating the need for any special considerations when planning the installation site.





An Eco Filter is replaced from the side and lamps are replaced from the back panel. Both of them are replaced very easily even after the projector is installed on the ceiling.





The Multi-Screen Support System optimally adjusts multiple screens: Edge blending, color matching and multi-screen processor.



The edges of adjacent screens can be blended and their luminance controlled.



This function corrects for slight variations in the color reproduction range of individual projectors.



The PT-DW730S projector can project large, multi-screen images without any additional equipment. Up to 100 units (10 x 10) can be edge-blended at a time.





The PT-DW730S can simultaneously display images from two sources onto a single screen. For example, you can display a PC image on the left and a video image on the right. Taking advantage of the wide-screen projection, this function gives you a host of new application possibilities to explore.





The wide-ranging terminals include 2 sets of RGB inputs (compatible with Y/PB/PR signals) and a DVI-D input (HDCP compliant).*8 A serial input/output terminal (RS-232C compliant) that allows remote operation from a PC, similar to that of a wireless remote control, and a remote terminal for input switching by contact control and standby ON/OFF operation also make it possible to configure a remote operation system.





The PT-DW730S can be easily operated remotely over a LAN network, because it is all done using the computer's familiar web browser.  Furthermore, the projector sends an e-mail message to notify the operator when an error has occurred, or a lamp needs to be replaced.





The LAN terminals support PJLink™ Class 1 connection, which is highly convenient for system construction.





Panasonic's original freeware,"Multi Projector Monitoring & Control Software," allows the user to control and monitor multiple projectors at the same time via LAN. Projectors can be scheduled to turn on and off at a certain hour everyday. When a problem occurs, an alarm message is sent to the monitoring/controlling PC.



Wireless Remote Control provides greater convenience for large conference rooms, lecture halls and gymnasiums with large audiences. Also, two signal transmission ports are provided to enable a large operating area.





The PT-DW730 Series has attained a low standby power level (standby mode: eco). It also helps to slash running costs, and reduces environmental impact.





All PT-DW730 Series projectors are carefully manufactured at the Panasonic factory in Japan, under strict quality control. This is another, very important advantage of a Panasonic projector.



3D color management system
HD IP conversion
Digital noise reduction
Dynamic sharpness control
Mechanical lens shutter
Direct Power Off allows unplugging the power cord right after use
