24/7 surveillance even in the dark. Check in on your home or office at anytime with a browser, iPhone, iPad or Android devices.



The DCS-2132L is built with a megapixel image sensor to give you high-quality snapshots and video with resolutions up to 720p HD. This gives you sharp, high-resolution snapshots and videos with rich detail. Get a closer look with ePTZ, which lets you zoom in, zoom out, and pan across your camera’s video so you can survey a large area easily. An infrared cut removable (ICR) filter is also built into the DCS-2132L, which blocks infrared light during the day for improved image quality. At night, it moves out of the way to use all available light for low-light surveillance, and paired with the IR LED illuminator, this camera can monitor an area even in complete darkness.



The HD Wireless N Cube Network Camera is mydlink-enabled, which means that you can access and configure your camera remotely, no matter where you are. See your camera’s live view through the mydlink website, or download the mydlink mobile app and view your camera directly on your iOS or Android mobile device. Keep an eye on your home while you’re at work, or check on the office when you’re out on the road; mydlink makes it all possible.

If you have a mydlink-enabled Cloud Router, setting up and configuring your DCS-2132L is a snap, thanks to Zero Configuration. Simply connect your camera to its power adapter and then connect your camera to your Cloud Router with an Ethernet cable - the camera will automatically be added to your account. mydlink does the hard work for you, allowing even novice users to set up and use their mydlink-enabled cameras immediately.

The DCS-2132L comes with a wealth of features that enhance its surveillance capabilities, making it ideal for any situation. A passive infrared (PIR) sensor detects motion near the camera, allowing it to automatically record video and send you a notification when motion is detected. A built-in microphone and speaker allow for 2-way communication, which is ideal for use in entryways or for caretaker applications. It even includes 802.11n wireless connectivity, allowing it to be placed anywhere easily without requiring cabling to be installed.

The DCS-2132L is a self-sufficient surveillance solution, capable of recording snapshots and video to a MicroSD card without requiring a PC or network storage device. If you want to expand your surveillance options, D-ViewCam management software is also included, giving you the ability to manage up to 32 cameras with a robust set of features, including multi-camera views and automated e-mail alerts to keep you informed of suspicious or unusual activities.





1/4” Megapixel progressive CMOS sensor
5 meter IR illumination distance
Minimum illumination: 0 lux with IR LED on
Built-in Infrared-Cut Removable (ICR) Filter module
Built-in PIR sensor (5 meter)
Built-in microphone and speaker
10x digital zoom
Focal length: 3.45 mm
Aperture: F2.0
Angle of view:
(H) 57.8°
(V) 37.8°
(D) 66°





Configurable image size, quality, frame rate, and bit rate

Time stamp and text overlays
Configurable motion detection windows
Configurable privacy mask zones
Configurable shutter speed, brightness, saturation, contrast, and sharpness





Simultaneous H.264/MPEG-4/MJPEG format compression

H.264/MPEG-4 multicast streaming
JPEG for still images





16:9 - 1280 x 800, 1280 x 720, 800 x 450, 640 x 360, 480 x 270, 320 x 176, 176 x 144 up to 30 fps recording

4:3 - 1024 x 768, 800 x 600, 640 x 480, 480 x 360, 320 x 240, 176 x 144 up to 30 fps recording





G.726

G.711



10/100 BASE-TX Fast Ethernet port

802.11n wireless
DI/DO port
MicroSD/SDHC card slot





IPv6
IPv4
TCP/IP
UDP
ICMP
DHCP client
NTP client (D-Link)
DNS client
DDNS client (D-Link)
SMTP client
FTP client
HTTP / HTTPS
Samba client
PPPoE
UPnP port forwarding
RTP / RTSP/ RTCP
IP filtering
QoS
CoS
Multicast
IGMP
ONVIF compliant





Administrator and user group protection
Password authentication
HTTP and RTSP digest encryption



System Requirements for Web Interface



Browser: Internet Explorer, Firefox, or Chrome





Motion detection
Event notification and uploading of snapshots/video clips via e-mail or FTP
Supports multiple SMTP and FTP servers
Multiple event notifications
Multiple recording methods for easy backup





Take snapshots/video clips and save to local hard drive or NAS via web browser

Configuration interface accessible via web browser





Windows 7/Vista/XP system, Pocket PC, or mobile phone

mydlink mobile app for iOS and Android mobile devices





Operating System: Microsoft Windows 7/Vista/XP

Web Browser: Internet Explorer 7 or higher

Protocol: Standard TCP/IP





Remote management/control of up to 32 cameras

Viewing of up to 32 cameras on one screen

Supports all management functions in web interface

Scheduled motion triggered, or manual recording options





116 g ± 5%



Input: 100 to 240 V AC, 50/60 Hz

Output:  5 V DC, 1.2 A



3.65 watts max.



Operating: 0 to 40 °C (32 to 104 °F)

Storage: -20 to 70 °C (-4 to 158 °F)



Operating: 20% to 80% non-condensing

Storage: 5% to 95% non-condensing



CE
CE LVD
FCC
C-Tick



Interface: USB 3.0



Capacity: 8GB / 16GB / 32GB / 64GB



Windows: 2000, XP, Vista, 7
Mac: 10.7.2 and above
Linux: Fedora 13 with MBR..FAT32 enabled



Operating Temperature: 0°C to 75°C
Storage Temperature: -40°C to 85°C

Operating Voltage
1.2V ~ 5V

Weight
24g

Dimension
L 60mm x W 21mm x H 7mm




USB 3.0 is the highest speed of USB standard for computer connectivity so far. The transmission speed is 10 times faster than USB2.0, and up to 5Gbit/s. The enhanced R/W speed could help you to storage massive data in a shorter time and more convenient way.



Different from USB2.0, USB3.0 use two unidirectional data path to carry its traffic that means USB3.0 could allow R/W these two processes to happen at the same time. Its cable carries 6 signals (four of Super Speed data path) to help speed up. Compared with USB2.0, which just carry 2 signals and only allow read or write at a time, USB3.0 will be more suitable for those people, who need better capacity but less processing time.



The improvement of USB3.0 power management ability will help you to save the power consumption. Moreover, USB3.0 shares the same type of connector as USB2.0 and backward-compatible with USB2.0. There's no hassle while using it with your existing equipment.



With USB 3.0 device, the large storage capacity could allow you to carry all your music, movie, files, and photos. Make it as a part of your life and help you to catch every important moment.



If you believe " Time is Money ", USB3.0 will be the best choice.



Products	8GB	16GB	32GB	64GB
ME00	9D300080ME001	9D300160ME001	9D300320ME001	9D300640ME001



PHOTOGRAPH

25056

PCS





VIDEO

44

HOURS









Interface: USB 3.0



Capacity: 8GB / 16GB / 32GB / 64GB

Windows: 2000, XP, Vista, 7
Mac: 10.7.2 and above
Linux: Fedora 13 with MBR..FAT32 enabled





Operating Temperature: 0°C to 75°C
Storage Temperature: -40°C to 85°C

1.2V ~ 5V





24g





L 60mm x W 21mm x H 7mm




USB 3.0 is the highest speed of USB standard for computer connectivity so far. The transmission speed is 10 times faster than USB2.0, and up to 5Gbit/s. The enhanced R/W speed could help you to storage massive data in a shorter time and more convenient way.



Different from USB2.0, USB3.0 use two unidirectional data path to carry its traffic that means USB3.0 could allow R/W these two processes to happen at the same time. Its cable carries 6 signals (four of Super Speed data path) to help speed up. Compared with USB2.0, which just carry 2 signals and only allow read or write at a time, USB3.0 will be more suitable for those people, who need better capacity but less processing time.



The improvement of USB3.0 power management ability will help you to save the power consumption. Moreover, USB3.0 shares the same type of connector as USB2.0 and backward-compatible with USB2.0. There's no hassle while using it with your existing equipment.



With USB 3.0 device, the large storage capacity could allow you to carry all your music, movie, files, and photos. Make it as a part of your life and help you to catch every important moment.



If you believe " Time is Money ", USB3.0 will be the best choice



Products	8GB	16GB	32GB	64GB
ME00	9D300080ME001	9D300160ME001	9D300320ME001	9D300640ME001





PHOTOGRAPH

12528

PCS



VIDEO

22

HOURS



MUSIC

8000

SONG





Interface: USB 3.0

Capacity: 8GB / 16GB / 32GB / 64GB





Windows: 2000, XP, Vista, 7

Mac: 10.7.2 and above

Linux: Fedora 13 with MBR..FAT32 enabled



Operating Temperature: 0°C to 75°C
Storage Temperature: -40°C to 85°C



1.2V ~ 5V





24g





L 60mm x W 21mm x H 7mm



USB 3.0

USB 3.0 is the highest speed of USB standard for computer connectivity so far. The transmission speed is 10 times faster than USB2.0, and up to 5Gbit/s. The enhanced R/W speed could help you to storage massive data in a shorter time and more convenient way.



Different from USB2.0, USB3.0 use two unidirectional data path to carry its traffic that means USB3.0 could allow R/W these two processes to happen at the same time. Its cable carries 6 signals (four of Super Speed data path) to help speed up. Compared with USB2.0, which just carry 2 signals and only allow read or write at a time, USB3.0 will be more suitable for those people, who need better capacity but less processing time.



The improvement of USB3.0 power management ability will help you to save the power consumption. Moreover, USB3.0 shares the same type of connector as USB2.0 and backward-compatible with USB2.0. There's no hassle while using it with your existing equipment.



With USB 3.0 device, the large storage capacity could allow you to carry all your music, movie, files, and photos. Make it as a part of your life and help you to catch every important moment.



If you believe " Time is Money ", USB3.0 will be the best choice.



Products	8GB	16GB	32GB	64GB
ME00	9D300080ME001	9D300160ME001	9D300320ME001	9D300640ME001







VIDEO

11

HOURS





MUSIC

4000

SONG

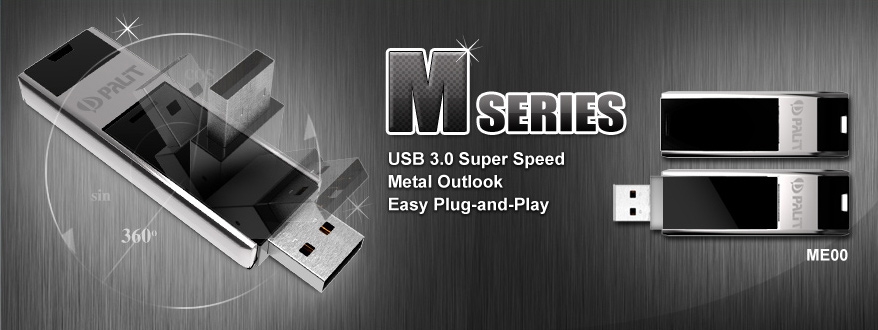

M Series





Interface: USB 3.0

Capacity: 8GB / 16GB / 32GB / 64GB





Windows: 2000, XP, Vista, 7

Mac: 10.7.2 and above

Linux: Fedora 13 with MBR..FAT32 enabled





Operating Temperature: 0°C to 75°C

Storage Temperature: -40°C to 85°C

1.2V ~ 5V



24g



L 60mm x W 21mm x H 7mm


USB 3.0 is the highest speed of USB standard for computer connectivity so far. The transmission speed is 10 times faster than USB2.0, and up to 5Gbit/s. The enhanced R/W speed could help you to storage massive data in a shorter time and more convenient way.



Different from USB2.0, USB3.0 use two unidirectional data path to carry its traffic that means USB3.0 could allow R/W these two processes to happen at the same time. Its cable carries 6 signals (four of Super Speed data path) to help speed up. Compared with USB2.0, which just carry 2 signals and only allow read or write at a time, USB3.0 will be more suitable for those people, who need better capacity but less processing time.



The improvement of USB3.0 power management ability will help you to save the power consumption. Moreover, USB3.0 shares the same type of connector as USB2.0 and backward-compatible with USB2.0. There's no hassle while using it with your existing equipment.



With USB 3.0 device, the large storage capacity could allow you to carry all your music, movie, files, and photos. Make it as a part of your life and help you to catch every important moment.



If you believe " Time is Money ", USB3.0 will be the best choice.



Products	8GB	16GB	32GB	64GB
ME00	9D300080ME001	9D300160ME001	9D300320ME001	9D300640ME001









MUSIC

2000

SONG

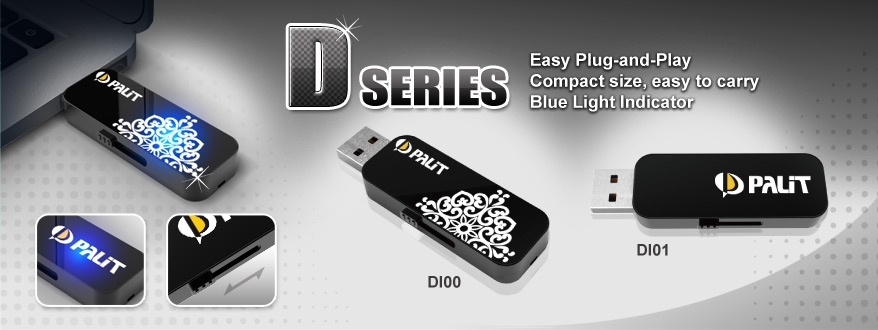

Interface: USB 2.0



Capacity: 4GB / 8GB / 16GB / 32GB



Windows: 2000, XP, Vista, 7

Mac: 10.7.1 and above

Linux: Ubuntu 10.4, Fedora 11, Fedora 13





Operating Temperature: 0°C to 75°C

Storage Temperature: -40°C to 85°C



1.8V ~ 5V





8g





L 53mm x W 20mm x H 8mm



Products	4GB	8GB	16GB	32GB
DI00	9D200040DI001	9D200080DI001	9D200160DI001	9D200320DI001
DI01	9D200040DI011	9D200080DI011	9D200160DI011	9D200320DI011





Interface: USB 2.0



Capacity: 4GB / 8GB / 16GB / 32GB



Windows: 2000, XP, Vista, 7
Mac: 10.7.1 and above
Linux: Ubuntu 10.4, Fedora 11, Fedora 13

Operating Temperature: 0°C to 75°C
Storage Temperature: -40°C to 85°C

1.8V ~ 5V

8g


L 53mm x W 20mm x H 8mm

Products	4GB	8GB	16GB	32GB
DI00	9D200040DI001	9D200080DI001	9D200160DI001	9D200320DI001
DI01	9D200040DI011	9D200080DI011	9D200160DI011	9D200320DI011











Interface: USB 2.0



Capacity: 4GB / 8GB / 16GB / 32GB



Windows: 2000, XP, Vista, 7

Mac: 10.7.1 and above

Linux: Ubuntu 10.4, Fedora 11, Fedora 13



Operating Temperature: 0°C to 75°C
Storage Temperature: -40°C to 85°C

1.8V ~ 5V

8g





L 53mm x W 20mm x H 8mm



Products	4GB	8GB	16GB	32GB
DI00	9D200040DI001	9D200080DI001	9D200160DI001	9D200320DI001
DI01	9D200040DI011	9D200080DI011	9D200160DI011	9D200320DI011





VIDEO

5.5

HOURS





MUSIC

2000

SONG



Interface: USB 2.0



Capacity: 4GB / 8GB / 16GB / 32GB





Windows: 2000, XP, Vista, 7

Mac: 10.7.1 and above

Linux: Ubuntu 10.4, Fedora 11, Fedora 13



Operating Temperature: 0°C to 75°C
Storage Temperature: -40°C to 85°C





1.8V ~ 5V





8g



L 53mm x W 20mm x H 8mm





4GB











MUSIC

1000

SONG
