08/06

Panasonic PT-TW230EA Short Throw LCD Projector - 1280x800, 2500 Lumens, 500;1

PT-TW230EA

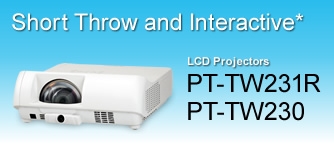

Short Throw and Interactive* LCD Projectors PT-TW231R/PT-TW230

Project large-screen images in a limited space, making lectures go smoothly by eliminating the glare of the projection light and shadows on the screen. The interactive function* lets you write onto projected images to enhance information sharing.

Effective and Appealing Short Throw Projection Features

Specifications

Model PT-TW231R PT-TW230
Power supply 100 - 240 V AC, 50/60 Hz
Power consumption 310 W (0.42 W when STANDBY MODE set to ECO,*1
9.5 W when STANDBY MODE set to NETWORK.)
Optical system Optical isolation/Prism synthesis by using a dichroic mirror
LCD panel Panel size 15 mm (0.59 inches) diagonal (16:10 aspect ratio)
Display method Transparent LCD panel (x 3, R/G/B)
Drive system Active matrix
Pixels 1,024,000 pixels (1,280 800) x 3, Total: 3,072,000 pixels
Pixel configuration Stripe
Lens Fixed (0.5:1 throw ratio), manual focus F = 1.8, f = 6.68 mm
Lamp 230 W UHM lamp (The lamp replacement cycle is 4,000 hours*2)
Screen size (diagonal) 1.52 - 2.79 m (60 - 110 inches) (16:10 aspect ratio)
Color reproducibility  Full color (16,777,216 colors)
Brightness*3 2,500 lm (lamp power: Normal)
Center-to-corner uniformity*3 80%
Contrast*3 500:1 (full on/full off, lamp power: Normal)
Resolution 1,280 800 pixels
(Input signals that exceed this resolution will be converted to 1,280 800 pixels.)
Scanning
frequency		 HDMI (Horizontal) 25-80 kHz; (Vertical) 50-85 Hz; (Dot clock) 162 MHz or lower
RGB (analog) (Horizontal) 15-100 kHz; (Vertical) 50-100 Hz; (Dot clock) 140 MHz or lower
(Signals exceeding the dot clock rate of 140 MHz are downsampled.)
YPBPR (YCBCR) fH: 15.75 kHz, fV: 60 Hz [480i (525i)]
fH: 31.50 kHz, fV: 60 Hz [480p (525p)]
fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p]
fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i]		 fH: 15.63 kHz, fV: 50 Hz [576i (625i)]
fH: 31.25 kHz, fV: 50 Hz [576p (625p)]
fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p]
fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i]
Video/S-Video fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60],
fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]
Optical axis shift 10:-1.44 (fixed)
Keystone correction range Vertical: 20
Installation Ceiling/floor, front/rear (Menu setting)
Built-in speaker 3.7 cm round shape x1, output power 10 W (monaural)
Terminals HDMI IN (HDMI 19-pin) x 1 (compatible with HDCP)
Audio signal Linear PCM (Sampling frequency: 48 kHz/44.1 kHz/32 kHz)
COMPUTER IN 1 D-sub HD 15-pin (female) x 1 [RGB/YPB(CB)/PR(CR)x 1]
COMPUTER IN 2 /
MONITOR OUT		 D-sub HD 15-pin (female) x 1 (RGB x 1) (input/output selectable using on-screen Menu)
(When Monitor Out is selected, the COMPUTER IN 1 signal is output.)
VIDEO IN RCA pin 1
S-VIDEO IN Mini DIN 4-pin 1
COMPUTER AUDIO IN M3 x 1 (L-R x 1)
AUDIO IN RCA pin x 2 (L-R x 1) for VIDEO/S-VIDEO input
AUDIO OUT M3 x 1 (L-R x 1)
SERIAL IN D-sub 9-pin (male) 1 for external control (RS-232C compliant)
LAN (RJ-45) 1 (for network connection, 100BASE-TX/10BASE-T, compliant with PJLink (class 1))
USB 1 (for interactive function) -
Power cord length 2.0 m (6'7")
Cabinet materials Molded plastic (PC)
Dimensions (W H D) 350 143 389 mm
(13-25/32" 5-5/8" 15-5/16")
(with legs at shortest position)		 350 143 382 mm
(13-25/32" 5-5/8" 15-1/32")
(with legs at shortest position)
Weight Approx.4.7 kg (10.4 lbs)*4
Noise level 36 dB (Lamp power: Normal); 29 dB (Lamp power: Eco)
Operating temperature 0C- 35C [32F-95F] (less than 1,200 m [3,937 ft] above sea level),
0C- 30C [32F-86F] (between 1,200 m and 2,700 m [3,937 ft to 8,858 ft] above sea level)
Operating humidity Operating humidity: 20% - 80% (no condensation)
Supplied accessories Power cord x 1*5, Power cord cover x 1,
Wireless remote control unit x 1,
Batteries (AAA/R03/LR03 type x 6),
Computer cable (1.8 m, for VGA) x 1,
Interactive pen x 1, Interactive pointer x 1,
USB cable (4.5 m) x 1,
Software CD-ROM
(Logo Transfer Software,
Multi Projector Monitoring &
Control Software) x1,
Software CD-ROM (Light Pen II) x 1		 Power cord x 1*6, Power cord cover x 1,
Wireless remote control unit x 1,
Batteries (AAA/R03/LR03 type x 2),
Computer cable (1.8 m, for VGA) x 1,
Software CD-ROM
(Logo Transfer Software,
Multi Projector Monitoring
& Control Software) x 1

 Link contains in-depth information about this product Link contains a picture of this product    NA
08/06

Fujitsu J17A1085 G Alkaline 1x9V Batteries

J17A1085 G Alkaline 1x9V Batteries
 Link contains in-depth information about this product Link contains a picture of this product    NA
08/06

Fujitsu J17A1081 G Alkaline 2xD Batteries

J17A1081 G Alkaline 2xD Batteries
 Link contains in-depth information about this product Link contains a picture of this product    NA
08/06

Fujitsu J17A1082 G Alkaline 2xC Batteries

J17A1082 G Alkaline 2xC Batteries
 Link contains in-depth information about this product Link contains a picture of this product    NA
08/06

Fujitsu J17A1111 G Alkaline 10xAAA Batteries

J17A1111 G Alkaline 10xAAA Batteries
 Link contains in-depth information about this product Link contains a picture of this product    NA
08/06

Fujitsu J17A1084 G Alkaline 4xAAA Batteries

J17A1084 G Alkaline 4xAAA Batteries
 Link contains in-depth information about this product Link contains a picture of this product    NA
08/06

Fujitsu J17A1110 G Alkaline 10xAA Batteries

J17A1110 G Alkaline 10xAA Batteries
 Link contains in-depth information about this product Link contains a picture of this product    NA
08/06

Fujitsu J17A1083 G Alkaline 4xAA Batteries

J17A1083 G Alkaline 4xAA Batteries
 Link contains in-depth information about this product Link contains a picture of this product    NA
08/06

Epson Soft Carry Case - To Suit Epson TW10/TW10H/TW20/ EB-95, 905, 915W, 925 Projector

Soft Carry Case for Epson Portable Projectors


Projector Options

Padded carry bag that makes it even easier to transport your Epson projector.

Product Code: V12H001K51

SUITABLE FOR PRODUCT CODE
Epson EB-1725 V11H268053
Epson EB-1735W V11H270053
Epson EB-S6 V11H283053
Epson EB-W6 V11H285453
Epson EB-X6 V11H284053
Epson EMP-1700 V11H232053
Epson EMP-1710 V11H230053
Epson EMP-1715 V11H228053
Epson EMP-1810 V11H233053
Epson EMP-1815 V11H234053
Epson EMP-1825 V11H274053
Epson EMP-TW10 V11H127053
Epson EMP-TW10H V11H164053
Epson EMP-TW20 V11H180053
Epson EMP-TW200 V11H138053
Epson EMP-TW200H V11H174053
Epson EMP-X5 V11H254053
Epson EMP-X56 V11H307053
Link contains in-depth information about this product Link contains a picture of this product    NA
08/06

Shintaro Blazer USB3.0 Internal Card Reader

Shintaro Blazer USB3.0 Int Card Reader

Shintaro's Blazer Multicard Reader / Writer supports the largest range of memory card brands in the market, including all small form factor memory cards, without the requirement of an adaptor. Easy and direct access at the front of your computer it allows users to copy, drag and drop their files, digital presentations, spreadsheets and more, to and from their memory card, notebook, PC or Mac.
  • Supports over 30 different card types
  • CF, CF UMDA 7, MD slot SM,xD slot/SD,mini SD, micro SD, SDHC, SDXC, MMC slot MS,MS-Duo slot,T-Flash slot + more
  • OEM only, no retail packaging
  • Supports XP,Vista 32/64, Win7& 32/64
  • Connects via 1 x USB3.0 Header cable




 Link contains in-depth information about this product Link contains a picture of this product    NA
08/06

G.Skill 8GB Micro SD SDHC Card - Class 10

FF-TSDG8GA-C10



Specifications
Model Number FF-TSDG8GA-C10
Type Micro SDHC
Capacity 8GB
Speed Class Rating Class 10
Voltage 2.7 3.6V
Operating Temperature -25C to 85C
Storage Temperature -40C to 85C
Features Ultra small storage device for mobile phones, digital cameras, digital music players, GPS, automotive recorders and camcorders
SD Adapter included
Fully compatible with SD 2.0 Standards
Only 10% the size of a standard SD card
Easy to plug-and-play operation
Warranty Lifetime limited
Dimension 11mm x 15mm x 1mm
Weight 0.5 g
Link contains in-depth information about this product Link contains a picture of this product    NA
