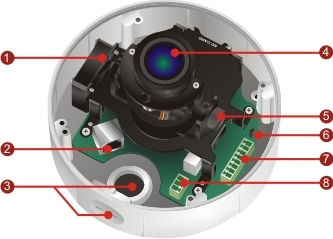

Fan |
 |
RJ45 Connector (for Ethernet and High Power PoE) |
 |
Conduit Plug and Hole |
 |
LENS |
 |
Tilt Screw |
 |
Reset Button |
 |
Terminal Block (for Audio in/out, DI/DO) |
 |
Terminal Block (for Power) |
 |

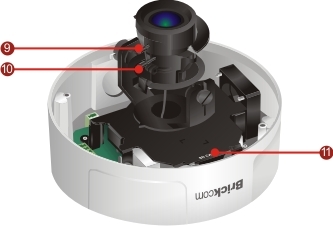

Focus Control Bar |
 |
View Angel Control Bar |
 |
SD Card Slot |
3 Megapixel High Resolution Vandal Dome Cameras
The Brickcom VD-300A is a 3 megapixel network surveillance camera, which supports Full HD resolution. The VD-300A is a full-featured, 3-axis, vandal dome, network camera. With a 3 megapixel CMOS sensor and built-in IR cut filter/ IR illuminator LEDs/ Auto Light sensor, it can provide 24-hour surveillance. The VD-300A features a wide-angle and vari-focal lens, which offers wide view coverage of all angles.
Intelligent Multi-Profile Sensor Management
The Brickcom VD- 300A series camera provides the advanced image sensor profile management function to adapt to the variable environments. With this feature, the user has the ability to set various sensor and lens attributes in a profile, including the brightness, contrast, sharpness, saturation, exposure, de-noise, white balance, iris, IR-cut, etc. Furthermore, the profiles can be switched automatically following the user-defined conditions, such as Day & Night, Schedule, and Digital Input. Up to 3 pre-set profiles (Day, Night, and Sunset) and 2 user-defined profiles are provided for the camera for unprecedented flexibility.
SD/SDHC SD Card Inserted & Edge Recording Supported
The VD-300A supports Power over Ethernet (PoE) and a built-in SD/SDHC/Micro-SD card slot for a pure IP installation. With the SD/SDHC SD card inserted, the camera can record the video locally. By integrating with the Brickcom BP-1000 power battery pack, the FD-300A Series supports Edge Recording. The camera will continue recording and store the data to the Micro SD/SDHC card when the network or power connection is interrupted.
IP67 Weather Proof Enclosure
The Brickcom vandal dome camera VD-300A comes with an extreme weather proofing feature so the operating temperature is extended to -40 to +60C (-40 to +140F) to ensure camera operation in harsh conditions. The IP67 outdoor enclosure makes VD-300A vandal dome Camera possible to be placed in any location, regardless of environment and climate.
Specifications:
Camera
Hardware System
CPU: 500 MHz
Flash: 16M
RAM: 128M DDR
Image Sensor
Sensor Type : 1/4” CMOS 3 megapixel Sensor
Sensor Resolution : 2032 x 1536 pixel
Minimum Illumination :
[email protected]
Lens
Lens Type : Board Mount
Focal Length: f= 3mm(W)~9mm(T) ,3X
Iris: 1.2(W)~2.7(T)
View Angle:
(H): 115.2°~37.1°
(V): 63.29°~20.8°
(D): 132.6°~42.5°
Day & Night ICR
Triggered by Light sensor, Scheduling, Digital Input
Video
Video Image Compression
H.264 / MPEG4 / MJPEG
Video Setting
Auto Exposure Control: Sport, Normal, Night
Vision, User Defined
Auto Gain Control: 1X~5X
Shutter Speed: 1/10000s ~ 1/7 s
Image Resolution
Audio
Audio Streaming
2-way Audio Support
Audio Compression
G.711, AMR (8 kHz, Mono, PCM)
Audio Input/ Output
Line In/ Out
General
Communication Ethernet : one 10/100Mbps RJ-45
Supported Protocols : TCP/IP, UDP, ICMP,
DHCP, NTP, DNS,
DDNS, SMTP, FTP, HTTP, Samba, PPPoE,
UPnP, RTP, RTSP,
Power Input High Power PoE / DC48V/0.8A
Max. Power
Consumption
25 watts
Environment Water Proof: IP67
Operating Temperature : -40°C ~ 60°C (-40°F
~140°F), build in fan and heater
Operating Humidity : 10% ~ 80%
Dimension 113.75 (D) mm X 144.25(H) mm
Weight 860g/1.90lb
Certification FCC, CE
Warranty Limited 2-year warranty
