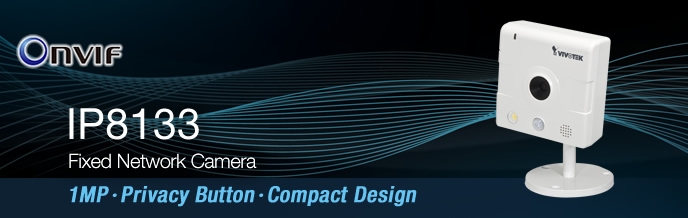

Vivotek IP8133 Fixed Network Camera - 1 Megapixel CMOS Sensor, Real-Time H.264, MPEG-4 & MJPEG Compression Triple Codec, Built-In PIR Sensor For Human Detection, Built-In White-Light Illuminators - White
1MP Privacy Button Compact Design Fixed Network Camera IP8133
Overview
VIVOTEK IP8133 is an easy-to-use network camera specifically designed for home security applications with a compact, stylish exterior. With a camera with a 1MP sensor enabling viewing resolution of 1280x800 at 30 fps, users need to look no further for an all-in-one camera capable of capturing high quality, high resolution video.
Embedded with the multimedia SoC, the camera supports the industry-standard H.264 compression technology, drastically reducing file sizes and conserving valuable network bandwidth. With MPEG-4 and MJPEG compatibility also included, video streams can also be transmitted in any of these formats for versatile applications. The streams can also be individually configured to meet different constraints, thereby further reducing bandwidth and storage requirements. Users can thus receive multiple streams simultaneously in different resolutions, frame rates, and image qualities for viewing on different platforms.
With this network camera, a user can quickly and easily view children, the elderly, or even pets with live, clear videos while away from home. The camera also includes tamper detection and VIVOTEK's 32-channel recording software. With all this and more, the IP8133 is the ideal solution for your surveillance needs.
Features
- 1-megapixel CMOS Sensor
- Real-time H.264, MPEG-4 and MJPEG Compression (Triple Codec)
- Privacy Button to Pause Monitoring
- Tamper Detection for Unauthorized Changes
- Built-in PIR Sensor for Human Detection
- Built-in White-light Illuminators
- Built-in 802.3af Compliant PoE
- Built-in Microphone and Speaker for Two-way Audio
- Compact, Elegant Design
Specifications:
| Lens |
f=3.45 mm
F 2.4
Board lens
Fixed
|
| Field of View |
47.4 (horizontal)
30.6 (vertical)
54.7 (diagonal)
|
| Shutter Time |
1/15 ~ 1/25,000 sec |
| Image sensor |
1/4" CMOS in 1280x800 Resolution |
| Minimum Illumination |
3.0 Lux @ F2.4 ( typical )
|
| Video |
Compression: H.264, MPEG-4 & MJPEG
Streaming:
Simultaneous multiple streams
H.264 streaming over UDP, TCP, HTTP or HTTPS
H.264/MPEG-4 multicast streaming
MPEG-4 streaming over UDP, TCP, HTTP or HTTPS
MJPEG streaming over HTTP or HTTPS
Supports activity adaptive streaming for dynamic frame rate control
Supports 3GPP mobile surveillance
Frame rates:
H.264: Up to 30 fps at 1280x800
MPEG-4: Up to 30 fps at 1280x800
MJPEG: Up to 30 fps at 1280x800
|
| Image Settings |
Adjustable image size, quality, and bit rate
Time stamp and text caption overlay
Flip & mirror
Configurable brightness, contrast, saturation, sharpness, white balance and exposure control
AGCAWBAES
Supports privacy masks
BLC (Backlight compensation)
|
| Audio |
Compression
GSM-AMR speech encoding, bit rate: 4.75 kbps to 12.2 kbps
G.711 audio encoding, bit rate: 64 kbps, -Law or A-Law
Interface:
Built-in microphone
Built-in speaker
Supports two-way audio
Supports audio mute
|
| Networking |
10/100 Mbps Ethernet, RJ-45
ONVIF support
Protocols: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP and 802.1X |
| Alarm and Event Management |
Triple-window video motion detection
1 D/I & 1 D/O for external sensor and alarm
Event notification using HTTP, SMTP, FTP
Local recording of MP4 files
Tamper Detection
PIR (Passive Infrared Sensor) for human detection
White-light illuminators for low light condition when event triggered
|
| Security |
Multi-level user access with password protection
IP address filtering
HTTPS encrypted data transmission
|
| Users |
10 clients on-line monitoring at the same time |
| Weight |
Net: 200 g |
| LED Indicator |
System power and status indicator
System activity and network link indicator
Privacy button on
|
| Power |
5V DC
Power consumption: Max. 4.3 W
802.3af Power-over-Ethernet (Class 2)
|
| Approvals |
CEC-TickFCCLVDVCCI |
| Operating Environments |
Temperature: 0 ~ 40 C (32 ~ 104 F )
Humidity: 90%
|
| Viewing System Requirements |
OS: Microsoft Windows 7 / Vista / XP / 2000
Browser: Mozilla Firefox
Browser: Internet Explorer 7.x or above
VLC:10.5 or above
QuickTime:6.5 or above
Cell phone: 3GPP player
Real Player 10.5 or above |
| Installation, Management, and Maintenance |
Installation Wizard 2
32-CH Central management software
Supports firmware upgrade
|
| Applications |
SDK available for application development and system integration |
| Warranty |
24 Months |
| Dimensions |
Depth: 32mm
Width: 79mm
Height: 80mm
|
|
|
|
