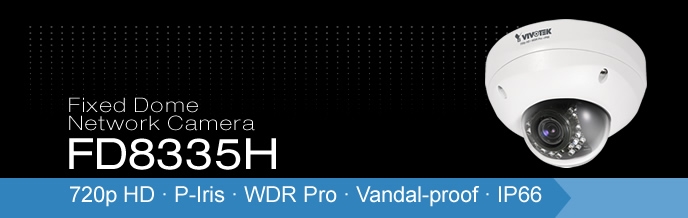

720p HD P-iris WDR Pro Vandal-proof Dome Network Camera FD8335H





VIVOTEK's FD8335H network camera features an HD WDR CMOS sensor to cope with challenging lighting conditions. The WDR feature allows the camera to capture both the dark and bright parts of an image and combines the differences to generate a highly realistic image representative of the original scene, enabling it to provide video quality close to the capabilities of the human eye. This function enables the FD8335H to be widely applicable in high contrast environments such as lobby entrances, parking lots, ATMs, loading areas, and much more. The P-iris lens controls the iris with extreme precision; with its built-in stepper motor, it maintains the iris opening at an optimal level at all times, resulting in superior image clarity and depth of field as well as image quality.



Incorporating an IR-cut filter that can be removed automatically at night and built-in IR illuminators with coverage of up to 20 meters, the FD8335H is an outstanding 24-hour surveillance solution. The vandal-proof and the IP66-rated housing of the FD8335H enables users to easily build a cost-effective IP surveillance system without additional accessories. Its metal vandal-proof housing effectively provides robust protection from vandalism. Meanwhile, the IP66 integrated housing shields the camera from dust and water, allowing it to be applied in the harsh weather conditions of outdoor environments.

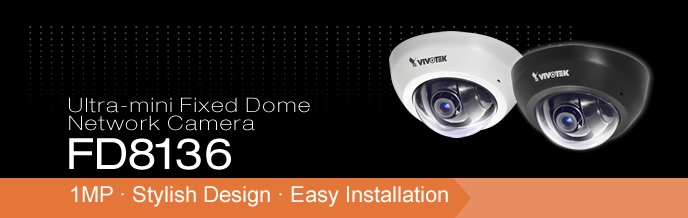

1MP Ultra-mini Dome Network Camera FD8136





VIVOTEK FD8136 is the worlds smallest network fixed dome camera. With installation as easy as one-two-three and Power over Ethernet (PoE) functionality, setup time is completed in less than 120 seconds, making installation quick and easy.



The FD8136 features a megapixel sensor enabling viewing resolution of 1280x800 at 30 fps, and also supports the industry-standard H.264 compression technology, drastically reducing file sizes and conserving valuable network bandwidth. With MPEG-4 and MJPEG compatibility also included, video streams can also be transmitted in any of these formats for versatile applications.



Designed with selectable focal lengths, FD8136 can be used in various environments, including but not limited to offices, elevators, campus, chain stores, boutique stores and health care facilities. At the size of only 90 mm in diameter, VIVOTEK FD8136 is truly an all-in-one surveillance solution that meets a wide variety of needs for indoor surveillance. The package also includes VIVOTEK's 32-channel recording software. With all this and more, the FD8136 is the ideal solution for your surveillance needs.





1MP Ultra-mini Dome Network Camera FD8136





VIVOTEK FD8136 is the worlds smallest network fixed dome camera. With installation as easy as one-two-three and Power over Ethernet (PoE) functionality, setup time is completed in less than 120 seconds, making installation quick and easy.



The FD8136 features a megapixel sensor enabling viewing resolution of 1280x800 at 30 fps, and also supports the industry-standard H.264 compression technology, drastically reducing file sizes and conserving valuable network bandwidth. With MPEG-4 and MJPEG compatibility also included, video streams can also be transmitted in any of these formats for versatile applications.



Designed with selectable focal lengths, FD8136 can be used in various environments, including but not limited to offices, elevators, campus, chain stores, boutique stores and health care facilities. At the size of only 90 mm in diameter, VIVOTEK FD8136 is truly an all-in-one surveillance solution that meets a wide variety of needs for indoor surveillance. The package also includes VIVOTEK's 32-channel recording software. With all this and more, the FD8136 is the ideal solution for your surveillance needs.







• System Information
  • CPU
    • Multimedia SoC (System-on-Chip)
  • Flash
    • 16 MB
  • RAM
    • 128 MB

• Camera Features
  • Image sensor
    • 1/4" progressive CMOS
  • Maximum Resolution
    • 1280x800
  • Lens Type
    • Fixed
  • Focal Length
    • f = 2.5 mm (FD8136-F2), f = 3.6 mm (FD8136-F3), f = 6 mm (FD8136-F6)
  • Aperture
    • F2.0 (FD8136-F2, FD8136-F3), F1.8 (FD8136-F6)
  • Field of View
    • 89.9 (FD8136-F2),
      61 (FD8136-F3),
      35.5 (FD8136-F6) (horizontal)
    • 62 (FD8136-F2),
      38 (FD8136-F3),
      22.6 (FD8136-F6) (vertical)
    • 101 (FD8136-F2),
      73 (FD8136-F3),
      741.6 (FD8136-F6) (diagonal)
  • Shutter Time
    • 1/5 sec. to 1/32,000 sec.
  • Minimum Illumination
    • 0.45 Lux @ F1.8, 50 IRE
  • Pan range
    • 45
  • Tilt range
    • 33 ~ 90
  • Pan / Tilt / Zoom
    • ePTZ
    • 16x digital zoom ( 4x on IE plug-in ,4x built-in )
  • On-board Storage
    • MicroSD/SDHC card slot

• Video
  • Compression
    • H.264, MPEG-4 & MJPEG
  • Maximum Frame Rate
    • H.264: 30 fps at 1280x800
    • MPEG-4: 30 fps at 1280x800
    • MJPEG: 30 fps at 1280x800
  • Maximum Streams
    • 2 simultaneous streams
  • S/N Ratio
    • Above 62 dB
  • TV Line
    • 713 TVL ( horizontal )
  • Video Streaming
    • Configurable video cropping for bandwidth saving
  • Image Settings
    • Adjustable image size, quality, and bit rate
    • Time stamp and text caption overlay
    • Flip & mirror
    • Configurable brightness, contrast, saturation, sharpness, white balance and exposure control
    • Gain
    • BLC (Backlight compensation)
    • Supports privacy masks

• Audio
  • Audio Capability
    • Audio input
  • Compression
    • GSM-AMR
    • G.711
  • Interface
    • Internal microphone input
  • Effective Range
    • 5 meters

• Network
  • Users
    • Live viewing for up to10 clients
  • Protocols
    • IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP and 802.1X
  • Protocols
    • 10 Base-T / 100BaseTX Ethernet (RJ-45)
  • ONVIF
    • Ver. 1.02

• Intelligent Video
  • Video Motion Detection
    • Triple-window video motion detection

• Alarm and Event
  • Alarm Triggers
    • Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection
  • Alarm Events
    • Event notification using HTTP, SMTP, FTP, NAS server

• General
  • Connectors
    • RJ-45 for Network / PoE connection
    • Terminal block * 2 ( Digital input )
    • MicroSD/SDHC card slot
  • LED Indicator
    • System power and status indicator
  • Power input
    •
  • Power consumption
    • Max. 3.84 W
  • Dimensions
    • : 90 mm x 50 mm
  • Weight
    • Net: 143 g
  • Safety Certifications
    • CEC-TickFCC(Class B)LVDVCCI
  • Operating Temperature
    • 0 ~ 50 C (32 ~ 122 F)
  • Warranty
    • 24 Months

• System Requirements
• Operating System
  • Microsoft Windows 7 / Vista / XP / 2000
• Browser
  • Mozilla Firefox 7 - 10 ( Streaming only )
  • Internet Explorer 7.x or 8.x
• Other Players
• VLC:1.1.11
• QuickTime:7 or above
• Real Player 10.5 or above





VIVOTEK FD8136 is the worlds smallest network fixed dome camera. With installation as easy as one-two-three and Power over Ethernet (PoE) functionality, setup time is completed in less than 120 seconds, making installation quick and easy.



The FD8136 features a megapixel sensor enabling viewing resolution of 1280x800 at 30 fps, and also supports the industry-standard H.264 compression technology, drastically reducing file sizes and conserving valuable network bandwidth. With MPEG-4 and MJPEG compatibility also included, video streams can also be transmitted in any of these formats for versatile applications.



Designed with selectable focal lengths, FD8136 can be used in various environments, including but not limited to offices, elevators, campus, chain stores, boutique stores and health care facilities. At the size of only 90 mm in diameter, VIVOTEK FD8136 is truly an all-in-one surveillance solution that meets a wide variety of needs for indoor surveillance. The package also includes VIVOTEK's 32-channel recording software. With all this and more, the FD8136 is the ideal solution for your surveillance needs.





1MP Ultra-mini Dome Network Camera FD8136

VIVOTEK FD8136 is the worlds smallest network fixed dome camera. With installation as easy as one-two-three and Power over Ethernet (PoE) functionality, setup time is completed in less than 120 seconds, making installation quick and easy.

The FD8136 features a megapixel sensor enabling viewing resolution of 1280x800 at 30 fps, and also supports the industry-standard H.264 compression technology, drastically reducing file sizes and conserving valuable network bandwidth. With MPEG-4 and MJPEG compatibility also included, video streams can also be transmitted in any of these formats for versatile applications.



Designed with selectable focal lengths, FD8136 can be used in various environments, including but not limited to offices, elevators, campus, chain stores, boutique stores and health care facilities. At the size of only 90 mm in diameter, VIVOTEK FD8136 is truly an all-in-one surveillance solution that meets a wide variety of needs for indoor surveillance. The package also includes VIVOTEK's 32-channel recording software. With all this and more, the FD8136 is the ideal solution for your surveillance needs.

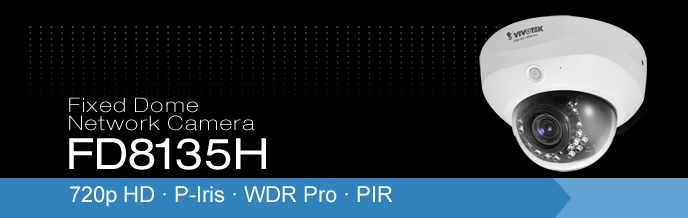

720p HD P-iris WDR Pro PIR Dome Network Camera FD8135H





VIVOTEK's FD8135H network camera features an HD WDR CMOS sensor to cope with challenging lighting conditions. The WDR feature allows the camera to capture both the dark and bright parts of an image and combines the differences to generate a highly realistic image representative of the original scene, enabling it to provide video quality close to the capabilities of the human eye. This function enables the FD8135H to be widely applicable in high contrast environments such as lobby entrances, parking lots, ATMs, loading areas, and much more. The P-iris lens controls the iris with extreme precision; with its built-in stepper motor, it maintains the iris opening at an optimal level at all times, resulting in superior image clarity and depth of field as well as image quality.



Incorporating an IR-cut filter that can be removed automatically at night and built-in IR illuminators with coverage of up to 20 meters, the FD8135H is an outstanding 24-hour surveillance solution. Together with a PIR sensor for human detection, 802.3af compliant PoE, tamper detection, MicroSD/SDHC card for on-board storage, the FD8135H is indisputably the top choice for reliable and performance surveillance.





• System Information
  • CPU
    • Multimedia SoC (System-on-Chip)
  • Flash
    • 16 MB
  • RAM
    • 128 MB

• Camera Features
  • Image sensor
    • 1/2.7" Progressive CMOS
  • Maximum Resolution
    • 1280x800
  • Lens Type
    • Vari-focal
  • Focal Length
    • f = 3~9
  • Aperture
    • 1.2 ( wide ), 2.1 ( tele )
  • Iris
    • P-iris
  • Field of View
    • 102.68 ~ 35.4 (horizontal)
    • 61.93 ~ 22.8 (vertical)
    • 122.56 ~ 41.11 (diagonal)
  • Shutter Time
    • 1/5 sec. to 1/25,000 sec.
  • WDR Technology
    • WDR Pro
  • Day & Night
    • Removable IR-cut filter for day & night function
  • Minimum Illumination
    • 0.8 Lux @ F1.2, 50 IRE
    • 0.001 Lux @ F1.2, 50 IRE ( B/W )
  • Pan range
    • 350
  • Tilt range
    • 80
  • Pan / Tilt / Zoom
    • ePTZ
  • IR Illuminators
    • Built-in IR illuminators, Effective up to 20 meter
    • IR LED * 18
  • On-board Storage
    • MicroSD/SDHC card slot

• Video
  • Compression
    • H.264, MPEG-4 & MJPEG
  • Maximum Frame Rate
    • H.264: 30 fps at 1280x800
    • MPEG-4: 30 fps at 1280x800
    • MJPEG: 30 fps at 1280x800
  • Maximum Streams
    • 2 simultaneous streams
  • S/N Ratio
    • Above 60.5 dB
  • TV Line
    • 1235 TVL ( horizontal )
  • Dynamic Range
    • 110.4 dB
  • Video Streaming
    • Adjustable resolution, quality and bitrate
    • Configurable video cropping for bandwidth saving
  • Image Settings
    • Adjustable image size, quality, and bit rate
    • Time stamp and text caption overlay
    • Flip & mirror
    • Configurable brightness, contrast, saturation, sharpness, white balance and exposure control
    • Gain
    • BLC (Backlight compensation)
    • Supports privacy masks
    • Scheduled profile settings

• Audio
  • Audio Capability
    • Audio input / Audio output ( half duplex )
  • Compression
    • GSM-AMR
    • AAC
    • G.711
  • Interface
    • External / Internal microphone input

• Network
  • Users
    • Live viewing for up to10 clients
  • Protocols
    • IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP and 802.1X
  • Protocols
    • 10 Base-T / 100BaseTX Ethernet (RJ-45)
  • ONVIF
    • Ver. 1.02

• Intelligent Video
  • Video Motion Detection
    • Triple-window video motion detection

• Alarm and Event
  • Alarm Triggers
    • Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification
  • Alarm Events
    • Event notification using HTTP, SMTP, FTP, NAS server
    • File upload via HTTP, SMTP, FTP and NAS server

• General
  • Smart Focus System
    • Focus Assist OSD ( Network streaming )
  • Connectors
    • RJ-45 for Network / PoE connection
    • 3.5 mm phone jack * 2 for audio input/output
    • Terminal block * 2 ( 24V AC Power input )
    • Terminal block * 4 ( Digital input )
    • Terminal block * 2 ( Digital output )
    • MicroSD/SDHC card slot
  • LED Indicator
    • System power and status indicator
  • Power input
    • 24V AC
  • Power consumption
    • Max. 8 W
  • Dimensions
    • : 157 mm x 110 mm
  • Weight
    • Net: 778 g
  • Safety Certifications
    • CEC-TickFCC(Class B)LVDVCCI
  • Operating Temperature
    • -20 ~ 50 C (-4 ~ 122 F)
  • Warranty
    • 24 Months

• System Requirements
  • Operating System
    • Microsoft Windows 7 / Vista / XP / 2000
  • Browser
    • Mozilla Firefox 7~10 ( Streaming only )
    • Internet Explorer 7.x or 8.x
  • Other Players
    • VLC:1.1.11 or above
    • QuickTime:7 or above
