08/03
|
SanDisk 2GB SD Card - Class 2 2GB
SDSDB-002G-B35
2GB - SanDisk Standard SD™
Capture a memory every day on SanDisk Standard SD and SDHCcards. It's easy with affordable, quality cards from the minds behind flash memory. For use in all kinds of digital devices with SD and SDHC card slots and with capacities up to 32GB*, SanDisk Standard cards ensure you have plenty of room to capture and store photos, videos and tunes every day. Plus, they're backed by a five-year limitedwarranty and priced to give you a lot for a little. SanDisk Standard SD and SDHC cards are built for real life - handling its bumps and turns while capturing life in all its brilliance.
- High transfer rate for fast copying and downloading
- Built to last, with an operating shock rating of 2,000Gs, equivalent to a ten-foot drop**
- 5-year limited warranty
**Based on SanDisk internal testing
5 year warranty in regions not recognizing limited.
*1 gigabyte (GB) = 1 billion bytes. Some capacity not available for data storage.
Not all devices support SDHC card format. Check device manufacturer for more details.
Read more.
Trial offer of RescuePRO software, please go to:
http://www.LCTech.com/Ultra
When you decide to purchase the software, please use discount code ULTRA2009 for 15% discount. +
(+LC-Tech Intl terms and conditions apply. Not available for purchase in all regions.)
|
|
|
|
08/03
|
Compro RS-2212 Network Video Recorder - 12 Channel H.264, MPEG-4, MJPEG, Remotely Record, Play Back And Search Video Recordings, SMS & Email Notification, Full PTZ Control, NO HDD RS-2212
12 Channel Network Video Recorder
Description
RS-2208 and RS-2212 are both a dual-bay Network Video Recorder expressly designed for surveillance applications in small and mid-sized businesses. Both are designed from the ground up with ease of use in mind, and both are embedded with robust Linux system that is reliable and safe from virus and hacker attacks. RS-2208 and RS-2212 are both capable of recording high-quality H.264 video 24/7 and offer advanced data backup feature and friendly browser interface, and support the complete range of Compro IP cameras as well as ONVIF-compliant network cameras.
- Embedded Linux operating system for superior reliability
- Record H.264 megapixel video from up to 8 (RS-2208) IP cameras or 12 (RS-2212) IP cameras simultaneously
- Support dual SATA 3.0Gbs 3.5" HDD
- Support RAID-0 and RAID-1
- Remotely record, play back and search video recordings
- Remotely view and record video, and search and play back recordings
- One-touch backup to USB storage device
- Full PTZ control
- Intelligent iWizard for easy and effortless setup
Features Highlights:
High-Quality Megapixel Recording
Record high-quality video streamed from your network cameras in megapixel resolution. The megapixel resolution allows for greater detail and better identification of suspicious people. The NVR also takes advantages of H.264 compression technology, allowing you to record longer period of time compared to other compression methods.
One Touch Backup
A one-touch backup button and a USB port on the front panel enable fast and easy data backup to external USB storage devices. Support for RAID-0 and RAID-1 also helps deliver better drive performance and adds an additional layer of data security to your surveillance system.
Easy Installation with iWizard
The setup process takes just a few steps using the intelligent Compro iWizard. iWizard makes the setup process fast and easy even for novice users. Simply install the hard drive, connect the cables, run the iWizard utility, and your NVR will be up and running in next to no time
ONVIF Support
In addition to supporting the full line of Compro's network cameras, the NVR can also record video from ONVIF-compliant network cameras. The support for ONVIF standard offers greater flexibility in building your own surveillance system.
(Compro Technology does not guarantee full functionality or compatibility across ONVIF cameras; individual experience may vary based on the camera model and firmware used.)
Generic RTSP Streaming Support
There are a myriad of camera models on the market and compatibility across different manufacturers is not absolutely guaranteed. Compro NVR can receive and record standard-compliant RTSP stream from your generic RTSP camera, ensuring highest compatibility with your existing surveillance system.
Compact Size
Measured only 23 centimeters long and 10 centimeters wide, and standing slightly taller than a soda can, the RS-2208 and RS2212 can nicely fit anywhere in a home, shop or office.
Energy Efficient
This standalone NVR system consumes less than 30 watts in operation, as opposed to the 300 watts power consumption of its PC counterparts. The advanced power management feature lets you minimize the power consumption by scheduling the NVR to power up or shut down or putting the hard drive into hibernation at specified times.
SMS & Email Notification
The event notification feature allows the sending of Email or SMS alert message once your Compro network cameras detect unusual events. The SMS notification service does not impose any monthly subscription fees, and the Email notification service supports popular webmail platforms.
Friendly Browser Interface
You can view the live video and manage your NVR from anywhere and at anytime on your web browser. The NVR's browser interface, WebVUer, offers the capability to remotely search, play back, and export video recordings. The browser interface is so easy to use that there is virtually no learning time required.
PTZ Control
You can adjust your PTZ camera directly on the NVR's browser interface. Use the 8 directional control buttons to pan and tilt and use the home button to return to the preset position. For fixed cameras, you can use the same buttons to control the digital PTZ function provided by the NVR's browser interface.
One-Click Camera Setup
The NVR's iStart feature lets you set up camera connections with a click of a button. With iStart, you don't have to configure connections between your NVR and your Compro network cameras one by one. Just click the iStart button and then all the available Compro network cameras will be automatically connected to your NVR.
Free Compro DDNS Service
he NVR provides a free Compro DDNS service for remote surveillance over the Internet. Compro DDNS service enables you to create an easy-to-remember domain name that links to your NVR's current public IP address, which means you can forget about the unfriendly IP address and log in to your NVR with a unique domain name of your own.
Graphical Menu
Beautifully crafted icons in the setup menu allow users to get to the wanted functions with ease. Users can also input keywords to search available functions.
Specifications:
| SYSTEM |
Operating System |
Embedded Linux, safe from crashes and virus attacks |
| CONNECTORS |
LAN Port |
2 x Gigabit RJ-45 Ethernet port |
| USB |
USB 2.0 x 2 (front x 1, rear x 1) |
| CAMERA |
Camera |
IP55, IP60, IP70, IP540, IP540P, IP570, IP570P, NC120, NC120R, NC150, NC420, NC450, NC740 (video server) |
| Camera Administration |
Individually adjust video settings per camera |
| VIDEO |
Channel |
8/12 |
| Compression Format |
M-JPEG, MPEG4, H.264 (depends on the IP cameras) |
| Resolution |
160x120, 320x240, 640x480, 800x600, 1280x720, 1280x1024 |
| Bit Rate |
64Kbps, 128Kbps, 256Kbps, 512Kbps, 1Mbps, 1.5Mbps, 3Mbps |
| Frame Rate |
5, 7.5, 10, 15, 20, 25, 30, 60 |
| Video Setting (per Channel) |
Brightness, Contrast, Hues, Saturation, Visibility, Sharpness |
| AUDIO |
Compression |
PCM G.711 |
| 2-Way Audio |
Yes |
| Recording |
Recording Connection |
RS-2208: 8 channels, H.264/MPEG-4/MJPEG |
| RS-2212: 12 channels, H.264/MPEG-4/MJPEG |
| Recording Mode |
Continuous, motion-triggered recording, tamperingtriggered recording, scheduled recording (daily, weekly, specific day), audio-triggered recording, IOtriggered recording, manual recording |
| Pre- / Post-Event Recording |
Yes, pre-recording: up to 5 sec; post-recording: up to 300 sec |
| Recording Bitrate |
Per camera specifications, up to 60 fps per channel |
| Compression Format |
M-JPEG, MPEG4, H.264 (depending on camera) |
| Disk Usage Limitation |
Max capacity, specified size, percentage |
| File Management |
Loop overwrite, keep data by day, never erase |
| PLAYBACK |
Playback Control |
Play, pause, next frame, previous frame, beginning, end, playback speed adjustment, multiple playback speed |
| Advanced Playback Feature |
Snapshot, digital zoom, file download |
| Video Search |
Search video by date/time/channel/event |
| STORAGE |
Local Storage |
2 x 3.5" SATA I/II HDD |
| HDD Capacity |
Up to 3.0 TB |
| Disk Mode |
Single, RAID 0, RAID 1, JBOD/ linear |
| Remote Storage Mode |
Share folders on Windows OS, NAS, FTP server |
| Services |
FTP, SMB/CIFS |
| EVENT HANDLING |
Event Type |
MotionTamperingScheduleManualAudioIO |
| Event Handling |
Recording, Instant e-mail, SMS alert, CMS notification |
| PTZ CONTROL |
Direction Control |
Home, 8 x directions |
| Zoom |
According to supported network camera |
| ePTZ |
1~10x digital zoom, center mode |
| Advanced PTZ Feature |
Preset position, patrol group, speed control, focus control |
| NETWORK |
Protocols |
DDNS (iDDNS) / PPPoE / DHCP / HTTP / NTP / DNS / FTP / SMTP / ARP / ICMP / IPV4 / TCP/IP / UDP / UPnPS |
| Dual Gigabit LAN |
Yes |
| Multi-IP setting |
Yes |
| SECURITY |
Event Logs |
Detailed record of all events |
| User Management |
Yes |
| Authentication |
ID, password |
| Account Administration |
Configurable user privileges |
| Group Management |
Multi-level and multi-feature individually configurable |
| BACKUP |
One Touch Backup |
Yes |
| USB Backup |
Yes |
| GENERAL |
Setup Utility |
iWizard |
| Languages |
English, Traditional Chinese, Simplified Chinese |
| Viewing System Requirement |
OS: Windows XP/ Vista/ 7 |
| Browser: Internet Explorer 8.0 or later |
| Certification |
CE, FCC |
| Dimensions |
239 mm (L) x 100 mm (W) x 142 mm (H) |
| PHYSICAL |
Gross Weight |
2.84kgs |
| Operation Environment |
10~40C |
| POWER |
Power Supply |
AC100~240V 50/60Hz in, DC 12V output |
| Power Consumption |
6W (max) (HardDisk not incl.) |
| * |

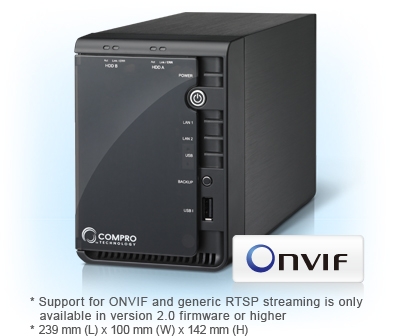

Support for ONVIF and generic RTSP streaming is only available in version 2.0 firmware or higher |
| * |
Compro Technology does not guarantee full functionality or compatibility across ONVIF cameras; individual experience may vary based on the camera model and firmware used. |
|
|
|
|
08/03
|
Compro RS-2208 Network Video Recorder - 8-Channel H.264, MPEG-4, MJPEG, Remotely Record, Play Back And Search Video Recording, SMS & Email Notification, Full PTZ Control, NO HDD RS-2208
8 Channel Network Video Recorder
Description
RS-2208 and RS-2212 are both a dual-bay Network Video Recorder expressly designed for surveillance applications in small and mid-sized businesses. Both are designed from the ground up with ease of use in mind, and both are embedded with robust Linux system that is reliable and safe from virus and hacker attacks. RS-2208 and RS-2212 are both capable of recording high-quality H.264 video 24/7 and offer advanced data backup feature and friendly browser interface, and support the complete range of Compro IP cameras as well as ONVIF-compliant network cameras.
- Embedded Linux operating system for superior reliability
- Record H.264 megapixel video from up to 8 (RS-2208) IP cameras or 12 (RS-2212) IP cameras simultaneously
- Support dual SATA 3.0Gbs 3.5" HDD
- Support RAID-0 and RAID-1
- Remotely record, play back and search video recordings
- Remotely view and record video, and search and play back recordings
- One-touch backup to USB storage device
- Full PTZ control
- Intelligent iWizard for easy and effortless setup
High-Quality Megapixel Recording
Record high-quality video streamed from your network cameras in megapixel resolution. The megapixel resolution allows for greater detail and better identification of suspicious people. The NVR also takes advantages of H.264 compression technology, allowing you to record longer period of time compared to other compression methods.
One Touch Backup
A one-touch backup button and a USB port on the front panel enable fast and easy data backup to external USB storage devices. Support for RAID-0 and RAID-1 also helps deliver better drive performance and adds an additional layer of data security to your surveillance system.
Easy Installation with iWizard
The setup process takes just a few steps using the intelligent Compro iWizard. iWizard makes the setup process fast and easy even for novice users. Simply install the hard drive, connect the cables, run the iWizard utility, and your NVR will be up and running in next to no time.
ONVIF Support
In addition to supporting the full line of Compro's network cameras, the NVR can also record video from ONVIF-compliant network cameras. The support for ONVIF standard offers greater flexibility in building your own surveillance system.
(Compro Technology does not guarantee full functionality or compatibility across ONVIF cameras; individual experience may vary based on the camera model and firmware used.)
Generic RTSP Streaming Support
There are a myriad of camera models on the market and compatibility across different manufacturers is not absolutely guaranteed. Compro NVR can receive and record standard-compliant RTSP stream from your generic RTSP camera, ensuring highest compatibility with your existing surveillance system.
Compact Size
Measured only 23 centimeters long and 10 centimeters wide, and standing slightly taller than a soda can, the RS-2208 and RS2212 can nicely fit anywhere in a home, shop or office.
Energy Efficient
This standalone NVR system consumes less than 30 watts in operation, as opposed to the 300 watts power consumption of its PC counterparts. The advanced power management feature lets you minimize the power consumption by scheduling the NVR to power up or shut down or putting the hard drive into hibernation at specified times.
SMS & Email Notification
The event notification feature allows the sending of Email or SMS alert message once your Compro network cameras detect unusual events. The SMS notification service does not impose any monthly subscription fees, and the Email notification service supports popular webmail platforms.
Friendly Browser Interface
You can view the live video and manage your NVR from anywhere and at anytime on your web browser. The NVR's browser interface, WebVUer, offers the capability to remotely search, play back, and export video recordings. The browser interface is so easy to use that there is virtually no learning time required.
PTZ Control
You can adjust your PTZ camera directly on the NVR's browser interface. Use the 8 directional control buttons to pan and tilt and use the home button to return to the preset position. For fixed cameras, you can use the same buttons to control the digital PTZ function provided by the NVR's browser interface.
One-Click Camera Setup
The NVR's iStart feature lets you set up camera connections with a click of a button. With iStart, you don't have to configure connections between your NVR and your Compro network cameras one by one. Just click the iStart button and then all the available Compro network cameras will be automatically connected to your NVR.
Free Compro DDNS Service
he NVR provides a free Compro DDNS service for remote surveillance over the Internet. Compro DDNS service enables you to create an easy-to-remember domain name that links to your NVR's current public IP address, which means you can forget about the unfriendly IP address and log in to your NVR with a unique domain name of your own.
Graphical Menu
Beautifully crafted icons in the setup menu allow users to get to the wanted functions with ease. Users can also input keywords to search available functions.
Specifications:
| SYSTEM |
Operating System |
Embedded Linux, safe from crashes and virus attacks |
| CONNECTORS |
LAN Port |
2 x Gigabit RJ-45 Ethernet port |
| USB |
USB 2.0 x 2 (front x 1, rear x 1) |
| CAMERA |
Camera |
IP55, IP60, IP70, IP540, IP540P, IP570, IP570P, NC120, NC120R, NC150, NC420, NC450, NC740 (video server) |
| Camera Administration |
Individually adjust video settings per camera |
| VIDEO |
Channel |
8/12 |
| Compression Format |
M-JPEG, MPEG4, H.264 (depends on the IP cameras) |
| Resolution |
160x120, 320x240, 640x480, 800x600, 1280x720, 1280x1024 |
| Bit Rate |
64Kbps, 128Kbps, 256Kbps, 512Kbps, 1Mbps, 1.5Mbps, 3Mbps |
| Frame Rate |
5, 7.5, 10, 15, 20, 25, 30, 60 |
| Video Setting (per Channel) |
Brightness, Contrast, Hues, Saturation, Visibility, Sharpness |
| AUDIO |
Compression |
PCM G.711 |
| 2-Way Audio |
Yes |
| Recording |
Recording Connection |
RS-2208: 8 channels, H.264/MPEG-4/MJPEG |
| RS-2212: 12 channels, H.264/MPEG-4/MJPEG |
| Recording Mode |
Continuous, motion-triggered recording, tamperingtriggered recording, scheduled recording (daily, weekly, specific day), audio-triggered recording, IOtriggered recording, manual recording |
| Pre- / Post-Event Recording |
Yes, pre-recording: up to 5 sec; post-recording: up to 300 sec |
| Recording Bitrate |
Per camera specifications, up to 60 fps per channel |
| Compression Format |
M-JPEG, MPEG4, H.264 (depending on camera) |
| Disk Usage Limitation |
Max capacity, specified size, percentage |
| File Management |
Loop overwrite, keep data by day, never erase |
| PLAYBACK |
Playback Control |
Play, pause, next frame, previous frame, beginning, end, playback speed adjustment, multiple playback speed |
| Advanced Playback Feature |
Snapshot, digital zoom, file download |
| Video Search |
Search video by date/time/channel/event |
| STORAGE |
Local Storage |
2 x 3.5" SATA I/II HDD |
| HDD Capacity |
Up to 3.0 TB |
| Disk Mode |
Single, RAID 0, RAID 1, JBOD/ linear |
| Remote Storage Mode |
Share folders on Windows OS, NAS, FTP server |
| Services |
FTP, SMB/CIFS |
| EVENT HANDLING |
Event Type |
MotionTamperingScheduleManualAudioIO |
| Event Handling |
Recording, Instant e-mail, SMS alert, CMS notification |
| PTZ CONTROL |
Direction Control |
Home, 8 x directions |
| Zoom |
According to supported network camera |
| ePTZ |
1~10x digital zoom, center mode |
| Advanced PTZ Feature |
Preset position, patrol group, speed control, focus control |
| NETWORK |
Protocols |
DDNS (iDDNS) / PPPoE / DHCP / HTTP / NTP / DNS / FTP / SMTP / ARP / ICMP / IPV4 / TCP/IP / UDP / UPnPS |
| Dual Gigabit LAN |
Yes |
| Multi-IP setting |
Yes |
| SECURITY |
Event Logs |
Detailed record of all events |
| User Management |
Yes |
| Authentication |
ID, password |
| Account Administration |
Configurable user privileges |
| Group Management |
Multi-level and multi-feature individually configurable |
| BACKUP |
One Touch Backup |
Yes |
| USB Backup |
Yes |
| GENERAL |
Setup Utility |
iWizard |
| Languages |
English, Traditional Chinese, Simplified Chinese |
| Viewing System Requirement |
OS: Windows XP/ Vista/ 7 |
| Browser: Internet Explorer 8.0 or later |
| Certification |
CE, FCC |
| Dimensions |
239 mm (L) x 100 mm (W) x 142 mm (H) |
| PHYSICAL |
Gross Weight |
2.84kgs |
| Operation Environment |
10~40C |
| POWER |
Power Supply |
AC100~240V 50/60Hz in, DC 12V output |
| Power Consumption |
6W (max) (HardDisk not incl.) |
| * |
Support for ONVIF and generic RTSP streaming is only available in version 2.0 firmware or higher |
| * |
Compro Technology does not guarantee full functionality or compatibility across ONVIF cameras; individual experience may vary based on the camera model and firmware used. |
|
|
|
|
08/03
|
Compro RS-2104 Network Video Recorder - 4 Channel Megapixel IP Camera Recording, Real-Time H.264, MPEG-4, M-JPEG, USB-Port For Video Backup, SMS & Email Alert Notification, Full PTZ Control, NO HDD Network Video Recorder
RS-2104
- 4-CH Megapixel Recording
- 3TB Easy Management
- Energy Efficient
Key Features
- Embedded Linux operating system for superior reliability
- Simultaneous 4-channel megapixel IP camera recording
- Support for SATA 3.0Gbs 3.5” HDD
- Support for ONVIF and generic RTSP streaming
- USB port for video backup
- Remotely view and record video, and search and play back recordings
- SMS & Email alert notification
- Full PTZ control
- Intelligent iWizard for easy and effortless setup
- Energy-efficient design
Cost-Effective Network Surveillance System
RS-2104 is a Network Video Recorder aimed to provide a costeffective and reliable recording solution for Compro and ONVIF-compliant network cameras. The RS- 2104 offers home users and small businesses the robustness of Linux system and the flexibility and high image quality of IP-based surveillance system.
Compro RS-2104 supports up to 4 megapixel network cameras, providing real-time H.264, MPEG-4, and M-JPEG recording and live viewing simultaneously. Its compact size makes it perfect for installation in small offices, homes, etc. Its built-in USB port
allows users to quickly back up video data to external storage devices. Also, power-efficient design not only keeps your energy cost in check, but also reduces your carbon footprint.
Furthermore, the RS-2104 offers ease of installation and management. For setup, RS-2104 employs the intelligent Compro iWizard to make the process fast and easy even for novice users. Setting up camera connections on RS-2104 takes just a simple mouse click. The friendly user interface lets you record, search and play back video in a straightforward manner.
In short, the RS-2104 is an ideal solution for home users as well as small businesses that want to stay abreast of the latest advances in the realm of surveillance technology and still keep their bottom line in check.
Specifications:
SYSTEM
Operating System: Embedded Linux, safe from crashes and virus attacks
CONNECTORS:
LAN Port: Gigabit RJ-45 Ethernet port x 1
USB: USB 2.0 x 1
SUPPORTED CAMERAS
Camera
Compro cameras: IP55, IP60, IP70, IP530/W, IP540, IP540P, IP570, IP570P, NC120/R, NC150/ R, NC350, NC420, NC450, NC500, NC740 (video server)
Supported Resolution: 160 x 320, 320 x 640, 640 x 480, 1280 x 1024 (depending on the camera)
Camera Administration: Individually adjustable video settings for each camera
VIDEO RECORDIN
Number of Channels: Up to 4 megapixel channels
Compression Format: M-JPEG, MPEG4, H.264 (depending on the camera)
Bitrate/Framerate: Up to 3 Mbps / 60 FPS per camera (depending on the camera)
Recording Mode: Continuous recording, scheduled recording (daily, weekly, specific day), motion-triggered recording, tampering-triggered recording, audio-triggered recording, IO-triggered recording, manual recording
Pre- / Post-Event Recording: Yes, pre-recording: up to 5 secpost-recording: up to 300 sec
Disk Usage Limitation: Max capacity, specified size limit, percentage
File Management: Loop overwrite; keep data by day; never erase
AUDIO
Compression: PCM G.711
2-Way Audio: Yes
PLAYBACK
Search Mode: By date/time/channel/event
Playback Control: Play, pause, next frame, previous frame, beginning, end, playback speed adjustment, multiple playback speed
Advanced Features: Snapshot, 10x digital zoom, file download
STORAGE
Local Storage: 3.5" SATA I / II HDD x 1
HDD Capacity: Up to 3.0 TB
Remote Storage: Mode Share folders on Windows OS, NAS, FTP server
Services: FTP, SMB/CIFS
EVENT HANDLING
Event Type: Motion, tampering, schedule, manual, audio, IO
Event Handling: Recording, instant e-mail, SMS alert, CMS notification
PTZ CONTROL
Direction Control: Home, direction x 8
Zoom: Depending on camera support
ePTZ: 1~10x digital zoom, center mode
Advanced PTZ Feature: Preset position, patrol group, speed control, focus control
NETWORK
Protocols
DDNS (iDDNS) / PPPoE / DHCP / HTTP / NTP / DNS / FTP / SMTP / ARP / ICMP / IPV4 / TCP/IP / UDP / UPnP
SECURITY
Event Logs: Detailed record of all events
User Management: Yes
Authentication: ID, password
Account Administration: Configurable user privileges
Group Management: Multi-level and multi-feature individually configurable
BACKUP
USB Backup: Yes
GENERAL
Languages: English, Traditional Chinese, Simplified Chinese
Viewing System Requirements: OS: Windows XP/ Vista/ 7 Browser: Internet Explorer 8.0 or later
Certification: CE, FCC
Operating Environment: 10 ~ 40 °C
PHYSICAL
Dimensions: 200.6 mm (L) x 52 mm (W) x 131.8 mm (H)
Gross Weight: 0.99 kg
PHYSICAL
Dimensions: 200.6 mm (L) x 52 mm (W) x 131.8 mm (H)
Gross Weight: 0.99 kg
POWER
Power Supply: AC100~240V 50/60Hz in, DC 12V output
Power Consumption: Max. 2.4W (without HDD)
|
|
|
|
08/03
|
Compro CS400P Outdoor Ready Day & Night - 1/4" Progressive Scan CMOS Sensor, H.264, Day & Night, 10x Digital Zoom, IP66 Waterproof, PoE, Built-In IR Illuminators, IR-Cut Filter - Silver CS400P
PoE (Power-over-Ethernet) function is only available on CS400P, which is a PoE-only version of CS400.
Compro CS400 and CS400P both provide an out-of-the-box IP video surveillance solution for professionals and novice users. These outdoor-ready network cameras can be easily and quickly installed without the need for router configuration or networking expertise. CS400 and CS400P are loaded with an assortment of advanced surveillance features including day/night functionality, smart motion detection, SMS and Email alert message, and more.
Features
Day & Night Functionality with Built-in IR Illuminators
The camera comes equipped with 30 IR LEDs plus an ambient light sensor that detects environmental lighting conditions. When in low-light conditions, the built-in IR LEDs can be automatically switched on to provide additional infrared light that helps deliver clear night-time image.
Mechanical IR-Cut Filter
The camera has a built-in mechanical IR-cut filter placed in front of the image sensor to filter out infrared light in the daytime, producing better color reproduction. At nighttime or when the built-in light sensor detects low-light conditions, IR-cut filter is automatically removed to achieve better light sensitivity.
H.264 Compression
The camera utilizes the cutting-edge H.264 video compression technology. Compared with the MPEG-4 format, the H.264 technology has higher compression efficiency, which means it can accomplish high image quality while reducing bandwidth requirement and saving storage cost.
Plug-n-Play Functionality
Unlike other network cameras, installing this camera does not require any networking expertise. Nor is any sort of router setup required - simply plug in the cable, install the camera software, and then your Compro camera is ready to be viewed and shared on the Internet.
Feature-Rich Camera Viewer App
The camera offers an exclusive and feature-rich camera viewer app that allows you to view and manage your Compro cameras on the iPhone or Android phone. The camera mobile app also lets you securely share camera video with your friends and families on your Friends list.
Friendly Browser Interface
You can view the live video and manage your camera from anywhere and at anytime on your web browser. The camera's browser interface, WebVUer, is so easy to use that there is virtually no learning time required.
SMS & Email Notification
The SMS & Email event notification feature enables the camera to send an alert message to specified recipients when it detects unusual events. The SMS notification service does not impose any monthly subscription fees, and the Email notification service supports popular webmail platforms.
Weather Resistance
The camera is ready to be mounted outdoors out of the box, saving users installation time and cost. The IP66-rated weather-resistant aluminum housing help the camera survive adverse weather conditions such as dust, rain, and sun.
Power-over-Ethernet (CS400P)
PoE support helps eliminate the need for a power outlet at the installation site, as a single Ethernet cable can be used to not only power the camera but also transport data in/out of the camera. PoE provides flexibility and convenience in installing the camera in the ideal location.
Specifications:
| Camera |
| Image Sensor |
1/4" progressive scan CMOS sensor |
| Lens |
Focal length: 4.0 mm
Max aperture ratio: F1.5
Fixed iris |
| Zoom |
10x digital zoom |
| Angle of View |
50 horizontal |
| Focusing Range |
0.5 m ~ INF |
| Min. Illumination |
IR mode: 0 lux, with 30 built-in IR LEDs in darkness (effective up to 20m)
Color mode: 1.0 lux
|
| Shutter Time |
1/5 ~ 1/15000 sec. |
| Video |
| Video Compression |
M-JPEG, H.264 (MPEG-4 Part 10) |
| Resolution & Frame Rate |
640 x 480 at 30 FPS |
| Video Streaming |
Dual streaming supported |
| Image Settings |
Adjustable image size and quality
AGC, AWB, AES
Configurable brightness, contrast, saturation and sharpness |
| Network |
| Protocols |
ARP, DDNS, DHCP, DNS, FTP, HTTP, ICMP/IPv4, IGP, NTP, PPPoE, QoS, RSP, RTSP, SMTP, SSL, TCP/IP, UDP, UPnP |
| Ethernet |
10/100 Base-T, autosensing, RJ-45 |
| Firmware |
| Firmware |
Support UPnP
Support online firmware update |
| Remote Surveillance |
| Mobile Surveillance |
M-JPEG; exclusive camera viewer app for iPhone/Android phone |
| Web Surveillance |
WebVUer 16CH over Internet Explorer, Chrome, Firefox, Safari (features vary) |
| General |
| Unit Configuration |
Rebooting, factory default, date/time synchronization, user profile management, firmware upgrade, OSD, date/time stamp, multilingual UI |
| User Group |
2 levels, unlimited users, ID/password protected, max 10 simultaneous users |
| OSD |
Text or image overlay, 4 locations |
| Language |
Chinese Traditional, Chinese Simplified, German, Spanish, English, Japanese, Portuguese, Russian, Turkish, Ukrainian, Bulgarian |
| Regulatory |
CE, FCC |
| Viewing System Requirements |
Computer with 1.7GHz processor and 512 MB memory or above
Operating system: Windows XP SP3, Vista SP1, Windows 7, Macintosh OS X 10.6 Snow Leopard
Internet browser: Internet Explorer 8.0 or later; non-IE browsers require 3rd-party VLC plug-in |
| Operating Conditions |
Operating temperature: 0 C ~ 50 C (32 F to 122 F)
Humidity: 20~80% RH non-condensing |
| Package Contents |
CS400(P) network camera
Software CD
Quick installation guide
Ethernet cable
Bracket |
| PHYSICAL |
| Dimensions |
148.5 mm (L) x 77 mm (W) x 74 mm (H) (with sunshield) |
| Net Weight |
0.55 kg |
| POWER |
| Power Supply |
CS400: DC 12V/2A
CS 400P: Power-over-Ethernet only (IEEE 802.3af Class 3)
|
| * |
Features and specifications are subject to change without prior notice. |
|
|
|
|
08/03
|
SanDisk 64GB SD SDXC Card - Class 10, Up To 45MB/s Read And Write Speeds SanDisk Extreme SDXC UHS-I card
More capacity to capture it all. More speed to get the shot.
Shoot like a pro and enjoy great performance with SanDisk Extreme SDXC UHS-I cards. With read/write speeds of up to 45MB/s*, enjoy professional continuous burst-mode shooting and capture fast-action Full HD Video (1080p) and 3D video.
Ideal for professionals and enthusiasts who need exacting performance, SanDisk Extreme lets you get more out of your DSLR, advanced camera or HD camcorder. That's why professional photographers choose SanDisk.
SDXC (Extended Capacity) - The latest SD memory card standard, available in 64GB and 128GB, for SDXC compatible cameras.
Features
- Extreme Speed up to 45MB/sec* read/write speeds for faster shot to shot performance and faster downloads
- Extreme Full HD video recording with both UHS Speed Class 1 for the new UHS-I Bus I/F and Class 10 for High Speed Bus I/F to capture Full HD (1080p)
- Extreme Capacities with up to 128 GB** capacity for more Full HD video and more uncompressed maximum file size images
- Extreme Technology based on new UHS-I bus architecture for increased speed so you'll be ready to capture it all
- Extreme Reliability advanced Error Correction Code (ECC) engine improves overall data integrity and reliability of the card during read and write
- Extreme Durability built for and tested in harsh conditions; temperature proof, water proof, shock proof, and x-ray proof
- Extreme Trust from the flash memory card brand trusted by professional photographers
- Includes a lifetime limited warranty***
Product Specifications:
- Form factor: SDXC
- Available capacities: 64GB, 128 GB**
- Performance/speed: Up to 45 MB/sec* read and write speeds
- Bus Interface: UHS-I (fully backwards compatible with SD 2.0)
- Card dimension: 0.94" x 1.25" x 0.08" (24 mm x 32 mm x 2.1 mm)
- Operating temperature: -13F to 185F (-25C to 85 C)
- Storage temperature: -40F to 185F (-40C to 85C)
- Compatibility: Compatible with SDXC supporting host devices
- Security: Built-in write-protect switch prevents accidental data loss
- Support: Lifetime Limited warranty***
* Up to 45 MB/sec (300X) read/write speeds. Based on internal testing; performance may be lower depending upon host device. 1 megabyte (MB) = 1 million bytes. X = 150KB/sec.
** 1 gigabyte (GB) = 1 billion bytes. Some capacity not available for data storage.
*** Lifetime warranty in regions not recognizing "limited" warranty. 30-year warranty in Germany and Canada.
Full HD video (1920x1080x30fps), HD and 3D video support may vary based upon host device, file size, resolution, compression, bit rate, content, and other factors. See: www.sandisk.com/HD.
UHS Speed Class 1 designates a performance option designed to support real-time video recording with UHS-I enabled host devices.
SD, SDHC and SDXC card formats up to 64 GB only; See www.sandisk.com/proof for additional information.
|
|
|
|
Previous Page
|
Next Page
|
|
