02/03
|
Sony 64GB Micro Vault Click Flash Drive - Read 26MB/s, USB2.0 - Black USM64GPB
New Micro Vault Click 64GB, is the elegant and glossy USB flash drive from Sony thats perfect for life on the go.
Features
USM64GPB
- Compact size with click and plug mechanism for easy use with a computer or any other device with a USB port
- Bright LED Indicator to indicate when the USB drive is in use.
- Elegant colour: chic black.
- Robust Design: the drive casing is made from a tough, polished resin to handle the knocks and shocks of life on the move.
- Drive identification to spot your USB drive on your PC quickly
- Free software downloads: Recover damaged files with File Rescue and create dazzling photo slideshows with x-Pict Story.
- 5-year warranty.
Technical specifications
USM64GPB
General Specifications
|
Recording Capacity (GB)
|
64*
|
|
Memory
|
Flash Memory
|
|
Interface
|
Hi-Speed USB (USB2.0)
|
|
Port type
|
Type A USB port
|
|
Power supply
|
USB bus power (no external power supply)
|
|
Compatible devices
|
Computers equipped type A USB port and Windows OS - Macintosh equipped type A USB port
|
|
Compatible Oss
|
Windows 7, Windows Vista, Windows XP, Windows 2000 Professional - Mac OS X 10.110.7
|
|
Transfer Speed (read)
|
26MB/s (max)
|
|
Software
|
File Rescue, x-Pict Story (downloads)
|
|
LED indicator
|
Available
|
|
Operating temperature range
|
0 to 35C
|
|
Operating humidity range
|
10 to 90% (with no condensation)
|
|
Storage temperature range
|
-20 to 60C (-4 to 140F)
|
|
Storage humidity range
|
10 to 90% (with no condensation)
|
|
External Dimensions
|
Approximately 58.6 x 18.8 x 8.9mm
|
|
Weight
|
Approximately 9g
|
|
Accessories
|
Operating Instructions
|
|
*1GB = 1 billion bytes.
|
A portion of the memory is used for data management functions. Usable storage capacity will be less than the amount shown on the device/package.
|
|
|
|
|
02/03
|
D-Link DCS-3112 HD Day & Night IP Camera - 1.3 Megapixel CMOS, Sony Exmor 1/4, Real-Time H.264, MPEG-4, Motion JPEG Compression, Up to 1280x1024, Built-In Removable IR-Cut Filter For Day/Night Surveillance DCS-3112
HD Day & Night IP Camera
- Sony Exmor 1/4 1.3 Megapixel CMOS progressive sensor
- Real-time H.264, MPEG-4, and Motion JPEG compression
- HD resolution up to 1280x1024
- DC iris varifocal 3.5 mm (W) to 8 mm (T) F1.4 CS mount lens
- Built-in removable IR-cut filter for day/night surveillance
- Simultaneous multi-stream support
- ePTZ
- Supports multiple access list
- Privacy Mask feature
- SD Card slot
- 2-way audio support
- 2 alarm inputs / 1 alarm output
- Power over Ethernet (PoE)
- 3GPP mobile surveillance
- Built-in Samba client for NAS
- Analog BNC output
- ONVIF compliant
High Resolution Surveillance
The D-Link DCS-3112 is a high-end HD Day & Night Network Camera, equipped with a 1/4 Megapixel Progressive Scan CMOS sensor and a 3.5-8 mm DC auto iris lens. The camera can capture HD video at resolutions of up to 1280 x 720/1280 x 1024 with frame rates up to 30 fps. Snapshots and video can be saved to a network drive, or to onboard storage through the built-in SD Card slot.
Multiple Video Streams
The DCS-3112 supports simultaneous streaming of H.264, MPEG-4, and MJPEG video to provide both high-quality and bandwidth-efficient compression formats. MJPEG delivers excellent file integrity, ideal for situations which require high image detail. H.264 and MPEG-4 produce a small file size, useful for extended recording or for use in low-bandwidth networks. Additionally, the DCS-3112 supports multicast H.264 and MPEG 4 streaming, allowing users to view the camera feed by subscribing to a multicast IP address on the network.
Removable IR-Cut filter
The DCS-3112 comes with a ICR Filter which can be manually applied via the web, or set to automatically adjust based on lighting conditions. This feature allows the camera to capture crisp colour images during the daytime, and grayscale images at dark.
Flexible Connectivity
The DCS-3112 incorporates Power over Ethernet (PoE), which allows it to be easily installed in a variety of locations, even when no power outlet is nearby. The DCS-3112 also includes input and output ports that allow connectivity to external devices such as IR sensors, switches, and alarm relays. An RS-485 interface provides connectivity to an optional pan/tilt enclosure which effectively adds pan/tilt functionality to the DCS-3112. An additional 12 V interface provides power for an optional LED illuminator.
Open Network Video Interface Forum (ONVIF) compliant
The Open Network Video Interface Forum (ONVIF) is standards relating to open IP video networking. The DCS-3112 is ONVIF compliant and therefore interoperable with other manufacturers products on the same network such as cameras, storage systems, video analytics products and Video Management Systems.
Centralised management with D-ViewCam
The included D-Link D-ViewCam (DCS-100) is a sophisticated video management software which enables you to manage up to 32 network cameras, set e-mail alert notifications, create recording schedules, and trigger motion detection to record directly to your hard drive or network folder. D-ViewCam also allows you to upload a floor plan of your premises, and create a realistic layout according to the locations of your cameras, further simplifying the management process.
Specifications:
Hardware Profile
- Sony Exmor 1/4 1.3 Megapixel progressive CMOS sensor
- Minimum Illumination: 0.4 lux (Color); 0.04 lux (B/W)
- Built-in Infrared-Cut Removable (ICR) Filter module
- 10X digital zoom
- DC iris varifocal length: 3.5 mm to 8.0 mm
- Aperture: F1.4
- Angle of view:
- (H) 35.4 to 77.6
- (V) 26.6 to 57.6
- (D) 44.3 to 97.9
Image Features
- Configurable image size, quality, frame rate, and bit rate
- Time stamp and text overlays
- Configurable motion detection windows
- 3 Configurable privacy masks zone
- Configurable white balance, shutter speed, brightness, saturation, contrast, sharpness
Video Compression
- H.264/MPEG-4/MJPEG simultaneous format compression
- JPEG for still images
- H.264/MPEG-4 multicast streaming
Video Resolution
- 16:9 - 1280x720, 800x450, 640x360, 480x270, 320x176, 176x144
- 4:3 - 1280x1024, 1280x960, 1024x768, 800x600, 640x480, 480x360, 320x240, 176x144
- all resolutions support frame rates of up tp 30 fps
Audio Support
External Device Interface
- 10/100 Base-TX Ethernet port with PoE
- 2 DI / 1 DO
- 12 V DC, 200 mA Output
- RS-485
- SD card
- Audio input / output
- Video output
Network Protocols
- IPv4
- TCP/IP
- UDP
- ICMP
- DHCP Client
- NTP Client (D-Link)
- DNS Client
- DDNS Client (D-Link)
- SMTP Client
- FTP ClientHTTP / HTTPS
- Samba Client
- PPPoE
- UPnP Port Forwarding
- RTP/RTSP/RTCP
- IP filtering
- 3GPP
- IGMP
- ONVIF compliant
Security
- Administrator and user group protection
- Password authentication
- HTTP and RTSP digest encryption
System Requirements for Web Interface
- Operating System: Microsoft Windows 7/Vista/XP/2000
- Browser: Internet Explorer, Firefox, Netscape, Opera
Event Management
- Motion detection
- Event notification and upload snapshots/video clips via HTTP, SMTP, or FTP
- Supports multiple HTTP, SMTP, and FTP servers
- Multiple event notifications
- Multiple recording methods for easy backup
Remote Management
- Configuration accessible via web browser
- Take snapshots/video clips and save to local hard drive or NAS via web browser
Mobile Support
- Pocket PC, or mobile phone with 3GPP playback support
D-ViewCam System Requirements
- Operating System: Microsoft Windows 7/Vista/XP
- Web Browser: Internet Explorer 6 or higher
- Protocol: Standard TCP/IP
D-ViewCam Software Functions
- Remote management/control of up to 32 cameras
- Viewing of up to 32 cameras on one screen
- Supports all management functions provided in web interface
- Scheduled motion triggered, or manual recording options
Power
- Input 12 V DC 1.25 A, 50/60 Hz
- 802.3af PoE
- Max. Power Consumption3.6 watts
Temperature
- Operation: 0 to 40 C
- Storage: -20 to 70 C
Humidity
- 20% to 80% non-condensing
Weight
560 g
Certifications
CE (Class A)
CE LVD (EN60965-1)
FCC (Class A)
ICES-003
C-Tick
Dimensions
80.0 x 52.9 x 180.4 (W x H x D)
|
|
|
|
02/03
|
Epson EB-475We Ultra Short Throw LCD Projector - 1280x800, 2600 Lumens, 3,000;1, 4000Hrs, VGA, HDMI, USB2.0, RJ45, Speakers Epson EB-475We

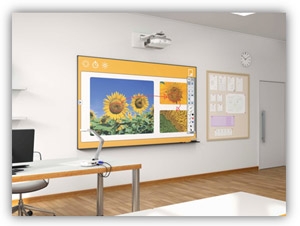

Ultra Short Throw Projectors
Overview
KEY FEATURES:
- Ultra Short Throw Minimal shadows and glare. Ideal for use with interactive whiteboards.
- Ultra Bright Images With a highbrightnessof 2,600 lumens White and Colour Light Output
- Integrated Wall Mount Included Stylish integrated design with extensive adjustability
- Advanced Networking Capability Enables users to monitor, control and present from a remote location
- Broad Connectivity Including HDMI HDMI, USB display, PC Free slideshows, network and optional wireless connectivity
- Lowest Epson Lamp Price Ever Seen Incredibly low price of only $79 inc GST (RRP. Aust)
- 16W Built-in Speaker Built in audio with the power to fill a classroom
| Range at a Glance |
EB-470
|
EB-475W
|
EB-475We
|
EB-480
|
EB-480e
|
EB-485W
|
EB-485We
|
| White Light Output |
2,600 lumens
|
2,600 lumens
|
2,600 lumens
|
3,000 lumens
|
3,000 lumens
|
3,100 lumens
|
3,100 lumens
|
| Colour Light Output |
2,600 lumens
|
2,600 lumens
|
2,600 lumens
|
3,000 lumens
|
3,000 lumens
|
3,100 lumens
|
3,100 lumens
|
| Resolution |
XGA
|
WXGA
|
WXGA
|
XGA
|
XGA
|
WXGA
|
WXGA
|
| HDMI Connectivity |
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
| Integrated Mount Included |
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
| Multi-user interactivity |
N/A
|
N/A
|
N/A
|
N/A
|
N/A
|
N/A
|
N/A
|
| PC Free Annotation |
N/A
|
N/A
|
N/A
|
N/A
|
N/A
|
N/A
|
N/A
|
| Network Functionality |
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
| Wireless Functionality |
Optional
|
Optional
|
Optional
|
Optional
|
Optional
|
Optional
|
Optional
|
| Low Cost Replacement Lamp |
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
| Education Specific Model |
N/A
|
N/A
|
Yes
|
N/A
|
Yes
|
N/A
|
Yes
|
FEATURES AND BENEFITS:
Upgrade to Ultra Short Throw
 Capable of producing an interactive image size anywhere from 60 up to 102 diagonal (native WXGA) on nearly any wall, the Epson Ultra Short Range delivers an amazing work environment. Thanks to this Ultra Short Throw distance, presenters are able to deliver rich multimedia content without the distraction of glare in the eyes, or shadows on the board disrupting vision. With the added benefit of 3LCD Technology, presentations will feature rich, vibrant colours that bring content to life. Plus, with 2,600 lumens Light and Colour Light Output, there is no need to dim the lights or draw the curtains, so meetings or lessons can start straight away without interruption.
Total Ease of Installation
TheEB-470, 475W, 480 and 485W come complete with an integrated wall mount, designed specifically for stylish appearance, and fast, simple installation. Adjustment dials are colour coded to match image-correction diagrams projected by the projector and selectable from the on screen display. Simply find the image that best represents the current shape of the projected image and adjust the corresponding coloured dial. The image will be square and the projector operational within moments. For those extra tricky installations where an uneven projection surface impedes progress, simply utilise the Quick Corner function to fine tune the image for perfectly square corners and edges.
Optional Wireless Connection Including iPads
With the addition of the optional ELPAP07 Wireless LAN Unit, the EB-470, 475W, 480 and 485W projectors can become a part of your 802.11 b/g/n wireless network. For incredibly easy peer-to-peer wireless connection on the fly without the need for additional software, add the ELPAP08 Easy MP quick wireless connection USB key.
Users can even project wirelessly from their iPad or iPhone thanks to Epsons innovative iProjection app. This app is available now via the Apple iTunes store.
Advanced Networking
Its possible to monitor and control networked Epson projectors from a remote location. Schedule power on or off timings, check projector status and receive maintenance alerts. Users can even project presentations in up to four rooms from one networked location.
 Wireless Connectivity
With the addition of the optional ELPAP07 Wireless LAN Unit, theEB-470, 475W, 480 and 485W projectors can become a part of your 802.11 b/g/n wireless network. For incredibly easy peer-to-peer wireless connection on the fly without the need for additional software, add the ELPAP08 Easy MP quick wireless connection USB key.
Low Cost of Ownership
The EB-400 Series projector features a lamp boasting an estimated life of up to 4,000 hours and a cost of only $79RRP.  This series of projectors also benefit from a high efficiency electrostatic filter with an estimated maintenance cycle of up to 5,000 hours.
Direct Connect to ELP-DC06
Further enhancing suitability to the modern education environment is the ability for theEB-470, 475W, 480 and 485W to connect directly to the Epson ELP-DC06 document camera / visualiser. These Epson products feature unique technology enabling them to connect via USB and provide full operation without the need for a PC.

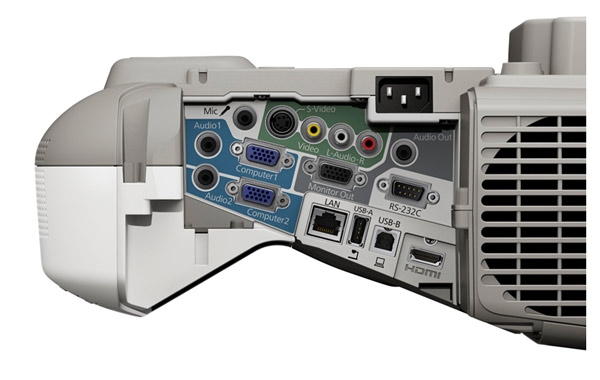

Connectivity Panel:
Specifications:
| PRODUCT NAME |
Epson EB-475We |
| PRODUCT CODE |
V11H455153 |
| WHAT'S IN THE BOX |
|
| |
Projector including 5m Power Cable, Remote Control, Batteries x 2, Projector Software Ver. 1.03b (CD ROM), Password Protect Sticker, User Manual Set, Setting Plate (mount), Template Sheet. |
| TECHNOLOGY |
|
| Projection System |
Epson 3LCD, 3-chip technology |
| LCD Panel |
0.59-inch with MLA |
| OPTICAL |
|
| Zoom |
1 - 1.35 (Optical Zoom) |
| Screen Size |
60" to 102" |
| Projection Distance |
74.3" screen 0.438m |
| Throw Ratio |
0.27 (Zoom: Wide), 0.37 (Zoom: Tele) |
| Projection Lens F Number |
1.80 |
| Projection Lens Focal Length |
3.71mm |
| Focus Method |
Manual Focus |
| Offset |
6.0:-1 |
| IMAGE |
|
| Colour Light Output |
2,600 Lumens |
| White Light Output |
2,600 Lumens |
| Resolution |
WXGA |
| Native Aspect Ratio |
16:10 |
| Contrast Ratio |
3,000:1 |
| Lamp Hours |
Normal/Eco: 3,000/4,000 Hours |
| Lamp Type |
190W UHE |

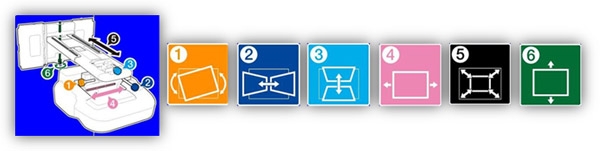

| Keystone Correction |
Vertical: -5 to +5 degrees
Horizontal: -5 to +5 degrees |
| CONNECTIVITY |
|
| Input: Video |
1 x RCA (Yellow), 1 x S-Video, 2 x Component (via D-sub 15-pin) |
| Input: Computer |
2 x D-sub 15-Pin (RGB), 1 x USB 2.0 type B |
| Input: USB Memory Device |
USB Type A Ver.2.0 |
| Input: Three-In-One USB Display |
1 x USB 2.0 type B |
| Input: Digital |
1 x HDMI |
| Input: Audio |
1 x RCA (Red/White), 2 x Stereo mini jack |
| Input: Control |
1 x USB 2.0 type B, RS232C |
| Input: Epson USB Document Camera |
1 x USB 2.0 type B |
| Network I/O: |
RJ45 x 1 (100Mbps) |
| Wireless Connectivity |
Optional |
| Output: Video |
D-sub 15 pin (monitor out black moulding) |
| Output: Audio |
Stereo mini jack x 1 |
| Speaker Output |
16W |
| ADVANCED FEATURES |
|
| EasyMP Network & Control |
Yes |
| EasyMP Network Projection |
Yes |
| PC Free Presentations |
No |
| USB Plug 'n Play |
Yes |
| AV Mute Slide |
No |
| Instant Off |
Yes |
| Direct Power On/Off |
Yes |
| Security |
Kensington -style lock provision
Padlock & Security cable hole
Wireless LAN unit lock
Password protect function
|
| Colour Modes |
Dynamic, Theatre |
| GENERAL |
|
| Dimensions D x W x H |
375 x 367 x 143mm |
| Weight |
5.4kg |
| Lamp Warranty |
12 months or 750 hours* |
| Projector Warranty |
3 Years |
| Power Consumption: Lamp on |
Normal: 300W / Eco: 215W |
| Power Consumption: Standby |
0.27W (communication off) |
| Noise Level |
Normal: 35dB / Eco: 28dB |
| |
| * Whichever comes first. For more information visit Epson Projector Warranty |
| PRODUCT OPTIONS |
Item Code |
Description |
| |
V13H010L71
|
Lamp |
| |
V12H003B29 |
Table Mount to suit EB-470/475W/475Wi/480/485W/485Wi |
| |
V13H134A40 |
Air-Filter |
| |
V12H418P13 |
Wireless LAN Adapter to suit EB-470/475W/475Wi/480/485W/485Wi |
| |
V12H005M08 |
Quick Wireless Key to suit EB-470/475W/475Wi/480/485W/485Wi |
| |
V12H522001 |
Interactive Pen ELPPN03A (orange) for EB-475Wi, EB-475Wie and EB-485Wi |
| |
V12H523001 |
Interactive Pen ELPPN03B (blue) for EB-475Wi, EB-475Wie and EB-485Wi |
| |
5YWEB485W |
Additional 2 year warranty (upgrade to 5 years) |
| |
|
|
| Epson is the registered trademark of Seiko Epson Corporation. Epson ESC/P2 and Epson Stylus are trademarks of Seiko Epson Corporation. MicroDot is a trademark of Epson Australia Pty Limited. All other product names and other company names used herein are for identification purposes only and may be the trademarks or registered trademarks of their respective owners. Epson disclaims any and all rights in those marks. Specifications are subject to change without notice. |
Equipment supplied by Epson Australia is designed to function in conjunction with genuine Epson consumables and accessories specifically configured for it.
Usage Conditions
Epson products are designed and made to give highly reliable use and long life when used according to its specifications. With any system, product or device used in situations where human life may be involved or at risk, Epson advises that you should take all necessary steps to ensure the suitability of your Epson product for inclusion in your system, and recommends that you include fail-safe procedures and redundancy support or backup equipment in your system, to maintain the maximum safety margin and optimum system reliability. Examples include but are not limited to do not interfere with any electrical components within the device, do not use items supplied with the product for purposes other than as intended by Epson (ie mains cords, inks, CDs, plastic wrapping) and do not make modifications to the product.
|
|
|
|
02/03
|
Epson EB-485We Ultra Short Throw LCD Projector - 1280x800, 2600 Lumens, 3,000;1, 4000Hrs, VGA, HDMI, RJ45, USB2.0, Speakers Epson EB-485We
Ultra Short Throw Projectors
Overview
Ultra bright. Ultra flexible. Ultra reliable. The best ultra-short throw projection technology just got a whole lot better, thanks to the latest innovations from Epson. Epson engineers have totally redefined the Ultra Short Throw market with a new shorter throw distance, higher brightness, and more flexible, user friendly mounting!
KEY FEATURES:
- Ultra Short Throw Minimal shadows and glare. Ideal for use with interactive whiteboards.
- Ultra Bright Images With a brightnessof 3,100 lumens White and Colour Light Output
- Integrated Wall Mount Included Stylish integrated design with extensive adjustability
- Advanced Networking Capability Enables users to monitor, control and present from a remote location
- Broad Connectivity Including HDMI HDMI, USB display, PC Free slideshows, network and optional wireless connectivity
- Lowest Epson Lamp Price Ever Seen Incredibly low price of only $79 inc GST (RRP. Aust)
- 16W Built-in Speaker Built in audio with the power to fill a classroom
| Range at a Glance |
EB-470
|
EB-475W
|
EB-475We
|
EB-480
|
EB-480e
|
EB-485W
|
EB-485We
|
| White Light Output |
2,600 lumens
|
2,600 lumens
|
2,600 lumens
|
3,000 lumens
|
3,000 lumens
|
3,100 lumens
|
3,100 lumens
|
| Colour Light Output |
2,600 lumens
|
2,600 lumens
|
2,600 lumens
|
3,000 lumens
|
3,000 lumens
|
3,100 lumens
|
3,100 lumens
|
| Resolution |
XGA
|
WXGA
|
WXGA
|
XGA
|
XGA
|
WXGA
|
WXGA
|
| HDMI Connectivity |
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
| Integrated Mount Included |
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
| Multi-user interactivity |
N/A
|
N/A
|
N/A
|
N/A
|
N/A
|
N/A
|
N/A
|
| PC Free Annotation |
N/A
|
N/A
|
N/A
|
N/A
|
N/A
|
N/A
|
N/A
|
| Network Functionality |
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
| Wireless Functionality |
Optional
|
Optional
|
Optional
|
Optional
|
Optional
|
Optional
|
Optional
|
| Low Cost Replacement Lamp |
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
| Education Specific Model |
N/A
|
N/A
|
Yes
|
N/A
|
Yes
|
N/A
|
Yes
|
FEATURES AND BENEFITS:
Upgrade to Ultra Short Throw
 Capable of producing an interactive image size anywhere from 60 up to 102 diagonal (native WXGA) on nearly any wall, the Epson Ultra Short Range delivers an amazing work environment. Thanks to this Ultra Short Throw distance, presenters are able to deliver rich multimedia content without the distraction of glare in the eyes, or shadows on the board disrupting vision. With the added benefit of 3LCD Technology, presentations will feature rich, vibrant colours that bring content to life. Plus, with3,100 lumens Light and Colour Light Output, there is no need to dim the lights or draw the curtains, so meetings or lessons can start straight away without interruption.
Total Ease of Installation
TheEB-470, 475W, 480 and 485W come complete with an integrated wall mount, designed specifically for stylish appearance, and fast, simple installation. Adjustment dials are colour coded to match image-correction diagrams projected by the projector and selectable from the on screen display. Simply find the image that best represents the current shape of the projected image and adjust the corresponding coloured dial. The image will be square and the projector operational within moments. For those extra tricky installations where an uneven projection surface impedes progress, simply utilise the Quick Corner function to fine tune the image for perfectly square corners and edges.
Optional Wireless Connection Including iPads
With the addition of the optional ELPAP07 Wireless LAN Unit, the EB-470, 475W, 480 and 485W projectors can become a part of your 802.11 b/g/n wireless network. For incredibly easy peer-to-peer wireless connection on the fly without the need for additional software, add the ELPAP08 Easy MP quick wireless connection USB key.
Users can even project wirelessly from their iPad or iPhone thanks to Epsons innovative iProjection app. This app is available now via the Apple iTunes store.
Advanced Networking
Its possible to monitor and control networked Epson projectors from a remote location. Schedule power on or off timings, check projector status and receive maintenance alerts. Users can even project presentations in up to four rooms from one networked location.
 Wireless Connectivity
With the addition of the optional ELPAP07 Wireless LAN Unit, theEB-470, 475W, 480 and 485W projectors can become a part of your 802.11 b/g/n wireless network. For incredibly easy peer-to-peer wireless connection on the fly without the need for additional software, add the ELPAP08 Easy MP quick wireless connection USB key.
Low Cost of Ownership
The EB-400 Series projector features a lamp boasting an estimated life of up to 4,000 hours and a cost of only $79RRP.  This series of projectors also benefit from a high efficiency electrostatic filter with an estimated maintenance cycle of up to 5,000 hours.
Direct Connect to ELP-DC06
Further enhancing suitability to the modern education environment is the ability for theEB-470, 475W, 480 and 485W to connect directly to the Epson ELP-DC06 document camera / visualiser. These Epson products feature unique technology enabling them to connect via USB and provide full operation without the need for a PC.
Connectivity Panel:
Specifications:
| PRODUCT NAME |
Epson EB-485We |
| PRODUCT CODE |
V11H454153 |
| WHAT'S IN THE BOX |
|
| |
Projector including 5m Power Cable, Remote Control, Batteries x 2, Projector Software Ver. 1.03b (CD ROM), Password Protect Sticker, User Manual Set, Setting Plate (mount), Template Sheet. |
| TECHNOLOGY |
|
| Projection System |
Epson 3LCD, 3-chip technology |
| LCD Panel |
0.59-inch with MLA |
| OPTICAL |
|
| Zoom |
1 - 1.35 (Optical Zoom) |
| Screen Size |
60" to 102" |
| Projection Distance |
74.3" screen 0.438m |
| Throw Ratio |
0.27 (Zoom: Wide), 0.37 (Zoom: Tele) |
| Projection Lens F Number |
1.80 |
| Projection Lens Focal Length |
3.71mm |
| Focus Method |
Manual Focus |
| Offset |
6.0:-1 |
| IMAGE |
|
| Colour Light Output |
2,600 Lumens |
| White Light Output |
2,600 Lumens |
| Resolution |
WXGA |
| Native Aspect Ratio |
16:10 |
| Contrast Ratio |
3,000:1 |
| Lamp Hours |
Normal/Eco: 3,000/4,000 Hours |
| Lamp Type |
190W UHE |
| Keystone Correction |
Vertical: -5 to +5 degrees
Horizontal: -5 to +5 degrees |
| CONNECTIVITY |
|
| Input: Video |
1 x RCA (Yellow), 1 x S-Video, 2 x Component (via D-sub 15-pin) |
| Input: Computer |
2 x D-sub 15-Pin (RGB), 1 x USB 2.0 type B |
| Input: USB Memory Device |
USB Type A Ver.2.0 |
| Input: Three-In-One USB Display |
1 x USB 2.0 type B |
| Input: Digital |
1 x HDMI |
| Input: Audio |
1 x RCA (Red/White), 2 x Stereo mini jack |
| Input: Control |
1 x USB 2.0 type B, RS232C |
| Input: Epson USB Document Camera |
1 x USB 2.0 type B |
| Network I/O: |
RJ45 x 1 (100Mbps) |
| Wireless Connectivity |
Optional |
| Output: Video |
D-sub 15 pin (monitor out black moulding) |
| Output: Audio |
Stereo mini jack x 1 |
| Speaker Output |
16W |
| ADVANCED FEATURES |
|
| EasyMP Network & Control |
Yes |
| EasyMP Network Projection |
Yes |
| PC Free Presentations |
No |
| USB Plug 'n Play |
Yes |
| AV Mute Slide |
No |
| Instant Off |
Yes |
| Direct Power On/Off |
Yes |
| Security |
Kensington -style lock provision
Padlock & Security cable hole
Wireless LAN unit lock
Password protect function
|
| Colour Modes |
Dynamic, Theatre |
| GENERAL |
|
| Dimensions D x W x H |
375 x 367 x 143mm |
| Weight |
5.4kg |
| Lamp Warranty |
12 months or 750 hours* |
| Projector Warranty |
3 Years |
| Power Consumption: Lamp on |
Normal: 300W / Eco: 215W |
| Power Consumption: Standby |
0.27W (communication off) |
| Noise Level |
Normal: 35dB / Eco: 28dB |
| |
| * Whichever comes first. For more information visit Epson Projector Warranty |
| PRODUCT OPTIONS |
Item Code |
Description |
| |
V13H010L71
|
Lamp |
| |
V12H003B29 |
Table Mount to suit EB-470/475W/475Wi/480/485W/485Wi |
| |
V13H134A40 |
Air-Filter |
| |
V12H418P13 |
Wireless LAN Adapter to suit EB-470/475W/475Wi/480/485W/485Wi |
| |
V12H005M08 |
Quick Wireless Key to suit EB-470/475W/475Wi/480/485W/485Wi |
| |
V12H522001 |
Interactive Pen ELPPN03A (orange) for EB-475Wi, EB-475Wie and EB-485Wi |
| |
V12H523001 |
Interactive Pen ELPPN03B (blue) for EB-475Wi, EB-475Wie and EB-485Wi |
| |
5YWEB485W |
Additional 2 year warranty (upgrade to 5 years) |
| |
|
|
| Epson is the registered trademark of Seiko Epson Corporation. Epson ESC/P2 and Epson Stylus are trademarks of Seiko Epson Corporation. MicroDot is a trademark of Epson Australia Pty Limited. All other product names and other company names used herein are for identification purposes only and may be the trademarks or registered trademarks of their respective owners. Epson disclaims any and all rights in those marks. Specifications are subject to change without notice. |
Equipment supplied by Epson Australia is designed to function in conjunction with genuine Epson consumables and accessories specifically configured for it.
Usage Conditions
Epson products are designed and made to give highly reliable use and long life when used according to its specifications. With any system, product or device used in situations where human life may be involved or at risk, Epson advises that you should take all necessary steps to ensure the suitability of your Epson product for inclusion in your system, and recommends that you include fail-safe procedures and redundancy support or backup equipment in your system, to maintain the maximum safety margin and optimum system reliability. Examples include but are not limited to do not interfere with any electrical components within the device, do not use items supplied with the product for purposes other than as intended by Epson (ie mains cords, inks, CDs, plastic wrapping) and do not make modifications to the product.
|
|
|
|
02/03
|
Epson 5 Years Warranty - For Epson EB-485W Projector5 Years Warranty - For Epson EB-485W
|
|
|
|
02/03
|
Epson 5 Years Warranty - For Epson EB-475W Projector 5 Years Warranty - For Epson EB-475W
EB-475W/475We/475Wi/475Wie - 2 Additional Years Giving A Total Of 5 Years Warranty
|
|
|
|
02/03
|
Epson EB-475Wie Ultra Short Throw LCD Projector - 1280x800, 2600 Lumens, 3,000;1, 4000Hrs, VGA, HDMI, USB2.0, Speakers Epson EB-475Wie
Ultra Short Throw Projectors
Ultra Bright. Ultra flexible. Ultra reliable
Overview
Ultra bright. Ultra flexible. Ultra reliable. The best ultra-short throw and interactive projection technology just got a whole lot better, thanks to the latest innovations from the market leader Epson. Epson engineers have totally redefined the Ultra Short Throw market with a new shorter throw distance, higher brightness, more flexible and user friendly mounting, plus the most innovative interactivity features available!
KEY FEATURES:
- Dual Pen Interactivity Simultaneous Dual Pen functionality
- No driver installation required Installation has never been easier
- Self-Calibration Interactive projectors that calibrate themselves for you
- Advanced Networking Capability Enables users to monitor, control and present from a remote location
- Broad Connectivity Including HDMI HDMI, USB display, PC Free slideshows, network and optional wireless connectivity
- Lowest Epson Lamp Price Ever Seen Incredibly low price of only $129 inc GST
- 16W Built-in Speaker Built in audio with the power to fill a classroom
| Range at a Glance |
EB-475Wi
|
EB-475Wie
|
EB-485Wi
|
| White Light Output |
2,600 lumens
|
2,600 lumens
|
3,100 lumens
|
| Colour Light Output |
2,600 lumens
|
2,600 lumens
|
3,100 lumens
|
| Resolution |
WXGA
|
WXGA
|
WXGA
|
| HDMI Connectivity |
Yes
|
Yes
|
Yes
|
| Integrated Mount Included |
Yes
|
Yes
|
Yes
|
| Multi-user interactivity |
Yes
|
Yes
|
Yes
|
| PC Free Annotation |
Yes
|
Yes
|
Yes
|
| Network Functionality |
Yes
|
Yes
|
Yes
|
| Wireless Functionality |
Optional
|
Optional
|
Optional
|
| Low Cost Replacement Lamp |
Yes
|
Yes
|
Yes
|
| Education Specific Model |
N/A
|
Yes
|
N/A
|
FEATURES AND BENEFITS:
Upgrade to Ultra Short Throw
Capable of producing an interactive image size anywhere from 60 up to 102 diagonal (native WXGA) on nearly any wall, the EpsonEB-475Wie delivers an amazing interactive work environment. Thanks to this Ultra Short Throw distance, presenters are able to deliver rich multimedia content without the distraction of glare in the eyes, or shadows on the board disrupting vision. With the added benefit of 3LCD Technology, presentations will feature rich, vibrant colours that bring content to life. Plus, with2,600 lumens Light and Colour Light Output, there is no need to dim the lights or draw the curtains, so meetings or lessons can start straight away without interruption.
Total Ease of Installation
TheEB-475Wie comes complete with an integrated wall mount, designed specifically for stylish appearance, and fast, simple installation. Adjustment dials are colour coded to match image correction images projected by the projector and selectable from the on screen display. Simply find the image that best represents the current shape of the projected image and adjust the corresponding coloured dial. The image will be square and the projector operational within moments. For those extra tricky installations where an uneven projection surface impedes progress, simply utilise the Quick Corner function to fine tune the image for perfectly square corners and edges.
With the EB-475Wie there is no need to install any additional driver software. This opens new opportunities to users in institutions where computers are locked to stop the installation of software. In fact, you dont need to calibrate! These projectors perform an auto calibration, delivering high accuracy, fast response and reliable performance.
An Interactive Workspace for Collaboration
TheEB-475Wie can also project vertically downward, enabling users to change a table top into a workspace perfect for collaboration. By utilising the optional ELP-MB29 table mount, your ordinary table becomes a centre for creative collaboration that will have your team racing to engage in the material at hand.
Interactive Functionality with Multi User Capability
In the past, you needed a projector and an interactive whiteboard to create an interactive environment in a meeting room or class room. Now, you can make almost any wall interactive withtheEB-475Wie.
These high performance projector and interactive-pen combinations each integrate interactive functionality into one machine. With no requirement for an interactive whiteboard, you can utilise an existing pen-based whiteboard or even a flat wall for full colour presentations, interactive brainstorming sessions, annotation on-the-fly and much more. With theEB-475Wie and their easy to use (Easy Interactive Tools 2) software (via download from www.epson.com.au) you can turn your whiteboard into a fully interactive business or teaching tool. At the end of your class or meeting, simply save the file for printing or emailing to students and attendees.
Revolutionise the way you interact with your class or audience by utilising the Multi User capability. EachEB-475Wie ships with two interactive pens, both of which can be used simultaneously. Take advantage of new opportunities for interactive learning with teacher and students writing or interacting together, each with their own independent interactive pen.
Instant Annotation Interactivity without a PC!
With theEB-475Wie, you no longer have to wait for a PC to start up when you want to handwrite notes and diagrams on a whiteboard or annotate over an image from a source other than a PC such as a Document Camera or DVD player. We call it Instant Annotation. Simply turn on the projector, and utilize the Easy Interactive Tools 2 software. Its fast, easy and always ready for notes on-the-fly.
Advanced Networking
Its possible to monitor and control networked Epson projectors from a remote location. Schedule power on or off timings, check projector status and receive maintenance alerts. Users can even project presentations in up to four rooms from one networked location.
Wireless Connectivity
With the addition of the optional ELPAP07 Wireless LAN Unit, theEB-475Wie projector can become a part of your 802.11 b/g/n wireless network. For incredibly easy peer-to-peer wireless connection on the fly without the need for additional software, add the ELPAP08 Easy MP quick wireless connection USB key.
Low Cost of Ownership
The EB-475Wie projector features a lamp boasting an estimated life of up to 4,000 hours and a cost of only $129RRP. This series of projectors also benefit from a high efficiency electrostatic filter with an estimated maintenance cycle of up to 5,000 hours.
Direct Connect to ELP-DC06
Further enhancing suitability to the modern education environment is the ability for theEB-475Wie to connect directly to the Epson ELP-DC06 document camera / visualiser. These Epson products feature unique technology enabling them to connect via USB and provide full operation without the need for a PC.
Specifications:
Connectivity Panel:
| PRODUCT NAME |
Epson EB-475Wie |
| PRODUCT CODE |
V11H453153 |
| WHAT'S IN THE BOX |
|
| |
Projector including 5m Power Cable, 5m USB A - USB B cable, Remote Control, Batteries x 4, Easy Interactive Pen x 2, Projector Software Ver. 1.03b (CD ROM), Projector Software for Easy Interactive Function Ver. 2.00 (CDROM), Password Protect Sticker, User Manual Set, Setting Plate (mount), Template Sheet, Pen Tray. |
| TECHNOLOGY |
|
| Projection System |
Epson 3LCD, 3-chip technology |
| LCD Panel |
0.59-inch with MLA |
| OPTICAL |
|
| Zoom |
1 - 1.35 (Optical Zoom) |
| Screen Size |
60" to 102" |
| Projection Distance |
74.3" screen 0.438m |
| Throw Ratio |
0.27 (Zoom: Wide), 0.37 (Zoom: Tele) |
| Projection Lens F Number |
1.80 |
| Projection Lens Focal Length |
3.71mm |
| Focus Method |
Manual Focus |
| Offset |
6.0:-1 |
| IMAGE |
|
| Colour Light Output |
2,600 Lumens |
| White Light Output |
2,600 Lumens |
| Resolution |
WXGA |
| Native Aspect Ratio |
16:10 |
| Contrast Ratio |
3,000:1 |
| Lamp Hours |
Normal/Eco: 3,000/4,000 Hours |
| Lamp Type |
190W UHE |
| Keystone Correction |
Vertical: -5 to +5 degrees
Horizontal: -5 to +5 degrees |
| CONNECTIVITY |
|
| Input: Video |
1 x RCA (Yellow), 1 x S-Video, 2 x Component (via D-sub 15-pin) |
| Input: Computer |
2 x D-sub 15-Pin (RGB), 1 x USB 2.0 type B |
| Input: USB Memory Device |
USB Type A Ver.2.0 |
| Input: Three-In-One USB Display |
1 x USB 2.0 type B |
| Input: Digital |
1 x HDMI |
| Input: Audio |
1 x RCA (Red/White), 2 x Stereo mini jack |
| Input: Control |
1 x USB 2.0 type B, RS232C |
| Input: Epson USB Document Camera |
1 x USB 2.0 type B |
| Network I/O: |
RJ45 x 1 (100Mbps) |
| Wireless Connectivity |
Optional |
| Output: Video |
D-sub 15 pin (monitor out black moulding) |
| Output: Audio |
Stereo mini jack x 1 |
| Speaker Output |
16W |
| ADVANCED FEATURES |
|
| EasyMP Network & Control |
Yes |
| EasyMP Network Projection |
Yes |
| PC Free Presentations |
No |
| USB Plug 'n Play |
Yes |
| AV Mute Slide |
No |
| Instant Off |
Yes |
| Direct Power On/Off |
Yes |
| Security |
Kensington -style lock provision
Padlock & Security cable hole
Wireless LAN unit lock
Password protect function
|
| Colour Modes |
Dynamic, Theatre |
| GENERAL |
|
| Dimensions D x W x H |
375 x 367 x 143mm |
| Weight |
5.4kg |
| Lamp Warranty |
12 months or 750 hours* |
| Projector Warranty |
3 Years |
| Power Consumption: Lamp on |
Normal: 275W / Eco: 215W |
| Power Consumption: Standby |
0.27W (communication off) |
| Noise Level |
Normal: 35dB / Eco: 28dB |
| |
| * Whichever comes first. For more information visit Epson Projector Warranty |
| PRODUCT OPTIONS |
Item Code |
Description |
| |
V13H010L71
|
Lamp |
| |
V13H134A40 |
Air-Filter |
| Epson is the registered trademark of Seiko Epson Corporation. Epson ESC/P2 and Epson Stylus are trademarks of Seiko Epson Corporation. MicroDot is a trademark of Epson Australia Pty Limited. All other product names and other company names used herein are for identification purposes only and may be the trademarks or registered trademarks of their respective owners. Epson disclaims any and all rights in those marks. Specifications are subject to change without notice. |
Equipment supplied by Epson New Zealand is designed to function in conjunction with genuine Epson consumables and accessories specifically configured for it.
Usage Conditions
Epson products are designed and made to give highly reliable use and long life when used according to its specifications. With any system, product or device used in situations where human life may be involved or at risk, Epson advises that you should take all necessary steps to ensure the suitability of your Epson product for inclusion in your system, and recommends that you include fail-safe procedures and redundancy support or backup equipment in your system, to maintain the maximum safety margin and optimum system reliability. Examples include but are not limited to do not interfere with any electrical components within the device, do not use items supplied with the product for purposes other than as intended by Epson (ie mains cords, inks, CDs, plastic wrapping) and do not make modifications to the product.
|
|
|
|
02/03
|
BenQ MX514P DLP Projector - 1024x768, 2700 Lumens, 13000;1, 6000Hrs, VGA, HDMI, USB, RS-232, Speakers MX514P
The best value choice for small-medium space
The MX514P makes the perfect projector choice for your everyday life - in business, education, even at home. Featuring an impressive brightness of 2700 ANSI lumens, ultra-sharp contrast ratio of 13000:1 and a XGA resolution, the MX514P offers a stunning full-screen presentation with the finest details regardless of the low ambient light level.
Features
World–Leading SmartEco Technology for a Greener Environment
As the first DLP brand to incorporate Philips’ ImageCare technology into its projector lamp system, BenQ has taken a further leap, developing its own SmartEco Technology to perfect what DLP can do for energy saving in the 21st century classroom. Built with this brand new invention, the MX514P brings together uncompromised brightness, exquisite picture quality and optimized lamp life through innovative features.
Eco Blank Mode
The Eco Blank Mode, which helps blank the screen and conserve lamp power by up to 70% when the projector is not actively in use. By blanking the projection screen, presenters get to redirect audiences’ focus back on them while keeping the Earth lookin’ great.
Full Power On
100% Lamp Power
Attention on the Projection Screen
Eco Blank Mode On
30% Lamp Power at the Lowest
Attention on the Class Instructor
SmartEco Mode
The SmartEco Mode, which cleverly adjusts the lamp power to maximize power saving by delivering the best contrast and brightness performance using only as much light as needed.
No Source Mode
The automatic switch to Eco Blank Mode after the projector is turned on for over three minutes without a display source, eliminating unnecessary energy waste and prolonging the life of the projector lamp.
Source Detected
100% Lamp Power
No Source Detected
30% Lamp Power
Thoughtful Features
Closed Captioning
Display subtitles in video content without the need for an external closed–captioning device with the MX514P. It's perfect for viewing in educational settings such as language classes where a transcript of onscreen dialog is desirable.
Instant restart
The Instant Restart feature gives teachers a 90–second window period to turn the projector back on immediately when it has been switched off by accident – no waiting necessary.
Quick Cooling
Cooling time itself has been reduced by over 60%, saving your time and minimizing the risk of heat damage to sensitive internal components.
Teaching Template
To make your teaching job easier, BenQ has added the teaching template function to the MX514P. Now, with four different line pattern designs to choose from – Letter Formation, Musical Staff, Worksheet and Coordinate Chart, you can easily write or draw on whiteboards as well as blackboards without the need of drawing lines or charts.
ecoFACTS Label
ecoFACTS can tell you how eco-friendly BenQ products are!
Development of eco-friendly products, BenQ doesn't just want to comply with green regulations passively, but also to actively develop eco-friendly products!
ecoFACTS declares BenQ's greatest efforts on the replacement of hazardous substances, material selection, packaging design, energy-saving design and other aspects of the products.
Arsenic-free optical glass
BFR/PVC-free casing plastics
PVC-free plastic packaging
Specifications:
| Projection System |
DLP |
| Native Resolution |
XGA(1024 x 768) |
| Brightness* |
2700 ANSI lumens |
| Contrast Ratio |
13000:1 |
| Display Color |
1.07 Billion Colors |
| Lens |
F=2.57-2.65, f=21-23.1mm |
| Aspect Ratio |
Native 4:3 (5 aspect ratio selectable) |
| Throw Ratio |
1.86 - 2.04 (53@2m) |
| Image Size (Diagonal) |
40-300 |
| Zoom Ratio |
1.1x |
| Lamp (Normal/Economic Mode)* |
190W, 4500/6000hours (up to 6500 hours under SmartEco Mode) |
| Keystone Adjustment |
1D, Vertical +/- 40 degrees |
| Projection Offset |
120%5% |
| Resolution Support |
VGA(640 x 480) to UXGA(1600 x 1200) |
| Horizontal Frequency |
31K~102KHz |
| Vertical Scan Rate |
23~120Hz |
| Interface |
Computer in (D-sub 15pin) x 2
Monitor out (D-sub 15pin) x 1
HDMI (v1.3) x 1
Composite Video in (RCA) x 1
S-Video in (Mini DIN 4pin) x 1
Audio in (Mini Jack) x 2
Audio L/R in (RCA) x 1
Audio out (Mini Jack) x 1
Speaker 2W x 1
USB (Type Mini B) x 1
RS232 (DB-9pin) x 1 |
| Dimensions(W x H x D) |
287.3x114.4x232.6 mm |
| HDTV Compatibility |
480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Video Compatibility |
NTSC, PAL, SECAM |
| Weight |
2.5 kg (5.51lbs) |
| Audible Noise |
30/26 dBA (Normal/Economic mode) |
| Power Supply |
AC 100 to 240 V, 50/60 Hz |
| Power Consumption |
265W, Standby<1W |
| On-Screen Display Languages |
English/ France/ Germany/ Italian/ Spanish/ Russian/ Traditional Chinese/ Simplified Chinese/ Japanese/ Korean/ Swedish/ Dutch/ Turkish/ Czech/ Portuguese/ Thai/ Polish/ Hungarian/ Croatian/ Romanian/ Norwegian/ Danish/ Bulgaria/ Finnish/ Indonesian/ Greek/ Hindi/ Arabic (28 Languages) |
| Picture Modes |
Dynamic/Presentation/sRGB/Cinema/User 1/User 2 |
| Accessories (Standard) |
Remote Control w/ Battery
Power Cord (by region)
User Manual CD
Quick Start Guide
VGA(D-sub 15pin) Cable |
| Accessories (Optional) |
Presentation Plus
Spare Lamp Kit
3D Glasses |
| 3D Support and Compatibility |
PC: 120Hz Frame Sequential 3D for resolutions up to WXGA
PC: 60Hz Top-bottom 3D for resolutions up to SXGA+
Video: 60Hz Frame Sequential 3D for resolutions up to 480i
*Please click to know more details about 3D Support and Compatibility. |
|
|
|
|
02/03
|
BenQ MS513P DLP Projector - 800x600, 2700 Lumens, 13000;1, 6000Hrs, VGA, HDMI, USB, RS-232, Speakers MS513P
The best value choice for small-medium space
Featuring an brightness of 2700 ANSI lumens, ultra-sharp contrast ratio of 13000:1 and a SVGA resolution, the cost-effective and eco-friendly MS513P offers a stunning full-screen presentation with the finest details regardless of the ambient light level.
Features
World–Leading SmartEco Technology for a Greener Environment
As the first DLP brand to incorporate Philips’ ImageCare technology into its projector lamp system, BenQ has taken a further leap, developing its own SmartEco Technology to perfect what DLP can do for energy saving in the 21st century classroom. Built with this brand new invention, the MS513P brings together uncompromised brightness, exquisite picture quality and optimized lamp life through innovative features.
Eco Blank Mode
The Eco Blank Mode, which helps blank the screen and conserve lamp power by up to 70% when the projector is not actively in use. By blanking the projection screen, presenters get to redirect audiences focus back on them while keeping the Earth lookin great.
Full Power On
100% Lamp Power
Attention on the Projection Screen
Eco Blank Mode On
30% Lamp Power at the Lowest
Attention on the Class Instructor
SmartEco Mode
The SmartEco Mode, which cleverly adjusts the lamp power to maximize power saving by delivering the best contrast and brightness performance using only as much light as needed.
No Source Mode
The automatic switch to Eco Blank Mode after the projector is turned on for over three minutes without a display source, eliminating unnecessary energy waste and prolonging the life of the projector lamp.
Source Detected
100% Lamp Power
No Source Detected
30% Lamp Power
Thoughtful Features
Closed Captioning
Display subtitles in video content without the need for an external closed–captioning device with the MS513P. It's perfect for viewing in educational settings such as language classes where a transcript of onscreen dialog is desirable.
Instant restart
The Instant Restart feature gives teachers a 90second window period to turn the projector back on immediately when it has been switched off by accident no waiting necessary.
Quick Cooling
Cooling time itself has been reduced by over 60%, saving your time and minimizing the risk of heat damage to sensitive internal components.
Teaching Template
To make your teaching job easier, BenQ has added the teaching template function to the MS513P. Now, with four different line pattern designs to choose from – Letter Formation, Musical Staff, Worksheet and Coordinate Chart, you can easily write or draw on whiteboards as well as blackboards without the need of drawing lines or charts.
ecoFACTS Label
ecoFACTS can tell you how eco-friendly BenQ products are!
Development of eco-friendly products, BenQ doesn't just want to comply with green regulations passively, but also to actively develop eco-friendly products!
ecoFACTS declares BenQ's greatest efforts on the replacement of hazardous substances, material selection, packaging design, energy-saving design and other aspects of the products.
- Arsenic-free optical glass
- BFR/PVC-free casing plastics
- PVC-free plastic packaging
Specifications:
| Projection System |
DLP |
| Native Resolution |
SVGA(800 x 600) |
| Brightness* |
2700 ANSI lumens |
| Contrast Ratio |
13000:1 |
| Display Color |
1.07 Billion Colors |
| Lens |
F=2.57-2.65, f=21-23.1mm |
| Aspect Ratio |
Native 4:3 (5 aspect ratio selectable) |
| Throw Ratio |
1.86 - 2.04 (53@2m) |
| Image Size (Diagonal) |
40-300 |
| Zoom Ratio |
1.1:1 |
| Lamp (Normal/Economic Mode)* |
190W, 4500/6000 hours (up to 6500 hours under SmartEco Mode) |
| Keystone Adjustment |
1D, Vertical +/- 40 degrees |
| Projection Offset |
120%5% |
| Resolution Support |
VGA(640 x 480) to UXGA(1600 x 1200) |
| Horizontal Frequency |
31K~102KHz |
| Vertical Scan Rate |
23~120Hz |
| Interface |
Computer in (D-sub 15pin) x 2
Monitor out (D-sub 15pin) x 1
HDMI (v1.3) x 1
Composite Video in (RCA) x 1
S-Video in (Mini DIN 4pin) x 1
Audio in (Mini Jack) x 2
Audio L/R in (RCA) x 1
Audio out (Mini Jack) x 1
Speaker 2W x 1
USB (Type Mini B) x 1
RS232 (DB-9pin) x 1 |
| Dimensions(W x H x D) |
287.3x114.4x232.6 mm |
| HDTV Compatibility |
480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Video Compatibility |
NTSC, PAL, SECAM |
| Weight |
2.5 kg (5.51lbs) |
| Audible Noise |
30/26 dBA (Normal/Economic mode) |
| Power Supply |
AC 100 to 240 V, 50/60 Hz |
| Power Consumption |
Typical 265W |
| On-Screen Display Languages |
English/ France/ Germany/ Italian/ Spanish/ Russian/ Traditional Chinese/ Simplified Chinese/ Japanese/ Korean/ Swedish/ Dutch/ Turkish/ Czech/ Portuguese/ Thai/ Polish/ Hungarian/ Croatian/ Romanian/ Norwegian/ Danish/ Bulgaria/ Finnish/ Indonesian/ Greek/ Hindi/ Arabic (28 Languages) |
| Picture Modes |
Dynamic/Presentation/sRGB/Cinema/User 1/User 2 |
| Accessories (Standard) |
Remote Control w/ Battery
Power Cord (by region)
User Manual CD
Quick Start Guide
VGA(D-sub 15pin) Cable |
| Accessories (Optional) |
Presentation Plus
Spare Lamp Kit
3D Glasses |
| 3D Support and Compatibility |
PC: 120Hz Frame Sequential 3D for resolutions up to WXGA
PC: 60Hz Top-bottom 3D for resolutions up to SXGA+
Video: 60Hz Frame Sequential 3D for resolutions up to 480i
*Please click to know more details about 3D Support and Compatibility. |
|
|
|
|
02/03
|

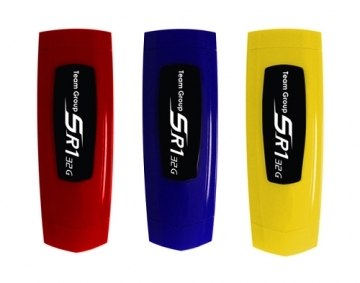

Team 8GB SR1 Flash Drive - Read 54MB/s, Write 15MB/s, USB3.0 - Red SR1 USB 3.0
Capacity: 8GB, 16GB, 32GB
Info:
Equipped with the new-generation USB 3.0 interface
Support hot swap and plug-and-play
Backward compatible with USB 2.0/USB 1.1
No need of external power supply
Supports energy-saving mode
Slide USB connector design
Features
The super sports car appearance design brings an unusual taste.
Team SR1 is the latest USB 3.0 flash. When compared with traditional USB2.0 flash with a transfer speed at 480Mbps, USB 3.0 significantly enhances the data transfer speed to shorten data storage time with a theoretical bandwidth at 5Gbps. The super sports car appearance design brings an unusual taste. The slide USB connector design prevents the loss of cover. Light in weight and small in size make it convenient to carry. Therefore, the Team SR1 USB 3.0 is your best choice for data storage.

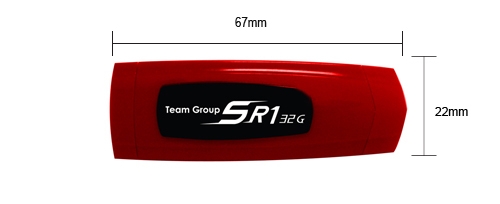

Product Dimensions
Specification
| Specification |
Content |
| Interface |
USB 3.0 |
| Hot Plug |
Yes |
| LED Reveal |
No |
| Storage time |
10Years |
| Weight |
10g |
| Data transfer rate |
8GB: Read: 55MB/s Max ; Write: 15MB/s Max
16~32GB: Read: 55MB/s Max ; Write: 30MB/s Max |
| Accessories |
No |
| Warranty |
Lifetime warranty |
| Notes |
- |
| other |
Support Power Saving Mode |
|
|
|
|
02/03
|
Team 8GB SR1 Flash Drive - Read 54MB/s, Write 15MB/s, USB3.0 - Blue SR1 USB 3.0
Capacity: 8GB, 16GB, 32GB
Info:
Equipped with the new-generation USB 3.0 interface
Support hot swap and plug-and-play
Backward compatible with USB 2.0/USB 1.1
No need of external power supply
Supports energy-saving mode
Slide USB connector design
Features:
The super sports car appearance design brings an unusual taste.
Team SR1 is the latest USB 3.0 flash. When compared with traditional USB2.0 flash with a transfer speed at 480Mbps, USB 3.0 significantly enhances the data transfer speed to shorten data storage time with a theoretical bandwidth at 5Gbps. The super sports car appearance design brings an unusual taste. The slide USB connector design prevents the loss of cover. Light in weight and small in size make it convenient to carry. Therefore, the Team SR1 USB 3.0 is your best choice for data storage.
Product Dimensions
Specification
| Specification |
Content |
| Interface |
USB 3.0 |
| Hot Plug |
Yes |
| LED Reveal |
No |
| Storage time |
10Years |
| Weight |
10g |
| Data transfer rate |
8GB: Read: 55MB/s Max ; Write: 15MB/s Max
16~32GB: Read: 55MB/s Max ; Write: 30MB/s Max |
| Accessories |
No |
| Warranty |
Lifetime warranty |
| Notes |
- |
| other |
Support Power Saving Mode |
System requirements
Windows 2000 / XP / Vista / 7Linux2.4Mac
|
|
|
|
02/03
|
Team 16GB SR1 Flash Drive - Read 54MB/s, Write 30MB/s, USB3.0 - Red SR1 USB 3.0
Capacity: 8GB, 16GB, 32GB
Info
Equipped with the new-generation USB 3.0 interface
Support hot swap and plug-and-play
Backward compatible with USB 2.0/USB 1.1
No need of external power supply
Supports energy-saving mode
Slide USB connector design
Features:
The super sports car appearance design brings an unusual taste.
Team SR1 is the latest USB 3.0 flash. When compared with traditional USB2.0 flash with a transfer speed at 480Mbps, USB 3.0 significantly enhances the data transfer speed to shorten data storage time with a theoretical bandwidth at 5Gbps. The super sports car appearance design brings an unusual taste. The slide USB connector design prevents the loss of cover. Light in weight and small in size make it convenient to carry. Therefore, the Team SR1 USB 3.0 is your best choice for data storage.
Product Dimensions
Specification
| Specification |
Content |
| Interface |
USB 3.0 |
| Hot Plug |
Yes |
| LED Reveal |
No |
| Storage time |
10Years |
| Weight |
10g |
| Data transfer rate |
8GB: Read: 55MB/s Max ; Write: 15MB/s Max
16~32GB: Read: 55MB/s Max ; Write: 30MB/s Max |
| Accessories |
No |
| Warranty |
Lifetime warranty |
| Notes |
- |
| other |
Support Power Saving Mode |
System requirements
Windows 2000 / XP / Vista / 7Linux2.4Mac
|
|
|
|
02/03
|
Team 16GB SR1 Flash Drive - Read 54MB/s, Write 30MB/s, USB3.0 - Blue SR1 USB 3.0
Capacity: 8GB, 16GB, 32GB
Info
Equipped with the new-generation USB 3.0 interface
Support hot swap and plug-and-play
Backward compatible with USB 2.0/USB 1.1
No need of external power supply
Supports energy-saving mode
Slide USB connector design
Features:
The super sports car appearance design brings an unusual taste.
Team SR1 is the latest USB 3.0 flash. When compared with traditional USB2.0 flash with a transfer speed at 480Mbps, USB 3.0 significantly enhances the data transfer speed to shorten data storage time with a theoretical bandwidth at 5Gbps. The super sports car appearance design brings an unusual taste. The slide USB connector design prevents the loss of cover. Light in weight and small in size make it convenient to carry. Therefore, the Team SR1 USB 3.0 is your best choice for data storage.
Product Dimensions
Specification
| Specification |
Content |
| Interface |
USB 3.0 |
| Hot Plug |
Yes |
| LED Reveal |
No |
| Storage time |
10Years |
| Weight |
10g |
| Data transfer rate |
8GB: Read: 55MB/s Max ; Write: 15MB/s Max
16~32GB: Read: 55MB/s Max ; Write: 30MB/s Max |
| Accessories |
No |
| Warranty |
Lifetime warranty |
| Notes |
- |
| other |
Support Power Saving Mode |
System requirements
Windows 2000 / XP / Vista / 7Linux2.4Mac
|
|
|
|
02/03
|

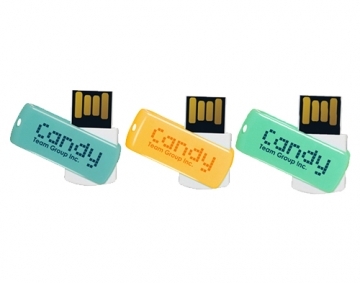

Team 8GB Candy Flash Drive - Read 15MB/s, Write 5MB/s, USB2.0 - Blue Candy
Capacity: 2GB, 4GB, 8GB
Info:
With an adorably compact package and design, the Candy Drive by Team Group Inc. is the perfect solution for on-the-go memory. The Candy Drive comes in a variety of pastel shades and has a multicolored chord that easily attaches to backpacks or handbags. The memory stick cap slides to the side rather than popping off, so your USB is protected no matter where you go. And with a memory capacity up to 8 GB, you can take all of your photos, music, movies, and files with you on the go in a stylish and a perfect replacement for old-fashioned diskettes. Candy SC901 comes in three colors: blueberry blue, mint green, and pudding yellow. With the same size: 33 (L) by 15 (W) by 7.5 (D) mm; and same weight: 11g. Candy SC91 is one of the lightest USB drive on the market with a stepwise swivel cap design.
Features:
With an adorably compact package and design, the Candy Drive by Team Group Inc. is the perfect solution for on-the-go memory. The Candy Drive comes in a variety of pastel shades and has a multicolored chord that easily attaches to backpacks or handbags. The memory stick cap slides to the side rather than popping off, so your USB is protected no matter where you go. And with a memory capacity up to 8 GB, you can take all of your photos, music, movies, and files with you on the go in a stylish and a perfect replacement for old-fashioned diskettes. Candy SC901 comes in three colors: blueberry blue, mint green, and pudding yellow. With the same size: 33 (L) by 15 (W) by 7.5 (D) mm; and same weight: 11g. Candy SC91 is one of the lightest USB drive on the market with a stepwise swivel cap design.
Specification
| Specification |
Content |
| Interface |
USB 2.0 |
| Hot Plug |
Yes |
| LED Reveal |
No |
| Storage time |
>10 years |
| Weight |
3.6g |
| Data transfer rate |
-- |
| Accessories |
No |
| Warranty |
Lifetime warranty |
| Notes |
*1GB=1,000,000,000 Bytes. In OS system, it would be displayed as 1,000,000,000 Bytes/1024/1024/1024 = 0.93GB |
| other |
Support Power Saving Mode |
System requirements
Microsoft Windows ME /2000 /XP /Vista /7 Linux
Kernel 2.4.2 or later
|
|
|
|
02/03
|
Team 8GB C118 Flash Drive - Read 20MB/s, Write 10MB/s, USB2.0 - Black C118
Capacity: 2GB, 4GB, 8GB, 16GB, 32GB
Info:
Support hot swapping and plug & play
Backward compatible with USB 1.1 interface
Does not require any additional external power
Support power saving mode
Lightweight appearance making it easy to carry
Exclusive tag and it able to be used to fix the cap
Features:
Team C118 is a new delicate flash drive that is made with silicone material and uses the USB 2.0 interface, it focuses on the toxic-free silicone shock-resistance and environment-friendly features. By using different materials to show superior personal style, and is equipped with an exclusive tag making it easy to fix the cap. C118 is a flash drive with fun coloring, light weight and easy to use.
Product Dimensions
Specification
| Specification |
Content |
| Interface |
USB 2.0 |
| Hot Plug |
Yes |
| LED Reveal |
No |
| Storage time |
10Years |
| Weight |
8g |
| Data transfer rate |
-- |
| Accessories |
No |
| Warranty |
Lifetime warranty |
| Notes |
-- |
| other |
Support battery saving mode |
System requirements
Windows 2000 / XP / Vista / 7Linux2.4Mac
|
|
|
|
02/03
|
Team 16GB C118 Flash Drive - Read 20MB/s, Write 10MB/s, USB2.0 - Nano Black C118
Capacity: 2GB, 4GB, 8GB, 16GB, 32GB
Info:
Support hot swapping and plug & play
Backward compatible with USB 1.1 interface
Does not require any additional external power
Support power saving mode
Lightweight appearance making it easy to carry
Exclusive tag and it able to be used to fix the cap
Features
Team C118 is a new delicate flash drive that is made with silicone material and uses the USB 2.0 interface, it focuses on the toxic-free silicone shock-resistance and environment-friendly features. By using different materials to show superior personal style, and is equipped with an exclusive tag making it easy to fix the cap. C118 is a flash drive with fun coloring, light weight and easy to use.

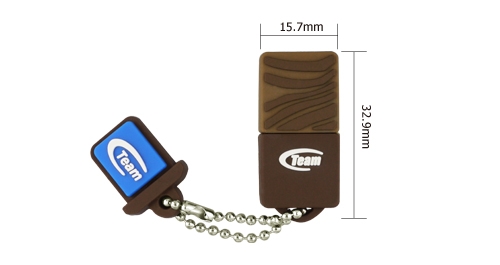

Product Dimensions
Specification
| Specification |
Content |
| Interface |
USB 2.0 |
| Hot Plug |
Yes |
| LED Reveal |
No |
| Storage time |
10Years |
| Weight |
8g |
| Data transfer rate |
-- |
| Accessories |
No |
| Warranty |
Lifetime warranty |
| Notes |
-- |
| other |
Support battery saving mode |
|
|
|
|
02/03
|

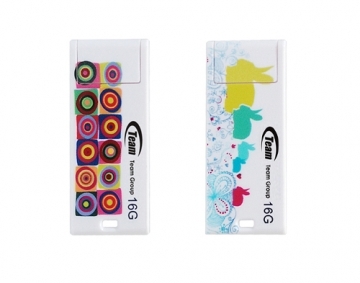

Team 8GB C116 Flash Drive - Read 20MB/s, Write 10MB/s, USB2.0 - Pattern C116
Capacity: 4GB, 8GB,16GB
Info:
Slim and mini.
Supports hot-swap and plug-and-play
Backward compatible USB 1.1
No need of external power supply
Supports energy-saving mode
Flip-over cover design
Features:
Team C116 is a mini USB flash drive with fashionable colors designed to charm the office environment. In addition to the creative color pattern, the flip-over cover designsolves the problem of losing cap. Mini in size and easy to carry, Team C116 is a device perfect for transferring personal data, business documents, music, multimedia files and digital images to and from desktops and notebooks. Team C116 guarantees convenient, high quality, light and handy user experience.

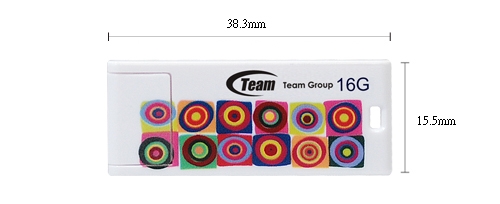

Product Dimensions
Specification
| Specification |
Content |
| Interface |
USB 2.0 |
| Hot Plug |
Yes |
| LED Reveal |
No |
| Storage time |
10Years |
| Weight |
3g |
| Data transfer rate |
-- |
| Accessories |
No |
| Warranty |
Lifetime warranty |
| Notes |
-- |
| other |
Support battery saving mode |
System requirements
Win 7/ Vista/ XP/ 2000 / MAC(OS 10.2 above)
|
|
|
|
02/03
|
Team 4GB C116 Flash Drive - Read 15MB/s, Write 5MB/s, USB2.0 - Pattern C116
Capacity: 4GB, 8GB, 16GB
Info:
Slim and mini.
Supports hot-swap and plug-and-play
Backward compatible USB 1.1
No need of external power supply
Supports energy-saving mode
Flip-over cover design
Features
Team C116 is a mini USB flash drive with fashionable colors designed to charm the office environment. In addition to the creative color pattern, the flip-over cover designsolves the problem of losing cap. Mini in size and easy to carry, Team C116 is a device perfect for transferring personal data, business documents, music, multimedia files and digital images to and from desktops and notebooks. Team C116 guarantees convenient, high quality, light and handy user experience
Product Dimensions
Specification
| Specification |
Content |
| Interface |
USB 2.0 |
| Hot Plug |
Yes |
| LED Reveal |
No |
| Storage time |
10Years |
| Weight |
3g |
| Data transfer rate |
-- |
| Accessories |
No |
| Warranty |
Lifetime warranty |
| Notes |
-- |
| other |
Support battery saving mode |
System requirements
Win 7/ Vista/ XP/ 2000 / MAC(OS 10.2 above)
|
|
|
|
Previous Page
|
Next Page
|
|
