30/01
|
BenQ MX764 DLP Projector - 1024x768, 4200 Lumens, 5300;1, 3000Hrs, VGA, HDMI, RJ45, USB, RS232, Speakers MX764
The Perfect Installation Match for Large-sized Space
Featuring a 1.6x big zoom, lens shift and keystone correction, the MX764 gives you an impressively wide range of projector installation and placement flexibility. This XGA projector also offers 4200 ANSI lumen ultra-high brightness, 5300:1 ultra-high contrast ratio and 20W big built-in speaker.
Features:
High Picture Quality
XGA Native Resolution
The MX764 boasts a XGA native resolution, delivering crisp and accurate images every time to keep your presentation lookin' great.
4200 ANSI Lumens
Built to fit your projection needs for medium to large-sized venues, the MX764 brightens your presentation with 4200 ANSI lumen high brightness. Now, you can intrigue your audience with clearer, more vivid pictures even in environments impractical to block out extraneous light.
5300:1 Ultra-High Contrast Ratio
The MX764 boasts an ultra-high contrast ratio of 5300:1, defining images with razor-sharp details and refining them with a broad range of subtle color differences. What's more, with a contrast ratio this high, text is sharper, cleaner and easier to read.
Flexible Installation

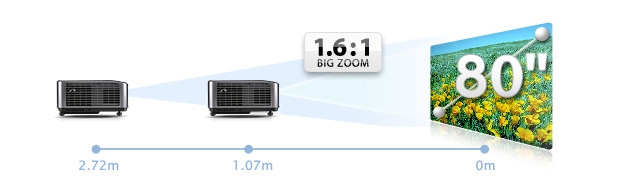

1.6x Big Zoom Ratio
The MX764 comes featuring a 1.6x big zoom ratio, offering a real wide range of throw distance ranging from 1.07 to 2.72 meters. The added flexibility makes it easier for installing new projectors in venues without the trouble of reconstruction.

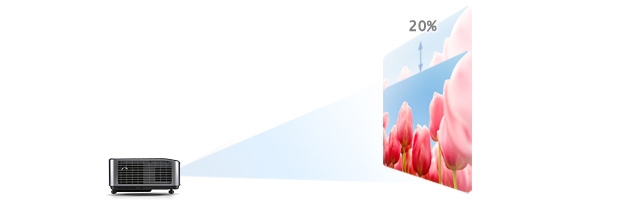

Manual Vertical Lens Shift
This function allows you to make minor projection adjustments to the projected image by shifting the image up by 20°. This gives you the extra flexibility to overcome slight miscalculations during a new projector installation.
Auto/Manual Keystone ± 40 degrees
The MX764 allows you to get rid of misshaped images, graphics and charts instantaneously via its ± 40° vertical keystone adjustment function. With the MX764, a perfect square is all you'll see!
Good Sound Solution

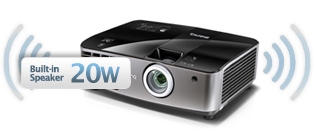

Built-in 20W Big Audio Power
The MX764 features two built-in 10W speakers to help enrich your presentation with top quality audio performances. These speakers are sealed and secured within the projector housing by BenQ's anti-shake design to ensure projection stability at all times.
Microphone Input Support
With the microphone input, you will no longer need to shout at the top of your lungs to get the attention of your audience. All you need to do is plug in the microphone or microphone headset to get your point across!
Audio in/out
With the built-in speakers, the MX764 can be used as an audio system when it's on the standby mode. This saves you the trouble as well as the extra budget for getting a separate audio system.
Thoughtful Design for Presenters
PC-less Presentation with USB Reader and Remote Desktop
The MX764 supports PC-less presentation in two ways: USB Reader and Remote Desktop. You can either give your presentation directly from the presentation files saved onto a USB flash drive or remotely by accessing their computer using a wireless mouse and keyboard through LAN. Either way, you won't have to carry your laptop around or require a PC stationed in every room.

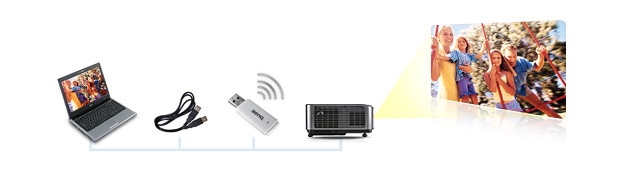

Plug 'n Play with USB Display
The USB Display feature gives you ultra-smooth, signal decay-free audiovisual projection with a simple plug 'n play. All you need is a USB cable to connect your computer to the MX764 to give your audience the best viewing experience. This feature also enables simultaneous projection from one display source.

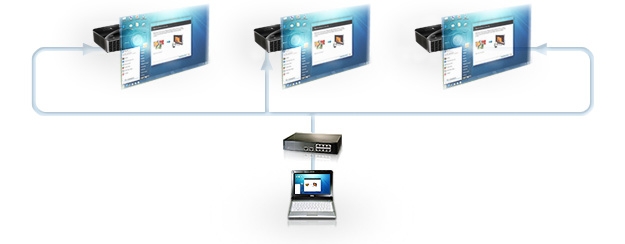

Wired and Wireless LAN Display
LAN Display helps IT managers implement projector management to control and display classroom projections, as well as transmit audio signals, through various display options. It also comes with simultaneous school-wide emergency broadcast capability. The MX764 enables LAN Display through a single LAN cable as well as a wireless display adaptor.
LAN Control with Crestron and PJ-Link
LAN Control is designed to help IT managers perform day-to-day projector maintenance and repair tasks efficiently and effectively-offering them full access and control over every projector directly from their workstations. The MX764 offers seamless support for the Crestron and PJ-Link LAN Control system.
ecoFACTS Label
ecoFACTS can tell you how eco-friendly BenQ products are!
Development of eco-friendly products, BenQ doesn't just want to comply with green regulations passively, but also to actively develop eco-friendly products!
ecoFACTS declares BenQ's greatest efforts on the replacement of hazardous substances, material selection, packaging design, energy-saving design and other aspects of the products.
Specification
| Projection System |
DLP |
| Native Resolution |
XGA(1024 x 768) |
| Brightness |
4200 ANSI Lumens |
| Contrast Ratio |
5300:1 |
| Color |
1.07 Billion Colors |
| Lens |
F=2.45-3.07, f=15.78-25.12mm |
| Aspect Ratio |
Native 4:3 (5 aspect ratio selectable) |
| Throw Ratio |
1.4 ~2.24 (70"@2m) |
| Image Size (Diagonal) |
40~300 |
| Zoom Ratio |
1.6:1 |
| Lamp |
2000/3000 hours |
| Keystone |
1D, Vertical 40 degrees (Auto/Manual) |
| Projection Offset |
same as lens shift range |
| Resolution Support |
VGA(640 x 480) to UXGA(1600 x 1200) |
| Horizontal Frequency |
31K-102KHz |
| Vertical Scan Rate |
23-120Hz |
| Lens Shift |
Manual,Vertical: 110%-130% |
| Interface |
Computer in (D-sub 15pin) x 2 (shared with Component video)
Monitor out (D-sub 15pin) x1
Composite Video in (RCA) x1
S-Video in (Mini DIN 4pin) x1
Audio in (Mini Jack) x2
Audio L/R in (RCA) x2
Audio out (Mini Jack) x1
Microphone in (Mini Jack) x1
Speaker 10W x 2
HDMI V1.3 x1
LAN (RJ45)x 1 (LAN Control & LAN Display)
USB (Type A) x 2 (USB Reader&Keyboard/Mouse&Wireless Dongle)
USB (Type Mini B)x 1 (USB Display & Download & Page up/down)
DC 12V Trigger (3.5mm Jack) x1
RS232 (DB-9pin) x1
|
| Dimensions(W x H x D) |
339 x 120.5 x 238 mm |
| HDTV Compatibility |
480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Video Compatibility |
NTSC, PAL, SECAM |
| Weight |
3.3 kg (7.3lbs) |
| Audible Noise |
35/30 dBA (Normal/Economic mode) |
| Power Supply |
100 to 240 VAC, 50 to 60 Hz |
| Power Consumption |
406W (Typical), Standby<0.5W |
| On-Screen Display Languages |
Arabic/ Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese (28 Languages) |
| Accessories (Standard) |
Remote Control w/ Battery
Power Cord (by region)
User Manual CD
Quick Start Guide
VGA(D-sub 15pin) Cable
Carry Bag
|
| Accessories (Optional) |
Presentation Plus
Spare Lamp Kit
Wireless USB Dongle
3D Glasses
|
| 3D Support and Compatibility |
PC:
20Hz Frame Sequential 3D for resolutions up to WXGA
60Hz Top-bottom 3D for resolutions up to SXGA+
60Hz Frame Sequential 3D resolutions up to WXGA
Video:
60Hz Frame Sequential 3D for resolutions up to 480i
*Please click to know more details about 3D Support and Compatibility. |
|
|
|
|
30/01
|
BenQ MX763 DLP Projector - 1024x768, 3700 Lumens, 5300;1, 3000Hrs, VGA, HDMI, RJ45, USB, Speakers MX763
The Most Flexible Choice with Top Image Clarity for Medium-Sized Space
Featuring a 1.6x big zoom, lens shift and keystone correction, the MX763 gives you an impressively wide range of projector installation and placement flexibility. This XGA projector also offers 3700 ANSI lumen ultra-high brightness, 5300:1 ultra-high contrast ratio and 20W big built-in speaker.
Features:
High Picture Quality
XGA Native Resolution
The MX763 boasts a XGA native resolution, delivering crisp and accurate images every time to keep your presentation lookin' great.
3700 ANSI Lumens
Built to fit your projection needs for medium to large-sized venues, the MX763 brightens your presentation with 3700 ANSI lumen high brightness. Now, you can intrigue your audience with clearer, more vivid pictures even in environments impractical to block out extraneous light.
5300:1 Ultra-High Contrast Ratio
The MX763 boasts an ultra-high contrast ratio of 5300:1, defining images with razor-sharp details and refining them with a broad range of subtle color differences. What's more, with a contrast ratio this high, text is sharper, cleaner and easier to read.
Flexible Installation
1.6x Big Zoom Ratio
The MX763 comes featuring a 1.6x big zoom ratio, offering a real wide range of throw distance ranging from 1.07 to 2.72 meters. The added flexibility makes it easier for installing new projectors in venues without the trouble of reconstruction.
Manual Vertical Lens Shift
This function allows you to make minor projection adjustments to the projected image by shifting the image up by 20°. This gives you the extra flexibility to overcome slight miscalculations during a new projector installation.
Auto/Manual Keystone ± 40 degrees
The MX763 allows you to get rid of misshaped images, graphics and charts instantaneously via its ± 40° vertical keystone adjustment function. With the MX763, a perfect square is all you'll see!
Good Sound Solution
Built-in 20W Big Audio Power
The MX763 features two built-in 10W speakers to help enrich your presentation with top quality audio performances. These speakers are sealed and secured within the projector housing by BenQ's anti-shake design to ensure projection stability at all times.
Microphone Input Support
With the microphone input, you will no longer need to shout at the top of your lungs to get the attention of your audience. All you need to do is plug in the microphone or microphone headset to get your point across!
Audio in/out
With the built-in speakers, the MX763 can be used as an audio system when it's on the standby mode. This saves you the trouble as well as the extra budget for getting a separate audio system.
Thoughtful Design for Presenters
PC-less Presentation with USB Reader and Remote Desktop
The MX763 supports PC-less presentation in two ways: USB Reader and Remote Desktop. You can either give your presentation directly from the presentation files saved onto a USB flash drive or remotely by accessing their computer using a wireless mouse and keyboard through LAN. Either way, you won't have to carry your laptop around or require a PC stationed in every room.
Plug 'n Play with USB Display
The USB Display feature gives you ultra-smooth, signal decay-free audiovisual projection with a simple plug‘n play. All you need is a USB cable to connect your computer to the MX763 to give your audience the best viewing experience. This feature also enables simultaneous projection from one display source.

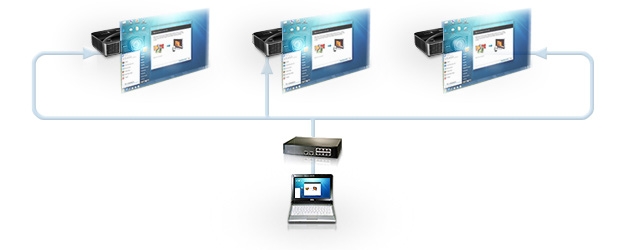

Wired and Wireless LAN Display
LAN Display helps IT managers implement projector management to control and display classroom projections, as well as transmit audio signals, through various display options. It also comes with simultaneous school-wide emergency broadcast capability. The MX763 enables LAN Display through a single LAN cable as well as a wireless display adaptor.
LAN Control with Crestron and PJ-Link
LAN Control is designed to help IT managers perform day-to-day projector maintenance and repair tasks efficiently and effectively-offering them full access and control over every projector directly from their workstations. The MX763 offers seamless support for the Crestron and PJ-Link LAN Control system.
ecoFACTS Label
ecoFACTS can tell you how eco-friendly BenQ products are!
Development of eco-friendly products, BenQ doesn't just want to comply with green regulations passively, but also to actively develop eco-friendly products!
ecoFACTS declares BenQ's greatest efforts on the replacement of hazardous substances, material selection, packaging design, energy-saving design and other aspects of the products.
Specification
| Projection System |
DLP |
| Native Resolution |
XGA(1024 x 768) |
| Brightness |
3700 ANSI Lumens |
| Contrast Ratio |
5300:1 |
| Color |
1.07 Billion Colors |
| Lens |
F=2.45-3.07, f=15.78-25.12mm |
| Aspect Ratio |
Native 4:3 (5 aspect ratio selectable) |
| Throw Ratio |
1.4 ~2.24 (70"@2m) |
| Image Size (Diagonal) |
40~300 |
| Zoom Ratio |
1.6:1 |
| Lamp |
2000/3000 hours |
| Keystone |
1D, Vertical 40 degrees (Auto/Manual) |
| Projection Offset |
same as lens shift range |
| Resolution Support |
VGA(640 x 480) to UXGA(1600 x 1200) |
| Horizontal Frequency |
31K-102KHz |
| Vertical Scan Rate |
23-120Hz |
| Lens Shift |
Manual, Vertical:110%-130% |
| Interface |
Computer in (D-sub 15pin) x 2 (shared with Component video)
Monitor out (D-sub 15pin) x1
Composite Video in (RCA) x1
S-Video in (Mini DIN 4pin) x1
Audio in (Mini Jack) x2
Audio L/R in (RCA) x2
Audio out (Mini Jack) x1
Microphone in (Mini Jack) x1
Speaker 10W x 2
HDMI V1.3 x1
LAN (RJ45)x 1 (LAN Control & LAN Display)
USB (Type A) x 2 (USB Reader&Keyboard/Mouse&Wireless Dongle)
USB (Type Mini B)x 1 (USB Display & Download & Page up/down)
DC 12V Trigger (3.5mm Jack) x1
RS232 (DB-9pin) x1
|
| Dimensions(W x H x D) |
339 x 120.5 x 238 mm |
| HDTV Compatibility |
480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Video Compatibility |
NTSC, PAL, SECAM |
| Weight |
3.3 kg (7.3lbs) |
| Audible Noise |
35/30 dBA (Normal/Economic mode) |
| Power Supply |
100 to 240VAC, 50 to 60 Hz |
| Power Consumption |
406W (Typical), Standby<0.5W |
| On-Screen Display Languages |
Arabic/ Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese (28 Languages) |
| Picture Modes |
Dynamic/Presentation/sRGB/Cinema/User 1/User 2 |
| Accessories (Standard) |
Remote Control w/ Battery
Power Cord (by region)
User Manual CD
Quick Start Guide
VGA(D-sub 15pin) Cable
Carry Bag
|
| Accessories (Optional) |
Presentation Plus
Spare Lamp Kit
Wireless USB Dongle
3D Glasses
|
| 3D Support and Compatibility |
PC:
20Hz Frame Sequential 3D for resolutions up to WXGA
60Hz Top-bottom 3D for resolutions up to SXGA+
60Hz Frame Sequential 3D resolutions up to WXGA
Video:
60Hz Frame Sequential 3D for resolutions up to 480i
*Please click to know more details about 3D Support and Compatibility. |
|
|
|
|
30/01
|
BenQ MX717 DLP Projector - 1024x768, 4000 Lumens, 5300;1, 4000Hrs, VGA, HDMI, RJ45, USB, Speakers MX717
Projection Perfect for Every Occasion
The MX717 comes with everything you need to deliver outstanding presentations. Featuring XGA resolution with 4000 ANSI lumens and 5300:1 ultra-high contrast ratio, the MX717 keeps you looking great with lower total cost of ownership and thoughtful designs.
Features:
LAN Control with Crestron and PJ-Link
LAN Control is designed to help IT managers perform day-to-day projector maintenance and repair tasks efficiently and effectively offering them full access and control over every projector directly from their workstations. The MX717 offers seamless support for the Crestron and PJ-Link LAN Control system.
5300:1 Ultra-High Contrast Ratio
The MX717 boasts an ultra-high contrast ratio of 5300:1, defining images with razor-sharp details and refining them with a broad range of subtle color differences. What's more, with a contrast ratio this high, text is sharper, cleaner and easier to read.

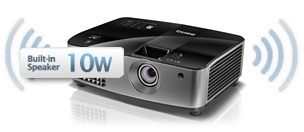

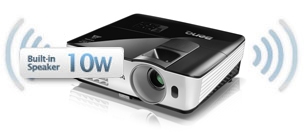

Good Sound Solution
Built-in 10W Big Audio Power
The MX717 features two built-in 10W speakers to help enrich your presentation with top quality audio performances. These speakers are sealed and secured within the projector housing by BenQ's anti-shake design to ensure projection stability at all times.
Microphone Input Support
With the microphone input, you will no longer need to shout at the top of your lungs to get the attention of your audience. All you need to do is plug in the microphone or microphone headset to get your point across!
Audio Pass through
With the built-in speaker, the MX717 can be used as an audio system when it's on the standby mode. This saves you the trouble as well as the extra budget for getting a separate audio system.
<0.5W Standby
When inactive, the MX717 keeps power consumption to a minimum with <0.5 W standby power. This helps extend the projector lamp life as well as reduce energy costs.
ecoFACTS Label
ecoFACTS can tell you how eco-friendly BenQ products are!
Development of eco-friendly products, BenQ doesn't just want to comply with green regulations passively, but also to actively develop eco-friendly products!
ecoFACTS declares BenQ's greatest efforts on the replacement of hazardous substances, material selection, packaging design, energy-saving design and other aspects of the products.
- Arsenic-free optical glass
- BFR/PVC-free casing plastics
- PVC-free plastic packaging
- Verre optique exempt d'arsenic
- Boitier de plastique exempt de BFR/PVC
- Emballage de plastique exempt de PVC
Specification
| Projection System |
DLP |
| Native Resolution |
XGA(1024 x 768) |
| Brightness* |
4000 ANSI lumens |
| Contrast Ratio |
5300 : 1 |
| Display Color |
1.07 Billion Colors |
| Lens |
F=2.59-2.87, f=16.88-21.88 |
| Aspect Ratio |
Native 4:3 (5 aspect ratio selectable) |
| Throw Ratio |
1.51-1.97 ( 65@ 2m ) |
| Image Size (Diagonal) |
25-300 |
| Zoom Ratio |
1.3:1 |
| Lamp Type |
300W |
| Lamp (Normal/Economic Mode)* |
3000/4000 hours |
| Keystone Adjustment |
1D, Vertical +/- 40 degrees |
| Projection Offset |
115%5% |
| Resolution Support |
VGA(640 x 480) to UXGA(1600 x 1200) |
| Horizontal Frequency |
31K-102KHz |
| Vertical Scan Rate |
23-120Hz |
| Interface |
Computer in (D-sub 15pin) x 2 (shared with D-sub 15pin)
Monitor out (D-sub 15pin) x 1
HDMI (v1.3) x 1
Composite Video in (RCA) x 1
S-Video in (Mini DIN 4pin) x 1
Audio in (Mini Jack) x 1
Audio L/R in (RCA) x 1
Audio out (Mini Jack) x 1
Speaker 10W x 1
LAN (RJ45) x 1
USB (Type Mini B) x 1
RS232 (DB-9pin) x 1
IR Receiver x 2 |
| Dimensions(W x H x D) |
339x120.5x238 mm |
| HDTV Compatibility |
480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Video Compatibility |
NTSC, PAL, SECAM |
| Weight |
3.8 kg (8.27 lbs) |
| Audible Noise |
35/30 dBA (Normal/Economic mode) |
| Power Supply |
AC 100 to 240 V, 50/60 Hz |
| Power Consumption |
398W, Standby<0.5W |
| On-Screen Display Languages |
English/ France/ Germany/ Italian/ Spanish/ Russian/ Traditional Chinese/ Simplified Chinese/ Japanese/ Korean/ Swedish/ Dutch/ Turkish/ Czech/ Portuguese/ Thai/ Polish/ Hungarian/ Croatian/ Romanian/ Norwegian/ Danish/ Bulgaria/ Finnish/ Indonesian/ Greek/ Hindi/ Arabic (28 Languages)
* The available languages will depend on different sale region. |
| Picture Modes |
Dynamic/Presentation/sRGB/Cinema/User 1/User 2 |
| Accessories (Standard) |
Remote Control w/ Battery
Power Cord (by region)
User Manual CD
Quick Start Guide
Warranty Card (by region)
VGA(D-sub 15pin) Cable |
| Accessories (Optional) |
Presentation Plus
Spare Lamp Kit
3D Glasses |
| 3D Support and Compatibility |
PC: 120Hz Frame Sequential 3D for resolutions up to WXGA.
PC: 60Hz Frame Sequential 3D for resolutions up to WXGA,
PC: 60Hz Top-bottom 3D for resolutions up to SXGA+,
Video: 60Hz Frame Sequential 3D for resolutions up to 480i
*To know more about 3D Support and Compatibility details. |
|
|
|
|
30/01
|
BenQ MX716 DLP Projector - 1024x768, 3500 Lumens, 1:3000;1, 6000Hrs, VGA, HDMI, RJ45, USB, Speakers MX716
The Most Flexible Choice with Top Image Clarity for Medium-Sized Space
Featuring an impressive brightness of 3500 ANSI lumens, a ultra-high contrast ratio of 13000:1 and a XGA resolution, the MX716 offers a stunning full-screen presentation with the finest details regardless of the ambient light level.
World-Leading SmartEco Technology for a Greener Environment
Schools today face the challenge of introducing new technologies and teaching tools into their classrooms and cut down on energy costs. In the effort to help schools meet the learning needs of their students as well as the green goals set by the school district, BenQ has collaborated with Philips Lighting in developing the perfect solution – the SmartEco Technology.
The SmartEco Technology brings a new way of operating the projector lamp system. Intuitive to use and environmentally friendly, this technology brings together the finest picture quality and maximum energy saving. With the SmartEco Technology, students and teachers get to make the most out of their classroom experience – and schools reduce the total cost of ownership with extended lamp life and lowered maintenance needs.
Smart Eco Mode
The Smart Eco Mode, which cleverly adjusts the lamp power to maximize power saving by delivering the best contrast and brightness performance using only as much light as needed.
Normal Mode
296W Projector Power Consumption by Average
Smart Eco Mode
Enhanced Details in Darkened Scenes
163W Projector Power Consumption by Average
(Source: 2010 Philips white paper)
No Source Detected Mode
There will be times when a projector is turned on without a display source, such as a classroom PC or notebook. To avoid a projector from running with full lamp power, BenQ created the No Source Detected Mode to lower the projector lamp brightness to 30% after the projector has remained unconnected to a display source for more than three minutes.
Source Detected
100% Lamp Power
No Source Detected
30% Lamp Power
Good Sound Solution
Built-in 10W Big Audio Power
The MX716 features one built-in 10W speaker to help enrich your presentation with top quality audio performances. These speakers are sealed and secured within the projector housing by BenQ's anti-shake design to ensure projection stability at all times.
Audio Pass though
With the built-in speaker, the MX716 can be used as an audio system when it's on the standby mode. This saves you the trouble as well as the extra budget for getting a separate audio system.

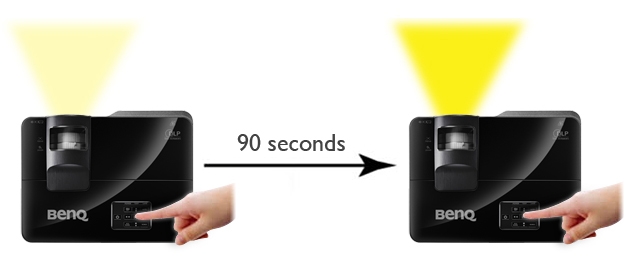

Instant restart
The Instant Restart feature gives teachers a 90-second window period to turn the projector back on immediately when it has been switched off by accident no waiting necessary.
ecoFACTS can tell you how eco-friendly BenQ products are!
Development of eco-friendly products, BenQ doesn't just want to comply with green regulations passively, but also to actively develop eco-friendly products!
ecoFACTS declares BenQ's greatest efforts on the replacement of hazardous substances, material selection, packaging design, energy-saving design and other aspects of the products.
- Arsenic-free optical glass
- BFR/PVC-free casing plastics
- PVC-free plastic packaging
- Verre optique exempt d'arsenic
- Boitier de plastique exempt de BFR/PVC
- Emballage de plastique exempt de PVC
Specifications:
| Projection System |
DLP |
| Native Resolution |
XGA(1024 x 768) |
| Brightness* |
3500 ANSI Lumens |
| Contrast Ratio |
13000:1 (SmartEco) |
| Display Color |
1.07 Billion Colors |
| Lens |
F=2.59-2.87, f=16.88-21.88mm |
| Aspect Ratio |
Native 4:3 (5 aspect ratio selectable) |
| Throw Ratio |
1.51-1.97 ( 65@ 2m ) |
| Image Size (Diagonal) |
25-300 |
| Zoom Ratio |
1.3:1 |
| Lamp Type |
240W |
| Lamp (Normal/Economic Mode)* |
3500/5000/6000 hours |
| Keystone Adjustment |
1D, Vertical +/- 40 degrees |
| Projection Offset |
115%5% |
| Resolution Support |
VGA(640 x 480) to UXGA(1600 x 1200) |
| Horizontal Frequency |
31K-102KHz |
| Vertical Scan Rate |
23-120Hz |
| Interface |
Computer in (D-sub 15pin) x 2 (shared with D-sub 15pin)
Monitor out (D-sub 15pin) x 1
HDMI (v1.3) x 1
Composite Video in (Rx 2CA) x 1
S-Video in (Mini DIN 4pin) x 1
Component Video in x 2 (shared with D-sub 15pin)
Audio in (Mini Jack) x 1
Audio out (Mini Jack) x 1
Speaker 10W x 1
LAN (RJ45) x 1
USB (Type Mini B) x 1 (USB Display & Download & Page up/down)
RS232 (DB-9pin) x 1
IR Receiver x 2 |
| Dimensions(W x H x D) |
312x104x244 mm |
| HDTV Compatibility |
480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Video Compatibility |
NTSC, PAL, SECAM |
| Weight |
2.9. kg (6.38 lbs) |
| Audible Noise |
33/27 dBA (Normal/Economic mode) |
| Power Supply |
AC 100 to 240 V, 50/60 Hz |
| Power Consumption |
361W, Standby<1W |
| On-Screen Display Languages |
English/ France/ Germany/ Italian/ Spanish/ Russian/ Traditional Chinese/ Simplified Chinese/ Japanese/ Korean/ Swedish/ Dutch/ Turkish/ Czech/ Portuguese/ Thai/ Polish/ Hungarian/ Croatian/ Romanian/ Norwegian/ Danish/ Bulgaria/ Finnish/ Indonesian/ Greek/ Hindi/ Arabic (28 Languages) |
| Picture Modes |
Dynamic/Presentation/sRGB/Cinema/User 1/User 2 |
| Accessories (Standard) |
Remote Control w/ Battery
Power Cord (by region)
User Manual CD
Quick Start Guide
Warranty Card (by region)
VGA(D-sub 15pin) Cable |
| Accessories (Optional) |
Presentation Plus
Spare Lamp Kit
3D Glasses |
| 3D Support and Compatibility |
PC: 120Hz Frame Sequential 2D for resolutions up to WXGA.
PC: 60Hz Frame Sequential 3D for resolutions up to WXGA,
PC: 60Hz Top-bottom 3D for resolutions up to SXGA+,
Video: 60Hz Frame Sequential 3D for resolutions up to 480i
*To know more about 3D Support and Compatibility details. |
|
|
|
|
30/01
|
BenQ MW516 DLP Projector - 1280x800, 2800 Lumens, 10000;1, 6500Hrs, VGA, HDMI, USB, RS-232, Speakers MW516
The wide screen experience for small-medium space
Featuring an brightness of 2800 ANSI lumens, a high contrast ratio of 10000:1 and a WXGA resolution, the cost-effective and eco-friendly MW516 offers a stunning full-screen presentation with the finest details regardless of the ambient light level.
Features:
World-Leading SmartEco Technology for a Greener Environment
As the first DLP brand to incorporate Philips’ ImageCare technology into its projector lamp system, BenQ has taken a further leap, developing its own SmartEco Technology to perfect what DLP can do for energy saving in the 21st century classroom. Built with this brand new invention, the MW516 brings together uncompromised brightness, exquisite picture quality and optimized lamp life through innovative features.
Eco Blank Mode
The Eco Blank Mode, which helps blank the screen and conserve lamp power by up to 70% when the projector is not actively in use. By blanking the projection screen, presenters get to redirect audiences focus back on them while keeping the Earth lookin great.
Full Power On
100% Lamp Power
Attention on the Projection Screen
Eco Blank Mode On
30% Lamp Power at the Lowest
Attention on the Class Instructor
SmartEco Mode
The SmartEco Mode, which cleverly adjusts the lamp power to maximize power saving by delivering the best contrast and brightness performance using only as much light as needed.
Normal Mode
296W Projector Power Consumption by Average
SmartEco Mode
Enhanced Details in Darkened Scenes
163W Projector Power Consumption by Average
No Source Detected Mode
The automatic switch to Eco Blank Mode after the projector is turned on for over three minutes without a display source, eliminating unnecessary energy waste and prolonging the life of the projector lamp.
Source Detected
100% Lamp Power
No Source Detected
30% Lamp Power
Thoughtful Features
Closed Captioning
Display subtitles in video content without the need for an external closed-captioning device with the MW516. It's perfect for viewing in educational settings such as language classes where a transcript of onscreen dialog is desirable.

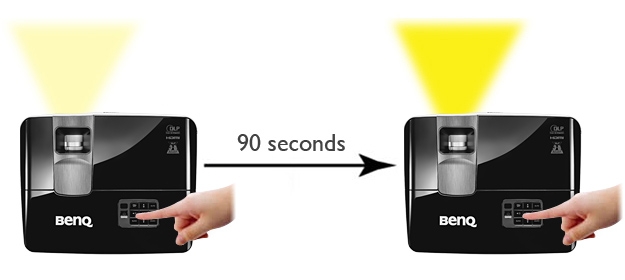

Instant restart
The Instant Restart feature gives teachers a 90-second window period to turn the projector back on immediately when it has been switched off by accident – no waiting necessary.
Quick Cooling
Cooling time itself has been reduced by over 60%, saving your time and minimizing the risk of heat damage to sensitive internal components.
Teaching Template
To make your teaching job easier, BenQ has added the teaching template function to the MW516. Now, with four different line pattern designs to choose from – Letter Formation, Musical Staff, Worksheet and Coordinate Chart, you can easily write or draw on whiteboards as well as blackboards without the need of drawing lines or charts.
ecoFACTS Label
ecoFACTS can tell you how eco-friendly BenQ products are!
Development of eco-friendly products, BenQ doesn't just want to comply with green regulations passively, but also to actively develop eco-friendly products!
ecoFACTS declares BenQ's greatest efforts on the replacement of hazardous substances, material selection, packaging design, energy-saving design and other aspects of the products.
- Arsenic-free optical glass
- BFR/PVC-free casing plastics
- PVC-free plastic packaging
- Verre optique exempt d'arsenic
- Boitier de plastique exempt de BFR/PVC
- Emballage de plastique exempt de PVC
Specification
| Projection System |
DLP |
| Native Resolution |
WXGA (1280 x 800) |
| Brightness |
2800 ANSI lumens |
| Contrast Ratio |
10000:1 |
| Color |
1.07 Billion Colors |
| Lens |
F=2.55-3.06, f=21-25.6mm |
| Aspect Ratio |
Native16:10 (5 aspect ratio selectable) |
| Throw Ratio |
1.46-1.60 (62.25"@2m) |
| Image Size (Diagonal) |
30 to 300 |
| Zoom Ratio |
1.20:1 |
| Lamp |
190W, 4500/6000 hours (up to 6500 hours under SmartEco Mode) |
| Keystone |
1D, Vertical 40 degrees |
| Projection Offset |
120% 5% |
| Resolution Support |
VGA(640 x 480) to UXGA(1600 x 1200) |
| Horizontal Frequency |
31-90KHz |
| Vertical Scan Rate |
50-120Hz |
| Interface |
Computer in (D-sub 15pin) x 2 (Share with component)
Monitor out (D-sub 15pin) x 1
Composite Video in (RCA) x 1
S-Video in (Mini DIN 4pin) x 1
Audio in (Mini Jack) x 1
Audio out (Mini Jack) x 1
Speaker 2W x 1
HDMI V1.3 x 1
USB (Type Mini B) x 1 (Download & Page up/down)
RS232 (DB-9pin) x 1 |
| Dimensions(W x H x D) |
302 x 124 x 232.7 mm |
| HDTV Compatibility |
480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Video Compatibility |
NTSC, PAL, SECAM |
| Weight |
2.45kg (5.39lbs) |
| Audible Noise |
29/27 dB (Normal/Economic Mode) |
| Power Supply |
AC 100 to 240 V, 50/60 Hz |
| Power Consumption |
245W (Typical), Standby < 1W |
| On-Screen Display Languages |
English/ France/ Germany/ Italian/ Spanish/ Russian/ Traditional Chinese/ Simplified Chinese/ Japanese/ Korean/ Swedish/ Dutch/ Turkish/ Czech/ Portuguese/ Thai/ Polish/ Hungarian/ Croatian/ Romanian/ Norwegian/ Danish/ Bulgaria/ Finnish/ Indonesian/ Greek/ Hindi/ Arabic (28 Languages) |
| Picture Modes |
Dynamic/Presentation/sRGB/Cinema/User 1/User 2 |
| Accessories (Standard) |
Remote Control w/ Battery
Power Cord (by region)
User Manual CD
Quick Start Guide
VGA(D-sub 15pin) Cable |
| Accessories (Optional) |
Presentation Plus
Spare Lamp Kit
Ceiling Mount
3D Glasses
Carry Bag |
| 3D Support and Compatibility |
PC: 120Hz Frame Sequential 3D for resolutions up to WXGA,
PC: 60Hz Top-bottom 3D for resolutions up to SXGA+
Video: 60Hz Frame Sequential 3D for resolutions up to 480i
*Please click to know more details about 3D Support and Compatibility |
|
|
|
|
30/01
|
BenQ MS514 DLP Projector - 1024x768, 2700 Lumens, 10000;1, 6500Hrs, VGA, HDMI BenQ MS514
BenQ MS514 Native Resolution XGA (1024 x 768) Brightness* 2700 ANSI lumens Contrast Ratio10000:1 (Full on/Full off) Keystone Manual Vertical 40 Aspect Ratio 4:3 Native Color Full 1.07 billion color palette Lens F= 2.51 to 2.69, f= 21.95 ~ 24.18 mm Zoom Ratio Manual Zoom, 1.10:1 Image Size (Diagonal) 30 to 300 Throw Ratio 1.97-2.17 (50"@ 2m) Lamp** 190W, 4500/6000/6500 hours (Normal/Economic mode/Smarteco Computer Compatibility VGA(640 x 480) to UXGA(1600 x 1200) HDTV Compatibility 480i, 480p, 576i, 576p, 720p, 1080i, 1080p Video Compatibility NTSC, PAL, SECAM Horizontal Frequency 31-90 kHz Vertical Scan Rate 50-120 Hz Input Terminals PC: Analog RGB: D-sub 15 pin x 2 A/V: HDMI V1.3 x 1 Component Video: D-sub 15 pin x 2 (Shared with Analog RGB connector) S-Video: Mini Din 4 pin x 1 Composite Video: RCA x 1 Audio: Stereo Mini Jack x 1 Output Terminals PC: Monitor Out: D-sub 15 pin x 1 Variable Audio Out : Stereo Mini Jack x 1
|
|
|
|
30/01
|
BenQ MS513 DLP Projector - 800x600, 2700 Lumens, 10000;1, 6000Hrs, VGA, HDMI, Speakers MS513
The best value choice for small-medium space
Featuring a brightness of 2700 ANSI lumens, a high contrast ratio of 10000:1 and a SVGA resolution, the cost-effective and eco-friendly MS513 offers a stunning full-screen presentation with the finest details regardless of the ambient light level.
Features:
World-Leading SmartEco Technology for a Greener Environment
As the first DLP brand to incorporate Philips’ ImageCare technology into its projector lamp system, BenQ has taken a further leap, developing its own SmartEco Technology to perfect what DLP can do for energy saving in the 21st century classroom. Built with this brand new invention, the MS513 brings together uncompromised brightness, exquisite picture quality and optimized lamp life through innovative features.
Eco Blank Mode
The Eco Blank Mode, which helps blank the screen and conserve lamp power by up to 70% when the projector is not actively in use. By blanking the projection screen, presenters get to redirect audiences’ focus back on them while keeping the Earth lookin’ great.
Full Power On
100% Lamp Power
Attention on the Projection Screen
Eco Blank Mode On
30% Lamp Power at the Lowest
Attention on the Class Instructor
SmartEco Mode
The SmartEco Mode, which cleverly adjusts the lamp power to maximize power saving by delivering the best contrast and brightness performance using only as much light as needed.
Normal Mode
296W Projector Power Consumption by Average
SmartEco Mode
Enhanced Details in Darkened Scenes
163W Projector Power Consumption by Average
No Source Mode
The automatic switch to Eco Blank Mode after the projector is turned on for over three minutes without a display source, eliminating unnecessary energy waste and prolonging the life of the projector lamp.
Source Detected
100% Lamp Power
No Source Detected
30% Lamp Power
Thoughtful Features
Closed Captioning
Display subtitles in video content without the need for an external closed-captioning device with the MS513. It's perfect for viewing in educational settings such as language classes where a transcript of onscreen dialog is desirable.
Instant restart
The Instant Restart feature gives teachers a 90-second window period to turn the projector back on immediately when it has been switched off by accident no waiting necessary.
Quick Cooling
Cooling time itself has been reduced by over 60%, saving your time and minimizing the risk of heat damage to sensitive internal components.
Teaching Template
To make your teaching job easier, BenQ has added the teaching template function to the MS513. Now, with four different line pattern designs to choose from – Letter Formation, Musical Staff, Worksheet and Coordinate Chart, you can easily write or draw on whiteboards as well as blackboards without the need of drawing lines or charts.
Teaching Template
To make your teaching job easier, BenQ has added the teaching template function to the MS513. Now, with four different line pattern designs to choose from – Letter Formation, Musical Staff, Worksheet and Coordinate Chart, you can easily write or draw on whiteboards as well as blackboards without the need of drawing lines or charts.
ecoFACTS Label
ecoFACTS can tell you how eco-friendly BenQ products are!
Development of eco-friendly products, BenQ doesn't just want to comply with green regulations passively, but also to actively develop eco-friendly products!
ecoFACTS declares BenQ's greatest efforts on the replacement of hazardous substances, material selection, packaging design, energy-saving design and other aspects of the products.
- Arsenic-free optical glass
- BFR/PVC-free casing plastics
- PVC-free plastic packaging
- Verre optique exempt d'arsenic
- Boitier de plastique exempt de BFR/PVC
- Emballage de plastique exempt de PVC
Specification
| Projection System |
DLP |
| Native Resolution |
SVGA(800x600) |
| Brightness |
2700 ANSI lumens |
| Contrast Ratio |
10000:1 |
| Color |
1.07 Billion Colors |
| Lens |
F=2.51-2.69, f=21.95-24.18mm |
| Aspect Ratio |
Native 4:3 (5 aspect ratio selectable) |
| Throw Ratio |
1.97-2.17 (50"@2m) |
| Image Size (Diagonal) |
30"~300" |
| Zoom Ratio |
1.1:1 |
| Lamp |
190W, 4500/6000 hours (up to 6500 hours under SmartEco Mode) |
| Keystone |
1D, Vertical 40 degrees |
| Projection Offset |
120% 5% |
| Resolution Support |
VGA (640 x 480) to UXGA (1600 x 1200) |
| Horizontal Frequency |
31-90KHz |
| Vertical Scan Rate |
50-120Hz |
| Interface |
Computer in (D-sub 15pin) x 2 (Share with Component)
Composite Video in (RCA) x 1
S-Video in (Mini DIN 4pin) x 1
Audio in (Mini Jack) x 1
Audio out (Mini Jack) x 1
Speaker 2W x 1
HDMI V1.3 x 1
USB (Type Mini B) x 1 (Download & Page up/down)
RS232 (DB-9pin) x 1 |
| Dimensions(W x H x D) |
302 x 124 x 232.7 mm |
| HDTV Compatibility |
480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Video Compatibility |
NTSC, PAL, SECAM |
| Weight |
2.45kg (5.39lbs) |
| Audible Noise |
27/25 dBA (Normal/Economic mode) |
| Power Supply |
AC 100 to 240 V, 50/60 Hz |
| Power Consumption |
245W(Typical), Standby < 1W |
| On-Screen Display Languages |
English/ France/ Germany/ Italian/ Spanish/ Russian/ Traditional Chinese/ Simplified Chinese/ Japanese/ Korean/ Swedish/ Dutch/ Turkish/ Czech/ Portuguese/ Thai/ Polish/ Hungarian/ Croatian/ Romanian/ Norwegian/ Danish/ Bulgaria/ Finnish/ Indonesian/ Greek/ Hindi/ Arabic (28 Languages) |
| Picture Modes |
Dynamic/Presentation/sRGB/Cinema/User 1/User 2 |
| Accessories (Standard) |
Remote Control w/ Battery
Power Cord (by region)
User Manual CD
Quick Start Guide
VGA(D-sub 15pin) Cable |
| Accessories (Optional) |
Presentation Plus
Spare Lamp Kit
Ceiling Mount
3D Glasses
Carry Bag |
| 3D Support and Compatibility |
PC: 120Hz Frame Sequential 3D for resolutions up to WXGA,
PC: 60Hz Top-bottom 3D for resolutions up to SXGA+
Video: 60Hz Frame Sequential 3D for resolutions up to 480i
*Please click to know more details about 3D Support and Compatibility. |
|
|
|
|
30/01
|
Canon Pixma Pro-1 - Photo Printer - (A3+) w. Network
- Colour & Monochrome, 4800dpi, 12 Colour Lucia PGI-29, USB2.0 Pixma PRO-1
A3+ Photo Printer with 12-ink system for Professional Quality Prints
New pigment-based inks and Chroma Optimizer add uniform glossiness, an expanded colour gamut and enhanced density of black to prints. Five monochrome inks deliver smoother gradation and reduce graininess, whilst economical ink tanks with 2.5 times larger volume than the closest PIXMA printer ensures increased productivity.
Features:
Quality
& Detail
4800 x 2400 dpi resolution & 4 picolitre FINE printhead technology for high quality photos & documents.
Efficient
Individual Ink
Tanks
New 12-colour ink gives supreme quality to photo prints.
LUCIA Ink
New pigment-based ink for superb image performance & exceptional longevity.
OIG System
Optimum Image Generating System (OIG System) for optimum mixing balance of inks and precise ink droplet placement.
A3+borderless
Produce professional, borderless photo prints up to A3+.
Advanced
Software
Plug-in for professional output settings and colour management, for Adobe Photoshop, Elements, Lightroom and Canon Digital Photo Professional.
Click-Connect-Print
Print photos directly from your EOS or compatible digital camera using PictBridge technology - no computer required.
Ethernet
Enables multiple users at different computers to share a single printer with an Ethernet port for a wired network.
DVD/CD
Print
Precise, fast, high-quality direct printing on printable DVD/CD media.
PRO-1
Technical Specifications
Printing Speed (*2)
SG-201 A3+ bordered approx. 2 min 55 sec.
Printing Resolution (*1)
4800 x 2400 dpi, 4 picolitre
Number of Nozzels
Total 12,288 nozzles
(Y/M/C/R/PM/PC/MBK/PBK/DGY/GY/LGY/CO 1,024 nozzles each)
Borderless Printing (*3)
A3+, A3, A4, Letter, 5 (*11) x 7 (*11), 6 (*11) x 4 (*11), 8 (*11) x 10 (*11), 1 (*11) x 12 (*11), 14 (*11) x 1 (*11)
Ink Tanks
PGI-29Y/M/C/R/PM/PC/MBK/PBK/DGY/GY/LGY/CO
Ink Yield (*10)
PGI-29Y - 290, PGI-29M - 281, PGI-29C - 230, PGI-29R - 454, PGI-29PM - 228, PGI-29PC - 400, PGI-29MBK - 505, PGI-29PBK- 111, PGI-29DGY - 119, PGI-29GY - 179, PGI-29LGY - 352, PGI-29CO - 90
Approx. Paper Handling (ASF / Manual Feed)
Plain Paper: A3/A4/A5/B4/B5/Letter/Legal/Ledger= 150 / 1
Photo Paper Pro Platinum (PT-101): A3+=1, A3/A4/Letter/8(*11)x10(*11)=10, 4(*11)x6(*11)=20 / 1
Photo Paper Plus Glossy II (PP-201): A3+=1,A3/A4/Letter/8(*11)x10(*11)/5(*11)x7(*11)=10, 4(*11)x6(*11)=20 / 1
Photo Paper Plus Semi-gloss (SG-201): A3+/10"x12"=1, A3/A4/Letter/8"x10"=10, 4"x6"=20 / 1
Matte Photo Paper (MP-101): A3+=1,A3/A4/Letter=10, 4(*11)x6(*11)=20 / 1
Photo Sticker (PS-101): 1 / 1
Fine Art Paper Photo RagTM(FAPR1): A3+/A3/A4/Letter=1 / 1
Other Fine Art Paper: A3+/A3/A4/Letter=1 / 1
Other Glossy Paper: A3+/A3/A4/Letter/10(*11)x12(*11)/8(*11)x10(*11)=1 / 1
Printable Disc: 1 (Manual handling by the CD-R tray)
Supported Paper Sizes
A3+, A3, A4, Letter, Legal, Ledger, A5, B5; Photo cards (4x6(*11),5x7(*11), 8x10(*11))
Supported Paper Weights
Plain Paper: 64-105 g/m2
Canon specialty paper: max paper weight : approx. 300g/m2 (Photo Paper Pro Platinum PT-101)
Canon specialty paper: max paper weight : approx. 350g/m2 Up to 0.6mm (manual feed slot)
Recommended Printing Area
Top margin: 42.0 mm / Bottom margin: 38.0 mm
Bundled Software
Windows: Easy-PhotoPrint EX, Solution Menu EX, Easy-PhotoPrint Pro, M.Setup, Adobe RGB Profile for windows, Easy-WebPrint EX Downloader
Macintosh: Easy-PhotoPrint EX, Solution Menu EX, Easy-PhotoPrint Pro, M.Setup, Easy-WebPrint EX Downloader
Interface
PC: Hi-Speed USB(B Port) (*7), Ethernet
Camera Direct: Direct Print Port (PictBridge)6 (Connect your EOS or compatible camera directly to the PIXMA PRO-1)
Operating System
PC: Windows 7, Vista SP1/SP2, XP SP2/SP3
Mac: OS.X (10.4.11 or later)
Included as Standard
PIXMA PRO-1 Inkjet Printer, CD Tray, Setup Software & Users Guide CD-ROM, 12 individual ink tanks (PGI-29Y/M/C/R/PM/PC/MBK/PBK/DGY/GY/LGY/CO), Print-head, power cord
Power Source
AC 100-240V
Power Consumption (*5)
Max: 24W, Standby: 1.6W, Off: 0.4W
Acoustic Noise Level (*4)
35.5dB(A) in default setting
Operating Environment
5-35C, 10-90% Humidity
Dimensions (W x D x H)
695 x 462 x 239 mm (min. dimensions, paper trays & other extensions closed)
Weight
27.7kg (including print head and ink tanks)
|
|
|
|
30/01
|
Canon PowerShot S100 Digital Camera - Black
- 12.1MP, 5x Optical Zoom, Full HD 1080p, 3.0" TFT Colour LCD, Image Stabilizer, DIG!C 5 PowerShot S100
Digital Compact Camera
Image quality at its best, now with GPS Powerful
The PowerShot S100 is the next generation in the popular Sseries. Equipped with the ground breaking DiG!C 5 Image Processor and a genuine Canon EOS inspired CMOS Sensor, you
will achieve the most natural looking photos in the most difficult of lighting situations.
Key Features
Precision image quality
- DiG!C 5 Processor
- 12.1 megapixels with High-Sensitivity CMOS
- Genuine Canon f/2.0 lens
- 24mm wide angle lens
- Genuine Canon 5x Optical Zoom lens
- RAW recording
- Intelligent Auto (32 scenes detected)
- Intelligent Contrast Correction
- Servo AF/AE
- ISO 6400
Perfect portraits of family & friends
- Face Detection and Selector
- Face Detection Self-timer
- Red-eye Correction
- Blink Detection
Explore Digital photography
- 3.0 type (3.0”) LCD screen with wide viewing angle (High resolution 461,000 dots)
- 3cm macro shooting
- Tracking AF
- Servo AF for continuous focusing of moving subjects
- Multiple Aspect Ratios
- High Dynamic Range photography
- Full Manual control
New DiG!C 5 Image Processor
The ground breaking new DiG!C 5 Image Processor achieves the most natural looking images with reduced noise and improved white balance.
Genuine Canon EOS inspired CMOS Sensor
12.1 megapixels with High Sensitivity, 1/1.7 inch type CMOS delivering outstanding quality images.
Genuine Canon f/2.0 Lens
Capture amazing looking portrait shots with greater depth of field.
Optical Zoom Wide-angle lens
5x Optical Zoom and 24mm wide-angle lens allows you to get closer whilst shoot beautiful landscapes or capture great group shots.
GPS Technology
Perfect for travelling, log all your photos and display with Google maps.
Manual Control
Get creative with your photography and enjoy full flexibility with manual control.
RAW Recording
RAW image recording giving you the highest image quality with complete flexibility during processing.
Full High Definition Movies
Shoot quality FULL HD movies with Dynamic Image Stabilisation and view easily on your TV with an optional HDMI terminal.
Sharper Previews
High resolution 3.0 inch LCD screen with wide angle viewing (461,000 dots).
Specifications
Type
Compact digital camera with built-in flash, 5x Optical/4x Digital (not w/ RAW or Widescreen)/20x Combined Zoom with Optical Image Stabilizer System
Image Capture Device
Type
12.1 Megapixels, 1/1.7-inch CMOS sensor
Total Pixels
Approx. 13.3 Megapixels
Effective Pixels
Approx. 12.1 Megapixels
Lens
Focal Length
5.2 (W) - 26.0 (T) mm (35mm film equivalent: 24-120mm)
Focusing Range
Auto & Manual Focus: 1.2 in (3 cm) - infinity (W), 12 in (30 cm) - infinity (T)
Normal AF: 2.0 in. (5 cm) - infinity (W), 12 in. (30 cm) - infinity (T)
Macro: 1.2 in. (3 cm) - 1.6 ft. (50 cm) (W), 12 in. (30 cm) - 1.6 ft. (50 cm) (T)
Autofocus System
TTL Autofocus, Manual*
*Shooting standby only in movie mode.
Viewfinders
Optical Viewfinder
N/A
LCD Monitor
3.0-inch TFT Color with wide viewing angle
LCD Pixels
Approx. 461,000 dots
LCD Coverage
100%
Aperture and Shutter
Maximum Aperture
f/2.0 (W) - f/5.9 (T)
Shutter Speed
1-1/2000 sec.
15-1/2000 sec. (Total Shutter speed range)
Exposure Control
Sensitivity
Auto, ISO 80/100/125/160/200/250/320/400/500/640/800/1000/1250/1600/2000/ 2500/3200/4000/5000/6400 (in P Mode)
Light Metering Method
Evaluative*, Center-weighted average, Spot**
* Facial brightness is also evaluated in Face Detect AiAF
** Metering frame is fixed to the center/linked to AF frame
Exposure Control Method
Program AE, i-Contrast, Manual; AE Lock, Program Shift, Safety Shift, Auto ISO Shift
Exposure Compensation
+/-3 stops in 1/3-stop increments
White Balance
White Balance Control
Auto*, Day Light, Cloudy, Tungsten, Fluorescent, Fluorescent H, Flash, Underwater, Custom
* Facial color is evaluated in Face AiAF (Face Detect WB).
Flash
Built-in Flash
Auto, Auto w/ Red-eye Reduction, Flash On, Flash On w/ Red-eye Reduction, Flash Off; FE lock, Safety FE, Slow Synchro
Flash Range
1.6 - 23 ft. (W), 1.6 - 7.5 ft. (T) (50 cm - 7.0 m (W), 50 cm - 2.3 m (T))
Recycling Time
10 seconds or less (battery voltage: 3.7 V)
Flash Exposure Compensation
+/-2 stops in 1/3-stop increments
Shooting Specifications
Shooting Modes
C, M, Av, Tv, P, Auto*1, SCN*2, Creative Filters *3, Movie*4
Shooting videos are possible with the movie button
*1 Smart AUTO, also available for videos
*2 Movie Digest, Portrait, Landscape, Kids & Pets, Smart Shutter*5, High-Speed Burst HQ, Handheld Night Scene, Beach, Underwater, Foliage, Snow, Fireworks, Stitch Assist
*3 High Dynamic Range, Nostalgic, Fish-eye Effect, Miniature Effect, Toy Camera Effect, Monochrome, Super Vivid, Poster Effect, Color Accent, Color Swap
*4 Standard, iFrame Movie, Super Slow Motion Movie
*5 Smile, Wink Self-timer, Face Self-timer
Photo Effects
My Colors
My Colors Off, Vivid, Vivid Blue, Vivid Green, Vivid Red, Neutral, Sepia, Black & White, Positive Film, Lighter Skin Tone, Darker Skin Tone, Custom
Self Timer
Approx. 10-sec. delay, approx. 2-sec. delay, custom*
*Delay time (0-10 sec. (in one-second increments), 20/25/30 sec.) and number of shots (1-10 shots (in one-shot increments)) can be specified.
Wireless Control
Not available
Continuous Shooting
Approx. 2.3 shots/sec. (in P mode)
Approx. 9.6 shots/sec. (in High-Speed Burst HQ)*
* Maximum of 8 continuous shots per burst
Under conditions where the flash does not fire automatically.
Differs depending on the zoom position.
Image Storage
Storage Media
SD/SDHC/SDXC Memory Cards and Eye-Fi
File Format
Design rule for Camera File system, DPOF (Version 1.1) compliant
Image Recording Format
Normal, Fine
JPEG Compression Mode
Still Image: Exif 2.3 (JPEG)
RAW (CR2 (Canon Original));
Video: MOV (Image: H.264; Audio: Linear PCM (Stereo))
Number of Recording Pixels
[16:9] Large: 4000 x 2248 Medium 1: 2816 x 1584 Medium 2: 1920 x 1080 Small: 640 x 360
[3:2] Large: 4000 x 2664 Medium 1: 2816 x 1880 Medium 2: 1600 x 1064 Small: 640 x 424
[4:3] Large: 4000 x 3000 Medium 1: 2816 x 2112 Medium 2: 1600 x 1200 Small: 640 x 480 RAW: 4000 x 3000
[1:1] Large: 2992 x 2992 Medium 1: 2112 x 2112 Medium 2: 1200 x 1200 Small: 480 x 480
[4:5] Large: 2400 x 3000 Medium 1: 1696 x 2112 Medium 2: 960 x 1200 Small: 384 x 480
Number of Recordable Images
Image data
| |
16:9 |
3:2 |
4:3 |
| File Size (KB) |
4 GB |
16 GB |
File Size (KB) |
4 GB |
16 GB |
File Size (KB) |
4 GB |
16 GB |
| Large (L) |
F |
2,311 |
1,630 |
6,677 |
2,738 |
1,386 |
5,680 |
3,084 |
1,231 |
5,042 |
| N |
1,105 |
3,352 |
13,727 |
1,309 |
2,873 |
11,766 |
1,474 |
2,514 |
10,295 |
| Medium 1 (M1) |
F |
1,210 |
3,094 |
12,671 |
1,436 |
2,623 |
10,743 |
1,620 |
2,320 |
9,503 |
| N |
585 |
6,034 |
24,709 |
694 |
5,247 |
21,486 |
780 |
4,641 |
19,007 |
| Medium 2 (M2) |
F |
604 |
6,034 |
24,709 |
496 |
7,099 |
29,070 |
558 |
6,352 |
26,010 |
| N |
300 |
10,972 |
44,927 |
246 |
13,410 |
54,911 |
278 |
12,069 |
49,420 |
| Small (S) |
F |
113 |
24,139 |
98,840 |
133 |
20,116 |
82,367 |
150 |
20,116 |
82,367 |
| N |
63 |
40,233 |
164,734 |
75 |
30,174 |
123,550 |
84 |
30,174 |
123,550 |
| RAW |
RAW |
N/A |
N/A |
N/A |
N/A |
N/A |
N/A |
17,076 |
224 |
922 |
| +JPEG |
N/A |
N/A |
N/A |
N/A |
N/A |
N/A |
20,160 |
190 |
678 |
| |
1:1 |
4:5 |
| File Size (KB) |
4 GB |
16 GB |
File Size (KB) |
4 GB |
16 GB |
| Large (L) |
F |
2,301 |
1,652 |
6,769 |
1,850 |
2,045 |
8,375 |
| N |
1,100 |
3,352 |
13,727 |
884 |
4,161 |
17,041 |
| Medium 1 (M1) |
F |
1,210 |
3,094 |
12,671 |
972 |
3,771 |
15,443 |
| N |
585 |
6,034 |
24,709 |
470 |
7,543 |
30,887 |
| Medium 2 (M2) |
F |
420 |
8,046 |
32,946 |
336 |
10,057 |
41,183 |
| N |
208 |
15,087 |
61,775 |
167 |
17,242 |
70,600 |
| Small (S) |
F |
113 |
24,139 |
98,840 |
90 |
30,174 |
123,550 |
| N |
63 |
40,233 |
164,734 |
51 |
40,233 |
164,734 |
| RAW |
RAW |
N/A |
N/A |
N/A |
N/A |
N/A |
N/A |
| +JPEG |
N/A |
N/A |
N/A |
N/A |
N/A |
N/A |
Note: N=Normal F=Fine
Storage Capacity varies depending on camera settings. This data is estimated from Canon's standard shooting conditions. Figures for Movie Mode represent total capacity of the particular media.
Time of Recordable Movies
Movie data
| |
Standard & Other Video Formats |
iFrame Movie |
| Full HD: 1920 x 1080 |
HD: 1280 x 720 |
640 x 480 |
HD: 1280 x 720 |
| 24 fps |
30 fps |
30 fps |
30 fps |
| Video Size (KB/sec.) |
4,355 |
3,054 |
1,416 |
4,701 |
| 4GB |
14 min. 34 sec. |
20 min. 43 sec. |
43 min. 43 sec. |
13 min. 35 sec. |
| 16GB |
59 min. 40 sec. |
1 hr. 24 min. 54 sec. |
2 hr. 59 min. 3 sec. |
55 min. 38 sec. |
| |
Super Slow Motion Movie |
Miniature Effect |
| 640 x 480 |
320 x 240 |
HD: 1280 x 720 |
VGA: 640 x 480 |
| 120 fps |
240 fps |
5x |
10x |
20x |
5x |
10x |
20x |
| 6 fps |
3 fps |
1.5 fps |
6 fps |
3 fps |
1.5 fps |
| Video Size (KB/sec.) |
4,914 |
2,457 |
573 |
287 |
143 |
246 |
123 |
61 |
| 4GB |
12 min. 58 sec. |
25 min. 46 sec. |
1 hr. 45 min. 52 sec. |
3 hr. 21 min. 9 sec. |
5 hr. 35 min. 16 sec. |
3 hr. 43 min. 30 sec. |
6 hr. 42 min. 20 sec. |
11 hr. 10 min. 33 sec. |
| 16GB |
53 min. 7 sec. |
1 hr. 45 min. 35 sec. |
7 hr. 13 min. 30 sec. |
13 hr. 43 min. 40 sec. |
22 hr. 52 min. 47 sec. |
15 hr. 15 min. 11 sec. |
27 hr. 27 min. 20 sec. |
45 hr. 45 min. 35 sec. |
The approximate recording time on memory cards other than the above can be calculated by using the above figures as a reference and extrapolating accordingly.
Playback Specifications
Playback Modes File
Still Image: Single, Magnification (approx. 2x-10x), Jump, Auto Rotate, Rotate, Resume, My Category, Transition Effects, Histogram, Index (4-100 thumbnails*), Over Exposure Warning, Slide Show, Red-eye Correction, Trimming, Resize, Image Inspection Tool, i-Contrast;
Movie: Normal Playback, Special Playback, Editing, Auto Rotate, Resume
*As viewed in LCD monitor
Erasing Specifications
Erase Modes
Still Image: single image, all images
Movie: part of movie, all of movie
Interfaces
Video Out
NTSC/PAL
Audio Out
Stereo
Other
Memory card slot; direct connection to Canon and SELPHY Compact Photo Printers, PIXMA Photo Printers and PictBridge-compatible printers via camera's USB 2.0 Hi-Speed cable
Power Source
1. Rechargeable Battery Pack NB-5L
2. Compact Power Adapter CA-DC10 (included with AC Adapter Kit ACK-DC30)
Shooting Capacity
Still Image: approx. 200 shots*
Playback Time
Approx. 4 hours
Physical Specifications
Operating Temperature
32-104F/0-40C
Operating Humidity
10-90%
Dimensions (W x H x D)
3.90 x 2.34 x 1.05 in / 98.9 x 59.8 x 26.7 mm
Weight
Approx. 6.98 oz. (198 g) (including the batteries and memory card)
Approx. 6.10 oz. (173 g) (camera body only)
27 display languages provided (English, German, French, Dutch, Danish, Finnish, Italian, Norwegian, Swedish, Spanish, Simplified/Traditional Chinese, Japanese, Russian, Portuguese, Korean, Greek, Polish, Czech, Hungarian, Turkish, Thai, Arabic, Romanian, Ukrainian, Farsi, Hindi)
All data are based on Canon's Standard Test Method. Subject to change without notice.
Canon, DIGIC, ELPH, PIXMA, and PowerShot and SELPHY are registered trademarks of Canon Inc. in the United States and may also be registered trademarks or trademarks in other countries. Microsoft, Windows and Windows Vista are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. Mac is a trademark of Apple, Inc., registered in the United States and other countries. All other products and brand names are registered trademarks, trademarks or service marks of their respective owners in the United States and/or other countries.
Canon Enthusiast:1 to 5 years
|
|
|
|
Previous Page
|
Next Page
|
|
