27/10
|
Generic 8216V Security Network Video Recorder - 16 Channel DVR H.264 Digital Video Recorder With Mouse & Remote
- No Hard Drive Disk Included Security Network 16 Channel DVR H.264 Digital Video Recorder with Mouse & Remote (No HDD)
Specifications
|
System
|
Model
|
8216V
|
|
Main Processor
|
High performance embedded microprocessor HI3515
|
|
Operating System
|
Embedded LINUX
|
|
System Resources
|
Pentaplex function:live,recording,playback,backup & remote access
|
|
User Interface
|
GUI,on-screen menu tips
|
|
Display
|
1/4/16
|
|
Video
|
Video Standards
|
PAL 625 line,50 f/s;NTSC 525 line,60 f/s
|
|
Video Compression
|
H.264 main profile
|
|
Video Recording
|
CIF/QCIF
|
|
Encode capacity
|
400/480fps(CIF)
|
|
Motion Detection
|
Zones:396(22*18)detection zones,Sensitivity:1-6(6 is highest)
Trigger recording,PTZ movement,tour,alarm,email,snapshot & FTP
|
|
Audio
|
Audio Compression
|
G711A
|
|
Bidrectional Talk
|
Support
|
|
Record &
Playback
|
Recording Mode
|
Manual>Alarm>Video Detection>Continuous
|
|
Playback
|
1~16channels playback simultaneously
|
|
Search Mode
|
Time/Date,Alarm,Motion Detection & exact search(accurate to second)
|
|
Storage &
Backup
|
Space Occupation
|
Audio 28.8MB/H ;Video 25~450 MB/H
|
|
Record Storage
|
Local Hard disk and Network
|
|
Backup Mode
|
Network download/Flash stick/movable HDD/SATA HDD/DVD-RW
|
|
Interface
|
Video Input
|
16channel
|
|
Video Output
|
1channel TV output BNC,1.0Vp-p,75O,1 VGA output(optional)
|
|
Audio Input
|
4channel
|
|
Audio Output
|
1 channel
|
|
Alarm Input
|
4channel
|
|
Relay Output
|
1channel
|
|
Net Interface
|
RJ-45 (10M/100M)
|
|
PTZ Control
|
1 RS485
|
|
USB Interface
|
2 x USB2.0
|
|
Hard Disk
|
2 SATA ports(Max 4096G)
|
|
Environmental
|
Power Supply
|
12/4A
|
|
|
Power Consumption
|
<10W(not include Hard disk)
|
|
Working Temperature
|
0C-+55C
|
|
Working Humidity
|
10%-90%
|
|
Atmosphere Pressure
|
86kpa-106kpa
|
|
Dimension
|
240MM(width)* 330MM(length)* 58MM(highly)
|
|
Weight
|
2.38KG
|
|
|
|
|
27/10
|
Generic 7108V Security Network Video Recorder - 8 Channel DVR H.264 Digital Video Recorder With Mouse & Remote
- No Hard Drive Disk Included Security Network 8 Channel DVR H.264 Digital Video Recorder with Mouse & Remote (no HDD)
|
|
|
|
|
|
High performance embedded microprocessor HI3515
|
|
|
|
|
|
Pentaplex function:live,recording,playback,backup & remote access
|
|
|
|
|
|
|
|
|
|
PAL 625 line,50 f/s;NTSC 525 line,60 f/s
|
|
|
|
|
|
|
|
|
50/60fps(D1)+200/240fps(CIF)
|
|
|
Zones:396(22*18)detection zones,Sensitivity:1-6(6 is highest)
Trigger recording,PTZ movement,tour,alarm,email,snapshot & FTP
|
|
|
|
|
|
|
|
|
|
|
Manual>Alarm>Video Detection>Continuous
|
|
|
1~16channels playback simultaneously
|
|
|
Time/Date,Alarm,Motion Detection & exact search(accurate to second)
|
|
|
|
Audio 28.8MB/H ;Video 25~450 MB/H
|
|
|
Local Hard disk and Network
|
|
|
Network download/Flash stick/movable HDD/SATA HDD/DVD-RW
|
|
Interface
|
|
|
|
|
1channel TV output BNC,1.0Vp-p,75O,1 VGA output(optional)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
<10W(not include Hard disk)
|
|
|
|
|
|
|
|
|
|
|
|
295MM(width)* 220MM(length)* 45MM(highly)
|
|
|
|
|
|
|
|
27/10
|
Generic 6204T Security Network Video Recorder - 4 Channel DVR H.264 Digital Video Recorder With Mouse & Remote
- No Hard Drive Disk Included Security Network 4 Channel DVR H.264 Digital Video Recorder with Mouse & Remote (No HDD)
|
|
|
|
|
|
High performance embedded microprocessor HI3515
|
|
|
|
|
|
Pentaplex function: live, recording,playback,backup & remote access
|
|
|
|
|
|
|
|
|
|
PAL 625 line,50 f/s;NTSC 525 line,60 f/s
|
|
|
|
|
|
D1:PAL 1f/s-25f/s NTSC 1f/s-30f/s
|
|
|
|
|
|
Zones:396(22*18)detection zones,Sensitivity:1-6(6 is highest)
Trigger recording,PTZ movement,tour,alarm,email,snapshot & FTP
|
|
|
|
|
|
|
|
|
|
|
Manual>Alarm>Video Detection>Continuous
|
|
|
Multi channels playback simultaneously,pause,stop,rewind,fast play, slow play,next file,previous file,repeat,shuffle,backup selection
|
|
|
Time/Date,Alarm,Motion Detection & exact search(accurate to second)
|
|
|
|
Audio 28.8MB/H ;Video 25~450 MB/H
|
|
|
Local Hard disk and Network
|
|
|
Network download/Flash stick/movable HDD/SATA HDD/DVD-RW
|
|
Interface
|
|
|
|
|
2 channel TV output BNC,1.0Vp-p,75O,1 VGA output(optional)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
<10W(not include Hard disk)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
27/10
|

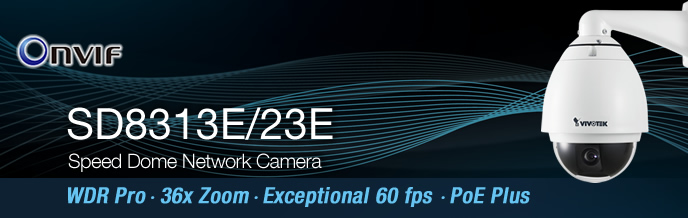

Vivotek SD8323E Speed Dome Network Camera - WDR Pro, 36x Zoom, Exceptional 60 fps, PoE Plus, 1/4" Sony EXview HAD CCD, IR-Cut Filter For Day & Night Function, Weather-proof - White
WDR Pro 36x Zoom Exceptional 60 fps PoE Plus Network Camera SD8313E/23E
VIVOTEK SD8313E/23E are high performance day/night speed dome network cameras suitable for professional surveillance applications. The IP66-rated housing protects the camera body against rain and dust and ensures operation under extreme weather conditions. The SD8313E/23E are especially suitable for monitoring wide open indoor/outdoor spaces such as airports, highways, parking lots, and shopping malls, where high-level reliability and precision are always required.
The SD8313E/23E supports high-performance H.264/MPEG-4/MJPEG compression technology and offers extra smooth video quality with resolution up to 60fps @ D1. Boasting WDR Pro technology, the SD8313E/23E can also cope with challenging lighting conditions and generate image quality similar to the capabilities of a human eye. With sophisticated pan/tilt mechanism, the camera provides fast, precise movement with continuous 360-degree pan and 90-degree tilt. Users can easily control the lens position via a mouse or a joystick to track the object of interest in and set up to 128 preset positions for patrolling.
As with all VIVOTEK true day/night cameras, the SD8313E/23E features a removable IR-cut filter, maintaining clear images 24 hours a day. The built-in SD/SDHC card slot offers a convenient and portable storage option to prevent data loss in case of network disconnection. With other advanced features such as audio detection, 802.3at compliant PoE Plus, and 60fps high quality video, the SD8313E/23E is the best choice for the most demanding outdoor surveillance applications.
Features
- D1 SONY EXview HAD CCD Sensor
- Up to 60 fps @ D1 Resolution
- 36x Zoom Lens
- Supports WDR Pro for Unparalleled Visibility in High Contrast Environments
- 360 Continuous Pan and 90 Tilt
- Removable IR-cut Filter for Day & Night Function
- Real-time H.264, MPEG-4 and MJPEG Compression (Triple Codec)
- Weather-proof IP66 rated Housing
- EIS (Electronic Image Stabilizer) for Ultimate Video Experience
- Two-way Audio
- Audio Detection for Instant Alerts
- Built-in 802.3at Compliant PoE Plus
- 3D Privacy Masks for Additional Protection
- Built-in SD/SDHC Card Slot for On-board Storage
- -40C ~ 55C Wide Temperature Range for Extreme Weather Conditions
Specifications
| System |
CPU: Multimedia SoC |
| Pan/Tilt/Zoom |
Pan range: 360 continuous rotation
Tilt range: 0 ~ 90 flip
36x optical zoom
Pan speed: 0.1 ~ 300 / sec
Tilt speed: 0.1 ~ 120 / sec
Number of presets: 128
Auto pan mode
Auto patrol mode
|
| Lens |
36x optical zoom
f=3.4 ~ 122.4 mm
F 1.6 (wide)
F 4.5 (tele)
Focus range: wide 10 mm,tele 800 mm to infinity
auto iris
auto focus
Removable IR-cut filter for day & night function
|
| Angle of View |
1.7 ~ 57.8 (horizontal)
|
| Shutter Time |
1 ~ 1/10,000 sec |
| Image sensor |
1/4" SONY EXview HAD CCD |
| Minimum Illumination |
0.01 Lux @ F1.6 ( typical )
0.001 Lux @ F1.6 ( B/W ) |
| Video |
Compression: H.264, MPEG-4 & MJPEG
Streaming:
Simultaneous multiple streams
H.264 streaming over UDP, TCP, HTTP or HTTPS
H.264/MPEG-4 multicast streaming
MPEG-4 streaming over UDP, TCP, HTTP or HTTPS
MJPEG streaming over HTTP or HTTPS
Supports activity adaptive streaming for dynamic frame rate control
Supports 3GPP mobile surveillance
Frame rates:
H.264: Up to 60/50 fps at 720x480 (SD8313E) / 720x576 (SD8323E)
MPEG-4: Up to 60/50 fps at 720x480 (SD8313E) /720x576 (SD8323E)
MJPEG: Up to 60/50 fps at 720x480 (SD8313E) /720x576 (SD8323E)
Up to 30/25 fps in WDR mode
|
| Image Settings |
Adjustable image size, quality, and bit rate
Time stamp and text caption overlay
Flip & mirror
Configurable brightness, contrast, saturation, sharpness, white balance and exposure
AGCAWBAES
Automatic, manual or scheduled day/night mode
Supports privacy masks
BLC (Backlight compensation)
EIS (Electronic Image Stabilizer)
WDR Pro |
| Audio |
Compression
GSM-AMR speech encoding, bit rate: 4.75 kbps to 12.2 kbps
MPEG-4 AAC audio encoding, bit rate: 16 kbps to 128 kbps
G.711 audio encoding, bit rate: 64 kbps, -Law or A-Law
Interface:
External microphone input
Audio output
Supports two-way audio
Supports audio mute
|
| Networking |
10/100 Mbps Ethernet, RJ-45
ONVIF support
Protocols: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP and 802.1X |
| Alarm and Event Management |
Triple-window video motion detection
3 D/I & 2 D/O for external sensor and alarm
Event notification using HTTP, SMTP, or FTP
Local recording of MP4 files
Audio detection |
| On-board Storage |
SD/SDHC card slot
Stores snapshots and video clips
|
| Security |
Multi-level user access with password protection
IP address filtering
HTTPS encrypted data transmission
802.1X port-based authentication for network protection
|
| Users |
10 clients on-line monitoring at the same time |
| Dimensions |
: 200mm x 270 mm
Cable length: 1330 mm
Cable diameter: 15 mm; Max Connector: 20 mm |
| Weight |
Net: 3400 g |
| LED Indicator |
System power and status indicator
System activity and network link indicator
|
| Power |
24V AC
Power consumption: Max. 60 W
802.3at compliant Power-over-Ethernet Plus
|
| Housing |
Weather-proof IP66-rated housing
|
| Approvals |
CEC-TickFCCLVDVCCI |
| Operating Environments |
Temperature: -40C ~ 55C (AC 24V), -10C ~ 55C (PoE Plus)
Humidity: 90% RH
|
| Viewing System Requirements |
OS: Microsoft Windows 2000/XP/Vista/7
Browser: Mozilla Firefox, Internet Explorer 6.x or above
Cell phone: 3GPP player
Real Player: 10.5 or above
Quick Time: 6.5 or above |
| Installation, Management, and Maintenance |
Installation Wizard 2
32-CH central management software
Supports firmware upgrade
|
| Applications |
SDK available for application development and system integration |
| Warranty |
24 months |
|
|
|
|
27/10
|
Vivotek SD8321E Speed Dome Network Camera - D1 Sony EXview HAD CCD Sensor, WDR Pro, 18x Zoom, Exceptional 60 fps, PoE Plus, Removable IR-Cut Filter for Day & Night Function - White
WDR Pro 18x Zoom Exceptional 60 fps PoE Plus Network Camera SD8311E/21E
Overview
VIVOTEK SD8311E/21E are high performance day/night speed dome network cameras suitable for professional surveillance applications. The IP66-rated housing protects the camera body against rain and dust and ensures operation under extreme weather conditions. The SD8311E/21E are especially suitable for monitoring wide open indoor/outdoor spaces such as airports, highways, parking lots, and shopping malls, where high-level reliability and precision are always required.
The SD8311E/21E supports high-performance H.264/MPEG-4/MJPEG compression technology and offers extra smooth video quality with resolution up to 60fps @ D1. Boasting WDR Pro technology, the SD8311E/21E can also cope with challenging lighting conditions and generate image quality similar to the capabilities of a human eye. With sophisticated pan/tilt mechanism, the camera provides fast, precise movement with continuous 360-degree pan and 90-degree tilt. Users can easily control the lens position via a mouse or a joystick to track the object of interest in and set up to 128 preset positions for patrolling.
As with all VIVOTEK true day/night cameras, the SD8311E/21E features a removable IR-cut filter, maintaining clear images 24 hours a day. The built-in SD/SDHC card slot offers a convenient and portable storage option to prevent data loss in case of network disconnection. With other advanced features such as audio detection, 802.3at compliant PoE Plus, and 60fps high quality video, the SD8311E/21E is the best choice for the most demanding outdoor surveillance applications.
Features
- D1 SONY EXview HAD CCD Sensor
- Up to 60 fps @ D1 Resolution
- 18x Zoom Lens
- Supports WDR Pro for Unparalleled Visibility in High Contrast Environments
- 360 Continuous Pan and 90 Tilt
- Removable IR-cut Filter for Day & Night Function
- Real-time H.264, MPEG-4 and MJPEG Compression (Triple Codec)
- Weather-proof IP66 rated Housing
- Two-way Audio
- Audio Detection for Instant Alerts
- Built-in 802.3at Compliant PoE Plus
- 3D Privacy Masks for Additional Protection
- Built-in SD/SDHC Card Slot for On-board Storage
- -40C ~ 55C Wide Temperature Range for Extreme Weather Conditions
Specifications
| System |
CPU: Multimedia SoC |
| Pan/Tilt/Zoom |
Pan range: 360 continuous rotation
Tilt range: 0 ~ 90 flip
18x optical zoom
Pan speed: 0.1 ~ 300 / sec
Tilt speed: 0.1 ~ 120 / sec
Number of presets: 128
Auto pan mode
Auto patrol mode
|
| Lens |
18x optical zoom
f=4.1 ~ 73.8 mm
F 1.4 (wide)
F 3.0 (tele)
Focus range: wide 10 mm,tele 800 mm to infinity
auto iris
auto focus
Removable IR-cut filter for day & night function
|
| Angle of View |
2.8 ~ 48 (horizontal)
|
| Shutter Time |
1 ~ 1/10,000 sec |
| Image sensor |
1/4" SONY EXview HAD CCD |
| Minimum Illumination |
0.7 Lux @ F1.4, 50IRE ( typical )
|
| Video |
Compression: H.264, MPEG-4 & MJPEG
Streaming:
Simultaneous multiple streams
H.264 streaming over UDP, TCP, HTTP or HTTPS
H.264/MPEG-4 multicast streaming
MPEG-4 streaming over UDP, TCP, HTTP or HTTPS
MJPEG streaming over HTTP or HTTPS
Supports activity adaptive streaming for dynamic frame rate control
Supports 3GPP mobile surveillance
Frame rates:
H.264: Up to 60/50 fps at 720x480 (SD8311E) / 720x576 (SD8321E)
MPEG-4: Up to 60/50 fps at 720x480 (SD8311E) /720x576 (SD8321E)
MJPEG: Up to 60/50 fps at 720x480 (SD8311E) /720x576 (SD8321E)
Up to 30/25 fps in WDR mode
|
| Image Settings |
Adjustable image size, quality, and bit rate
Time stamp and text caption overlay
Flip & mirror
Configurable brightness, contrast, saturation, sharpness, white balance and exposure
AGCAWBAES
Automatic, manual or scheduled day/night mode
Supports privacy masks
BLC (Backlight compensation)
WDR Pro |
| Audio |
Compression
GSM-AMR speech encoding, bit rate: 4.75 kbps to 12.2 kbps
MPEG-4 AAC audio encoding, bit rate: 16 kbps to 128 kbps
G.711 audio encoding, bit rate: 64 kbps, -Law or A-Law
Interface:
External microphone input
Audio output
Supports two-way audio
Supports audio mute
|
| Networking |
10/100 Mbps Ethernet, RJ-45
ONVIF support
Protocols: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP and 802.1X |
| Alarm and Event Management |
Triple-window video motion detection
3 D/I & 2 D/O for external sensor and alarm
Event notification using HTTP, SMTP, or FTP
Local recording of MP4 files
Audio detection |
| On-board Storage |
SD/SDHC card slot
Stores snapshots and video clips
|
| Security |
Multi-level user access with password protection
IP address filtering
HTTPS encrypted data transmission
802.1X port-based authentication for network protection
|
| Users |
10 clients on-line monitoring at the same time |
| Dimensions |
: 200mm x 270 mm
Cable length: 1330 mm
Cable diameter: 15 mm; Max Connector: 20 mm |
| Weight |
Net: 3400 g |
| LED Indicator |
System power and status indicator
System activity and network link indicator
|
| Power |
24V AC
Power consumption: Max. 60 W
802.3at compliant Power-over-Ethernet Plus
|
| Housing |
Weather-proof IP66-rated housing
|
| Approvals |
CEC-TickFCCLVDVCCI |
| Operating Environments |
Temperature: -40C ~ 55C (AC 24V), -10C ~ 55C (PoE Plus)
Humidity: 90% RH
|
| Viewing System Requirements |
OS: Microsoft Windows 2000/XP/Vista/7
Browser: Mozilla Firefox, Internet Explorer 6.x or above
Cell phone: 3GPP player
Real Player: 10.5 or above
Quick Time: 6.5 or above |
| Installation, Management, and Maintenance |
Installation Wizard 2
32-CH central management software
Supports firmware upgrade
|
| Applications |
SDK available for application development and system integration |
| Warranty |
24 months |
|
|
|
|
27/10
|
Native Union Play Video Memo Pad - Black
- 256MB, 40 Days Standby Time, 0.3 Megapixel, 3 Hours Play & Record Time, Built-In Microphone And Speaker, Magnetic Back Panel, 2.4" Colour Screen Native Union Play Video Memo Pad
Features
Designed by Fabien Nauroy, "Play" is the ultimate video-memo. Slimline and stylish, "Play" has a magnetized back so it can be mounted on a fridge or other metallic surfaces. It is also supplied with a magnetic wall-tape pad that can stick to any surface.
"Play" has been designed and manufactured to the highest specification and includes a high quality video camera, a 2.4 color screen, and a sophisticated 3 minute multiple message recording system. Messages are recorded with time and date. Suitable for all ages, this smart design allows full operation from 3 simple buttons.
Messages are recorded with time and date.
Suitable for all ages, this smart design allows full operation from 3 simple buttons.
- Total record time : 180 seconds
- Camera : 0.3M Pixel
- LCD monitor : 2.4 inches
- Screen resolution : TFT LCD 320(RGB) x 240
- Battery type : 3 x AAA
- 40 days standby time
- 3h Play/ Record time
- Visual Angle : 68 degree
- Built-in microphone and speaker
- Magnetic back panel
- Super-bright white LED message indicator
- Memory size 256mb
- Multi-messages
- Time and date of messages
- High Gloss casing
- Suitable for all ages
- No computer needed
- Supplied with magnetic pad and hand-strap.
|
|
|
|
Previous Page
|
Next Page
|
|
