SWHOM-ALARMP





FeaturesFeatures





PIR Motion Light Alarm
	PIR Alarm Unit
Power Requirements	6V (4 x AA batteries - not included)
PIR Sensor Viewing Area	100 degrees Horizontal (approx)
PIR Sensor Range	15ft/5m ~ 25ft/8m (varies by local conditions)
Alarm Volume	> 100dB
	Remote Control
Power Requirements	12V (1 x A23 - included)
Transmission Range	30m



The difference is crystal clear with a color camera & LCD monitor to keep you safe.





The Home and Business Monitoring Kit is a new generation of the SecuraView, one of Swannn's best selling products. It allows you to view and hear security video on a crystal clear 7 inch color LCD monitor. The monitor connects to the color camera via a 60 foot / 18 meter cable. You can operate using the remote control in the pack. Both the monitor and camera must be connected to mains power. The pack also includes 4 theft deterrent stickers and everything you need to get started.



The Home and Business Monitoring Kit is perfect for anyone wanting an affordable starting point for their security needs. It's ideal for small businesses, retail stores, restaurants or home use. The unit has a discreet, small footprint with a modern and stylish finish. It's a cost effective way to see AND hear what's really happening.

You will love the color video. Unlike black and white systems, you will be able to identify what color clothing people are wearing, what color hair they have, and get a truer picture of what is going on. It's easy to do-it-yourself. Mount the camera to a wall or ceiling is simple with screws included in the pack. The LCD monitor can be mounted upside down or side-ways and the video will realign itself to be the right way up using the image flip option. For discretion and to save power you can also use the auto turn-off function when the unit is not needed.

The Home and Business Monitoring Kit includes a PNP-51 camera with short range night vision and a built-in microphone to allow you to hear conversations and other sounds. The Kit is also upgradeable in that you can add a second camera and then switch camera views. It's another example of Advanced Security Made Easy from Swann.







PNP-51   Camera
	Video
Image Sensor	1/3" CMOS
Video Quality	400 TV Lines
Number of Effective Pixels	NTSC: 510 x 492 PAL: 628 x 582
Minimum Illumination	0 Lux (IR on)
Day/Night Mode	Color during day / switches to B&W at night
White Balance	Automatic
Signal / Noise Ratio	> 50dB
Electronic Shutter	1/60 - 1/15,000 NTSC 1/50 - 1/15,000 PAL
Gain Control	Automatic
Backlight Compensation	Yes
Wide Dynamic Range	N/A
Lens	4mm
Viewing Angle	90 degrees
	Audio
Microphone	Yes
Audio Range	Up to 3ft / 1m
	Night Vision
Night Vision Distance	Up to 16ft / 5m
Number of Infra-Red LEDs	8
Infra-Red Wavelength	850nm
Infra-Red LED Life	10,000 hours
	General
Indoor / Outdoor	Indoor
Operating Power	DC 12V
Operating Temperature	32 degrees F ~ 113 degrees F 0 degrees C ~ 45 degrees C
Body Construction	Heavy Duty Plastic
Dimensions - Camera & Stand	4.25" x 2.75" x 1.75" 108mm x 69mm x 44mm
Weight - Camera & Stand	4.23oz / 125g
Cable Length	60ft / 18m RCA

LCD Screen
	Display
Screen Size	1/3" CMOS
Screen	400 TV Lines
LCD Profile Ratio	NTSC: 510 x 492 PAL: 628 x 582
Display Resolution	0 Lux (IR on)
Contrast	Color during day / switches to B&W at night
Brightness	Automatic
Response Time (ms)	> 50dB
Viewing Angle	1/60 - 1/15,000 NTSC 1/50 - 1/15,000 PAL
Video Input	Automatic
	Audio
Audio Input	Yes
Audio Output	Up to 3ft / 1m
	General
Power Supply	12V DC
Connecting Termimnal
Remote Control	Yes
Battery QTY & Type	2 x AAA
Operation Temperature	-10 degrees C ~ 50 degrees C 14 degrees F ~ 122 degrees F
Power Consumption	Approx. 10W

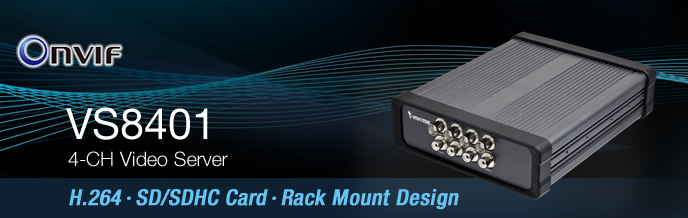

H.264 SD/SDHC Card Rack Mount DesignVideo Server VS8401





VIVOTEK VS8401, the new milestone in video server security performing 4-CH high resolution with high frame rate in H.264, is able to convert analog video into digital video with the highest quality. The H.264 compression format drastically reduces the file sizes and conserves valuable bandwidth and storage space. The VS8401 supports simultaneous dual streams to be transmitted in H.264, MPEG-4 and MJPEG formats for versatile applications. The streams can also be individually configured with separated frame rates, resolution, and image quality so as to meet different platforms or bandwidth constraints.



Featured with intelligent video functions, such as motion detection & temper detection, the VS8401 is capable of upgrading an analog camera into an intelligent camera. The tamper detection feature can detect events such as blockage, redirection, defocus, and spray-painting of camera lens, making it an intelligent solution to possible camera obstruction. Furthermore, it also upgrades the security level of the IP surveillance system with the network security protocols, HTTPS and 802.1x. It is also designed with Giga LAN for large transmission need and DC 12V / AC 24V compatible power input design. These features make it easy to install and integrate with the existing analog system.



The built-in SD/SDHC card slot offers a convenient and portable storage option to prevent data loss in case of network disconnection. Monitoring with VIVOTEK's ST7501 as the video management software for better scalability and easy-to-use operation is another delightful benefit. Most importantly, it is designed for rack mount solution for easy installation. The solution for video server is a pioneering idea in the world. The innovative vision of video server, VS8401, helps you easily upgrade to a full-featured, high-end IP surveillance solution!
