31/08
|
Chenbro 4-In-1 Card Reader - For Chenbro ES34169 Chassis 83H554534-002
AS'Y MISCE - 4-in-1 Card Reader (SD/Mini-SD/MMC/MCS)
|
|
|
|
31/08
|

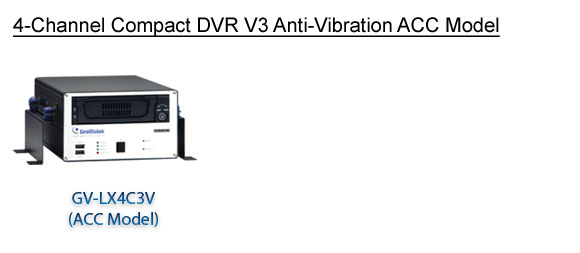

GeoVision GV-LX4C3V 4-Channel Compact DVR V3 Anti-Vibration - Dual Streams From H.264 And MJPEG, Up to 120FPS At D1 Resolution, Independent Channel Resolution, Quality And Frame Rate Settings, Ethernet
INTRODUCTION
The four-channel GV-Compact DVR V3 is a mobile video recorder, simultaneously displaying real-time images from four cameras.
The recording frame rate of each channel is adjustable up to 30 / 25 fps at the resolution of 704 x 480 (NTSC) / 704 x 576 (PAL). The dual-stream design allows you to set up two different codec and resolutions for a single video transmission. In a limited bandwidth network, you can enable the dual streams to lower the resolution and codec for live images, but still get the highest recording quality and smallest file size compressed with H.264 codec.
The Anti-Vibration ACC model of the GV-Compact DVR V3 has already been tested to withstand severe levels of shock and vibration in mobile environments. It is perfect to be installed in any vehicles, such as buses and vans, for surveillance and recording.

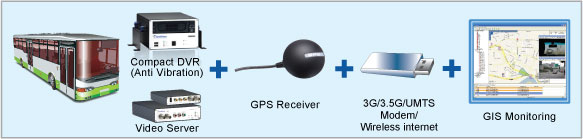

The special design of the GV-Compact DVR V3 enables you to link up with TV, VGA and spot monitors simultaneously for direct display. The GV-Compact DVR V3 offers many features that you can expect to have.
FEATURES
Recording
- Dual streams from H.264 and MJPEG
- Up to 120 fps at D1 resolution
- Independent channel resolution, quality and frame rate settings
Local Display
- VGA output in high resolution (1280 x 1024)
- Display video on TV, VGA and Spot Monitor simultaneously
- GPS Speed Text overlay on live view and recordings
Storage and Backup
- 3.5 or 2.5 SATA HDD (3.5 to 2.5 HDD converter required)
- External USB mass storage devices
- DVD-RW Backup
- Backup Center for PC-based storage and backup solution
Monitoring
- Continuous, motion detection, schedule and input-triggered recordings
- Buzzer alarm on video lost, input triggered, motion detected and disk full
- 4 alarm inputs and outputs
Playback
- Retrieve video by date, time and event
- Remote playback
Remote Monitoring
- Mobile broadband (HSDPA, UMTS, EDGE, EVDO, etc.)
- Mobile Phone Surveillance (Android Smartphone, iPhone, iPad)
- Central monitoring systems Center V2, VSM, Control Center, Recording Server
- Geographic information system GV-GIS
- GPS tracking for the Anti-Vibration ACC models (GPS module required)
Language Support
- Support 16 languages on Web interface
SPECIFICATIONS
| Model |
GV-LX4C3V (ACC Model) |
| Video |
| Video Standard |
NTSC, PAL |
| Video Input/Output |
4 Videos In, 4 Loops Out |
| Compression |
Dual streams from H.264 and MJPEG
(H.264 for the main stream; MJPEG for the sub stream) |
| Frame Rate |
NTSC |
30 fps/ch at resolution of 704 x 480 |
| PAL |
25 fps/ch at resolution of 704 x 576 |
| Video Resolution |
Main Stream |
NTSC |
704 x 480, 704 x 480 De-interlace, 352 x 240 |
| PAL |
704 x 576, 704 x 576 De-interlace, 352 x 288 |
| Sub Stream |
NTSC |
352 x 240 |
| PAL |
352 x 288 |
| Video Streaming |
Configurable frame rate and bandwidth |
| Video Adjustment |
Brightness, Contrast, Hue, Saturation |
| Audio |
| Audio Input/Output |
4 Audios In, 1 Audio Out |
| Compression |
G.723 |
| Output Signal Formats |
| Resolution |
VGA Out |
800 x 600, 1024 x 768, 1280 x 1024 |
| TV Out |
640 x 480 |
| V. Frequency |
VGA Out |
60 Hz |
| TV Out |
60 Hz |
| Management |
| Event Management |
Trigger |
Time, Sensor Input, Motion Detection |
| Action |
Store video to HDD (AVI format)
Send e-mails with captured images
Upload captured images to FTP Server
Monitor through Center V2, VSM and GV-GIS
Activate relay outputs to control external devices
|
| Firmware Upgrade |
Remote upgrade by Web browser
Use a USB flash drive
Use the upgrade utility included on the Softwae CD
|
| Client PC Requirements |
Microsoft IE 7.x or above running on Windows XP / Vista / 7 / Server 2008 |
|
Language on Web Interface
|
Czech / Danish / English / French / German / Hebrew / Hungarian / Italian / Japanese / Polish / Portuguese / Russian / Serbian / Simplified Chinese / Spanish / Traditional Chinese
|
|
Language on OSD
|
English / French / German / Italian / Japanese / Portuguese / Russian / Simplified Chinese / Spanish / Traditional Chinese
|
| Network |
| Interface |
10/100 Base-T Ethernet
802.11b/g/n Wireless LAN (optional)
Mobile broadband: UMTS, EDGE, etc. (optional)
|
| Protocol |
HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, Multicast, 3GPP/ISMA, RTSP, SNMP, QoS(DSCP) |
| Security |
IP address filtering |
| External Interface |
| Audio / Video Input |
D-Type, DB 15 connector (4 Videos In, 4 Audios In) |
| Audio / Video Output |
D-Type, DB 15 connector
(1 TV Out, 1 Spot Out, 1 VGA Out, 1 Audio Out, 4 Video Loops Out) |
| Sensor Input |
4 inputs on terminal block |
| Alarm Output |
4 outputs on terminal block |
| PTZ |
RS-485 +/- output on terminal block |
| ACC Wire Connection |
1 output on terminal block |
| GPS |
1 port (PS/2 connector) |
| Ethernet |
RJ-45, 10/100 Mbps |
| USB |
2 ports (USB 2.0) |
| IR Receiver |
1 port for optional External IR Receiver |
| Power |
5 ~ 36V, 5A (60W Max.) |
| Alarm |
| Sensor Input |
4 digital inputs |
| Alarm Output |
4 relay outputs |
| Environment |
| Operation Temp. |
-20 ~ 50 C / 4 ~ 122 F |
| Humidity |
5 ~ 85% RH (non-condensing) |
| Physical |
| Dimensions (L x W x H) |
176 x 253 x 105 mm / 7 x 10 x 4.1 inch |
| Weight |
2.9 Kg / 6.4 lb |
| HDD Drive Bay |
1 bay |
| DVD-RW Drive |
None |
| Reliability |
| Operating Shock |
10G, 2 ms |
| Operating Vibration |
5 ~ 500 Hz, 1G |
| Optional Storage |
| SATA HDD of 2.5" or 3.5" |
1 SATA HDD
|
| USB HDDs |
2 external USB HDDs
|
| DVD-RW backup |
DVD-RW backup |
Note:
- All specifications are subject to change without notice.
- Currently, all standard models do not support the GPS reciever (RS-232 inteface) and GPS function.
- The frame rate of Sub Stream for live view will be affected by the number of connections and recording. But the frame rate of Main Stream for recording is not affected.
- An HDD converter is required from GeoVision for 2.5" HDD.
|
|
|
|
31/08
|
GeoVision GV-VD322D 3 Megapixel H.264 IR Vandal Proof IP Dome Camera - 1/2.5" Progressive Scan CMOS, Dual Video Streams From Two Of H.264, MPEG4 & MJPEG, Built-in IR LED, Motion Detection - White GV-VD320D, 321D, 322D, 323D 3M H.264 IR Vandal Proof IP Dome
Features
- 1/2.5" progressive scan CMOS
- Dual video streams from two of H.264, MPEG4 and MJPEG
- Up to 20 fps at 2048 x 1536
- IP66 compliant
- 3-axis mechanism (pan / tilt / roll)
- Removable IR-cut filter for Day/Night function
- External microphone
- Built-in IR LED
- 2-way audio
- One sensor input and alarm output
- TV-out support
- Micro SD/SDHC Card Slot
- DC12V / AC24V / PoE
- Motion detection
- Tampering alarm
- Privacy mask
- IP address filtering
- Supports iPhone, iPad, Android & 3GPP
- 16 languages on Web interface
Models
| Model |
Housing Cover |
| Cover Color |
Vandal Resistance |
| GV-VD320D |
Transparent cover |
IK10+ |
| GV-VD321D |
Smoked cover |
IK10+ |
| GV-VD322D |
Transparent cover |
IK7 |
| GV-VD323D |
Smoked cover |
IK7 |
Active Tampering Alarm
Tampered
Focus Change
Camera Shift
Specifications
|
Camera
|
|
Image Sensor
|
1/2.5" progressive scan CMOS
|
|
Picture Elements
|
2048 (H) x 1536 (V)
|
|
Minimum Illumination
|
Color
|
1 Lux (1/30 sec), 0.5 Lux (1/5 sec)
|
|
B/W
IR ON
|
0 Lux
|
|
Shutter Speed
|
Automatic, Manual (1/5 ~ 1/8000 sec)
|
|
White Balance
|
Automatic, Manual (2800K ~ 8500K)
|
|
Lens
|
|
Megapixel
|
Yes
|
|
Removable IR-cut filter for Day / Night function
|
Yes
|
|
Lens Type
|
Varifocal
|
|
Focal Length
|
2.7 ~ 9 mm
|
|
Maximum Aperture
|
F/1.3
|
|
Mount
|
14 mm
|
|
Angle of View
|
Diagonal
|
118.4 (W) ~ 36.3 (T)
|
|
Horizontal
|
94.7 (W) ~ 29 (T) |
|
Vertical
|
71.1 (W) ~ 21.8 (T)
|
|
Operation
|
Focus
|
Manual (w / lock)
|
|
Zoom
|
Manual (w / lock)
|
|
Iris
|
DC drive
|
|
IR LED Quantity
|
15 IR LEDs
|
|
IR Distance
|
15 m / 50 ft (Max.)
|
|
Operation
|
|
Video Compression
|
H.264, MPEG4, MJPEG
|
|
Video Stream
|
Stream 1 from H.264 and MJPEG
Stream 2 from H.264, MPEG4 and MJPEG
|
|
Frame Rate
|
20 fps at 2048 x 1536
* The frame rate and the performance may vary depending on the number of connections and data bitrates (different scenes).
|
|
Image Setting
|
Brightness, Contrast, Sharpness, Gamma, White Balance, Flicker-less, Image Orientation, Backlight Compensation
|
|
Audio Compression
|
G.711, AAC (16 kHz / 16 bit)
* AAC is only supported by GV-System V8.5 or later
|
|
Sensor Input
|
1 Input (Dry Contact)
|
|
Alarm Output
|
1 Digital Output (200mA 5V DC)
|
|
Video Resolution
|
|
Main Stream
|
4:3
|
2048 x 1536, 1600 x 1200, 1280 x 960, 640 x 480, 320 x 240
|
|
16:9
|
1920 x 1080, 1280 x 720, 640 x 360, 448 x 252
|
|
5:4
|
1280 x 1024, 640 x 512, 320 x 256
|
|
Sub Stream
|
4:3
|
640 x 480, 320 x 240
|
|
16:9
|
640 x 360, 448 x 252
|
|
5:4
|
640 x 512, 320 x 256
|
|
Network
|
|
Interface
|
10/100 Ethernet
|
|
Ethernet Protocol
|
HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, RTSP, PSIA, SNMP, QoS (DSCP)
|
|
Mechanical
|
|
Lens Mounting
|
14 mm
|
|
Temperature Detector
|
Yes
|
|
Camera Angle Adjustment
|
Pan
|
0 ~ 60
|
|
Tilt
|
-10 ~ 90
|
|
Rotate
|
0 ~ 360
|
|
Connectors
|
Power
|
3-pin terminal block, PoE
|
|
Ethernet
|
RJ-45
|
|
Audio
|
1 In (RCA female for microphone)
1 Out (RCA female for speaker)
|
|
Digital I/O
|
I/O Wires
|
|
Auto Iris
|
DC drive
|
|
Local Storage
|
Micro SD/SDHC memory card slot
|
|
TV-Out
|
BNC connector (640 x 480).
|
|
General
|
|
Environment Temperature
|
-20 C ~ 50 C / 4 F ~ 122 F
|
|
Humidity
|
10% to 90% (no condensation)
|
|
Power Source
|
12V DC / 24V AC / PoE
|
|
Power Consumption
|
12 W (max. 1A at 12V DC)
|
|
Dimensions
|
Camera Body
|
165 x 125 mm / 6.49 x 4.92 in
|
|
Cable Length
|
1 m / 3.28 ft
|
|
Cable Diameter
|
16.7 mm / 0.66 in
|
|
Maximum Connector Diameter
|
16.7 mm / 0.66 in
|
|
Weight
|
1.7 kg / 3.75 lb
|
|
Protection Classification
|
IP66
|
|
Vandal Resistance
|
GV-320D / GV-321D
|
IK10+
|
|
GV-322D / GV-323D
|
IK7
|
|
Regulatory
|
CE, FCC, C-Tick, RoHS compliant
|
|
Power over Ethernet
|
|
PoE Standard
|
IEEE 802.3af Power over Ethernet / PSE
|
|
PoE Power Supply Type
|
End-Span
|
|
PoE Power Output
|
Per Port 48V DC, 350mA. Max. 15.4 watts
|
|
Web Interface
|
|
Installation Management
|
Web-based configuration
|
|
Maintenance
|
Firmware upgrade through Web Browser or Utility
|
|
Access from Web Browser
|
Camera live view, video recording, change video quality, bandwidth control, image snapshot, digital I/O control, audio, Wide Angle Lens Dewarping, Picture in Picture, Picture and Picture, Privacy Mask, Visual Automation, Tampering Alarm
|
|
Language
|
Czech / Danish / English / French / German / Hebrew / Hungarian / Italian / Japanese / Polish / Portuguese / Russian / Serbian / Simplified Chinese / Spanish / Traditional Chinese
|
|
Applications
|
|
Network Storage
|
GV-NVR, GV-System
|
|
3G Mobile Phone
|
Built-in player for 3GPP / ISMA
|
|
Live Viewing
|
IE , Mobile Phone
|
|
CMS Server support
|
GV-Control Center, GV-Center V2, GV-VSM, GV-Backup Center, GV-Video Gateway, GV-Recording Server
|
|
|
|
|
31/08
|
GeoVision GV-VD222D 2 Megapixel H.264 IR Vandal Proof IP Dome Camera - 1/2.5" Progressive Scan CMOS, Dual Video Streams From Two of H.264, MPEG4 And MJPEG, Built-in IR LED, Motion Detection - White GV-VD220D, 221D, 222D, 223D, 2M H.264 IR Vandal Proof IP Dome
Features
- 1/2.5" progressive scan CMOS
- Dual video streams from two of H.264, MPEG4 and MJPEG
- Up to 30 fps at 1920 x 1080
- IP66 compliant
- 3-axis mechanism (pan / tilt / roll)
- Removable IR-cut filter for Day/Night function
- External microphone
- Built-in IR LED
- 2-way audio
- One sensor input and alarm output
- TV-out support
- Micro SD/SDHC Card Slot
- DC12V / AC24V / PoE
- Motion detection
- Tampering alarm
- Privacy mask
- IP address filtering
- Supports iPhone, iPad, Android & 3GPP
- 16 languages on Web interface
Models
| Model |
Housing Cover |
| Cover Color |
Vandal Resistance |
| GV-VD220D |
Transparent cover |
IK10+ |
| GV-VD221D |
Smoked cover |
IK10+ |
| GV-VD222D |
Transparent cover |
IK7 |
| GV-VD223D |
Smoked cover |
IK7 |
Active Tampering Alarm
Tampered
Focus Change
Camera Shift
Specifications
|
Camera
1/2.5" progressive scan CMOS
|
|
Image Sensor
|
|
|
Picture Elements
|
1920 (H) x 1080 (V)
|
|
Minimum Illumination
|
Color
|
1 Lux (1/30 sec), 0.5 Lux (1/5 sec)
|
|
B/W
IR ON
|
0 Lux
|
|
Shutter Speed
|
Automatic, Manual (1/5 ~ 1/8000 sec)
|
|
White Balance
|
Automatic, Manual (2800K ~ 8500K)
|
|
Lens
|
|
Megapixel
|
Yes
|
|
Removable IR-cut filter for Day / Night function
|
Yes
|
|
Lens Type
|
Varifocal
|
|
Focal Length
|
2.7 ~ 9 mm
|
|
Maximum Aperture
|
F/1.3
|
|
Mount
|
14 mm
|
|
Angle of View
|
Diagonal
|
101 (W) ~ 32 (T)
|
|
Horizontal
|
88 (W) ~ 27.9 (T) |
|
Vertical
|
49.7 (W) ~ 15.7 (T)
|
|
Operation
|
Focus
|
Manual (w / lock)
|
|
Zoom
|
Manual (w / lock)
|
|
Iris
|
DC drive
|
|
IR LED Quantity
|
15 IR LEDs
|
|
IR Distance
|
15 m / 50 ft (Max.)
|
|
Operation
|
|
Video Compression
|
H.264, MPEG4, MJPEG
|
|
Video Stream
|
Stream 1 from H.264 and MJPEG
Stream 2 from H.264, MPEG4 and MJPEG
|
|
Frame Rate
|
30 fps at 1920 x 1080
* The frame rate and the performance may vary depending on the number of connections and data bitrates (different scenes).
|
|
Image Setting
|
Brightness, Contrast, Sharpness, Gamma, White Balance, Flicker-less, Image Orientation, Backlight Compensation
|
|
Audio Compression
|
G.711, AAC (16 kHz / 16 bit)
* AAC is only supported by GV-System V8.5 or later
|
|
Sensor Input
|
1 Input (Dry Contact)
|
|
Alarm Output
|
1 Digital Output (200mA 5V DC)
|
|
Video Resolution
|
|
Main Stream
|
4:3
|
1600 x 1200, 1280 x 960, 640 x 480, 320 x 240
|
|
16:9
|
1920 x 1080, 1280 x 720, 640 x 360, 448 x 252
|
|
5:4
|
1280 x 1024, 640 x 512, 320 x 256
|
|
Sub Stream
|
4:3
|
640 x 480, 320 x 240
|
|
16:9
|
640 x 360, 448 x 252
|
|
5:4
|
640 x 512, 320 x 256
|
|
Network
|
|
Interface
|
10/100 Ethernet
|
|
Ethernet Protocol
|
HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, RTSP, PSIA, SNMP, QoS (DSCP)
|
|
Mechanical
|
|
Lens Mounting
|
14 mm
|
|
Temperature Detector
|
Yes
|
|
Camera Angle Adjustment
|
Pan
|
0 ~ 60
|
|
Tilt
|
-10 ~ 90
|
|
Rotate
|
0 ~ 360
|
|
Connectors
|
Power
|
3-pin terminal block, PoE
|
|
Ethernet
|
RJ-45
|
|
Audio
|
1 In (RCA female for microphone)
1 Out (RCA female for speaker)
|
|
Digital I/O
|
I/O Wires
|
|
Auto Iris
|
DC drive
|
|
Local Storage
|
Micro SD/SDHC memory card slot
|
|
TV-Out
|
BNC connector (640 x 480).
|
|
General
|
|
Environment Temperature
|
-20 C ~ 50 C / 4 F ~ 122 F
|
|
Humidity
|
10% to 90% (no condensation)
|
|
Power Source
|
12V DC / 24V AC / PoE
|
|
Power Consumption
|
12 W (max. 1A at 12V DC)
|
|
Dimensions
|
Camera Body
|
165 x 125 mm / 6.49 x 4.92 in
|
|
Cable Length
|
1 m / 3.28 ft
|
|
Cable Diameter
|
16.7 mm / 0.66 in
|
|
Maximum Connector Diameter
|
16.7 mm / 0.66 in
|
|
Weight
|
1.7 kg / 3.75 lb
|
|
Protection Classification
|
IP66
|
|
Vandal Resistance
|
GV-220D / GV-221D
|
IK10+
|
|
GV-222D / GV-223D
|
IK7
|
|
Regulatory
|
CE, FCC, C-Tick, RoHS compliant
|
|
Power over Ethernet
|
|
PoE Standard
|
IEEE 802.3af Power over Ethernet / PSE
|
|
PoE Power Supply Type
|
End-Span
|
|
PoE Power Output
|
Per Port 48V DC, 350mA. Max. 15.4 watts
|
|
Web Interface
|
|
Installation Management
|
Web-based configuration
|
|
Maintenance
|
Firmware upgrade through Web Browser or Utility
|
|
Access from Web Browser
|
Camera live view, video recording, change video quality, bandwidth control, image snapshot, digital I/O control, audio, Wide Angle Lens Dewarping, Picture in Picture, Picture and Picture, Privacy Mask, Visual Automation, Tampering Alarm
|
|
Language
|
Czech / Danish / English / French / German / Hebrew / Hungarian / Italian / Japanese / Polish / Portuguese / Russian / Serbian / Simplified Chinese / Spanish / Traditional Chinese
|
|
Applications
|
|
Network Storage
|
GV-NVR, GV-System
|
|
3G Mobile Phone
|
Built-in player for 3GPP / ISMA
|
|
Live Viewing
|
IE , Mobile Phone
|
|
CMS Server support
|
GV-Control Center, GV-Center V2, GV-VSM, GV-Backup Center, GV-Video Gateway, GV-Recording Server
|
|
|
|
|
31/08
|
D-Link DCS-7110 IR HD Outdoor Day & Night Network Camera - 1/4" Megapixel CMOS Sensor, 1280x800, 30fps, IP-66 Certified Weatherproof Housing, Built-In IR LEDs for Day & Night - Silver DCS-7110
HD Outdoor Day & Night Network Camera
Overview
- 1/4 Megapixel progressive CMOS sensor
- HD resolution: 1280 x 800 (Megapixel) at 30 fps
- IP-66 certified weatherproof housing
- PoE powered no need for a separate power supply
- GPIO (General Purpose I/O) for ease of installation and access
- Built-in IR LEDs for Day & Night operation (15 m. illumination distance)
- Built-in IR-Cut Removable (ICR) filter, for enhanced colour rendering in the day and good results in low light conditions
- New, redesigned web interface with advanced functions
- Simultaneous streaming in H.264, MJPEG and MPEG-4 compression
- Hardware-based motion detection
- Tamper detection
- IPv6 support
- Privacy mask function
- 3GPP support watch live video from a compatible smartphone
- Digital I/O support for sensors and alarms
- RS-485 interface for easy integration with pan/tilt units
- ONVIF compliant
- D-ViewCam (DCS-100) monitoring software included (support for up to 32 cameras)
The D-Link DCS-7110 is a High-Definition outdoor Day & Night network IP camera, ideal for small-to medium business applications and remote monitoring over the Internet. With built-in IR LEDs, a progressive CMOS sensor, and ICR technology packed in a compact weather-proof outdoor housing, this camera delivers megapixel images under any lighting conditions, including complete darkness.
High quality video streams
To maximise bandwidth efficiency and improve image quality, the DCS-7110 provides real-time video compression using the H.264, MJPEG and MPEG-4 codecs. Furthermore, the DCS-7110 supports 4 separate profiles for simultaneous video streaming, and is capable of recording in H.264, MJPEG and MPEG 4 compression at megapixel resolution. This kind of versatility enables a wide variety of security applications, such as watching live video through a 3GPP enabled mobile device, or recording to a Network Storage device in high quality while monitoring the same images at lower resolutions.
Flexible installation
The DCS-7110 supports Power over Ethernet (PoE) connectivity for discreet installation in virtually any indoor or outdoor location. The cameras built-in 802.3af compliant PoE module eases the installation process by reducing the need to drill holes or lay additional electrical cabling. The DCS-7110 includes external audio support, and input/output ports for connectivity to external devices such as IR sensors and alarm relays. It also comes with an RS-485 interface, providing connectivity to an optional pan/tilt enclosure.
Tamper detection
Designed to be mounted outdoors, the DCS-7110 is built in an IP66 certified enclosure which protects against the elements and extreme temperatures in a range of -20 to 50. The tamper detection feature can sense whenever the camera has been redirected, de-focused, blocked, or spray-painted, and respond promptly with a visible or audible alarm.
Removable IR-Cut filter
The DCS-7110 comes with a ICR Filter which can be manually applied via the web, or set to automatically adjust based on lighting conditions. This feature allows the camera to capture crisp colour images during the daytime, and grayscale images at dark.
Onvif compliant
The DCS-7110 complies with the Onvif specifications (www.onvif.org), the global standard for network video products. ONVIF-conformant devices and applications from different manufacturers are able to communicate with each other by requesting and sending live view video streams. The specification will also ensure that conformant devices are automatically discovered and connected to network applications such as a video management software platform, making it easy for users and integrators to develop projects and 3rd party applications.
Centralised management with D-ViewCamTM
The included D-Link D-ViewCam (DCS-100) is a sophisticated video management software which enables you to manage up to 32 network cameras, set e-mail alert notifications, create recording schedules, and trigger motion detection to record directly to your hard drive or network folder. D-ViewCam also allows you to upload a floor plan of your premises, and create a realistic layout according to the locations of your cameras, further simplifying the management process.
Specifications
Hardware profile
- Sensor: 1/4 Megapixel progressive CMOS sensor
- SDRAM: 256 Mbytes
- Flash Memory: 128 Mbytes
- ICR: Built-in Infrared-Cut filter Removable module
- Lens: 4 mm fixed lens , F1.5
- View Angle: Horizontal 65.4 degrees
- IR LED: 15 meter illumination distance and light sensor
Image Features
- Adjustable image size, quality, and bit rate
- Time stamp and text overlays
- 3 configurable motion detection windows
- 5 configurable privacy masks
- Flip & mirror
- Configurable brightness, saturation, contrast, sharpness
Video Algorithms Supported
- H.264/MPEG4/MJPEG format compression simultaneously
- JPEG for still image
- H.264/MPEG-4 multicast streaming
Video resolution
- 176x144 @ 30 fps
- 320x240 @ 30 fps
- 640x480 @ 30 fps
- 1280x720 @ 30 fps
- 1280x800 @ 30 fps
Network Protocols
- IPv4, IPv6
- TCP/IP, UDP, ICMP
- DHCP Client
- NTP Client (D-Link)
- DNS Client, DDNS Client (D-Link)
- SMTP Client
- FTP Client
- HTTP / HTTPS
- Samba Client
- PPPoE
- UPnP Port Forwarding
- RTP / RTSP/ RTCP
- IP filtering
- 3GPP
- LLTD
- CoS/QoS
- SNMP/IGMP
- SNMP
- IGMP
- 802.1x
- ONVIF Compliant
3GPP mobile surveillance
- Packet Video Player 3.0
- QuickTime 6.5
- Real Player 10.5
System Requirements for Viewing
- Internet Explorer 6 or later
D-ViewCam system requirements
- Operating System: Microsoft Windows 7 / Vista / XP
- Web Browser: Internet Explorer 6 or higher
- Protocol: Standard TCP/IP
Power Input
- 12 V DC 1.25 A, 24 V AC, 50/60 Hz
- PoE: IEEE 802.3af
Maximum Power Consumption
Operating Temperature
- -20 to 50 C (-4 to 122 F)
Storage Temperature
- -20 to 70 C (-4 to 158 F)
Humidity
Weight
Certifications
- CE (Class A)
- CE LVD (EN60965-1)
- FCC (Class A)
- ICES-003, ICES-006
- C-Tick
|
|
|
|
Previous Page
|
Next Page
|
|
