Xtion PRO LIVE

Field of View	58 H, 45 V, 70 D
Sensor	RGB& Depth
Depth Image Size	VGA (640x480) : 30 fps QVGA (320x240): 60 fps
Resolution	SXGA (1280*1024)
Platform	Intel X86 & AMD
OS Support	Win 32/64 : XP , Win7 Linux Ubuntu 10.10: X86,32/64 bit
Interface	USB2.0
Programming Language	C++/C# (Windows) C++(Linux)
Operation Environment	Indoor
Dimensions	18 x 3.5 x 5 cm
Note	bundle with software development kit



VIVOTEK PZ8111/21(PoE), PZ8111W/21W(WLAN) is a high-performance network camera featuring 10x optical zoom and pan/tilt functionality. The camera is designed for indoor surveillance applications such as retail stores, offices or banks. The built-in 10x motorized optical zoom module provides greater depth of field when zoomed in. Therefore, it can display
clear-cut images on near or distant objects.



With flexible 300-degree pan and 135-degree tilt, PZ8111/11W/21/21W can give users more comprehensive control over the monitored site. The PZ8111/11W/21/21W supports the industry-standard H.264 compression technology, drastically reducing file sizes and conserving valuable network bandwidth. With MPEG-4 and MJPEG compatibility also included, video
streams can also be transmitted in any of these formats for versatile applications. The streams can also be individually configured to meet different constraints, thereby further reducing bandwidth and storage requirements. Users can thus receive multiple streams simultaneously in different resolutions, frame rates, and image qualities for viewing on different platforms.



In addition, PZ8111/21 is integrated with Power over Ethernet function while PZ8111W/21W with 802.11b/g/n compatible wireless connection, making installation easier and more cost-efficient. The free-bundled, multi-lingual 32-channel recording software helps users to set up an easy-to-use IP surveillance system.



PZ8121



Multimedia SoC
Flash: 128MB
RAM: 128MB
Embedded OS: Linux 2.6



Pan range: 300° (-150° ~ +150°)
Tilt range: 135° (-45° ~ +90°)
10x optical zoom, 10x digital zoom
Auto pan mode
Auto patrol mode



10x optical zoom lens, f = 4.2 ~ 42 mm, F1.8 (wide), F2.9 (tele), auto-iris, auto focus



4.15 ~ 48.93 (horizontal)
2.77 ~ 33.75 (vertical)



1/60 sec. to 1/10,000 sec. (PZ8111/11W)
1/50 sec. to 1/10,000 sec. (PZ8121/21W)





.1/4”CCD sensor in D1 resolution





2.76 Lux @ F1.8 (typical)
0.05 Lux @ F1.8 (low light mode)





Compression: H.264, MJPEG & MPEG-4
Streaming:
Multiple simultaneous streams
H.264 streaming over UDP, TCP, HTTP or HTTPS
MPEG-4 streaming over UDP, TCP, HTTP or HTTPS
H.264/MPEG-4 multicast streaming
MJPEG streaming over HTTP or HTTPS
Supports activity adaptive streaming for dynamic
frame rate control
Supports 3GPP mobile surveillance

Frame rates:
H.264:
Up to 30/25 fps at 720x480/720x576

MPEG-4:
Up to 30/25 fps at 720x480/720x576

MJPEG:
Up to 30/25 fps at 720x480/720x576

Interface:
AV output



Adjustable image size, quality and bit rate
Time stamp and text caption overlay
Flip & mirror
Configurable brightness, contrast, saturation,
sharpness and white balance
AGC, AWB, AES
BLC (Backlight Compensation)
Supports privacy masks



Compression:
GSM-AMR speech encoding, bit rate: 4.75 kbps
to 12.2 kbps
MPEG-4 AAC audio encoding, bit rate: 16 kbps
to 128 kbps
G.711 audio encoding, bit rate: 64 kbps, ƒÊ-Law
or A-Law mode selectable

Built-in microphone
External microphone input
Audio output
External/Internal microphone switch

Supports two-way audio

Supports audio mute





10/100 Mbps Ethernet, RJ-45
Built-in 802.11b/g/n WLAN (PZ8111W/21W)
Protocols: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP,
RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS,
DDNS, PPPoE, CoS, QoS, SNMP, and 802.1X



Triple-window video for motion detection
One D/I and one D/O for external sensor and alarm
Event notification using HTTP, SMTP or FTP
Local recording of MP4 files



Security



Multi-level user access with password protection
IP address filtering
Wireless: WEP, WPA-PSK, WPA2 (PZ8111W/21W)
HTTPS encrypted data transmission
802.1X port-based authentication for network protection



Users



Live viewing for up to 10 clients

Dimension



105 mm x 124 mm

Net: 391 g (PZ8111/21)
Net: 408 g (PZ8111W/21W)



System power and status indicator
System activity and network link indicator





12V DC
Power consumption:
Max. 11.16W (PZ8111/21)
Max. 12W (PZ8111W/21W)
802.3af compliant Power-over-Ethernet (Class 3)
(PZ8111/21)





CE, LVD, FCC, VCCI, C-Tick



Temperature: 0‹C ~ 50‹C (32‹F ~ 122‹F)
Humidity: 20% ~ 80% RH



OS: Microsoft Windows 7/Vista/XP/2000
Browser:
Mozilla Firefox, Internet Explorer 6.x or above
Cell phone: 3GPP player
Real Player: 10.5 or above
Quick Time: 6.5 or above
Installation,
Management,
and Maintenance
Installation Wizard 2
32-CH ST7501 recording software
Supports firmware upgrade
Applications SDK available for application development
and system integration
Warranty 24 months

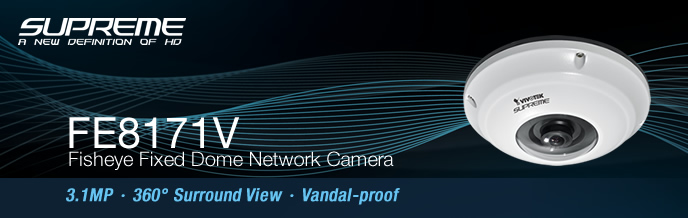

3.1MP 360 Surround View Vandal-proof Fisheye Fixed Dome Network Camera FE8171V



VIVOTEK FE8171V is the first fisheye fixed dome network camera from VIVOTEK, featuring detailed 3.1MP-resolution sensor with superb image quality. Equipped with a fisheye lens for 180 panoramic view (wall mount) or 360 surround view (ceiling/floor/table mount) without blind spots, this camera is able to provide an 8X wider field of view than a standard VGA camera, significantly reducing the need for multiple camera installations. It is extremely suitable for monitoring open areas such as airports, shopping malls, parking lots, retail stores, offices, and much more.



The FE8171V offers various display layouts, including original surround view, panoramic views, and regional views for various mounting applications. With the latest cutting-edge image processing, hemispherical images captured from the fisheye camera can be converted into conventional rectilinear projection for viewing and analysis. In addition, in the panoramic and regional viewing modes, users can utilize the ultra-smooth ePTZ function to easily zoom in and focus on a region of interest (ROI).



As with all VIVOTEK true day/night cameras, the FE8171V features a removable IR-cut filter, maintaining clear images 24 hours a day. Its IP66-rated housing is designed to help the camera body withstand rain and dust and ensures operation under a multitude of harsh weather conditions. Additionally, the vandal-proof IK10-rated housing effectively provides robust protection from vandalism. Together with 802.3af compliant PoE, microSD/SDHC/SDXC card slot for on-board storage, EN50155 mobile surveillance, and iPad applications, the FE8171V is indisputably the top choice for constructing a robust surveillance system with the greatest coverage possible.

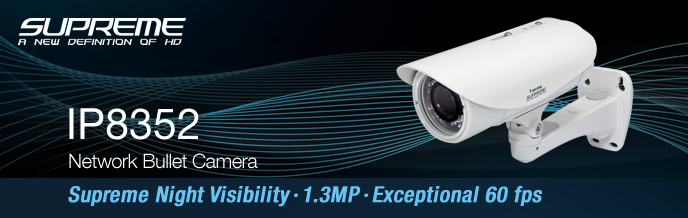

VIVOTEK IP8352 is a best-in-class 1.3-Megapixel bullet network camera designed for diverse outdoor applications. Incorporated with a progressive scan CMOS sensor with exceptional low lux capabilities, the IP8352 captures not only razor-sharp images of fast-moving objects during the daytime, but also offers unparalleled night visibility under low light conditions.



The IP8352 supports high-performance H.264/MPEG-4/MJPEG compression technology and offers extra smooth video quality up to 60 fps @ 720p and 30fps @ 1.3MP. Furthermore, the IP8352 boasts a number of innovative technologies, including Video Cropping, Activity Adaptive Streaming, and Gigabit Ethernet Transmission, giving a user the utmost in bandwidth flexibility and storage efficiency.



To adapt to constantly changing lighting conditions, the IP8352 comes with a removable IR-cut filter and built-in IR illuminators for both day and night applications. Its IP67-rated housing protects the camera body against rain and dust and ensures operation under extreme weather conditions. For complete installation and prevention of tampering and vandalism, the IP8352 is also packaged with a mounting bracket that conceals all cabling.



With other advanced features such as tamper detection, 802.3af compliant PoE, MicroSD/SDHC card slot for on-board storage, Gigabit Ethernet Transmission, plus Supreme Night Visibility and 60fps high definition video quality, the IP8352 is the best choice for the most demanding outdoor surveillance applications such as parking lots, entrances, housing communities, and much more.











VIVOTEK PZ8121W is a high-performance network camera featuring 10x optical zoom and pan/tilt functionality. The camera is designed for indoor surveillance applications such as retail stores, offices or banks. The built-in 10x motorized optical zoom module provides greater depth of field when zoomed in. Therefore, it can display clear-cut images on near or distant objects.



• 10x Optical Zoom Lens
• Motorized Pan/Tilt (Pan: -150 ~ +150; Tilt: -45 ~ +90)
• Real-time H.264, MPEG-4 and MJPEG Compression (Triple Codec)
• Multiple Simultaneous Streams
• 3GPP Mobile Surveillance
• Built-in 802.11b/g/n WLAN
• Two-way Audio
• Built-in/External Microphone Switch

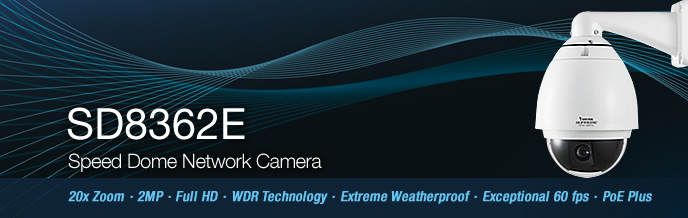

20x Zoom 2MP Full HD WDR Technology -40°C ~ 55°C Extreme Weatherproof Exceptional 60 fps PoE Plus Network Camera SD8362E





VIVOTEK SD8362E is part of the SUPREME series product line offering 2-Megapixel or 1080p resolution with superb image quality. Adopting 20x optical zoom lens, the SD8362E is able to capture details at top-notch quality. The IP66-rated housing protects the camera body against rain and dust and the wide temperature range (-40C ~ 55C) ensures operation under extreme weather conditions. It is especially suitable for monitoring wide open indoor/outdoor spaces such as airports, highways and parking lots where high-level reliability and precision are always required.



The SD8362E supports high-performance H.264/MPEG-4/MJPEG compression technology and offers extra smooth video quality with resolution up to 60 fps @ 720p and 30 fps @ 1080p. Boasting WDR technology, the SD8362E can also cope with challenging lighting conditions and generate image quality similar to the capabilities of the human eye. With sophisticated pan/tilt mechanism, the camera provides fast, precise movement with continuous 360-degree pan and 90-degree tilt. Users can easily control the lens position via a mouse or a joystick to track the object of interest and set up to 128 preset positions for patrolling.



As with all VIVOTEK true day/night cameras, the SD8362E features a removable IR-cut filter, maintaining clear images 24 hours a day. Audio detection is another new feature newly available on the SD8362E. By recognizing increases or decreases in sound volume, an additional layer of intrusion detection is ensured. With other advanced features such as SD/SDHC card slot, 802.3at compliant PoE Plus, and 60 fps high quality video, the SD8362E is the best choice for the most demanding outdoor surveillance applications.
