28/07
|
LG CD-R 700MB/80min/52X - 10 Pack Jewel CaseLGE Cd-R 52X/80Min/10PK Jewel Case 60spdls per carton
|
|
|
|
28/07
|
Lexar Media 32GB SDHC Card - Class 4 Lexar SDHC Card 32GB (Class 4)
- Affordable high-capacity performance and reliability
- Designed for use in SDHC-enabled digital cameras and devices*
- Built-in erasure prevention switch keeps data safe
- Speed-rated at Class 2
- Five-year limited warranty
|
|
|
|
28/07
|
Logitech C170 WebcamLogitech C170 Webcam
Features
MORE SMOOTH. SHARPER. MORE STEADY. MORE CLEAR.
Logitech Fluid Crystal Technology. This is what makes Logitech webcam
better. Smoother videos, sharper images, more stable colors, and clearer sound
in real-world conditions.
PLUG AND PLAY
Simple settings allow you to make video calls to people you care about
quickly-on most of the major IMs.
YOU ARE THE REAL ONE
The person you care about will see you in natural color when you talk to them
or you can take pictures to share afterwards.
SPEAK UP
Your voice is loud and clear thanks to the built-in microphone that reduces
background noise.
PLUG-AND-PLAY SETTINGS, EASY TO USE
With simple plug-and-play settings, you can make video calls quickly on most
major IMs.
A CLEAR VIDEO CALL
With a VGA sensor on the webcam, the person you care about will see you in a
natural color.
5-MEGAPIXEL PHOTO
You can capture beautiful, high-resolution photos up to 5 megapixels
(enhanced using software).
BUILT-IN MICROPHONE WITH NOISE REDUCTION
Produce crystal clear conversation without annoying background noise.
RECORD XVGA VIDEO
Record colorful video in XVGA resolution (1024 x 768) and share it with
friends, family, and worldwide on Facebook, YouTube, Twitter or your blog.
UNIVERSAL CLIP
You can safely install a webcam on a laptop or LCD monitor, or place it on a
shelf or desk.
Specifications
|
SYSTEM REQUIREMENTS |
1 GHz (Recommended 1.6 GHz) |
|
|
512 MB RAM or more |
|
|
200 MB hard drive capacity |
|
|
Internet connection |
|
|
USB 1.1 port (recommended 2.0) |
|
|
|
|
For the best video calling experience, we recommend |
Dual-core CPU with 1 GB of RAM |
|
|
Broadband Internet with upload speed 256 kbps or
more |
|
|
|
|
TECHNICAL SPECIFICATIONS |
Video call (640 x 480 pixels) with recommended
system |
|
|
Recording video Up to 1024 x 768 pixels |
|
|
Logitech Fluid Crystal Technology |
|
|
Photo Up to 5 megapixels (enhanced using software) |
|
|
Built-in microphone with noise reduction |
|
|
Certified Hi-Speed USB 2.0 (recommended) |
|
|
Universal clips fit a variety of laptops, LCD monitors or
CRTs |
|
|
|
|
Logitech webcam software |
Pan, tilt, and zoom controls |
|
|
Record a video and take a photo |
|
|
Facial search |
|
|
Detection of movement |
|
|
|
|
PACKAGE CONTENTS |
Webcam with USB cable |
|
|
User documentation |
|
|
|
|
WARRANTY INFORMATION |
2 Year Hardware Limited
Warranty | |
|
|
|
28/07
|
BenQ MX660P DLP Projector - 1024x768, 3000 Lumens, 5000;1, 5000Hrs, VGA, HDMI, USB, Speakers MX660P
Projection Perfect for Every Occasion
A projector that's designed for every occasion the BenQ MX660P comes with everything you need to deliver outstanding presentations. Featuring XGA resolution with 3000 ANSI lumens and 5000:1 contrast ratio, the MX660P keeps you lookin' great with ultra-smooth USB Display and Wireless Display, USB Reader PC-less presentation and 3D ready projection!
Multiple Display Options for Various Office and Classroom Needs
Projectors are powerful tools for making successful presentations. To ensure a smooth presentation on your part, BenQ has integrated various display functions into the MX660P to fit every need!
USB Display offers the plug-and-play convenience of USB connection – with automatic resolution detection for the best image presentation and extension support for simultaneous multi-projection display.

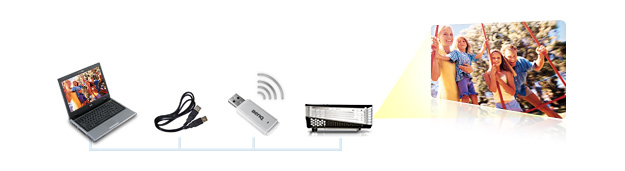

Wireless Display keeps cables and wires out of everyone’s way with the BenQ Wireless Display Adapter (optional accessory) to deliver big screen display for all your presentations and perform simplified centralized network control via USB 2.0 seamless WLAN connectivity.

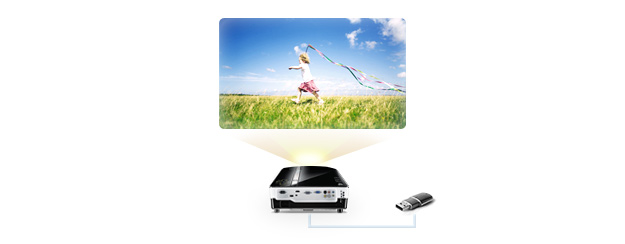

Hassle-Free PC-Less Presentation
Enjoy a hassle-free presentation with the USB Reader function! The USB Reader function enables a JPEG presentation with a USB flash drive! Its as easy and plug and play!
Display subtitles in video content without the need for an external closed-captioning device with the MX660P. It's perfect for viewing in educational settings such as language classes where a transcript of onscreen dialog is desirable.
Thoughtful Teaching Template Design
To make your teaching job easier, BenQ has added the teaching template function to the MX660P. Now, with four different line pattern designs to choose from – Letter Formation, Musical Staff, Worksheet and Coordinate Chart, you can easily write or draw on whiteboards as well as blackboards without the need of drawing lines or charts.
Long Lamp Life at up to 5000 hours
Enjoy a lamp life performance of up to 5000 hours in Eco mode– longer lamp life expectancy of average projector lamps on the market! This certainly lowers the number of lamp changes and keeps all maintenance to a minimum.
*Lamp life results will vary depending on environmental conditions and usage.

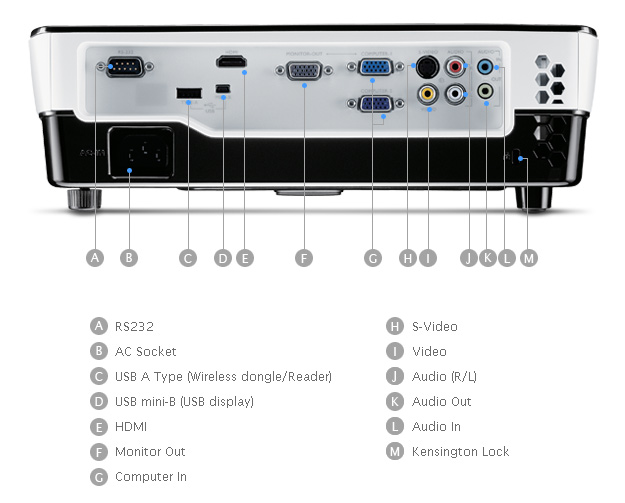

Multi-Function Connectors
Specification
| Projection System |
DLP technology by Texas Instruments |
| Native Resolution |
XGA (1024 x 768) |
| Brightness* |
3000 ANSI lumens |
| Contrast Ratio |
5000:1 (Full on/Full off) |
| Display Color |
Full 1.07 billion color palette |
| Lens |
F=2.56- 2.8, f=21 - 23.1 mm |
| Aspect Ratio |
4:3 Native, 16:9 Selectable |
| Throw Ratio |
1.86 - 2.04 (53"@2M) |
| Image Size (Diagonal) |
36.2 to 300 |
| Zoom Ratio |
Manual Zoom, 1.10:1 |
| Lamp (Normal/Economic Mode)* |
210W, 3500/5000 hours (Normal/Economic mode) |
| Keystone Adjustment |
Manual Vertical 40 |
| Horizontal Frequency |
31k-99k Hz |
| Vertical Scan Rate |
23-120 Hz |
| Computer Compatibility |
VGA(640 x 480) to UXGA(1600 x 1200) |
| Dimensions(W x H x D) |
312 x 104 x 244 mm (12.3 x 4.1 x 9.6 inch) |
| HDTV Compatibility |
480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Video Compatibility |
NTSC, PAL, SECAM |
| Input Terminals |
PC:
Analog RGB: D-sub 15 pin x 2
USB connector: Type A x 1 (USB Reader); Mini-B x1 (USB Display)
A/V:
HDMI V1.3 x 1
Component Video: D-sub 15 pin x 2
(Shared with Analog RGB connector)
S-Video: Mini Din 4 pin x 1
Composite Video: RCA x 1
Audio:
Stereo Mini Jack x 1
Audio L/R: RCA x 2 |
| Output Terminals |
PC:
D-sub 15 pin x 1
Audio:
Variable Audio Out : Stereo Mini Jack x 1
2W Speaker |
| Control Terminal |
Serial Connector : RS232 9 pin x 1 |
| Weight |
<2.65 kg (5.84 lbs) |
| Audible Noise |
30/26 dBA (Normal/Economic mode) |
| Power Supply |
100 to 240 VAC, 50/60 Hz |
| Power Consumption |
298W, Standby < 1W |
| On-Screen Display Languages |
Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hungarian/ Indonesia/ Italian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese (26 Languages) |
| Picture Modes |
Dynamic Mode
Presentation Mode
sRGB Mode
Cinema Mode
User 1 Mode
User 2 Mode |
| Functions |
BrilliantColorTM
Quick Auto Search
Closed Captioning
Wall Color Correction
USB Display
USB Reader
Wireless Display (Optional)
3D Ready
Quick Cooling
MyScreen
Teaching Template
3D Color Management
Digital Zoom (x2)
Auto Off
High altitude mode
Security Password
Freeze
"Q?" Hot Key for FAQ
|
| Accessories (Standard) |
Quick Start Guide
VGA Cable
Manual CD
Power Cord
Soft Carry Case
Remote Control w/battery |
| Accessories (Optional) |
Presentation Plus
Spare Lamp Kit
RS232 Cable |
|
|
|
|
28/07
|
GeoVision GV-FD320D Fixed IP Dome - 3M H.264 Fixed IP Dome, 1/2.5" Progressive Scan CMOS, Dual Video Streams From Two Of H.264, MJPEG, MPEG4, Built-In IR LED, 2-Way Audio - White
- 1/2.5" progressive scan CMOS
- Dual video streams from two of H.264, MJPEG and MPEG4
- Up to 20 fps at 2048 x 1536
- 3-axis mechanism (pan / tilt / roll)
- Built-in IR LED
- 2-way audio
- AAC and G.711 audio codec
- One sensor input and alarm output
- TV-out support
- Micro SD/SDHC Card Slot
- Motion detection
- Tampering alarm
- Privacy mask
- IP address filtering
- 3GPP / ISMA
- DC 12V / AC 24V / PoE
- Day / Night function
- Varifocal megapixel lens
- 16 languages on Web interface
Active Tampering Alarm
Tampered
Focus Change
Camera Shift
Specification
|
Camera
|
|
Image Sensor
|
1/2.5" progressive scan CMOS
|
|
Picture Elements
|
2048 (H) x 1536 (V)
|
|
Minimum Illumination
|
Color
|
1 Lux (1/30 sec), 0.5 Lux (1/5 sec)
|
|
B/W
IR ON
|
0 Lux
|
|
Shutter Speed
|
Automatic, Manual (1/5 ~ 1/8000 sec)
|
|
White Balance
|
Automatic, Manual (2800K ~ 8500K)
|
|
Lens
|
|
Megapixel
|
Yes
|
|
Day / Night support
|
Yes
|
|
Max Aperture
|
F/1.3 5%
|
|
Focal Length
|
2.7 ~ 9 mm
|
|
Image Format
|
1/3"
|
|
Field of view
|
Diagonal
|
101 (W) ~ 32 (T) 5
|
|
Horizontal
|
88 (W) ~ 27.9 (T) 5 |
|
Vertical
|
49.7 (W) ~ 15.7 (T) 5
|
|
Operation
|
Focus
|
Manual (w / lock)
|
|
Zoom
|
Manual (w / lock)
|
|
Iris
|
DC
|
|
IR LED Quantity
|
15 IR LEDs
|
|
IR Distance
|
15 m / 50 ft (Max.)
|
|
Operation
|
|
Video Codec
|
H.264, MPEG4, MJPEG
|
|
Video Streaming
|
Dual Streams from two of H.264, MPEG4 and MJPEG
|
|
Frame Rate
|
20 fps at 2048 x 1536
* The frame rate and the performance may vary depending on the number of connections and data bitrates (different scenes).
|
|
Image Setting
|
Brightness, Contrast, Sharpness, Gamma, White Balance, Flicker-less, Image Orientation, Shutter Speed, Backlight Compensation, D/N Sensitivity
|
|
Audio Codec
|
G.711, AAC (16 kHz / 16 bit)
* AAC is only supported by GV-System V8.5 or later
|
|
Sensor Input
|
1 Input (Dry Contact)
|
|
Alarm Output
|
1 Output
|
|
Video Resolution
|
|
Main Stream
|
4:3
|
2048 x 1536, 1600 x 1200, 1280 x 960, 640 x 480, 320 x 240
|
|
16:9
|
1920 x 1080, 1280 x 720, 640 x 360, 448 x 252
|
|
5:4
|
1280 x 1024, 640 x 512, 320 x 256
|
|
Sub Stream
|
4:3
|
640 x 480, 320 x 240
|
|
16:9
|
640 x 360, 448 x 252
|
|
5:4
|
640 x 512, 320 x 256
|
|
Network
|
|
Interface
|
10/100 Ethernet
|
|
Ethernet Protocol
|
HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, RTSP, PSIA, SNMP, QoS (DSCP)
|
|
Mechanical
|
|
Lens Mounting
|
14 mm
|
|
Rotation Axis
|
3-axis (pan / tilt / roll)
|
|
Connectors
|
Power
|
2-pin terminal block
|
|
Ethernet
|
Ethernet (10/100 Base-T), RJ-45
|
|
Audio
|
1 In (microphone phone jack, 3.5 mm / 0.14 in)
1 Out (Stereo phone jack, 3.5 mm / 0.14 in)
|
|
Digital I/O
|
3-pin terminal block, pitch 2.5 mm / 0.1 in
|
|
Auto Iris
|
DC drive
|
|
Local Storage
|
Micro SD/SDHC memory card slot
|
|
TV-Out
|
BNC connector
* The TV-Out function only works in 640 x 480 resolution. For TV-Out to work properly, you must set the video resolution to 1280 x 1024 or lower. If both streams are enabled, the Sub Stream must be set to 640 x 480.
|
|
General
|
|
Operating Temperature
|
0 C ~ 50 C / 32 F ~ 122 F
|
|
Humidity
|
10% to 90% (no condensation)
|
|
Power Source
|
12V DC / 24V AC / PoE
|
|
Power Consumption
|
12 W (max. 1A at 12V DC)
|
|
Regulatory
|
CE, FCC, C-Tick, RoHS compliant
|
|
Dimensions
|
155 x 110 mm / 6.1 x 4.33 in
|
|
Weight
|
580 g / 1.28 lb
|
|
Power over Ethernet
|
|
PoE Standard
|
IEEE 802.3af Power over Ethernet / PSE
|
|
PoE Power Supply Type
|
End-Span
|
|
PoE Power Output
|
Per Port 48V DC, 350mA. Max. 15.4 watts
|
|
Web Interface
|
|
Installation Management
|
Web-based configuration
|
|
Maintenance
|
Firmware upgrade through Web Browser or Utility
|
|
Access from Web Browser
|
Camera live view, video recording, change video quality, bandwidth control, image snapshot, digital I/O control, audio, Picture in Picture, Picture and Picture, Privacy Mask, Visual Automation, Tampering Alarm, Wide Angle Lens Dewarping
|
|
Language
|
Czech / Danish / English / French / German / Hebrew / Hungarian / Italian / Japanese / Polish / Portuguese / Russian / Serbian / Simplified Chinese / Spanish / Traditional Chinese
|
|
Applications
|
|
Network Storage
|
GV-NVR, GV-System
|
|
3G Mobile Phone
|
Built-in player for 3GPP / ISMA
|
|
Live Viewing
|
IE , Mobile Phone
|
|
CMS Server support
|
GV-Control Center, GV-Center V2, GV-VSM, GV-Backup Center, GV-Video Gateway, GV-Recording Server
|
|
|
|
|
28/07
|
GeoVision GV-FD220D Fixed IP Dome - 2M, 1/2.5" Progressive Scan CMOS, Dual Video Streams From Two H.264, MJPEG, MPEG4, Built-In IR LED, 2-Way Audio - White
- 1/2.5" progressive scan CMOS
- Dual video streams from two of H.264, MJPEG and MPEG4
- Up to 30 fps at 1920 x 1080
- 3-axis mechanism (pan / tilt / roll)
- Built-in IR LED
- 2-way audio
- AAC and G.711 audio codec
- One sensor input and alarm output
- TV-out support
- Micro SD/SDHC Card Slot
- Motion detection
- Tampering alarm
- Privacy mask
- IP address filtering
- 3GPP / ISMA
- DC 12V / AC 24V / PoE
- Day / Night function
- Varifocal megapixel lens
- 16 languages on Web interface
Active Tampering Alarm
Tampered
Focus Change
Camera Shift
Specification
|
Camera
|
|
Image Sensor
|
1/2.5" progressive scan CMOS
|
|
Picture Elements
|
1920 (H) x 1080 (V)
|
|
Minimum Illumination
|
Color
|
1 Lux (1/30 sec), 0.5 Lux (1/5 sec)
|
|
B/W
IR ON
|
0 Lux
|
|
Shutter Speed
|
Automatic, Manual (1/5 ~ 1/8000 sec)
|
|
White Balance
|
Automatic, Manual (2800K ~ 8500K)
|
|
Lens
|
|
Megapixel
|
Yes
|
|
Day / Night support
|
Yes
|
|
Max Aperture
|
F/1.3 5%
|
|
Focal Length
|
2.7 ~ 9 mm
|
|
Image Format
|
1/3"
|
|
Field of view
|
Diagonal
|
101 (W) ~ 32 (T) 5
|
|
Horizontal
|
88 (W) ~ 27.9 (T) 5 |
|
Vertical
|
49.7 (W) ~ 15.7 (T) 5
|
|
Operation
|
Focus
|
Manual (w / lock)
|
|
Zoom
|
Manual (w / lock)
|
|
Iris
|
DC
|
|
IR LED Quantity
|
15 IR LEDs
|
|
IR Distance
|
15 m / 50 ft (Max.)
|
|
Operation
|
|
Video Codec
|
H.264, MPEG4, MJPEG
|
|
Video Streaming
|
Dual Streams from two of H.264, MPEG4 and MJPEG
|
|
Frame Rate
|
30 fps at 1920 x 1080
* The frame rate and the performance may vary depending on the number of connections and data bitrates (different scenes).
|
|
Image Setting
|
Brightness, Contrast, Sharpness, Gamma, White Balance, Flicker-less, Image Orientation, Shutter Speed, Backlight Compensation, D/N Sensitivity
|
|
Audio Codec
|
G.711, AAC (16 kHz / 16 bit)
* AAC is only supported by GV-System V8.5 or later
|
|
Sensor Input
|
1 Input (Dry Contact)
|
|
Alarm Output
|
1 Output
|
|
Video Resolution
|
|
Main Stream
|
4:3
|
1600 x 1200, 1280 x 960, 640 x 480, 320 x 240
|
|
16:9
|
1920 x 1080, 1280 x 720, 640 x 360, 448 x 252
|
|
5:4
|
1280 x 1024, 640 x 512, 320 x 256
|
|
Sub Stream
|
4:3
|
640 x 480, 320 x 240
|
|
16:9
|
640 x 360, 448 x 252
|
|
5:4
|
640 x 512, 320 x 256
|
|
Network
|
|
Interface
|
10/100 Ethernet
|
|
Ethernet Protocol
|
HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, RTSP, PSIA, SNMP, QoS (DSCP)
|
|
Mechanical
|
|
Lens Mounting
|
14 mm
|
|
Rotation Axis
|
3-axis (pan / tilt / roll)
|
|
Connectors
|
Power
|
2-pin terminal block
|
|
Ethernet
|
Ethernet (10/100 Base-T), RJ-45
|
|
Audio
|
1 In (microphone phone jack, 3.5 mm / 0.14 in)
1 Out (Stereo phone jack, 3.5 mm / 0.14 in)
|
|
Digital I/O
|
3-pin terminal block, pitch 2.5 mm / 0.1 in
|
|
Auto Iris
|
DC drive
|
|
Local Storage
|
Micro SD/SDHC memory card slot
|
|
TV-Out
|
BNC connector
* The TV-Out function only works in 640 x 480 resolution. For TV-Out to work properly, you must set the video resolution to 1280 x 1024 or lower. If both streams are enabled, the Sub Stream must be set to 640 x 480.
|
|
General
|
|
Operating Temperature
|
0 C ~ 50 C / 32 F ~ 122 F
|
|
Humidity
|
10% to 90% (no condensation)
|
|
Power Source
|
12V DC / 24V AC / PoE
|
|
Power Consumption
|
12 W (max. 1A at 12V DC)
|
|
Regulatory
|
CE, FCC, C-Tick, RoHS compliant
|
|
Dimensions
|
155 x 110 mm / 6.1 x 4.33 in
|
|
Weight
|
580 g / 1.28 lb
|
|
Power over Ethernet
|
|
PoE Standard
|
IEEE 802.3af Power over Ethernet / PSE
|
|
PoE Power Supply Type
|
End-Span
|
|
PoE Power Output
|
Per Port 48V DC, 350mA. Max. 15.4 watts
|
|
Web Interface
|
|
Installation Management
|
Web-based configuration
|
|
Maintenance
|
Firmware upgrade through Web Browser or Utility
|
|
Access from Web Browser
|
Camera live view, video recording, change video quality, bandwidth control, image snapshot, digital I/O control, audio, Picture in Picture, Picture and Picture, Privacy Mask, Visual Automation, Tampering Alarm, Wide Angle Lens Dewarping
|
|
Language
|
Czech / Danish / English / French / German / Hebrew / Hungarian / Italian / Japanese / Polish / Portuguese / Russian / Serbian / Simplified Chinese / Spanish / Traditional Chinese
|
|
Applications
|
|
Network Storage
|
GV-NVR, GV-System
|
|
3G Mobile Phone
|
Built-in player for 3GPP / ISMA
|
|
Live Viewing
|
IE , Mobile Phone
|
|
CMS Server support
|
GV-Control Center, GV-Center V2, GV-VSM, GV-Backup Center, GV-Video Gateway, GV-Recording Server
|
|
|
|
|
28/07
|
GeoVision GV-FD120D Low Lux Fixed IP Dome Camera - 1.3M, 1/3 Progressive Scan Low Lux CMOS, Dual Video Streams from H.264,MJPEG, MPEG4, Built-in IR LED, 2-Way Audio - White
- 1/3" progressive scan Low Lux CMOS
- Dual video streams from two of H.264, MJPEG and MPEG4
- Up to 30 fps at 1280 x 1024
- 3-axis mechanism (pan / tilt / roll)
- Built-in IR LED
- 2-way audio
- AAC and G.711 audio codec
- One sensor input and alarm output
- TV-out support
- Micro SD/SDHC Card Slot
- Motion detection
- Tampering alarm
- Privacy mask
- IP address filtering
- 3GPP / ISMA
- DC 12V / AC 24V / PoE
- Day / Night function
- Varifocal megapixel lens
- 16 languages on Web interface
Active Tampering Alarm
Tampered
Focus Change
Camera Shift
Specification
|
Camera
|
|
Image Sensor
|
1/3" progressive scan CMOS
|
|
Picture Elements
|
1280 (H) x 1024 (V)
|
|
Minimum Illumination
|
Color
|
0.15 Lux (1/30 sec), 0.08 Lux (1/5 sec)
|
|
B/W
IR ON
|
0 Lux
|
|
Shutter Speed
|
Automatic, Manual (1/5 ~ 1/8000 sec)
|
|
White Balance
|
Automatic, Manual (2800K ~ 8500K)
|
|
Lens
|
|
Megapixel
|
Yes
|
|
Day / Night support
|
Yes
|
|
Max Aperture
|
F/1.3 5%
|
|
Focal Length
|
2.7 ~ 9 mm
|
|
Image Format
|
1/3"
|
|
Field of view
|
Diagonal
|
126 (W) ~ 38.2 (T) 5
|
|
Horizontal
|
98.5 (W) ~ 29.8 (T) 5 |
|
Vertical
|
78.7 (W) ~ 23.9 (T) 5
|
|
Operation
|
Focus
|
Manual (w / lock)
|
|
Zoom
|
Manual (w / lock)
|
|
Iris
|
DC
|
|
IR LED Quantity
|
15 IR LEDs
|
|
IR Distance
|
15 m / 50 ft (Max.)
|
|
Operation
|
|
Video Codec
|
H.264, MPEG4, MJPEG
|
|
Video Streaming
|
Dual Streams from two of H.264, MPEG4 and MJPEG
|
|
Frame Rate
|
30 fps at 1280 x 1024
* The frame rate and the performance may vary depending on the number of connections and data bitrates (different scenes).
|
|
Image Setting
|
Brightness, Contrast, Sharpness, Gamma, White Balance, Flicker-less, Image Orientation, Shutter Speed, Backlight Compensation, D/N Sensitivity
|
|
Audio Codec
|
G.711, AAC (16 kHz / 16 bit)
* AAC is only supported by GV-System V8.5 or later
|
|
Sensor Input
|
1 Input (Dry Contact)
|
|
Alarm Output
|
1 Output
|
|
Video Resolution
|
|
Main Stream
|
4:3
|
1280 x 960, 640 x 480, 320 x 240
|
|
16:9
|
1280 x 720, 640 x 360, 448 x 252
|
|
5:4
|
1280 x 1024, 640 x 512, 320 x 256
|
|
Sub Stream
|
4:3
|
640 x 480, 320 x 240
|
|
16:9
|
640 x 360, 448 x 252
|
|
5:4
|
640 x 512, 320 x 256
|
|
Network
|
|
Interface
|
10/100 Ethernet
|
|
Ethernet Protocol
|
HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, RTSP, PSIA, SNMP, QoS (DSCP)
|
|
Mechanical
|
|
Lens Mounting
|
14 mm
|
|
Rotation Axis
|
3-axis (pan / tilt / roll)
|
|
Connectors
|
Power
|
2-pin terminal block
|
|
Ethernet
|
Ethernet (10/100 Base-T), RJ-45
|
|
Audio
|
1 In (microphone phone jack, 3.5 mm / 0.14 in)
1 Out (Stereo phone jack, 3.5 mm / 0.14 in)
|
|
Digital I/O
|
3-pin terminal block, pitch 2.5 mm / 0.1 in
|
|
Auto Iris
|
DC drive
|
|
Local Storage
|
Micro SD/SDHC memory card slot
|
|
TV-Out
|
BNC connector
* The TV-Out function only works in 640 x 480 resolution. For TV-Out to work properly, you must set the video resolution to 1280 x 1024 or lower. If both streams are enabled, the Sub Stream must be set to 640 x 480.
|
|
General
|
|
Operating Temperature
|
0 C ~ 50 C / 32 F ~ 122 F
|
|
Humidity
|
10% to 90% (no condensation)
|
|
Power Source
|
12V DC / 24V AC / PoE
|
|
Power Consumption
|
12 W (max. 1A at 12V DC)
|
|
Regulatory
|
CE, FCC, C-Tick, RoHS compliant
|
|
Dimensions
|
155 x 110 mm / 6.1 x 4.33 in
|
|
Weight
|
580 g / 1.28 lb
|
|
Power over Ethernet
|
|
PoE Standard
|
IEEE 802.3af Power over Ethernet / PSE
|
|
PoE Power Supply Type
|
End-Span
|
|
PoE Power Output
|
Per Port 48V DC, 350mA. Max. 15.4 watts
|
|
Web Interface
|
|
Installation Management
|
Web-based configuration
|
|
Maintenance
|
Firmware upgrade through Web Browser or Utility
|
|
Access from Web Browser
|
Camera live view, video recording, change video quality, bandwidth control, image snapshot, digital I/O control, audio, Picture in Picture, Picture and Picture, Privacy Mask, Visual Automation, Tampering Alarm, Wide Angle Lens Dewarping
|
|
Language
|
Czech / Danish / English / French / German / Hebrew / Hungarian / Italian / Japanese / Polish / Portuguese / Russian / Serbian / Simplified Chinese / Spanish / Traditional Chinese
|
|
Applications
|
|
Network Storage
|
GV-NVR, GV-System
|
|
3G Mobile Phone
|
Built-in player for 3GPP / ISMA
|
|
Live Viewing
|
IE , Mobile Phone
|
|
CMS Server support
|
GV-Control Center, GV-Center V2, GV-VSM, GV-Backup Center, GV-Video Gateway, GV-Recording Server
|
|
|
|
|
Previous Page
|
Next Page
|
|
