23/05

Epson EB-G5450WU Portable LCD Projector - 1920x1080, 4000 Lumens, 1000:1, VGA, 1xHDMI, USB

Epson EB-G5450WU

Installation Multimedia Projectors

Supreme Flexibility and Superior Image Quality in WUXGA Resolution

Overview

Feature rich and offering a choice of five lenses ranging from Rear Projection through Long Throw, the Epson EB-5450WU is perfect for custom installations. Producing an impressive 4,000 lumens Light Output and 4,000 lumens Colour Light Output in WXGA resolution the EB-G5450WU further enhances on Epsons reputation for high performance projectors for high end installation environments.

KEY FEATURES:

  • C2Fine Technology Featuring advanced vertical alignment technology, provides high contrast for deeper blacks and vivid images
  • DICOM Simulation Mode Specialised imaging uses standardised greyscale to reproduce medical images such as x-rays for medical training and education
  • Multi-PC Projection Allows up to four computers to simultaneously project via the network with a four way split screen
  • Crestron RoomView Compatibility Extends ROI for users who have already invested in Crestron RoomView to control and manage Epson projectors over a network, as well as other compatible projectors
  • Monitor and Control Network monitoring, maintenance scheduling and email alerts via LAN
  • Broad Connectivity HDMI, VGA x2, Audio in x2, Hardwire remote, 5 BNC, Monitor out, RS-232 and optional wireless.

FEATURES AND BENEFITS:

Amazing Image Quality

In the new G-Series, Epsons engineers have built upon Epsons World leading Home Cinema heritage to deliver unparalleled image quality. This is thanks to Epsons famous C2Fine LCD panels. Featuring advanced vertical alignment technology, C2Fine panels provide high contrast for deeper blacks and vivid images. And because theyre 3LCD, you know that colour reproduction is second to none, and your image will be crisp and vibrant.

Wide Ultra XGA (WUXGA)

When image quality is paramount, the EB-G5450WU stands out from the crowd. Wide Ultra XGA is a resolution greater than that of Full High Definition 1080p. With 1,920 x 1,200 pixels, you not only see more, you enjoy amazing image quality surpassing High Definition. Colour gradations are smoother, image details are clearer, and the impact on your audience is amazing!

Multi PC Projection

Multi PC projection enables users to connect and display up to four PCs simultaneously via the network with a four-way split screen. An additional 12 PCs can connect in standby. Which PCs are displayed at any one time is easily controlled with simple drag and drop functionality. With Multi PC projection, workgroup tele-meetings with remote members can now deliver collaboration results like never before!

It’s also possible to display content from two inputs simultaneously without the need for a network. Watch video via HDMI and view a presentation via VGA for an instant video conference.

Monitor and Control via the Network

Monitoring and controlling a G-Series projector is possible over a network, enabling the network manager to obtain projector information, monitor projector status, and control functions such as power on and off, change sources and even update firmware from a remote location. The Epson G-Series is also compatible with Crestron RoomView, meaning complete integration is possible if you have already invested in this infrastructure.

DICOM Simulation Mode

DICOM (Digital Imaging and Communication in Medicine) is a standard for handling, storing, printing, and transmitting information in medical imaging, which includes a file format definition and a network communications protocol. The DICOM simulation mode in the G-Series can reproduce images with gray level very close to DICOM Part 14 (Grayscale Standard Display Function). This mode is ideal for viewing grayscale medical images such as X-ray pictures for training and education in the medical institutions.

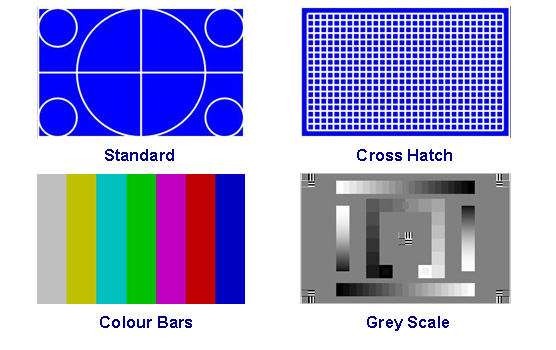

New Test Patterns for Precise Installation

With the new G-Series range there is no need to connect an image source when setting up the image parameters thanks to the included test patterns.


New Epson Designed and Manufactured Mount

Designed and manufactured by Epson, the new ELP-MB22 is made to Epson’s high quality standards, so you know it will stand up to the task. Also available is a choice of two suspension adaptors for installations with high ceilings. Providing up to 1,168mm drop, these adaptors deliver versatility for your installation.

Connectivity

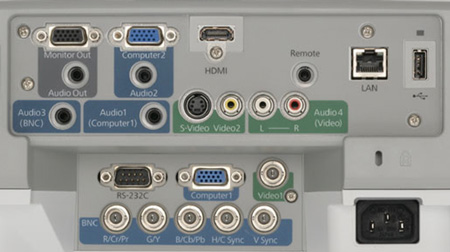

EB-G5450WU Rear Panel



Specifications

PRODUCT TYPE Portable Multimedia Projector
PRODUCT NAME Epson EB-G5450WU
PRODUCT CODE V11H346053
PROJECTION SYSTEM RGB Liquid Crystal Shutter Projection System
PROJECTION METHOD Front / Rear / Ceiling Mount
SPECIFICATION OF MAIN PARTS
LCD Size 0.76 inches with MLA
  Driving method Poly-Silicon TFT Active Matrix
  Pixel number 2,304,000 pixels (1920 x 1200 x 3)
  Native resolution WUXGA
  Aspect ratio 16:10
  Pixel arrangement Cross Stripe
  Refresh Rate 50Hz-60Hz
PROJECTION LENS Type Manual: zoom / focus
(Specification for ELPLS05 standard lens. Sold separately.) F-number 1.65 - 2.55
  Focus length 21.28 - 37.94mm
  Zoom ratio 1:1.8
PROJECTION LAMP Type E-TORL 275 W UHE
  Optical System Dichroic Mirror Separation & Prism Combine Method
SCREEN SIZE (PROJECTED DISTANCE) 50 to 300 inch [1.36m to 8.38m] (Zoom: Wide),
50 to 300 inch [2.46m to 14.99m] (Zoom: Tele)
100" screen 2.76m 4.97m
LENS SHIFT RANGE
  MANUAL Vertical +/-58% max
(upward / downward)
    Horizontal +/-9% max
(left / right)
BRIGHTNESS
  High Brightness Mode 4,000 Lumens Light Output
4,000 Lumens Colour Light Output
(Colour mode: Game, Zoom: Wide)
  Low Brightness Mode 3,200 Lumens Light Output
3,200 Lumens Colour Light Output
(Colour mode: Game, Zoom: Wide)
CONTRAST 1000:1
BRIGHTNESS UNIFORMITY 88%
COLOUR REPRODUCTIVITY Full colour (16.77 million colours)
SOUND OUTPUT (Internal speaker) 7W monaural
FUNCTION Pointer, User Logo, A/V mute, Freeze, E Zoom, Test Pattern
EFFECTIVE SCANNING FREQUENCY RANGE (Analog)
PIXEL CLOCK 13.5MHz to 162MHz ( up to UXGA 60Hz )
HORIZONTAL 15KHz to 92KHz
VERTICAL 50Hz to 85Hz
ADJUSTMENT FUNCTION
PROJECTOR / REMOTE CONTROL Brightness / Contrast / Tint / Saturation / Sharpness / Input signal / Sync / Tracking / Position / Color temperature / Volume etc
FOOT ADJUSTER Front-centre / Rear side
TILT ANGLE -2.5 to 10 degrees
KEYSTONE CORRECTION Vertical: +/- 30 degrees (Zoom: Tele)
Horizontal: +/- 20 degrees (Zoom: Tele)

QUICK CORNER

 Yes
SOURCE SEARCH Yes
AUTO DETECTION OF RGB YCbCr Yes
MULTI SCREEN COLOUR ADJUSTMENT Yes
OPERATION PANEL PROTECTION Yes
PASSWORD PROTECTED Yes
HIGH ALTITUDE MODE Yes
COLOUR MODE PC: Photo, Presentation, Theatre, Dynamic , sRGB, DICOM SIM, Customized
Video: Sports, Presentation, Theatre, Dynamic , sRGB, Customized
ANALOGUE RGB I/O
DISPLAY PERFORMANCE Native 1920 x 1200 pixels
INPUT SIGNAL Signal type Separate signal
  Video signal Analogue (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm)
  Sync. signal Separate (positive & negative, bi-polarity 2-5Vpp) / Composite (positive & negative, bi-polarity 2-5Vpp) / Sync-on-green (negative, 0.3Vpp)
  Audio signal 500mVrms / 47K-ohm
VIDEO INPUT TERMINAL Video D-sub 15pin x1 Blue molding
5-BNC x1
  Audio Stereo mini-jack x 2
OUTPUT SIGNAL Signal Type Separate signal
  Video signal Analogue (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm)
  Sync. signal Separate (positive & negative,TTL) /
Composite (positive & negative,TTL) /
Sync. on green (negative 0.2-0.4 Vp-p)
OUTPUT TERMINAL Video D-sub 15pin x 1 Black molding
  Audio Stereo mini-jack x 1
VIDEO I/O
DISPLAY PERFORMANCE   NTSC: 560 lines PAL: 560 lines (Depends on observation of the multi burst pattern)
INPUT SIGNAL Video standard NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM
  Video signal Composite Video (1.0Vpp / sync negative, 75ohm) / S-Video (Luminous 0.714Vpp, Chrominous 0.286Vpp, 75ohm) / Component Video (Analog Y level 0.7V 75 ohm / Cr Cb level +/-0.35V 75ohm / sync negative 0.3V or 3-state +/-0.3V on Y) / Video-RGB (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm)
  Audio signal 500mVrms / 47Kohm
VIDEO INPUT TERMINAL Video

Composite Video: RCA (Yellow) x 1
S-Video: Mini DIN
Component Video: Mini D-sub 15pin Blue-moulding x 2
(in common with Analog RGB connector)
Video-RGB: Mini D-sub 15pin 2 x Blue-moulding
(in common with Analog RGB connector)
  Audio

RCA (White/Red) x 1pair
(for Composite Video and S-Video)

HDMI
INPUT SIGNAL Video standard
Video signal
480i/576i/480p/576p/720p/1080i/1080p
TMDS ( signal for HDMI )
INPUT TERMINAL Audio signal
Video
Linear PCM
HDMI x 1 (HDCP)
DVI-D
INPUT SIGNAL Video standard
Video signal
480i/576i/480p/576p/720p/1080i/1080p
500 mVrms / 47 k-ohm
INPUT TERMINAL Video DVI x 1 (HDCP)
CONTROL I/O
Serial I/O I/O Terminal D-sub 9 pin x 1
  I/O Signal RS-232C
Remote Control Input I/O Terminal Stereo mini jack x 1
  I/O signal Epson Format
NETWORK I/O
USB I/O Type Type A x 1
  Wireless LAN unit Optional
  Wired LAN RJ45 x 1
Wireless Specification Supported speeds for each mode IEEE 802.11b: 11Mbps
IEEE 802.11g: 54Mbps
IEEE 802.11a: 54Mbps

Maximum speed and range is achievable when used with same enhanced mode technology. Actual data rates, features and performance may vary depending on your computer system, the environment and other factors.

  Supported mode Adhoc, infrastructure
  Certification Wi-Fi Certified
OPERATING TEMPERATURE 0C to 40C (32F to 104F), (20% - 80% Humidity unfrozen)
Thermal shutdown > 45 degree C
  0C to 35C (32F to 95F), (over 1500m with high altitude mode, High brightness)
OPERATING ALTITUDE 0m to 3000m < 0ft to 9843ft >
(over 1500m / 4,921ft with high altitude mode)
DIRECT POWER ON Yes
DIRECT POWER OFF Yes
COOL-DOWN PERIOD Instant Off
THEFT PROOF
  Wireless LAN Unit Lock Yes
  Security Cable Yes
  Kensington Lock Yes
POWER SUPPLY VOLTAGE 100-240V AC10% 50/60Hz
POWER CONSUMPTION
  Lamp On 393W
  Stand by ( network on ) 11W
  Stand by ( network off ) 0.47W
DIMENSION
EXCLUDE FEET 311.5mm(D) x 470mm(W) x 135mm(H)
MAXIMUM DIMENSION 311.5mm(D) x 470mm(W) x 151.5mm(H)
WEIGHT Approx. 6.8Kg
FAN NOISE
HIGH BRIGHTNESS MODE 35dB
LOW BRIGHTNESS MODE 30dB
ACCESSORIES
POWER CABLE 3m
COMPUTER CABLE

1.8m, D-sub 15pin (Male - Male)
REMOTE CONTROL Included
BATTERY Alkaline AA x 2
USER MANUAL SET Included (CD-ROM)
PROJECTOR SOFTWARE Included (CD-ROM)
PASSWORD PROTECT STICKER Included
EASY MP
Function Projector control and projector management via network Email notification
SNMP
Crestron Integrated Partner / RoomView
Extron IP Link
PJ Link
AMX Device Discovery
Web Control
  PC FREE Yes
  Message Broadcasting Yes
  Multi PC Projection Yes
  Windows network projector Yes
  Quick Wireless Connection Yes
  Software EasyMP Network Projection V 2.70 (Win and Mac)
EasyMP Multi PC Projection V 1.00 (Win and Mac)
EasyMP Slide converter V.1.01 (Win only)
EasyMP Monitor Ver.4.50 (Win only)
  Security (Wireless LAN) WEP, WPA-PSK(TKIP/AES), WPA2-PSK(TKIP/AES), EAP-TLS, EAP-TTLS/MD5, EAP-TTLS/MS-CHAPv2, PEAP/MS-CHAPv2, PEAP/GTC
LEAP, EAP-Fast/MS-CHAPv2, EAP-Fast/GTC
* Software compatible with MS Vista
# EMP NS Connection, EMP Monitor or EMP Slidemaker2 software does not support Win XP 64bit or Win Vista 64bit.
WARRANTY
STANDARD WARRANTY 3 years*
*excluding lamp
* For more information visit Epson Projector Warranty
Epson is the registered trademark of Seiko Epson Corporation. Epson ESC/P2 and Epson Stylus are trademarks of Seiko Epson Corporation. MicroDot is a trademark of Epson Australia Pty Limited. All other product names and other company names used herein are for identification purposes only and may be the trademarks or registered trademarks of their respective owners. Epson disclaims any and all rights in those marks. Specifications are subject to change without notice.
Link contains in-depth information about this product Link contains a picture of this product    NA
23/05

Epson EH-TW3600 Home Theatre LCD Projector - 1920x1080, 2000 Lumens, 50,000:1, 1xVGA, 2xHDMI

Epson EH-TW3600


Home Theatre Projectors

Larger Than Life Full 1080p High Definition Digital Home Theatre

Overview

With an impressive Home Theatre pedigree, the Epson EH-TW3600 Home Theatre Projector is the latest release from the worlds number one projector manufacturer Epson. This amazing projector delivers superb 1080p High Definition Home Theatre for a viewing experience that is truly larger than life!

KEY FEATURES:

  • 50,000:1 High Contrast Ratio Bright whites and deep blacks for stunning image quality
  • Inorganic C2Fine D7 LCD Panels Previously reserved for our top of the range models, the C2Fine D7 panel delivers long life and amazing picture quality
  • Full 1080p High Definition Beautiful 1920 x 1080 resolution
  • Up to 96.3% Lens Shift Allowing for maximum flexibility of installation, without the need for keystoning, therefore maintaining the Full High Definition image.
  • High Performance Cinema Filter Improved design delivers a wider colour space and superior colour purity
  • 3LCD Technology 3LCD technology achieves brighter, more natural images and smoother, sharper video playback.


High Contrast Ratio

Featuring Epsons inorganic C2Fine D7 LCD panels, the EH-TW3600 delivers superb image quality and outstanding clarity. Blacks are truly black, meaning the audience can see every detail, just the way the director intended.

Full 1080p High Definition
Boasting dual HDMI (High Definition Multimedia Interface) digital terminals, the EH-TW3600 delivers full high definition on a grand scale. Experience the drama of your favourite movie or the excitement of the big game with an image that is truly larger than life, right there in your own home.


High Performance Cinema Filter

A beautiful image requires the best treatment to ensure accurate colour reproduction. For this reason, the EH-TW3600 features a unique, Epson designed cinema filter. Crucial to achieving a wide colour gamut and colour purity, this innovative technology optically adjusts the primary colours (Red, Green, and Blue) with exceptional balance and precision for incredibly accurate colour reproduction.

Powerful Lens Technology

State-of-the-art lens technology from the same lens manufacturer chosen by Hollywood’s greatest completes the package of high quality optical components. Powerful x2.1 zoom and lens shift capability makes projector placement a breeze whilst maintaining optimal image quality.

Broad Selection of Connectivity Ports
Epson has included a broad selection of connectivity ports, including two HDMI in the EH-TW3600 with high performance, purpose built Home Theatre users in mind.



Specifications

PRODUCT TYPE Home Theatre Projectors
PRODUCT NAME Epson EH-TW3600
PRODUCT CODE V11H373153
PROJECTION SYSTEM RGB Liquid Crystal Display
PROJECTION METHOD Front / Rear / Ceiling Mount
SPECIFICATION OF MAIN PARTS
LCD Size 0.74 inches wide D7-C2Fine panel with MLA
  Driving method Poly-Silicon TFT Active Matrix
  Native resolution 1080P Full HD (1920 x 1080)
  Pixel number 6,220,800 pixels (1920 x 1080 pixels) x 3
  Aspect ratio 16:9
  Pixel arrangement Stripe
  Refresh Rate 50Hz or 60Hz (based on input signal)
PROJECTION LENS Type manual: zoom / focus
  F-number 2.0 - 3.17
  Focus length 22.5 - 47.2mm
  Zoom ratio 1.0:2.1
LAMP Type 200 W UHE E-TORL Lamp
SCREEN SIZE (PROJECTED DISTANCE) 30 to 300 inch (0.87m to 9.03m) (Wide)
30 to 300 inch (1.88m to 19.15m) (Tele)
LENS SHIFT RANGE Vertical: 96.3% max. (upward & downwards)
Horizontal: 47.1% max. (Left and Right)
BRIGHTNESS
  Normal Mode 2,000 Lumens Light Output
2,000 Lumens Colour Light Output
Colour Mode ( Dynamic, Zoom: Wide, Lens shift: V 5:5 / H Centre )
CONTRAST 50,000:1 (Colour mode: Dynamic, Power consumption: Normal, Zoom: Wide, Lens shift: V 10:0 / H Center)
* Contrast = 100% White (Iris: Open) / Black (Iris: Close) )
COLOUR PROCESSING Full 10 bit
COLOUR REPRODUCTIVITY Full Colour (1.07 Billion Colours)
COLOUR SPACE 115% of NTSC
VIDEO QUALITY Interlace - Progressive conversion 3D Y/C separation, Noise reduction
EFFECTIVE SCANNING FREQUENCY RANGE (Digital)
PIXEL CLOCK 13.5MHz to 150MHz
HORIZONTAL 15 to 80KHz
VERTICAL 24, 50 to 85Hz
ADJUSTMENT FUNCTION
PROJECTOR / REMOTE CONTROL Brightness / Contrast / Tint / Saturation / Input signal etc.
TILT ANGLE 0 to 8 degrees
KEYSTONE CORRECTION N/A
EPSON CINEMA FILTER Controlled automatically with color mode (ON: Theatre Modes / Natural, OFF: Living Room / Dynamic)
AUTO IRIS Controlled automatically adjusting to video source
(Available at colour mode except x.v.Colour, User selectable High Speed/Normal/Off on OSD)
EPSON SUPER WHITE

Controlled automatically adjusting to video source (Available at Natural/Theatre/Theatre Black 1 and 2; user selectable ON/OFF on OSD)

2:2 Pull Down (1080p/24fps)

On/Off (Default off, HDMI & Component input)
ANALOGUE RGB I/O
DISPLAY PERFORMANCE Native 1080p
  Resize 1280 x 1024 / 1360 x 768 / 1024 x 768 / 800 x 600 / 640 x 480
INPUT SIGNAL Signal type Separate signal
  Video signal Analog (0.7V p-p,75 ohm/ Mac0.714Vp-p, 75ohm)
  Sync.signal Separate (positive & negative, bi-polarity 2-5Vpp) / Composite (positive & negative, bi-polarity 2-5Vpp) / Sync-on-green (negative, 0.3Vpp)
INPUT TERMINAL Video Mini D-sub 15 pin x 1 Blue molding
HDMI Ver.1.3
DISPLAY PERFORMANCE Native 1080p
  Video standard 576i / 480p / 576p / 720p / 1080i / 1080p
  Video signal TMDS ( Signal for HDMI)
  Input Terminal HDMI x 2 (HDCP)
VIDEO I/O
COMPONENT INPUT
INPUT SIGNAL Video standard 480i / 576i / 480p / 576p / 720p / 1080i / 1080p
  Video signal Component Video (Analog Y level 0.7V 75 ohm / Cr Cb level +/-0.35V 75 ohm / sync. negative 0.3V or 3-state +/-0.3V on Y)
INPUT TERMINAL   RCA x 3 (Red / Green / Blue)
COMPOSITE / S VIDEO
INPUT SIGNAL Video standard NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM
  Video signal Composite Video (1.0Vpp / Sync.negative, 75 ohm) / S-Video (Luminous 0.714Vpp, Chrominous 0.286Vpp, 75 ohm)
INPUT TERMINAL S-Video Mini DIN x1
  Composite Video RCA (Yellow) x 1
CONTROL I/O
SERIAL I/O I/O terminal D-sub 9 pin x 1
  I/O signal RS-232c
TRIGGER OUT

Output terminal
3.5 mm mini-jack x 1
  Output Signal Power on: 12v DC, 200mA max Power off: 0v
LOCK FUNCTION Operation Lock & child-lock
OPERATING TEMPERATURE 5C to 35 C (41F to 95 F) at 20% ~ 80% Humidity
DIRECT POWER ON Yes
COOL-DOWN PERIOD Approx 16 seconds
POWER SUPPLY VOLTAGE 100-240 VAC 10%, 50/60Hz
POWER CONSUMPTION 261W (Normal Mode) 0.3W (Standby Mode)
DIMENSIONS
EXCLUDE FEET 450mm(W) x 360mm(D) x 136mm(H)
MAXIMUM DIMENSION 450mm(W) x 390mm(D) x 145mm(H)
WEIGHT Approx. 7.3 kg
FAN NOISE
HIGH BRIGHTNESS MODE 28dB (Colour mode: Dynamic)
WHISPER MODE 22dB (Colour mode: Theatre Black 1 and 2)
ACCESSORIES
POWER CORD 3m
REMOTE CONTROL Stick type (backlight)
BATTERY Alkaline, AA x2 (Included)
USER'S MANUAL Included
LENS CAP Included
WARRANTY* 2 years
* excluding lamp
* For more information visit Epson Projector Warranty
PRODUCT OPTIONS
  Product Code Description
  V13H010L49 Lamp
  3YWTW3600 3rd Year Warranty
Epson is the registered trademark of Seiko Epson Corporation. Epson ESC/P2 and Epson Stylus are trademarks of Seiko Epson Corporation. MicroDot is a trademark of Epson Australia Pty Limited. All other product names and other company names used herein are for identification purposes only and may be the trademarks or registered trademarks of their respective owners. Epson disclaims any and all rights in those marks. Specifications are subject to change without notice.

Equipment supplied by Epson Australia is designed to function in conjunction with genuine Epson consumables and accessories specifically configured for it.

Usage Conditions
Epson products are designed and made to give highly reliable use and long life when used according to its specifications. With any system, product or device used in situations where human life may be involved or at risk, Epson advises that you should take all necessary steps to ensure the suitability of your Epson product for inclusion in your system, and recommends that you include fail-safe procedures and redundancy support or backup equipment in your system, to maintain the maximum safety margin and optimum system reliability. Examples include but are not limited to do not interfere with any electrical components within the device, do not use items supplied with the product for purposes other than as intended by Epson (ie mains cords, inks, CDs, plastic wrapping) and do not make modifications to the product.


 Link contains in-depth information about this product Link contains a picture of this product    NA
23/05

Vivotek NR8201 Network Video Recorder - 4-Channel PoE, Real-time H.264, Built-in 802.3af, Compatibile with VAST CMS, Lockable HDD & Rackmount Design

nr8201

H.264 Compatible with VAST CMS Lockable HDD & Rack Mount Design Network Video Recorder NR8201

Overview

VIVOTEK's NR8201 network video recorder offers an elegant recording solution for VIVOTEK network cameras and performs real-time monitoring and recording simultaneously. It supports up to 4-CH H.264, MJPEG, and MPEG-4 video and provides multiple recording modes including alarm recording, scheduled recording, manual recording and continuous recording. The installation is very simple as the camera is able to be inserted utomatically when it's plugged in. It also offers a user-friendly interface for the user to configure the network settings and the camera control. Moreover, the 802.3af compliant PoE (Power-over-Ethernet) is able to reduce the complex of the installation, making NR8201 the cost-effective recording systems. The user can utilize the NR8201 to record high-definition mega-pixel videos on removable hard disk(s) with large capacity and a USB interface for data backup. The NR8201 also supports an external hard disk from the eSATA interface. The built-in gateway separates the network camera connection and the data network connection for the prevention of network congestion. Functional four digital inputs and one digital output interfaces are capable of integrating with the security sensors and alarms. The NR8201 are comprehensive network video recorders featuring with multiple functions to provide the best quality and highest performance in network video recording.


Features


  • Real-time H.264, MPEG-4 and MJPEG Compression (Triple Codec)
  • Simultaneous Viewing & Recording up to 4 Network Cameras
  • Removable & Lockable HDD Design for Easy Changing
  • Compatible with VAST Central Management Software
  • Built-in 802.3af Compliant 4-CH PoE
  • Camera Management with Automatic Camera Installation and Configuration
  • Professional Rackmount Design
  • External eSATA Interface for The Expansion of Video Recording
  • External USB Interface for Video Backup
  • LED Indicator for Quick Status Display
  • Integrated Firewall Protects System from Network Attacks and Unauthorized Access
  • Built-in Gateway for Separating The Networks from The Network Cameras and Data Transmitting
  • Support E-mail Alert Notification
  • Power Timer for Power Safety
  • Support All Series of VIVOTEK Cameras

Specifications

System CPU: Marvell 88F6281 1.2G
Flash: 128MB
RAM: 512MB
Embedded OS: Linux
Pan/Tilt/Zoom Pan/tilt/zoom control of VIVOTEK cameras
Video Compression: H.264, MPEG-4 & MJPEG
channels Support Up to 4 channels
Hard Disk Supports 3.5" SATA I/II HDD x 1, Up to 2TB
(Support RAID 0, 1 scalable storage)
Compatibility Supports VIVOTEK all series of network cameras
Recording Throughput Total: 16 Mbps
Recording Policy Alarm recording
Scheduled recording
Continuous recording
Manual recording
Connectors 1 x Gigabit, RJ45 (1 WAN ports)
4 x Ethernet 10/100 BaseT, RJ45 (4 LAN ports)
USB socket for backup
eSATA for external HD
Terminal block:
4x Digital Input
1x Relay Output
1x Power Output ( 12V 1A )
Camera Management Auto or manual installation for VIVOTEK cameras
Video and network configuration through NR8201
History Playback Playback of recorded media with time navigations
Networking 10/100 Mbps Ethernet, RJ-45
Protocols: IPv4, TCP/IP, HTTP, RTSP/RTP/RTCP, IGMP, SMTP,FTP, DHCP, NTP, DNS, DDNS, 3GPP
Alarm and Event Management 4 D/I & 1 D/O for external sensor and alarm
Event notification using SMTP
Security Multi-level user access with password protection
IP address filtering
Users 10 clients on-line monitoring at the same time
Dimensions Depth: 446.4mm
Width: 330.2mm
Height: 43.6mm
Weight Net: 4000 g
LED Indicator System power and status indicator
System activity and network link indicator
Power 100 ~ 240V AC
Power consumption: Max. 0.48 W
Power consumption: Max. 60 W (with 4 PoE cameras)
802.3af compliant Power-over-Ethernet
Approvals CBCEC-TickFCCVCCI
Operating Environments Temperature: 0 ~ 50 C (32 ~ 122 F)
Humidity: 20% ~ 80%
Viewing System Requirements OS: Microsoft Windows 2000/XP/Vista/7
Browser: Internet Explorer 6.x or above
Cell phone: 3GPP player
Installation, Management, and Maintenance Support VIVOTEK joystick
Installation Wizard 2
VAST $Central management software
Supports firmware upgrade
Applications SDK available for application development and system integration
Warranty 24 months
Link contains in-depth information about this product Link contains a picture of this product    NA
23/05

Vivotek VS8801 8-CH Video Server - Mozart 380 SoC, 512MB-RAM, 128MB-Flash, Real-Time H.264, Up to 30fps in D1 Resolution, Two-Way Audio, RJ-45


- Rackmount Design
vs8801

H.264 8-CH Rack Mount Design Video Server VS8801

Overview

VIVOTEK VS8801, the new milestone in video server security performing 8-CH high resolution with high frame rate in H.264, are able to convert analog video into digital video with the highest quality. The H.264 compression format drastically reduces the file sizes and conserves valuable bandwidth and storage space. The VS8801 supports single stream to be transmitted in H.264, MPEG-4 and MJPEG formats for versatile applications. The stream can also be individually configured with frame rates, resolution, and image quality so as to meet different platforms or bandwidth constraints.

Featured with intelligent video functions, such as motion detection & temper detection, the VS8801 are capable of upgrading analog cameras into intelligent cameras. The tamper detection feature can detect events such as blockage, redirection, defocus, and spray-painting of camera lens, making it an intelligent solution to possible camera obstruction. Furthermore, the video server also upgrades the security level of the IP surveillance system with the network security protocols, HTTPS and 802.1x. It is also designed with Giga LAN for large transmission need and DC 12V/AC 24V compatible power input design. These features make VS8801 easy to install and integrate with the existing analog system.

Monitoring with VIVOTEK's ST7501 as the video management software for better scalability and easy-to-use operation is another delightful benefit. Most importantly, it is designed for rack mount solution for easy installation. The solution for video server is a pioneering idea in the world. The innovative vision of video server VS8801 help you easily upgrade to a full-featured, high-end IP surveillance solution!

Features

  • Up to 30 fps in D1 Resolution
  • Real-time H.264, MPEG-4 and MJPEG Compression (Triple Codec)
  • 8-CH Video and Audio In
  • Tamper Detection for Unauthorized Changes
  • Two-way Audio
  • 8 Digital I/O for External Sensor and Alarm
  • RS-485 Interface for PTZ Camera Control
  • DC 12V / AC 24V Compatible Power Input
  • Activity Adaptive Streaming for Dynamic Frame Rate Control
  • Professional Rack Mount Compatible Design

Specifications

System CPU: Mozart 380 SoC
Flash: 128MB
RAM: 512MB
Embedded OS: Linux 2.6
Camera Control PTZ camera control through RS-485
Supported devices and protocols: DynaDome / SmartDome, Pelco D, LiLin, Pelco P, Samsung scc643, and customized types
Supports CGI command serial driver
Video Compression: H.264, MPEG-4 & MJPEG
Streaming:
Simultaneous single stream
H.264 streaming over UDP, TCP, HTTP or HTTPS
H.264/MPEG-4 multicast streaming
MPEG-4 streaming over UDP, TCP, HTTP or HTTPS
MPEG-4 multicast streaming
MJPEG streaming over HTTP or HTTPS
Supports activity adaptive streaming for dynamic frame rate control
Supports 3GPP mobile surveillance
Frame rates:
H.264: Up to Up tp 180 fps at D1
MPEG-4: Up to Up to 80 fps at D1
MJPEG: Up to Up to 240 fps at D1
BNC connector for video output
Image Settings Adjustable image size, quality, and bit rate
Time stamp and text caption overlay
Flip & mirror
Configurable brightness, contrast, saturation, sharpness, white balance and exposure
Supports privacy masks
Audio G.711 audio encoding, bit rate: 64 kbps, -Law or A-Law
Interface:
Audio output
Audio input: up to 1Vrms, 3.5 m
Terminal block x 8
Supports two-way audio
Supports audio mute
Networking 10/100/1000 Mbps Gigabit Ethernet, RJ-45
ONVIF support
Protocols: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP and 802.1X
Alarm and Event Management Triple-window video motion detection
8 D/I & 8 D/O for external sensor and alarm
Event notification using HTTP, SMTP, or FTP
Local recording of MP4 files
Tamper Detection
Security Multi-level user access with password protection
IP address filtering
HTTPS encrypted data transmission
802.1X port-based authentication for network protection
Users 10 clients on-line monitoring at the same time
Dimensions Depth: 189mm
Width: 153mm
Height: 49.3mm
Weight Net: 837 g
LED Indicator System power and status indicator
System activity and network link indicator
Power 12V DC
24V AC
Power consumption: Max. 24 W
Approvals CEC-TickFCCLVDVCCI
Operating Environments Temperature: -10 ~ 50 C (14 ~ 122 F)
Humidity: 20% ~ 80%
Viewing System Requirements OS: Microsoft Windows 2000/XP/Vista/7
Browser: Mozilla Firefox, Internet Explorer 6.x or above
Cell phone: 3GPP player
Real Player: 10.5 or above
Quick Time: 6.5 or above
Installation, Management, and Maintenance RS-485: Half Duplex
Installation Wizard 2
32-CH central management software
Supports firmware upgrade
Applications SDK available for application development and system integration
Warranty 24 months

 Link contains in-depth information about this product Link contains a picture of this product    NA
23/05

Vivotek IP8362 Network Bullet Camera - 2MP, 1920x1080, Full HD, WDR Enhanced, Built-In Focus Assist, Built-in IR illuminators, H.264 - White

ip8362

2MP Full HD WDR Enhanced Focus Assist IP67 Network Camera IP8362

Overview

VIVOTEK IP8362 is a best-in-class 1080p outdoor bullet network camera designed for diverse outdoor applications. With full HD resolution in 16:9 aspect ratio and WDR enhancement, users can identify image details in extremely bright as well as dark environments.

The IP8362 supports high-performance H.264/MPEG-4/MJPEG compression technology and offers extra smooth video quality with up to 30 fps @ 1080p full HD. Furthermore, the IP8362 boasts a number of innovative technologies, including Video Cropping and Activity Adaptive Streaming, giving user the utmost in bandwidth and storage efficiency.

To adapt to constantly changing lighting conditions, the IP8362 comes with a removable IR-cut filter and built-in IR illuminators for both day and night applications. Its IP67-rated housing protects the camera body against rain and dust and ensures operation under extreme weather conditions. For complete installation and prevention of tampering and vandalism, the IP8362 is also packaged with a mounting bracket that conceals all cabling.

With other advanced features such as tamper detection, 802.3af compliant PoE, MicroSD/SDHC card slot for on-board storage, plus full HD video quality, the IP8362 is the best choice for the most demanding outdoor surveillance applications such as parking lots, entrances, communities, and much more.

Features

  • 2-megapixel CMOS Sensor
  • 3 ~ 9 mm Vari-focal, Auto-iris Lens
  • Up to 30 fps @ 1080p Full HD
  • Removable IR-cut Filter for Day & Night Function
  • Built-in IR Illuminators, effective up to 15 Meters
  • Supports WDR Enhancement for Unparalleled Visibility in Extremely Bright and Dark Environments
  • Real-time H.264, MPEG-4 and MJPEG Compression (Triple Codec)
  • Weather-proof IP67 rated Housing
  • Built-in 802.3af Compliant PoE
  • Built-in SD/SDHC Card Slot for On-board Storage
  • Mounting Bracket with Cable Management for Protected Installation

Specifications

System CPU: TI DM368 SoC
Flash: 128MB
RAM: 256MB
Embedded OS: Linux 2.6
Lens f=3 ~ 9 mm
F 1.2 (wide)
F 2.1 (tele)
auto iris
Board lens
Vari-focal
Removable IR-cut filter for day & night function
Angle of View 38 ~ 113.7 (horizontal)
21.4 ~ 61.2 (vertical)
Shutter Time 1/5 ~ 1/32,000 sec
Image sensor 1/2.7" CMOS in 1920x1080 Resolution
Minimum Illumination 0.57 Lux / F1.2 @ 1/30s, 0.08 Lux / F1.2 @ 1/5s ( typical )
0 Lux / F1.2 ( IR LED on )
IR Illuminators IR LED*12
Built-in IR illuminators, Effective up to 15 meter
Video Compression: H.264, MPEG-4 & MJPEG
Streaming:
Simultaneous multiple streams
H.264 streaming over UDP, TCP, HTTP or HTTPS
H.264/MPEG-4 multicast streaming
MPEG-4 multicast streaming
MJPEG streaming over HTTP or HTTPS
Supports activity adaptive streaming for dynamic frame rate control
Supports video cropping for bandwidth efficiency
Supports ePTZ for data efficiency
Supports 3GPP mobile surveillance
Frame rates:
H.264: Up to 30 fps @ 1280 x 720, Up to 30 fps @ 1920 x 1080
MPEG-4: Up to 30 fps @ 1280 x 720, Up to 27 fps @ 1920 x 1080
MJPEG: Up to 30 fps @ 1280 x 720, Up to 30 fps @ 1920 x 1080
Focus Assist
Image Settings Adjustable image size, quality, and bit rate
Time stamp and text caption overlay
Flip & mirror
Configurable brightness, contrast, saturation, sharpness, white balance and exposure
AGCAWBAES
Automatic, manual or scheduled day/night mode
Supports privacy masks
BLC (Backlight compensation)
WDR enhanced
Audio Compression
GSM-AMR speech encoding, bit rate: 4.75 kbps to 12.2 kbps
MPEG-4 AAC audio encoding, bit rate: 16 kbps to 128 kbps
G.711 audio encoding, bit rate: 64 kbps, -Law or A-Law
Interface:
External microphone input
Audio output

Supports two-way audio
Supports audio mute
Networking 10/100 Mbps Ethernet, RJ-45
ONVIF support
Protocols: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP and 802.1X
Alarm and Event Management Triple-window video motion detection
1 D/I & 1 D/O for external sensor and alarm
Event notification using HTTP, SMTP, or FTP
Local recording of MP4 files
Tamper Detection
On-board Storage SD/SDHC card slot
Stores snapshots and video clips
Security Multi-level user access with password protection
IP address filtering
HTTPS encrypted data transmission
802.1X port-based authentication for network protection
Users 10 clients on-line monitoring at the same time
Dimensions : 70mm x 186 mm
Cable length: 520 mm
Cable diameter: 7.2 mm; Ring: 14 mm
Weight Net: 990 g
LED Indicator System power and status indicator
System activity and network link indicator
Power 12V DC
24V AC
Power consumption: Max. 9.6 W
802.3af compliant Power-over-Ethernet (Class 3)
Housing Weather-proof IP67-rated housing
Approvals CEC-TickFCCLVDVCCIUL
Operating Environments Temperature: -20 ~ 50 C (-4 ~ 122 F )
Humidity: 90%
Viewing System Requirements OS: Microsoft Windows 2000/XP/Vista/7
Browser: Mozilla Firefox, Internet Explorer 6.x or above
Cell phone: 3GPP player
Real Player: 10.5 or above
Quick Time: 6.5 or above
Installation, Management, and Maintenance Mounting bracket w/ cable concealment
RS-485 interface for scanners, pan/tilts
Installation Wizard 2
32-CH central management software
Supports firmware upgrade
Applications SDK available for application development and system integration
Warranty 36 months
Link contains in-depth information about this product Link contains a picture of this product    NA
23/05

Vivotek IP8162P Fixed Network Camera - 2MP, 1920x1080, Full HD, P-Iris, Built-In Focus Assist, WDR Enhanced, H.264 - White

ip8162p

2MP Full HD P-iris Focus Assist WDR Enhanced Network Camera IP8162P

Overview

VIVOTEK IP8162P is part of the SUPREME series product line offering 2-megapixel resolution with superb image quality. The camera can capture a much more comprehensive area than a standard VGA camera, significantly reducing the number of cameras required. It is especially suitable for monitoring wide open indoor spaces such as building entrances, airports, or applications requiring accurate identification.

The IP8162P employs many advanced features to allow users to fully enjoy the high definition video. With high performance H.264/MPEG-4/MJPEG compression technology, the IP8162P offers high-quality video with resolution up to 1080p full HD @ 30fps. With a P-iris lens, which controls the iris with extreme precision with its built-in stepping motor, it maintains the iris opening at an optimal level at all times, resulting in superior image clarity and depth of field as well as image quality. In addition, the IP8162P is also equipped with a focus assist button to allow users to precisely adjust the camera focus. After pushing the focus assist button on the camera unit, an indicator will be displayed onscreen with detailed focus information, which will change in accordance with the manual adjustment. Moreover, continuing to push the button will zoom in on the target area for fine tuning, resulting in better usability and picture clarity. The IP8162P can also be directly connected to an analog monitor with the built-in BNC connector, providing integrators more flexibility and hassle-free installation for a myriad of applications.

Together with WDR enhancement, users can identify image details in extremely bright as well as dark environments. Also featuring other high-end features such as multiple streams, video cropping, ePTZ, SDHC card slot, PoE, and the included 32-CH recording software, the IP8162P is indisputably the top choice for reliable and high performance megapixel surveillance.

Features

  • 2-megapixel CMOS Sensor
  • 3.1 ~ 8 mm Vari-focal, P-iris Lens
  • Up to 30 fps @ 1080p Full HD
  • Removable IR-cut Filter for Day & Night Function
  • Built-in Focus Assist Button for Precise Focus Adjustment
  • Supports WDR Enhancement for Unparalleled Visibility in Extremely Bright and Dark Environments
  • Real-time H.264, MPEG-4 and MJPEG Compression (Triple Codec)
  • Simultaneous Multiple Streams
  • Video Cropping for Bandwidth Saving
  • ePTZ for Data Efficiency
  • Activity Adaptive Streaming for Dynamic Frame Rate Control
  • Built-in SD/SDHC Card Slot for On-board Storage
  • Built-in 802.3af Compliant PoE

Specifications

DM368 SoC
Flash: 128MB
RAM: 256MB
Embedded OS: Linux 2.6
Lens f=3.1 ~ 8 mm
F 1.2
P-iris
CS-mount
Vari-focal
Removable IR-cut filter for day & night function
Angle of View 105.4 ~ 42.2 (horizontal)
57.9 ~ 23.8 (vertical)
123.1 ~ 48.3 (diagonal)
Shutter Time 1/5 ~ 1/32000 sec
Image sensor 1/2.7" CMOS in 1920x1080 Resolution
Minimum Illumination 0.06 Lux / F1.2 ( typical )
in 0.001 Lux / F1.2 ( B/W )
Video Compression: H.264, MPEG-4 & MJPEG
Streaming:
Simultaneous multiple streams
H.264 streaming over UDP, TCP, HTTP or HTTPS
MPEG-4 streaming over UDP, TCP, HTTP or HTTPS
MJPEG streaming over HTTP or HTTPS
Supports activity adaptive streaming for dynamic frame rate control
Supports video cropping for bandwidth efficiency
Supports ePTZ for data efficiency
Supports 3GPP mobile surveillance
Frame rates:
H.264: Up to 30 fps @ 1280 x 720, Up to 30 fps @ 1920 x 1080
MPEG-4: Up to 30 fps @ 1280 x 720, Up to 27 fps @ 1920 x 1080
MJPEG: Up to 30 fps @ 1280 x 720, Up to 30 fps @ 1920 x 1080
BNC connector for video output
NTSC/PAL video output switch
Focus Assist
Image Settings Adjustable image size, quality, and bit rate
Time stamp and text caption overlay
Flip & mirror
Configurable brightness, contrast, saturation, sharpness, white balance and exposure
AGCAWBAES
Automatic, manual or scheduled day/night mode
Supports privacy masks
BLC (Backlight compensation)
WDR enhanced
Audio Compression
GSM-AMR speech encoding, bit rate: 4.75 kbps to 12.2 kbps
MPEG-4 AAC audio encoding, bit rate: 16 kbps to 128 kbps
G.711 audio encoding, bit rate: 64 kbps, -Law or A-Law
Interface:
Built-in microphone
External microphone input
Audio output

External/Internal microphone switch
Supports two-way audio
Supports audio mute
Networking 10/100 Mbps Ethernet, RJ-45
ONVIF support
Protocols: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP and 802.1X
Alarm and Event Management Triple-window video motion detection
1 D/I & 1 D/O for external sensor and alarm
Event notification using HTTP, SMTP, or FTP
Local recording of MP4 files
Tamper Detection
On-board Storage SD/SDHC card slot
Stores snapshots and video clips
Security Multi-level user access with password protection
IP address filtering
HTTPS encrypted data transmission
802.1X port-based authentication for network protection
Users 10 clients on-line monitoring at the same time
Dimensions Depth: 154mm
Width: 72mm
Height: 62mm
Weight Net: 611 g
LED Indicator System power and status indicator
System activity and network link indicator
Power 12V DC
24V AC
Power consumption: Max. 4.92 W
802.3af compliant Power-over-Ethernet (Class 3)
Approvals CEC-TickFCCLVDVCCI
Operating Environments Temperature: -10 ~ 50 C (14 ~ 122 F )
Humidity: 90%
Viewing System Requirements OS: Microsoft Windows 2000/XP/Vista/7
Browser: Mozilla Firefox, Internet Explorer 6.x or above
Cell phone: 3GPP player
Real Player: 10.5 or above
Quick Time: 6.5 or above
Installation, Management, and Maintenance RS-485 interface for scanners, pan/tilts
Installation Wizard 2
32-CH central management software
Supports firmware upgrade
Applications SDK available for application development and system integration
Warranty 36 months
Link contains in-depth information about this product Link contains a picture of this product    NA
23/05

Microsoft LifeCam VX-800 Webcam - USB - Black

Easy video calling.

LifeCam VX-800

Overview

Microsoft Webcams and Headsets - Optimised for Windows Live Messenger

It’s easy to share your experiences. Your family may be far away, but you can still see and hear them clearly, with this webcam’s VGA video and built-in microphone.

Microsoft LifeCam VX-800

VGA Video Sensor
VGA video sensor for a clear image. Camera auto-adjusts for low-light conditions for the best video possible.

Built-In Microphone
The built-in microphone automatically picks up your voice with remarkable clarity.

Plug and Play
The simplicity of plug and play – no software needed.

Works with*

+ Windows Live™
+ Yahoo! Messenger
+ AOL Instant Messenger
+ Skype

System Requirements

For Windows®-based PC:
Requires a PC that meets the requirements for and has installed one of these operating systems: Windows® 7, Windows Vista®, Windows® XP SP2

Other

    * USB
    * Broadband Internet access required; access fees may apply. USB 1.1 (USB 2.0 recommended). Display adapter cable of 16-bit colour depth or higher, 2 MB or higher video memory.
    * To download Windows Live™ Messenger,visit
      http://explore.live.com/windows-live-essentials?os=winxp
    * Two-Year Limited Hardware Warranty
      Limited Warranty and Licence Agreement available here.
 Link contains in-depth information about this product Link contains a picture of this product    NA
23/05

Kingston 16GB DataTraveler 4000 Flash Drive - Read 18MB/s, Write 10MB/s, Encryption, Waterproof, Titanium-Coated Stainless Steeling Case, USB2.0 - Black

DT4000/16GB

DataTraveler 4000

Protect Sensitive data with FIPS 140-2 Level 2 certification and 100-percent privacy.

Protect your organization's portable data with Kingston's new, ultra-secure DataTraveler 4000 USB Flash drive. It's FIPS 140-2 Level 2 certified and features 256-bit AES hardware-based encryption in CBC mode. Complex password protection enforces device lockdown after a specified number of invalid attempts. DataTraveler 4000 is rugged and waterproof5, with a titanium-coated, stainless steel casing for added protection. It's easy to set up and use, with no admin rights or application installation required.

Assembled in the U.S. DataTraveler 4000 is backed by a five-year warranty, 24/7 tech support and legendary Kingston reliability.

Features/Benefits:

  • FIPS 140-2 Level 2 Certified
  • TAA-compliant
  • Secure drive locks down after 10 intrusion attempts and encryption key is destroyed
      • - Enforced complex password password is user set with a minimum of three of the four characteristics (lowercase, uppercase, characters and numbers) required to prevent unauthorized access
      - Can operate with AutoRun disabled
      - Enforces write-protected AutoRun files
  • Full Encryption 100 percent of stored data is protected by hardware-based, 256-bit Advanced Encryption Standard (AES) in CBC mode
  • Customizable4 password length, maximum number of password attempts, preload content
  • Tamper proof coating/seal for physical security
  • Guaranteed five-year warranty with 24/7 customer support
  • Ruggedized waterproof5 and titanium-coated stainless steel casing
  • Easy to use no admin rights or application installation required
  • Co-logo program available4
  • Assembled in the U.S.
Specifications:
  • Dimensions 3.06" x 0.9" x 0.47" (77.9mm x 22mm x 12.05mm)
  • Speed up to 18MB/s read, 10MB/s write1
  • Capacities2 2GB, 4GB, 8GB, 16GB
  • Compatibility designed to USB 2.0 specifications
  • Operating Temperature -32F to 140F (0C to 60C)
  • Storage Temperature -4F to 185F (-20C to 85C)
  • Minimum System Requirements:
      - USB 2.0 compliant and 1.1 compatible
      - Two (2) free consecutive drive letters required for use3
  • Compatibility table:

      Operating System Password Protection/
      Data Encryption
      Windows 7 Yes
      Windows Vista (SP1, SP2) Yes
      Windows XP (SP2, SP3) Yes
      Mac OS X (10.5.x - 10.6.x) Yes

 Link contains in-depth information about this product Link contains a picture of this product    NA
23/05

Kingston 4GB DataTraveler 4000 Flash Drive - Read 18MB/s, Write 10MB/s, 256-bit Advanced Encryption, FPS 140-2 Level 2 Certified, Waterproof, Titanium-Coated Stainless Steeling Case, USB2.0 - Black

DataTraveler 4000

Protect Sensitive data with FIPS 140-2 Level 2 certification and 100-percent privacy.

Protect your organization's portable data with Kingston's new, ultra-secure DataTraveler® 4000 USB Flash drive. It's FIPS 140-2 Level 2 certified and features 256-bit AES hardware-based encryption in CBC mode. Complex password protection enforces device lockdown after a specified number of invalid attempts. DataTraveler 4000 is rugged and waterproof5, with a titanium-coated, stainless steel casing for added protection. It's easy to set up and use, with no admin rights or application installation required.

Assembled in the U.S., DataTraveler 4000 is backed by a five-year warranty, 24/7 tech support and legendary Kingston® reliability.

Features/Benefits:

  • FIPS 140-2 Level 2 Certified
  • TAA-compliant
  • Secure drive locks down after 10 intrusion attempts and encryption key is destroyed
      • - Enforced complex password password is user set with a minimum of three of the four characteristics (lowercase, uppercase, characters and numbers) required to prevent unauthorized access
      - Can operate with AutoRun disabled
      - Enforces write-protected AutoRun files
  • Full Encryption 100 percent of stored data is protected by hardware-based, 256-bit Advanced Encryption Standard (AES) in CBC mode
  • Customizable4 password length, maximum number of password attempts, preload content
  • Tamper proof coating/seal for physical security
  • Guaranteed five-year warranty with 24/7 customer support
  • Ruggedized waterproof5 and titanium-coated stainless steel casing
  • Easy to use no admin rights or application installation required
  • Co-logo program available4
  • Assembled in the U.S.

Specifications:

  • Dimensions 3.06" x 0.9" x 0.47" (77.9mm x 22mm x 12.05mm)
  • Speed up to 18MB/s read, 10MB/s write1
  • Capacities2 2GB, 4GB, 8GB, 16GB
  • Compatibility designed to USB 2.0 specifications
  • Operating Temperature -32F to 140F (0C to 60C)
  • Storage Temperature -4F to 185F (-20C to 85C)
  • Minimum System Requirements:
      - USB 2.0 compliant and 1.1 compatible
      - Two (2) free consecutive drive letters required for use3
  • Compatibility table:

    Operating System Password Protection/
    Data Encryption
    Windows 7 Yes
    Windows Vista (SP1, SP2) Yes
    Windows XP (SP2, SP3) Yes
    Mac OS X (10.5.x - 10.6.x) Yes
Link contains in-depth information about this product Link contains a picture of this product    NA
23/05

Kingston 8GB DataTraveler 4000 Flash Drive - Read 18MB/s, Write 10MB/s, 256-bit Advanced Encryption, FIPS 140-2 Level 2 Certified, Waterproof, Titanium-Coated Stainless Steeling Case, USB2.0 - Black

DT4000/8GB 8GB USB Flash drive

(256-bit hardware-based AES encryption)

DataTraveler 4000

Protect Sensitive data with FIPS 140-2 Level 2 certification and 100-percent privacy.

Protect your organization's portable data with Kingston's new, ultra-secure DataTraveler® 4000 USB Flash drive. It's FIPS 140-2 Level 2 certified and features 256-bit AES hardware-based encryption in CBC mode. Complex password protection enforces device lockdown after a specified number of invalid attempts. DataTraveler 4000 is rugged and waterproof5, with a titanium-coated, stainless steel casing for added protection. It's easy to set up and use, with no admin rights or application installation required.

Assembled in the U.S., DataTraveler 4000 is backed by a five-year warranty, 24/7 tech support and legendary Kingston® reliability.

Features/Benefits:

  • FIPS 140-2 Level 2 Certified
  • TAA-compliant
  • Secure drive locks down after 10 intrusion attempts and encryption key is destroyed
      • - Enforced complex password password is user set with a minimum of three of the four characteristics (lowercase, uppercase, characters and numbers) required to prevent unauthorized access
      - Can operate with AutoRun disabled
      - Enforces write-protected AutoRun files
  • Full Encryption 100 percent of stored data is protected by hardware-based, 256-bit Advanced Encryption Standard (AES) in CBC mode
  • Customizable4 password length, maximum number of password attempts, preload content
  • Tamper proof coating/seal for physical security
  • Guaranteed five-year warranty with 24/7 customer support
  • Ruggedized waterproof5 and titanium-coated stainless steel casing
  • Easy to use no admin rights or application installation required
  • Co-logo program available4
  • Assembled in the U.S.
Specifications:
  • Dimensions 3.06" x 0.9" x 0.47" (77.9mm x 22mm x 12.05mm)
  • Speed up to 18MB/s read, 10MB/s write1
  • Capacities2 2GB, 4GB, 8GB, 16GB
  • Compatibility designed to USB 2.0 specifications
  • Operating Temperature -32F to 140F (0C to 60C)
  • Storage Temperature -4F to 185F (-20C to 85C)
  • Minimum System Requirements:
      - USB 2.0 compliant and 1.1 compatible
      - Two (2) free consecutive drive letters required for use3
  • Compatibility table:

    Operating System Password Protection/
    Data Encryption
    Windows 7 Yes
    Windows Vista (SP1, SP2) Yes
    Windows XP (SP2, SP3) Yes
    Mac OS X (10.5.x - 10.6.x) Yes
Link contains in-depth information about this product Link contains a picture of this product    NA
23/05

Kingston 16GB DataTraveler Vault Privacy Managed Flash Drive - Read 24MB/s, Write 10MB/s, 256-bit Advanced Encryption, USB2.0 - Blue

DTVPM/16GB

(SafeConsole Req'd) 16GB USB Flash drive w/256 bit Encryption + 100% Privacy (Managed)


DataTraveler Vault Privacy Managed

Protect data with 256-bit AES encryption, 100% privacy and a Centralized Management System
Kingston's DataTraveler Vault Privacy - Managed (DTVP-M) USB Flash drive is an Enterprise-Grade Secure USB Flash device that is centrally managed by BlockMaster's SafeConsole for Kingston product. With 100% privacy and 256-bit AES Encryption, the DTVP-M is safe, secure, and fully customizable using the SafeConsole† interface.

SafeConsole for Kingston is an Enterprise Management software solution that offers full USB management of Kingston?s DataTraveler Vault Privacy ? Managed (DTVP-M) secure Flash drives. With WEB-based accessibility and its user-friendly interface, SafeConsole for Kingston makes it easy to configure and manage all of the extended features of the DTVP-M, including remote password resets, device content management, and much more.

Assembled in the U.S., DataTraveler® Vault — Privacy Managed is backed by a five-year warranty, 24/7 tech support and legendary Kingston® reliability.

Features/Benefits:

  • Centrally Managed must be managed by the BlockMaster SafeConsole for Kingston drive management system
  • Enterprise Grade Security 100 percent of the stored data is protected by hardware based, 256-bit Advanced Encryption Standard (AES) in Cipher Block Chaining (CBC) mode
  • Fast1 data transfer rates of up to 24MB/s read and up to 10MB/s write
  • Cologo Available2 add your companys logo to increase brand recognition and identify ownership
  • Guaranteed five-year warranty with 24/7 customer support
  • Durable ruggedized aluminum case
  • Waterproof3 protects against water damage
Specifications:

  • Dimensions 3.06" x 0.9" x 0.47" (77.9mm x 22.2mm x 12.05mm)
  • Capacities* 2GB1, 4GB, 8GB, 16GB, 32GB
  • Compatibility designed to USB 2.0 Specification
  • Operating Temperatures 32F to 140F (0C to 60C)
  • Storage Temperatures -4F to 185F (-20C to 85C)
  • Minimum System Requirements:
      - Must have BlockMaster SafeConsole Management System with valid license
      - USB 2.0 compliant and 1.1 compatible
  • Compatibility table:

    Operating System Password Protection/
    Data Encryption
    Windows  7 Yes
    Windows Vista  (SP1, SP2) Yes
    Windows XP (SP2, SP3) Yes
Link contains in-depth information about this product Link contains a picture of this product    NA
23/05

Kingston 32GB DataTraveler Vault Privacy Managed Flash Drive - Read 24MB/s, Write 10MB/s, 256-bit Advanced Encryption, USB2.0 - Blue

DTVPM/32GB

(SafeConsole Req'd) 32GB USB Flash drive w/256 bit Encryption + 100% Privacy (Managed)

DataTraveler Vault Privacy Managed

Protect data with 256-bit AES encryption, 100% privacy and a Centralized Management System

Kingston's DataTraveler Vault Privacy - Managed (DTVP-M) USB Flash drive is an Enterprise-Grade Secure USB Flash device that is centrally managed by BlockMaster's SafeConsole for Kingston product. With 100% privacy and 256-bit AES Encryption, the DTVP-M is safe, secure, and fully customizable using the SafeConsole† interface.

SafeConsole for Kingston is an Enterprise Management software solution that offers full USB management of Kingston?s DataTraveler Vault Privacy ? Managed (DTVP-M) secure Flash drives. With WEB-based accessibility and its user-friendly interface, SafeConsole for Kingston makes it easy to configure and manage all of the extended features of the DTVP-M, including remote password resets, device content management, and much more.

Assembled in the U.S., DataTraveler® Vault — Privacy Managed is backed by a five-year warranty, 24/7 tech support and legendary Kingston® reliability.

Features/Benefits:

  • Centrally Managed must be managed by the BlockMaster SafeConsole for Kingston drive management system
  • Enterprise Grade Security 100 percent of the stored data is protected by hardware based, 256-bit Advanced Encryption Standard (AES) in Cipher Block Chaining (CBC) mode
  • Fast1 data transfer rates of up to 24MB/s read and up to 10MB/s write
  • Cologo Available2 add your companys logo to increase brand recognition and identify ownership
  • Guaranteed five-year warranty with 24/7 customer support
  • Durable ruggedized aluminum case
  • Waterproof3 protects against water damage
Specifications:

  • Dimensions 3.06" x 0.9" x 0.47" (77.9mm x 22.2mm x 12.05mm)
  • Capacities* 2GB1, 4GB, 8GB, 16GB, 32GB
  • Compatibility designed to USB 2.0 Specification
  • Operating Temperatures 32F to 140F (0C to 60C)
  • Storage Temperatures -4F to 185F (-20C to 85C)
  • Minimum System Requirements:
      - Must have BlockMaster SafeConsole Management System with valid license
      - USB 2.0 compliant and 1.1 compatible
  • Compatibility table:

Operating System Password Protection/
Data Encryption
Windows  7 Yes
Windows Vista  (SP1, SP2) Yes
Windows XP (SP2, SP3) Yes
Link contains in-depth information about this product Link contains a picture of this product    NA
23/05

Kingston 4GB DataTraveler Vault Privacy Managed Flash Drive - Read 24MB/s, Write 10MB/s, 256-bit Advanced Encryption, USB2.0 - Blue

DTVPM/4GB (SafeConsole Req'd) 4GB USB Flash drive w/256 bit Encryption + 100% Privacy (Managed)

DataTraveler Vault Privacy Managed

Protect data with 256-bit AES encryption, 100% privacy and a Centralized Management System

Kingston's DataTraveler Vault Privacy - Managed (DTVP-M) USB Flash drive is an Enterprise-Grade Secure USB Flash device that is centrally managed by BlockMaster's SafeConsole for Kingston product. With 100% privacy and 256-bit AES Encryption, the DTVP-M is safe, secure, and fully customizable using the SafeConsole† interface.

SafeConsole for Kingston is an Enterprise Management software solution that offers full USB management of Kingston?s DataTraveler Vault Privacy ? Managed (DTVP-M) secure Flash drives. With WEB-based accessibility and its user-friendly interface, SafeConsole for Kingston makes it easy to configure and manage all of the extended features of the DTVP-M, including remote password resets, device content management, and much more.

Assembled in the U.S., DataTraveler Vault Privacy Managed is backed by a five-year warranty, 24/7 tech support and legendary Kingston reliability.

Features/Benefits:

  • Centrally Managed must be managed by the BlockMaster SafeConsole for Kingston drive management system
  • Enterprise Grade Security 100 percent of the stored data is protected by hardware based, 256-bit Advanced Encryption Standard (AES) in Cipher Block Chaining (CBC) mode
  • Fast1 data transfer rates of up to 24MB/s read and up to 10MB/s write
  • Cologo Available2 add your companys logo to increase brand recognition and identify ownership
  • Guaranteed five-year warranty with 24/7 customer support
  • Durable ruggedized aluminum case
  • Waterproof3 protects against water damage
Specifications:

  • Dimensions 3.06" x 0.9" x 0.47" (77.9mm x 22.2mm x 12.05mm)
  • Capacities* 2GB1, 4GB, 8GB, 16GB, 32GB
  • Compatibility designed to USB 2.0 Specification
  • Operating Temperatures 32F to 140F (0C to 60C)
  • Storage Temperatures -4F to 185F (-20C to 85C)
  • Minimum System Requirements:
      - Must have BlockMaster SafeConsole Management System with valid license
      - USB 2.0 compliant and 1.1 compatible
  • Compatibility table:

    Operating System Password Protection/
    Data Encryption
    Windows  7 Yes
    Windows Vista  (SP1, SP2) Yes
    Windows XP (SP2, SP3) Yes
Link contains in-depth information about this product Link contains a picture of this product    NA
23/05

Kingston 8GB DataTraveler Vault Privacy Managed Flash Drive - Read 24MB/s, Write 10MB/s, 256-bit Advanced Encryption, USB2.0 - Blue

DTVPM/8GB

** Item can only be purchased with id#207269 **

DataTraveler Vault Privacy Managed

Description: (SafeConsole Req) 8GB DTVP w/256bit Encrypt+100% Privacy (Managed)

Additional Info: DataTraveler Vault Privacy - Managed, requires SafeConsole Management Software, USB 2.0 Flash Drive + 256-bit AES Hardware-Based Encryption and 100% Privacy. Write up to 10MBps Read up to 24MBps

Kingston's DataTraveler Vault Privacy - Managed (DTVP-M) USB Flash drive is an Enterprise-Grade Secure USB Flash device that is centrally managed by BlockMaster's SafeConsole for Kingston product. With 100% privacy and 256-bit AES Encryption, the DTVP-M is safe, secure, and fully customizable using the SafeConsole  interface.

SafeConsole for Kingston is an Enterprise Management software solution that offers full USB management of Kingstons DataTraveler Vault Privacy Managed (DTVP-M) secure Flash drives. With WEB-based accessibility and its user-friendly interface, SafeConsole for Kingston makes it easy to configure and manage all of the extended features of the DTVP-M, including remote password resets, device content management, and much more.

Assembled in the U.S., DataTraveler Vault Privacy Managed is backed by a five-year warranty, 24/7 tech support and legendary Kingston reliability.



Features/Benefits:

  • Centrally Managed must be managed by the BlockMaster SafeConsole for Kingston drive management system
  • Enterprise Grade Security 100 percent of the stored data is protected by hardware based, 256-bit Advanced Encryption Standard (AES) in Cipher Block Chaining (CBC) mode
  • Fast1 data transfer rates of up to 24MB/s read and up to 10MB/s write
  • Cologo Available2 add your companys logo to increase brand recognition and identify ownership
  • Guaranteed five-year warranty with 24/7 customer support
  • Durable ruggedized aluminum case
  • Waterproof3 protects against water damage
Specifications:

  • Dimensions 3.06" x 0.9" x 0.47" (77.9mm x 22.2mm x 12.05mm)
  • Capacities* 2GB1, 4GB, 8GB, 16GB, 32GB
  • Compatibility designed to USB 2.0 Specification
  • Operating Temperatures 32F to 140F (0C to 60C)
  • Storage Temperatures -4F to 185F (-20C to 85C)
  • Minimum System Requirements:
      - Must have BlockMaster SafeConsole Management System with valid license
      - USB 2.0 compliant and 1.1 compatible
  • Compatibility table:

    Operating System Password Protection/
    Data Encryption
    Windows  7 Yes
    Windows Vista  (SP1, SP2) Yes
    Windows XP (SP2, SP3) Yes
Link contains in-depth information about this product Link contains a picture of this product    NA
23/05

Kingston 64GB DataTraveler Ultimate G2 Flash Drive - Read 100MB/s, Write 70MB/s, Cap Connector, USB3.0 - White

DataTraveler Ultimate 3.0 Generation 2

Unleash the potential of your USB 3.0 system!

DTU30G2/64GB

With the new USB 3.0 ports becoming available on more and more new systems, you are able to transfer data faster than ever!

Kingston’s DataTraveler® Ultimate 3.0 G2 features the latest technology for USB Flash drives, making it ideal for early adopters who want to take advantage of all the performance improvements offered by USB 3.0 right away.

Unleash the potential of your USB 3.0 system!

Kingstons DataTraveler Ultimate 3.0 G2 features the latest technology for USB Flash drives, making it ideal for early adopters who want to take advantage of all the performance improvements offered by USB 3.0 right away.

This compact drive is the perfect solution for easily storing and quickly transferring all your documents, hi-res photos, music, games, HD video, and more. Its exceptional speed saves time you need copying your feature rich content - leaving you more time to enjoy it!

Here are some great applications for the new DataTraveler Ultimate 3.0 G2:

  • HD video
  • System and data backup
  • Games
  • Adobe applications (Photoshop, Premiere, Light Room)
  • AutoCAD
  • Movie downloads
  • and many more..

USB 3.0 offers the same ease-of-use and plug and play capabilities as previous generations of USB technologies but with a performance increase and better power management. This USB 3.0 drive is backwards compatible with USB 2.0.

DataTraveler Ultimate 3.0 G2 is backed by 24/7 tech support, a five-year warranty and legendary Kingston® reliability.

Features/Specifications:

Capacities - 16GB, 32GB and 64GB

Requirements - SuperSpeed (USB 3.0) USB port for full compatibility

Backwards compatible - with USB 2.0 ports

Speed

When plugged to a USB 3.0 system:
Read speed up to 100MB/s
Write speed up to 70MB/s

When plugged to a USB 2.0 system:

Maximum specification performance (around 30MB/s read and write)

Colour Glossy white with aluminium

Dimensions 2.90 x 0.87 x 0.63 (73.70mm x 22.20mm x 16.10mm)

Operating Temperature 32 to 140 F (0 to 60 C)

Storage Temperature -4 to 185 F (-20 to 85 C)

Practical durable casing with a solid lanyard loop

Warranty 5 Years

Compatibility Table

Operating System DataTraveler Ultimate 3.0 Generation 2

Windows 7
Windows Vista
Windows XP (SP2, SP3)
Link contains in-depth information about this product Link contains a picture of this product    NA
Previous Page Next Page
