| Imaging Sensor |
| Imaging Sensor |

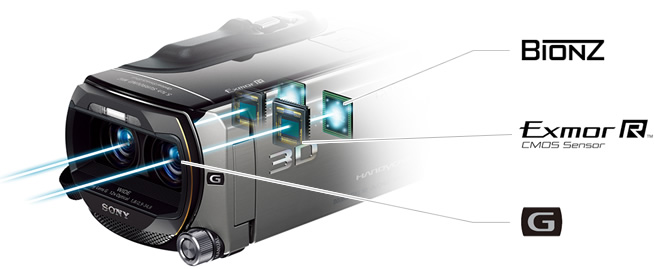

2x 1/4 type (4.5mm) back-illuminated "Exmor R" CMOS Sensor |
| Processor |
2x BIONZ image processor |
| Anti Dust |
- |
| Pixel Gross |
2x Approx. 4200K pixels (3D)/Approx. 4200K pixels(2D) |
| Effective Picture Resolution |
2x Approx. 3540K pixels (4:3) (3D)/Approx. 3540K pixels (4:3) (2D) |
| Color Filter System |
ClearVid array |
| Recording |
| Media Type |
Internal Flash Memory |
| Memory Stick PRO Duo (Mark 2) |
| Memory Stick PRO-HG Duo |
| SD/SDHC/SDXC Memory Card (Class 4 or Higher) |
| Internal Media |
Flash Memory 64GB1 |
| Still Image File Format |
DCF Ver.2.0 compatible, Exif Ver.2.3 compatible, MPF Baseline compatible |
| Still Image Mode |
3D Still Image: Not available/2D Still Image:JPEG |
| Still Image Max Effective |
7.1 megapixels |
| Still Image Size (Movie Mode) |
5.3 megapixels 16:9 (3072x1728) |
| 4.0 megapixels 4:3 (2304x1728) |
| Still Image Size (Photo Mode) |
7.1 megapixels 4:3 (3072x2304) |
| 5.3 megapixels 16:9 (3072x1728) |
| 1.9 megapixels 4:3 (1600x1200) |
| 307K pixels 4:3 (640x480) |
| Video Format |
3D HD:MVC (original format) |
| HD:MPEG4-AVC/H.264 AVCHD format compatible (1080/60p:original format) |
| STD:MPEG2-PS |
| Video Mode (Resolution) |

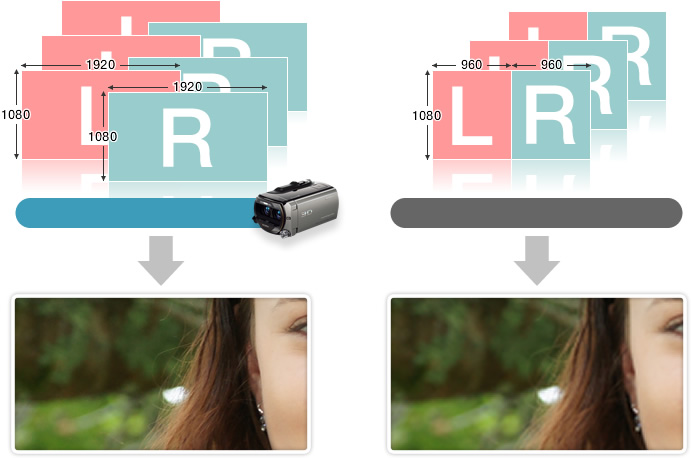

3D HD:2x 1920x1080/60i |
| HD:1920x1080/60p, 30p, 60i (FX,FH), 1440x1080/60i (HQ,LP) |
| 720x576/60i |
Movie Recording Rate (Average Bit Rate/VBR)2,3 |
3D HD 3D:Approx. 28Mbps |
HD PS:Approx. 28Mbps/FX:Approx. 24Mbps/FH:Approx. 17Mbps/HQ:Approx. 9Mbps/ LP:Approx. 5Mbps |
| STD HQ:9Mbps |
| Video Actual (Pixel)4 |
3D HD:2x Approx. 2650K pixels (16:9)/ HD, STD:Approx. 2650K pixels(16:9), Approx. 1990K pixels(4:3) |
| Video Signal |
3D HD:HDTV 1080/60i |
| HD:HDTV 1080/60p, 24p, 60i |
| STD:PAL color, CCIR standards |
| Progressive Mode |
HD:60p/24p, Progressive recording |
Recording and Playback Times (in Internal Media) (5.1ch)5 |
3D HD 3D:Approx. 5h15m (Approx. 5h15m) |
| HD PS:Approx. 5h15m (Approx. 5h15m) |
| HD FX:Approx. 6h15m (Approx. 6h15m) |
| HD FH:Approx. 8h25m (Approx. 8h25m) |
| HD HQ:Approx.14h55m (Approx. 11h20m) |
| HD LP:Approx.25h45m (Approx. 21h10m) |
| STD HQ:Approx.15h25m (Approx. 14h25m) |
Recording and Playback Times (in Internal Media) (2ch)5 |
3D HD 3D:Approx. 5h15m (Approx. 5h15m) |
| HD PS:Approx. 5h15m (Approx. 5h15m) |
| HD FX:Approx. 6h15m (Approx. 6h15m) |
| HD FH:Approx. 8h35m (Approx. 8h35m) |
| HD HQ:Approx. 15h10m (Approx. 11h30m) |
| HD LP:Approx. 26h40m (Approx. 21h45m) |
| STD HQ:Approx. 15h55m (Approx. 14h35m) |
Number of Recording Pictures (in Internal Media)6 |
Up to 40,000 pictures |
| Photo Capture from Movie |
2.1 megapixels 16:9 (1920x1080) |
| 307K pixels 4:3 (640x480) |
| 230K pixels 16:9 (640x360) |
| Dual Record7 |
5.3 megapixels 16:9 (3072 x 1728) |
| 4.0 megapixels 4:3 (2304 x 1728) |
| Audio Format |
Dolby Digital 5.1ch, Dolby Digital 5.1Creater |
| Dolby Digital 2ch Stereo, Dolby Digital Stereo Creater |
| Microphone/Speaker |
Built-in Zoom Microphone |
| Clear Phase Stereo Speaker |
| Wind Position |
Yes (Auto) |
| Wind Noise Reduction |
Yes (Off/On) |
| Mic Level Control |
Yes (2steps) |
| Play List Edit |
- |
| Optics/Lens |
| Lens Type |
G Lens |
| Lens Stabilization |
Optical SteadyShot image stabilization w/ Active mode (wide(3D)/Wide to Tele(2D)) |
| Aperture |
F1.8-F10.0 |
| Optical Zoom |
10x (3D)/12x (2D) |
| Extended Zoom |
17x (2D only) |
| Digital Zoom |
160x (2D only) |
| SmartZoom Technology |
- |
| Focal Distance |
f = 2.9mm - 29mm(3D) |
| f = 1/8inch - 1 2/8inch (3D) |
| f = 2.9mm - 34.8mm (2D) |
| f = 1/8inch - 1 3/8inch (2D) |
Focal Length (35mm equivalent) (Movie Mode)4 |
3D:34.4mm - 344mm |
| 3D:1 3/8inch - 13 1/2inch |
| 2D:29.8mm - 357.6mm (16:9), 36.5mm - 438mm (4:3) |
| 2D:1 7/16inch - 14 1/8inch (16:9), 1 7/16inch - 17 1/4inch (4:3) |
Focal Length (35mm equivalent) (Photo Mode) |
29.8mm - 357.6mm (16:9), 27.4mm - 328.8mm (4:3) |
| 1 3/16inch - 14 1/8inch (16:9),1 1/8inch - 13inch (4:3) |
| Filter Diameter |
30mm |
| Filter Diameter |
1 3/16inch |

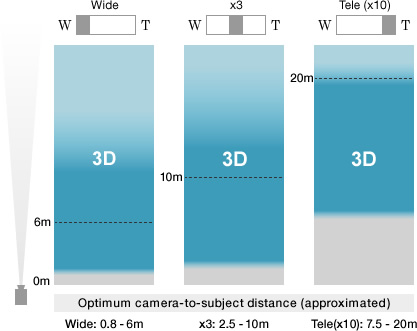

| Minimum Focus Distance |
3D:Approx. 80cm (Wide), Approx. 7.5m (Tele) |
| 2D:Approx. 1cm (Wide), Approx. 80cm (Tele), Approx. 25cm (Tele Macro) |
| Aperture Blade |
- |
| Viewfinder |
| Type |
- |
| Diopter Adjustment |
- |
| Field of View |
- |
| LCD Display |
| LCD Type |
8.8cm (3.5 inch) Xtra Fine LCD 3D display (1229K) Wide (16:9) w/TruBlack technology |
| Touch Panel |
Yes |
| Angle Adjustment |
Opening Angle:max. 90 deg., Turning Angle:max. 270 deg. |
| Brightness Control8 |
Yes (MENU) |
| Coverage |
100% |
| Live View |
Yes |
| Histogram |
- |
| Grid Display |
Guide Frame(2D only) |
| Focus Control |
| Focus System |
Contrast AF |
| Focus Points |
- |
| AF Modes |
Auto/Manual (Touch Panel) |
| Focus Area |
Full Range Focus (3D/2D)/Spot Focus (2D only) |
| Manual Focus Assist |
- |
| Focus Features |
Tracking Focus (2D only) |
| Tele Macro |
Yes (2D only) |
| Exposure System |
| Metering Modes |
Multi-segment (3D/2D)/Spot (2D only) |
| Exposure Compensation |
AE Shift (Touch Panel) |
| Exposure Settings |
Auto |
| Flexible Spot (Touch Panel) |
| LOW LUX Mode |
Yes (2D only) |
| Scene Mode(s) |
Auto/Twilight/Twilight Portrait/Sunrise & Sunset/Fireworks/Landscape/Portrait/Spotlight/Beach/ Snow (2D only) |
| D-RangeOptimizer |
Yes |
| Backlight Compensation |
Yes (Auto) |
| Noise Reduction |
Yes |
| White Balance Mode |
Auto/Onepush/Outdoor/Indoor |
| WB Shift |
- |
| Minimum Illumination |
Standard:11 lux (1/50 Shutter Speed) |
| Low Lux:3 lux (1/25 Shutter Speed) (2D only) |
| Auto Iris Control |
F1.8 - F10.0 |
| Manual Iris Control |
- |
| Manual Exposure Assist |
- |
| Drive System |
| Drive Mode |
Photo Mode (2D only):Single-shot/Self-timer |
| Continuous Shooting Speed |
- |
| Self-timer |
approx. 10sec. (Still Image) |
| Shutter Speed Auto Control Range |
1/8-1/1000 |
| Shutter Speed (Standard) |
1/50-1/1000 |
| Shutter Speed (Manual lris Control) |
- |
| Shutter Speed (Manual Shutter) |
- |
| Shutter Speed (Smooth Slow Rec) |
1/250 - 1/1000 |
| Convenience Features |
| Built-in USB Cable |
- |
| Quick On |
Yes (Power On by LCD) |
| Manual/Auto Lens Cover |
Auto |
| S/S & Zoom button on LCD |
Yes (Touch Panel) |
| Red Eye Reduction |
Yes (On/Off) |
| Fader Effect(s) |
White/Black (2D only) |
| Digital Picture Effects/Picture Effects |
-/- |
| Date/Time Stamp |
Yes (Rec Date and Time, Camera info) |
| Erase/Protect |
Yes/Yes |
| Media/Battery Indicator |
Yes (recordable time, free and used media space)/Yes (recordable time, remaining capacity) |
| On Screen Main Indicators |
Intelligent Auto Status |
| Zoom Position |
| Flash Status (2D only) |
| Recording/Playback/Editing Media |
| Recording Status |
| Recording Mode |
| Recording Image Quality (HD/STD) |
| Photo Size |
| Multiple Language Display |
English |
| Simplified English |
| Brazilian Portugese |
| Canadian French |
| Latin American Spanish |
| Menu Customization |
- |
| Power Save Mode |
Auto Shut-off (5minutes) |
| Still Image Playback Options |
Slide Show |
| Playback Zoom (1.1x-5x) (TouchPanel+Zoom Lever) (2D only) |
| Video Playback Options |
Highlight Playback (HD Movie Only) |
| Highlight Playback Save and Share (Translate into STD quality) |
| Highlight Scenario (Save/Playback/Erase) |
| Hightlight BGM (Preinstalled 4 music files, Music transfer) |
| Built-in Video Light Coverage |
- |
| Remoto Control |
Yes |
| Self Recording |
Yes |
| One Touch Disc Burn |
Yes (Menu) (2D only) |
| Color Slow Shutter |
- |
| Easy Handycam/Help Function |
-/- |
| Advanced Features |
| Audio Level Display |
Yes |
| Pre-installed "PMB Portable" |
- |
| Cinematone |
- |
| S-Master Sound |
Yes |
| Assignable Dial |
- |
| Embedded GPS |
- |
| Face Detection |
Yes (2D only) |
| Priority Setting (for Face Detetection) |
Auto/Child Priority/Adult Priority (2D only) |
| Smile Shutter7 |
Dual Capture/Always On/Off (2D only) |
| Golf Shot |
Yes (2D only) |
| Smooth Slow Rec |
Yes (2D only) |
| Image Stabilization |
Optical SteadyShot image stabilization w/ Active mode (wide (3D)/Wide to Tele (2D)) |
| Intelligent Auto |
Portrait/Baby/Walk/Tripod/Backlight/Landscape/Spotlight/Twilight/Macro/Low light |
| View&Index |
Event |
| NightShot infrared System |
- |
| x.v.Color |
Yes |
| Shockproof |
- |
| Flash |
| Flash Type |
Built-in Flash |
| Flash Metering System |
Pre-flash TTL |
| Flash Modes |
Auto/Forced/Prohibited (2D only) |
| Flash Compensation |
Yes (3 steps) (2D only) |
| Flash Coverage |
Approx. 0.3m - 1.5m (2D only) |
| Approx. 11 7/8 inch - 59 1/8 inch (2D only) |
| Interface |
| Memory Card Slot |
Memory Stick PRO Duo and SD/SDHC/SDXC compatible |
| STD Output |
Composite Video Out (A/V connecting cable (supplied)) |
| Component Video Out (Component A/V cable (sold separately)) |
| S Video Out (A/V connectiong cable with S Video (sold separately)) |
| HD Output |
HDMI Out (mini) (supplied) |
| Component Video Out (Component A/V cable (sold separately)) |
| 3D HD Output |
HDMI Out (min) (supplied) |
| USB Port(s) |
TypeA, mini-AB/USB2.0 Hi-speed (mass-storage/MTP) |
| BRAVIA Sync |
Yes |
| PhotoTV HD |
Yes |
| DVDirect |
- |
| Headphone Jack |
Stereo Minijack |
| Microphone Input |
Stereo Minijack |
| Direct Copy |
Yes |
| Accessory Shoe |
Yes (Active Interface Shoe) |
| Docking Station |
- |
| PictBridge Compatible |
- |
| DC IN |
Yes |
| Remote Terminal |
integrated into A/V Remote terminal |
| HDMI Terminal |
Yes (mini) |
| A/V Remote Terminal |
Video/S Video/Audio/Component Out/Remote |
| Weights and Measurements |
Dimensions (including supplied battery) |
Approx. 54.5mm x 64.5mm x128mm |
| Approx. 2 1/4inch x 2 5/8inch x 5 1/8inch |
| Weight |
Approx. 22.6oz (640g) |
| Approx. 26.1oz (740g) (with supplied battery) |
| Power |
| Battery Type |
InfoLITHIUM with AccuPower Meter System (V Series) |
| Charge On Camcorder |
Yes |
Power Consumption (in LCD Operation) |
3D HD: 5.8W HD:3.9W |
| Power Requirements |
7.2V (battery pack); 8.4V (AC Adaptor) |
| In the Box |
| Supplied Accessory |
Rechargeable Battery Pack (NP-FV70) |
| AC Adaptor |
| Power Cord |
| HDMI (mini) Cable |
| A/V Connecting Cable |
| USB Cable |
| USB Adaptor Cable |
| CD-ROM ("Handycam" Application Software) |
| Remote Commander (RMT-835 with Battery (CR2025)) |
| "Operating Guide" |
