MX511
The best buy for small-medium space
The MX511 makes the perfect projector choice for your everyday life - in business, education, even at home. Featuring an impressive brightness of 2700 ANSI lumens, a high contrast ratio of 3000:1 and a XGA resolution, the MX511 offers a stunning full-screen presentation with the finest details regardless of the ambient light level.
Long Lamp Life at up to 6000 hours
Enjoy a lamp life performance of up to 6000 hours* – twice the lamp life expectancy of average projector lamps on the market! This certainly lowers the number of lamp changes and keeps all maintenance to a minimum.
*when used in Economic mode. See specifications for warranty.
Go 3D with DLP® Link!
MX511 is equipped with 3D projection technology to bring you the same amazing 3D effects you get in 3D movies. Offered for no added cost, the 3D feature on 3D-ready BenQ projectors get your audience for an immersive real-life experience. All you have to do is add the 3D glasses, content and video card along with the MX511. A magical expedition is just to begin!
Visual Excellence

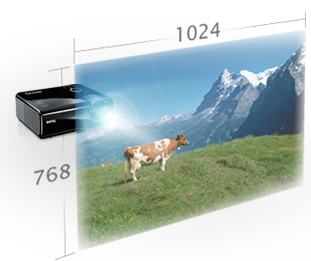

XGA Native Resolution
The MX511 comes with XGA native resolution,1024 x 768, which brings you crisp and accurate images in your every presentation.
Sharpen up with high contrast ratios
The MX511 boasts high contrast ratio with 3000:1. High contract ratios translate to razor-sharp detail definition and a broader range of subtle color differences, which makes text is sharper, cleaner, and easy to read.
2700 ANSI lumen brightness
A mainstream standard 2700 ANSI lumen projection lamp ensures great viewing for small-medium size rooms even in locations with ambient light, so your hard works can always be presented as good as can be.
Vivify Your World with BrilliantColor™
With the help of BrilliantColor™ Technology, the MX511 delivers true-to-life images with enhanced secondary color brightness for your visual enjoyment!

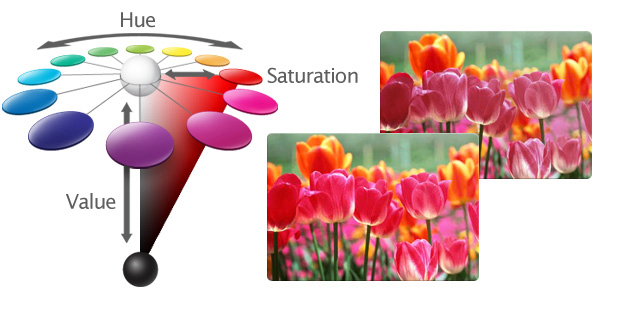

Independent 3D Color Management
Exclusive BenQ 3D Color Management empowers you with the freedom to fine-tune color intensity to meet your preference. 3D Color Management lets users independently adjust the hue, grain, and saturation levels of all six color wheel tones (red, green, blue, cyan, magenta, and yellow) without colors compromising each other.
Thoughtful Features

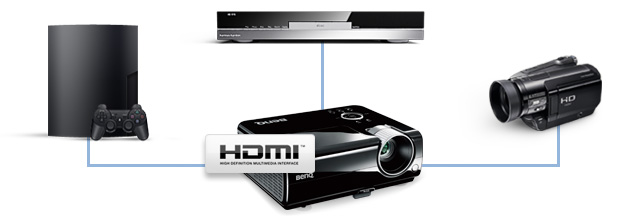

Comprehensive Connectivity with HDMI
MX511 features one HDMI port can be plugged with digital devices such as Blue-ray player, laptop...etc. HDMI is also the highest and completely future-proof connection standard, ensuring pure digital audio and video perfection.
Built-in Speaker
With built-in 2W speaker with the MX511, not only do you get the vivid visual performance, you get the same audio satisfaction, too!

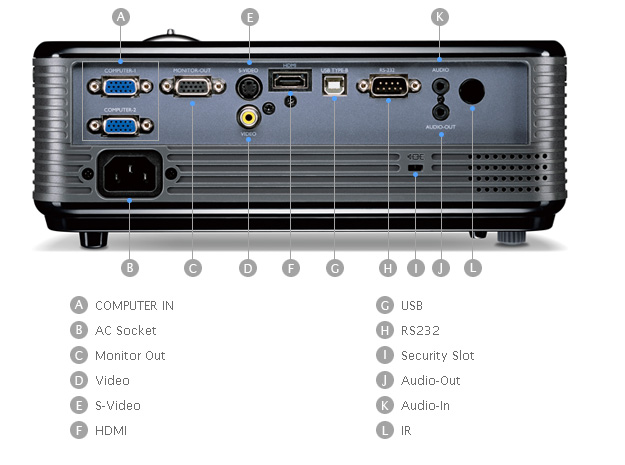

Multi-Function Connectors
Specifications
| Projection System |
DLP technology by Texas Instruments |
| Native Resolution |
XGA (1024 x 768) |
| Brightness |
2700 ANSI lumens |
| Contrast Ratio |
3000:1 (Full on/Full off) |
| Keystone |
Manual Vertical 40 |
| Aspect Ratio |
4:3 Native, 16:9 Selectable |
| Color |
Full 1.07 billion color palette |
| Lens |
F= 2.51 to 2.69, f= 21.95 ~ 24.18 mm |
| Zoom Ratio |
Manual Zoom, 1.10:1 |
| Image Size (Diagonal) |
23 to 300 |
| Throw Ratio |
1.97-2.17 (50"@ 2m) |
| Lamp |
190W, 4500/6000 hours (Normal/Economic mode) |
| Computer Compatibility |
VGA(640 x 480) to UXGA(1600 x 1200) |
| HDTV Compatibility |
480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Video Compatibility |
NTSC, PAL, SECAM |
| Horizontal Frequency |
31-90 kHz |
| Vertical Scan Rate |
50-120 Hz |
| Input Terminals |
PC:
Analog RGB: D-sub 15 pin x 2
A/V:
HDMI V1.3 x 1
Component Video: D-sub 15 pin x 2
(Shared with Analog RGB connector)
S-Video: Mini Din 4 pin x 1
Composite Video: RCA x 1
Audi:
Stereo Mini Jack x 1 |
| Output Terminals |
PC:
Monitor Out: D-sub 15 pin x 1
Audi:
Variable Audio Out : Stereo Mini Jack x 1
o:
Speaker: 2W x 1 |
| Control Terminal |
Serial Connector : RS232 9 pin x 1 |
| Dimensions(W x H x D) |
265 x 100 x 210 mm r(10.4 x 3.9 x 8.3 inch) |
| Weight |
2.3 kg (5.1 lbs) |
| Power Supply |
100 to 240 VAC, 50/60 Hz |
| Power Consumption |
260W, Standby < 1W |
| Audible Noise |
27/25 dBA (Normal/Economic mode) |
| On-Screen Display Languages |
Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hungarian/ Indonesia/ Italian/ Janpanese/ Kroean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese (26 Languages) |
| Picture Modes |
Dynamic Mode
Presentation Mode
sRGB Mode
Cinema Mode
User 1 Mode
User 2 Mode |
| Accessories (Standard) |
Quick Start Guide
VGA Cable
Manual CD
Power Cord
Remote Control w/battery |
| Accessories (Optional) |
Presentation Plus
Spare Lamp Kit
RS232 Cable
Soft Carry Case |
