18/01
|

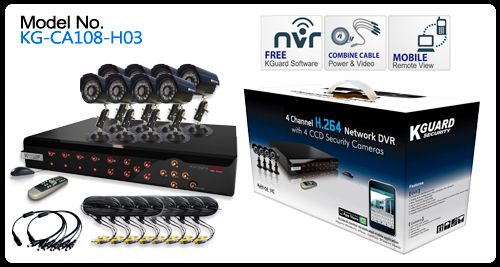

Kworld S/DVR/KG-CA108-H03 Combo Kit - 8 Channel Surveillance DVR & 8 IR CCD, Motion Detection - Black
- No Hard Drive Disk Included No Hard Disk Drive Included

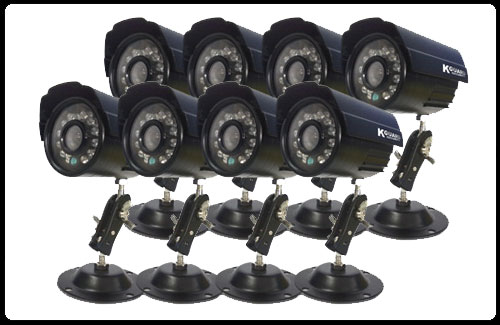

KGUARD 8CH Surveillance DVR + 8 IR CCD Security Cameras Kit
OVERVIEW
H.264 KGUARD SHA-DVR with CCD Security Camera kit bundle NVR Software & CMS INTEGRATION
The Economical DVR enhanced by free bundle NVR & CMS software can bring user lots of special key features its never seen before like Remote Site backup, E-map, Event Management, IP Cam hybrid system, and etc.
BENEFITS
- Free Bundle NVR for Multi-Site Remote Backup
- Free Bundle CMS for Multi-Site Remote Viewing

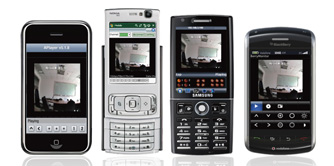

- Access & monitor via dedicated mobile application
(Supports Blackberry, iPhone, Symbian, Windows Mobile)
- All in one package with power & video combine cable, easy to install, plug & play
SPECIFICATIONS

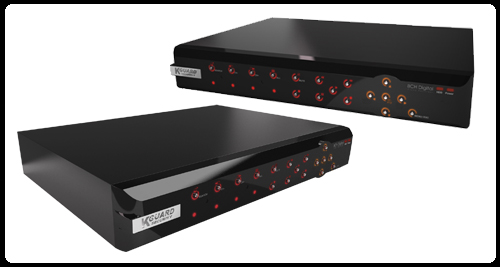

H.264 8CH DVR
|
Model No
|
KG-SHA108 ( 8CH ) |
| Video Compression |
H.264 |
| Video System |
PAL |
| Operation System |
Linux |

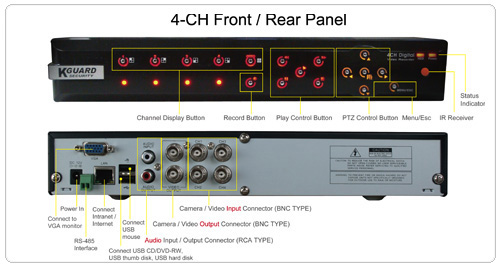

| Video Input / Output |
BNC 8-channel / VGA 1-channel ; BNC 2-channel |
| Audio Input / Output |
RCA 1-channel /1-channel |
| Intercom |
NONE |
| Audio Compression |
8kHz*16bit ADPCM |
| Display Frame Rate |
PAL: 200 fps |
| Playback Resolution |
PAL:CIF(352x288) |
| Recording Frame Rate |
PAL: 200fps@CIF |
| Recording Mode |
Always / schedule: motion detection, manual |
| Recording Pack Time |
15/30/45/60mins file time selectable |
| HDD Interface |
One fixed HDD rack, supports up to 2TB SATA HDD |
| Network Interface |
RJ45, 10M/100M |
| Network Protocol |
Support TCP/IP, DHCP,DDNS, PPPoE |
| Network Function |
Support to live view with IE (Internet Explorer) & with mobile phone |
| USB2.0 |
USB mouse, USB disk (backup, upgrade) |
| Playback |
Local & Network: Playback 1 channel @ CIF at the same time |
| Playback Search |
Date/time, file list |
| Playback Mode |
PLAY / SLOW / FWD / Frame by frame |
| Backup |
Backup via USB flash disk, USB HDD disk, USB CD/DVD-RW & Network |
| PTZ Control |
Built-in RS485, support PELCO-P & PELCO-D |
| Alarm Mode |
Motion Detection, Video loss, HDD loss, HDD full |
| Senor & Alarm I/O |
NONE |
| Power Supply (power adaptor included) |
DC 12V/3A |
| Power consumption |
10-15 W (exclude HDD) |
| Working Temperature |
50F to 104F (10C to 40C) |

CCTV IR Camera
| Model Type |
IR Camera |
| Image Sensor |
1/4" SHARP CCD (*1) |
| Effective Pixel |
PAL: 500(H)X582(V) |
| Horizontal Resolution |
420/480/520TV Line (*1) |
| IR Distance |
10 or 20M (*1) |
| Video Output |
1.0Vp-p. 75ohm (BNC) |
| SIN Ratio |
>48dB |
| Min Illumination |
0 LUX /F1.2 |
| Lens Mount |
3.6mm Lens |
| Electronic Shutter |
PAL: 1/50-1/100.000sec |
| Weather Proof |
IP66 |
| Operating Temp |
-10 ~ 50C |
| Power Supply |
12V DC, 200mA (IR ON) |

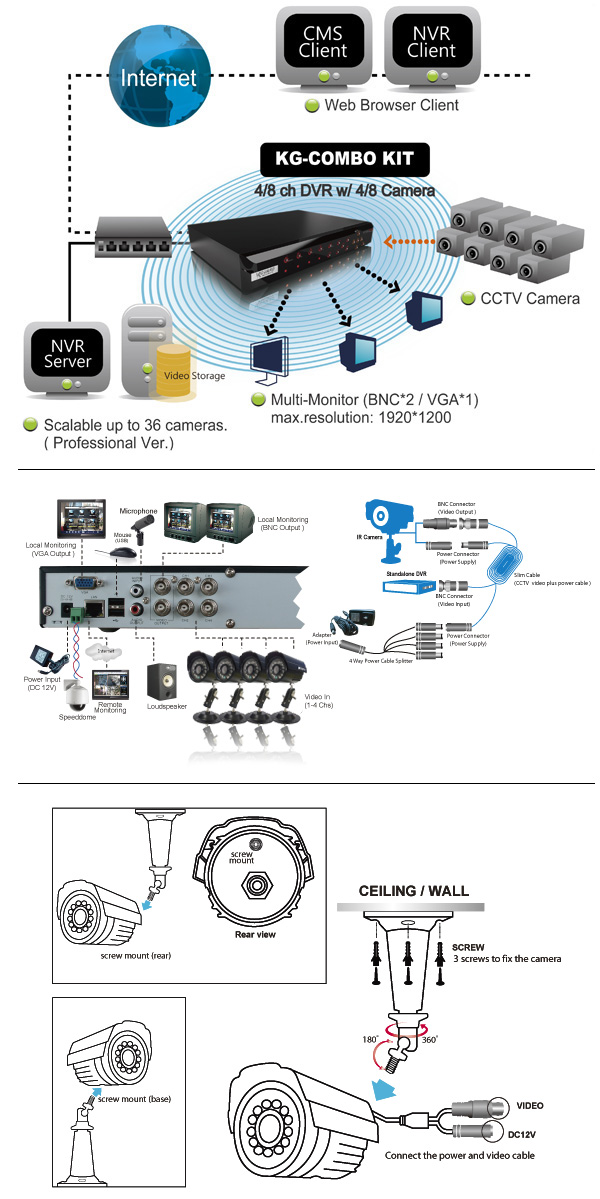

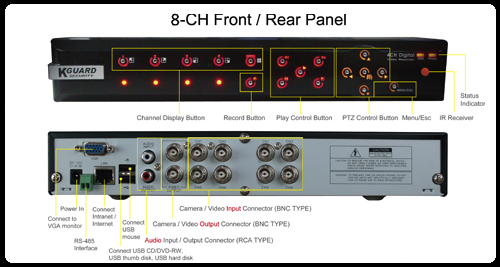

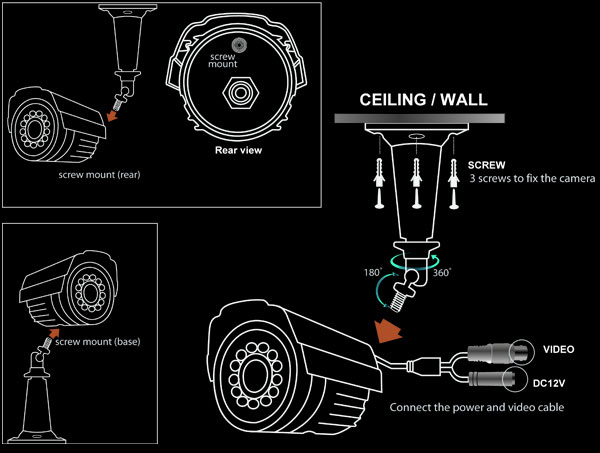

HOW TO CONNECT

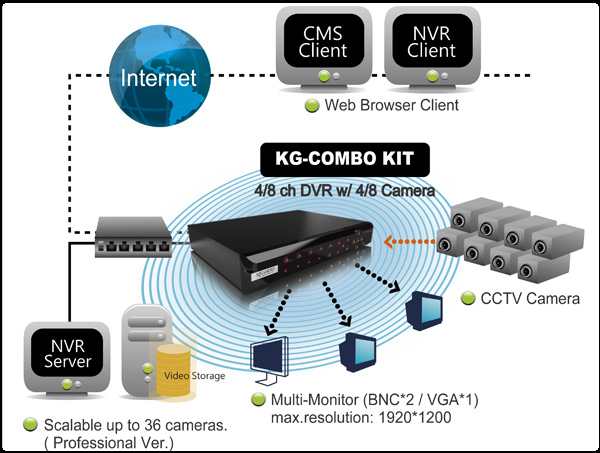

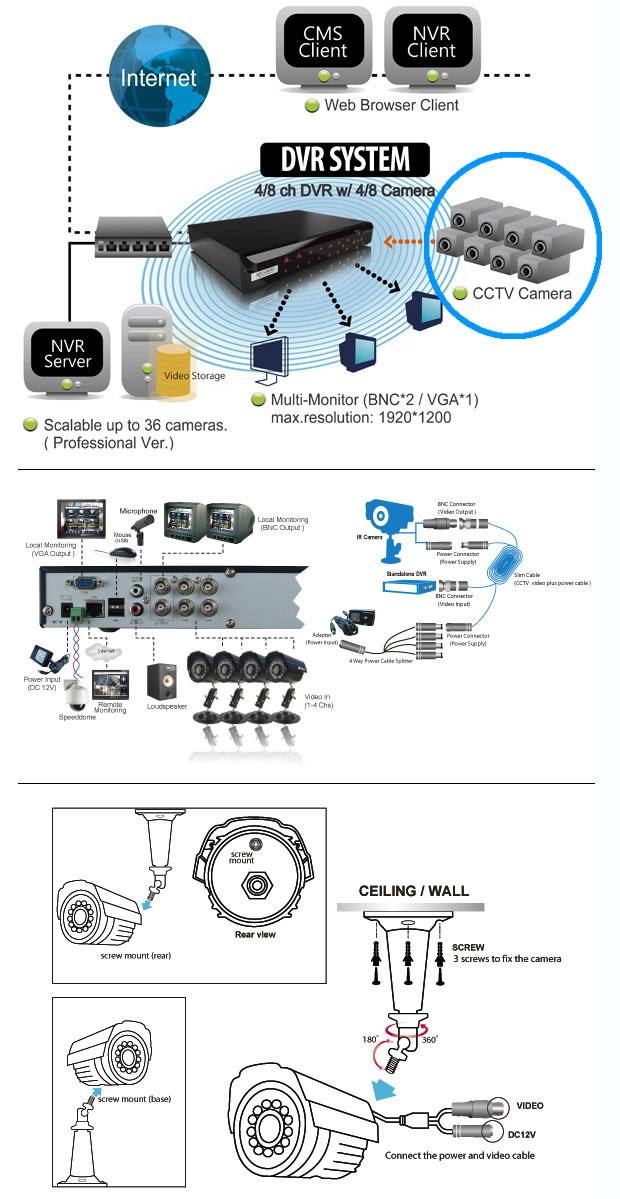

System Diagram

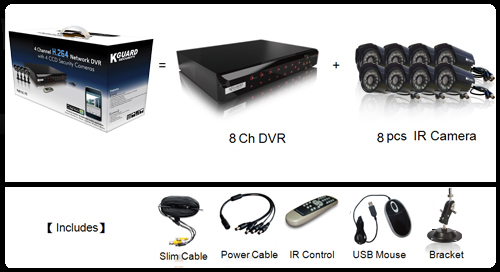

Package Content
|
Product Name
|
KG Model Name ( H.264 DVR with IR Camera ) |
Package Content |
| Camera KIT Accessory |
WeightDimension |
| 8ch DVR Combo KIT |
KG-CA108-H(S)xx( SHA108 *1pcs + Camera KIT *1set ) |
1/4(1/3) CCD Camera KIT:
Camera * 8
Adapter (12V2A) * 2
Slim Cable (18M) * 8
4 Way Power Cable Splitter * 2
Bracket * 8 |
10.6 KG ~ 10.8
KG 440*300*290mm |
|
|
|
|
18/01
|

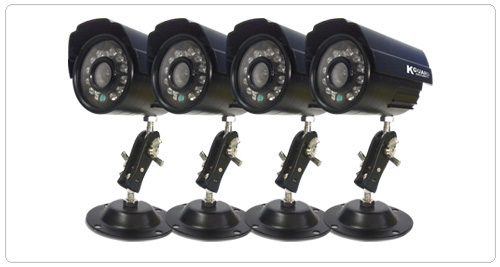

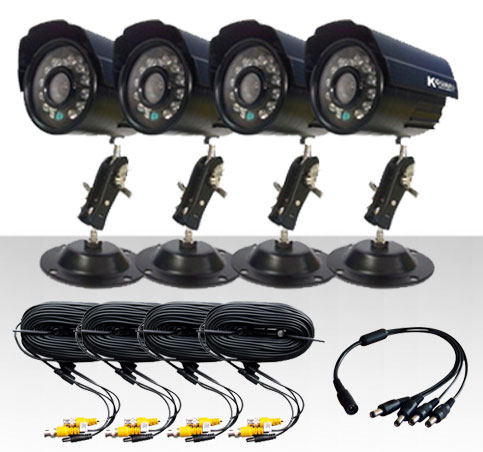

Kworld S/DVR/H02 IR CCD Security Camera Kit - 4 Channel IR Camera, 1/4" Sharp CCD - Black KGUARD IR CCD Security Camera Kit for Surveillance DVR Systems - 4 Cameras and Accessories included
Product Code: S/DVR/H02
SPECIFICATIONS
CCTV Camera
| Model Type |
IR Camera |
| Image Sensor |
1/4" SHARP CCD (*1) |
| Effective Pixel |
PAL: 500(H)X582(V) |
| Horizontal Resolution |
420/480/520TV Line (*1) |
| IR Distance |
10 or 20M (*1) |
| Video Output |
1.0Vp-p. 75ohm (BNC) |
| SIN Ratio |
>48dB |
| Min Illumination |
0 LUX /F1.2 |
| Lens Mount |
3.6mm Lens |
| Electronic Shutter |
PAL: 1/50-1/100.000sec |
| Weather Proof |
IP66 |
| Operating Temp |
-10 ~ 50C |
| Power Supply |
12V DC, 200mA (IR ON) |
HOW TO CONNECT
System Diagram
Package Content
| Product Name |
Package Content |
| Camera KIT Accessory |
Weight Dimension |
| KGUARD IR CCD Security Camera Kit for Surveillance DVR Systems |
1/4 CCD Camera KIT: |
Aprox. 2.8 KG
420*270*80mm |
| Camera * 4 |
| Adapter (12V2A) * 1 |
| Slim Cable (18M) * 4 |
| 4 Way Power Cable Splitter * 1 |
| Bracket * 4 |
|
|
|
|
18/01
|

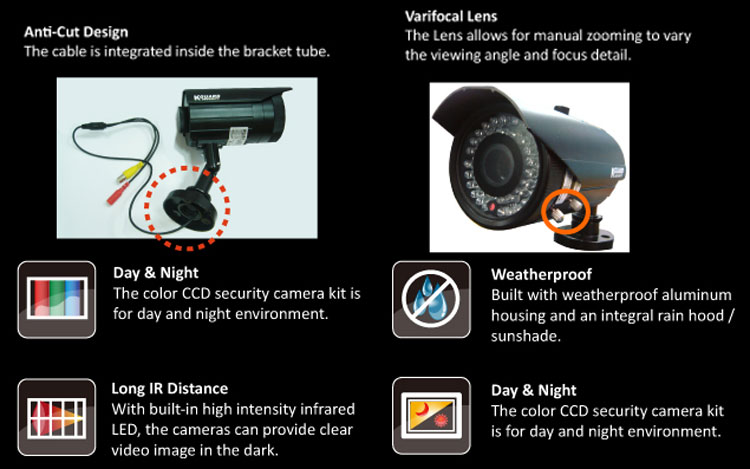

Kworld S/CAM/CW80R13-VF-P CCTV Weatherproof IR Camera - 1/3" HAD CCD, 540TV Lines, 72 IR LEDS, 6-15mm, Day & Night - Black KGUARD CCTV Security Weatherproof IR Camera - 1/3`` HAD CCD 540TV Lines, 72IR LEDs, 6-15mm VF
Product Code: S/CAM/CW80R13-VF-P
SPECIFICATIONS
|
Model No.
|
KG-CW80R13-VF-P |
| Image Device |
1/3" SONY Super HAD CCD |
| Signal System |
PAL |
| Picture Elements |
PAL:752(H)582(V) |
| Horizontal Resolution |
540 TV Lines |
| Minimum Illumination |
While IR ON "0" lux |
| S/N Ratio |
More than 48dB (AGC off) |
| Backlight Compensation |
On/Off Switchable |
| White Balance |
Auto Tracking |
| Focal Lens |
Manual varifocal lens, 6-15 mm |
| Shutter Speed |
1/50(1/60) - 1/100,000 (sec) |
| IR LED |
72pcs, 5/15 |
| Sync System |
Internal Synchronization |
| Infrared Wavelength |
850mm |
| IR Distance |
60M |
| Grade of waterproof |
IP66 |

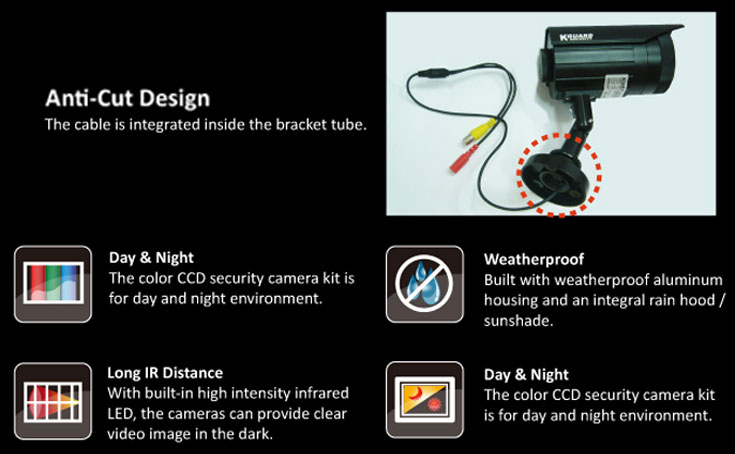

| Bracket |
Anti-cut bracket |
| Operating Temperature |
-10 ~ +50C |
| Power Source |
DC12V |
| Video Out |
BNC, 1.0VP-P,75 |
| Weight |
1270g(N/W) 1440g(G/W) |
| Dimensions |
101mm L:175mm |
|
|
|
|
18/01
|
Kworld S/CAM/CW50R13-P CCTV Weatherproof IR Camera - 1/3" HAD CCD, 540TV Lines, 42 IR LEDS, Day & Night, 16mm - Black KGUARD CCTV Security Weatherproof IR Camera - 1/3" HAD CCD 540TV Lines, 42IR LEDs, 16mm
Product Code: S/CAM/CW50R13-P
SPECIFICATIONS
|
Model No.
|
KG-CW50R13-P |
| Image Device |
1/3" SONY Super HAD CCD |
| Signal System |
PAL |
| Picture Elements |
PAL:752(H) 582(V) |
| Horizontal Resolution |
540 TV Lines |
| Minimum Illumination |
While IR ON "0" lux |
| S/N Ratio |
More than 50dB (AGC off) |
| Backlight Compensation |
On/Off Switchable |
| White Balance |
Auto Tracking |
| Focal Lens |
16 mm |
| Shutter Speed |
1/50(1/60) - 1/100,000 (sec) |
| IR LED |
42pcs, 5/15 |
| Sync System |
Internal Synchronization |
| Infrared Wavelength |
850mm |
| IR Distance |
40M |
| Grade of waterproof |
IP66 |
| Bracket |
Anti-cut bracket |
| Operating Temperature |
-10C ~ +50C |
| Power Source |
DC12V |
| Video Out |
BNC, 1.0VP-P,75 |
| Weight |
880g(N/W) 1080g(G/W) |
| Dimensions |
98.4 L:175mm |
|
|
|
|
18/01
|
Kworld S/CAM/CDI13-P Indoor CCTV Camera Dome Type - 1/3" Sony Super Had CCD, 540 TV Lines - Black KGUARD CCTV Indoor Surveillance Camera Dome Type
Product Code: S/CAM/CDI13-P
SPECIFICATIONS
|
Model No.
|
KG-CDI13-P |
| Image Device |
1/3" SONY Super HAD CCD |
| Signal System |
PAL |
| Picture Elements |
PAL: 752(H)582(V) |
| Horizontal Resolution |
540 TV Lines |
| Minimum Illumination |
0.1LUX/F1.2 |
| S/N Ratio |
More than 50dB (AGC off) |
| Backlight Compensation |
Auto |
| White Balance |
Auto Tracking |
| Focal Lens |
3.6mm |
| Shutter Speed |
1/50(1/60) - 1/100,000 (sec) |
| Operating Temperature |
-10C ~ +50C |
| Power Source |
DC12V |
| Video Out |
BNC |
| Weight |
285g(N/W) 465g(G/W) |
| Dimensions |
127.7mm H:78.8mm |
|
|
|
|
18/01
|

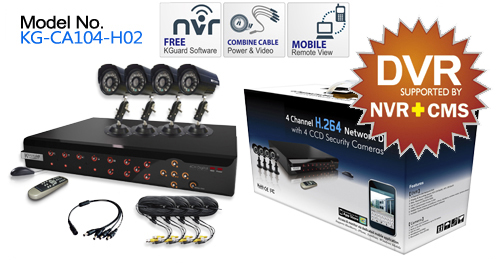

Kworld SHA-DVR Combo Kit - 4 Channel Surveillance DVR & 4 IR CCD, Motion Detection - Black
- No Hard Drive Disk Included No Hard Drive Disk Included
KGUARD 4CH Surveillance DVR + 4 IR CCD Security Cameras Kit
KGUARD SHA-DVR with CCD Security Camera kit bundle NVR Software & CMS INTEGRATION
The Economical DVR enhanced by free bundle NVR & CMS software can bring user lots of special key features its never seen before like Remote Site backup, E-map, Event Management, IP Cam hybrid system, and etc.
BENEFITS
- Free Bundle NVR for Multi-Site Remote Backup
- Free Bundle CMS for Multi-Site Remote Viewing
- Access & monitor via dedicated mobile application
(Supports Blackberry, iPhone, Symbian, Windows Mobile)
- All in one package with power & video combine cable, easy to install, plug & play
SPECIFICATIONS
H.264 4CH DVR
| Model No |
KG-SHA104 ( 4CH ) |
| Video Compression |
H.264 |
| Video System |
PAL |
| Operation System |
Linux |
| Video Input / Output |
BNC 4-channel / VGA 1-channel ; BNC 2-channel |
| Audio Input / Output |
RCA 1-channel /1-channel |
| Intercom |
NONE |
| Audio Compression |
8kHz*16bit ADPCM |
| Display Frame Rate |
PAL: 100 fps |
| Playback Resolution |
PAL: CIF(352x288), HD1(704x288), D1(704x576) |
| Recording Frame Rate |
PAL: 100fps@CIF, 25fps@D1, 50fps@HD1 |
| Recording Mode |
Always / schedule: motion detection, manual, sensor triggered(for 16CH only) |
| Recording Pack Time |
15/30/45/60mins file time selectable |
| HDD Interface |
One fixed HDD rack, supports up to 2TB SATA HDD |
| Network Interface |
RJ45, 10M/100M |
| Network Protocol |
Support TCP/IP, DHCP,DDNS, PPPoE |
| Network Function |
Support to live view with IE (Internet Explorer) & with mobile phone |
| USB2.0 |
USB mouse, USB disk (backup, upgrade) |
| Playback |
Local: Playback 4 channels at the same timeNetwork: 1-channel |
| Playback Search |
Date/time, file list |
| Playback Mode |
PLAY / SLOW / FWD / Frame by frame |
| Backup |
Backup via USB flash disk, USB HDD disk, USB CD/DVD-RW & Network |
| PTZ Control |
Built-in RS485, support PELCO-P & PELCO-D |
| Alarm Mode |
Motion Detection, Video loss, HDD loss, HDD full, Sensor triggered(16CH) |
| Senor & Alarm I/O |
NONE |
Power Supply
(power adaptor included) |
DC 12V/3A |
| Power consumption |
10-15 W (exclude HDD) |
| Working Temperature |
50F to 104F (10C to 40C) |
CCTV CAMERA
| Model Type |
IR Camera |
| Image Sensor |
1/3 Sony or 1/4" SHARP CCD (*1) |
| Effective Pixel |
PAL: 500(H)X582(V) |
| Horizontal Resolution |
420/480/520TV Line (*1) |
| IR Distance |
10 or 20M (*1) |
| Video Output |
1.0Vp-p. 75ohm (BNC) |
| SIN Ratio |
>48dB |
| Min Illumination |
0 LUX /F1.2 |
| Lens Mount |
3.6mm Lens |
| Electronic Shutter |
PAL: 1/50-1/100.000sec |
| Weather Proof |
IP66 |
| Operating Temp |
-10 ~ 50C |
| Power Supply |
12V DC, 200mA (IR ON) |
HOW TO CONNECT
System Diagram
| Product Name |
KG Model Name ( H.264 DVR with IR Camera ) |
Package Content |
| Camera KIT Accessory |
Weight Dimension |
| 4ch DVR Combo KIT |
KG-CA104-H(S)xx( SHA104 *1pcs + Camera KIT *1set ) |
1/4 CCD Camera KIT: |
10.6 KG ~ 10.8 KG 440*300*290mm |
| Camera * 4 |
| Adapter (12V2A) * 1 |
| Slim Cable (18M) * 4 |
| 4 Way Power Cable Splitter * 1 |
| Bracket * 4 |
|
|
|
|
18/01
|
Nikon D3100 Digital SLR Camera - 14.2MP Black
- 3.0" TFT LCD, Image Sensor, Live View
- AF-S 18-55mm VR D3100
A moving experience in digital photography that everyone can enjoy.
Beautiful
The camera that amazes.
Shoot with D3100 and enjoy the beauty.
D3100 employs Nikon's latest breakthrough technology to deliver superb results. A newly developed DX-format CMOS sensor with 14.2 effective megapixels works in tandem with new EXPEED 2 image processing engine to produce highly detailed images containing rich tonal gradations and faithful color. This combination also helps produce beautifully defocused backgrounds - a hallmark of quality digital SLR cameras. In addition, a maximum ISO of 3200 (expandable to ISO 12800 equivalent using the Hi 2 setting) allows you to shoot without worrying about camera-shake blur.
Easy Operation
The camera that teaches you how... Let D3100 satisfy your dreams of better photos.
An enchanting portrait against a softly defocused background, or a radiant couple surrounded by sparkling lights. Taking photos like these is easy with D3100's Guide Mode - in-camera guidance that shows you step-by-step how to change camera settings. Just select a Guide Mode setting that matches the scene then let Guide Mode assist. Not only will you obtain the desired results, you'll understand how you achieved them. Guide Mode even displays sample photos so you'll know what to expect from each setting.
Full HD movies
Breathtaking full HD 1080p movies.
Discover the difference a digital SLR makes when shooting movies. A wide selection of NIKKOR lenses gives you freedom to explore different angles and obtain lovely defocused backgrounds while D3100's advanced imaging system assures outstanding quality. And for action sequences, new Subject-tracking AF keeps subjects properly focused. After the shoot, view movies on the large 7.5-cm (3-in.) LCD monitor and perform simple editing tasks like trimming scenes before or after a designated point and extracting still images. HDMI compatibility* lets you connect D3100 to an HDTV with playback managed by the TV's remote control**.
* Via HDMI mini-pin connector.
** HDMI CEC-compatible TVs only.
- DX-format, 14.2 effective megapixel CMOS image sensor [NEW]
- Softly defocused backgrounds that only a D-SLR can produce
- EXPEED 2 - Nikon's new image processing engine [NEW]
- Faithful color reproduction and smooth, beautiful gradations
- ISO sensitivity 100-3200 (expandable to ISO 12800 equivalent)
- Great performance and less blur in dimly lit settings
- Active D-Lighting - Beautiful balancing of light and shade
- Picture Control - Customizing images before the shot
- Guide Mode - The sure way to obtain desired results
- Scene Modes - Your short cut to expected results
- Scene Auto Selector - Letting D3100 decide the best mode to match the scene more
- Help function - One-touch access to in-camera assistance
- Info display format - Choose the view that's right for you
- D-Movie - Breathtaking full HD 1080p movies [NEW]
- Live View - Live View with new AF modes and large 7.5-cm (3-in.) monitor
- AF Mode for Live View and Movie Shooting - New autofocus (AF) modes help capture moving subjects
- AF-area modes for live view and movies - Four modes to capture subject
- 11-point AF system - Quick, accurate autofocus ready for the decisive moment
- Advanced white balance control - More natural whites
- Built-in pop-up flash - Additional light whenever needed
- Convenient and powerful Speedlight SB-400 (sold separately)
- Scene Recognition System - Intelligent operation in any setting
- Ample image and movie editing functions - In-camera image and movie editing
- High-performance NIKKOR lenses - The right choice for amazing photos and full HD movies.
- Nikon's original VR system - Less camera-shake blur in images and viewfinder
- Compact and lightweight - Easy operation and take-anywhere portability
- Continuous 3 fps shooting - Catch the decisive moment
- Eye-Fi support - Transfer photos and movies wirelessly
- Easy-to-view finder - New superimposed indicators for a better view
- New shutter mechanism - Quiet shooting, even with Live View
- Rangefinder - Quick and easy focusing
- Nikon Integrated Dust Reduction System - Prevent dust from ruining photos
- Image playback with transitions [NEW] - View photos with striking special effects
- Convenient playback - Find images instantly by date
- Date imprint - Stamp photos with shooting date
- Long-lasting lithium-ion battery [NEW] - Plenty of stamina for plenty of photos
- ViewNX 2 software [NEW] - Your imaging toolbox (bundled) - Smart image management with a PC
- Capture NX 2 software - Expanded creative control (sold separately)
- Intuitive operation for the finishing touch
- my Picturetown - Free image sharing and storage - Share photos and movies on the web
Nikon Digital SLR Camera D3100 Specifications
|
Type
|
|
Type
|
Single-lens reflex digital camera
|
|
Lens mount
|
Nikon F mount (with AF contacts)
|
|
Effective angle of view
|
Approx. 1.5 x lens focal length (Nikon DX format)
|
|
|
|
Effective pixels
|
14.2 million
|
|
Image sensor
|
|
Image sensor
|
23.1 x 15.4 mm CMOS sensor
|
|
Total pixels
|
14.8 million
|
|
Dust-reduction system
|
Image sensor cleaning, Airflow Control System, Image Dust Off reference data (optional Capture NX 2 software required)
|
|
|
|
Image size (pixels)
|
4,608 x 3,072 [L] 3,456 x 2,304 [M] 2,304 x 1,536 [S]
|
|
File format
|
NEF (RAW)
JPEG: JPEG-Baseline compliant with fine (approx. 1:4), normal (approx. 1:8), or basic (approx. 1:16) compression
NEF (RAW) + JPEG: Single photograph recorded in both NEF (RAW) and JPEG formats
|
|
Picture Control System
|
Standard, Neutral, Vivid, Monochrome, Portrait, Landscape; selected Picture Control can be modified
|
|
Media
|
SD (Secure Digital), SDHC and SDXC memory cards
|
|
File system
|
DCF (Design Rule for Camera File System) 2.0, DPOF (Digital Print Order Format), Exif 2.21 (Exchangeable Image File Format for Digital Still Cameras), PictBridge
|
|
Viewfinder
|
|
Viewfinder
|
Eye-level pentamirror single-lens reflex viewfinder
|
|
Frame coverage
|
Approx. 95% horizontal and 95% vertical
|
|
Magnification
|
Approx. 0.8 x (50 mm f/1.4 lens at infinity, -1.0 m-1)
|
|
Eyepoint
|
18 mm (-1.0 m-1)
|
|
Diopter adjustment
|
-1.7 to +0.5 m-1
|
|
Focusing screen
|
Type B BriteView Clear Matte Mark VII screen
|
|
Reflex mirror
|
Quick return
|
|
Lens aperture
|
Instant return, electronically controlled
|
|
Lens
|
|
Compatible lenses
|
AF-S and AF-I: All functions supported.
Type G or D AF NIKKOR without built-in autofocus motor: All functions except autofocus supported. IX NIKKOR lenses not supported.
Other AF NIKKOR: All functions supported except autofocus and 3D color matrix metering II. Lenses for F3AF not supported.
Type D PC NIKKOR: All functions supported except autofocus and some shooting modes.
AI-P NIKKOR: All functions supported except autofocus and 3D color matrix metering II.
Non-CPU: Autofocus not supported. Can be used in exposure mode M, but exposure meter does not function.
Note: Electronic rangefinder can be used if lens has a maximum aperture of f/5.6 or faster.
|
|
Shutter
|
|
Type
|
Electronically controlled vertical-travel focal-plane shutter
|
|
Speed
|
1/4000 to 30 s in steps of 1/3 EV, Bulb
|
|
Flash sync speed
|
X=1/200 s; synchronizes with shutter at 1/200 s or slower
|
|
Release
|
|
Release mode
|
|
|
Frame advance rate
|
Up to 3 fps (manual focus, mode M or S, shutter speed 1/250 s or faster, and other settings at default values)
|
|
Self-timer
|
2 s, 10 s
|
|
Exposure
|
|
Metering
|
TTL exposure metering using 420-pixel RGB sensor
|
|
Metering method
|
Matrix: 3D color matrix metering II (type G and D lenses); color matrix metering II (other CPU lenses)
Center-weighted: Weight of 75% given to 8-mm circle in center of frame
Spot: Meters 3.5-mm circle (about 2.5% of frame) centered on selected focus point
|
|
Range
(ISO 100, f/1.4 lens, 20C/68F)
|
Matrix or center-weighted metering: 0 to 20 EV
Spot metering: 2 to 20 EV
|
|
Exposure meter coupling
|
CPU
|
|
Exposure modes
|
Auto modes (auto, auto [flash off]); scene modes (portrait; landscape; child; sports; close up; night portrait);
programmed auto with flexible program (P); shutter-priority auto (S); aperture-priority auto (A); manual (M)
|
|
Exposure compensation
|
-5 to +5 EV in increments of 1/3 EV
|
|
Exposure lock
|
Luminosity locked at detected value with AE-L/AF-L button
|
|
ISO sensitivity
(Recommended Exposure Index)
|
ISO 100 to 3200 in steps of 1 EV; can also be set to approx. 1 EV above ISO 3200 (ISO 6400 equivalent) or to
approx. 2 EV above ISO 3200 (ISO 12800 equivalent); auto ISO sensitivity control available
|
|
Active D-Lighting
|
On, Off
|
|
Focus
|
|
Autofocus
|
Nikon Multi-CAM 1000 autofocus sensor module with TTL phase detection, 11 focus points (including one
cross-type sensor), and AF-assist illuminator (range approx. 0.5 to 3m/1 ft. 8 in. to 9 ft. 10 in.)
|
|
Detection range
|
-1 to +19 EV (ISO 100, 20C/68F)
|
|
Lens servo
|
Autofocus (AF): Single-servo AF (AF-S); continuous-servo AF (AF-C); auto AF-S/AF-C selection (AF-A); predictive focus tracking activated automatically according to subject status
Manual focus (MF): Electronic rangefinder can be used
|
|
Focus point
|
Can be selected from 11 focus points
|
|
AF-area mode
|
Single-point AF, dynamic-area AF, auto-area AF, 3D-tracking (11 points)
|
|
Focus lock
|
Focus can be locked by pressing shutter-release button halfway (single-servo AF) or by pressing AE-L/AF-L button
|
|
Flash
|
|
Built-in flash
|
Auto, Portrait, Child, Close up, Night portrait: Auto flash with auto pop-up
P, S, A, M: Manual pop-up with button release
|
|
Guide number
|
Approx. 12/39, 13/43 with manual flash (m/ft, ISO 100, 20C/68F)
|
|
Flash control
|
TTL: i-TTL balanced fill-flash and standard i-TTL flash for digital SLR using 420-pixel RGB sensor are available with built-in flash and SB-900, SB-800, SB-600, or SB-400 (i-TTL balanced fill-flash is available when matrixor center-weighted metering is selected)
Auto aperture: Available with SB-900/SB-800 and CPU lens
Non-TTL auto: Supported flash units include SB-900, SB-800, SB-80DX, SB-28DX, SB-28, SB-27, and SB-22S
Distance-priority manual: Available with SB-900 and SB-800
|
|
Flash mode
|
Auto, auto with red-eye reduction, fill-flash, auto slow sync, auto slow sync with red-eye correction, and rear curtain with slow sync
|
|
Flash compensation
|
-3 to +1 EV in increments of 1/3 EV
|
|
Flash-ready indicator
|
Lights when built-in flash or optional flash unit such as SB-900, SB-800, SB-600, or SB-400 is fully charged; blinks for 3 s after flash is fired at full output
|
|
Accessory shoe
|
ISO 518 hot-shoe with sync and data contacts and safety lock
|
|
Nikon Creative Lighting
System (CLS)
|
Advanced Wireless Lighting supported with SB-900, SB-800, or SU-800 as commander; Flash Color Information Communication supported with built-in flash and all CLS-compatible flash units
|
|
Sync terminal
|
Sync Terminal Adapter AS-15 (available separately)
|
|
|
|
White balance
|
Auto, incandescent, fluorescent (7 types), direct sunlight, flash, cloudy, shade, preset manual, all except preset manual with fine tuning.
|
|
Live View
|
|
Lens servo
|
Autofocus (AF): Single-servo AF (AF-S); full-time-servo AF (AF-F)
Manual focus (MF)
|
|
AF-area mode
|
Face-priority AF, wide-area AF, normal-area AF, subject-tracking AF
|
|
Autofocus
|
Contrast-detect AF anywhere in frame (camera selects focus point automatically when face-priority AF or subject-tracking AF is selected)
|
|
Scene Auto Selector
|
Available in auto and auto (flash off) modes
|
|
Movie
|
|
Metering
|
TTL exposure metering using main image sensor
|
|
Metering method
|
Matrix
|
|
Frame size (pixels)
and frame rate
|
1,920 x 1,080 (24p): 24 fps (23.976 fps) 1,280 x 720 (30p): 30 fps (29.97 fps)
1,280 x 720 (25p): 25 fps 1,280 x 720 (24p): 24 fps (23.976 fps)
640 x 424 (24p): 24 fps (23.976 fps)
|
|
Maximum recording time
|
10 min.
|
|
File format
|
MOV
|
|
Video compression
|
H.264/MPEG-4 Advanced Video Coding
|
|
Audio recording format
|
Linear PCM
|
|
Audio recording device
|
Built-in monaural microphone
|
|
Monitor
|
|
LCD monitor
|
7.5-cm/3-in., approx. 230 k-dot TFT LCD with brightness adjustment
|
|
Playback
|
|
Playback function
|
Full-frame and thumbnail (4, 9, or 72 images or calendar) playback with playback zoom, movie playback, slide show, histogram display, highlights, auto image rotation, and image comment (up to 36 characters)
|
|
|
|
USB
|
Hi-Speed USB
|
|
Video output
|
NTSC, PAL
|
|
HDMI output
|
Type C mini-pin HDMI connector
|
|
Accessory terminal
|
Remote cord: MC-DC2 (available separately)
GPS unit: GP-1 (available separately)
|
|
Supported languages
|
|
Supported languages
|
Chinese (Simplified and Traditional), Czech, Danish, Dutch, English, Finnish, French, German, Indonesian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish, Turkish
|
|
Power source
|
|
Battery
|
One Rechargeable Li-ion Battery EN-EL14
|
|
AC adapter
|
AC adapter EH-5a; requires power connector EP-5A (available separately)
|
|
Tripod socket
|
|
Tripod socket
|
1/4 in. (ISO 1222)
|
|
Dimensions / weight
|
|
Dimensions (W x H x D)
|
Approx. 124 x 96 x 74.5 mm (4.9 x 3.8 x 2.9 in.)
|
|
Weight
|
Approx. 455 g / 1lb. (camera body only); Approx. 505 g (1lb. 1.8 oz.) with battery and memory card but without body cap
|
|
Operating environment
|
|
Temperature
|
0 to 40C (32 to 104F)
|
|
Humidity
|
Less than 85% (no condensation)
|
|
Accessories
|
|
Supplied accessories
(may differ by country or area)
|
Rechargeable Li-ion Battery EN-EL14, Battery Charger MH-24, Eyepiece Cap DK-5, Rubber Eyecap DK-20,
Camera Strap AN-DC3, Accessory Shoe Cover BS-1, Body Cap BF-1B, ViewNX 2 CD-ROM, Ferrite Core (2 types)
|
- * Microsoft and Windows, Windows 7 are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
- * Macintosh and QuickTime are registered trademarks or trademarks of Apple Inc. in the United States and/or other countries.
- * The SD logo is a trademark of the SD Card Association.
- * The SDXC logo is a trademark.
- * PictBridge is a trademark.
- * HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
- * Products and brand names are trademarks or registered trademarks of their respective companies.
- * Images in viewfinders, on LCDs and monitors shown in this website are simulated.
Memory card capacity*1
The following table shows the approximate number of pictures that can be stored on a 4 GB SanDisk Extreme SDHC card at different image quality and size settings.
|
Image quality
|
Image size
|
File size*1
|
No. of images*1
|
Buffer capacity*2
|
|
NEF (RAW) +
JPEG fine*3
|
L
|
19.8 MB
|
151
|
9
|
|
NEF (RAW)
|
-
|
12.9 MB
|
226
|
13
|
|
JPEG fine
|
L
M
S
|
6.8 MB
3.9 MB
1.8 MB
|
460
815
1700
|
100
100
100
|
|
JPEG normal
|
L
M
S
|
3.4 MB
2.0 MB
0.9 MB
|
914
1500
3300
|
100
100
100
|
|
JPEG basic
|
L
M
S
|
1.7 MB
1.0 MB
0.5 MB
|
1700
3000
6000
|
100
100
100
|
- *1 : All figures are approximate. File size varies with scene recorded.
- *2 : Maximum number of exposures that can be stored in memory buffer at ISO 100.
Drops when noise reduction is on.
- *3 : Image size applies to JPEG images only. Size of NEF (RAW) images can not be changed. File size is the total for
NEF (RAW) and JPEG images.
Approved memory cards
The following SD memory cards have been tested and approved for use in the D3100. Cards with class 6 write speeds are recommended for movie recording. Recording may end unexpectedly when cards with slower write speeds are used.
| |
SD memory cards
|
SDHC memory cards*2
|
SDXC memory cards*3
|
|
SanDisk
|
512 MB1GB2GB*1
|
4GB8GB16GB
|
64GB
|
|
Toshiba
|
512 MB1GB2GB*1
|
4GB8GB16GB32GB
|
64GB
|
|
Panasonic
|
512 MB1GB2GB*1
|
4GB6GB8GB12GB16GB32GB
|
48GB64GB
|
|
LEXAR MEDIA
|
512 MB1GB2GB*1
|
4GB8GB
|
-
|
|
Platinum II
|
512 MB1GB2GB*1
|
4GB8GB
|
-
|
|
Professional
|
512 MB1GB2GB*1
|
4GB8GB16GB32GB
|
-
|
- *1 : Check that any card readers or other devices with which the card will be used support 2 GB cards.
- *2 : Check that any card readers or other devices with which the card will be used are SDHC-compliant.
- *3 : Check that any card readers or other devices with which the card will be used are SDXC-compliant.
Notes:
- * Please check with the SD card manufacturer regarding features, specifications, warranty, and other items.
Nikon cannot assure compatibility with SD cards not listed above.
- * Limited to cards tested at the time of July 2010. Additional cards may be fully compatible.
Contact Nikon Customer Service for additional information.
|
|
|
|
18/01
|
FujiFilm FinePix Z80 Digital Camera - Champagne Gold
- 14.2MP, 5x Optical Zoom, 2.7" LCD, Digital Image Stabilization, SR Auto, HD Video FinePix Z Series
FinePix Z80
Number of Effective Pixels
14M CCD
Optical Zoom
5.0x
LCD Monitor
2.7-inch
Sensitivity
ISO 1600
SR AUTO
Digital Image Stabilization
Photobook Assist
Intelligent Flash
Features
Colorful Compact with Superb Image Quality
The stylish compact and colorful full metal body veils powerful image quality.
SR AUTO & Face Detection
Equipped with the 6 scene SR AUTO (Scene Recognition Auto) and Face Detection, scenes and faces can be captured and optimized even more with the detection functions.
Easy-to-use Intelligent Shooting Modes
Simple shooting modes allow you to capture the best of any scene with versatility.
Editing, Uploading and Sharing for Everyone
Sharing your favorite pictures and videos online cannot be made any simpler - just shoot, edit, select, and upload.
Simple and Easy Playback Functions
Offering convenient image search and playback functions for you to share and view with your family and friends.
Feature 1Colorful Compact with Superb Image Quality
The stylish compact and colorful full metal body veils powerful image quality.
Stylish Full Metal Body in Six Colors
Rich in choice with six colors, the full metal stylish body brings out the luxurious texture in the FinePix Z80. Available in Pink, Purple, Mint, Lavender, Brown and Gold, simply choose the one that will fit your style.
Fujinon 5x Optical Zoom
Highly Regarded by Professionals World-wide
Fujinon Lens, the high precision optic lens from Fujifilm has received positive praises, used in various industries - satellite in outer space, TV/film, surveillance, and compact cameras. The technology provides great wide angle and 5x optical zoom.
- Wide Angle
- 5x Optical Zoom
Microsite
Discover the flourishing performance of the top brand Fujinon Lens used widely in various areas.
- Fujinon Lens Special Site
Digital Image Stabilization
Automatically detects blurred subjects and instantaneously increases shutter speed to ensure crisp, sharp images.
- Conventional Digital Camera
- FinePix Z80
High Sensitivity ISO1600
Indoors, at night, or in the midst of fast-moving action; high sensitivity (ISO1600) makes it easy to take bright, clear photos regardless of the conditions.
HDTV-Compatible Photos & Video
Able to capture both photos and movies in high-definition 16:9 format, the FinePix Z80 lets you discover the impact of full-screen HDTV image display.
- * Optional HD Player HDP-L1 is required.
Photo Shooting
Capture high resolution images in 16:9 format (4,320 x 2,432 pixels, 1,920 x 1,080 pixels).
Movie Shooting
Capture high resolution images in 16:9 format (1,280 x 720 pixels).
Optional HDTV Connection Kit
Combining an HD card reader and a remote control, the optional connection kit makes it easy to display photos and movies on your HDTV.

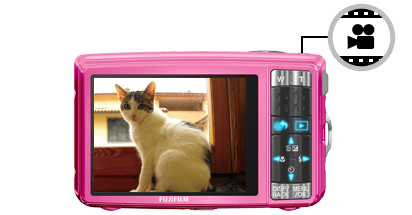

One Touch Movie Button
One Touch Movie button just for shooting movies! No settings. Just press, shoot, and enjoy the movie.
Feature 2SR AUTO & Face Detection
Equipped with the 6 scene SR AUTO (Scene Recognition Auto) and Face Detection, scenes and faces can be captured and optimized even more with the detection functions.
6 Scene SR AUTO
Framed scenes are automatically detected and selected into appropriate camera settings: Portrait, Landscape, Night, Macro, Night Portrait, and Backlit Portrait.
 Portrait - Recognizes portraits by detecting the faces quickly in the frame and optimizing focus, brightness and white balance.
 Landscape - Scenic shots such as mountains and buildings are automatically recognized. Colors of the sky, forests, and flower fields are captured in vivid colors and depth.
 Night - For low-light and night-time scenarios, shutter speed and sensitivity are automatically adjusted, producing blur-free pictures with minimal noise.
 Macro - Macro mode sets the focusing position of the details of small flowers or tiny subjects accurately.
 Night Portrait - When photographing people at night or in low light, SR AUTO optimizes flash range, shutter speed, and exposure of the portraits, while capturing smooth and luminous background.
 Backlit Portrait - Optimizes brightness of the faces that usually end up in shadow and underexposure caused by the light behind.
Face Detection
Face Detection optimizes people pictures by detecting faces and adjusting focus and exposure to ensure bright, clear results.
- Conventional Digital Camera
- FinePix Z80
Red-eye Removal in Detected Faces
Red-eye removal automatically detects and corrects flash reflection for a perfect end result.
Instantly Detect up to 6 Faces!
The Face Detection can simultaneously recognizes up to 6 faces in a photo. Share your group portraits using the Zoom Up function in playbacks, checking each detected face. Each priceless expression can be cropped and saved in clear high resolution results.
Face Detection Timer Function
The Face Detection Self-Timer automatically sets off after the number and position of faces in a scene are detected, snapping the photo at the right moment, with all the faces in focus and properly exposed.
Couple Timer
Just the two of you? Couple Timer waits until two faces are close together in the frame. Select Near, Close Up or Super Close depending on the level of intimacy you're aiming for!
Group Timer
Out and about with your friends? Group Timer mode gives you time to get into position as it waits until the number of faces are detected in the frame. You can select up to 4 faces and enjoy the moment ready to be captured!
Feature 3Easy-to-use Intelligent Shooting Modes
Simple shooting modes allow you to capture the best of any scene with versatility. The widely popular Motion Panorama creates stunning wide-scale images by simply sweeping the camera right or left.

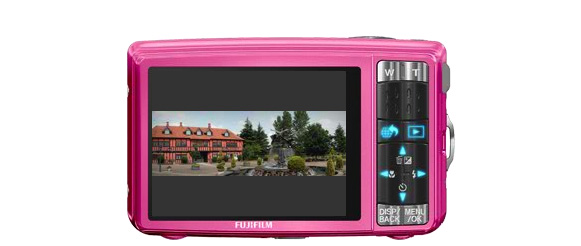

Motion Panorama
Lets you take panorama photos as simply as 1, 2, 3! The camera automatically stitches together three consecutive shots, with simple in-frame guidance to ensure the images are aligned. The resulting image is saved to the memory card as an impressive panorama.
Microsite
Introducing handy tips on how to capture great panoramic images with Motion Panorama.
- Motion Panorama Special Site
Tracking Auto Focus
Keeps fast moving subjects in the frame and in focus, even at 5x zoom. Great for capturing dynamic close-ups.
Natural Light and with Flash
Can't decide whether it's best to use flash? Choose this mode, press the shutter and automatically capture the same scene twice: once with high sensitivity and natural light, and the second time with Intelligent Flash. Later choose one or keep both!
Versatile Shooting Modes
An extensive selection of pre-programmed shooting modes ensures great photos in various conditions, eliminating the need to fuss with camera settings while delivering optimum results.
 SR AUTO - Frame your shot and SR AUTO intelligently recognizes the scene and selects the ideal settings.
 Auto - The easiest mode for taking pictures. Use this for ordinary photography.
 Program AE - An automatic mode to set the white balance and exposure.
 Natural Light & with Flash - Shoots 2 images continuously, without flash and with flash. Comes in great handy during marginal shooting situations.
 Natural Light - Retains natural ambience of shots taken in low-light conditions.
 Portrait - Set for shooting portraits. Skin tones are softened as it enhances the overall natural look.
 Portrait Enhancer - Enables automatic enhancements of skin tone.
 Landscape - Best for shooting scenery in daylight capturing clear and sharp shots of buildings and mountains effectively.
 - Motion Panorama
Sweep the camera right or left to create panoramic image.
 -
- Sport
A quick recognition of persons in motion or objects for a faster shutter speed to help you catch the perfect moment.
 - Night
Mode for shooting evening and night scenes. A picture is taken with a slow shutter.
 - Night (Tripod)
Clear shots of twilight scenes using tripod.
 Sunset - Capture sunset scenes vivid in color.
 Snow - Most adaptable to snow scenes without unnatural darkened images or where the whole screen appears white.
 Beach - Clear shots of people without darkened images under strong sunlight.
 Party - Best for shooting indoor weddings or parties. Retains the natural ambience in low-light conditions.
 Flower - Capture a clear close-up shots of blooming flowers rich in color.
 Text - Clear shots of letters on a document or white board.
 Auction - Combines multiple photos into a single image ready for easy uploading to auction sites.
 Successive Movie - Join a series of movie clips into a single movie.
Feature 4Editing, Uploading and Sharing for Everyone
Sharing your favorite pictures and videos online cannot be made any simpler - just shoot, edit, select, and upload.
Easy Web Uploading to YouTube & FACEBOOK via MyFinePix Studio
The FinePix Z80 features image selection and editing functions that make it easier than ever to upload video clips or still photos to YouTube & FACEBOOK sites.
In-camera Editing
In-camera Movie Edit and Edit for Blog functions let you edit captured images, which can then be marked with a touch of the convenient Upload button.
Upload
When the FinePix Z80 is connected to a PC, the marked images are uploaded to the designated site, eliminating the need for time-consuming PC-based image processing or selection.
MyFinePix Studio automatically searches for new images to upload for you
MyFinePix Studio detects new images to upload. Finding new image to upload, uploader starts automatically.
It's Easy to Create Your Very Own Photo Albums!
Fujifilm's Tagging Technology lets you tag images for search optimization and organization of your photo collection in-camera.
Favorites Rank
Sort your favorite photos tagged by rank of stars from 0 though 5. Quickly search favorite pictures based on search criteria.
Photobook Assist
Create a photo album in your camera. Easily accessible and mobile, you can share images with family and friends anytime, anywhere. Installed in-camera, you can create a photobook folder where tagged images will be stored and organized accordingly. Your photobook can also be ordered online for print when connected to the internet*1, as well as when you go to stores to get your photos printed*2, images can easily be sorted when tagged.
- *1 MyFinePix Studio is required to be updated through Internet to use this function.
- *2 Print service availability depends on region.
Technology Movie
Introduces the Photobook Assist function which enables easy Photobook ordering.
 Special Movie
Post Capture Editing
Try our in-camera movie and image editing functions to artistically enliven photos, creating distinctive ambiances.
Movie Editing Modes
- Original Image
- With Backlit Correction
With a choice of three in-camera touch effects, edit your clips to correct backlit shadow on subjects, or add black & white and antique tones to enrich your movies for you to keep and share.
- Original Image
- With Black/White Mode
- With Sepia Mode
Edit for Blog
Add an artistic dimension to any recorded image in your camera with your choice of special effects.
Aspect Ratio
Images are trimmed to fit the ratio aspects provided below.
Horizontal Image: 4:1, 8:3, 16:9, 3:2, 4:3, 1:1, 3:4, 1:3
Vertical Image: 3:1, 4:3, 1:1, 3:4, 2:3, 9:16, 3:8, 1:4
Sepia
Adds tone effects of sepia that can be adjusted at 5 different levels.
Contrast
10 contrast levels can be selected from softening to sharpening controls.
Cropping
Images can be cropped to fit your blog.
Color
Adds miniature effect to image.
Brightness
10 brightness levels can be adjusted to image.
Face Mosaic
Mosaic to faces can be applied.
Feature 5Simple and Easy Playback Functions
Offering convenient image search and playback functions for you to share and view with your family and friends.
Playback Functions
Easy and simple search function with slideshow and red-eye removal during playback.
Image Search
With the convenient Image Search function, you can search pictures by Date, by Face, by Favorites, by Scene, by Type of Data and by photos you've marked to upload.
By Date
Viewing your saved photo image by date, making it easy to locate specific events or occasions.
By Face
All your portraits can be selected and replayed based on composition: group photos, couple pictures and so on.
By Favorites Rank
Rank your photos according to your favorites with star ratings.
By Scene
Photos shot with Auto or SR Auto mode can be replayed according to the type of scene: portrait, landscape, night scene and macro.
By Type of Data
Display the content of your image library according to the type of data: still photos, edited images, or movie footage.
By Upload Mark
Images marked for upload to popular video-clip and blogging sites can be grouped and displayed together.
Micro Thumbnail View
Up to 100 pictures can be viewed at a time in a 10x10 array of micro thumbnails. Convenient for smooth and comfortable playback.
Slideshow
Close-ups of detected faces are shown in slideshow style.
Red-eye Removal during Playback
This function corrects red-eyes while playback of detected faces.
SD/SDHC Memory Card Slot
The versatile card slot is compatible with SD and high-capacity Secure Digital (SDHC) memory cards.
Specifications
| Model Name |
FinePix Z80 / Z81 |
| Number of effective pixels *1 |
14.2 million pixels |
| CCD sensor |
1/2.3-inch CCD |
| Storage media |
- Internal memory (Approx. 13MB)
- SD memory card / SDHC memory card *2
|
| File format |
- still image
- JPEG (Exif Ver 2.3 *3)
- movie
- AVI (Motion JPEG ) with sound
- sound
- WAVE format, Monaural sound
(Design rule for Camera File system compliant / DPOF-compatible)
|
| Number of recorded pixels |
Still image:
14M : (4:3) 4320 x 3240 / 12M : (3:2) 4320 x 2880 / 10M : (16:9) 4320 x 2432 /
7M : (4:3) 3072 x 2304 / 3M : (4:3) 2048 x 1536 / 2M : (16:9) 1920 x 1080 /
2M : (4:3) 1600 x 1200 / 0.3M : (4:3) 640 x 480 |
| Lens |
- name
- Fujinon 5x optical zoom lens
- focal length
- f=6.4 - 32.0mm, equivalent to 36-180mm on a 35mm camera
- full-aperture
- F4.0(Wide) / F4.8(Telephoto)
|
| Digital zoom |
Maximum approx 6.8x |
| Aperture |
F4.0 / F6.7 (Wide) F4.8 / F8.0 (Telephoto) |
Focus distance
(from lens surface) |
- Normal
-
- Wide : Approx. 60cm / 2.0ft. to infinity
- Telephoto : Approx. 1.0m / 3.3ft. to infinity
- Macro
-
- Wide : Approx. 9cm - 80cm / 3.5in.- 2.6ft.
- Telephoto : Approx. 1.0m - 3.0m / 3.3ft. - 9.8ft.
|
| Sensitivity |
Auto / Equivalent to ISO 100 / 200 / 400 / 800 / 1600 (Standard Output Sensitivity) |
| Exposure control |
TTL 256-zones metering |
| Exposure mode |
Programmed AE |
| Shooting modes |
Natural Light, Natural Light & with Flash, Portrait, Landscape, Sport, Night, Beach, Snow, Sunset,Party, Flower, Text, Auction, Successive Movie, SR AUTO (Scene Recognition),Auto, Program, Night(Tripod), Potrait enhancer, Motion Panorama |
| Image stabilizer |
Digital Image Stabilization |
| Face detection |
Yes |
| Exposure compensation |
-2.0EV - +2.0EV 1/3EV step |
| Shutter speed |
4sec. to 1/2000sec. with mechanical shutter |
| Continuous shooting |
max speed : Approx. 1frames/sec., max number of frame : 3frames |
| Auto bracketing |
- |
| Focus |
- mode
- Single AF
- type
- TTL contrast AF
- AF frame selection
- Center fixed, Tracking AF
|
| White balance |
Auto, Fine, Shade, Incandescent light, Fluorescent light 1(Daylight), Fluorescent light 2(Warm White), Fluorescent light 3(Cool White) |
| Self-timer |
10sec. / 2sec. delay / Couple Timer / Group Timer |
| Flash |
Pre-flash type by CCD sensor (i-flash)
Effective range (ISO AUTO)
- Normal
-
- Wide : Approx. 70cm - 3.1m / 2.3ft. - 10.2ft.
- Telephoto : Approx. 70cm - 2.7m / 2.3ft. - 8.9ft.
- Macro
-
- Approx. 30cm - 80cm / 1ft. - 2.6ft.
|
| Flash modes |
Auto, Red-eye Reduction, Forced Flash, Suppressed Flash, Slow Synchro, Red-eye Reduction & Slow Synchro. |
| Hot shoe |
- |
| Electronic Viewfinder |
- |
| LCD monitor |
2.7-inch, Approx. 230,000dots, TFT color LCD monitor, (live image approx. 96% coverage) |
| Movie recording |
1280 (1280x720 : HD) / 640 (640x480 : VGA) / 320 (320x240 : QVGA), 30frames/sec.
with monaural sound
- * Zoom function can be used during movie recording.
|
| Shooting functions |
SR AUTO (Scene Recognition Auto), Face Detection (with Auto Red-eye reduction,on,off), Framing guideline, Frame No. memory, Silent mode,FinePix color, Motion panorama |
| Playback functions |
Face Detection, Edit For Blog, Image Search, Crop, Image rotate, Slide show, Multi-frame playback (with microthumbnail), Voice Memo, Movie Edit, Mark Upload,Photobook assist, Favorites |
| Other functions |
PictBridge, PRINT Image Matching II, Time difference, Silent mode |
| Terminal |
- Video output
- NTSC/PAL selectable
- Digital interface
- USB 2.0 High-Speed
- HD output
- -
|
| Power supply |
NP-45A Li-ion battery (included) |
| Dimensions |
91.0(W) x 57.1(H) x 20.1(D) mm / 3.6(W) x 2.2(H) x 0.8(D) in. (Minimum thickness : 18.1mm / 0.7in) |
| Weight |
Approx. 128g / 4.5 oz. (excluding battery and memory card)
Approx. 145g / 5.1oz. (including accessories, battery and memory card) |
| Operating Temperature |
0C - 40C |
| Operating Humidity |
10 - 85% (no condensation) |
| Guide to the number of available frames for battery operation |
Approx. 180frames |
| Accessories included |
Li-ion battery NP-45A
Battery charger BC-45B
Hand strap
USB cable
CD-ROM |
| Optional accessories |
Li-ion battery NP-45/NP-45A
Battery charger BC-45W
HD player HDP-L1
A/V Cable AV-C1 |
- *1 Number of effective pixels: The number of pixels on the image sensor which receive input light through the optical lens, and which are effectively reflected in the final output data of the still image.
- *2 Please see the Fujifilm website to check memory card compatibility.
- *3 Exif 2.3 is a digital camera file format that contains a variety of shooting information for optimal printing.
Memory Card Capacity and Image Quality / Size
Number of images
| Modes |
Still image |
| Number of recorded pixels |
4320 x 3240 (4:3) |
4320 x 2880 (3:2) |
4320 x 2432 (16:9) |
3072 x 2304 (4:3) |
| Quality |
JPEG FINE |
JPEG NORMAL |
JPEG FINE |
JPEG NORMAL |
JPEG FINE |
JPEG NORMAL |
JPEG FINE |
JPEG NORMAL |
| Internal Memory (approx. 13MB) |
2 |
3 |
2 |
4 |
2 |
5 |
4 |
7 |
| SD memory card |
512 MB |
80 |
140 |
80 |
160 |
100 |
200 |
160 |
280 |
| 1 GB |
160 |
280 |
180 |
330 |
210 |
400 |
320 |
560 |
| 2 GB |
330 |
560 |
360 |
660 |
430 |
800 |
640 |
1130 |
| SDHC memory card |
4 GB |
640 |
1100 |
720 |
1280 |
830 |
1570 |
1260 |
2200 |
| 8 GB |
1290 |
2210 |
1400 |
2580 |
1680 |
3160 |
2540 |
4420 |
Number of images
| Modes |
Still image |
| Number of recorded pixels |
2048 x 1536 (4:3) |
1920 x 1080 (16:9) |
1600 x 1200 (4:3) |
640 x 480 (4:3) |
| Quality |
JPEG FINE |
JPEG NORMAL |
JPEG FINE |
JPEG NORMAL |
JPEG FINE |
JPEG NORMAL |
JPEG FINE |
JPEG NORMAL |
| Internal Memory (approx. 13MB) |
9 |
15 |
13 |
18 |
13 |
18 |
37 |
58 |
| SD memory card |
512 MB |
360 |
600 |
530 |
720 |
530 |
730 |
1490 |
2350 |
| 1 GB |
730 |
1200 |
1060 |
1450 |
1070 |
1470 |
3000 |
4710 |
| 2 GB |
1460 |
2410 |
2130 |
2910 |
2150 |
2950 |
6000 |
9430 |
| SDHC memory card |
4 GB |
2860 |
4700 |
4150 |
5670 |
4190 |
5760 |
11700 |
18380 |
| 8 GB |
5740 |
9450 |
8330 |
11390 |
8420 |
11560 |
23480 |
36900 |
Recording time
| Modes |
Movie |
| Number of recorded pixels |
Movie recording time |
| Quality |
HD |
VGA |
QVGA |
| Internal Memory (approx. 13MB) |
2sec. |
9sec. |
19sec. |
| SD memory card |
512 MB |
2min. |
7min. |
14min. |
| 1 GB |
5min. |
14min. |
30min. |
| 2 GB |
11min. |
28min. |
1hr. |
| SDHC memory card |
4 GB |
24min. |
58min. |
2hr. |
| 8 GB |
48min. |
1hr. 56min. |
4hr. 2min. |
- *Actual number of frames and recording time varies depending on the type of memory card or shooting conditions.
- *In the case of extended movie shooting, recording will automatically stop when 2GB of data is recorded. In order to continue movie shooting after automatic termination, please press the shutter button again. Maximum recording time shown in the table is calculated based on the file size limit of approx. 2GB. When shooting HD movies, please use a memory card rated SD Speed Class 4 or higher to ensure minimum sustained data writes of 4MB/sec.
|
|
|
|
18/01
|
FujiFilm FinePix Z80 Digital Camera - Mint
- 14.2MP, 5x Optical Zoom, 2.7" LCD, Digital Image Stabilization, SR Auto, HD Video FinePix Z Series
FinePix Z80
Number of Effective Pixels
14M CCD
Optical Zoom
5.0x
LCD Monitor
2.7-inch
Sensitivity
ISO 1600
SR AUTO
Digital Image Stabilization
Photobook Assist
Intelligent Flash
Features
Colorful Compact with Superb Image Quality
The stylish compact and colorful full metal body veils powerful image quality.
SR AUTO & Face Detection
Equipped with the 6 scene SR AUTO (Scene Recognition Auto) and Face Detection, scenes and faces can be captured and optimized even more with the detection functions.
Easy-to-use Intelligent Shooting Modes
Simple shooting modes allow you to capture the best of any scene with versatility.
Editing, Uploading and Sharing for Everyone
Sharing your favorite pictures and videos online cannot be made any simpler - just shoot, edit, select, and upload.
Simple and Easy Playback Functions
Offering convenient image search and playback functions for you to share and view with your family and friends.
Feature 1Colorful Compact with Superb Image Quality
The stylish compact and colorful full metal body veils powerful image quality.
Stylish Full Metal Body in Six Colors
Rich in choice with six colors, the full metal stylish body brings out the luxurious texture in the FinePix Z80. Available in Pink, Purple, Mint, Lavender, Brown and Gold, simply choose the one that will fit your style.
Fujinon 5x Optical Zoom
Highly Regarded by Professionals World-wide
Fujinon Lens, the high precision optic lens from Fujifilm has received positive praises, used in various industries - satellite in outer space, TV/film, surveillance, and compact cameras. The technology provides great wide angle and 5x optical zoom.
- Wide Angle
- 5x Optical Zoom
Microsite
Discover the flourishing performance of the top brand Fujinon Lens used widely in various areas.
- Fujinon Lens Special Site
Digital Image Stabilization
Automatically detects blurred subjects and instantaneously increases shutter speed to ensure crisp, sharp images.
- Conventional Digital Camera
- FinePix Z80
High Sensitivity ISO1600
Indoors, at night, or in the midst of fast-moving action; high sensitivity (ISO1600) makes it easy to take bright, clear photos regardless of the conditions.
HDTV-Compatible Photos & Video
Able to capture both photos and movies in high-definition 16:9 format, the FinePix Z80 lets you discover the impact of full-screen HDTV image display.
- * Optional HD Player HDP-L1 is required.
Photo Shooting
Capture high resolution images in 16:9 format (4,320 x 2,432 pixels, 1,920 x 1,080 pixels).
Movie Shooting
Capture high resolution images in 16:9 format (1,280 x 720 pixels).
Optional HDTV Connection Kit
Combining an HD card reader and a remote control, the optional connection kit makes it easy to display photos and movies on your HDTV.
One Touch Movie Button
One Touch Movie button just for shooting movies! No settings. Just press, shoot, and enjoy the movie.
Specifications
| Model Name |
FinePix Z80 / Z81 |
| Number of effective pixels *1 |
14.2 million pixels |
| CCD sensor |
1/2.3-inch CCD |
| Storage media |
- Internal memory (Approx. 13MB)
- SD memory card / SDHC memory card *2
|
| File format |
- still image
- JPEG (Exif Ver 2.3 *3)
- movie
- AVI (Motion JPEG ) with sound
- sound
- WAVE format, Monaural sound
(Design rule for Camera File system compliant / DPOF-compatible)
|
| Number of recorded pixels |
Still image:
14M : (4:3) 4320 x 3240 / 12M : (3:2) 4320 x 2880 / 10M : (16:9) 4320 x 2432 /
7M : (4:3) 3072 x 2304 / 3M : (4:3) 2048 x 1536 / 2M : (16:9) 1920 x 1080 /
2M : (4:3) 1600 x 1200 / 0.3M : (4:3) 640 x 480 |
| Lens |
- name
- Fujinon 5x optical zoom lens
- focal length
- f=6.4 - 32.0mm, equivalent to 36-180mm on a 35mm camera
- full-aperture
- F4.0(Wide) / F4.8(Telephoto)
|
| Digital zoom |
Maximum approx 6.8x |
| Aperture |
F4.0 / F6.7 (Wide) F4.8 / F8.0 (Telephoto) |
Focus distance
(from lens surface) |
- Normal
-
- Wide : Approx. 60cm / 2.0ft. to infinity
- Telephoto : Approx. 1.0m / 3.3ft. to infinity
- Macro
-
- Wide : Approx. 9cm - 80cm / 3.5in.- 2.6ft.
- Telephoto : Approx. 1.0m - 3.0m / 3.3ft. - 9.8ft.
|
| Sensitivity |
Auto / Equivalent to ISO 100 / 200 / 400 / 800 / 1600 (Standard Output Sensitivity) |
| Exposure control |
TTL 256-zones metering |
| Exposure mode |
Programmed AE |
| Shooting modes |
Natural Light, Natural Light & with Flash, Portrait, Landscape, Sport, Night, Beach, Snow, Sunset,Party, Flower, Text, Auction, Successive Movie, SR AUTO (Scene Recognition),Auto, Program, Night(Tripod), Potrait enhancer, Motion Panorama |
| Image stabilizer |
Digital Image Stabilization |
| Face detection |
Yes |
| Exposure compensation |
-2.0EV - +2.0EV 1/3EV step |
| Shutter speed |
4sec. to 1/2000sec. with mechanical shutter |
| Continuous shooting |
max speed : Approx. 1frames/sec., max number of frame : 3frames |
| Auto bracketing |
- |
| Focus |
- mode
- Single AF
- type
- TTL contrast AF
- AF frame selection
- Center fixed, Tracking AF
|
| White balance |
Auto, Fine, Shade, Incandescent light, Fluorescent light 1(Daylight), Fluorescent light 2(Warm White), Fluorescent light 3(Cool White) |
| Self-timer |
10sec. / 2sec. delay / Couple Timer / Group Timer |
| Flash |
Pre-flash type by CCD sensor (i-flash)
Effective range (ISO AUTO)
- Normal
-
- Wide : Approx. 70cm - 3.1m / 2.3ft. - 10.2ft.
- Telephoto : Approx. 70cm - 2.7m / 2.3ft. - 8.9ft.
- Macro
-
- Approx. 30cm - 80cm / 1ft. - 2.6ft.
|
| Flash modes |
Auto, Red-eye Reduction, Forced Flash, Suppressed Flash, Slow Synchro, Red-eye Reduction & Slow Synchro. |
| Hot shoe |
- |
| Electronic Viewfinder |
- |
| LCD monitor |
2.7-inch, Approx. 230,000dots, TFT color LCD monitor, (live image approx. 96% coverage) |
| Movie recording |
1280 (1280x720 : HD) / 640 (640x480 : VGA) / 320 (320x240 : QVGA), 30frames/sec.
with monaural sound
- * Zoom function can be used during movie recording.
|
| Shooting functions |
SR AUTO (Scene Recognition Auto), Face Detection (with Auto Red-eye reduction,on,off), Framing guideline, Frame No. memory, Silent mode,FinePix color, Motion panorama |
| Playback functions |
Face Detection, Edit For Blog, Image Search, Crop, Image rotate, Slide show, Multi-frame playback (with microthumbnail), Voice Memo, Movie Edit, Mark Upload,Photobook assist, Favorites |
| Other functions |
PictBridge, PRINT Image Matching II, Time difference, Silent mode |
| Terminal |
- Video output
- NTSC/PAL selectable
- Digital interface
- USB 2.0 High-Speed
- HD output
- -
|
| Power supply |
NP-45A Li-ion battery (included) |
| Dimensions |
91.0(W) x 57.1(H) x 20.1(D) mm / 3.6(W) x 2.2(H) x 0.8(D) in. (Minimum thickness : 18.1mm / 0.7in) |
| Weight |
Approx. 128g / 4.5 oz. (excluding battery and memory card)
Approx. 145g / 5.1oz. (including accessories, battery and memory card) |
| Operating Temperature |
0C - 40C |
| Operating Humidity |
10 - 85% (no condensation) |
| Guide to the number of available frames for battery operation |
Approx. 180frames |
| Accessories included |
Li-ion battery NP-45A
Battery charger BC-45B
Hand strap
USB cable
CD-ROM |
| Optional accessories |
Li-ion battery NP-45/NP-45A
Battery charger BC-45W
HD player HDP-L1
A/V Cable AV-C1 |
- *1 Number of effective pixels: The number of pixels on the image sensor which receive input light through the optical lens, and which are effectively reflected in the final output data of the still image.
- *2 Please see the Fujifilm website to check memory card compatibility.
- *3 Exif 2.3 is a digital camera file format that contains a variety of shooting information for optimal printing.
Memory Card Capacity and Image Quality / Size
Number of images
| Modes |
Still image |
| Number of recorded pixels |
4320 x 3240 (4:3) |
4320 x 2880 (3:2) |
4320 x 2432 (16:9) |
3072 x 2304 (4:3) |
| Quality |
JPEG FINE |
JPEG NORMAL |
JPEG FINE |
JPEG NORMAL |
JPEG FINE |
JPEG NORMAL |
JPEG FINE |
JPEG NORMAL |
| Internal Memory (approx. 13MB) |
2 |
3 |
2 |
4 |
2 |
5 |
4 |
7 |
| SD memory card |
512 MB |
80 |
140 |
80 |
160 |
100 |
200 |
160 |
280 |
| 1 GB |
160 |
280 |
180 |
330 |
210 |
400 |
320 |
560 |
| 2 GB |
330 |
560 |
360 |
660 |
430 |
800 |
640 |
1130 |
| SDHC memory card |
4 GB |
640 |
1100 |
720 |
1280 |
830 |
1570 |
1260 |
2200 |
| 8 GB |
1290 |
2210 |
1400 |
2580 |
1680 |
3160 |
2540 |
4420 |
Number of images
| Modes |
Still image |
| Number of recorded pixels |
2048 x 1536 (4:3) |
1920 x 1080 (16:9) |
1600 x 1200 (4:3) |
640 x 480 (4:3) |
| Quality |
JPEG FINE |
JPEG NORMAL |
JPEG FINE |
JPEG NORMAL |
JPEG FINE |
JPEG NORMAL |
JPEG FINE |
JPEG NORMAL |
| Internal Memory (approx. 13MB) |
9 |
15 |
13 |
18 |
13 |
18 |
37 |
58 |
| SD memory card |
512 MB |
360 |
600 |
530 |
720 |
530 |
730 |
1490 |
2350 |
| 1 GB |
730 |
1200 |
1060 |
1450 |
1070 |
1470 |
3000 |
4710 |
| 2 GB |
1460 |
2410 |
2130 |
2910 |
2150 |
2950 |
6000 |
9430 |
| SDHC memory card |
4 GB |
2860 |
4700 |
4150 |
5670 |
4190 |
5760 |
11700 |
18380 |
| 8 GB |
5740 |
9450 |
8330 |
11390 |
8420 |
11560 |
23480 |
36900 |
Recording time
| Modes |
Movie |
| Number of recorded pixels |
Movie recording time |
| Quality |
HD |
VGA |
QVGA |
| Internal Memory (approx. 13MB) |
2sec. |
9sec. |
19sec. |
| SD memory card |
512 MB |
2min. |
7min. |
14min. |
| 1 GB |
5min. |
14min. |
30min. |
| 2 GB |
11min. |
28min. |
1hr. |
| SDHC memory card |
4 GB |
24min. |
58min. |
2hr. |
| 8 GB |
48min. |
1hr. 56min. |
4hr. 2min. |
- *Actual number of frames and recording time varies depending on the type of memory card or shooting conditions.
- *In the case of extended movie shooting, recording will automatically stop when 2GB of data is recorded. In order to continue movie shooting after automatic termination, please press the shutter button again. Maximum recording time shown in the table is calculated based on the file size limit of approx. 2GB. When shooting HD movies, please use a memory card rated SD Speed Class 4 or higher to ensure minimum sustained data writes of 4MB/sec.
|
|
|
|
18/01
|
Elite Screens 100" Portable Manual Pull-Up Screen - 1524x2032, 4;3 Video Format - Matt White Surface
|
|
|
|
18/01
|
Elite Screens 84" Manual Pull-Up Screen - 1270x1702, 4;3 Video Format - Matt White Surface
|
|
|
|
18/01
|
Elite Screens 120" Manual Pulldown Screen - 1829x2438, 4:3 Video Format - Matt White Surface
|
|
|
|
18/01
|
Canon CLI526GY Ink Cartridge - Grey - For Canon MG6150/MG8150 Printers
|
|
|
|
Previous Page
|
Next Page
|
|
(single frame),
(quiet shutter release)
