MX711
Projection Perfect for Every Occasion
The BenQ MX711 is just the projector you need to perfect your presentation in all settings. Featuring XGA resolution with 3200 ANSI lumens and 5300:1 high contrast ratio, the MX711 also offers multi display for ultra-smooth connection, PC-less presentation and 3D ready projection to keep your presentation lookin' great!
Thoughtful Design for Presenters

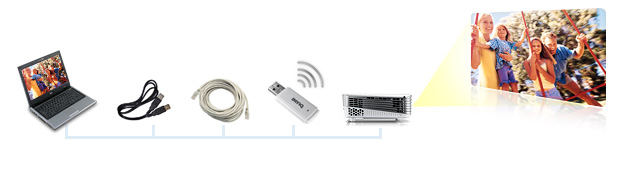

Multiple Display Options for Various Office and Classroom Needs
Projectors are powerful tools for making successful presentations. To ensure a smooth presentation on your part, BenQ has integrated various display functions into the MX711 to fit every need!
USB Display offers the plug-and-play convenience of USB connection with automatic resolution detection for the best image presentation and extension support for simultaneous multi-projection display.
LAN Display offers a cost-effective solution for projector implementation management using a single LAN cable to control and display. This feature also offers simultaneous 1-8, 4-1 or partial projection display option for better content management for discussions, presentations, training and classroom teaching.
Wireless Display keeps cables and wires out of everyone's way with the BenQ Wireless Display Adapter (optional accessory) to deliver big screen display for all your presentations and perform simplified centralized network control via USB 2.0 seamless WLAN connectivity.centralized network control via USB 2.0 seamless WLAN connectivity.

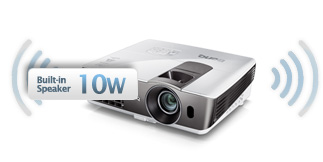

10W Microphone Audio Power
The MX711 is built with 10W industry-leading audio power and microphone input to empower your presentation! The 10W speaker is sealed and secured within the projector with BenQ's anti-shake design to deliver crisp-clear audio quality and projection stability, while the microphone input connects you to conventional and wireless microphones and microphone headsets.
What's more, the MX711 can be used as an audio system only even when it's on standby mode! Finally, you can have a blast presenting without straining your voice!

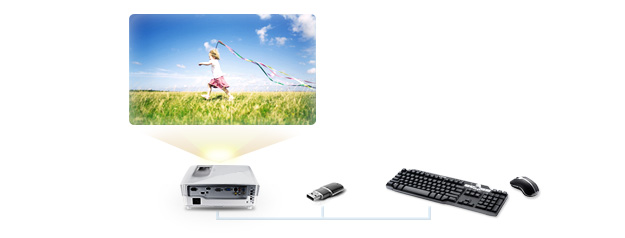

Hassle-Free PC-Less Presentation
Enjoy a hassle-free presentation with the USB Reader and Remote Desktop functions! The USB Reader function enables a JPEG presentation with a USB flash drive! It's as easy and plug and play! The Remote Desktop function allows you to present using a wireless mouse and keyboard! Consider it an upgrade from the USB Reader option! You'll get to access everything from your computer remotely on the projection screen! Going PC-less also means you'll get to save up on computer purchase, maintenance and repair for your school or company!
Auto / Manual Keystone 40
Automatically or manually, the MX711 gets rid of misshaped images, graphics and charts instantaneously via its 40 keystone adjustment function! With the MX711, a perfect square is all you'll see!
Closed Captioning
Display subtitles in video content without the need for an external closed-captioning device with the MX711. It's perfect for viewing in educational settings such as language classes where a transcript of onscreen dialog is desirable.
Thoughtful Teaching Template Design
To make your teaching job easier, BenQ has added the teaching template function to the MX711. Now, with four different line pattern designs to choose from – Letter Formation, Musical Staff, Worksheet and Coordinate Chart, you can easily write or draw on whiteboards as well as blackboards without the need of drawing lines or charts.
Specifications
Projection System -
DLP technology by Texas Instruments
Native Resolution -
XGA (1024 x 768)
Brightness* -
3200 ANSI lumens
Contrast Ratio -
5300:1 (Full on/Full off)
Keystone -
Auto Keystone Vertical 40 Degree; Manual Vertical 40 Degree
Aspect Ratio -
4:3 Native (5 selectiable aspect ratio)
Color -
Full 16.7 million color palette
Lens -
F=2.59~2.87
Zoom Ratio -
Manual Zoom, 1.3:1
Image Size (Diagonal) -
32 to 300
Throw Ratio -
1.5 to 1.95(65"@2M)
Lamp** -
230W 3500/5000hrs(Normal/Economic mode)
Computer Compatibility -
VGA(640 x 480) to UXGA (1600x1200)
HDTV Compatibility -
480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Video Compatibility -
NTSC, PAL, SECAM
Horizontal Frequency -
31-92 kHz
Vertical Scan Rate -
48-120 Hz
Input Terminals
PC:
Analog RGB: D-sub 15 pin x 2
LAN Networking: RJ-45 x1 (LAN Display)
USB connector: Type A x 1 (USB thumb drive)
USB Type mini B x1 (USB display)
A/V:
HDMI V1.3 x 1
S-Video: Mini Din 4 pin x 1
Composite Video: RCA x 1 (Shared with D-sub)
Audio:
Audio L/R : RCA x 1
Stereo Mini Jack x 1
Output Terminals
PC: D-sub 15 pin x 1
Variable Audio Out : Stereo Mini Jack x 1
Audio: 10W x 1
Control Terminal
Serial Connector : RS232 x 1
RJ45 x 1
Dimensions(W x H x D) -
311 x 104 x 244 mm
Weight -
2.7kg (6.0lb)
Power Supply -
100 to 240 VAC, 50/60 Hz
Audible Noise
32/27 dB - (Normal/Economic mode)
On-Screen Display Languages -
Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hungarian/ Indonesian/ Italian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese (26 Languages)
Picture Modes
PC Input:
Dynamic Mode
Presentation Mode
sRGB Mode
Cinema Mode
User 1 Mode
User 2 Mode
A/V Input:
Dynamic Mode
Presentation Mode
sRGB Mode
Cinema Mode
User 1 Mode
User 2 Mode
Functions
BrilliantColorTM
Blank
VIDITM
Panel Key Lock
3D Color Management
Auto Off
Crestron LAN Control
Security Password
Closed Captioning
HDTV Compatible
Digital Zoom (x2)
High Altitude Mode
Variable Audio Out
"Q?" Hot Key for FAQ
Quick Cooling
3D Ready
Quick Auto Search
Freeze
Accessories (Standard)
Quick Start Guide
VGA(D-sub) cable
Manual CD
Power cord
Remote control w/battery
Soft carry case
Accessories (Optional)
Presentation Plus
Spare Lamp Kit
RS232 Cable
Wireless Dongle
3D Support and Compatibility
*Please click to know more details about 3D Support and Compatibility.
