05/11
|
Kodak Graphite Camera Bag - To Suit V & C Series Camera - BlackGraphite Black Camera Bag / Mini
Bag Dimensions: [W x H x D]: 8.9 x 13.5 x 4.8 cm
Compatibility: KODAK C300, C310, C315, C330, C340, C360, C433, C503, C530, C533, C603, C643, C653, C663, C703, C743, C875, CD33, CD40, CD43, CW330, V1003, V530 V550, V570, V603, V705, V803
* Detachable shoulder strap
* Convenient loop or hook for carrying on your waist
* Interior pocket with memory card slots
* Soft, protective interior
For details on all Kodak products
http://www.kodak.com.au or 1800 267 588
|
|
|
|
05/11
|
Smithmicro Software StuffIt Deluxe 2011 - For Mac The ultimate in compression and archive management
Utilize StuffIt Deluxe's advanced compression to shrink your photos, music and other documents without
reducing quality. Securely upload, access and share your files from anywhere, including iPhone®, Android®
and Smart Phones with a free subscription to SendStuffNow. StuffIt is your one stop file transfer solution
offering support for FTP, email, MobileMe. and more. StuffIt makes your files as mobile as you are!
• NEW! StuffIt Destinations™
• NEW! SendStuffNow™ built in
• NEW! Includes a copy of StuffIt for Windows
• Open compressed TAR archives, 7Zip, RAR, and 25 more formats. Compress JPEG photos up to 30%
|
|
|
|
05/11
|
Macware Logo Design Studio Pro 2.0 Get the professional look without being a Graphic Artist.
Logo Design Studio Pro is a powerful vector logo design and illustration tool that makes expert design easy.
Pick a pre-designed logo template that best fits the look you want or start from scratch. Replace any text or
graphics and then export your logo to use online or in any sized print project.
- New! Over 1000 logo templates
- New! Over 3000 editable graphics
- New! Over 500 image textures
- New! Over 750 commercial use fonts
|
|
|
|
05/11
|
GeoVision GV-PT110D IP Camera - 1.3M CMOS, H.264 Dual Streams, 1280,1024, 10/100 Ethernet, Built-In Microphone - White
- 1.3 megapixel progressive scan CMOS
- Dual streams from H.264, MJPEG and MPEG4
- Up to 15 fps at 1280 x 1024
- Pan and tilt (Pan: -175 ~ 175; Tilt: -45 ~ 90)
- Built-in / external microphone
- 2-way audio
- One sensor input and alarm output
- Input-triggered Preset points
- Motion detection
- Privacy mask
- IP address filtering
- 3GPP / ISMA
- DC 12 V / AC 24 V / PoE
- Day / Night function
- 16 languages on Web interface
The GV-PT110D camera is a ceiling-mount device that features panning and tilting functions. The GV-PT110D is designed to monitor a wide area and to focus on a selected point on live view when suspicious events occur.
Specification
|
Camera
|
|
Image Sensor
|
1/3" progressive scan CMOS
|
|
Picture Elements
|
1280 (H) x 1024 (V)
|
|
Minimum Illumination
|
Color
|
1.5 Lux (1/60 sec)
0.2 Lux (1/5 sec) (30 IRE, F1.5, AGC-On, slow shutter-Off)
|
|
B/W
|
0 Lux (1/60 sec) (50 IRE, F/1.4, AGC-On, slow shutter-Off)
|
|
IR ON
|
|
Shutter Speed
|
1/5 ~ 1/4000 sec, Automatic (Balanced, Speed Priority, Quality Priority)
|
|
White Balance
|
Automatic, Manual (2800K ~ 8500K)
|
|
Lens
|
|
Megapixel
|
Yes
|
|
Day/Night support
|
Yes
|
|
Iris
|
Fixed Iris
|
|
IR support
|
Yes
|
|
Focal Length
|
4.2 mm
|
|
Aperture
|
F/1.5
|
|
Lens Mounting
|
M12, Pitch 0.5 mm
|
|
Angle of view
|
Diagonal
|
89
|
|
Horizontal
|
71.2
|
|
Vertical
|
50
|
|
Operation
|
Focus
|
Manual (w/lock)
|
|
Zoom
|
None
|
|
Iris
|
Fixed
|
|
Operation
|
|
Video Codec
|
H.264, MPEG4, MJPEG
|
|
Video Stream
|
Dual Streams from two of H.264, MPEG4 and MJPEG
|
|
Video Resolution
|
Main Stream
|
4:3
|
1280 x 960, 640 x 480, 320x 240
|
|
5:4
|
1280 x 1024, 640 x 512, 320 x 256
|
|
Sub Stream
|
4:3
|
640 x 480, 320x 240
|
|
5:4
|
640 x 512, 320 x 256
|
|
Frame Rate
|
30 fps at 640 x 480, 15 fps at 1280 x 1024
* The frame rate and the performance may vary depending on the number of connections and data bitrates (different scenes).
|
|
Audio Codec
|
G.711
|
|
Digital Input
|
1 Input (Dry Contact)
|
|
Digital Output
|
1 Output
|
|
Network
|
|
Interface
|
10/100 Ethernet
|
|
Protocol
|
HTTP, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, RTSP
|
|
Mechanical
|
|
Connectors
|
Power
|
2-pin terminal block
|
|
Ethernet
|
RJ-45
|
|
Audio
|
1 In (Using a built-in or an externally connected microphone)
1 Out (Stereo phone jack, 3.5 mm / 0.14 in)
|
|
Local Storage
|
Micro SD / SDHC memory card slot
|
|
Digital I/O
|
3-pin terminal block
|
|
LED Indicator
|
2 LEDs: Power and Status
|
|
Camera Angle Adjustment
|
Pan -175 ~ 175, Tilt -45 ~ 90
|
|
General
|
|
Operating Temperature
|
-10 C ~ 50 C / 14 F ~ 122 F
|
|
Humidity
|
10% to 90% (no condensation)
|
|
Power Source
|
12V DC / 24V AC / PoE
|
|
Power Consumption
|
15 W (max. 1.25A at 12V DC)
|
|
Regulatory
|
CE, FCC, C-Tick, RoHS compliant
|
|
Dimensions
(L X W X H)
|
With mounting base and cover
|
167.75 x 166.78 x 135.2 mm / 6.6 x 6.57 x 5.32 in
|
|
Without mounting base and cover
|
124.55 x 122.73 x 133.3 mm / 4.9 x 4.83 x 5.25 in
|
|
Weight
|
440 g / 0.97 lb
|
|
Power over Ethernet
|
|
PoE Standard
|
IEEE 802.3af Power over Ethernet / PSE
|
|
PoE Power Supply Type
|
End-Span
|
|
PoE Power Output
|
Per Port 48V DC, 350mA. Max. 15.4 watts
|
|
Web Interface
|
|
Installation Management
|
Web-based configuration
|
|
Maintenance
|
Firmware upgrade through Web Browser or Utility
|
|
Access from Web Browser
|
Camera live view, video recording, change video quality, bandwidth control, image snapshot, digital I/O control, audio, Picture in Picture, Picture and Picture, Privacy Mask
|
|
Language
|
Czech / Danish / English / French / German / Hebrew / Hungarian / Italian / Japanese / Polish / Portuguese / Russian / Serbian / Simplified Chinese / Spanish / Traditional Chinese
|
|
Applications
|
|
Network Storage
|
GV-NVR, GV-System
|
|
3G Mobile Phone
|
Built-in player for 3GPP / ISMA
|
|
Live Viewing
|
IE , Mobile Phone
|
|
CMS Server support
|
GV-Center V2, GV-VSM, GV-Dispatch Server, GV-Control Center
|
|
|
|
|
05/11
|
GeoVision GV-FE110 GV-Fish Eye IP Camera - 1.3MP CMOS, H.264 Dual Streams, 1280x1024, 10/100 Ethernet, Built-In Web Server - White
Introduction

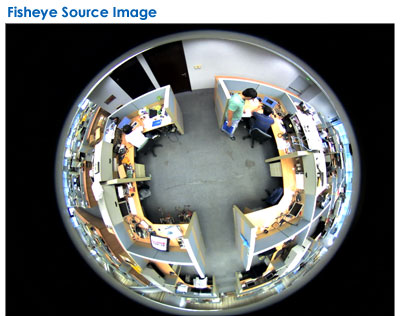

The GV-FE110 is a fisheye camera that allows you to monitor all angles of a location using just one camera. The distorted hemispherical image of the fisheye camera will be converted into the conventional rectilinear projection.
Without installing any software, you can watch live view and utilize functions such as motion detection, privacy mask, and alert notification through the Web interface using an IE browser. In addition, the GV-FE110 seamlessly integrates with the GV-System, providing advanced monitoring and video management features.
There are two ways to mount the GV-FE110 on the ceiling, Hard Ceiling Mount and In-Ceiling Mount. In-Ceiling Mount allows the GV-FE110 to be mounted into the ceiling, revealing a small portion of the camera.
Key Features
* 1.3M progressive scan CMOS
* H.264, MPEG 4 and MJPEG
* Provides 360 and 180 degrees panorama view
* No mechanical moving parts
* Built-in Web server for monitoring through IE browser

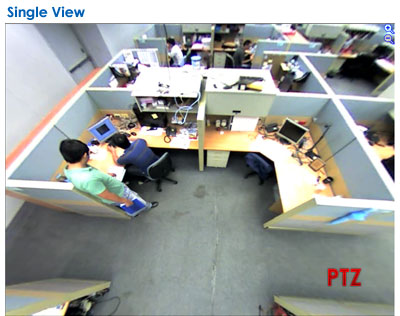

* Virtual PTZ function
* Auto Pan function
* Playback from any view angle and zoom level
* Privacy mask
* Visual automation
* Tampering alarm
* Built-in microphone and speaker
* DC 12V / AC 24V / PoE
* Micro SD
* 16 languages on web interface

Specifications
|
Camera
|
|
Image Sensor
|
1/3" progressive scan CMOS
|
|
Picture Elements
|
1280 (H) x 1024 (V)
|
|
Minimum Illumination
|
1.5 Lux (1/60 sec), 0.1 Lux (1/5 sec), (30 IRE, F/2.0, AGC-ON, slow shutter-Off.)
|
|
Shutter Speed
|
1/5 ~ 1/4000 sec, Auto (Balanced, Speed Priority, Quality Priority)
|
|
White Balance
|
Automatic, Manual (2800K ~ 8500K)
|
|
Optics Lens
|
|
Megapixel
|
Yes
|
|
Iris
|
Fixed Iris
|
|
Focal Length
|
1.25 mm
|
|
Aperture
|
F/2.0
|
|
Mount
|
M12, Pitch 0.5 mm
|
|
Image Format
|
1/3"
|
|
Angle of View
|
Diagonal
|
185
|
|
Horizontal
|
185
|
|
Vertical
|
185
|
|
Operation
|
Focus
|
None
|
|
Zoom
|
None
|
|
Iris
|
Fixed
|
|
Operation
|
|
Video Codec
|
H.264, MPEG4, MJPEG
|
|
Video Resolution
|
1280 x 1024
|
|
Frame Rate
|
15 fps
|
|
Image Setting
|
Brightness, Contrast, Sharpness, Gamma, White Balance, Flicker-less, Image Orientation
|
|
Audio Codec
|
G.711
|
|
Digital Input
|
1 Input (Dry Contact)
|
|
Digital Output
|
1 output
|
|
Network
|
|
Interface
|
10/100 Ethernet
|
|
Protocol
|
HTTP, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, RTSP
|
|
Mechanical
|
|
Connectors
|
Power
|
Terminal block (3 pin )
|
|
Ethernet
|
Ethernet (10/100 Base-T), RJ-45 Connector
|
|
Audio
|
Built-in microphone and speaker
|
|
Digital I/O
|
I/O Wire
|
|
Auto Iris
|
None
|
|
Local Storage
|
Micro SD/SDHC memory card slot
|
|
TV-Out
|
None
|
|
General
|
|
Operating Temperature
|
0 C ~ 50 C / 32 F ~ 122 F
|
|
Humidity
|
10% to 90% (no condensation)
|
|
Power Source
|
12V DC / 24V AC / PoE (IEEE802.3af)
|
|
Power Consumption
|
7.2 W (max. 600mA at 12V DC)
|
|
Regulatory
|
CE, FCC, C-Tick, RoHS compliant
|
|
Dimension (Diameter x Height)
|
160 x 47.66 mm / 6.29 x 1.83 in
|
|
Weight
|
650 g / 1.43 lb
|
|
Power over Ethernet
|
|
PoE Standard
|
IEEE 802.3af Power over Ethernet / PSE
|
|
PoE Power Supply Type
|
End-Span
|
|
PoE Power Output
|
Per Port 48V DC, 350mA. Max. 15.4 watts
|
|
Web Interface
|
|
Installation Management
|
Web-based configuration
|
|
Maintenance
|
Firmware upgrade through Web Browser or Utility
|
|
Access from Web Browser
|
Camera live view, video recording, change video quality, bandwidth control, image snapshot, digital I/O control, audio, Picture in Picture, Picture and Picture, Privacy Mask, Visual Automation, Tampering Alarm, Auto Pan function, virtual PTZ
|
|
Language
|
Czech / Danish / English / French / German / Hebrew / Hungarian / Italian / Japanese / Polish / Portuguese / Russian / Serbian / Simplified Chinese / Spanish / Traditional Chinese
|
|
Application
|
|
Network Storage
|
GV-NVR, GV-System
|
|
Live Viewing
|
IE
|
|
CMS Server Support
|
GV-Control Center, GV-Center V2, GV-VSM
|
|
|
|
|
05/11
|
GeoVision GV-BX320D Day & Night IP Camera - 3MP CMOS, H.264 Dual Streams, 2048x1536, 10/100 Ethernet, 3GPP/ISMA, 2-Way Audio, Built-In Microphone - White
- 3 megapixel progressive scan CMOS
- Dual video streams from two of H.264, MJPEG and MPEG4
- Up to 20 fps at 2048 x 1536, 30 fps at 1920 x 1080
- Built-in / external microphone
- 2-way audio
- One sensor input and alarm output
- TV-out support
- Motion detection
- Tampering alarm
- Privacy mask
- IP address filtering
- 3GPP/ISMA
- DC 12V / PoE
- Day / Night function
- Varifocal megapixel lens
- 16 languages on Web interface
Active Tampering Alarm
Tampered
Focus Change
Camera Shift
Specification
|
Camera
|
|
Image Sensor
|
1/2.5" progressive scan CMOS
|
|
Picture Elements
|
2048 (H) x 1536 (V)
|
|
Minimum Illumination
|
Color
|
1 Lux (1/30 sec), 0.5 Lux (1/5 sec)
|
|
B/W
|
0.2 Lux (1/30 sec), 0.1 Lux (1/5 sec)
|
|
IR ON
|
0 Lux
|
|
Shutter Speed
|
Automatic, Manual (1/5 ~ 1/8000 sec)
|
|
White Balance
|
Automatic, Manual (2800K ~ 8500K)
|
|
Lens
|
|
Megapixel
|
Yes
|
|
IR Support
|
Yes
|
|
Iris
|
DC Drive
|
|
Focal Length
|
3.1 ~ 8 mm
|
|
Max Aperture
|
F / 1.2
|
|
Mount
|
CS Mount
|
|
Image Format
|
1/3"
|
|
Angle of view
|
Diagonal
|
108.70 ~ 41.21
|
|
Horizontal
|
86.96 ~ 32.97
|
|
Vertical
|
65.22 ~ 24.73
|
|
Operation
|
Focus
|
Manual (w / lock)
|
|
Zoom
|
Manual (w / lock)
|
|
Iris
|
DC
|
|
Operation
|
|
Video Codec
|
H.264, MPEG4, MJPEG
|
|
Video Streaming
|
Dual Streams from two of H.264, MPEG4 and MJPEG
|
|
Frame Rate
|
20 fps at 2048 x 1536, 30 fps at 1920 x 1080
* The frame rate and the performance may vary depending on the number of connections and data bitrates (different scenes).
|
|
Image Setting
|
Brightness, Contrast, Sharpness, Gamma, White Balance, Flicker-less, Image Orientation
|
|
Audio Codec
|
G.711
|
|
Input
|
1 Input (Dry Contact)
|
|
Output
|
1 Digital Output
|
|
Video Resolution
|
|
Main Stream
|
4:3
|
2048 x 1536, 1600 x 1200, 1280 x 960, 640 x 480, 320 x 240
|
|
16:9
|
1920 x 1080, 1280 x 720, 640 x 360, 448 x 252
|
|
5:4
|
1280 x 1024, 640 x 512, 320 x 256
|
|
Sub Stream
|
4:3
|
640 x 480, 320 x 240
|
|
16:9
|
640 x 360, 448 x 252
|
|
5:4
|
640 x 512, 320 x 256
|
|
Network
|
|
Interface
|
10/100 Ethernet
|
|
Ethernet Protocol
|
HTTP, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, RTSP
|
|
Mechanical
|
|
Lens Mounting
|
C / CS-Mount
|
|
Connectors
|
Power
|
DC Jack
|
|
Ethernet
|
RJ-45
|
|
Audio
|
1 In (Using the built-in microphone or externally connecting a microphone)
1 Out (Stereo phone jack, 3.5 mm / 0.14 in)
|
|
Digital I/O
|
3-pin terminal block, pitch 2.5 mm / 0.1 in
|
|
Auto Iris
|
DC drive
|
|
Local Storage
|
Mini or micro SD/SDHC memory card slot
|
|
TV-Out
|
BNC connector
|
|
LED Indicator
|
2 LEDs: Power, Status
|
|
General
|
|
Operating Temperature
|
0 C ~ 50 C / 32 F ~ 122 F
|
|
Humidity
|
10% to 90% (no condensation)
|
|
Power Source
|
12V DC / PoE
|
|
Power Consumption
|
5 W (max. 416 mA at 12V DC)
|
|
Regulatory
|
CE, FCC, C-Tick, RoHS compliant
|
|
Dimension (L X W X H)
|
76 x 74.9 x 54.3 mm / 2.99 x 2.95 x 2.14 in (without lens)
|
|
Weight
|
321 g / 0.71 lb
|
|
Power over Ethernet
|
|
PoE Standard
|
IEEE 802.3af Power over Ethernet / PSE
|
|
PoE Power Supply Type
|
End-Span
|
|
PoE Power Output
|
Per Port 48V DC, 350mA. Max. 15.4 watts
|
|
Web Interface
|
|
Installation Management
|
Web-based configuration
|
|
Maintenance
|
Firmware upgrade through Web Browser
|
|
Access from Web Browser
|
Camera live view, video recording, change video quality, bandwidth control, image snapshot, digital I/O control, audio, Picture in Picture, Picture and Picture, Privacy Mask, Visual Automation, Tampering Alarm
|
|
Language
|
Czech / Danish / English / French / German / Hebrew / Hungarian / Italian / Japanese / Polish / Portuguese / Russian / Serbian / Simplified Chinese / Spanish / Traditional Chinese
|
|
Applications
|
|
Network Storage
|
GV-NVR, GV-System
|
|
3G Mobile Phone
|
Built-in player for 3GPP / ISMA
|
|
Live Viewing
|
IE , GV-MultiView
|
|
CMS Server support
|
GV-Control Center, GV-Center V2, GV-VSM, GV-GIS
|
|
|
|
|
05/11
|
GeoVision GV-BX220D Day & Night IP Camera - 2MP CMOS, H.264 Dual Streams, 1920x1080, 10/100, 3GPP/ISMA, Built-In Microphone - White
- 2 megapixel progressive scan CMOS
- Dual video streams from two of H.264, MJPEG and MPEG4
- Up to 30 fps at 1920 x 1080
- Built-in / external microphone
- 2-way audio
- One sensor input and alarm output
- TV-out support
- Motion detection
- Tampering alarm
- Privacy mask
- IP address filtering
- 3GPP/ISMA
- DC 12V / PoE
- Day / Night function
- Varifocal megapixel lens
- 16 languages on Web interface
Active Tampering Alarm
Tampered
Focus Change
Camera Shift
Specification
|
Camera
|
|
Image Sensor
|
1/2.5" progressive scan CMOS
|
|
Picture Elements
|
1920 (H) x 1080 (V)
|
|
Minimum Illumination
|
Color
|
1 Lux (1/30 sec), 0.5 Lux (1/5 sec)
|
|
B/W
|
0.2 Lux (1/30 sec), 0.1 Lux (1/5 sec)
|
|
IR ON
|
0 Lux
|
|
Shutter Speed
|
Automatic, Manual (1/5 ~ 1/8000 sec)
|
|
White Balance
|
Automatic, Manual (2800K ~ 8500K)
|
|
Lens
|
|
Megapixel
|
Yes
|
|
IR Support
|
Yes
|
|
Iris
|
DC Drive
|
|
Focal Length
|
2.8 ~ 8.5 mm
|
|
Max Aperture
|
F / 1.4
|
|
Mount
|
CS Mount
|
|
Image Format
|
1/3"
|
|
Angle of view
|
Diagonal
|
94.45 ~ 32.47
|
|
Horizontal
|
82.32 ~ 28.30
|
|
Vertical
|
46.31 ~ 15.92
|
|
Operation
|
Focus
|
Manual (w / lock)
|
|
Zoom
|
Manual (w / lock)
|
|
Iris
|
DC
|
|
Operation
|
|
Video Codec
|
H.264, MPEG4, MJPEG
|
|
Video Streaming
|
Dual Streams from two of H.264, MPEG4 and MJPEG
|
|
Frame Rate
|
30 fps at 1920 x 1080
* The frame rate and the performance may vary depending on the number of connections and data bitrates (different scenes).
|
|
Image Setting
|
Brightness, Contrast, Sharpness, Gamma, White Balance, Flicker-less, Image Orientation
|
|
Audio Codec
|
G.711
|
|
Input
|
1 Input (Dry Contact)
|
|
Output
|
1 Digital Output
|
|
Video Resolution
|
|
Main Stream
|
4:3
|
1600 x 1200, 1280 x 960, 640 x 480, 320 x 240
|
|
16:9
|
1920 x 1080, 1280 x 720, 640 x 360, 448 x 252
|
|
5:4
|
1280 x 1024, 640 x 512, 320 x 256
|
|
Sub Stream
|
4:3
|
640 x 480, 320 x 240
|
|
16:9
|
640 x 360, 448 x 252
|
|
5:4
|
640 x 512, 320 x 256
|
|
Network
|
|
Interface
|
10/100 Ethernet
|
|
Ethernet Protocol
|
HTTP, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, RTSP
|
|
Mechanical
|
|
Lens Mounting
|
C / CS-Mount
|
|
Connectors
|
Power
|
DC Jack
|
|
Ethernet
|
RJ-45
|
|
Audio
|
1 In (Using the built-in microphone or externally connecting a microphone)
1 Out (Stereo phone jack, 3.5 mm / 0.14 in)
|
|
Digital I/O
|
3-pin terminal block, pitch 2.5 mm / 0.1 in
|
|
Auto Iris
|
DC drive
|
|
Local Storage
|
Mini or micro SD/SDHC memory card slot
|
|
TV-Out
|
BNC connector
|
|
LED Indicator
|
2 LEDs: Power, Status
|
|
General
|
|
Operating Temperature
|
0 C ~ 50 C / 32 F ~ 122 F
|
|
Humidity
|
10% to 90% (no condensation)
|
|
Power Source
|
12V DC / PoE
|
|
Power Consumption
|
5 W (max. 416 mA at 12V DC)
|
|
Regulatory
|
CE, FCC, C-Tick, RoHS compliant
|
|
Dimension (L X W X H)
|
76 x 74.9 x 54.3 mm / 2.99 x 2.95 x 2.14 in (without lens)
|
|
Weight
|
321 g / 0.71 lb
|
|
Power over Ethernet
|
|
PoE Standard
|
IEEE 802.3af Power over Ethernet / PSE
|
|
PoE Power Supply Type
|
End-Span
|
|
PoE Power Output
|
Per Port 48V DC, 350mA. Max. 15.4 watts
|
|
Web Interface
|
|
Installation Management
|
Web-based configuration
|
|
Maintenance
|
Firmware upgrade through Web Browser
|
|
Access from Web Browser
|
Camera live view, video recording, change video quality, bandwidth control, image snapshot, digital I/O control, audio, Picture in Picture, Picture and Picture, Privacy Mask, Visual Automation, Tampering Alarm
|
|
Language
|
Czech / Danish / English / French / German / Hebrew / Hungarian / Italian / Japanese / Polish / Portuguese / Russian / Serbian / Simplified Chinese / Spanish / Traditional Chinese
|
|
Applications
|
|
Network Storage
|
GV-NVR, GV-System
|
|
3G Mobile Phone
|
Built-in player for 3GPP / ISMA
|
|
Live Viewing
|
IE , GV-MultiView
|
|
CMS Server support
|
GV-Control Center, GV-Center V2, GV-VSM, GV-GIS
|
|
|
|
|
05/11
|
GeoVision GV-BL110D Day & Night IP Camera - 1.3MP CMOS, H.264 Dual Streams, 1290x1024, RJ-45, 2-Way Audio - White
- 1.3 Megapixel Progressive Scan CMOS
- Dual streams from H.264, MJPEG and MPEG4
- 15 fps in 1.3M resolution
- Day/Night function with IR LED
- IP66 compliant
- Cable-concealed bracket preventing cable from being cut
- Megapixel lens
- One digital input and output
- Micro SD card slot
- 2-way audio
- Privacy mask
- DC 12V / AC 24V / PoE
- IP address filtering
- 3GPP/ISMA
- 16 languages on Web interface
The Bullet Camera features a weather sealed and IP66 compliant housing for outdoor use. The camera also features 16 IR LEDs for infrared illumination in night vision applications. Additionally, the Bullet Camera supports both DC 12V and AC 24V power supply.
Active Tampering Alarm
Tampered
Focus Change
Camera Shift
Specification
|
Camera
|
|
Image Sensor
|
1/3" progressive scan CMOS
|
|
Picture Elements
|
1280 (H) x 1024 (V), 640 (H) x 480 (V)
|
|
Minimum Illumination
|
Color
|
1 Lux (1/60 sec), 0.1 Lux (1/5 sec), (30 IRE, F/1.3, AGC-On, slow shutter-Off)
|
|
B/W
|
0 Lux (1/60 sec), (50 IRE, F/1.4, AGC-On, slow shutter-Off)
|
|
IR ON
|
|
Shutter Speed
|
1/5 ~ 1/4000 sec, Automatic (Balanced, Speed Priority, Quality Priority)
|
|
White Balance
|
Automatic, Manual (2800K ~ 8500K)
|
|
Lens
|
|
Max. Aperture
|
F / 1.3
|
|
Lens Focal
|
f = 3.6 ~ 9 mm
|
|
Angle of view
|
Depth
|
93 (W) ~ 38 (T) 5
|
|
Height
|
73 (W) ~ 30.4 (T) 5
|
|
Vertical
|
56.6 (W) ~ 23 (T) 5
|
|
IR LED Quantity
|
16 IR LEDs
|
|
IR Distance
|
15 m / 49.21 ft (Max.)
|
|
Operation
|
|
Video Codec
|
H.264, MPEG4, MJPEG
|
|
Video Streaming
|
Dual Streams from two of H.264, MPEG4 and MJPEG
|
|
Main Streaming
|
4 : 3
|
1280 x 960, 640 x 480, 320 x 240
|
|
5 : 4
|
1280 x 1024, 640 x 512, 320 x 256 |
|
Sub Streaming
|
4 : 3
|
640 x 480, 320 x 240
|
|
5 : 4
|
640 x 512, 320 x 256
|
|
Frame Rate
|
15 fps at 1280 x 1024 (SXGA), 30 fps at 640 x 512 (VGA)
* The frame rate and the performance may vary depending on the number of connections and data bitrates (different scenes).
|
|
Image Setting
|
Brightness, Contrast, Sharpness, Gamma, White Balance, Flicker-less, Image Orientation
|
|
Audio Codec
|
G.711
|
|
Digital Input
|
Dry Contact
|
|
Digital Output
|
Digital Output
|
|
Network
|
|
Interface
|
10/100 Ethernet
|
|
Protocol
|
HTTP, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA RTSP
|
|
Mechanical
|
|
Lens Mounting
|
14 mm
|
|
Connectors
|
Power
|
Terminal Block (3 pins)
|
|
Ethernet
|
RJ-45
|
|
Audio
|
1 In (RCA female for microphone)
1 Out (RCA female for speaker)
|
|
Digital I/O
|
I/O Wires
|
|
Auto Iris
|
DC Drive
|
|
Local Storage
|
Micro SD/SDHC memory card slot
|
|
TV-Out
|
None
|
|
General
|
|
Operating Temperature
|
-20 C ~ 50 C / -4 F ~ 122 F
|
|
Humidity
|
10% to 90% (no condensation)
|
|
Power Source
|
12V DC / 24V AC / PoE
|
|
Power Consumption
|
12 W (max. 1A at 12V DC)
|
|
Regulatory
|
CE, FCC, C-Tick, RoHS compliant
|
|
Dimensions (L X W X H)
|
277.5 x 148.95 x 87.75 mm / 10.9 x 5.86 x 3.45 in
|
|
Weight
|
1.35 kg / 2.98 lb
|
|
Protection Classification
|
IP66
|
|
Power over Ethernet
|
|
PoE Standard
|
IEEE 802.3af Power over Ethernet / PSE
|
|
PoE Power Supply Type
|
End-Span
|
|
PoE Power Output
|
Per Port 48V DC, 350mA. Max. 15.4 watts
|
|
Web Interface
|
|
Installation Management
|
Web-based configuration
|
|
Maintenance
|
Firmware upgrade through Web Browser or Utility
|
|
Access from Web Browser
|
Camera live view, video recording, change video quality, bandwidth control, image snapshot, digital I/O control, audio, Picture in Picture, Picture and Picture, Privacy Mask, Visual Automation, Tampering Alarm
|
|
Language
|
Czech / Danish / English / French / German / Hebrew / Hungarian / Italian / Japanese / Polish / Portuguese / Russian / Serbian / Simplified Chinese / Spanish / Traditional Chinese
|
|
Applications
|
|
Network Storage
|
GV-NVR, GV-System
|
|
3G Mobile Phone
|
Built-in player for 3GPP / ISMA
|
|
Live Viewing
|
IE , GV-MultiView
|
|
CMS Server support
|
GV-Control Center, GV-Center V2, GV-VSM
|
Note: Specifications are sujbect to change without notice.
|
|
|
|
05/11
|
GeoVision GV-BX120D IP Camera - 1.3MP CMOS, H.264, 1280x1024, 10/100, 3GPP/ISMA, Built-In Microphone - White
- 1.3 megapixel progressive scan CMOS
- Dual video streams from two of H.264, MJPEG and MPEG4
- Up to 30 fps at 1280 x 1024
- Built-in / external microphone
- 2-way audio
- One sensor input and alarm output
- TV-out support
- Motion detection
- Tampering alarm
- Privacy mask
- IP address filtering
- 3GPP/ISMA
- DC 12V / PoE
- Day / Night function
- Varifocal megapixel lens
- 16 languages on Web interface
Active Tampering Alarm
Tampered
Focus Change
Camera Shift
Specification
|
Camera
|
|
Image Sensor
|
1/3" progressive scan CMOS
|
|
Picture Elements
|
1280 (H) x 1024 (V)
|
|
Minimum Illumination
|
Color
|
0.15 Lux (1/30 sec), 0.08 Lux (1/5 sec)
|
|
B/W
|
0.08 Lux (1/30 sec), 0.04 Lux (1/5 sec)
|
|
IR ON
|
0 Lux
|
|
Shutter Speed
|
Automatic, Manual (1/5 ~ 1/8000 sec)
|
|
White Balance
|
Automatic, Manual (2800K ~ 8500K)
|
|
Lens
|
|
Megapixel
|
Yes
|
|
IR Support
|
Yes
|
|
Iris
|
DC Drive
|
|
Focal Length
|
2.8 ~ 12 mm
|
|
Max Aperture
|
F / 1.4
|
|
Mount
|
CS Mount
|
|
Image Format
|
1/3"
|
|
Angle of view
|
Diagonal
|
115 ~ 45.3
|
|
Horizontal
|
92 ~ 27.2 |
|
Vertical
|
69 ~ 20.4
|
|
Operation
|
Focus
|
Manual (w / lock)
|
|
Zoom
|
Manual (w / lock)
|
|
Iris
|
DC
|
|
Operation
|
|
Video Codec
|
H.264, MPEG4, MJPEG
|
|
Video Streaming
|
Dual Streams from two of H.264, MPEG4 and MJPEG
|
|
Frame Rate
|
30 fps at 1280 x 1024
* The frame rate and the performance may vary depending on the number of connections and data bitrates (different scenes).
|
|
Image Setting
|
Brightness, Contrast, Sharpness, Gamma, White Balance, Flicker-less, Image Orientation
|
|
Audio Codec
|
G.711
|
|
Input
|
1 Input (Dry Contact)
|
|
Output
|
1 Digital Output
|
|
Video Resolution
|
|
Main Stream
|
4:3
|
1280 x 960, 640 x 480, 320 x 240
|
|
16:9
|
1280 x 720, 640 x 360, 448 x 252
|
|
5:4
|
1280 x 1024, 640 x 512, 320 x 256
|
|
Sub Stream
|
4:3
|
640 x 480, 320 x 240
|
|
16:9
|
640 x 360, 448 x 252
|
|
5:4
|
640 x 512, 320 x 256
|
|
Network
|
|
Interface
|
10/100 Ethernet
|
|
Ethernet Protocol
|
HTTP, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, RTSP
|
|
Mechanical
|
|
Lens Mounting
|
C / CS-Mount
|
|
Connectors
|
Power
|
DC Jack
|
|
Ethernet
|
RJ-45
|
|
Audio
|
1 In (Using the built-in microphone or externally connecting a microphone)
1 Out (Stereo phone jack, 3.5 mm / 0.14 in)
|
|
Digital I/O
|
3-pin terminal block, pitch 2.5 mm / 0.1 in
|
|
Auto Iris
|
DC drive
|
|
Local Storage
|
Mini or micro SD/SDHC memory card slot
|
|
TV-Out
|
BNC connector
|
|
LED Indicator
|
2 LEDs: Power, Status
|
|
General
|
|
Operating Temperature
|
0 C ~ 50 C / 32 F ~ 122 F
|
|
Humidity
|
10% to 90% (no condensation)
|
|
Power Source
|
12V DC / PoE
|
|
Power Consumption
|
5 W (max. 416 mA at 12V DC)
|
|
Regulatory
|
CE, FCC, C-Tick, RoHS compliant
|
|
Dimensions (L X W X H)
|
76 x 74.9 x 54.3 mm / 2.99 x 2.95 x 2.14 in (without lens)
|
|
Weight
|
321 g / 0.71 lb
|
|
Power over Ethernet
|
|
PoE Standard
|
IEEE 802.3af Power over Ethernet / PSE
|
|
PoE Power Supply Type
|
End-Span
|
|
PoE Power Output
|
Per Port 48V DC, 350mA. Max. 15.4 watts
|
|
Web Interface
|
|
Installation Management
|
Web-based configuration
|
|
Maintenance
|
Firmware upgrade through Web Browser
|
|
Access from Web Browser
|
Camera live view, video recording, change video quality, bandwidth control, image snapshot, digital I/O control, audio, Picture in Picture, Picture and Picture, Privacy Mask, Visual Automation, Tampering Alarm
|
|
Language
|
Czech / Danish / English / French / German / Hebrew / Hungarian / Italian / Japanese / Polish / Portuguese / Russian / Serbian / Simplified Chinese / Spanish / Traditional Chinese
|
|
Applications
|
|
Network Storage
|
GV-NVR, GV-System
|
|
3G Mobile Phone
|
Built-in player for 3GPP / ISMA
|
|
Live Viewing
|
IE , GV-MultiView
|
|
CMS Server support
|
GV-Control Center, GV-Center V2, GV-VSM, GV-GIS
|
|
|
|
|
05/11
|
GeoVision GV-D/N PTZ IP Camera - 10x Optical Zoom, 10x Digital Zoom, H264 Dual Streams, 720x480, RJ-45, 3GPP/ISMA, 2-Way Audio - White
- 1/4" CCD image sensor
- Dual streams from H.264, MJPEG and MPEG4
- Up to 30 fps at 704 x 480
- Up to 25 fps at 704 x 576
- 10x optical zoom lens
- 10x digital zoom
- Pan and tilt (Pan: -175 ~ 175 ; Tilt: -45 ~ 90 )
- Built-in / external microphone
- 2-way audio
- One sensor input and alarm output
- Input-triggered Preset points
- Motion Detection
- Privacy mask
- IP address filtering
- 3GPP / ISMA
- DC 12 V / AC 24 V / PoE
- Day / Night function
- 16 languages on Web interface
The GV-PTZ010D camera is a ceiling-mount device that provides panning, tilting and zooming functions. The camera is designed to monitor a wide area and also to focus on a specific part on the live view when suspicious events occur. There are two models:
Model
Model No.
Description
GV-PTZ010D
GV-PTZ010D-N
NTSC, IPCAM, 10x Optical Zoom, D1, H.264, D/N
GV-PTZ010D-P
PAL, IPCAM, 10x Optical Zoom, D1, H.264, D/N
Specification
|
Camera
|
|
Model Name
|
GV-PTZ010D-N
|
GV-PTZ010D-P
|
|
Image Sensor
|
1/4" CCD image sensor
|
|
Picture Elements
|
704 (H) x 480 (V)
|
704 (H) x 576 (V)
|
|
Minimum Illumination
|
Color
|
2.5 Lux (50 IRE, F/1.8)
|
|
B/W
|
0.07 Lux (50 IRE, F/1.8)
|
|
Shutter Speed
|
Automatic, (1/60 ~ 1/120,000 sec)
|
Automatic, (1/50 ~ 1/120,000 sec)
|
|
White Balance
|
Manual (3200K ~ 9600K)
|
|
Lens
|
|
Day/Night support
|
Yes
|
|
Iris
|
Fixed Iris
|
|
Focal Length
|
4.2 ~ 42 mm
|
|
Aperture
|
F/1.8 ~ F/2.9
|
|
Angle of view
|
Diagonal
|
56.4
|
|
Horizontal
|
46.4
|
|
Vertical
|
35.6
|
|
Operation
|
Focus
|
Yes
|
|
Zoom
|
100x (10x Optical, 10x Digital)
|
|
Iris
|
Fixed
|
|
Operation
|
|
Video Format
|
NTSC
|
PAL
|
|
Video Codec
|
H.264, MPEG4, MJPEG
|
|
Video Stream
|
Dual Streams from two of H.264, MPEG4 and MJPEG
|
|
Video Resolution
|
Main Stream
|
704 x 480, 704 x 240, 352 x 240
|
704 x 576, 704 x 288, 352 x 288
|
|
Sub Stream
|
704 x 480, 704 x 240, 352 x 240
|
704 x 576, 704 x 288, 352 x 288
|
|
Frame Rate
|
30 fps
|
25 fps
|
|
* The frame rate and the performance may vary depending on the number of connections and data bitrates (different scenes).
|
|
Image Setting
|
Exposure Control, White Balance, Image Orientation, Light Compensation, Gamma
|
|
Audio Codec
|
G.711
|
|
Digital Input
|
1 Input (Dry Contact)
|
|
Digital Output
|
1 Output
|
|
Network
|
|
Interface
|
10/100 Ethernet
|
|
Protocol
|
HTTP, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, RTSP
|
|
Mechanical
|
|
Connectors
|
Power
|
2-pin terminal block
|
|
Ethernet
|
RJ-45
|
|
Audio
|
1 In (Using a built-in or an externally connected microphone)
1 Out (Stereo phone jack, 3.5 mm / 0.14 in)
|
|
Local Storage
|
Micro SD / SDHC memory card slot
|
|
Digital I/O
|
3-pin terminal block
|
|
LED Indicator
|
2 LEDs: Power and Status
|
|
Camera Angle Adjustment
|
Pan -175 ~ 175, Tilt -45 ~ 90
|
|
General
|
|
Operating Temperature
|
-10 C ~ 50 C / 14 F ~ 122 F
|
|
Humidity
|
10% to 90% (no condensation)
|
|
Power Source
|
12V DC / 24V AC / PoE
|
|
Power Consumption
|
15 W (max. 1.25A at 12V DC)
|
|
Regulatory
|
CE, FCC, C-Tick, RoHS compliant
|
|
Dimensions
(L X W X H)
|
With mounting base and cover
|
167.75 x 166.78 x 135.2 mm / 6.6 x 6.57 x 5.32 in
|
|
Without mounting base and cover
|
124.55 x 122.73 x 133.3 mm / 4.9 x 4.83 x 5.25 in
|
|
Weight
|
490 g / 1.08 lb
|
|
Power over Ethernet
|
|
PoE Standard
|
IEEE 802.3af Power over Ethernet / PSE
|
|
PoE Power Supply Type
|
End-Span
|
|
PoE Power Output
|
Per Port 48V DC, 350mA. Max. 15.4 watts
|
|
Web Interface
|
|
Installation Management
|
Web-based configuration
|
|
Maintenance
|
Firmware upgrade through Web Browser or Utility
|
|
Access from Web Browser
|
Camera live view, video recording, change video quality, bandwidth control, image snapshot, digital I/O control, audio, Picture in Picture, Picture and Picture, Privacy Mask
|
|
Language
|
Czech / Danish / English / French / German / Hebrew / Hungarian / Italian / Japanese / Polish / Portuguese / Russian / Serbian / Simplified Chinese / Spanish / Traditional Chinese
|
|
Applications
|
|
Network Storage
|
GV-NVR, GV-System
|
|
3G Mobile Phone
|
Built-in player for 3GPP / ISMA
|
|
Live Viewing
|
IE , Mobile Phone
|
|
CMS Server support
|
GV-Center V2, GV-VSM, GV-Dispatch Server, GV-Control Center
|
|
|
|
|
05/11
|
Vivotek SD8121 Day & WDR Night Network Camera - 12x Optical Zoom, 35x Zoom Outdoor, EXView CCD Sensor In D1 Resolution - White
12x Zoom Day & Night 3D Noise Reduction WDR Network Camera SD8111/SD8121
Overview
VIVOTEK SD8111/SD8121, equipped with a 12x optical zoom lens, is a high performance day/night speed dome network camera geared for professional surveillance applications, representing another significant addition to VIVOTEK's high-end H.264 network camera portfolio.
Adopting a 12x optical zoom lens and utilizing SONY's EXView CCD sensor, this network camera allows for not only close-up images with exceptional detail from a faraway distances, but also crystal-clear, razor-sharp video of fast-moving objects without jagged edges. With a sophisticated pan/tilt mechanism, it provides fast, precise movement with endless 360-degree pan and 90-degree tilt. The user can easily control the lens position via mouse or joystick to track the object of interest and set up to 128 preset positions for patrolling.
Boasting with Wide Dynamic Range technology, SD81x1 can cope with any challenging lighting conditions and generate image quality closer to the capabilities of the human eye. The day and night functionality also makes the SD81x1 ideal for operating under diverse lighting conditions. When lighting conditions turn poor, the IR-cut filter will automatically disengage to accept IR illumination and improve image quality. With the new 2D & 3D noise reduction technology, environmental noise is removed to provide crystal clear nighttime video and the camera automatically switches from color to black and white, assuring optimal image quality at all times. Additional advanced features, including 3GPP mobile surveillance, two-way audio via SIP protocol, and digital I/O for external sensors & alarms, make the VIVOTEK SD8111/8121 a full-featured speed dome and a suitable solution for all levels of enterprise projects such as airports, parking lots, and shopping malls, where high-level reliability and precision are an absolute must.
Features
- SONY EXview HAD CCD Sensor in D1 Resolution
- 12x Zoom Lens
- 360 Continuous Pan and 190 Tilt
- Removable IR-cut Filter for Day & Night Function
- Real-time H.264, MPEG-4 and MJPEG Compression (Triple Codec)
- Multiple Simultaneous Streams
- Activity Adaptive Streaming for Dynamic Frame Rate Control
- 3D Noise Reduction for Clear Nighttime Images
- WDR (Wide Dynamic Range) for High Contrast Environments
- 3GPP Mobile Surveillance
- Two-way Audio via SIP Protocol
- Built-in SD/SDHC Card Slot for On-board Storage
- Supports ONVIF Standard to Simplify Integration and Enhance Interoperability
Specifications
| System |
CPU: TI DM365 SoC
Flash: 128MB
RAM: 128MB
Embedded OS: Linux 2.4 |
| Pan/Tilt/Zoom |
Pan range: 360
Tilt range: -10 ~ 190
12x optical zoom
Pan speed: 0.1 ~ 300/sec
Tilt speed: 0.1 ~ 120/sec
Auto pan mode
Auto patrol mode
|
| Lens |
12x optical zoom
f=3.8 ~ 45.6 mm
F 1.6 (wide)
F 2.8 (tele)
Focus range: wide 20 mm,tele 3000 mm ~
auto iris
Removable IR-cut filter for day & night function
|
| Angle of View |
1.7 ~ 55.8 (horizontal)
|
| Shutter Time |
1/2, 1/1.5(SD8121) ~ 1/30,000 sec |
| Image sensor |
1/4" SONY EXview HAD CCD in D1 Resolution |
| Minimum Illumination |
0.1 Lux / F1.6 ( typical )
in 0.01 Lux / F1.6 ( B/W ) |
| Video |
Compression: H.264, MPEG-4 & MJPEG
Streaming:
Simultaneous multiple streams
H.264 streaming over UDP, TCP, HTTP or HTTPS
MPEG-4 streaming over UDP, TCP, HTTP or HTTPS
MPEG-4 multicast streaming
MJPEG streaming over HTTP or HTTPS
Supports activity adaptive streaming for dynamic frame rate control
Supports 3GPP mobile surveillance
Frame rates:
H.264: Up to 30/25 fps at 720x480 (NTSC) /720x576 (PAL)
MPEG-4: Up to 30/25 fps at 720x480 (NTSC) /720x576 (PAL)
MJPEG: Up to 30/25 fps at 720x480 (NTSC) /720x576 (PAL)
|
| Image Settings |
Adjustable image size, quality, and bit rate
Time stamp and text caption overlay
Flip & mirror
Configurable brightness, contrast, saturation, sharpness, white balance and exposure
AGCAWBAES
Automatic, manual or scheduled day/night mode
Supports privacy masks
BLC (Backlight compensation)
WDR(widedynamicrange) |
| Audio |
Compression
GSM-AMR speech encoding, bit rate: 4.75 kbps to 12.2 kbps
MPEG-4 AAC audio encoding, bit rate: 16 kbps to 128 kbps
G.711 audio encoding, bit rate: 64 kbps, -Law or A-Law
Interface:
External microphone input
Audio output
Supports two-way audio via SIP protocol
Supports audio mute
|
| Networking |
10/100 Mbps Ethernet, RJ-45
ONVIF support
Protocols: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP and 802.1X |
| Alarm and Event Management |
Triple-window video motion detection
1 D/I & 4 D/O for external sensor and alarm
Event notification using HTTP, SMTP, or FTP
Local recording of MP4 files
|
| On-board Storage |
SD/SDHC card slot
Stores snapshots and video clips
|
| Security |
Multi-level user access with password protection
IP address filtering
HTTPS encrypted data transmission
802.1X port-based authentication for network protection
|
| Users |
10 clients on-line monitoring at the same time |
| Dimensions |
: 131mm x 200 mm
Cable length: 680 mm
Cable diameter: 8 mm; Ring: 13.5 mm |
| Weight |
Net: 1500 g |
| Power |
12V DC
Power consumption: Max. 11.4 W
|
| Approvals |
CEC-TickFCCLVDVCCI |
| Operating Environments |
Temperature: 0 ~ 40 C (32 ~ 104 F)
Humidity: 90%
|
| Viewing System Requirements |
OS: Microsoft Windows 2000/XP/Vista/7
Browser: Mozilla Firefox, Internet Explorer 6.x or above
Cell phone: 3GPP player
Real Player: 10.5 or above
Quick Time: 6.5 or above |
| Installation, Management, and Maintenance |
Installation Wizard 2
32-CH central management software
Supports firmware upgrade
|
| Applications |
SDK available for application development and system integration |
| Warranty |
24 months |
|
|
|
|
Previous Page
|
Next Page
|
|
