08/10
|

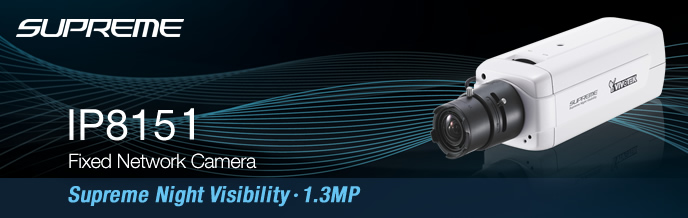

Vivotek IP8151 Fixed Network Camera - H.264 Day & Night, Supreme Night Visiblity, 1280x1024, 3.1~ 8mm Vari-foca Auto-Iris Lens
Supreme Night Visibility 1.3MP Fixed Network Camera IP8151
VIVOTEK IP8151 represents the next-generation in video quality in network cameras. As the first 1.3 Megapixel IP camera in VIVOTEK's new line of professional SUPREME Series products, users will be able to experience the utmost in picture clarity through utilization of SONY's latest sensor technology, dubbed "Exmor", which enables the IP8151 to capture exceptional details during daytime, as well as offer unparalleled visibility under low-light conditions through its Supreme Night Visibility feature.
The IP8151 camera supports the industry-standard H.264 compression technology, drastically reducing file sizes and conserving valuable network bandwidth. With MPEG-4 and MJPEG compatibility also included, video streams can be transmitted in any of these formats for versatile applications.
Also featuring a myriad of other high-end features such as SDHC card slot, PoE, multiple streams, and more, the IP8151 camera is the ideal choice for the most demanding monitoring applications. By providing sharp, smooth video, plus exceptional performance in low-light conditions, the IP8151 can secure a variety of sites such as retails stores, school campuses, and much more.
Features
- 1.3 Megapixel CMOS Sensor
- Supreme Night Visibility
- Up to 30 fps @ 1280x1024
- 3.1 ~ 8 mm Vari-focal, Auto-iris Lens
- Removable IR-cut Filter for Day & Night Function
- Real-time H.264, MPEG-4 and MJPEG Compression (Triple Codec)
- Multiple Simultaneous Streams
- ePTZ for Data Efficiency
- Activity Adaptive Streaming for Dynamic Frame Rate Control
- Tamper Detection for Unauthorized Changes
- Built-in SD/SDHC Card Slot for On-board Storage
- Built-in 802.3af Compliant PoE
- CS- or C-mount Adjustment Ring for Flexible Lens Installation
- Supports ONVIF Standard to Simplify Integration and Enhance Interoperability
| System |
CPU: TI DM365 SoC
Flash: 128MB
RAM: 256MB
Embedded OS: Linux 2.6 |
| Lens |
f=3.1 ~ 8 mm
F 1.2
auto iris
CS-mount
vari-focal
Removable IR-cut filter for day & night function
|
| Angle of View |
35.2 ~ 90.7 (horizontal)
|
| Shutter Time |
1/5 ~ 1/40,000 sec |
| Image sensor |
1/3" CMOS in 1280x1024 Resolution |
| Minimum Illumination |
0.04 Lux / F1.2 ( typical )
in 0.001 Lux / F1.2 ( B/W ) |
| Video |
Compression: H.264, MPEG-4 & MJPEG
Streaming:
Simultaneous multiple streams
H.264 streaming over UDP, TCP, HTTP or HTTPS
MPEG-4 streaming over UDP, TCP, HTTP or HTTPS
MPEG-4 multicast streaming
MJPEG streaming over HTTP or HTTPS
Supports activity adaptive streaming for dynamic frame rate control
Supports ePTZ for data efficiency
Supports 3GPP mobile surveillance
Frame rates:
H.264: Up to 30 fps at 1280x1024
MPEG-4: Up to 30 fps at 1280x1024
MJPEG: Up to 30 fps at 1280x1024
BNC connector for video output
NTSC/PAL video output switch
|
| Image Settings |
Adjustable image size, quality, and bit rate
Time stamp and text caption overlay
Flip & mirror
Configurable brightness, contrast, saturation, sharpness, white balance and exposure
AGCAWBAES
Automatic, manual or scheduled day/night mode
Supports privacy masks
BLC (Backlight compensation)
|
| Audio |
Compression
GSM-AMR speech encoding, bit rate: 4.75 kbps to 12.2 kbps
MPEG-4 AAC audio encoding, bit rate: 16 kbps to 128 kbps
G.711 audio encoding, bit rate: 64 kbps, -Law or A-Law
Interface:
Built-in microphone
External microphone input
Audio output
External/Internal microphone switch
Supports two-way audio via SIP protocol
Supports audio mute
|
| Networking |
10/100 Mbps Ethernet, RJ-45
ONVIF support
Protocols: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP and 802.1X |
| Alarm and Event Management |
Triple-window video motion detection
1 D/I & 1 D/O for external sensor and alarm
Event notification using HTTP, SMTP, or FTP
Local recording of MP4 files
Tamper Detection
|
| On-board Storage |
SD/SDHC card slot
Stores snapshots and video clips
|
| Security |
Multi-level user access with password protection
IP address filtering
HTTPS encrypted data transmission
802.1X port-based authentication for network protection
|
| Users |
10 clients on-line monitoring at the same time |
| Dimensions |
Depth: 154mm
Width: 72mm
Height: 62mm
|
| Weight |
Net: 664 g |
| LED Indicator |
System power and status indicator
System activity and network link indicator
|
| Power |
12V DC
24V AC
Power consumption: Max. 3.6 W
|
| Approvals |
CEC-TickFCCLVDVCCI |
| Operating Environments |
Temperature: -10 ~ 50 C (14 ~ 122 F )
Humidity: 90%
|
| Viewing System Requirements |
OS: Microsoft Windows 2000/XP/Vista/7
Browser: Mozilla Firefox, Internet Explorer 6.x or above
Cell phone: 3GPP player
Real Player: 10.5 or above
Quick Time: 6.5 or above |
| Installation, Management, and Maintenance |
RS-485 interface for scanners, pan/tilts
Installation Wizard 2
32-CH central management software
Supports firmware upgrade
|
| Applications |
SDK available for application development and system integration |
| Warranty |
36 months |
|
|
|
|
08/10
|
Sony DPFA710 - 7"WQVGA LCD Screen Digital Photo Frame - 480x234, 16;9, 128MB Internal Memory, Multi-Card Reader - Black
Digital Photo Frames - Essential Fun
7 inch Digital Photo Frame
Enjoy those precious memories with a wide range of slideshows with musical accompaniment, plus attractive clock and calendar viewing modes.
- 7" WQVGA LCD screen
- 128MB internal memory (store up to 250 pics)
- Wide choice of slideshow viewing modes
- Auto orientation
- Quick, easy picture search functions
- Multiple direct card slots
|
|
|
|
