Camerafarm product archive #40420

Image Date Product description Price Buy
01/09

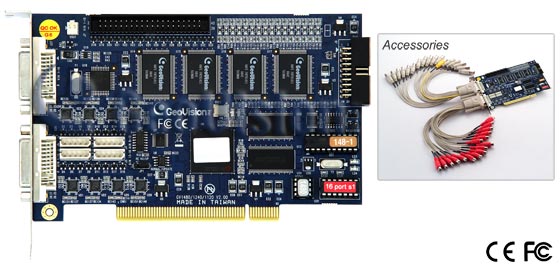

GeoVision GV1120D Combo Card - 16-Chl DVI Video Input & Audio Input, 400fps Display, 100fps Recording





Specifications

Input Type

DVI : DVI x 2 (one for 16 video, one for 16 audio)
D-Type: DB15 x 2 (for video) ; DB9 x 2 (extension card for audio)

Video Input(s)

8, 12, 16 Cams

Audio Input(s)

8, 12, 16 Channels

TV Output

RCA Connector x 1

Total Recording Rate
At 320 X 240 Resolution

120 fps (NTSC), 100 fps (PAL)

Display Rate

480 fps (NTSC), 400 fps (PAL)

Video Resolution - NTSC/PAL

Full D1, Half D1, CIF

Compression Format

Geo MPEG4, Geo MPEG4 (ASP), Geo H264, Geo H264 V2

GV-NET Card Support

Yes

GV-NET/IO Card Support

Yes

Dimensions

DVI PCI : 165 x 95 (mm) / 6.50 x 3.74 (in)
D-Type PCI : 170 x 95 (mm) / 6.69 x 3.74 (in)
D-Type PCI Express: 212 x 99 (mm) / 8.35 x 3.90 (in)

Installation Guide

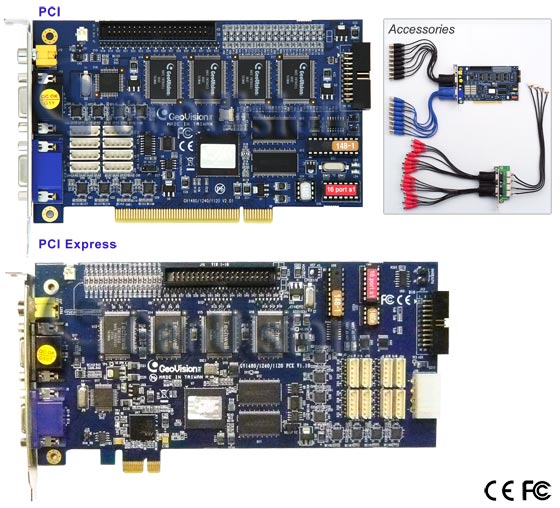

DVI PCI
D-Type PCI
D-Type PCI Express
Installing Two cards

Note: GV-1120 is currently not compatible with VIA series and ATI series chipset motherboards, and 64-bit Windows operating system.

Minimum System Requirements For One Card

OS Supported

Windows 2000 / Windows XP / Windows Server 2003 / Windows Vista
(Not support 64-bit version of Windows)

CPU

Pentium 4-3.0 GHz with Hyper-threading

RAM

Windows 2000 / XP: 2 x 512 MB Dual Channels
Windows Vista / Server 2003: 2 x 1 GB Dual Channels

HDD

80 GB

VGA

ATI Radeon X600
NVIDIA 6200

DirectX

9.0c

Minimum System Requirements For Two Cards

OS Supported

Windows 2000 / Windows XP / Windows Server 2003 / Windows Vista
(Not support 64-bit version of Windows)

CPU

Pentium 4-3.0 GHz Dual Core

RAM

2 x 1 GB Dual Channels

HDD

160 GB

VGA

ATI Radeon X1300 PCI-E
NVIDIA GeForce 7300 PCI-E

DirectX

9.0c


Link contains in-depth information about this product Link contains a picture of this product    NA
01/09

Transcend 8GB Micro SDHC Card - Class 2 - With USB Reader

TS8GUSDHC2-P3

Description

Transcends extra-large capacity, high performance microSDHC memory cards are fully compatible with SDA 2.0 standards, offering superb speeds to ensure quick and responsive reaction while saving, copying, recording or viewing files. The P3 card reader fully supports USB2.0 Hi-Speed USB data transfer rate of 480 Mb/s and SDA 2.0 (SDHC) standards, making transferring data between your computer and your cell phone easier than ever. Thanks to its built-in USB connector, the P3 operates just like a USB flash drive without the hassle of carrying around bulky cables.

Dedicated to fulfilling the demanding requirements for storing lots of pictures, movies, and music, a dependable high-speed and greater capacity memory card is indispensable. In addition, for added convenience that Transcend offers a combo package, which includes a microSDHC card and a Compact Card Reader P3.

Features :

MicroSDHCcardbundledwithanultra-compactUSBreader
SDHCClass2compliant
MicroSDadapterallowsittobeusedinstandardSDCardslots
Built-inErrorCorrectingCode(ECC)
ComplieswithSecureDigitalMusicInitiative(SDMI)
 SupportsContentProtectionRecordableMedia(CPRM)
 AllowsInSystemProgramming(ISP)
 Supportsauto-standby,power-offandsleepmodes
RoHScompliant
MicroSDHCcard:LifetimeWarranty

Specification :

Op.Voltage:2.7V~3.6V
Op.Temperature:0C(32F)~70C(158F)
Durability:10,000insertion/removalcycles
Link contains in-depth information about this product Link contains a picture of this product    NA
