27/08
|
GeoVision GV-IP Box Camera - 1.3MP, H.264, 1280x1024, 4-9mm VF Lens, Triple codec, Two way audio, Digital I/O, 3GPP/ISMA, 1xRJ45
Providing detail not seen on conventional surveillance cameras, the GV-IP Camera 1.3M features a 1.3 megapixel CCD that delivers superb video image quality. Through the use of progressive scan CCD sensor, the GV-IP Camera 1.3M is able to reproduce ultra smooth video images of fast moving objects without any pixilated edges. With high definition up to 1280 x 960 and up to 4 times higher resolution than conventional VGA/ D1 cameras, the GV-IP Camera 1.3M allows users to monitor critical areas with greater detail than ever. Moreover, with simultaneous/dual video stream and support for compliant Power-over-Ethernet (PoE) which simplifies the cabling. It allows users to view both MJPEG images and MPEG-4 videos with improved efficiency while conserving valuable bandwidth.
In providing our customers with a more complete, cost-effective IP surveillance solution, our GV-IP Camera 1.3M can seamlessly integrate with our GV-NVR software system that comes with advanced monitoring and various other video management features. When connected with the GV-IP Camera 1.3M, Special web interface support functions such as privacy mask, visual automation, picture-in-picture (PiP) view and picture-and-picture (PnP) view are also made available for facilitating detail monitoring.
- 1.3 megapixel SONY progressive scan CCD
- Dual streaming support MJPEG and MPEG4
- Two way audio
- Digital I/O: 1 IN, 1 OUT
- Support both 12V DC and PoE
- Video Motion Detection reduces bandwidth and storage
- 3GPP/ISMA mobile application
- Privacy Mask
- Visual Automation

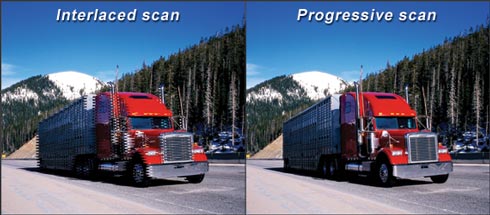

Progressive scan CCD captures the entire scene of a moving object at the same time. Even and odd fields are scanned simultaneously. It reproduces smooth video quality without pixilated edges.

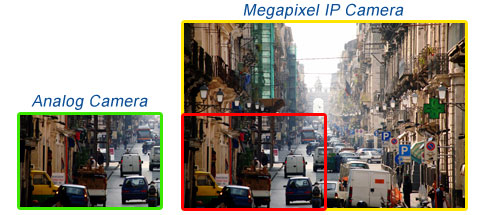

It provides up to 4 times higher resolution than common VGA/D1 cameras.
SPECIFICATIONS
|
Camera
|
|
Image Sensor
|
1/3" SONY progressive scan CCD
|
|
Picture Elements
|
1280(H) x 960 (V), 1.3M CCD
|
|
Resolution
|
700 TVL
|
|
Minimum Illumination
|
0.1 lux @ F1.2
|
|
Shutter Speed
|
1.5 ~ 1/10000 sec.
|
|
White Balance
|
Manual / ATW (1500 ~ 15000K)
|
|
Lens
|
|
Max Aperture
|
Wide F1.4, Tele F2.9 |
| Lens Focal |
f = 3.3~12 mm
|
|
Angle of View
|
Wide end
|
Diagonal 125.7 / Horizontal 89.8 |
|
Tele end
|
Diagonal 29.9 / Horizontal 23.9 |
|
Operation
|
|
Video Codec
|
MPEG4 / MJPEG
|
|
Video Streaming
|
Simultaneous MPEG4 and MJPEG video stream (dual stream)
Selectable single stream (MPEG4 or MJPEG)
|
|
Resolution
|
MPEG4 ASP: VGA, QVGA, CIF, QCIF
MJPEG: 1280x960(4 VGA), VGA, QVGA, CIF, QCIF
|
|
Frame Rate
|
MPEG4 30fps@VGA
MJPEG 15fps@1280x960
|
|
Image Setting
|
Auto Exposure, Auto White Balance, Brightness, Contrast, Sharpness, Gamma, Mono, Reverse, Rotate 180, Flicker-less 50/60 Hz
|
|
Audio Codec
|
G.726
|
|
Digital Input
|
Dry Contact
|
|
Digital Output
|
Photo relay output: 40mA, 5~12VDC
|
|
Network
|
|
Interface
|
10/100 Ethernet (RJ-45)
|
|
Protocol
|
HTTP, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA RTSP
|
|
Power over Ethernet
|
|
PoE Standard
|
IEEE 802.3af Power over Ethernet / PSE
|
|
PoE Power Supply Type
|
End-Span
|
|
PoE Power Output
|
Per Port 48V DC, 350mA. Max. 15.4 watts
|
|
Mechanical
|
|
Connectors
|
Power
|
DC Jack
|
|
Ethernet
|
RJ-45
|
|
Audio
|
1 In, 1 Out stereo phone jack, pitch 3.5 mm / 0.14 in
|
|
Digital I/O
|
4 pins terminal block, pitch 3.5 mm / 0.14 in
|
|
Auto Iris
|
Video drive & DC drive
|
|
LED Indicator
|
Power, Link, ACT
|
|
General
|
|
Operating Temperature
|
0C ~ 50C / 32 F ~ 122 F
|
| Humidity |
10% to 90% (no condensation) |
|
Power Source
|
DC12V / PoE
|
|
Power Comsumption
|
4.2 W (max. 350mA DC 12V)
|
|
Certificate
|
CE, FCC, RoHS compliant
|
|
Dimension
(L x W x H)
|
165 x 73 x 53 mm / 6.5 x 2.87 x 2.09 in
|
|
Weight
|
310g / 0.68 lb
|
|
Web Interface
|
|
Installation Management
|
Web-based configuration
|
|
Maintenance
|
Firmware upgrade through Web Browser
|
|
Access from Web Browser
|
Camera live view, video recording, change video quality, zoom in/out, bandwidth control, image snapshot, digital I/O control, audio, Picture in Picture, Picture and Picture, Privacy Mask, Visual Automation
|
|
Applications
|
|
Network Storage
|
GV-NVR, GV-System
|
|
3G Mobile Phone
|
Built-in player for 3GPP/ISMA
|
|
Live Viewing
|
MultiView, E-map, Mobile Phone
|
|
CMS Server support
|
Control Center, Center V2, VSM
|
|
|
|
|
27/08
|
ICU ECS-1648 16-Channel Standalone DVR - Real-Time, H.264, Supports 1xSATA HDD, 400FPS 352x288 PAL, IR Remote High compression with H.264
Real Pentaplex Operation
Real-Time Recording at CIF Resolution
1 x SATA HDD Internal Bay
2 Video Out (Composite, VGA)
Multiple VGA Resolution (800x600, 1024x768, 1280x1024)
Mouse / IR Remote Control
Very user-friendly Full GUI
Multiple Language
Individual Channel Recording(Resolution, Frames and Quality)
De-Interlacing feature in DVR Itself
System Automatic Rebooting by Itself for Watch-dog
Water-Mark
Digital X2 Zoom, PIP, POP
Various PTZ Protocols
Motion / Sensor Detection
Recording, Alarm-Out and Email Scheduling
Pre / Post / Extra-Alarm Recording
Email Notification/Alarm-Out/Buzzer for Events & Video Loss
Warning Message & Buzzer for HDD Over-Temperature
Search by Time, Calendar, Events and First/Last
Fast Forward/Backward, Step Forward/Backward
Backup via USB Memory Stick & Network by CMS
Dual-Stream (Local Recording & Network Transmission)
I.E Web-Browsing, CMS (DDNS and Multi-Port Support)
3G Mobile Phones, iPhone
| Model |
ECS-1648 |
| Compression |
Video: H.264 / Audio: G.723 |
| HDD Bay |
1 x SATA HDD (Max. 2TB) |
| Operating System |
Embedded Linux |
| Multi-Operation |
Pentaplex (Live, Recording, Playback, Backup, Network) |
| Video |
Input |
16 Ch |
| Loop-Out |
X |
| Video Out |
Monitor |
1 x Composite(BNC, 1 Vp-p, 75 Ohm), 1 x VGA |
| VGA Resolution |
VGA Resolution : 800x600, 1024x768, 1280x1024 (Selectable) |
| Audio In/Out |
1 In / 1 Out |
| Sensor In / Alalrm Out |
1 In / 1 Out |
| Port |
2 x USB 2.0, 1 x RS-485(PTZ) |
| LAN |
10/100 Base-Tx Ethernet (RJ45) : Static / DHCP / DDNS |
| Live Display Modes |
1, 4, 9, 16 / PIP, POP
Digital X2 Zoom |
Recording Speed
(NTSC/PAL) |
CIF |
480/400 fps |
| Half D1 |
240/200 fps |
| D1 |
120/100 fps |
| Recording Modes |
Continuous, Schedule, Sensor-Activated / Motion Detection Recording
Pre-Alarm(0~30 Sec.) / Post-Alarm(0~120 Sec), Emergency Recording |
| Playback / Backup |
Speed |
Fast Forward/Backward(x1, x8, x32, x64, x128), Step Forward/Backward |
| Search |
Intelli-Search by Time, Calendar , Events and First/Last Search |
| Backup Device |
USB Memory Stick / Network by CMS |
| Backup File Format |
AVI (With or Without Timestamp), PS (Playback in Backup-Viewer) |
| Events / Alarm |
Email Notification / Alarm-out / Buzzer for Events / Video Loss
Warning Message / Buzzer for HDD Over-Temperature
Alarm / Email Notification-Schedule for Events-Triggering |
| Network |
Transmission |
Video Dual-Stream (Local recording / Network Transmission)
Video Resolution / Frame rates adjustable
Bandwidth adjustable (64/128/256/512Kbps, 1/2/4/10Mbps, Unlimited) |
| C.M.S |
Live Monitoring(Max.64ch), Playback / Backup , PTZ Control, Local DVR Reboot |
| Web (I.E) |
Live Monitoring, Playback, Snapshot and PTZ Control |
| Other Functions |
Multi-Language, Firmware Upgrade by USB, Network, Water-Mark
Configuration Export / Import, Private Zone, Deinterlace On/Off, DST, NTP
Password Protection(1 Admin + 4 Users), 3G Mobile Phone Viewing |
| HDD Formatting Time |
Within 3 Minutes for 2TB |
| Operation |
USB Mouse, IR Remote Control |
| Power |
DC12V, 3.3A |
| Storage Temperature and Humidity |
-20~60 / 20~95% RH |
| Operating Temperature and Humidity |
5~40 / 20~80% RH |
| Dimension (WxDxH) |
340 x 253 x 60, Packing: 374 x 383 x 126 (mm) |
| Certification |
CE, FCC, MIC / RoHS |
|
|
|
|
27/08
|
ICU EOS-1648 16-Channel Standalone DVR - Real-Time, H.264, Supports 2xSATA HDD/1xODD, 400FPS 352x288 PAL High compression with H.264
Real Pentaplex Operation
Real-Time Recording at CIF Resolution
2 x SATA HDD + 1 ODD
2 Video Out (Composite, VGA)
Multiple VGA Resolution (800x600, 1024x768, 1280x1024)
Mouse /Front Keys/IR Remote Control
Very user-friendly Full GUI
Multi language
Individual Channel Recording(Resolution, Frames and Quality)
De-Interlacing feature in DVR Itself
System Automatic Rebooting by Itself for Watch-dog
Water-Mark
Digital X2 Zoom, PIP, POP
Various PTZ Protocols
Motion / Sensor Detection
Recording, Alarm-Out and Email Scheduling
Pre / Post / Extra-Alarm Recording
Email Notification/Alarm-Out/Buzzer for Events & Video Loss
Warning Message & Buzzer for HDD Over-Temperature
Search by Time, Calendar, Events and First/Last
Fast Forward/Backward, Step Forward/Backward
Backup via USB Memory Stick & Network by CMS
Dual-Stream (Local Recording & Network Transmission)
I.E Web-Browsing, CMS (DDNS and Multi-Port Support)
3G Mobile Phones, iPhone
| Model |
EOS-0824 |
| Compression |
Video: H.264 / Audio: G.723 |
| HDD Bay |
2 x SATA HDD (or 2 x SATA HDD + 1 x ODD), Max. 2TB/HDD |
| Operating System |
Embedded Linux |
| Multi-Operation |
Pentaplex (Live, Recording, Playback, Backup, Network) |
| Video |
Input |
16 Ch |
| Loop-Out |
X |
| Video Out |
Monitor |
1 x Composite(BNC, 1 Vp-p, 75 Ohm), 1 x VGA |
| VGA Resolution |
VGA Resolution : 800x600, 1024x768, 1280x1024 (Selectable) |
| Audio In/Out |
8 In / 1 Out |
| Sensor In / Alalrm Out |
16 In / 4 Out |
| Port |
4 x USB 2.0, 2 x RS-485(PTZ), 1 x RS-232 |
| LAN |
10/100 Base-Tx Ethernet (RJ45) : Static / DHCP / DDNS |
| Live Display Modes |
1, 4, 9, 16 / PIP , POP
Digital X2 Zoom |
Recording Speed
(NTSC/PAL) |
CIF |
480/400 fps |
| Half D1 |
240/200 fps |
| D1 |
120/100 fps |
| Recording Modes |
Continuous, Schedule, Sensor-Activated / Motion Detection Recording
Pre-Alarm(0~30 Sec.) / Post-Alarm(0~120 Sec), Emergency Recording |
| Playback / Backup |
Speed |
Fast Forward/Backward(x1, x8, x32, x64, x128), Step Forward/Backward |
| Search |
Intelli-Search by Time, Calendar , Events and First/Last Search |
| Backup Device |
USB Memory Stick/HDD, DVD-RW, Network by CMS |
| Backup File Format |
AVI (With or Without Timestamp), PS (Playback in Backup-Viewer) |
| Events / Alarm |
Email Notification / Alarm-out / Buzzer for Events / Video Loss
Warning Message / Buzzer for HDD Over-Temperature
Alarm / Email Notification-Schedule for Events-Triggering |
| Network |
Transmission |
Video Dual-Stream (Local recording / Network Transmission)
Video Resolution / Frame rates adjustable
Bandwidth adjustable (64/128/256/512Kbps, 1/2/4/10Mbps, Unlimited) |
| C.M.S |
Live Monitoring(Max.64ch), Playback / Backup , PTZ Control, Local DVR Reboot |
| Web (I.E) |
Live Monitoring, Playback, Snapshot and PTZ Control |
| Other Functions |
Multi-Language, Firmware Upgrade by USB, Network, Water-Mark
Configuration Export / Import, Private Zone, Deinterlace On/Off, DST, NTP
Password Protection(1 Admin + 4 Users), 3G Mobile Phone Viewing
HDD Mirroring & Automatic-Backup to USB HDD |
| HDD Formatting Time |
Within 3 Minutes for 2TB |
| Operation |
Front Key Buttons, USB Mouse, IR Remote Control |
| Power |
DC12V, 5A |
| Storage Temperature and Humidity |
-20~60 / 20~95% RH |
| Operating Temperature and Humidity |
5~40 / 20~80% RH |
| Dimension (WxDxH) |
380 x 342 x 67 (mm) |
| Certification |
CE, FCC, MIC / RoHS |
|
|
|
|
27/08
|
ICU EOS-0824 8-Channel Standalone DVR - Real-Time, H.264, Supports 2xSATA HDD/1xODD, 200FPS 352x288 PAL High compression with H.264
Real Pentaplex Operation
Real-Time Recording at Half D1 Resolution
2 x SATA HDD + 1 ODD
2 Video Out (Composite, VGA)
Multiple VGA Resolution (800x600, 1024x768, 1280x1024)
Mouse /Front Keys/IR Remote Control
Very user-friendly Full GUI
Multi language
Individual Channel Recording(Resolution, Frames and Quality)
De-Interlacing feature in DVR Itself
System Automatic Rebooting by Itself for Watch-dog
Water-Mark
Digital X2 Zoom, PIP, POP
Various PTZ Protocols
Motion / Sensor Detection
Recording, Alarm-Out and Email Scheduling
Pre / Post / Extra-Alarm Recording
Email Notification/Alarm-Out/Buzzer for Events & Video Loss
Warning Message & Buzzer for HDD Over-Temperature
Search by Time, Calendar, Events and First/Last
Fast Forward/Backward, Step Forward/Backward
Backup via USB Memory Stick & Network by CMS
Dual-Stream (Local Recording & Network Transmission)
I.E Web-Browsing, CMS (DDNS and Multi-Port Support)
3G Mobile Phones, iPhone
| Model |
EOS-0824 |
| Compression |
Video: H.264 / Audio: G.723 |
| HDD Bay |
2 x SATA HDD (or 2 x SATA HDD + 1 x ODD), Max. 2TB/HDD |
| Operating System |
Embedded Linux |
| Multi-Operation |
Pentaplex (Live, Recording, Playback, Backup, Network) |
| Video |
Input |
8 Ch |
| Loop-Out |
X |
| Video Out |
Monitor |
1 x Composite(BNC, 1 Vp-p, 75 Ohm), 1 x VGA |
| VGA Resolution |
VGA Resolution : 800x600, 1024x768, 1280x1024 (Selectable) |
| Audio In/Out |
8 In / 1 Out |
| Sensor In / Alalrm Out |
8 In / 4 Out |
| Port |
4 x USB 2.0, 2 x RS-485(PTZ), 1 x RS-232 |
| LAN |
10/100 Base-Tx Ethernet (RJ45) : Static / DHCP / DDNS |
| Live Display Modes |
1, 4, 9 / PIP , POP
Digital X2 Zoom |
Recording Speed
(NTSC/PAL) |
CIF |
240/200 fps |
| Half D1 |
240/200 fps |
| D1 |
120/100 fps |
| Recording Modes |
Continuous, Schedule, Sensor-Activated / Motion Detection Recording
Pre-Alarm(0~30 Sec.) / Post-Alarm(0~120 Sec), Emergency Recording |
| Playback / Backup |
Speed |
Fast Forward/Backward(x1, x8, x32, x64, x128), Step Forward/Backward |
| Search |
Intelli-Search by Time, Calendar , Events and First/Last Search |
| Backup Device |
USB Memory Stick/HDD, DVD-RW, Network by CMS |
| Backup File Format |
AVI (With or Without Timestamp), PS (Playback in Backup-Viewer) |
| Events / Alarm |
Email Notification / Alarm-out / Buzzer for Events / Video Loss
Warning Message / Buzzer for HDD Over-Temperature
Alarm / Email Notification-Schedule for Events-Triggering |
| Network |
Transmission |
Video Dual-Stream (Local recording / Network Transmission)
Video Resolution / Frame rates adjustable
Bandwidth adjustable (64/128/256/512Kbps, 1/2/4/10Mbps, Unlimited) |
| C.M.S |
Live Monitoring(Max.64ch), Playback / Backup , PTZ Control, Local DVR Reboot |
| Web (I.E) |
Live Monitoring, Playback, Snapshot and PTZ Control |
| Other Functions |
Multi-Language, Firmware Upgrade by USB, Network, Water-Mark
Configuration Export / Import, Private Zone, Deinterlace On/Off, DST, NTP
Password Protection(1 Admin + 4 Users), 3G Mobile Phone Viewing
HDD Mirroring & Automatic-Backup to USB HDD |
| HDD Formatting Time |
Within 3 Minutes for 2TB |
| Operation |
Front Key Buttons, USB Mouse, IR Remote Control |
| Power |
DC12V, 5A |
| Storage Temperature and Humidity |
-20~60 / 20~95% RH |
| Operating Temperature and Humidity |
5~40 / 20~80% RH |
| Dimension (WxDxH) |
380 x 342 x 67 (mm) |
| Certification |
CE, FCC, MIC / RoHS |
|
|
|
|
27/08
|
ICU EOS-0412 4-Channel Standalone DVR - Real-Time, H.264, Supports 2xSATA HDD/1xODD, 100FPS 720x576 PAL High compression with H.264
Real Pentaplex Operation
Real-Time Recording at D1 Resolution
2 x SATA HDD + 1 ODD
2 Video Out (Composite, VGA)
Multiple VGA Resolution (800x600, 1024x768, 1280x1024)
Mouse /Front Keys/IR Remote Control
Very user-friendly Full GUI
Multi language
Individual Channel Recording(Resolution, Frames and Quality)
De-Interlacing feature in DVR Itself
System Automatic Rebooting by Itself for Watch-dog
Water-Mark
Digital X2 Zoom, PIP
Various PTZ Protocols
Motion / Sensor Detection
Recording, Alarm-Out and Email Scheduling
Pre / Post / Extra-Alarm Recording
Email Notification/Alarm-Out/Buzzer for Events & Video Loss
Warning Message & Buzzer for HDD Over-Temperature
Search by Time, Calendar, Events and First/Last
Fast Forward/Backward, Step Forward/Backward
Backup via USB Memory Stick & Network by CMS
Dual-Stream (Local Recording & Network Transmission)
I.E Web-Browsing, CMS (DDNS and Multi-Port Support)
3G Mobile Phones, iPhone
| Model |
EOS-0412 |
| Compression |
Video: H.264 / Audio: G.723 |
| HDD Bay |
2 x SATA HDD (or 2 x SATA HDD + 1 x ODD), Max. 2TB/HDD |
| Operating System |
Embedded Linux |
| Multi-Operation |
Pentaplex (Live, Recording, Playback, Backup, Network) |
| Video |
Input |
4 Ch |
| Loop-Out |
X |
| Video Out |
Monitor |
1 x Composite(BNC, 1 Vp-p, 75 Ohm), 1 x VGA |
| VGA Resolution |
VGA Resolution : 800x600, 1024x768, 1280x1024 (Selectable) |
| Audio In/Out |
4 In / 1 Out |
| Sensor In / Alalrm Out |
4 In / 4 Out |
| Port |
4 x USB 2.0, 2 x RS-485(PTZ), 1 x RS-232 |
| LAN |
10/100 Base-Tx Ethernet (RJ45) : Static / DHCP / DDNS |
| Live Display Modes |
1, 4 / PIP
Digital X2 Zoom |
Recording Speed
(NTSC/PAL) |
CIF |
120/100 fps |
| Half D1 |
120/100 fps |
| D1 |
120/100 fps |
| Recording Modes |
Continuous, Schedule, Sensor-Activated / Motion Detection Recording
Pre-Alarm(0~30 Sec.) / Post-Alarm(0~120 Sec), Emergency Recording |
| Playback / Backup |
Speed |
Fast Forward/Backward(x1, x8, x32, x64, x128), Step Forward/Backward |
| Search |
Intelli-Search by Time, Calendar , Events and First/Last Search |
| Backup Device |
USB Memory Stick/HDD, DVD-RW, Network by CMS |
| Backup File Format |
AVI (With or Without Timestamp), PS (Playback in Backup-Viewer) |
| Events / Alarm |
Email Notification / Alarm-out / Buzzer for Events / Video Loss
Warning Message / Buzzer for HDD Over-Temperature
Alarm / Email Notification-Schedule for Events-Triggering |
| Network |
Transmission |
Video Dual-Stream (Local recording / Network Transmission)
Video Resolution / Frame rates adjustable
Bandwidth adjustable (64/128/256/512Kbps, 1/2/4/10Mbps, Unlimited) |
| C.M.S |
Live Monitoring(Max.64ch), Playback / Backup , PTZ Control, Local DVR Reboot |
| Web (I.E) |
Live Monitoring, Playback, Snapshot and PTZ Control |
| Other Functions |
Multi-Language, Firmware Upgrade by USB, Network, Water-Mark
Configuration Export / Import, Private Zone, Deinterlace On/Off, DST, NTP
Password Protection(1 Admin + 4 Users), 3G Mobile Phone Viewing
HDD Mirroring & Automatic-Backup to USB HDD |
| HDD Formatting Time |
Within 3 Minutes for 2TB |
| Operation |
Front Key Buttons, USB Mouse, IR Remote Control |
| Power |
DC12V, 5A |
| Storage Temperature and Humidity |
-20~60 / 20~95% RH |
| Operating Temperature and Humidity |
5~40 / 20~80% RH |
| Dimension (WxDxH) |
380 x 342 x 67 (mm) |
| Certification |
CE, FCC, MIC / RoHS |
|
|
|
|
27/08
|
Vivotek FD8133 Real-Time Compact Design Network Camera - H.264, MicroSD/SDHC Card, 1/4" CMOS Sensor, 3Axis VIVOTEK FD8133 is an easy-to-use fixed dome network camera specifically designed for indoor security applications with a compact, stylish exterior. Equipped with a 1MP sensor enabling viewing resolution of 1280x800 at 30 fps, users need look no further for an all-in-one camera capable of capturing high quality, high resolution video.
This camera supports the industry-standard H.264 compression technology, drastically reducing file sizes and conserving valuable network bandwidth. With MPEG-4 and MJPEG compatibility also included, video streams can also be transmitted in any of these formats for versatile applications. The streams can also be individually configured to meet different constraints, thereby further reducing bandwidth and storage requirements. Users can thus receive multiple streams simultaneously in different resolutions, frame rates, and image qualities for viewing on different platforms.
Also included are a number of advanced features which are standard for VIVOTEK cameras, including tamper detection, MicroSD/SDHC card slot and VIVOTEK's 32-channel recording software. With all of these capabilities, the FD8133 prevents the best value in IP surveillance for indoor applications such as offices, banks, ATMs, and retail stores.
Features
- Easy and Flexible Installation
- Compact and Attractive ID design
- 1/4" CMOS Sensor in 1280 X 800 resolution
- Real-time H.264, MPEG-4 and MJPEG Compression (Triple Codec)
- Multiple Simultaneous Streams
- Activity Adaptive Streaming for Dynamic Frame Rate Control
- Tamper Detection for Unauthorized Changes
- Built-in MicroSD/SDHC Card Slot for On-board Storage
- 3-axis Mechanical Design for Ceiling/Wall Mount Installation
- Supports ONVIF Standard to Simplify Integration and Enhance Interoperability
Specifications
|
System
CPU: TI DM365 SoC
Flash: 128MB
RAM: 256MB
Embedded OS: Linux 2.6
Lens
f=3.6 mm
F 1.8
Board lens
Fixed
Angle of View
56 (horizontal)
41 (vertical)
Shutter Time
1/5 ~ 1/25,000 sec
Image sensor
1/4" CMOS in 1280x800 Resolution
Minimum Illumination
0.3 Lux / F1.8 ( low light mode )
Video
Compression: H.264, MPEG-4 & MJPEG
Streaming:
Simultaneous multiple streams
H.264 streaming over UDP, TCP, HTTP or HTTPS
MPEG-4 streaming over UDP, TCP, HTTP or HTTPS
MPEG-4 multicast streaming
MJPEG streaming over HTTP or HTTPS
Supports activity adaptive streaming for dynamic frame rate control
Supports 3GPP mobile surveillance
Frame rates:
H.264: Up to 30/25 fps at 1280x800
MPEG-4: Up to 30/25 fps at 1280x800
MJPEG: Up to 30/25 fps at 1280x800
Image Settings
Adjustable image size, quality, and bit rate
Time stamp and text caption overlay
Flip & mirror
Configurable brightness, contrast, saturation, sharpness, white balance and exposure
AGCAWBAES
Supports privacy masks
BLC (Backlight compensation)
Networking
10/100 Mbps Ethernet, RJ-45
ONVIF support
Protocols: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP and 802.1X
Alarm and Event Management
Triple-window video motion detection
One D/I and one D/O for external sensor and alarm
Event notification using HTTP, SMTP, or FTP
Local recording of MP4 files
Tamper Detection
On-board Storage
MicroSD/SDHC card slot
Stores snapshots and video clips
Security
Multi-level user access with password protection
IP address filtering
HTTPS encrypted data transmission
802.1X port-based authentication for network protection
Users
10 clients on-line monitoring at the same time
Dimensions
: 110mm x 91 mm
Cable length: 480 mm
Cable diameter: 7.8 mm; Ring: 24 mm
Weight
Net: 463 g
LED Indicator
System power and status indicator
System activity and network link indicator
Power
12V DC
Power consumption: Max. 3.5 W
Approvals
CEC-TickFCCLVDVCCI
Operating Environments
Temperature: 0 ~ 50 C (32 ~ 122 F )
Humidity: 90%
Viewing System Requirements
OS: Microsoft Windows 2000/XP/Vista/7
Browser: Mozilla Firefox, Internet Explorer 6.x or above
Cell phone: 3GPP player
Real Player: 10.5 or above
Quick Time: 6.5 or above
Installation, Management, and Maintenance
3-axis mechanism for flexible ceiling and wall mount installation
Camera angle adjustment:
Pan range: 350
Tilt range: 85
Rotate range: 350
Installation Wizard 2
32-CH central management software
Supports firmware upgrade
Applications
SDK available for application development and system integration
Warranty
12 months
|
|
|
|
Previous Page
|
Next Page
|
|
