24/08

Sony DPP-F700 Digital Photo Frame & Printer - 7.0"WVGA LCD Screen, Intelligent Picture, Zoom, Rotate, Crop - Black

- Includes 1GB Internal Memory

DPPF700

Digital Photo Frame / Printer

Gaze at beautifully rendered digital photos on the 7-inch screen or print them instantly. Complete your viewing experience on screen and in print.

7.0" WVGA Clear Photo LCD Screen
TruFast 45secs printing (4 x 6" printout)
1GB internal Memory (stores up to 2000 pics)
Fun creative prints (Calendar, Layout, ID photo, Slideshow)
Intelligent picture edit (Zoom, Rotate, and Crop)
Multiple direct card slots

Specifications

LCD Screen

LCD Panel Size

7.0" measured diagonally

Actual Viewing Area Size

146.3 x 91.4mm

Resolution

WideVGA 800 x 480

Clear Photo LCD

Yes

Aspect Ratio

16:10

Compatible Image Format

JPEG	DCF Ver2.0, Exif Ver2.21

TIFF	Exif Ver. 2.21

BMP	1, 4, 8, 16, 24, 32bit Windows format

Internal Memory

Capacity

1GB

Approx. Number of Photos

2,000

Playback

Still Image Playback

Yes (Full Screen and Entire Image modes)

Slideshow Playback

Yes (10 patterns)

Index View

Yes (3 patterns)

Clock and Calendar

Yes (17 designs)

Image Rotation

Yes (Auto / Manual)

Print System

Printing Technology

Dye Sublimation

Colour Resolution

256 levels x 3 colours

Resolution

300 x 300 dpi

Print Size

101.6 x 152.4mm (4" x 6")

Print Speed (Postcard Size)

Memory Card

Approx. 45sec

Via PC

Approx. 45sec

Compatible Memory Card

Memory Stick (MS)

MS, MS Duo, MS PRO, MS PRO Duo, HighSpeed MS, HighSpeed MS Duo, MS Micro (M2) (with optional adaptor), MagicGate MS, MagicGate MS Duo, MS PRO-HG Duo

SD Card

SD Card, SDHC Card. To be used with optional adaptor - Mini SD Card, Micro SD Card, Mini SDHC Card, Micro SDHC Card

MMC	MMC, RS-MMC (with optional adaptor), MMC Plus

Compact Flash Card

Compact Flash Type I, Compact Flash Type II

xD-picture Card

xD-picture Card, xD-picture Card Type M, xD-picture Card Type H

Other Inputs & Outputs

USB for PC Connection

USB Type B (Full Speed)

Dimensions

Photo Frame (W x H x D)

276 x 150 x 186mm

Weight (Without AC Adaptor)

Approx. 1.8kg

Supplied Accessories

AC Adaptor

Yes

AC Power Cord

Yes

Wireless Remote

Yes

Stand

Yes

Application Software

Picture Motion Browser

Link contains in-depth information about this product

24/08

View Sonic PJD5122 Portable DLP Projector - SVGA, 800x600, 2700 Lumens, 3000;1, 6000Hrs Lamp Life, HD720p, VGA, Speakers

PJD5122

Easy to use, easy to afford

Overview

ViewSonic's PJD5122 is a great little projector that offers outstanding value and performance. This SVGA resolution projector supports high definition signals and projects 2,700 lumens for clear, bright images in most lighting conditions. At only 5.1 pounds, it is light and compact, making it ideal for the mobile presenter. Texas Instruments BrilliantColor technology delivers brilliant, true-color and high contrast images for viewing presentations, charts, or video. With extensive connectivity, including two RGB inputs and one RGB output, the PJD5122 is an excellent multifunctional data/ video projector. Eco-mode reduces fan noise for less distraction during important presentations and even extends the lamp life up to 6000 hours*. For increased security a PIN lock feature allows youto set a password to prevent unauthorized use. The PJD5122 is perfect for tabletop, ceiling mounting or taking on the road.

Features

3D DLP Link ready

Supports up to 120Hz frame rate

Bright in virtually any setting

Packs 2,700 ANSI lumens in just 5.1 lb, and with a high 2800:1 contrast ratio (with DCR), your presentations are guaranteed to be vibrant even in the brightest office environment

BrilliantColor technology

Latest BrilliantColor technology delivers stunning all-digital clarity with life-like color, sharp graphics and outstanding video. The sophisticated 5-segment color (RGBWY) wheel provides greater color accuracy than standard DLP projectors with a 4-segment color wheel

Eco-mode extends lamp life

Extend the life of your lamp up to 6,000 hours* and reduce noise output

Off to Go

The direct off feature allows the busy presenter to simply unplug the projector and go without waiting for the usual cool down phase. This feature also protects lamp life from sudden power blackouts

Set to present

With 8 preset picture modes, including whiteboard, blackboard and cinema it is easy to put together a great presentation

DISPLAY

Type 0.55" Digital Micromirror Device (DLP) Resolution SVGA 800600 (Native) / SXGA 12801024 (compressed) Lens 1.1 Manual optical zoom / Manual optical focus Keystone Vertical digital keystone correction: + / - 40 degrees Display size 30"-300" / 0.89m-3.9m (Diagonal) Throw Distance 3.9' - 37.1' / 1.2m - 11.3m Throw Ratio 1.86:1-2.04:1 Lamp type 220 watt Lamp life (normal/eco-mode) 4000 / 6000* hours Brightness 2700 Lumens Contrast Ratio 2000:1 (typ), 3000:1 (dynamic) Aspect Ratio 4:3 (native) & 16:9 Color Gamut 85 % NTSC 1931 CIE

INPUT SIGNAL

Computer and Video NTSC M (3.58 MHz), 4.43MHz, PAL (B, D, G, H, I, M, N, 60), SECAM, SD 480i and 576i (24fps, 25fps and 30fps), ED 480p and 576p (24fps, 25fps and 30fps), HD 720p, 1080i (24fps, 25pfs and 30fps) Frequency Fh: 31-100 KHz, Fv: 48-120 Hz

COMPATIBILITY

PC VGA to SXGA Mac Up to 16001200 @ 60Hz (may require Mac Adapter)

CONNECTOR

Audio Input 1 3.5mm mini jack Audio Out 1 3.5mm mini jack RGB Input 2 15-pin mini D-sub Composite Input 1 RCA jack S-Video Input 1 4-pin mini-DIN Component 2 15-in mini -D-Sub (shared with RGB) RGB Output 1 15-pin mini D-sub Control 1RS-232 (8 Pin Mini-Din)

AUDIO

Speakers 15W Amplifier 11W

POWER

Voltage 100~240VAC (Auto Switching), 50/60Hz (universal) Consumption 280W (Typical) / <1W (Stand-by mode)

CONTROLS

Basic Power, keystone/arrow keys, left/blank, menu/exit, right/panel key lock, auto, mode/enter, source OSD Display: Screen color, aspect ratio, keystone, position, phase, H. size, digital zoom Picture: Preset mode: brightest, standard (Video),daylight, ViewMatch (PC), cinema, user 1/user 2, brightness, contrast, color, tint, sharpness, BrilliantColorTM, color temp., save settings Source: Quick auto search System setting (Basic): Language , projector position, auto power off, blank timer, panel key lock, timer controller, splash screen System setting (Advanced): Quick cooling, high altitude mode, DCR, active VGA out, audio settings, menu settings, closed caption, lamp settings, security setting, reset all settings Information: Current system status (source, preset mode, resolution, color system, equivalent lamp hour)

OPERATING CONDITIONS

Temperature 32F-104F (0C-40C) Humidity 10% - 90% (non-condensing) Altitude 0~6,000 ft (1,800m), operational up to 10,000 ft (3048m)

NOISE LEVEL

Normal 32dB Eco-mode 26dB

DIMENSIONS

Physical (WxHxD) 10.4 3.8 8.86 (in) / 264 96.4 225 (mm) Packaging 13.8 8.1 11.2 (in) / 350 205 285 (mm)

WEIGHT

Net 5.1 lb (2.3 kg)

REGULATIONS

CB, ROHS, WEEE, UL/cUL, FCC-B, ICES-003, IRAM (Argentina), NOM, PSB, C-tick, EK, CE, TUV/GS, GOST-R, Hygienic, SASO UKrSEPRO, CCC

PACKAGE CONTENTS

ViewSonic projector, power cable, VGA cable, remote control with batteries, lens cap, Quick Start Guide, ViewSonic Wizard CD (with User Guide)

WARRANTY

3-year limited warranty on parts, 1-year limited warranty on lamp, 1st year Express Exchange service

24/08

Kodak P850 - 8" Digital Photo Frame - 800x600, 4;3, 500;1, Card Reader, IR Remote Control - Black

KODAK EASYSHARE P850 Digital Frame

Share the story of youin brilliant detail.

Easily share your entire photo collection in exciting new ways.

Every picture is a page in the story of your life. And nothing puts that story together quite like the KODAK EASYSHARE P850 Digital Frame. You get full control with the easy-to-use remote, and easy uploading keeps pictures fresh. Memories connect seamlessly with exclusive transitions and effects, while KODAK Color Science Technology makes your best images look even better. Plus, it's ENERGY STAR qualified, so you can share every moment responsibly while you save power. Because sharing your story with others is what truly makes it your own. The real KODAK Moment happens when you share.

Share your story responsibly

ENERGY STAR qualified with energy-saving activity sensor that turns the frame on when youre nearby, conserves power when youre not
Programmable timer automatically shuts down power at preferred times
Mercury-free panel

Youre in complete control

Easy-to-use remote control and premium interface put you in charge of the action
Smart search menus make it easy to find your favorite moments in seconds, find pictures by date, tag, input folder name, or favorites

Add a new chapteryour story never ends

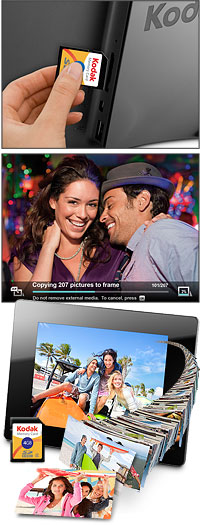

See new images in just three steps:
1. Insert your memory card
2. Click OK to copy pictures to the frame
3. Choose one picture, one folder, or all the pictures on your card, and your slideshow resumes as the frame transfers pictures, so you never miss a moment
Store your entire collection, up to 16,000 pictures[1], right on the frame, thanks to 2 GB of internal memory
Photos are automatically resized to fit more on the frame and still look beautiful

Give new life to lifes best moments

Smart slideshow effects show off your photos in exciting new ways:
- Face detection keeps people in viewdynamic zoom and pan motion brings people to center stage
- Panoramic pictures sweep across the screen so you can enjoy the rich details of the entire scene
- Dynamic collage view shows multiple pictures randomly so memories are always freshchoose from a variety of layouts and backgrounds, including clean modern lines and scrapbook page looks

Make your best moments look even better

Each image is individually enhanced with built-in KODAK Color Science Technology
Pictures look amazing on the 20.3 cm (8 in.) high-quality digital photo display (800 x 600 pixels)

A gift only you can give

Create a one-of-a-kind, personalized gift by adding pictures to the frame before you wrap it.

Product Specifications
Image file formats	JPEG, EXIF
Dimensions	(without stand): 17.1 22.8 2.5 cm (6.7 9.0 1.0 in.)
Display size	20.3 cm (8 in.)
Display area	16.2 12.2 cm (6.4 4.8 in.)
Viewing options	landscape or portrait
Wall mountable	yes
Weight	frame and adapter: 677 g (23.9 oz) without adapter: 560 g (19.8 oz)
Display resolution	800 600
Aspect ratio	4:3
User interface	IR remote control and button controls
Languages	yes, selectable
Display type	aSi TFT active matrix
Display backlight	LED
Display brightness	250 NITs (typical)
Contrast ratio	500:1 (typical)
Power modes	auto activity sensing, auto on/off time settings
Internal Memory	2 GB
Image Capacity	16,000[1]
Media support	1 card slot: Secure Digital (SD), Secure Digital High Capacity (SDHC), Multimedia Card (MMC), MEMORY STICK (MS), MS PRO/MS PRO DUO/MS PRO DUO-HG, 1 USB high-speed embedded port host: USB flash drive or powered USB hard drive, 1 USB high-speed device port: PC connection
Display modes	full screen, clock, calendar, collage, random
Face Detection	yes, with pan/zoom
Auto enhancements	KODAK Color Science Technology, red-eye removal, intelligent zoom and pan, fit/fill-fit
Search options	all, date, folders, tags, people, favorites, picture finder feature
Slideshow options	shuffle, play by date, play by filename A-Z or Z-A
Slideshow transitions	slowest (once per day with slow pan) slower (once per hour with fade) slow (once per minute with fade) medium (once every 10 sec. with pan and zoom) fast (every 5 sec. with gentle pan)
Picture Book backgrounds	yes
Power consumption	5.5 W (On mode); 0.7 W (Off mode); ENERGY STAR qualified (see listing at www.energystar.gov for details)
Power supply	100240 V AC, 5060 Hz (WW) 0.35 A, 5 V DC, 2.0 A (10 W max)
Operating temperature	32 to 104 F (0 to 40 C)
Storage temperature	-25 to 160 F (-32 to 71 C)

Specifications
System Requirements

Package Contents

KODAK EASYSHARE P850 Digital Frame
Power supply with 1.8 cm (6 ft) cord
AC plugs
Desk stand
IR remote
Quick Start Guide

Warranty

one year

Specifications
Package Contents

System Requirements

WINDOWS

WINDOWS XP or higher
INTERNET EXPLORER 6.0 or higher
600 MHz processor or greater

Hardware

128 MB RAM (256 MB recommended)
200 MB hard disk drive space available
CD-ROM drive
Available USB port

¹Actual storage capacity will vary based on image content.

24/08

Epson EB-460 Ultra Short Throw LCD Projector - XGA, 1024x768, 3000 Lumens, 2000;1, 2500Hrs Lamp Life, VGA

Epson EB-460

Ultra Short Throw Projectors

Ultra Short Throw From the Worlds Number 1 Projector Manufacturer

Epson is pleased to introduce the Epson EB-460 Ultra Short Throw, 3LCD Multimedia Projector. Stylish and discreet, this Ultra Short Throw projector is the ideal companion to any interactive whiteboard installation in the Corporate environment.

KEY FEATURES:

Ultra Short Throw Projection Minimised glare and shadows
Powerful Brightness up to 3,000 Lumens No need to close the curtains or dim the lights
Low Power Consumption and Long Lamp Life Low Total Cost of Ownership
Integrated Wall Mount Included Stylish, unobtrusive modern design
Network Functionality Operate and monitor from a remote location
3 Year Projector / 1 Year Lamp Warranty Peace of mind protection for your investment
Direct Connect to ELP-DC06 View images directly from Document Camera / Visualiser

With stylish, modern design and cutting edge technology, the Epson EB-460 sets a new standard for Ultra Short Throw projection. Projecting a sharp, square-edged image, at a brightness of up to 3,000 lumens Light Output and 3,000 lumens Colour Light Output, this projector is ideal for the modern corporate environment. Interactive content and electronic whiteboarding never looked so good!

FEATURES AND BENEFITS:

Ultra Short Throw Projection
Capable of projecting a 79 screen from as close as 58.5cm, the Epson EB-460 delivers an amazing presentation experience. Thanks to the Ultra Short Throw distance of these projectors, presenters are able to deliver rich multimedia content without the distraction of glare in the eyes, or shadows on the board disrupting vision. With the added benefit of 3LCD Technology, lessons will feature rich, vibrant colours that bring content to life. Plus, with up to 3,000 lumens Light Output, there is no need to dim the lights or draw the curtains, so meetings can start straight away without interruption.

Low Power Consumption and Long Lamp Life
At Epson, we know that planning for the future requires a strong commitment to the environment. Thats why these products conform to the new European Directive on Eco-Design of energy using products. The main objective of this directive is to ensure energy efficiency throughout a products lifecycle. The EB-460 conforms to the criteria of this directive.

As with all Epson products, ease of use and low cost of ownership were paramount in the design process of the EB-460. Lamp life is estimated at up to 3,500 hours in ECO mode, making it one of the longest lasting lamps in this category. We even back these lamps with a full 12 month, 750 hour lamp warranty to give you peace of mind.

Integrated Wall Mount Included
In keeping with the sleek, unobtrusive design of these projectors is the integrated wall mount that ships with the product. No additional purchase is required for install, and being Epson designed and manufactured, you know that the quality is second to none.

With the Epson mount, installation and set up is a breeze. The projector ships with the mounting plate already attached, ready to slide onto the mount arm. Featuring micro adjustment capabilities for tilt, pitch and yawl means that installers are able to get a perfect picture quickly and easily. That means less down time for each installation and less cost to your business.

Network Functionality
With the EB-460, monitoring and operation can be carried out from a remote PC via network connection. System Administrators can turn the projector off, switch between sources, as well as control and monitor lamp and temperature conditions. Using this feature you can be sure that all projectors are operating correctly and be certain that all units are turned off at the end of the day and in the process, save time, money and reduce drain on the environment.

Direct Connect to ELP-DC06
Further enhancing suitability to the modern office is the ability for the EB-460 to connect directly to the Epson ELP-DC06 document camera / visualiser. These Epson products feature unique technology enabling them to connect via USB and provide full operation without the need for a PC.

Wireless Connectivity
With the addition of the ELPAP03 Wireless LAN Unit, these projectors become a part of your 802.11a/b/g wireless network. For incredibly easy peer-to-peer wireless connection on the fly without the need for additional software, add the ELPAP05 Easy MP quick wireless connection USB key.

Specifications

PRODUCT TYPE	Entry Level Multimedia Projectors
PRODUCT NAME	EB-460
PRODUCT CODE	V11H343053
PROJECTION SYSTEM	RGB Liquid Crystal Shutter Projection System
PROJECTION METHOD	Ceiling Mount Front / Ceiling Mount Rear
SPECIFICATION OF MAIN PARTS
LCD	Size	0.63 inches with MLA
	Driving method	Poly-Silicon TFT Active Matrix
	Pixel number	786,432 pixels (1024 x 768) x 3
	Native resolution	XGA
	Aspect ratio	4:3
	Pixel arrangement	Stripe
	Refresh Rate	50Hz-60Hz
PROJECTION LENS	Type	Digital zoom / Manual focus
	F-number	1.8
	Focal length	4.68mm
	Zoom ratio	1.0 - 1.35 (Digital)
LAMP	Type	230W UHE E-TORL
	Life (estimated)	2500Hr (Normal Mode) # 3500Hr (ECO Mode) # ^#Subject to operation & environmental conditions.
OPTICAL SYSTEM	Dichroic Mirror Separation & Prism combine method
SCREEN SIZE (PROJECTED DISTANCE)	63 to 102 inch [0.465 to 0.766 m]
BRIGHTNESS
	Normal Mode	3,000 Lumens Light Output 3,000 Lumens Colour Light Output (Colour mode: Dynamic, Zoom, Wide)
	ECO Mode	2,080 Lumens Light Output 2,080 Lumens Colour Light Output (Colour mode: Dynamic, Zoom, Wide)
CONTRAST	2,000:1 (Color mode: Dynamic, High brightness mode, Zoom: Wide, Auto iris: On)
BRIGHTNESS UNIFORMITY	90% (Typ.)
COLOUR REPRODUCTIVITY	Full colour (16.77 million colours)
VIDEO QUALITY	3D Y/C separation ,Noise Reduction Motion compensated Interlace-Progressive conversion (2-2,3-2 film detection)
SOUND OUTPUT	10W monaural
EFFECTIVE SCANNING FREQUENCY RANGE (ANALOG)
PIXEL CLOCK	13.5MHz to 162MHz
HORIZONTAL	15KHz to 92KHz
VERTICAL	50Hz to 85Hz
ADJUSTMENT FUNCTION
PROJECTOR / REMOTE CONTROL	Brightness / Contrast / Tint / Saturation / Sharpness / Input Signal Colour Temperature / Tracking / Position / Sharpness / Volume etc... /
COLOR MODE	Dynamic, Presentation, Theatre, Photo, Sports, sRGB, Blackboard, Whiteboard,
FOOT ADJUSTER	Front-centre
TILT ANGLE	0 to 13 degrees
KEYSTONE CORRECTION	Vertical: +/- 5 degrees
PASSWORD PROTECTED FUNCTION (security function)	Implemented
MICROPHONE VOLUME/MIX	Yes
ANALOGUE RGB I/O
DISPLAY PERFORMANCE	Native	1024 x 768 pixels
INPUT SIGNAL	Signal type	Separate signal
	Video signal	Analogue (0.7V p-p, 75ohm / Mac 0.714Vp-p, 75ohm)
	Sync. signal	Separate (positive & negative, bi-polarity 2-5 Vpp) / Composite (positive & negative, bi-polarity 2-5Vpp) / Sync-on-green (negative, 0.3Vpp)
	Audio signal	500mVrms / 47k-ohm
INPUT TERMINAL	Video	D-sub 15pin x 1 Blue moulding
	Audio	Stereo mini jack x 1
OUTPUT SIGNAL	Video	Analog (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm)
	Sync.	Separate (positive & negative,TTL) / Composite (positive & negative,TTL) / Sync. on green (negative 0.2 - 0.4Vpp)
OUTPUT TERMINAL	Video	D-sub 15pin x 1 (Black moulding)
VIDEO I/O
DISPLAY PERFORMANCE		NTSC: 560 line PAL: 560 lines (Depends on observation of the multi burst pattern)
INPUT SIGNAL	Video standard	NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM
	Video signal	Composite Video (1.0Vpp / Sync. negative, 75ohm) / S-Video (Luminous 0.714Vpp, Chrominous 0.286Vpp, 75ohm) / Component Video (Analog Y level 0.75V 75ohm / Cr Cb level +/-0.35V 75ohm / sync. negative 0.3V or 3-state+/-0.3V on Y) / Video-RGB (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm
	Audio signal	500mVrms / 47k-ohm
INPUT TERMINAL	Video	Composite Video: RCA (Yellow) x1 S-Video: Mini DIN Component Video: D-sub 15pin Blue molding
	Audio	RCA x 2 (White/Red )
USB DISPLAY	Display Performance	1024 x 768
	Video	Yes
	Audio	No
CONTROL I/O
SERIAL I/O	Terminal	D Sub 9 pin x 1
	Signal	RS-232C
USB I/O	Terminal	USB Type B x1 Ver. 2.0 (USB Display, mouse, K/B)
MICROPHONE	Terminal	Stereo mini jack 3.5 mm
MEMORY I/O
USB I/O	Terminal	USB Type A x1 Ver. 2.0 (USB Memory / document camera)
NETWORK I/O
	Network Interface	RJ45 x 1
USB I/O	Terminal	Type A x 1 (Optional wireless LAN unit I/O)
EASY MP
FUNCTION	E-mail notification
	SNMP
	Web control
	PJ-Link
	AMX Device Discovery compatible
	Slideshow (photo)
	Network Presentation
	Message Broadcasting
SOFTWARE	EasyMP Network Projection Ver.2.61 EasyMP Monitor Ver.4.40
WIRELESS SECURITY	WEP, WPA-PSK(TKIP/AES), WPA2-PSK(TKIP/AES)
OPERATING TEMPERATURE	5C to 35C (41F to 95F) > (20%-80% Humidity )
COOL-DOWN PERIOD	"Instant Off"
START-UP PERIOD	Approx. 9 seconds (warm up 30 seconds)
DIRECT POWER ON	Yes
DIRECT POWER OFF	Yes
POWER SUPPLY VOLTAGE	100-240V AC10% 50/60Hz
POWER CONSUMPTION	100-240VAC 2.7-1.1A 50/60Hz Lamp 343W (Lamp on) 0.3W (standby, network off)
EXHAUST DIRECTION	Side
DIMENSION
EXCLUDE FEET	369(D) x 481(W) x 115(H) mm
MAXIMUM DIMENSION	369(D) x 483(W) x 115(H) mm
WEIGHT	Approx. 6.2kg (with mounting plate)
FAN NOISE
HIGH BRIGHTNESS MODE	35dB
LOW BRIGHTNESS MODE	28dB
WARRANTY
STANDARD WARRANTY	3 years* *excluding lamp
* For more information visit Epson Projector Warranty Website
ACCESSORIES
POWER CORD	5m
REMOTE CONTROL	Included
BATTERY	Manganese dry cell AA x 2 (for Remote)
PASSWORD PROTECT STICKER	Included
EPSON PROJECTOR SOFTWARE	Meeting & Monitoring Ver.1.11
OWNER'S MANUAL	CD-ROM
PROJECTOR MOUNT	Included (Wall mount with adjustable arm)
^#Subject to operation and environmental conditions.
Epson is the registered trademark of Seiko Epson Corporation. Epson ESC/P2 and Epson Stylus are trademarks of Seiko Epson Corporation. MicroDot is a trademark of Epson Australia Pty Limited. All other product names and other company names used herein are for identification purposes only and may be the trademarks or registered trademarks of their respective owners. Epson disclaims any and all rights in those marks. Specifications are subject to change without notice.

24/08

Kodak M531 Digital Camera - Red

- 14.5MP, 3x Optical, 5x Continuous Digital Zoom, 2.7" LCD, Face Detection

KODAK EASYSHARE M531 Digital Camera / Red

Share pictures effortlessly.

With a touch of the Share button you can e-mail or upload your favorite moments to KODAK Gallery, YouTube, FACEBOOK, FLICKR, and ORKUT sites easier than ever before.

Picture thisyoure letting loose at a trendy hot spot with friends, snapping pictures so amazing youll want to share them online as soon as you get home. Any other camera would slow you down. But not the new KODAK EASYSHARE M531 Digital Camera. Kodaks Share button lets you tag pictures directly from your camera for e-mailing, or uploading to KODAK Gallery, YouTube, FACEBOOK, FLICKR, and ORKUT sites. The real KODAK MOMENT happens when you share.

Sharing your life just got simpler. Just press Share.

One-button uploadturn moments into memories

With the Share button and Kodak's Share button app, sharing your pictures is amazingly simple.

Snap your picture
Press the Share button and tag it to KODAK Gallery, YouTube, FACEBOOK, FLICKR, and ORKUT sites, plus e-mail too
Connect your camera to your computer, and with Kodaks Share button app, your pictures are automatically uploaded
Your pictures and videos are also automatically transferred to your computer

Get ready to take amazing pictures

Spectacular quality prints with 14 MP

14 MP means you can make stunning prints up to 76 x 102 cm (30 40 in.)
More megapixels means you can crop and enlarge and still have great picture quality
However you choose to printat home, at retail, or onlinetrust Kodak for picture quality thats truly exceptional and for memories that will last

3X optical zoom lens

3X optical zoom (35 mm equivalent: 36108 mm) gets you closer to your subjects without reducing image quality.

Blur reduction

Reduce blur caused by subject movement, or fast-action situations to deliver clearer, sharper pictures

6.9 cm (2.7 in.) bright LCD

Relive moments and view pictures with brilliance and clarity
Brighter, more vibrant details thanks to KODAK Color Science

True HD quality: capture pictures in brilliant detail

HD picture capture

Take stunning HD pictures in 16:9 format
View your pictures in high definition on an HDTV or other HD devices[1]

The M531: a snapshot of your style

Your style reflects your personality. Now your camera can too. Express your true self with the eye-catching, sleek KODAK EASYSHARE M531 Digital Camera.

More than a cameraits an attention-grabbing accessory
Trendy, stylish, compact design
Choose from a variety of fashionable colors

Beautiful pictures, more oftenautomatically

Kodak's Smart Capture feature

Choose the camera that does the thinking for you. Kodaks innovative Smart Capture feature automatically identifies the scene and adjusts camera settings for a great picture in just about any environment.

Intelligent scene detectionanalyzes the scene to give you better pictures under various conditions
Intelligent capture controlautomatically sets camera settings for clear, sharp pictures even in low light and challenging situations
Intelligent image processingreduces noise and clears up dark shadows for vibrant, crisp details and true-to-life colors
Experience Smart Capture

Losing track of your favorite faces is a thing of the past

Kodaks Face Recognition feature

Find, organize, and share your pictures easily
Camera automatically recognizes up to 20 pre-tagged faces so you can easily locate and share them later
Recognizes up to five faces in a single image
Name tags carry over to your favorite photo management software for easy searching

Take better pictures and videos than ever before

Face detection

Catch those gorgeous smilesface detection locates faces and automatically adjusts camera settings for great shots of friends and family.

Shoot video with ease

Record life in motion with continuous VGA video featuring audio capture and on-camera editing
Enjoy video print options including 9-up prints, plus view and share single frames

Scene and color modes

Get great shots time after time with multiple scene modes, including auto, sport, portrait, snow, fireworks, and backlight
Have fun with five different color modes: vivid, full, and basic color, black & white, and sepia

Multimedia slideshow

Turn your pictures into a creative multimedia slideshow right on your camera
Set the mood when you choose from pre-loaded sound themes and creative transitions

High ISO

Capture the details in low-light conditions and fast-action situations with high ISO (up to 1000).

Picture enhancing and editing features

Achieve your perfect shot with on-camera features such as cropping, undo-delete, picture rotation, and panorama stitch mode.

KODAK PERFECT TOUCH Technology in P Mode

Create better, brighter pictures using KODAK PERFECT TOUCH Technology.

Relive your memories in richer detail
Clear up dark shadows to reveal more smiles

Dont miss a shot with Li-Ion rechargeable batteries

Get the security of in-camera charging and the power of the included KODAK Li-Ion Rechargeable Digital Camera Battery
Smaller, lighter battery with higher voltage and energy capacity

KODAK EASYSHARE Software

The complete solution for transferring, online sharing, e-mailing, organizing, editing, and creative printing of your pictures.

Organize your pictures with your own tags, star ratings, and date and time stamps, then use the search feature to quickly find any picture in your collection
Edit your pictures with easeselect from a variety of simple tools that reduce red-eye, improve lighting, remove wrinkles and blemishes, and add text
Create photo projects online or at homechoose from hundreds of templates and designs to create album pages, cards, invitations and much more
Manually upload to KODAK Gallery, YouTube, FACEBOOK, FLICKR, and ORKUT sites, plus e-mail too

Ready to goright out of the box

KODAK EASYSHARE M531 Digital Camera
KODAK Rechargeable Li-Ion Battery KLIC-7006
KODAK USB AC adapter for in-camera charging
Wrist strap
USB cable
User Guide

Product Specifications
Standard features
Sensor type	1 / 2.3 in. CCD
CCD total pixels	14.5 MP (4440 3247)
Effective pixels	14 MP (4314 3242)
Zoom	3X optical, 5X continuous digital zoom
Image stabilization	no
Lens	36108 mm (35 mm equiv.)
Lens protection	built-in mechanical lens cover
Shutter speed	1/81/1400 sec.
Viewfinder	no
LCD	6.9 cm (2.7 in.) indoor/outdoor color display, 230K
Storage	32 MB internal memory[1]available, SD/SDHC card expansion slot
Auto focus
Focus Type	TTL-AF, selectable
Focus range	0.5 m (19.7 in.)infinity @ wide, normal 1.0 m (39.4 in.)infinity @ tele, normal 0.050.8 m (2.031.5 in.) @ wide, macro mode 0.51.0 m (19.739.4 in.) @ tele, macro mode 10 m (32.8 ft)infinity @ landscape
Focus modes	auto, macro, infinity
Auto focus control	continuous, single AF
Auto focus zones	face priority, multi-zone, center zone
AF (Auto Focus) assist light	no
Exposure control
ISO sensitivity	auto (Smart Capture): 64320 manual: 64, 100, 200, 400, 800, 1000 selectable
Compensation	2.0 EV with 1/3 EV steps
AE (Auto Exposure) lock	when S1 locked
White balance	auto, daylight, tungsten, fluorescent, open shade
Flash
Range	0.33.5 m at wide, ISO 320 0.52.0 m at tele, ISO 320
Modes	auto, fill, red eye reduction, off
Shooting specifications
Drive modes	self-timer (2 sec./10 sec./2-shot), burst (3 shots)
Face Recognition	yes
Face Detection	yes
Shooting modes	Smart Capture, program, scene, video
Scene modes	portrait, landscape, close-up, night portrait, night landscape, snow, beach, text, fireworks, flower, museum/manner, self-portrait, high-ISO, children, backlight, panning shots, candlelight, sunset, sport, blur reduction, panorama
Still capture
Still format	JPEG/EXIF v2.21
Picture size	14 MP (4288 3216)4:3 12 MP (4288 2848)3:2 10 MP (4288 2416)16:9 6 MP (2880 2160)4:3 3 MP (2048 1536)4:3 2 MP (1920 1088)16:9 1 MP (1280 960)4:3
Color modes	vivid, full, basic, sepia, black and white
Sharpness	high, normal, low
Long time exposure	0.58 sec.
Review options	select all, tag people, keyword tag, print, favorite, protect, multimedia slideshow, properties, view thumbnails
Smart Capture	Yes (integration of face detection, scene detection, optimized auto ISO, broader dynamic range, auto KODAK PERFECT TOUCH Technology, optimized output)
Framing grid	no
Orientation sensor	yes
Internal Memory	yes
Date/time stamp	no
Editing	crop, KODAK PERFECT TOUCH Technology, copy, add date stamp
Video capture
Format	Kodak AVI M-JPEG with audio recording during capture
Quality	VGA (640 480) at 30 fps
Auto focus	single AF during video capture
Zoom during video	digital zoom during video capture
Image stabilization	digital
Length	continuous based on memory capacity, up to 4 GB
Review options	select all, tag people, keyword tag, protect, multimedia slideshow, properties, view thumbnails
Editing	make picture, trim, action print, copy
Customization
Custom settings	Share button settings, LCD brightness, image storage, red-eye reduction, quickview, orientation sensor, camera sound, date & time, video out, language, reset camera, format, computer connection, KODAK Camera Software, about
Share
Share menu	KODAK Gallery, YouTube, FACEBOOK, FLICKR, and ORKUT sites, e-mail
Physical specifications
I/O interface	A/V output (NTSC or PAL selectable), digital USB 2.0 high speed
Power	KODAK Rechargeable Li-ion Battery KLIC-7006, 5V AC adapter inlet on camera, USB/AC adapter for in-camera battery charging
Dedicated buttons	top: power, shutter, flash, mode back: zoom, info, menu, review, Share, delete, 5-way controller
Tripod mount	in. standard
Dimensions	W H D: 93.7 56.7 22.7 mm (3.7 2.2 0.9 in.)
Weight	130 g with battery and SD card
Compatibility
Direct printing	PictBridge-enabled
Software	works with KODAK EASYSHARE Software

Specifications
System Requirements

Package Contents

KODAK EASYSHARE M531 Digital Camera
KODAK Rechargeable Li-Ion Battery KLIC-7006
KODAK USB AC adapter for in-camera charging
Wrist strap
USB cable
User Guide

Warranty

one year

Specifications
Package Contents
