04/05
|

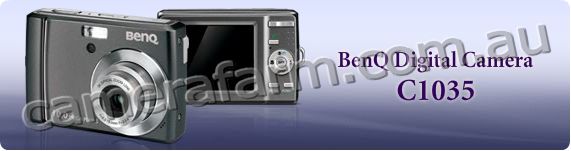

BenQ C1035 Digital Camera - Gray
- 10.0MP, 3x Optical Zoom, 35~105mm, 35mm Equivalent, Blink Detector, Smile Catch DC C1035
Smart Scene Mode
Automatically detects 8 different types of scenes and chooses an appropriate one out of the following 8 scene modes: Landscape, Portrait, Backlight, Backlight Portrait, Night Scene, Night Portrait, Macro, and Sunset. All you have to do is press the shutter and the Auto Scene Mode will do the rest for you.
5cm Macro
With 5cm Macro, it will automatically scan and switch to the Macro mode when you are taking close-up photos of flowers or small objects. So every photo is in focus.
Love Portrait
Want to take a good photo when there are just two of you? Love Portrait mode will take a shot when detecting at least two faces.
Blink Detector
Blink Detector alerts you when a subject has blinked, allowing the shot to be retaken immediately or saved according to your preference.
Smile Catch
It's easier to detect and catch each smile automatically when you turn to the Smile Catch mode and press the shutter.
Specifications
| Sensor |
SONY 10 Mega Pixels, 1/2.3 inch CCD |
| Picture Resolution |
10M / 3:2 / 8M / 5M/ 3M / HD 16:9 / VGA |
| Lens |
F = 6.2 ( W ) ~ 18.6 ( T ) mm
F= 3.0 (W) ~ 5.6 (T)
(f = 35~105mm, 35mm equivalent) |
| Zoom |
Optical: 3X
Digital: Up to 5X(Preview) / Up to 12X(Playback) |
| Focus Range |
Normal: W=80cm ~ Infinity
Macro: W=5cm ~ 100cm |
| Shutter Speed |
1/2000 ~ 1 sec. (Fireworks 2 sec.; Manual 15 sec.; Night Scene 8 sec.) |
| Display Size |
2.7 LCD |
| Display Resolution |
230k pixels |
| ISO Equivalent |
Auto / 50 / 100 / 200 / 400 / 800 / 1600 / 3200 (3M or lower) / 6400 (VGA and HD 16:9 only) |
| White Balance |
Manual ( 6 modes in manual selection : Daylight / Cloudy / Tungsten / Fluorescent H / Fluorescent L / Manual ) |
| Flash |
Auto Flash, Auto Anti Red-eye, Force On, Slow Sync, Forced Off |
| Movie Mode |
720 x 400 (16:9) / 640 x 480 / 320 x 240 / Web sharing
30 fps,Continuous recording with sound |
| Storage |
Built-in Approx. 21.1MB
4GB SD compatible / 32GB SDHC card compatible |
| Battery |
AA Battery x 2
CIPA Approx 200 base on bundled batteries |
| Dimensions (HxWxD) |
92.0x60.5x23.8mm |
| Weight |
120g ( w/o battery & SD card) |
| Accessories (Standard) |
USB Cable / Software & UM CD / Quick Guide / Hand Strap / Pouch /AA Battery x 2 |
|
|
|
|
04/05
|
Compro IP60 VideoMate Intelligent 1/4" Megapixel Sensor, HD H.264 Network Camera - White Compro VideoMate IP60 Intelligent Megapixel/HD H.264 Network Camera - White
Compro IP60 camera series offers best-in-class high quality megapixel HD image yet affordable surveillance solution, ideal for securing locations such as home, small business, hotel, shop, or restaurant.
- 1/4" CMOS Megapixel sensor
- Supports real-time H.264 , MPEG-4 and MJPEG compression (Triple Codec)
- Supports dual streams simultaneously
- Support 4x digital zoom
- Video resolution is up to 1280 x 1024 pixels
- Image frame rate is up to 30 frames under 640x480 or 15 frames under
1280 x 1024
- Smart motion detection
- Two way audio with built-in MIC and speaker
- Support UPnP (universal plug and play)
- Support 10/100 802.3/Ethernet
- 802.11b/g/n WLAN on applicable model (Optional W150 wireless adaptor)
- Digital I/O for external sensor and alarm (2 In/1 Out)
- Supports local storage (both of MicroSD / MicroSDHC), Snapshot
- Remote monitoring from 3GPP mobile or phones with web browser
(e.g. iPhone/BlackBerry)
- Bundle with powerful 32-channel IP video management software --- ComproView
|
|
|
|
04/05
|
Compro IP530 VideoMate Day & Night Motorized Pen/Tilt/Digital Zoom/MPEG-4 Network Camera Compro VideoMate IP530 Day & Night Motorized Pen/Tilt/Digital Zoom MPEG-4 Network Camera
Compro IP530 camera series offers an advance 340-degree panning with 100-degree tilting mechanical design for continuous movement, ideal for live monitoring locations need to follow a person or objects such as home, warehouse, small business or restaurant lobby area.
- 1/3" CMOS progressive scan sensor
- Pan, Tilt, 2x digital lossless digital zoom
(Pan of 340 degrees, Tilt of 100 degrees)
- Day and night functionality with mechanical IR cut filter switching
- Built-in IR lamps
- Supports real-time MPEG-4 and MJPEG compression (Dual Codec)
- Supports dual streams simultaneously
- Image frame rate is up to 30 frames per second at 640x480 resolution
- Smart motion detection
- Two way audio with built-in MIC (External speaker required)
- Support UPnP (Universal plug and play)
- Support 10/100 802.3/Ethernet
- Built-in 802.11b/g WLAN (IP530W only)
- Supports local storage (MicroSD)
- Easy to Install with VideoMate IP Cam Wizard
- Remote Monitoring from 3GPP Mobile
- Bundle with powerful 32-channel IP video management software --- VideoMate ComproView
- Optional Digital I/O box for External Sensor and Alarm (3 In/3 Out)
|
|
|
|
04/05
|

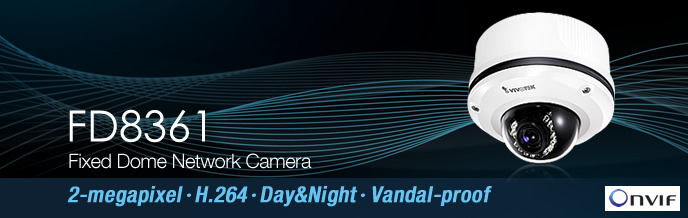

Vivotek FD8361 Day & Night Vandal & Weather Proof Fixed Dome Network Camera 2-MegaPixel, 3~9mm Vari-Focal Lens, Built-in IR Illuminators
2-megapixel H.264 Day & Night Vandal-proof FD8361
Overview
VIVOTEK's FD8361 is the latest professional-series outdoor fixed dome network camera featuring superb megapixel image quality and exceptional bandwidth efficiency. With day & night functionality and a weatherproof housing, it is especially suitable for tough outdoor surveillance environments such as parking lots and streets.
Featuring a 2-megapixel sensor, the FD8361 is able to provide extremely wide coverage with the finest details. Additionally, the camera is incorporated with high performance H.264 compression technology, and has adopted a number of innovative bandwidth-efficient technologies built into the camera, including cropping, ePTZ, and activity adaptive streaming.
In order to adapt to constantly changing outdoor lighting conditions, the FD8361 features an auto-iris lens to perform better image quality under different lighting environment. The camera also comes with a removable IR-cut filter and IR illuminators for superior image quality around the clock. For protection against the elements, the camera is furnished with an IP66-rated housing and vandal-proof casing to withstand rain, dust, and vandalism. The PoE-powered heater and fan further enhance the FD8361's performance and reliability in extremely cold and warm weather.
The integrated BNC connector allowing the FD8361 to be connected directly to an analog monitor provides enhanced flexibility and usability and ease of installation. Other advanced features include a 3-axis mechanism for flexible installation, 802.3af PoE, SD/SDHC card slot, tamper detection, and SIP-enabled two-way audio. With the included ST7501 32-CH central management software, the FD8361 is the ultimate camera for demanding outdoor environments.
Features
- 2-megapixel CMOS Sensor
- 3 ~ 9 mm Vari-focal, Auto-iris Lens
- Removable IR-cut Filter for Day & Night Function
- Built-in IR Illuminators, effective up to 20 Meters
- Real-time H.264, MPEG-4 and MJPEG Compression (Triple Codec)
- Simultaneous Multiple Streams
- Video Cropping for Bandwidth Saving
- ePTZ for Data Efficiency
- Activity Adaptive Streaming for Dynamic Frame Rate Control
- Tamper Detection for Unauthorized Changes
- Vandal-proof and IP66-rated Weather-proof Housing
- Built-in 802.3af Compliant PoE
- Built-in SD/SDHC Card Slot for On-board Storage
- Built-in Heater and Fan, supported by PoE
- 3-axis Mechanical Design for Ceiling/Wall Mount Installation
Specifications
System
CPU: TI DM365 SoC
Flash: 128MB
RAM: 256MB
Embedded OS: Linux 2.6
Lens
f = 3 ~ 9 mm
F 1.2 (wide)
F 2.1 (tele)
auto iris
Board lens
Removable IR-cut filter for day & night function
Angle of View
31.7 ~ 93.0 (horizontal)
23.8 ~ 68.4 (vertical)
Shutter Time
1/5 ~ 1/40,000 sec
Image sensor
1/3.2" CMOS in 1600x1200 Resolution
Minimum Illumination
0 Lux / F1.2 ( IR LED on )
IR Illuminators
Built-in IR illuminators, Effective up to 20 meter
Video
Compression: H.264, MPEG-4 & MJPEG
Streaming:
Simultaneous multiple streams
H.264 streaming over UDP, TCP, HTTP or HTTPS
MPEG-4 streaming over UDP, TCP, HTTP or HTTPS
MPEG-4 multicast streaming
MJPEG streaming over HTTP or HTTPS
Supports activity adaptive streaming for dynamic frame rate control
Supports video cropping for bandwidth efficiency
Supports ePTZ for data efficiency
Supports 3GPP mobile surveillance
Frame rates:
H.264: Up to 30 fps at 1280x720, Up to 15 fps at 1600x1200
MPEG-4: Up to 30 fps at 1280x720, Up to 15 fps at 1600x1200
MJPEG: Up to 30 fps at 1280x720, Up to 15 fps at 1600x1200
BNC connector for video output
NTSC/PAL video output switch
Image Settings
Adjustable image size, quality, and bit rate
Time stamp and text caption overlay
Flip & mirror
Configurable brightness, contrast, saturation, sharpness, white balance and exposure
AGCAWBAES
Automatic, manual or scheduled day/night mode
Supports privacy masks
BLC (Backlight compensation)
Audio
Compression
GSM-AMR speech encoding, bit rate: 4.75 kbps to 12.2 kbps
MPEG-4 AAC audio encoding, bit rate: 16 kbps to 128 kbps
G.711 audio encoding, bit rate: 64 kbps, -Law or A-Law
Interface:
External microphone input
Audio output
Supports two-way audio via SIP protocol
Supports audio mute
Networking
10/100 Mbps Ethernet, RJ-45
ONVIF support
Protocols: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP and 802.1X
Alarm and Event Management
Triple-window video motion detection
One D/I and one D/O for external sensor and alarm
Event notification using HTTP, SMTP, or FTP
Local recording of MP4 files
Tamper Detection
On-board Storage
SD/SDHC card slot
Stores snapshots and video clips
Security
Multi-level user access with password protection
IP address filtering
HTTPS encrypted data transmission
802.1X port-based authentication for network protection
Users
10 clients on-line monitoring at the same time
Dimensions
:
170mm x 133 mm
Weight
Net:
2,184 g
LED Indicator
System power and status indicator
Power
12V DC
24V AC
Power consumption: Max. 5.3 W
Power consumption: Max. 9.9 W ( with heater )
802.3af compliant Power-over-Ethernet
Approvals
CEC-TickFCCLVDVCCI
Operating Environments
Temperature:
-30 ~ 50 C (-22 ~ 122 F )
Humidity: 20 ~ 95%
Viewing System Requirements
OS: Microsoft Windows 2000/XP/Vista/7
Browser: Mozilla Firefox, Internet Explorer 6.x or above
Cell phone: 3GPP player
Real Player: 10.5 or above
Quick Time: 6.5 or above
Installation, Management, and Maintenance
3-axis mechanism for flexible ceiling and wall mount installation
Drop-ceiling mount installation
Camera angle adjustment:
Pan range: 350
Tilt range: 85
Installation Wizard 2
32-CH central management software
Supports firmware upgrade
Applications
SDK available for application development and system integration
Warranty
24 months
|
|
|
|
04/05
|
Pinnacle Studio HD 14 Ulimate Collection - Eduction Only Please Note - Only to be sold to: Public/Private Schools, Colleges & Grammar Schools, Tafes & Universities & Training Centres.
Studio HD Ultimate
- Share high-definition video to Blu-ray and more
- Dolby Digital 5.1 sound
- Stunning, customizable ToonIt and Knoll Light Factory effects from Red Giant
The ultimate software for making great HD movies at home.
Harness the power of a professional editor with easy at-your-fingertips execution. Tell your story with clear high-definition video, stunning effects, polished transitions and animation, all backed with incredible Dolby Digital 5.1 sound and technology from Avid (behind the worlds most-watched movies). Then, get ready to go viral when you share your screen sensations with the world in widescreen format, the way theyre meant to be seen. Sharing options are now as limitless as your creativity: from Blu-ray and AVCHD to YouTube, iPod, Nintendo Wii, and everything in between.
Exclusive Feature (*New to Studio)
- Motion titling, plus exciting new title designs, DVD menus, effects and Montage themes *
- Use stop-motion capture for amazing animations and fast-motion effects*
- Fluid image stabilization technology from Avid used in major motion pictures*
- Share straight to Blu-ray, HD DVD, DVD, YouTube (with wide-screen export)*, the web, MP3 sound files and more
- Export movies for Flash, QuickTime, improved AVCHD*, PS3, Nintendo Wii, Xbox and more
- Add Hollywood-style animations and transitions with over 80 Montage Themes.
System Requirements
- Windows 7, Windows Vista (SP2),Windows XP (SP3)
- Intel Pentium or AMD Athlon 1.8 GHz (2.4 GHz or higher recommended) - Intel Core 2 or i7 2.4 GHz required for AVCHD* (2.66 GHz for AVCHD* 1920)
- 1 GB system memory recommended, 2 GB required for AVCHD*
- DirectX 9 or 10 compatible graphics card with 64 MB (128 MB or higher recommended) - 256 MB required for HD and AVCHD*
- DirectX 9 or higher compatible sound card
- 3.3 GB of disk space
- DVD-ROM drive to install software
- Accessory:
- CD burner for creating Video CDs or Super Video CDs (S-VCDs)
- DVD burner for creating DVD and AVCHD* discs
- Blu-ray burner for creating Blu-ray discs*
- Sound card with surround sound output required for preview of surround sound mixes*
Input Options
- Capture from DV, HDV and Digital8 camcorders or VCRs (requires a FireWire port)
- Capture from analog camcorders, 8 mm, HI 8, VHS, SVHS, VHS-C, SVHS-C, or VCRs (NTSC/PAL/SECAM). (requires Pinnacle or Dazzle video hardware)
- Import from AVCHD* and other file based Camcorders, Digital Still Cameras, Mobile Devices and Webcams via USB
Output Options
- Output to DV, HDV or Digital8 tape (requires camcorder with FireWire Input port and a PC with a DV/FireWire port)
- Output to analog videotape (requires DirectShow compatible device with video output)
Import Formats
- Video: AVCHD*, BD Blu-ray*, DV, HDV, AVI, MPEG-1, MPEG-2, DivX*, MPEG-4*, 3GP(MPEG-4)*, WMV, Non-encrypted DVD titles (incl. DVD-VR/+VR), QuickTime (DV, MPEG-4*, H.264*)
- Audio: MP3, MPA, WAV, AC3*, WMA
- Graphic: BMP, GIF, JPG, PCX, PSD, TGA, TIF, WMF, PNG, J2K
Export Formats
- AVCHD*, BD Blu-ray*, HD-DVD, DVD (DVD-R, DVD-RW, DVD+R or DVD+RW, dual layer), S-VCD, Video CD (VCD)
- Apple iPod, Sony PSP/PS3, Nintendo Wii, Microsoft Xbox compatible formats*
- DV, HDV, AVI, DivX*, RealVideo 8, WMV, MPEG-1, MPEG-2, MPEG-4*, Flash, 3GP*, WAV, MP3*, QuickTime (SD format) files
- Dolby Digital 2 channel and 5.1 channel audio*
* Requires free product activation via the Internet
Product specifications are subject to change without notice or obligation
|
|
|
|
04/05
|
Cisco PVC2300 Small Business Series Internet Video Camera - 1/4"CCD, 4xDigital Zoom, PoE, Two-Way Audio, Removable CS-Mount Lens, IP Multicast
Product Overview
Cisco Small Business Video Surveillance Cameras provide customizable ways for small business owners to monitor and protect their companies. These high-quality solutions can be optimized for many different applications and sites. Each camera can be quickly mounted using the bracket included in the package. The cameras' compact form factor also enables them to be put inside a protective enclosure for interior or exterior installations. The Cisco Small Business Video Surveillance Cameras use removable CS-mount lenses and can be customized with optional zoom, wide-angle, vari-focal, auto-iris, or other types of lenses as required for a specific application or setting.
The Cisco PVC2300 Business Internet Video Camera (Figure 1) is a Power over Ethernet (PoE) device, so it can be powered from a PoE switch or power injector via Ethernet cabling. This enables installation near ceilings, on rooftops, or anywhere where power outlets may not be available. The Cisco PVC2300 camera can be mounted on any pan-tilt (PT) base that supports the Pelco D protocol and can be remotely rotated and controlled through an RS-485 interface. It also has two input and two output ports, which can be used to connect the camera to an alarm panel, siren, passive infrared (PIR) sensor, smoke detector, lighting switch (on/off), door sensor, etc.
The Cisco PVC2300 uses a high-quality progressive-scan charge-coupled device (CCD) sensor delivering good-quality video. The CCD sensor also has low-light sensitivity, so video can be captured even in very low light environments or during near-dark times of day. Additionally, the camera incorporates an infrared (IR) cut filter that, when used with a separate IR lamp, allows for video capture in total darkness.
The Cisco PVC2300 camera supports dual codecs (MPEG-4 and MJPEG). Both codecs can be used simultaneously. MPEG-4 gives efficient bandwidth consumption with good-quality compression and is optimal for real-time viewing of video. MJPEG gives optimal video quality with lossy compression, making it ideal for large-volume storage to a network attached storage (NAS) device.
The Cisco PVC2300's audio capabilities include two-way audio, embedded microphone, external speaker and microphone ports, and voice compression. With extensive feature support, such as IP Multicast, Real Time Streaming Protocol (RTSP), Real Time Protocol (RTP), and 3rd Generation Partnership Project (3GPP), video can be viewed from multiple endpoints and client applications such as 3G phones and QuickTime clients on PCs or Wi-Fi phones. Support for multiple network protocols such as 802.1p priority, 802.1q VLANs, and Dynamic DNS (DDNS) make the solution ideal for multiple IP surveillance applications. The camera can also be managed securely using HTTPS.
Features
Standard box-type camera allows for flexible installation
Mounts in a standard outdoor or indoor enclosure
Provides controls for mounting on a Pelco pan/tilt base to control movement remotely
Removable CS-mount lens
Camera can be customized for multiple applications
Supports zoom lens, wide-angled, vari-focal, auto-iris lenses, etc
1/4-inch progressive-scan CCD sensor delivers good-quality video
Low light sensitivity with high-quality lens, sensor, and programmable IR cut filter capability
Audio input/output for external microphone and/or speaker
I/O ports facilitate alarm triggers, turning lights on/off, etc.
PoE allows for flexible installation
Dual codecs (MPEG-4 and MJPEG) supported simultaneously
IP Multicast support
RTSP video/audio streaming to unicast and multicast clients
4x digital zoom; can also use optical zoom with appropriate interchangeable lens
Real-Time video recording from the Web interface directly with one button recording
PC-less event recording directly to Network Attached Storage via integrated Samba client
Specifications
Table 1 gives the specifications, package contents, and minimum requirements for the Cisco PVC2300 Business Internet Video Camera.
Table 1. Specifications for the Cisco PVC2300 Business Internet Video Camera: Audio/PoE
|
Specifications
|
|
Standards
|
IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.1p (QoS Priority), IEEE 802.1q (VLAN)
|
|
Protocols supported
|
TCP/IP, HTTP, Dynamic Host Configuration Protocol (DHCP), Simple Mail Transfer Protocol (SMTP), FTP, Bonjour, Network Time Protocol (NTP), DNS, Universal Plug and Play (UPnP), RTP, RTSP, and DDNS
|
|
Ports
|
Ethernet with PoE, microphone IN, speaker OUT, power (12V, 1A), general-purpose I/O (GPIO), 4-pin IRIS port, RS-485 Serial Port
|
|
Buttons
|
Reset
|
|
Cabling type
|
Unshielded twisted pair (UTP) Category 5
|
|
LEDs
|
Power, Network
|
|
Camera type
|
Box
|
|
I/O ports
|
RS-485 x 1 (2 pins): supports Pelco D Protocol commands
Input control x 2 (2 pins)
Output control x 2 (2 pins)
|
|
Lens
|
|
Sensor
|
1/4-in. progressive CCD sensor
|
|
Illumination
|
0.4LUX @ F1.7
|
|
Lens type
|
CS-mount lens, fixed focus; adapter also included for lenses that require more distance between sensor and lens
|
|
Focal length
|
500mm~infinity (for included lens)
|
|
Field of view
|
47 Diagonal (for included lens)
|
|
Video resolution
|
640 x 480 (VGA), 320 x 240 (QVGA), 160 x 120 (QQVGA)
|
|
Frame rate
|
1 to 30 frames per second (selectable)
|
|
Iris
|
Provides iris control for CS-mount auto-iris lens when attached
|
|
Setup/configuration
|
|
Web UI
|
Built-In web interface for easy browser-based configuration (HTTP)
|
|
Management
|
|
Web browser
|
Internet Explorer 5.x or later
Limited support for Netscape and Firefox. Browser controls for pan/tilt/zoom (PTZ), audio, and motion detection are limited or not supported with Netscape and Firefox.
|
|
Event logging
|
Event logging (syslog)
|
|
Web firmware upgrade
|
Firmware upgradable through web browser
|
|
Video Compression
|
|
Dual codec
|
MPEG-4 simple profile
MJPEG
Simultaneous dual stream
|
|
Snapshot
|
JPEG, BMP
|
|
Modulation
|
National Television System Committee (NTSC) and Phase Alternating Line (PAL)
|
|
Image settings
|
Brightness and contrast
|
|
Zoom
|
4x digital zoom
|
|
Night vision
|
IR cut filter for low light
|
|
Video controls
|
Auto-white balance (AWB), auto-exposure (AES)
|
|
Image control
|
Select video by quality, bandwidth, and frame rate
|
|
Format
|
3GPP for use with 3G phones
|
|
Alerts
|
|
Motion detection
|
4 detection areas with individual sensitivity
|
|
Email alert
|
3 email addresses
|
|
FTP uploading
|
FTP server address and login settings
|
|
Instant messaging
|
Jabber client support
|
|
Scheduled
|
Schedule by time
|
|
Triggers
|
Inputs 1, input 2, motion detection
|
|
Actions
|
Outputs 1, output 2, messaging, email, FTP
|
|
Audio
|
|
Summary
|
2-way audio
|
|
Built-in microphone
|
6mm, -40dB + 3dB
|
|
Microphone input
|
3.5-mm phone jack
|
|
Speaker output
|
3.5-mm phone jack
|
|
Compression
|
G.726 - 16K, G.711 A-law and -law
|
|
Sampling rate
|
8 KHz
|
|
Default bit rate
|
16 Kbps
|
|
Included Video Monitoring System Software (SWVMS16)
|
|
Monitoring/recording software
|
Monitoring, recording, and playback for up to 16 cameras
Advanced search histogram or by time and date
Recording set up to record by motion trigger, manual, or schedule
|
|
Security
|
|
User list
|
User rights list to view video and/or to control camera functions. Multi-level permissions (Administrator, Operator, and Viewer)
|
|
Username/password
|
Logon authentication: 20-character username and 8-character password
|
|
Kensington lock
|
Physical security option
|
|
Network
|
|
RTP/RTSP
|
Allows for viewing from any client supporting these protocols, like 3G phones or QuickTime client
|
|
NTP
|
Keeps time of camera in sync with your network
|
|
SMTP
|
Allows video clips to be emailed
|
|
FTP client
|
Facilitates scheduling transfer of images to an FTP server
|
|
DDNS
|
Facilitates reaching the camera by a name irrespective of camera's IP address. Supports DDNS, TZO, and 3322 DDNS services
|
|
UPnP
|
Allows autodiscovery of the camera by other UPnP devices
|
|
IP filtering
|
Allows or disallows access by IP address
|
|
Power
|
|
Power options
|
IEEE 802.3af PoE-48V/0.3A
External power adapter: 12V/1A, 110~120V AC/60 Hz, switching
|
|
Power consumption
|
10W
|
|
Environmental
|
|
Dimensions
|
4.72 x 2.99 x 1.81 in. (120 x 76 x 46 mm)
|
|
Unit weight
|
1.15 lb (0.52 kg)
|
|
Power
|
External power adapter 12V DC 1A 110~120V AC/60-Hz switching or PoE 48V/0.3A
|
|
Certification
|
FCC part 15C Class B, CE, UL, EMC/EMI Part 15B Class B for US
|
|
Operating temperature
|
32 to 122F (0 to 50C)
|
|
Storage temperature
|
-4 to 158F (-20 to 70C)
|
|
Operating humidity
|
10% to 80%
|
|
Storage humidity
|
0% to 19%
|
|
Package Contents
|
|
Cisco PVC2300 Business Internet Video Camera
Stand kit
Power supply (12V 1A)
6-foot Ethernet cable
Adapter ring to allow for C mount lens
Allen wrench
Quick installation guide
CD including setup wizard, user guide and video monitoring software
|
|
Minimum Requirements (Camera)
|
|
Wired Ethernet network
Network adapter with Ethernet network cable and TCP/IP protocol installed per PC
Switch/router to support multiple connection points
Internet Explorer 6.x or later with ActiveX support for viewing
Microsoft Windows Vista, XP to support Installation Wizard
2-GHz Pentium 4, or AMD Athlon Class CPU with 512 MB RAM
128-MB AGP video adapter
|
|
Minimum Video Monitoring System Requirements (4-Camera Viewing)
|
|
CPU - Intel Pentium 4, 2.4 GHz
RAM - 512 MB
Motherboard - Intel 945 or 965 chip or above; Intel chipset recommended
Video card - ATI Radeon 9200, NVIDIA GeForce FX-5200, or Intel 945G/965G or later; ATI recommended
Ethernet - 100 BASE-T or above; Gigabit LAN recommended
Hard disk - 80 GB or more
Operating system - Microsoft Windows XP Pro Service Pack 2, or Microsoft Vista
|
|
Product Warranty
|
|
3-year limited hardware warranty with return to factory replacement and 90-day limited software warranty.
|
|
|
|
|
Previous Page
|
Next Page
|
|
