| Introduction |
|
Compro IP70 camera series offers best-in-class high quality megapixel HD image yet affordable surveillance solution, ideal for securing locations such as home, small business, hotel, shop, or restaurant.
|
| Key Features |
- 1/3" CMOS Megapixel sensor
- Day and night functionality with mechanical IR cut filter switching
- Built-in IR lamp with light sensor
- Supports real-time H.264, MPEG-4 and MJPEG compression (Triple Codec)
- Supports dual streams simultaneously
- Support 4x digital zoom
- Video resolution is up to 1280 x 1024 pixels
- Image frame rate is up to 30 frames under 640x480 or 15 frames under
1280 x 1024
- Smart motion detection
- Two way audio with built-in MIC and speaker
- Support UPnP (universal plug and play)
- Support 10/100 802.3/Ethernet
- 802.11b/g/n WLAN on applicable model (Optional wireless adaptor)
- Digital I/O for External Sensor and Alarm (2 In/1 Out)
- Supports local storage (MicroSD), Snapshot
- Remote monitoring from 3GPP mobile or phones with web browser
(e.g. iPhone/BlackBerry)
- Bundle with powerful 32-channel IP video management software --- ComproView
|
Features

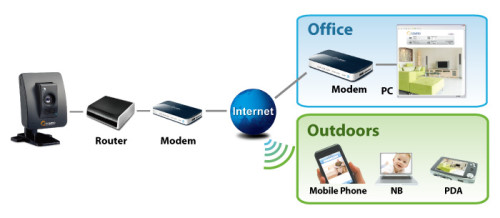

Total Surveillance Solution for Home and Business
IP70 bundles a full range of applications to provide an intelligent surveillance total solution - iWizard is a smart installer to turn the complicated network camera installation to a simple and fast process; WebVUer is an intuitive IE based video management software includes all the key features for trouble-free monitoring home surveillance; ComproView is a powerful feature rich 32 channels professional grade multi-camera video management solution for business surveillance.

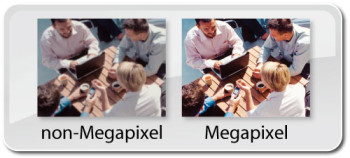

High Quality Megapixel/HD Image
Utilizing Megapixel/HD technology enables IP70 to view detail and identify people and objects at least three times better than the conventional CCTV camera. Combining with dual H.264 and MJPEG streams to enable optimization of different bandwidth of networks and various image sizes of devices from PC to Mobile phone.

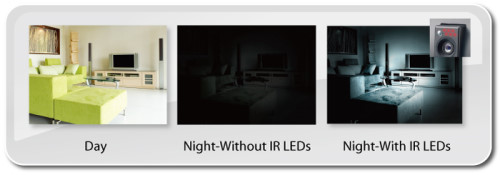

Day & Night Support for Any Lighting Condition
IP70 features an unique design of its class integrating a professional class of light sensor IR solution for 24 hours 7 days surveillance under any lighting condition. A light sensor will turn on an array of IR LEDs to illuminate the scene automatically when the lighting condition is dark for image clarity and switch off the IR LEDs when the lighting condition turns normal.

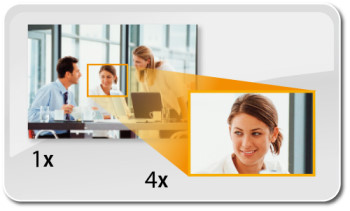

4x Digital Zoom Provide You with Detailed Image

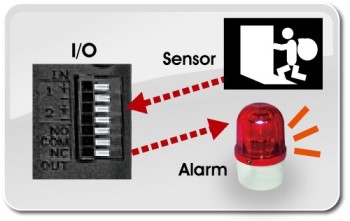

Digital I/O for External Sensor and Alarm (2 in / 1 out)

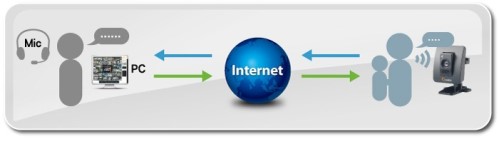

Two-way Audio and Smart Video/Audio Analytic

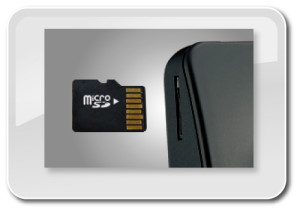

MicroSD card slot for local snapshot storage
IP70 camera built-in MicroSD card slot, support local snapshot storage in MicroSD card. (Both SD and SDHC formats)

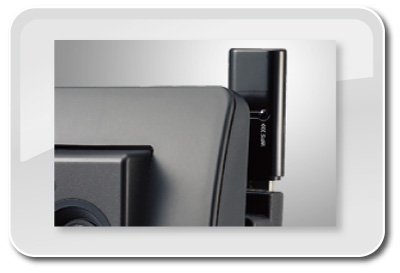

Easy Wireless Network Installation (Optional Accessory)
802.11 b/g/n wireless LAN is supported via the WL155 USB upgrade module with a simple and easy wireless installation process.
|
Specifications
|
| Camera |
|
Image Sensor
|
1/3" CMOS Megapixel sensor
|
|
Lens
|
- Focal Length: 4.0 mm
- Max Aperture Ratio: F1.5
- Fixed iris
|
|
Angle of View
|
60 horizontal
|
|
Focusing Range
|
0.5m ~ INF
|
|
Min Illumination
|
- IR Mode: 0 lux; using built-in IR light in darkness up to 8m
- Color Mode: 1.0 lux
|
|
Shutter Time
|
1/5 ~ 1/16000 sec
|
| Video |
|
Video Compression
|
- H.264 ( MPEG-4 Part 10)
- Motion JPEG
- MPEG-4 Part 2
|
|
Resolutions
|
160x120, 320 x 240, 640 x 480, 1280 x 1024
|
|
Maximum Frame Rate (fps)
|
- Up to 30 frames at 640 x 480
- Up to15 frames at 1280 x 1024
|
|
Video Streaming
|
Dual H.264, MJPEG or MPEG-4 video streams
|
|
Image Setting
|
- Adjustable image size and quality
- AGC, AWB, AES
- Configurable brightness, saturation and sharpness
|
| Audio |
|
Audio Communication
|
Two-way audio with built-in MIC (S/N ratio 58 dB, 50-10000hz ) and speaker (660mv)
|
|
Audio Compression
|
G.711 PCM 64Kbit/sec
|
|
Audio Input / Output
|
MIC input / Audio out
|
| Networking |
|
Security
|
User ID / Password Protection
|
|
Supported Protocols
|
DDNS (iDDNS) / PPPoE / HTTP Server / DHCP Client /NTP Client /DNS Client / FTP Client / SMTP Client / ARP / ICMP/IPV4/ UDP / TCP/IP
|
| Firmware |
|
* Support UPnP
* Support online firmware update
|
| Software |
|
ComproView
|
- Multiple channel management
- iDDNS service for dynamic IP and desktop shortcut creation
- Recording search and playback
- Scheduled and event driven management
- Smart Detection
|
| Web Browser |
|
Internet Explorer (ActiveX)
|
- Monitor the current condition of the monitor area via Internet Explorer
- Capture a still image and save it in JPG format on PC
- Alarm and event management: FTP, I/O alarm, server notification and email
|
|
Support Devices
|
- PC, Laptop, Nettop, MID with IE/ActiveX support.
- Mobile phone, iphone/ipod, PDA support in MJPEG mode.
|
| Mobile Phone |
|
MJEPG Mode
|
Viewing of camera image via phone browsers
|
|
3GPP Mode
|
Viewing of camera image via 3G phones (3GPP Streaming)
|
| General |
|
Operating conditions
|
5 - 40C
|
|
Power Supply
|
DC 5V/2A
|
|
Dimensions
|
84 x 124.5 x 91.5 mm (including bracket)
|
