07/12
|
View Sonic WPG350 Wireless N Presentation Gateway - 802.11n/g/b, 1xVGA In/1xVGA Out, 1xAudio Out, 1xRJ45, To Suit Up to 1024x768 ResolutionViewSonic's new WPG-350 Wireless Presentation Gateway lets you wirelessly connect to any projector or display with an available VGA output.
- Data and video streaming up to 1024x768
- Full 802.11b/g/n high speed wireless support
- Supports up to four presenters simultaneously
- Split screen capability and features WPS (WiFi protected setup)
Easy to use:
- Plug the WPG-350 into the projector or your display
- Wirelessly connect to the gateway
- Present your content
Equipped with VGA-pass through for an extra display
Fully compatible with both Windows and Mac OS
Presentation remote for total conference control
Supports resolutions up to 1024x768 and full motion video up to 1080p
WiFi protection setup (WPS) for secure configuration
Specifications
NETWORKING
|
|
|
| |
Wireless Connectivity |
802.11b/g/n |
MEMORY
|
|
|
| |
Flash |
8MB |
| |
SDRAM |
64MB |
DIMENSIONS
|
|
|
| |
Physical (WxHxD) |
5.25" x 3.6" x 1.2" |
WEIGHT
|
|
|
| |
Weight |
.48 lbs. |
PACKAGE CONTENTS
|
|
|
| |
|
WPG-350, AC Adapter, remote control with batteries, IR cable, RGB cable (DB-15), Quick Start Guide, ViewSonic Wizard CD |
OPERATING SYSTEM
|
|
|
| |
|
Supports: Microsoft Windows XP, Vista 32/64, Mac OSX |
CONNECTORS
|
|
|
| |
|
RGB-in, RGB-out, 3.5mm stereo jack, RJ-45, dual antenna, DC-in (12V), IR 3.5mm. |
WARRANTY
|
|
|
| |
|
One year limited parts and labor |
|
|
|
|
07/12
|
Olympus X-560WP Digital Camera - Green
- 10MP, 3xOptical Zoom, 2.4"LCD, Lithium-Ion Battery, Up to 3M Waterproof, Image Stabaliser This 3m waterproof ,10 megapixel, 3x optical zoom camera is so compact you can take it with you anywhere. It is so easy to useand hasso many features availableit will enable you to capture your most memorable moments at a click of a button.
With intelligent Auto, you know you have nothing to think about as the camera will do it for you. The camera will be able to automaticcally choose from the 18 scene modes available and adjust the settings to optimize picture quality result.
Youwill never miss a shot as the camera automatically tracks the movements of energetic photo targets like kids and pets and continuously adjusts the focus and brightness to easily capture them sharply. As nobody gets the perfect shot all the time,you will be able tocorrect shooting mistakes instantly with the touch of a button. Use Perfect Fix to lighten up shadows and remove red-eye so a less-than-perfect shot can still turn out perfect!
Now everyone can be in your picture with face detect tracking up to sixteen faces and automatically focuses and optimizes exposures for sharp, brilliant portrait pictures.
Specifications
| Product Name |
|
X-560 WP |
| Image Sensor |
|
1/2.33" CCD |
| Effective Pixels |
|
10.0 |
| Optical Zoom |
|
3x Optical Zoom |
| Digital Zoom |
|
5x Digital Zoom |
| WaterProof |
|
3m |
| NightProof |
|
Nightproof LCD for easy framing at Night - ISO up to 1600 for vibrant colours at night |
| ShakeProof |
|
Shakeproof anti blur mode |
| Face Detection |
|
Yes - Up to 16 Faces |
| Perfect Shot Preview |
|
Yes |
| Shadow Adjust Technnology |
|
No |
| EditProof |
|
Perfect Fix: Red-eye fix, Lighting fix |
| Lens Structure |
|
10 Lenses in 8 Groups, 3 Aspherical Lenses |
| Aperture Priority |
|
No |
| Shutter Priority |
|
No |
| Focusing System |
|
CCD Contrast Detection |
| Focusing Working Range |
|
19.7" infinity (0.5m infinity) |
| Focusing Macro Mode |
|
Wide: 7.9" infinity (0.2m infinity) |
| Focusing Super Macro Mode |
|
2.8" 19.7" (7cm - 50cm) |
| LCD Display - size |
|
2.4" High Resolution LCD |
| Flash working range |
|
Wide: 0.66ft (0.2m) 13.5ft (4.1m) at ISO 800
Tele: 0.98ft (0.3m) 9.5ft (2.9m) at ISO 800 |
| External Flash |
|
No |
| Scene Programs |
|
18 Shooting Modes;
Intelligent Auto, Program Auto, Digital Image Stabilization, Scene Modes (1. PORTRAIT, 2. LANDSCAPE, 3. NIGHT SCENE. 4. NIGHT+PORTRAIT, 5. SPORT, 6. INDOOR, 7. CANDLE, 8. SELF PORTRAIT, 9. SUNSET, 10. FIREWORKS, 11. CUISINE, 12. DOCUMENTS, 13. UNDERWATER SNAPSHOT, 14. PET), Movie |
| Shutter Speed |
|
1/1000 sec. 1/2 sec. (up to 4 sec. in Night Scene mode) |
| Compensation |
|
2 EV steps in 1/3 EV steps |
| Sensitivity |
|
Auto, 100, 200, 400, 800, 1600 |
| Panorama |
|
Yes, only with an Olympus xD Card and Olympus Master software |
| White Balance Mode |
|
White Balance iESP |
| White Balance Preset |
|
Presets (Daylight, Overcast, Tungsten and 3 Fluorescents) |
| Still Picture Mode |
|
Still Image: JPEG
Movie: AVI Motion JPEG |
| Image Quality Adjustment |
|
Red-Eye Fix, Lighting Fix, Resize, Cropping |
| Recording System Motion Picture |
|
AVI Motion JPEG with sound. |
| Resolution |
|
640x480 (30/15fps), 320x240 (30/15fps) |
| Recording System Sound |
|
WAVE |
| Motion Picture Playback Mode |
|
Frame by Frame, Fast Forward, Reverse |
| Self Timer |
|
12 Seconds |
| Supplied Memory |
|
14.8 MB internal memory |
| Memory Compatibility |
|
xD-Picture Card (1GB, 2GB), microSD (MASD-1 is required) |
| Battery life - Still Shots |
|
165 shots |
| Power |
|
Li42 B,Li-ion Rechargeable Battery |
| Dimensions |
|
93.6 mm x 61.7 mm x 21.5 mm |
| Weight |
|
127 g (without battery or media) |
| Box Contents |
|
USB Cable, Audio/ Video Cable
Manual
Wrist Strap
Lithium-Ion Battery (LI-42B) & Charger (LI-41C)
OLYMPUS Master 2 Software CD-ROM
Warranty Card
MASD-1 (microSD Adapter) |
|
|
|
|
07/12
|
Olympus X-560WP Digital Camera - Red
- 10MP, 3xOptical Zoom, 2.4"LCD, Lithium-Ion Battery, Up to 3M Waterproof, Image Stabaliser This 3m waterproof ,10 megapixel, 3x optical zoom camera is so compact you can take it with you anywhere. It is so easy to useand hasso many features availableit will enable you to capture your most memorable moments at a click of a button.
With intelligent Auto, you know you have nothing to think about as the camera will do it for you. The camera will be able to automaticcally choose from the 18 scene modes available and adjust the settings to optimize picture quality result.
Youwill never miss a shot as the camera automatically tracks the movements of energetic photo targets like kids and pets and continuously adjusts the focus and brightness to easily capture them sharply. As nobody gets the perfect shot all the time,you will be able tocorrect shooting mistakes instantly with the touch of a button. Use Perfect Fix to lighten up shadows and remove red-eye so a less-than-perfect shot can still turn out perfect!
Now everyone can be in your picture with face detect tracking up to sixteen faces and automatically focuses and optimizes exposures for sharp, brilliant portrait pictures.
Specifications
| Product Name |
|
X-560 WP |
| Image Sensor |
|
1/2.33" CCD |
| Effective Pixels |
|
10.0 |
| Optical Zoom |
|
3x Optical Zoom |
| Digital Zoom |
|
5x Digital Zoom |
| WaterProof |
|
3m |
| NightProof |
|
Nightproof LCD for easy framing at Night - ISO up to 1600 for vibrant colours at night |
| ShakeProof |
|
Shakeproof anti blur mode |
| Face Detection |
|
Yes - Up to 16 Faces |
| Perfect Shot Preview |
|
Yes |
| Shadow Adjust Technnology |
|
No |
| EditProof |
|
Perfect Fix: Red-eye fix, Lighting fix |
| Lens Structure |
|
10 Lenses in 8 Groups, 3 Aspherical Lenses |
| Aperture Priority |
|
No |
| Shutter Priority |
|
No |
| Focusing System |
|
CCD Contrast Detection |
| Focusing Working Range |
|
19.7" infinity (0.5m infinity) |
| Focusing Macro Mode |
|
Wide: 7.9" infinity (0.2m infinity) |
| Focusing Super Macro Mode |
|
2.8" 19.7" (7cm - 50cm) |
| LCD Display - size |
|
2.4" High Resolution LCD |
| Flash working range |
|
Wide: 0.66ft (0.2m) 13.5ft (4.1m) at ISO 800
Tele: 0.98ft (0.3m) 9.5ft (2.9m) at ISO 800 |
| External Flash |
|
No |
| Scene Programs |
|
18 Shooting Modes;
Intelligent Auto, Program Auto, Digital Image Stabilization, Scene Modes (1. PORTRAIT, 2. LANDSCAPE, 3. NIGHT SCENE. 4. NIGHT+PORTRAIT, 5. SPORT, 6. INDOOR, 7. CANDLE, 8. SELF PORTRAIT, 9. SUNSET, 10. FIREWORKS, 11. CUISINE, 12. DOCUMENTS, 13. UNDERWATER SNAPSHOT, 14. PET), Movie |
| Shutter Speed |
|
1/1000 sec. 1/2 sec. (up to 4 sec. in Night Scene mode) |
| Compensation |
|
2 EV steps in 1/3 EV steps |
| Sensitivity |
|
Auto, 100, 200, 400, 800, 1600 |
| Panorama |
|
Yes, only with an Olympus xD Card and Olympus Master software |
| White Balance Mode |
|
White Balance iESP |
| White Balance Preset |
|
Presets (Daylight, Overcast, Tungsten and 3 Fluorescents) |
| Still Picture Mode |
|
Still Image: JPEG
Movie: AVI Motion JPEG |
| Image Quality Adjustment |
|
Red-Eye Fix, Lighting Fix, Resize, Cropping |
| Recording System Motion Picture |
|
AVI Motion JPEG with sound. |
| Resolution |
|
640x480 (30/15fps), 320x240 (30/15fps) |
| Recording System Sound |
|
WAVE |
| Motion Picture Playback Mode |
|
Frame by Frame, Fast Forward, Reverse |
| Self Timer |
|
12 Seconds |
| Supplied Memory |
|
14.8 MB internal memory |
| Memory Compatibility |
|
xD-Picture Card (1GB, 2GB), microSD (MASD-1 is required) |
| Battery life - Still Shots |
|
165 shots |
| Power |
|
Li42 B,Li-ion Rechargeable Battery |
| Dimensions |
|
93.6 mm x 61.7 mm x 21.5 mm |
| Weight |
|
127 g (without battery or media) |
| Box Contents |
|
USB Cable, Audio/ Video Cable
Manual
Wrist Strap
Lithium-Ion Battery (LI-42B) & Charger (LI-41C)
OLYMPUS Master 2 Software CD-ROM
Warranty Card
MASD-1 (microSD Adapter) |
|
|
|
|
07/12
|
Olympus MJU-9000 Digital Camera - Black Slim
- 12MP, 10xOptical Zoom, 2.7"LCD, Lithium-Ion Battery, Dual Shakeproof Shift Stabiliser Are you an avid traveller, but reluctant to take your digital camera along with you on your expeditions due to additonal lugage or additional bulk? Olympus now has the solution with the introduction of the Mju 9000 which is the flagship model in the Mju series lineup.
The Mju 9000 is the world's smallest and slimmest digital camera with 10x optical wide zoom, so now you can take this pocket sized camera with you, anywhere, anytime, to capture those special holiday moments.
Olympus patented lens technology for world's smallest 10x zoom
With state-of-the-art proprietary Olympus lens technology, the world's slimmest, smallest 10x optical zoom lens boasts a zoom range that extends from wide-angle 28mm to telephoto 280mm in 35mm format, making it ideal for shooting any type of scene - from a magnificent landscape to a close-up portrait.
And just because the lens is so small and slim, doesn't mean you need to compromise on image quality. Superb image quality is assured with Olympus' uniquely designed and manufactured Dual Super Aspherical (DSA) lens element. One DSA element can do the work of several conventional elements, resulting in images with higher contrast and greater clarity from centre to edge, from a camera that's slimmer, smaller, and more convenient to take with you. It's the DSA image quality guarantee.
Easy outdoor shooting in daylight and glare with HyperCrystal III LCD monitor
The new 2.7 inch HyperCrystal III LCD monitor features high brightness of 1000 cd/m2 at twice the contrast level of a conventional LCD monitor a wide 160-degree viewing angle, and an anti-reflection coating. Whether it's the brilliant glare reflecting from the snow on a ski hill or the darkness under water, this LCD monitor is always clear and easy to view, making it easy to compose shots in any kind of light.
HyperCrystal III LCD Monitor Conventional LCD Monitor
Digital SLR-quality Dual Shakeproof CCD-Shift Image Stabiliser
When you're out for the day to see the sights you don't have room to carry a cumbersome tripod. But shooting at 10x optical zoom can sometimes result in image blur, particularly in indoor conditions. No need to worry with the Mju 9000. With a Dual Shakeproof CCD-shift image stabilisation mechanism utilising sophisticated technology made for digital SLR cameras, the Mju 9000 delivers powerful image stabilisation, correcting for up to four shutter speed steps. So now you can enjoy shooting without having to worry about camera shake even in difficult outdoor conditions.
Specifications
| Product Name |
|
Mju 9000 |
| Image Sensor |
|
1/2.33" |
| Effective Pixels |
|
12.0MP |
| Optical Zoom |
|
10 x |
| Digital Zoom |
|
5 x |
| Fine Zoom |
|
Yes |
| DualShakeProof |
|
CCD Shift Image Stabiliser correcting to 4 shutter speed steps |
| NightProof |
|
Nightproof LCD for easy framing at Night - ISO up to 1600 |
| Face Detection |
|
Yes - up to 16 faces |
| Perfect Shot Preview |
|
Yes |
| Shadow Adjust Technnology |
|
Yes |
| Wide Angle |
|
28mm |
| Lens Structure |
|
9 lenses in 6 groups; 5 aspherical lenses, 1 Dual Super Aspherical (DSA) Lens, 1 Extra Low Dispersion Aspherical (EDA) Lens |
| Lens Focal Length - 35mm Format |
|
28mm - 280mm |
| Lens Maximum Aperture |
|
3.2 (wide) / 5.9 (tele) |
| Aperture Priority |
|
No |
| Shutter Priority |
|
No |
| Focusing System |
|
TTL iESP auto focus with contrast detection |
| Focusing Manual |
|
No |
| Focusing Working Range |
|
50cm - infinity |
| Focusing Macro Mode |
|
10cm - infinity (wide), 90cm - infinity (tele) |
| Focusing Super Macro Mode |
|
From as close as 1cm |
| LCD Display - size |
|
2.7" |
| LCD Display - pixels |
|
230,000 |
| Flash Settings |
|
Auto, Red-Eye Reduction, Fill-in, OFF |
| Flash working range |
|
20cm - 5m (wide), 90cm - 2.8m (tele) |
| External Flash |
|
No |
| Scene Programs |
|
Number of scene modes: 14
PORTRAIT, LANDSCAPE, NIGHT SCENE, NIGHT+P0RTRAIT, SPORT, INDOOR, CANDLE, SELF PORTRAIT,SUNSET, FIRE WORKS, CUISINE, DOCUMENTS, BEACH&SNOW,PRE-CAPTURE MOVIE |
| Shutter Speed |
|
1/4-1 s - 1/2000 s (up to 4 sec. in night mode) |
| Light Metering Mode |
|
ESP/Spot |
| Exposure Control |
|
Program AE |
| Compensation |
|
+/- 2 EV in 1/3 step increments |
| Auto Bracketing |
|
No |
| Sensitivity |
|
ISO 64 - 1600 |
| Panorama |
|
Yes, In-camera Panorama using an Olympus xD card |
| White Balance Mode |
|
White Balance iESP |
| White Balance Preset |
|
Auto, Overcast, Sunlight, Tungsten, Fluorescent 1 - 3 |
| Still Picture Mode |
|
JPEG
EXIF v 2.2
PIM III
DPOF |
| Image Size |
|
12M(3968X2976)
10M(3648x2736)
5M(2560x1920)
3M(2048x1536)
2M (1920x1080) 16:9
2M(1600x1200)
1M(1280x960) |
| Image Quality Adjustment |
|
Resize, Black & White, Sepia, Red-eye fix, Saturation correction |
| Recording System Motion Picture |
|
AVI Motion JPEG with sound |
| Recording Time |
|
Continuous recording to card capacity with an Olympus Type M+ xD card (maximum 30sec @ 30fps with Standard Type M xD) |
| Resolution |
|
SHQ: 640 x 480 15/30fps
HQ: 320 x 240 15/30fps
|
| Recording System Sound |
|
WAVE |
| Motion Picture Playback Mode |
|
Frame by frame, Fast Forward, Rewind, Voice playback |
| Self Timer |
|
12 sec |
| Supplied Memory |
|
45MB Internal Memory |
| Memory Compatibility |
|
512MB ~ 2GB xD, Micro SD via MASD-1 Micro SD adapter (included) |
| Rechargeable Battery |
|
Li-50B LI-Ion |
| Power |
|
D-7ACA AC Adapter with CB-MA1 Power coupler |
| USB |
|
CB-USB6 |
| AV |
|
CB-VC3 |
| Direct Printing |
|
PictBridge |
| Dimensions |
|
(W) 96.0mm x (H) 60.0mm x (D) 31.0mm |
| Weight |
|
185g |
| Box Contents |
|
Li-Ion Battery ( Li-50B ), Battery Charger (Li-50C), Strap, USB Cable (CB-USB6), AV Cable (CB-VC3), MicroSD card Adapter (MASD-1), Olympus Master Software v2.01, Worldwide Warranty Card. Please note that Micro SD cards are not included. |
|
|
|
|
07/12
|

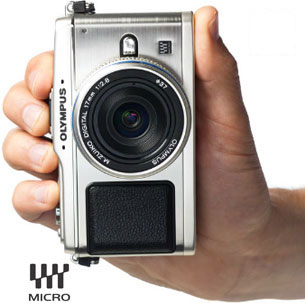

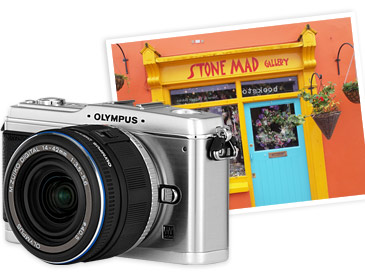

Olympus PEN EP-1 Digital SLR Camera - 12.3MP
- 3"LCD, Image Stabilisation, Live View
- Includes 14-42mm Lens + 17mm Pancake Lens Not a Point and Shoot. Not an SLR.
It's a PEN. What will you create?
The Olympus E-P1 marks an innovative new era in digital imaging. Our new Micro Four Thirds camera upholds the legacy of the celebrated PEN family of cameras, with the photographic optics of an SLR and the size and simplicity of a point and shoot. Combining the still image quality of a digital single lens reflex (DSLR) with the A/V quality of both a High Definition camcorder and high-end audio recorder, the E-P1 is a virtual full-service imaging studio in one ultra-portable and stylishly retro body. With dozens of advanced features, the E-P1 makes documenting and sharing your everyday life easier and more creative than ever before.
ULTRA CONVENIENCE, MEGA FUNCTIONALITY
The E-P1 is the world's smallest 12.3-mexapixel interchangeable lens system camera, yet has the creative flexibility to give you a true professional experience with ease. A still photo, video and audio recorder in one, the E-P1 creates exceptional photos, inventive slide shows, and remarkable videos both for personal use or for posting on many of today's social networking websites. It delivers professional quality images without the bulk of a conventional DSLR, thanks to its slim body and advanced high-speed imager AF (Live View) technologies. The lens mount diameter has been reduced, enabling the use of smaller, lighter interchangeable lenses that perform at the same level as larger DSLR lenses. The camera fits easily in many pockets and purses.
12 MILLION PIXELS
With 12.3 megapixels at its disposal, the E-P1 delivers image quality that makes the difference between ordinary and exceptional still and video imaging. A Live MOS image sensor is complemented by a next generation TruePic V Image Processor, resulting in excellent dynamic range, accurate color fidelity, fine image details in all highlight and shadow areas, and reduced noise.
AUTOFOCUS LIVE VIEW
The Live View Autofocus system works as effectively and seamlessly on the E-P1 as it does on conventional E-System DSLR and point-and-shoot cameras. Subjects are displayed in complete focus on the bright LCD as soon as the shutter is pressed half way.
BLUR-FREE, DUST-FREE IMAGING
Say goodbye to blurry and blemished images. In both still and Movie modes the E-P1 Image Stabilization excels. The E-P1's three-mode In-body Image Stabilization system compensates for up to four shutter speed steps in the still shooting modes with any of its interchangeable lenses: Mode 1 for general shooting, Mode 2 for creative high-speed horizontal capture, and Mode 3 for high-speed vertical capture. The camera's Mechanical Image Stabilization automatically compensates for camera shake in low-light situations or when using a telephoto lens. In the Movie Modes the advanced Electronic Image Stabilization tracts the images both vertically and horizontally to achieve clear sharp movies, matching the performance of the in body IS. A Dust Reduction System assures spot-free images via a patented ultrasonic technology called Supersonic Wave Filter, which vibrates to remove dust and other particles from the image sensor and confines them to a special adhesive membrane.
MULTIPLE EXPOSURE
A Multiple Exposure function enables you to be creative in the landscape or portrait formats, or even a combination of the two. Multiple images can be captured and combined. The creative possibilities are endless. What will you create? Now you won't have to wonder. With the E-P1, you'll simply go out there and create.
AUTO ADJUSTMENT AND FACE DETECTION
The camera has 19 automatic scene modes, including Night-Scenes, Portraits and Landscapes. Its Intelligent Auto Mode (iAuto) identifies your shooting intent (including macro or sport photography) and adjusts the settings accordingly to achieve the best results. A new ePortrait Mode allows you to soften shadows and smooth out facial features, either before image capture or during post-capture edits. And a Face Detection function reduces the chance of blurred subjects when shooting several people at once, even if they're moving while you're shooting.
SHADOW ADJUSTMENT
No longer must you worry about the extreme contrast between dark and bright areas. The camera's Shadow Adjustment Technology corrects for extreme light variations with high-tech efficiency. This can also be used in post-editing.
ART FILTERS
For even further creativity, there are six built-in Art Filters, all of which can ultimately be applied within both the still and video imaging process. These include Pop Art, Soft Focus, Pale & Light Color, Light Tone, Grainy Film and Pin Hole. The effects are instantly viewable on the LCD when using the E-P1 in Live View or when reviewing images.
CREATIVE FRAMING
The camera provides masks to help you frame images to whatever proportions you'd like. Whether your end-result goal is for conventional enlargements or for viewing on widescreen monitors, the E-P1 makes proper framing a cinch. This function can be combined with Art Filters and with multiple exposures for additional creativity.
PRO AUDIO
The recording capabilities of the E-P1 are versatile enough for all your audio needs, whether shooting stills or video. With its built-in microphones, the system can capture all the nuances of any sounds being recorded, is capable of recording and playing back WAV files, and is perfect for adding narration to still images.
TOTAL LIVE CONTROL
With the E-P1 you are in full control of all functions and imaging decisionswith split-second accuracy. Live Control, an advanced control panel system, allows you to see the image and the controls all at once on the 3-inch HyperCrystal LCD, which is noted for its vivid colors and high contrast. Whether using full manual control or all the automatic features, first-time users will feel like pros, and pros will create still images or videos that continue to push their own boundaries of creativity.
E-P1 Features
-
Live View AutofocusWith the seamless precision and simplicity of a point-and-shoot, the E-P1's Live View Autofocus system displays the images to be shot in complete focus on the camera's bright LCD the moment the shutter button is pressed half way down.
-
Multiple ExposureMultiple Exposure makes heightened creativity an easily-obtained objective. Two frames can be combined, and portions of one can be combined with those of another in any of the shooting modes. Images can be combined in playback mode or directly on the LCD through the use of the new TruePic V Image Processor.
-
Micro Four Thirds MountThe Micro Four Thirds Mount on the E-P1 provides many key benefits, including the effectiveness of a digitally designed image sensor, an ultra-compact design, and expandability and compatibility with all Micro Four Thirds Lenses and Four Thirds System Lens via the MMF-1 Adapter.
-
Art FiltersA series of six built-in Art Filters for replicating countless striking and dramatic effects can be easily activated for both still and video imaging. The innovative Art Filters include Pop Art, Soft Focus, Pale & Light Color, Light Tone, Grainy Film and Pin Hole.
-
12.3 megapixelThe E-P1's powerful 12.3 megapixel Live-MOS sensor packs a powerful high-quality imaging punch for such a compact camera, allowing you to capture more detail than ever before.
-
TruePic V Image ProcessorIn addition to more detail, the image sensor, combined with the next-generation TruePic V Image Processor, delivers excellent dynamic range, accurate color fidelity and reduced noise, all the way up to 6400 ISO.
-
In-body Image StabilizationThe camera's In-body Image Stabilization system compensates for up to 4 shutter speed steps with any of the system's interchangeable lenses.
-
Mechanical Image StabilizationMechanical Image Stabilization automatically compensates for camera shake in low-light situations or when using a telephoto lens.
-
Electronic Image StabilizationElectronic Image Stabilization compensates for camera shake while shooting in the movie mode.
-
MF AssistFor accurate manual focusing, MF Assist can be enabled during S-AF + MF operation. With it you can zoom in on the central part of the image by up to five times by turning the focus ring.
-
Perfect Shot PreviewWith Perfect Shot Preview, you can preview and select various photographic effects before you take the shot.
-
Digital LevelerThe camera's Digital Leveler function is a highly functional and practical feature for such specialized requirements as architectural photography and other similar needs.
-
Dust Reduction SystemA Dust Reduction System assures spot-free images. Every time you turn on the camera, the patented Supersonic Wave Filter silently vibrates, flinging and collecting dust so that it cannot interfere with the picture imaging at any time.
-
19 automatic scene modesThere are 19 automatic scene modes available, including Night-Scenes, Portraits and Landscapes. Edits can be made in the camera after the pictures are shot using the handy ePortrait Mode.
-
ePortraitThe ePortrait mode is also useful for smoothing out the facial features of your subjects, which is a tremendous plus for High Definition playback.
-
Face DetectionA Face Detection function reduces the chance of blurry faces when shooting groups of peopleup to eight subjects at onceeven if they're moving while you're pressing the shutter button.
-
Shadow Adjustment TechnologyShadow Adjustment Technology corrects for extreme light variations with high-tech efficiency. It can also be used in post-editing.
-
Aspect RatiosThe E-P1 lets you select one of four Aspect Ratios (4:3, 3.2, 16.9 and 6.6) that help frame your images to whatever proportions you'd like, for everything from conventional enlargements to viewing on widescreen monitors.
-
iAutoiAuto identifies your shooting intent (such as macro or action photography) and instantly adjusts the camera settings to achieve the best results.
-
SlideshowsSlideshows have never been easier or more fun to create. The E-P1's enhanced playback functions allow you to employ effective fade-in/fade-out techniques, add captivating musical soundtracks, and much more.
-
ultra-compact bodyThe E-P1 is the definition of state-of-the-art optical engineering in an ultra-compact body. It weighs just 11.8 ounces and measures just 4.75" (W) x 2.75" (H) x 1.43 (D), giving it the facility to slip into pockets or purses and to take with you anywhere.
-
M. ZUIKO lensesThe accompanying Olympus M. ZUIKO lenses are small, lightweight, powerful and precision engineered.
-
Four Thirds System Lens AdapterOther Four Thirds Format lenses can also be used on the E-P1 with an available MMF-1 Four Thirds System Lens Adapter, including extreme wide-angle fisheye and super-telephoto lenses. This further increases your range of creative options.
-
sound recordingThe sound recording function of the E-P1 helps you capture all the nuances of any sounds being recorded. The system is capable of recording and playing back WAV files, and of adding the most professional-sounding narration to digital slide shows.
-
background musicThere are also five separate background music files to choose from that you can add to your still images or video productions.
-
SDHC media cardsThe E-P1 is capable of recording video to SDHC media cards to accommodate large files. (SDHC Class 6 cards are recommended.) Videos, stills and high-fidelity audio can also be output via HDMI cable-direct to any HD television.
-
Full manual controlFull manual control for all programs and functions, including Aperture and Shutter Speed Priority, is at your fingertips whenever it is needed or preferred. Full automatic control is also a button-press away.
-
Live ControlLive Control, an advanced camera management system, allows you to see the image being shot and the camera's controls all at once, on the bright, colorful, high definition 3-inch HyperCrystal LCD. HyperCrystal LCDs offer many times the contrast of conventional LCD monitors, and also provide a wide viewing angle of 176.
E-P1 Specs
| Product |
Product type |
Interchangeable Lens Type Live View Digital Camera |
| |
Memory |
SD Memory Card(SDHC compatible) Class 6 is recommended for Movie shooting |
| |
Screen size |
17.3 mm (H) x 13.0 mm (V) |
| |
Lens mount |
Micro Four Thirds Mount |
| Effective pixels number |
Effective Pixels number |
12.3 million pixels |
| Image Pick-up Unit |
Product type |
High speed Live MOS Sensor |
| |
Total no. of pixels |
Approx. 13.1 million pixels |
| |
Aspect ratio |
1.33 (4:3) |
| |
Filter array |
Primary color filter (RGB) |
| |
LPF |
Fixed type |
| |
IR cut filter |
Hybrid type |
| |
Dust reduction |
Supersonic Wave Filter (dust reduction system for image sensor) |
| Recording (Still) |
Recording format |
DCF, DPOF compatible/Exif, PRINT Image Matching III |
| |
File format |
RAW (12-bit lossless compression), JPEG, RAW+JPEG |
| |
Recording image size |
[RAW] 4032 x 3024 pixels |
| |
|
[JPEG] 4032 x 3024 pixels - 640 x 480 pixels |
| |
File Size |
RAW: 4032(H)x3042(V) (approx. 1/1.5 lossless compressed) Approx. 13.9MB |
| |
|
Set1(LF): 4032(H)x3042(V) (1/4 compressed) Approx. 5.7MB |
| |
|
Set2(LN): 4032(H)x3042(V) (1/8 compressed) Approx. 2.7MB |
| |
|
Set3(MN): 2560(H)x1920(V) (1/8 compressed) Approx. 1.1MB |
| |
|
Set4(SN): 1024(H)x768(V) (1/8 compressed) Approx. 0.3MB |
| |
|
Large: 4032 x 3024 Super fine (1/2.7 compressed) Approx. 8.2MB |
| |
|
4032 x 3024 Fine (1/4 compressed) Approx. 5.7MB |
| |
|
4032 x 3024 Normal (1/8 compressed) Approx. 2.7MB |
| |
|
4032 x 3024 Basic (1/12 compressed) Approx. 1.8MB |
| |
|
Middle 3200 x 2400 Super fine (1/2.7 compressed) Approx. 5.4MB |
| |
|
3200 x 2400 Fine (1/4 compressed) Approx. 3.4MB |
| |
|
3200 x 2400 Normal (1/8 compressed) Approx. 1.7MB |
| |
|
3200 x 2400 Basic (1/12 compressed) Approx. 1.2MB |
| |
|
2560 x 1920 Super fine (1/2.7 compressed) Approx. 3.2MB |
| |
|
2560 x 1920 Fine (1/4 compressed) Approx. 2.2MB |
| |
|
2560 x 1920 Normal (1/8 compressed) Approx. 1.1MB |
| |
|
2560 x 1920 Basic (1/12 compressed) Approx. 0.8MB |
| |
|
Small 1600 x 1200 Super fine (1/2.7 compressed) Approx. 1.3MB |
| |
|
1600 x 1200 Fine (1/4 compressed) Approx. 0.9MB |
| |
|
1600 x 1200 Normal (1/8 compressed) Approx. 0.5MB |
| |
|
1600 x 1200 Basic (1/12 compressed) Approx. 0.4MB |
| |
|
1280 x 960 Super fine (1/2.7 compressed) Approx. 0.9MB |
| |
|
1280 x 960 Fine (1/4 compressed) Approx. 0.6MB |
| |
|
1280 x 960 Normal (1/8 compressed) Approx. 0.3MB |
| |
|
1280 x 960 Basic (1/12 compressed) Approx. 0.3MB |
| |
|
1024 x 768 Super fine (1/2.7 compressed) Approx. 0.6MB |
| |
|
1024 x 768 Fine (1/4 compressed) Approx. 0.4MB |
| |
|
1024 x 768 Normal (1/8 compressed) Approx. 0.3MB |
| |
|
1024 x 768 Basic (1/12 compressed) Approx. 0.2MB |
| |
|
640 x 480 Super fine (1/2.7 compressed) Approx. 0.3MB |
| |
|
640 x 480 Fine (1/4 compressed) Approx. 0.2MB |
| |
|
640 x 480 Normal (1/8 compressed) Approx. 0.1MB |
| |
|
640 x 480 Basic (1/12 compressed) Approx. 0.1MB |
| Recording Movie |
Recording format |
AVI Motion JPEG(30fps) |
| |
Movie Mode |
HD: 1280(H)x720(V) Aspect 16:9
SD: 640(H)x480(V) Aspect 4:3(VGA) |
| |
Compression Ratio |
1/12 |
| |
File Size |
Max 2GB(limited by AVI format) |
| |
Maximum Recording Time |
HD: 7min, SD: 14min |
| Recording Sound |
Recording format |
Wave Format Base
Stereo PCM/16bit, 44.1kHz |
| |
Maximum Recording Time |
Picture with Sound: 30sec
Movie: depend on Movie Recording Time |
| Live View |
Type |
Image Sensor(High Speed Live MOS) type |
| |
Field of view |
100% |
| |
Display Mode |
Normal Mode |
| |
|
Grid Line Mode |
| |
|
Histogram Mode(3 types) |
| |
|
Magnified View Mode |
| |
|
Comparable View Mode |
| |
|
OFF Mode (for OVF user) |
| |
Magnification Ratio |
x7, x10 |
| |
View finder information |
Aperture value, Shutter speed, Auto Bracket, AE Lock, AF mode, IS, Shooting Mode, Battery Check, My Mode, Internal Temperature Warning, Face Detection, Histogram, Number of storable still pictures, Record mode, ISO, Sequential shooting, Self-timer, White Balance, Metering Mode, AF confirmation mark, Exposure Compensation Value, Spot metering Area
Only when E-system Flash attached : Flash Mode, Flash Status, Flash intensity Control, Super FP |
| |
Display of Face Detection |
Max 8 frames of face detection can be displayed |
| |
AF |
High speed imager AF |
| Image stabilizer |
System |
Built in (Imager shift image stabilizer) |
| |
Mode |
3 modes (2 dimensional activation, 1 dimensional activation in landscape frame to vertical direction moving, 1 dimensional activation in portrait frame to horizontal direction moving ), OFF |
| |
Manual Function |
input focal length 8, 10, 12, 16, 18, 24, 28, 30, 35, 40, 48, 50, 55, 65, 70, 75, 80, 85, 90, 100, 105, 120, 135, 150, 180, 200, 210, 250, 300, 350, 400, 500, 600, 800, 1000 |
| |
Effective compensation range |
Approx.4EV steps(in maximum effect with 50mm lens) |
| |
Shutter speed range |
2 - 1/4000 sec. (Not available when Bulb is selected) |
| |
IS for Movie |
Shifting electronic image (so called Digital IS) |
| Monitor |
Product type |
HyperCrystal LCD AR(Anti-Reflective) coating |
| |
Size |
3.0 inches |
| |
Total no. of pixels |
Approx. 230,000 dots |
| |
Playback field of view |
100% |
| |
Brightness control |
+7 levels and -7 levels |
| |
Colour balance |
A-B: +7 levels and -7 levels, G-M: +7 levels and -7 levels |
| Focusing |
AF system |
Imager Contrast Detection AF system
When non High-speed imager AF compatible lens is used, it works as AF assist. |
| |
Focus mode |
Single AF (S-AF) / Continuous AF (C-AF) / Manual Focus (MF) / S-AF + MF |
| |
Focusing point |
11-area multiple AF with the contrast detection system (Auto, selectable in option) |
| |
Focusing point selection |
Auto from all 11 area, Single area from 11 area
Auto from 25 area when Face detection is ON
Free selection (from 225points) when Magnified View Mode is selected |
| |
AF illuminator
|
Not available |
| |
AF lock |
Locked at first position of Shutter button in Single AF mode |
| |
Focus tracking |
Not available |
| |
Manual Focus Assist |
When rotation of focus ring is detected under S-AF+MF or MF mode, LV is magnified automatically |
| Exposure Control |
Metering system |
TTL Image Sensor metering system |
| |
|
(1) Digital ESP metering (324-area multi pattern metering) (2) Center weighted average metering |
| |
|
(3) Spot metering (approx. 1% for the viewfinder screen. Highlight / shadow bases are available) |
| |
Metering range |
EV 0 - 18 (Digital ESP metering, Centre weighted average metering, Spot metering) |
| |
|
(At normal temperature, 50mm f2, ISO 100) |
| |
Exposure mode |
(1) i Auto (2) P: Programme AE (Programme shift can be performed) (3) A: Aperture priority AE |
| |
|
(4) S: Shutter priority AE (5) M: Manual (6) Scene select AE (7) Art Filter |
| |
Scene select AE |
Portrait, Landscape, Macro, Sport, Night + Portrait, Children, High Key, Low Key, DIS mode, Nature |
| |
|
Documents, Panorama, Beach & Snow, |
| |
ISO sensitivity |
AUTO: ISO 200 - 6400(customizable, Default 200-1600) / Manual ISO 100 - 6400, 1/3 or 1 EV steps, Movie ISO 160-1600 |
| |
Exposure compensation |
3 EV in 1/3, 1/2, 1 EV steps selectable |
| |
AE lock |
Available |
| |
Exposure bracketing |
3 frames in 0.3, 0.5, 0.7, 1EV steps selectable |
| |
Metering standard value adjustment |
1/6 EV step, +/- 1EV range |
| White Balance |
Auto WB system |
High speed Live MOS sensor |
| |
Preset white balance |
8 settings (3000K - 7500K)
Lamp (3000K), Fluorescent 1 (4000K), Fluorescent 2 (4500K), Fluorescent 3 (6600K), Daylight (5300K), Flash (5500K), Cloudy (6000K), Shade (7500K) |
| |
White balance compensation |
7 steps in each A-B/G-M axis (in Auto WB / Preset WB mode / One touch WB) |
| |
CWB (Kelvin setting) |
1 setting can be registered at Kelvin temperature (2000K - 14000K) |
| |
One-touch white balance |
1 custom setting can be registered |
| |
White balance bracketing |
3 frames in 2, 4, 6 steps selectable in each A-B/G-M axis. |
| Color Mode |
Color space |
sRGB, Adobe RGB |
| Picture Mode |
Mode |
Vivid, Natural, Portrait, Muted, Monotone |
| |
Adjustment parameter |
Contrast, Sharpness and Saturation level available in 5 steps for Vivid, Natural, Portrait and Muted |
| |
|
Contrast and Sharpness level available in 5 steps for Monotone. |
| |
Filter effect |
Yellow, Orange, Red or Green filter available for Monotone |
| |
Picture tone |
Sepia, Blue, Purple or Green tone available for Monotone |
| |
Gradation |
4 levels (Auto, High key, Normal, Low key) |
| Shutter |
Product type |
Computerized focal-plane shutter |
| |
Shutter speed |
60 - 1/4000 sec. |
| |
|
Bulb: up to 30 min. (selectable longest time in the menu. Default: 8 min) |
| |
|
1/3, 1/2, or 1EV steps selectable. |
| |
Self-timer |
Operation time: 12 sec., 2 sec. (cancel available) |
| |
Remote cable release |
Available (with optional RM-UC1 Remote cable.) |
| |
Wireless remote control |
Not Available |
| Drive |
Drive mode |
Single-frame shooting, Sequential shooting, Self-timer |
| |
Sequential shooting speed |
Approx. 3 frames/sec. in sequential shooting |
| |
Max. recordable pictures |
RAW mode: Max. 10 frames. |
| |
on sequential shooting |
JPEG mode: Depends on compression ratio and no. of pixels
(Large normal mode: approx. 12 with Toshiba Super High Speed type "Class 6" 4GB) |
| Flash |
Built-in flash |
Not available |
| |
Compatible external flash |
E-system Flash(FL-50R, FL-36R, FL-50, FL-36, FL-20, FL-14) |
| |
External Flash control mode |
TTL Auto, Auto, Manual, FP-TTL-AUTO, FP-MANUAL |
| |
Flash mode of External Flash |
Auto, Red-eye reduction, Red-eye reduction slow sync., Slow sync at 1st curtain, Slow sync at 2nd curtain, Fill-in,
Manual (1/4, 1/16, 1/64), Off. |
| |
Synchronization speed |
1/30-1/180 |
| |
Flash intensity control |
Up to 3 EV in 0.3, 0.5, 1 EV steps |
| Art Filter |
Mode |
Pop Art, Soft Focus, Pale&Light Color, Light Tone, Grainy Film, Pin Hole |
| Multi Exposure |
Number of picture |
2 frames |
| |
Functions |
Auto gain, Live View, Exposing on Recorded picture |
| Multi Aspect |
Aspect Ratio |
4:3(Default)3:216:96:6 |
| |
Process |
RAW: Aspect ratio is recorded as Exif data, JPEG: JPEG image is produced based on the aspect ratio |
| Level Gauge |
Detection |
2-axis |
| |
Display |
Rear LCD monitor |
| Color Universal design |
|
Only White version is approved by Color Universal Design Organization |
| Super control panel |
Information (shooting) |
Battery information, Shooting mode, Shutter speed, Aperture value, Exposure compensation value, I |
| |
|
Exposure compensation indicator, Exposure indicator, Flash intensity compensation indicator, Date, |
| |
|
NR setting, WB, WB compensation value, Record mode, Flash Status, Record mode, Image size, |
| |
|
Drive mode, Flash intensity compensation value, Metering mode, Recordable still image number, Fo |
| |
|
AF frame, Colour space, Sharpness, Contrast, Saturation, Internal Temperature Warning |
| |
|
Gradation, IS activating mode, Face detection, My Mode, Multi Exposure, Aspect Ratio, Super FP |
| Playback |
Playback mode |
Single-frame |
| |
|
Information Display |
| |
|
Index Display(4/9/16/25/49/100 frames, Calendar) |
| |
|
Close-up (2 - 14X) |
| |
|
Movie (w/sound, FF/REW/Pause) |
| |
|
Picture rotation (auto mode available), |
| |
|
Slideshow(Still/Movie/Still+Movie, Slide show w/BGM/BGM+Sound/Sound) |
| |
Information display |
Histogram (independent luminance / RGB available), Highlight / Shadow point warning, AF frame, Shooting information |
| Menu |
Languages |
Japan: Japanese, English (Additional one language is possible to download.)
Others: English, French, German, Spanish, Italian, Japanese, Korean, Traditional Chinese, Simplified Chinese, Russian, Czech, Dutch, Danish, Polish, Portuguese, Swedish, Norwegian, Finnish, Croat, Slovenian, Hungarian, Greek, Slovakian, Turkish, Latvian, Estonian, Lithuanian, Ukrainian, Serbian, Bulgarian, Rumanian, Indonesian, Malay, Thai |
| Reset & custom setting |
My mode |
2 setting recordable |
| Image Editing |
Erasing function |
Single frame, All, Selected frames(from Index) |
| Protect function |
Single frame, Selected frames, All Frames, Release protect (Single/All selected) |
| RAW picture editing |
RAW development based on settings of the camera(including Art Filter) |
| JPEG editing |
Shadow adjustment, Red-eye fix, Trimming, Monotone, Sepia, Saturation (colour depth), Resize (producing another file, 1280x960, 640x480, 320x240), e-portrait |
| Image Overlay |
|
Up to 3 RAW images |
| Print |
Print function |
Print reservation (DPOF), Direct print (PictBridge compatible) |
| Input/Output |
PC interface |
USB 2.0 High Speed for storage and camera control through Multi-connector(MTP mode is available |
| |
TV interface |
HDMI(HD/Stereo Sound), VIDEO-OUT(SD/Mono Sound) |
| |
USB/Video connector |
Dedicated multi-connector (Video: NTSC/PAL selectable, Optional Remote cable RM-UC1 is availa |
| |
HDMI |
Mini HDMI type-C(1080i/720p/576p/480p) |
| |
Flash attachment |
Hot shoe |
| |
DC-in |
No |
| Power Requirements |
Battery |
BLS-1 Li-ion battery (included) |
| |
Sleep mode |
Available (1, 3, 5, 10 min., off selectable) |
| |
No. of recordable pictures |
Approx. 300 shots |
| |
|
(with BLS-1 and Toshiba Class 6 SDHC 4GB card under CIPA testing standard) |
| |
Power battery holder |
Not Available |
| Dimensions/Weight |
Dimensions |
120.6 mm (W) x 69.9mm (H) x 36.4 mm (D) (excluding protrusions) |
| |
Weight |
335g (body only) |
| Operating Environment |
Temperature |
0 - 40 (operation) / -20 - 60 (storage) |
| |
Humidity |
30 - 90% (operation) / 10 - 90% (storage) |
| Splash proof |
No |
| Box contents |
|
Body, Li-ion battery BLS-1, Li-ion battery charger BCS-1, USB/Video Multi cable, Shoulder strap, OLYMPUS Master CD-ROM, Instruction manual, Warranty card. |
|
|
|
|
07/12
|
Olympus PEN EP-1 Digital SLR Camera - 12.3MP
- 3"LCD, Image Stabilisation, Live View
- Includes 14-42mm Lens Not a Point and Shoot. Not an SLR.
It's a PEN. What will you create?
The Olympus E-P1 marks an innovative new era in digital imaging. Our new Micro Four Thirds camera upholds the legacy of the celebrated PEN family of cameras, with the photographic optics of an SLR and the size and simplicity of a point and shoot. Combining the still image quality of a digital single lens reflex (DSLR) with the A/V quality of both a High Definition camcorder and high-end audio recorder, the E-P1 is a virtual full-service imaging studio in one ultra-portable and stylishly retro body. With dozens of advanced features, the E-P1 makes documenting and sharing your everyday life easier and more creative than ever before.
ULTRA CONVENIENCE, MEGA FUNCTIONALITY
The E-P1 is the world's smallest 12.3-mexapixel interchangeable lens system camera, yet has the creative flexibility to give you a true professional experience with ease. A still photo, video and audio recorder in one, the E-P1 creates exceptional photos, inventive slide shows, and remarkable videos both for personal use or for posting on many of today's social networking websites. It delivers professional quality images without the bulk of a conventional DSLR, thanks to its slim body and advanced high-speed imager AF (Live View) technologies. The lens mount diameter has been reduced, enabling the use of smaller, lighter interchangeable lenses that perform at the same level as larger DSLR lenses. The camera fits easily in many pockets and purses.
12 MILLION PIXELS
With 12.3 megapixels at its disposal, the E-P1 delivers image quality that makes the difference between ordinary and exceptional still and video imaging. A Live MOS image sensor is complemented by a next generation TruePic V Image Processor, resulting in excellent dynamic range, accurate color fidelity, fine image details in all highlight and shadow areas, and reduced noise.
AUTOFOCUS LIVE VIEW
The Live View Autofocus system works as effectively and seamlessly on the E-P1 as it does on conventional E-System DSLR and point-and-shoot cameras. Subjects are displayed in complete focus on the bright LCD as soon as the shutter is pressed half way.
BLUR-FREE, DUST-FREE IMAGING
Say goodbye to blurry and blemished images. In both still and Movie modes the E-P1 Image Stabilization excels. The E-P1's three-mode In-body Image Stabilization system compensates for up to four shutter speed steps in the still shooting modes with any of its interchangeable lenses: Mode 1 for general shooting, Mode 2 for creative high-speed horizontal capture, and Mode 3 for high-speed vertical capture. The camera's Mechanical Image Stabilization automatically compensates for camera shake in low-light situations or when using a telephoto lens. In the Movie Modes the advanced Electronic Image Stabilization tracts the images both vertically and horizontally to achieve clear sharp movies, matching the performance of the in body IS. A Dust Reduction System assures spot-free images via a patented ultrasonic technology called Supersonic Wave Filter, which vibrates to remove dust and other particles from the image sensor and confines them to a special adhesive membrane.
MULTIPLE EXPOSURE
A Multiple Exposure function enables you to be creative in the landscape or portrait formats, or even a combination of the two. Multiple images can be captured and combined. The creative possibilities are endless. What will you create? Now you won't have to wonder. With the E-P1, you'll simply go out there and create.
AUTO ADJUSTMENT AND FACE DETECTION
The camera has 19 automatic scene modes, including Night-Scenes, Portraits and Landscapes. Its Intelligent Auto Mode (iAuto) identifies your shooting intent (including macro or sport photography) and adjusts the settings accordingly to achieve the best results. A new ePortrait Mode allows you to soften shadows and smooth out facial features, either before image capture or during post-capture edits. And a Face Detection function reduces the chance of blurred subjects when shooting several people at once, even if they're moving while you're shooting.
SHADOW ADJUSTMENT
No longer must you worry about the extreme contrast between dark and bright areas. The camera's Shadow Adjustment Technology corrects for extreme light variations with high-tech efficiency. This can also be used in post-editing.
ART FILTERS
For even further creativity, there are six built-in Art Filters, all of which can ultimately be applied within both the still and video imaging process. These include Pop Art, Soft Focus, Pale & Light Color, Light Tone, Grainy Film and Pin Hole. The effects are instantly viewable on the LCD when using the E-P1 in Live View or when reviewing images.
CREATIVE FRAMING
The camera provides masks to help you frame images to whatever proportions you'd like. Whether your end-result goal is for conventional enlargements or for viewing on widescreen monitors, the E-P1 makes proper framing a cinch. This function can be combined with Art Filters and with multiple exposures for additional creativity.
PRO AUDIO
The recording capabilities of the E-P1 are versatile enough for all your audio needs, whether shooting stills or video. With its built-in microphones, the system can capture all the nuances of any sounds being recorded, is capable of recording and playing back WAV files, and is perfect for adding narration to still images.
TOTAL LIVE CONTROL
With the E-P1 you are in full control of all functions and imaging decisionswith split-second accuracy. Live Control, an advanced control panel system, allows you to see the image and the controls all at once on the 3-inch HyperCrystal LCD, which is noted for its vivid colors and high contrast. Whether using full manual control or all the automatic features, first-time users will feel like pros, and pros will create still images or videos that continue to push their own boundaries of creativity.
E-P1 Features
-
Live View AutofocusWith the seamless precision and simplicity of a point-and-shoot, the E-P1's Live View Autofocus system displays the images to be shot in complete focus on the camera's bright LCD the moment the shutter button is pressed half way down.
-
Multiple ExposureMultiple Exposure makes heightened creativity an easily-obtained objective. Two frames can be combined, and portions of one can be combined with those of another in any of the shooting modes. Images can be combined in playback mode or directly on the LCD through the use of the new TruePic V Image Processor.
-
Micro Four Thirds MountThe Micro Four Thirds Mount on the E-P1 provides many key benefits, including the effectiveness of a digitally designed image sensor, an ultra-compact design, and expandability and compatibility with all Micro Four Thirds Lenses and Four Thirds System Lens via the MMF-1 Adapter.
-
Art FiltersA series of six built-in Art Filters for replicating countless striking and dramatic effects can be easily activated for both still and video imaging. The innovative Art Filters include Pop Art, Soft Focus, Pale & Light Color, Light Tone, Grainy Film and Pin Hole.
-
12.3 megapixelThe E-P1's powerful 12.3 megapixel Live-MOS sensor packs a powerful high-quality imaging punch for such a compact camera, allowing you to capture more detail than ever before.
-
TruePic V Image ProcessorIn addition to more detail, the image sensor, combined with the next-generation TruePic V Image Processor, delivers excellent dynamic range, accurate color fidelity and reduced noise, all the way up to 6400 ISO.
-
In-body Image StabilizationThe camera's In-body Image Stabilization system compensates for up to 4 shutter speed steps with any of the system's interchangeable lenses.
-
Mechanical Image StabilizationMechanical Image Stabilization automatically compensates for camera shake in low-light situations or when using a telephoto lens.
-
Electronic Image StabilizationElectronic Image Stabilization compensates for camera shake while shooting in the movie mode.
-
MF AssistFor accurate manual focusing, MF Assist can be enabled during S-AF + MF operation. With it you can zoom in on the central part of the image by up to five times by turning the focus ring.
-
Perfect Shot PreviewWith Perfect Shot Preview, you can preview and select various photographic effects before you take the shot.
-
Digital LevelerThe camera's Digital Leveler function is a highly functional and practical feature for such specialized requirements as architectural photography and other similar needs.
-
Dust Reduction SystemA Dust Reduction System assures spot-free images. Every time you turn on the camera, the patented Supersonic Wave Filter silently vibrates, flinging and collecting dust so that it cannot interfere with the picture imaging at any time.
-
19 automatic scene modesThere are 19 automatic scene modes available, including Night-Scenes, Portraits and Landscapes. Edits can be made in the camera after the pictures are shot using the handy ePortrait Mode.
-
ePortraitThe ePortrait mode is also useful for smoothing out the facial features of your subjects, which is a tremendous plus for High Definition playback.
-
Face DetectionA Face Detection function reduces the chance of blurry faces when shooting groups of peopleup to eight subjects at onceeven if they're moving while you're pressing the shutter button.
-
Shadow Adjustment TechnologyShadow Adjustment Technology corrects for extreme light variations with high-tech efficiency. It can also be used in post-editing.
-
Aspect RatiosThe E-P1 lets you select one of four Aspect Ratios (4:3, 3.2, 16.9 and 6.6) that help frame your images to whatever proportions you'd like, for everything from conventional enlargements to viewing on widescreen monitors.
-
iAutoiAuto identifies your shooting intent (such as macro or action photography) and instantly adjusts the camera settings to achieve the best results.
-
SlideshowsSlideshows have never been easier or more fun to create. The E-P1's enhanced playback functions allow you to employ effective fade-in/fade-out techniques, add captivating musical soundtracks, and much more.
-
ultra-compact bodyThe E-P1 is the definition of state-of-the-art optical engineering in an ultra-compact body. It weighs just 11.8 ounces and measures just 4.75" (W) x 2.75" (H) x 1.43 (D), giving it the facility to slip into pockets or purses and to take with you anywhere.
-
M. ZUIKO lensesThe accompanying Olympus M. ZUIKO lenses are small, lightweight, powerful and precision engineered.
-
Four Thirds System Lens AdapterOther Four Thirds Format lenses can also be used on the E-P1 with an available MMF-1 Four Thirds System Lens Adapter, including extreme wide-angle fisheye and super-telephoto lenses. This further increases your range of creative options.
-
sound recordingThe sound recording function of the E-P1 helps you capture all the nuances of any sounds being recorded. The system is capable of recording and playing back WAV files, and of adding the most professional-sounding narration to digital slide shows.
-
background musicThere are also five separate background music files to choose from that you can add to your still images or video productions.
-
SDHC media cardsThe E-P1 is capable of recording video to SDHC media cards to accommodate large files. (SDHC Class 6 cards are recommended.) Videos, stills and high-fidelity audio can also be output via HDMI cable-direct to any HD television.
-
Full manual controlFull manual control for all programs and functions, including Aperture and Shutter Speed Priority, is at your fingertips whenever it is needed or preferred. Full automatic control is also a button-press away.
-
Live ControlLive Control, an advanced camera management system, allows you to see the image being shot and the camera's controls all at once, on the bright, colorful, high definition 3-inch HyperCrystal LCD. HyperCrystal LCDs offer many times the contrast of conventional LCD monitors, and also provide a wide viewing angle of 176.
E-P1 Specs
| Product |
Product type |
Interchangeable Lens Type Live View Digital Camera |
| |
Memory |
SD Memory Card(SDHC compatible) Class 6 is recommended for Movie shooting |
| |
Screen size |
17.3 mm (H) x 13.0 mm (V) |
| |
Lens mount |
Micro Four Thirds Mount |
| Effective pixels number |
Effective Pixels number |
12.3 million pixels |
| Image Pick-up Unit |
Product type |
High speed Live MOS Sensor |
| |
Total no. of pixels |
Approx. 13.1 million pixels |
| |
Aspect ratio |
1.33 (4:3) |
| |
Filter array |
Primary color filter (RGB) |
| |
LPF |
Fixed type |
| |
IR cut filter |
Hybrid type |
| |
Dust reduction |
Supersonic Wave Filter (dust reduction system for image sensor) |
| Recording (Still) |
Recording format |
DCF, DPOF compatible/Exif, PRINT Image Matching III |
| |
File format |
RAW (12-bit lossless compression), JPEG, RAW+JPEG |
| |
Recording image size |
[RAW] 4032 x 3024 pixels |
| |
|
[JPEG] 4032 x 3024 pixels - 640 x 480 pixels |
| |
File Size |
RAW: 4032(H)x3042(V) (approx. 1/1.5 lossless compressed) Approx. 13.9MB |
| |
|
Set1(LF): 4032(H)x3042(V) (1/4 compressed) Approx. 5.7MB |
| |
|
Set2(LN): 4032(H)x3042(V) (1/8 compressed) Approx. 2.7MB |
| |
|
Set3(MN): 2560(H)x1920(V) (1/8 compressed) Approx. 1.1MB |
| |
|
Set4(SN): 1024(H)x768(V) (1/8 compressed) Approx. 0.3MB |
| |
|
Large: 4032 x 3024 Super fine (1/2.7 compressed) Approx. 8.2MB |
| |
|
4032 x 3024 Fine (1/4 compressed) Approx. 5.7MB |
| |
|
4032 x 3024 Normal (1/8 compressed) Approx. 2.7MB |
| |
|
4032 x 3024 Basic (1/12 compressed) Approx. 1.8MB |
| |
|
Middle 3200 x 2400 Super fine (1/2.7 compressed) Approx. 5.4MB |
| |
|
3200 x 2400 Fine (1/4 compressed) Approx. 3.4MB |
| |
|
3200 x 2400 Normal (1/8 compressed) Approx. 1.7MB |
| |
|
3200 x 2400 Basic (1/12 compressed) Approx. 1.2MB |
| |
|
2560 x 1920 Super fine (1/2.7 compressed) Approx. 3.2MB |
| |
|
2560 x 1920 Fine (1/4 compressed) Approx. 2.2MB |
| |
|
2560 x 1920 Normal (1/8 compressed) Approx. 1.1MB |
| |
|
2560 x 1920 Basic (1/12 compressed) Approx. 0.8MB |
| |
|
Small 1600 x 1200 Super fine (1/2.7 compressed) Approx. 1.3MB |
| |
|
1600 x 1200 Fine (1/4 compressed) Approx. 0.9MB |
| |
|
1600 x 1200 Normal (1/8 compressed) Approx. 0.5MB |
| |
|
1600 x 1200 Basic (1/12 compressed) Approx. 0.4MB |
| |
|
1280 x 960 Super fine (1/2.7 compressed) Approx. 0.9MB |
| |
|
1280 x 960 Fine (1/4 compressed) Approx. 0.6MB |
| |
|
1280 x 960 Normal (1/8 compressed) Approx. 0.3MB |
| |
|
1280 x 960 Basic (1/12 compressed) Approx. 0.3MB |
| |
|
1024 x 768 Super fine (1/2.7 compressed) Approx. 0.6MB |
| |
|
1024 x 768 Fine (1/4 compressed) Approx. 0.4MB |
| |
|
1024 x 768 Normal (1/8 compressed) Approx. 0.3MB |
| |
|
1024 x 768 Basic (1/12 compressed) Approx. 0.2MB |
| |
|
640 x 480 Super fine (1/2.7 compressed) Approx. 0.3MB |
| |
|
640 x 480 Fine (1/4 compressed) Approx. 0.2MB |
| |
|
640 x 480 Normal (1/8 compressed) Approx. 0.1MB |
| |
|
640 x 480 Basic (1/12 compressed) Approx. 0.1MB |
| Recording Movie |
Recording format |
AVI Motion JPEG(30fps) |
| |
Movie Mode |
HD: 1280(H)x720(V) Aspect 16:9
SD: 640(H)x480(V) Aspect 4:3(VGA) |
| |
Compression Ratio |
1/12 |
| |
File Size |
Max 2GB(limited by AVI format) |
| |
Maximum Recording Time |
HD: 7min, SD: 14min |
| Recording Sound |
Recording format |
Wave Format Base
Stereo PCM/16bit, 44.1kHz |
| |
Maximum Recording Time |
Picture with Sound: 30sec
Movie: depend on Movie Recording Time |
| Live View |
Type |
Image Sensor(High Speed Live MOS) type |
| |
Field of view |
100% |
| |
Display Mode |
Normal Mode |
| |
|
Grid Line Mode |
| |
|
Histogram Mode(3 types) |
| |
|
Magnified View Mode |
| |
|
Comparable View Mode |
| |
|
OFF Mode (for OVF user) |
| |
Magnification Ratio |
x7, x10 |
| |
View finder information |
Aperture value, Shutter speed, Auto Bracket, AE Lock, AF mode, IS, Shooting Mode, Battery Check, My Mode, Internal Temperature Warning, Face Detection, Histogram, Number of storable still pictures, Record mode, ISO, Sequential shooting, Self-timer, White Balance, Metering Mode, AF confirmation mark, Exposure Compensation Value, Spot metering Area
Only when E-system Flash attached : Flash Mode, Flash Status, Flash intensity Control, Super FP |
| |
Display of Face Detection |
Max 8 frames of face detection can be displayed |
| |
AF |
High speed imager AF |
| Image stabilizer |
System |
Built in (Imager shift image stabilizer) |
| |
Mode |
3 modes (2 dimensional activation, 1 dimensional activation in landscape frame to vertical direction moving, 1 dimensional activation in portrait frame to horizontal direction moving ), OFF |
| |
Manual Function |
input focal length 8, 10, 12, 16, 18, 24, 28, 30, 35, 40, 48, 50, 55, 65, 70, 75, 80, 85, 90, 100, 105, 120, 135, 150, 180, 200, 210, 250, 300, 350, 400, 500, 600, 800, 1000 |
| |
Effective compensation range |
Approx.4EV steps(in maximum effect with 50mm lens) |
| |
Shutter speed range |
2 - 1/4000 sec. (Not available when Bulb is selected) |
| |
IS for Movie |
Shifting electronic image (so called Digital IS) |
| Monitor |
Product type |
HyperCrystal LCD AR(Anti-Reflective) coating |
| |
Size |
3.0 inches |
| |
Total no. of pixels |
Approx. 230,000 dots |
| |
Playback field of view |
100% |
| |
Brightness control |
+7 levels and -7 levels |
| |
Colour balance |
A-B: +7 levels and -7 levels, G-M: +7 levels and -7 levels |
| Focusing |
AF system |
Imager Contrast Detection AF system
When non High-speed imager AF compatible lens is used, it works as AF assist. |
| |
Focus mode |
Single AF (S-AF) / Continuous AF (C-AF) / Manual Focus (MF) / S-AF + MF |
| |
Focusing point |
11-area multiple AF with the contrast detection system (Auto, selectable in option) |
| |
Focusing point selection |
Auto from all 11 area, Single area from 11 area
Auto from 25 area when Face detection is ON
Free selection (from 225points) when Magnified View Mode is selected |
| |
AF illuminator
|
Not available |
| |
AF lock |
Locked at first position of Shutter button in Single AF mode |
| |
Focus tracking |
Not available |
| |
Manual Focus Assist |
When rotation of focus ring is detected under S-AF+MF or MF mode, LV is magnified automatically |
| Exposure Control |
Metering system |
TTL Image Sensor metering system |
| |
|
(1) Digital ESP metering (324-area multi pattern metering) (2) Center weighted average metering |
| |
|
(3) Spot metering (approx. 1% for the viewfinder screen. Highlight / shadow bases are available) |
| |
Metering range |
EV 0 - 18 (Digital ESP metering, Centre weighted average metering, Spot metering) |
| |
|
(At normal temperature, 50mm f2, ISO 100) |
| |
Exposure mode |
(1) i Auto (2) P: Programme AE (Programme shift can be performed) (3) A: Aperture priority AE |
| |
|
(4) S: Shutter priority AE (5) M: Manual (6) Scene select AE (7) Art Filter |
| |
Scene select AE |
Portrait, Landscape, Macro, Sport, Night + Portrait, Children, High Key, Low Key, DIS mode, Nature |
| |
|
Documents, Panorama, Beach & Snow, |
| |
ISO sensitivity |
AUTO: ISO 200 - 6400(customizable, Default 200-1600) / Manual ISO 100 - 6400, 1/3 or 1 EV steps, Movie ISO 160-1600 |
| |
Exposure compensation |
3 EV in 1/3, 1/2, 1 EV steps selectable |
| |
AE lock |
Available |
| |
Exposure bracketing |
3 frames in 0.3, 0.5, 0.7, 1EV steps selectable |
| |
Metering standard value adjustment |
1/6 EV step, +/- 1EV range |
| White Balance |
Auto WB system |
High speed Live MOS sensor |
| |
Preset white balance |
8 settings (3000K - 7500K)
Lamp (3000K), Fluorescent 1 (4000K), Fluorescent 2 (4500K), Fluorescent 3 (6600K), Daylight (5300K), Flash (5500K), Cloudy (6000K), Shade (7500K) |
| |
White balance compensation |
7 steps in each A-B/G-M axis (in Auto WB / Preset WB mode / One touch WB) |
| |
CWB (Kelvin setting) |
1 setting can be registered at Kelvin temperature (2000K - 14000K) |
| |
One-touch white balance |
1 custom setting can be registered |
| |
White balance bracketing |
3 frames in 2, 4, 6 steps selectable in each A-B/G-M axis. |
| Color Mode |
Color space |
sRGB, Adobe RGB |
| Picture Mode |
Mode |
Vivid, Natural, Portrait, Muted, Monotone |
| |
Adjustment parameter |
Contrast, Sharpness and Saturation level available in 5 steps for Vivid, Natural, Portrait and Muted |
| |
|
Contrast and Sharpness level available in 5 steps for Monotone. |
| |
Filter effect |
Yellow, Orange, Red or Green filter available for Monotone |
| |
Picture tone |
Sepia, Blue, Purple or Green tone available for Monotone |
| |
Gradation |
4 levels (Auto, High key, Normal, Low key) |
| Shutter |
Product type |
Computerized focal-plane shutter |
| |
Shutter speed |
60 - 1/4000 sec. |
| |
|
Bulb: up to 30 min. (selectable longest time in the menu. Default: 8 min) |
| |
|
1/3, 1/2, or 1EV steps selectable. |
| |
Self-timer |
Operation time: 12 sec., 2 sec. (cancel available) |
| |
Remote cable release |
Available (with optional RM-UC1 Remote cable.) |
| |
Wireless remote control |
Not Available |
| Drive |
Drive mode |
Single-frame shooting, Sequential shooting, Self-timer |
| |
Sequential shooting speed |
Approx. 3 frames/sec. in sequential shooting |
| |
Max. recordable pictures |
RAW mode: Max. 10 frames. |
| |
on sequential shooting |
JPEG mode: Depends on compression ratio and no. of pixels
(Large normal mode: approx. 12 with Toshiba Super High Speed type "Class 6" 4GB) |
| Flash |
Built-in flash |
Not available |
| |
Compatible external flash |
E-system Flash(FL-50R, FL-36R, FL-50, FL-36, FL-20, FL-14) |
| |
External Flash control mode |
TTL Auto, Auto, Manual, FP-TTL-AUTO, FP-MANUAL |
| |
Flash mode of External Flash |
Auto, Red-eye reduction, Red-eye reduction slow sync., Slow sync at 1st curtain, Slow sync at 2nd curtain, Fill-in,
Manual (1/4, 1/16, 1/64), Off. |
| |
Synchronization speed |
1/30-1/180 |
| |
Flash intensity control |
Up to 3 EV in 0.3, 0.5, 1 EV steps |
| Art Filter |
Mode |
Pop Art, Soft Focus, Pale&Light Color, Light Tone, Grainy Film, Pin Hole |
| Multi Exposure |
Number of picture |
2 frames |
| |
Functions |
Auto gain, Live View, Exposing on Recorded picture |
| Multi Aspect |
Aspect Ratio |
4:3(Default)3:216:96:6 |
| |
Process |
RAW: Aspect ratio is recorded as Exif data, JPEG: JPEG image is produced based on the aspect ratio |
| Level Gauge |
Detection |
2-axis |
| |
Display |
Rear LCD monitor |
| Color Universal design |
|
Only White version is approved by Color Universal Design Organization |
| Super control panel |
Information (shooting) |
Battery information, Shooting mode, Shutter speed, Aperture value, Exposure compensation value, I |
| |
|
Exposure compensation indicator, Exposure indicator, Flash intensity compensation indicator, Date, |
| |
|
NR setting, WB, WB compensation value, Record mode, Flash Status, Record mode, Image size, |
| |
|
Drive mode, Flash intensity compensation value, Metering mode, Recordable still image number, Fo |
| |
|
AF frame, Colour space, Sharpness, Contrast, Saturation, Internal Temperature Warning |
| |
|
Gradation, IS activating mode, Face detection, My Mode, Multi Exposure, Aspect Ratio, Super FP |
| Playback |
Playback mode |
Single-frame |
| |
|
Information Display |
| |
|
Index Display(4/9/16/25/49/100 frames, Calendar) |
| |
|
Close-up (2 - 14X) |
| |
|
Movie (w/sound, FF/REW/Pause) |
| |
|
Picture rotation (auto mode available), |
| |
|
Slideshow(Still/Movie/Still+Movie, Slide show w/BGM/BGM+Sound/Sound) |
| |
Information display |
Histogram (independent luminance / RGB available), Highlight / Shadow point warning, AF frame, Shooting information |
| Menu |
Languages |
Japan: Japanese, English (Additional one language is possible to download.)
Others: English, French, German, Spanish, Italian, Japanese, Korean, Traditional Chinese, Simplified Chinese, Russian, Czech, Dutch, Danish, Polish, Portuguese, Swedish, Norwegian, Finnish, Croat, Slovenian, Hungarian, Greek, Slovakian, Turkish, Latvian, Estonian, Lithuanian, Ukrainian, Serbian, Bulgarian, Rumanian, Indonesian, Malay, Thai |
| Reset & custom setting |
My mode |
2 setting recordable |
| Image Editing |
Erasing function |
Single frame, All, Selected frames(from Index) |
| Protect function |
Single frame, Selected frames, All Frames, Release protect (Single/All selected) |
| RAW picture editing |
RAW development based on settings of the camera(including Art Filter) |
| JPEG editing |
Shadow adjustment, Red-eye fix, Trimming, Monotone, Sepia, Saturation (colour depth), Resize (producing another file, 1280x960, 640x480, 320x240), e-portrait |
| Image Overlay |
|
Up to 3 RAW images |
| Print |
Print function |
Print reservation (DPOF), Direct print (PictBridge compatible) |
| Input/Output |
PC interface |
USB 2.0 High Speed for storage and camera control through Multi-connector(MTP mode is available |
| |
TV interface |
HDMI(HD/Stereo Sound), VIDEO-OUT(SD/Mono Sound) |
| |
USB/Video connector |
Dedicated multi-connector (Video: NTSC/PAL selectable, Optional Remote cable RM-UC1 is availa |
| |
HDMI |
Mini HDMI type-C(1080i/720p/576p/480p) |
| |
Flash attachment |
Hot shoe |
| |
DC-in |
No |
| Power Requirements |
Battery |
BLS-1 Li-ion battery (included) |
| |
Sleep mode |
Available (1, 3, 5, 10 min., off selectable) |
| |
No. of recordable pictures |
Approx. 300 shots |
| |
|
(with BLS-1 and Toshiba Class 6 SDHC 4GB card under CIPA testing standard) |
| |
Power battery holder |
Not Available |
| Dimensions/Weight |
Dimensions |
120.6 mm (W) x 69.9mm (H) x 36.4 mm (D) (excluding protrusions) |
| |
Weight |
335g (body only) |
| Operating Environment |
Temperature |
0 - 40 (operation) / -20 - 60 (storage) |
| |
Humidity |
30 - 90% (operation) / 10 - 90% (storage) |
| Splash proof |
No |
| Box contents |
|
Body, Li-ion battery BLS-1, Li-ion battery charger BCS-1, USB/Video Multi cable, Shoulder strap, OLYMPUS Master CD-ROM, Instruction manual, Warranty card. |
|
|
|
|
07/12
|
InFocus Navigator II Advanced Remote Control - To Suit Infocus ProjectorsNew for 2008, the Navigator-2 remote control features expanded functionality from the first generation Work Big remote. This standard-equipment remote control ships with most Work Big and Learn Big projectors, engineered to provide projection users with more control at their fingertips. Enhanced features include: Volume control, Blank Screen, Preset access, Image setup and a custom button.
- Works with all InFocus projectors out of the box (some projectors require a separate USB connection from computer to projector for mouse control and PowerPoint presentation control)
- PowerPoint Presentation Control: Previous, Next, Blank screen, Custom
- Image Control: Auto-image, Resize, Source, presets
- Projector connectivity: Infrared (IR) maximum distance- 30 feet
- Material: Durable reinforced plastic
- Color: Black & Silver
- Weight: 0.25 lb
- RoHS Compliant
- Uses (2) AA batteries included with remote
- 90-day InFocus Manufacturers Warranty
Compatible with InFocus: LP120, LP70, LP70+, IN10, IN2102, IN2102EP,IN2104, IN2104EP, IN2106, IN24, IN24EP, IN24+, IN24+EP, IN26, IN26+, IN26+EP, IN32, IN34, IN34EP, IN35, IN35EP, IN35W, IN35WEP,IN36, IN37, IN37EP, IN38,IN42, IN42+, LP600, LP540, LP640, LP650, LP840, LP850, LP860, SP4800, SP4805, SP5700, SP7200, SP7205, SP7210, X1, X1a, X2, X3, X10,IN72, IN74, IN76, IN78, IN81, IN82, IN83,SP777
Compatible with Proxima: A1100, A1200, A1300, DP1000x, DP1200X, M1, M2, M2+, M6, C109, C110, C130, C160, C170, C175, C180, C185, C250, C250W, C310, C315, C410, C420, C440, C445, C445+, C450, C460
| Category |
IR |
| Color |
Black |
| Communication Type |
IR |
| Battery Type |
AA (2) |
| Range |
12 - 360 in |
| Programmable? |
No |
| Additional Notes |
Compatible with all current InFocus Projectors. |
| AlternateRemotes |
InFocus ConductorPlus Remote
InFocus Navigator Remote
Presenter RF Remote with USB Receiver
Commander Remote
|
| Actual Dimensions |
Height: 1.3 in (3.3 cm)
Length: 6.3 in (16 cm)
Width: 2.1 in (5.33 cm)
|
| Shipping Weight |
1 lbs (0.45 kg) lbs |
| Warranty |
N/A |
|
|
|
|
07/12
|
Olympus MJU-7020 Digital Camera - Silver Slim
- 12MP, 7xOptical Zoom, 3.0"LCD, Lithium-Ion Battery, Shift Image Stabiliser Ultimate Creativity & Versatility in a Slim, Sophisticated Design
Packed with features, the Mju 7020 is the ideal travelling companion. The latest in precision optics technology, the Mju 7020 offers a powerful 7x optical zoom lens, starting at 28mm wide angle, all in a package that's slim enough to slide into your pocket.
 |
 |
|
Shot taken at 28mm
|
Shot taken with 3x Zoom
|
|
|
|
|
Shot taken with 5x Zoom
|
Shot taken with7x Zoom
|
Transform the everyday into a work of art with new Magic Filters
Using technology originally designed for our state-of-the-art Digital SLR models, the Mju 7020 offers 4 powerful,built-in Magic Filter effects. It's just like having a studio designer in your camera.
 |
 |
|
Original image
|
Pop filter: Enhances
colour to create a more
vivid, colourful world
|
|
|
|
|
Original image
|
Pin Hole filter: Reproduces
peripheral vignetting and
unique colour tones of
photos taken with a toy
camera
|
|
|
|
|
Original image
|
Sketch filter: Transforms
true-to-life images into
a drawing
|
 |
|
Fish eye filter: Reproduces the dramatic
perspectives captured with a fish-eye lens
|
Ensure your shots are in focus with new AF Tracking
Ideal for capturing a moving subject, Auto Focus Tracking will ensure your main subject is in focus and correctly exposed, even if it's moving around as you're trying to take the shot.
HDMI connector for HDTV-compatible output
The Mju 7020 contains an HDMITMconnection for output of images in high definition onto an LCD or Plasma TV. An optionally available HDMITMcable allows the camera to be connected to HDTV equipment with an HDMI input so camera images can be viewed on a high-quality HDTV display.
Specifications
| Product Name |
|
Mju 7020 |
| Image Sensor |
|
1/2.33" |
| Effective Pixels |
|
12.0MP |
| Optical Zoom |
|
7 x |
| Digital Zoom |
|
5 x / 35 x when combined with optical zoom |
| Fine Zoom |
|
Yes |
| DualShakeProof |
|
CCD Shift Image Stabiliser |
| NightProof |
|
Nightproof LCD for easy framing at Night - ISO up to 1600 |
| Face Detection |
|
Yes - up to 16 faces |
| Perfect Shot Preview |
|
Yes |
| Shadow Adjust Technnology |
|
Yes |
| EditProof |
|
Perfect Fix: Red-eye fix, Shadow Adjustment in edit mode |
| Wide Angle |
|
28mm |
| Lens Structure |
|
8 lenses in 7 groups; 4 aspherical lenses, 1 Dual Super Aspherical (DSA) Lens, 1 Extra Low Dispersion Aspherical (EDA) Lens |
| Lens Focal Length - 35mm Format |
|
28mm - 196mm |
| Lens Maximum Aperture |
|
3.0 (wide) / 5.9 (tele) |
| Aperture Priority |
|
No |
| Shutter Priority |
|
No |
| Focusing System |
|
TTL iESP auto focus with contrast detection and auto focus tracking |
| Focusing Manual |
|
No |
| Focusing Working Range |
|
70cm - infinity |
| Focusing Macro Mode |
|
10cm - infinity (wide), 60cm - infinity (tele) |
| Focusing Super Macro Mode |
|
From as close as 2cm |
| LCD Display - size |
|
3.0" HyperCrystal LCD |
| LCD Display - pixels |
|
230,000 dots |
| Flash Settings |
|
Auto, Red-Eye Reduction, Fill-in, OFF |
| Flash working range |
|
up to 570cm (wide), up to 290cm (tele) at ISO1000 |
| External Flash |
|
No |
| Image Processing |
|
TruePic III |
| Scene Programs |
|
Number of scene modes: 15
Portrait, Landscape, Night Scene, Night+Portrait, Sport, Indoor, Candle, Self Portrait, Sunset, Fire Works, Cuisine, Documents, Beach & Snow, Pre Capture Movie, Pet |
| Shutter Speed |
|
1/4-1 s - 1/2000 s (up to 4 sec. in night mode) |
| Flash Sequence Shooting - Normal |
|
0.9fps, maximum 2 images |
| Flash Sequence Shooting - High Speed |
|
11fps, maximum 21 images (3MP output) |
| Light Metering Mode |
|
ESP/Spot |
| Exposure Control |
|
Program AE |
| Compensation |
|
+/- 2 EV in 1/3 step increments |
| Auto Bracketing |
|
No |
| Sensitivity |
|
ISO 64 - 1600 |
| Panorama |
|
Yes, In-camera Panorama using an Olympus xD card |
| White Balance Mode |
|
White Balance iESP |
| White Balance Preset |
|
Auto, Overcast, Sunlight, Tungsten, Fluorescent 1 - 3 |
| Still Picture Mode |
|
JPEG
EXIF v 2.2
PIM III
DPOF |
| Image Size |
|
12M(3968X2976)
8M(3968x2232) 16:9
5M(2560x1920)
3M(2048x1536)
2M(1920x1080) 16:9
2M(1600x1200)
1M(1280x960)
VGA(640x480) |
| Image Quality Adjustment |
|
Resize, Black & White, Sepia, Red-eye fix, Saturation correction, Calendar Composition, Face Focus, Trimming, Beauty Fix |
| Recording System Motion Picture |
|
AVI Motion JPEG with sound |
| Recording Time |
|
Continuous recording on 640x480 and 320x240 with an Olympus Type M+ xD card (40sec @ 30fps with Standard Type M or when MASD-1 is used) |
| Resolution |
|
SHQ: 640 x 480 15/30fps
HQ: 320 x 240 15/30fps
|
| Recording System Sound |
|
WAVE |
| Motion Picture Playback Mode |
|
Frame by frame, Fast Forward, Rewind, Voice playback |
| Self Timer |
|
12 sec |
| Supplied Memory |
|
15MB Internal Memory |
| Memory Compatibility |
|
512MB ~ 2GB xD, Micro SD via MASD-1 Micro SD adapter (included) |
| Rechargeable Battery |
|
Li-42B LI-Ion |
| Battery life - Still Shots |
|
up to 200 shots |
| Power |
|
D-7ACA AC Adapter with CB-MA1 Power coupler |
| USB |
|
CB-USB6 |
| AV |
|
CB-VC3 |
| Direct Printing |
|
PictBridge |
| Dimensions |
|
(W) 97.5mm x (H) 56.7mm x (D) 26.2mm |
| Weight |
|
133g |
| Box Contents |
|
Li-Ion Battery ( Li-42B ), Battery Charger (Li-41C), Strap, USB Cable (CB-USB6), AV Cable (CB-VC3), MicroSD card Adapter (MASD-1), Olympus Master Software v2.2, Worldwide Warranty Card. Please note that Micro SD cards are not included. |
|
|
|
|
07/12
|
Olympus MJU-7020 Digital Camera - Dark Grey Slim
- 12MP, 7xOptical Zoom, 3.0"LCD, Lithium-Ion Battery, Shift Image Stabiliser Ultimate Creativity & Versatility in a Slim, Sophisticated Design
Packed with features, the Mju 7020 is the ideal travelling companion. The latest in precision optics technology, the Mju 7020 offers a powerful 7x optical zoom lens, starting at 28mm wide angle, all in a package that's slim enough to slide into your pocket.
|
|
|
Shot taken at 28mm
|
Shot taken with 3x Zoom
|
|
|
|
|
Shot taken with 5x Zoom
|
Shot taken with7x Zoom
|
Transform the everyday into a work of art with new Magic Filters
Using technology originally designed for our state-of-the-art Digital SLR models, the Mju 7020 offers 4 powerful,built-in Magic Filter effects. It's just like having a studio designer in your camera.
|
|
|
Original image
|
Pop filter: Enhances
colour to create a more
vivid, colourful world
|
|
|
|
|
Original image
|
Pin Hole filter: Reproduces
peripheral vignetting and
unique colour tones of
photos taken with a toy
camera
|
|
|
|
|
Original image
|
Sketch filter: Transforms
true-to-life images into
a drawing
|
|
|
Fish eye filter: Reproduces the dramatic
perspectives captured with a fish-eye lens
|
Ensure your shots are in focus with new AF Tracking
Ideal for capturing a moving subject, Auto Focus Tracking will ensure your main subject is in focus and correctly exposed, even if it's moving around as you're trying to take the shot.
HDMI connector for HDTV-compatible output
The Mju 7020 contains an HDMITMconnection for output of images in high definition onto an LCD or Plasma TV. An optionally available HDMITMcable allows the camera to be connected to HDTV equipment with an HDMI input so camera images can be viewed on a high-quality HDTV display.
Specifications
| Product Name |
|
Mju 7020 |
| Image Sensor |
|
1/2.33" |
| Effective Pixels |
|
12.0MP |
| Optical Zoom |
|
7 x |
| Digital Zoom |
|
5 x / 35 x when combined with optical zoom |
| Fine Zoom |
|
Yes |
| DualShakeProof |
|
CCD Shift Image Stabiliser |
| NightProof |
|
Nightproof LCD for easy framing at Night - ISO up to 1600 |
| Face Detection |
|
Yes - up to 16 faces |
| Perfect Shot Preview |
|
Yes |
| Shadow Adjust Technnology |
|
Yes |
| EditProof |
|
Perfect Fix: Red-eye fix, Shadow Adjustment in edit mode |
| Wide Angle |
|
28mm |
| Lens Structure |
|
8 lenses in 7 groups; 4 aspherical lenses, 1 Dual Super Aspherical (DSA) Lens, 1 Extra Low Dispersion Aspherical (EDA) Lens |
| Lens Focal Length - 35mm Format |
|
28mm - 196mm |
| Lens Maximum Aperture |
|
3.0 (wide) / 5.9 (tele) |
| Aperture Priority |
|
No |
| Shutter Priority |
|
No |
| Focusing System |
|
TTL iESP auto focus with contrast detection and auto focus tracking |
| Focusing Manual |
|
No |
| Focusing Working Range |
|
70cm - infinity |
| Focusing Macro Mode |
|
10cm - infinity (wide), 60cm - infinity (tele) |
| Focusing Super Macro Mode |
|
From as close as 2cm |
| LCD Display - size |
|
3.0" HyperCrystal LCD |
| LCD Display - pixels |
|
230,000 dots |
| Flash Settings |
|
Auto, Red-Eye Reduction, Fill-in, OFF |
| Flash working range |
|
up to 570cm (wide), up to 290cm (tele) at ISO1000 |
| External Flash |
|
No |
| Image Processing |
|
TruePic III |
| Scene Programs |
|
Number of scene modes: 15
Portrait, Landscape, Night Scene, Night+Portrait, Sport, Indoor, Candle, Self Portrait, Sunset, Fire Works, Cuisine, Documents, Beach & Snow, Pre Capture Movie, Pet |
| Shutter Speed |
|
1/4-1 s - 1/2000 s (up to 4 sec. in night mode) |
| Flash Sequence Shooting - Normal |
|
0.9fps, maximum 2 images |
| Flash Sequence Shooting - High Speed |
|
11fps, maximum 21 images (3MP output) |
| Light Metering Mode |
|
ESP/Spot |
| Exposure Control |
|
Program AE |
| Compensation |
|
+/- 2 EV in 1/3 step increments |
| Auto Bracketing |
|
No |
| Sensitivity |
|
ISO 64 - 1600 |
| Panorama |
|
Yes, In-camera Panorama using an Olympus xD card |
| White Balance Mode |
|
White Balance iESP |
| White Balance Preset |
|
Auto, Overcast, Sunlight, Tungsten, Fluorescent 1 - 3 |
| Still Picture Mode |
|
JPEG
EXIF v 2.2
PIM III
DPOF |
| Image Size |
|
12M(3968X2976)
8M(3968x2232) 16:9
5M(2560x1920)
3M(2048x1536)
2M(1920x1080) 16:9
2M(1600x1200)
1M(1280x960)
VGA(640x480) |
| Image Quality Adjustment |
|
Resize, Black & White, Sepia, Red-eye fix, Saturation correction, Calendar Composition, Face Focus, Trimming, Beauty Fix |
| Recording System Motion Picture |
|
AVI Motion JPEG with sound |
| Recording Time |
|
Continuous recording on 640x480 and 320x240 with an Olympus Type M+ xD card (40sec @ 30fps with Standard Type M or when MASD-1 is used) |
| Resolution |
|
SHQ: 640 x 480 15/30fps
HQ: 320 x 240 15/30fps
|
| Recording System Sound |
|
WAVE |
| Motion Picture Playback Mode |
|
Frame by frame, Fast Forward, Rewind, Voice playback |
| Self Timer |
|
12 sec |
| Supplied Memory |
|
15MB Internal Memory |
| Memory Compatibility |
|
512MB ~ 2GB xD, Micro SD via MASD-1 Micro SD adapter (included) |
| Rechargeable Battery |
|
Li-42B LI-Ion |
| Battery life - Still Shots |
|
up to 200 shots |
| Power |
|
D-7ACA AC Adapter with CB-MA1 Power coupler |
| USB |
|
CB-USB6 |
| AV |
|
CB-VC3 |
| Direct Printing |
|
PictBridge |
| Dimensions |
|
(W) 97.5mm x (H) 56.7mm x (D) 26.2mm |
| Weight |
|
133g |
| Box Contents |
|
Li-Ion Battery ( Li-42B ), Battery Charger (Li-41C), Strap, USB Cable (CB-USB6), AV Cable (CB-VC3), MicroSD card Adapter (MASD-1), Olympus Master Software v2.2, Worldwide Warranty Card. Please note that Micro SD cards are not included. |
|
|
|
|
07/12
|
Olympus MJU-7020 Digital Camera - Red Slim
- 12MP, 7xOptical Zoom, 3.0"LCD, Lithium-Ion Battery, Shift Image Stabiliser Ultimate Creativity & Versatility in a Slim, Sophisticated Design
Packed with features, the Mju 7020 is the ideal travelling companion. The latest in precision optics technology, the Mju 7020 offers a powerful 7x optical zoom lens, starting at 28mm wide angle, all in a package that's slim enough to slide into your pocket.
|
|
|
Shot taken at 28mm
|
Shot taken with 3x Zoom
|
|
|
|
|
Shot taken with 5x Zoom
|
Shot taken with7x Zoom
|
Transform the everyday into a work of art with new Magic Filters
Using technology originally designed for our state-of-the-art Digital SLR models, the Mju 7020 offers 4 powerful,built-in Magic Filter effects. It's just like having a studio designer in your camera.
|
|
|
Original image
|
Pop filter: Enhances
colour to create a more
vivid, colourful world
|
|
|
|
|
Original image
|
Pin Hole filter: Reproduces
peripheral vignetting and
unique colour tones of
photos taken with a toy
camera
|
|
|
|
|
Original image
|
Sketch filter: Transforms
true-to-life images into
a drawing
|
|
|
Fish eye filter: Reproduces the dramatic
perspectives captured with a fish-eye lens
|
Ensure your shots are in focus with new AF Tracking
Ideal for capturing a moving subject, Auto Focus Tracking will ensure your main subject is in focus and correctly exposed, even if it's moving around as you're trying to take the shot.
HDMI connector for HDTV-compatible output
The Mju 7020 contains an HDMITMconnection for output of images in high definition onto an LCD or Plasma TV. An optionally available HDMITMcable allows the camera to be connected to HDTV equipment with an HDMI input so camera images can be viewed on a high-quality HDTV display.
Specifications
| Product Name |
|
Mju 7020 |
| Image Sensor |
|
1/2.33" |
| Effective Pixels |
|
12.0MP |
| Optical Zoom |
|
7 x |
| Digital Zoom |
|
5 x / 35 x when combined with optical zoom |
| Fine Zoom |
|
Yes |
| DualShakeProof |
|
CCD Shift Image Stabiliser |
| NightProof |
|
Nightproof LCD for easy framing at Night - ISO up to 1600 |
| Face Detection |
|
Yes - up to 16 faces |
| Perfect Shot Preview |
|
Yes |
| Shadow Adjust Technnology |
|
Yes |
| EditProof |
|
Perfect Fix: Red-eye fix, Shadow Adjustment in edit mode |
| Wide Angle |
|
28mm |
| Lens Structure |
|
8 lenses in 7 groups; 4 aspherical lenses, 1 Dual Super Aspherical (DSA) Lens, 1 Extra Low Dispersion Aspherical (EDA) Lens |
| Lens Focal Length - 35mm Format |
|
28mm - 196mm |
| Lens Maximum Aperture |
|
3.0 (wide) / 5.9 (tele) |
| Aperture Priority |
|
No |
| Shutter Priority |
|
No |
| Focusing System |
|
TTL iESP auto focus with contrast detection and auto focus tracking |
| Focusing Manual |
|
No |
| Focusing Working Range |
|
70cm - infinity |
| Focusing Macro Mode |
|
10cm - infinity (wide), 60cm - infinity (tele) |
| Focusing Super Macro Mode |
|
From as close as 2cm |
| LCD Display - size |
|
3.0" HyperCrystal LCD |
| LCD Display - pixels |
|
230,000 dots |
| Flash Settings |
|
Auto, Red-Eye Reduction, Fill-in, OFF |
| Flash working range |
|
up to 570cm (wide), up to 290cm (tele) at ISO1000 |
| External Flash |
|
No |
| Image Processing |
|
TruePic III |
| Scene Programs |
|
Number of scene modes: 15
Portrait, Landscape, Night Scene, Night+Portrait, Sport, Indoor, Candle, Self Portrait, Sunset, Fire Works, Cuisine, Documents, Beach & Snow, Pre Capture Movie, Pet |
| Shutter Speed |
|
1/4-1 s - 1/2000 s (up to 4 sec. in night mode) |
| Flash Sequence Shooting - Normal |
|
0.9fps, maximum 2 images |
| Flash Sequence Shooting - High Speed |
|
11fps, maximum 21 images (3MP output) |
| Light Metering Mode |
|
ESP/Spot |
| Exposure Control |
|
Program AE |
| Compensation |
|
+/- 2 EV in 1/3 step increments |
| Auto Bracketing |
|
No |
| Sensitivity |
|
ISO 64 - 1600 |
| Panorama |
|
Yes, In-camera Panorama using an Olympus xD card |
| White Balance Mode |
|
White Balance iESP |
| White Balance Preset |
|
Auto, Overcast, Sunlight, Tungsten, Fluorescent 1 - 3 |
| Still Picture Mode |
|
JPEG
EXIF v 2.2
PIM III
DPOF |
| Image Size |
|
12M(3968X2976)
8M(3968x2232) 16:9
5M(2560x1920)
3M(2048x1536)
2M(1920x1080) 16:9
2M(1600x1200)
1M(1280x960)
VGA(640x480) |
| Image Quality Adjustment |
|
Resize, Black & White, Sepia, Red-eye fix, Saturation correction, Calendar Composition, Face Focus, Trimming, Beauty Fix |
| Recording System Motion Picture |
|
AVI Motion JPEG with sound |
| Recording Time |
|
Continuous recording on 640x480 and 320x240 with an Olympus Type M+ xD card (40sec @ 30fps with Standard Type M or when MASD-1 is used) |
| Resolution |
|
SHQ: 640 x 480 15/30fps
HQ: 320 x 240 15/30fps
|
| Recording System Sound |
|
WAVE |
| Motion Picture Playback Mode |
|
Frame by frame, Fast Forward, Rewind, Voice playback |
| Self Timer |
|
12 sec |
| Supplied Memory |
|
15MB Internal Memory |
| Memory Compatibility |
|
512MB ~ 2GB xD, Micro SD via MASD-1 Micro SD adapter (included) |
| Rechargeable Battery |
|
Li-42B LI-Ion |
| Battery life - Still Shots |
|
up to 200 shots |
| Power |
|
D-7ACA AC Adapter with CB-MA1 Power coupler |
| USB |
|
CB-USB6 |
| AV |
|
CB-VC3 |
| Direct Printing |
|
PictBridge |
| Dimensions |
|
(W) 97.5mm x (H) 56.7mm x (D) 26.2mm |
| Weight |
|
133g |
| Box Contents |
|
Li-Ion Battery ( Li-42B ), Battery Charger (Li-41C), Strap, USB Cable (CB-USB6), AV Cable (CB-VC3), MicroSD card Adapter (MASD-1), Olympus Master Software v2.2, Worldwide Warranty Card. Please note that Micro SD cards are not included. |
|
|
|
|
07/12
|
Epson EB-X8 LCD Portable Projector - XGA, 2500 Lumens, 2000;1, 1024x768, VGA. HDMI, USB2.0 Epson is pleased to introduce the Epson EB-X8 3LCD Multimedia Projector. Bright, stylish and compact, these versatile multimedia projectors are available at a resolution to suit a wide range of applications. Priced to please, the Epson EB-X8 projector delivers performance and reliability to business and education environments in style.
KEY FEATURES:
- Powerful 2,500 Lumens Brightness All the power you need to create big, bold presentations and dazzling home theatre
- Stylish, Compact Design Powerful enough to be used as an installation projector, light and compact enough to be used as a portable. The EB-X8 delivers a professional appearance however it is used.
- 1.2X Optical Zoom Lens Flexible placement for either desktop or installation usage
- HDMI Input Terminal The ultimate digital AV interface delivers crisp, sharp images that will bring your presentations and home theatre viewing to life!
- Front Exhaust Directs hot exhaust air away from desktop users and their audience
The Epson EB-X8 projector offer a stylish new design, and impressive performance. A powerful 2,500 lumens enables use in bright environments, and their wide variety of input options ensures compatibility with a broad range of multimedia input devices including computers, home theatre equipment and gaming consoles.
FEATURES AND BENEFITS:
Powerful 2,500 lumens brightness
The new Epson EB-X8 projector delivers a bright 2,500 lumen image thanks to Epsons unique E-TORL lamp technology and efficient optical engine. This makes the EB-X8 bright enough to be used as either an installation or desktop projector in even the brightest of rooms, without the need to dim the lights or close the curtains.
Stylish, Compact Design
With stylish flowing lines, and compact form, the Epson EB-X8 projector conveys an attractive, professional appearance whether installed on a ceiling mount, or used as a portable presentation tool. White colouring enables the projector to blend unobtrusively with the ceiling when mounted, leaving the presentation room appearing clean and professional.
USB Display Function and USB Memory Slide Show
The EB-X8 can display your presentation via a connection to a PC with a simple USB cable. You can also create and display images directly from a USB memory device, making it possible to give presentations without the need for a PC.
1.2X Optical Zoom Lens
The Epson EB-X8 features a powerful 1.2x optical zoom lens ensuring flexible installation and desktop use.
HDMI Input Terminal EB-X8
High quality digital content can be delivered to the EB-X8 via HDMI, the ultimate digital interface, making these products suitable for use as home theatre projectors.
| PRODUCT TYPE |
Entry Level Multimedia Projectors |
| PRODUCT NAME |
EB-X8 |
| PRODUCT CODE |
V11H311053 |
| PROJECTION SYSTEM |
RGB Liquid Crystal Shutter Projection System |
| PROJECTION METHOD |
Front / Rear / Ceiling Mount |
| SPECIFICATION OF MAIN PARTS |
| LCD |
Size |
0.55 inches without MLA |
| |
Driving method |
Poly-Silicon TFT Active Matrix |
| |
Pixel number |
786,432 pixels (1024 x 768) x 3 |
| |
Native resolution |
XGA |
| |
Aspect ratio |
4:3 |
| |
Pixel arrangement |
Cross Stripe |
| |
Refresh Rate |
50Hz-60Hz |
| PROJECTION LENS |
Type |
Optical zoom / Manual focus |
| |
F-number |
1.58 - 1.72 |
| |
Focal length |
16.9mm 20.28mm |
| |
Zoom ratio |
1.0 ~ 1.2 Optical |
| LAMP |
Type |
200W UHE |
| |
Life |
5000Hr ( Low Brightness )# 4000Hr ( High Brightness )# |
| #Subject to operation and environmental conditions. |
| OPTICAL SYSTEM |
Dichroic Mirror Separation & Prism combine method |
| SCREEN SIZE (PROJECTED DISTANCE) |
30 to 300 inch [0.9 to 9.0m] (Zoom: Wide),
30 to 300 inch [1.08 to10.8m] (Zoom: Tele) |
| LIGHT OUTPUT (Brightness) |
| |
Normal Mode |
2500 Lumens
(Colour mode: Dynamic, Zoom: Wide) |
| |
Eco Mode |
1960 Lumens
(Colour mode: Game, Zoom: Wide) |
| |
Colour Light Output
(Colour Brightness) |
2500 Lumens
(Colour mode: Dynamic) |
| CONTRAST |
2000:1 (Auto Iris On) |
| BRIGHTNESS UNIFORMITY |
90% (Typ.) |
| COLOUR REPRODUCTIVITY |
Full colour (16.77 million colours) |
| VIDEO QUALITY |
Simple Interlace-Progressive conversion |
| SOUND OUTPUT |
1W monaural |
| EFFECTIVE SCANNING FREQUENCY RANGE (ANALOG) |
| PIXEL CLOCK |
13.5MHz to 162MHz up to UXGA 60Hz |
| HORIZONTAL |
15KHz to 92KHz |
| VERTICAL |
50Hz to 85Hz |
| ADJUSTMENT FUNCTION |
| PROJECTOR / REMOTE CONTROL |
Brightness / Contrast / Tint / Saturation / Sharpness / Input Signal
Colour Temperature / Tracking / Position / Sharpness / Volume e.t.c. |
| FOOT ADJUSTER |
Front-centre |
| TILT ANGLE |
0 to 12 degrees |
| AUTO KEYSTONE CORRECTION |
Vertical: -30 to +30 degrees |
PASSWORD PROTECTED FUNCTION
(security function) |
Implemented |
| OTHER FUNCTION |
| USB Display |
Display Performance - Native - 1024 x 768 |
| ANALOGUE RGB I/O |
| DISPLAY PERFORMANCE |
Native |
1024 x 768 pixels |
| INPUT SIGNAL |
Signal type |
Separate signal |
| |
Video signal |
Analogue (0.7V p-p, 75ohm / Mac 0.714Vp-p, 75ohm) |
| |
Sync. signal |
Separate (positive & negative, bi-polarity 2-5 Vpp) / Composite (positive & negative, bi-polarity 2-5Vpp) / Sync-on-green (negative, 0.3Vpp) |
| |
Audio signal |
500mVrms / 47K-ohm |
| INPUT TERMINAL |
Video |
D-sub 15pin x 1 (Blue moulding) |
| |
Audio |
RCA x 1 (White/Red) |
| OUTPUT SIGNAL |
Video |
Analog (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm) |
| |
Sync. |
Separate (positive & negative,TTL) /
Composite (positive & negative,TTL) /
Sync. on green (negative 0.2 - 0.4Vpp) |
| OUTPUT TERMINAL |
Video |
D-sub 15pin x 1 (Blue moulding) |
| |
Audio |
RCA x 1 (White/Red) |
| HDMI |
| DISPLAY PERFORMANCE |
Native |
1024 x 768 (576i) |
| INPUT SIGNAL |
Version Capabilities |
Ver 1.3a (Specific features IS NOT supported) |
| |
Video Standard |
480i / 576i / 480p / 576p / 720p / 1080i / 1080p |
| |
Video Signal |
TMDS(TMDS is signal for HDMI) |
| |
Audio Signal |
Linear PCM |
| |
Input Terminal |
HDMI x 1 |
| |
HDCP |
Supported |
| VIDEO I/O |
| DISPLAY PERFORMANCE |
|
NTSC: 560 lines, PAL: 560 lines (Depends on observation of the multi burst pattern) |
| INPUT SIGNAL |
Video standard |
NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM |
| |
Video signal |
Composite Video (1.0Vpp / Sync. negative, 75ohm) /
S-Video (Luminous 0.714Vpp, Chrominous 0.286Vpp, 75ohm) /
Component Video (Analog Y level 0.75V 75ohm / Cr Cb level
+/-0.35V 75ohm / sync. negative 0.3V or 3-state+/-0.3V on Y) /
Video-RGB (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm |
| |
Audio signal |
500mVrms / 47k-ohm |
| INPUT TERMINAL |
Video |
Composite Video: RCA (Yellow) x1
S-Video: Mini DIN
Component Video: D-sub 15pin (Blue moulding) |
| |
Audio |
RCA x 2 (White/Red ) |
| CONTROL I/O |
| USB I/O |
I/O Terminal |
Type B x1 (for mouse control) |
| |
I/O Speed |
USB Type B Ver. 2.0 |
| MEMORY I/O |
| USB I/O |
I/O Terminal |
USB Type A x 1(for USB Memory) |
| |
I/O Speed |
USB Type A Ver. 1.1 |
| OPERATING TEMPERATURE |
5C to 35C (41F to 95F) > (20%-80% Humidity ) |
| COOL-DOWN PERIOD |
"Instant off" |
| START-UP PERIOD |
Approx. 5 seconds (warm up 30 seconds) |
| POWER SUPPLY VOLTAGE |
100-240V AC10% 50/60Hz |
| POWER CONSUMPTION |
100-240VAC 3.2-1.4A 50/60Hz Lamp
280W/265W (Lamp on) 2.6W/3.9W (standby) |
| DIMENSION |
| EXCLUDE FEET |
228(D) x 295(W) x 77(H) mm |
| MAXIMUM DIMENSION |
228(D) x 295(W) x 79(H) mm |
| WEIGHT |
Approx. 2.3kg |
| FAN NOISE |
|
| ECO MODE |
29dB |
| NORMAL MODE |
37dB |
| WARRANTY |
| STANDARD WARRANTY |
2 years*
*excluding lamp |
| * For more information visit Epson Projector Warranty |
| ACCESSORIES |
| POWER CORD |
1.8m |
| COMPUTER CABLE |
1.8m, D-sub 15pin (Male) - Mini D-sub 15pin (Male) |
| USB CABLE |
1.8m, A/B |
| REMOTE CONTROL |
Included |
| SOFT CARRYING CASE |
Included |
| PASSWORD PROTECT STICKER |
Included |
| AIR FILTER |
Included |
| OWNER'S MANUAL |
CD-ROM |
| PRODUCT OPTIONS |
| Product Code |
Item Code |
Description |
|
|
V13H010L54
|
Lamp |
| |
7012083 |
Ceiling mount with telescopic pole |
| |
7012084 |
Ceiling mount standard |
| |
3YWEBX8 |
3rd Year Warranty |
| Epson is the registered trademark of Seiko Epson Corporation. Epson ESC/P2 and Epson Stylus are trademarks of Seiko Epson Corporation. MicroDot is a trademark of Epson Australia Pty Limited. All other product names and other company names used herein are for identification purposes only and may be the trademarks or registered trademarks of their respective owners. Epson disclaims any and all rights in those marks. Specifications are subject to change without notice. |
Equipment supplied by Epson Australia is designed to function in conjunction with genuine Epson consumables and accessories specifically configured for it.
Usage Conditions
Epson products are designed and made to give highly reliable use and long life when used according to its specifications. With any system, product or device used in situations where human life may be involved or at risk, Epson advises that you should take all necessary steps to ensure the suitability of your Epson product for inclusion in your system, and recommends that you include fail-safe procedures and redundancy support or backup equipment in your system, to maintain the maximum safety margin and optimum system reliability. Examples include but are not limited to do not interfere with any electrical components within the device, do not use items supplied with the product for purposes other than as intended by Epson (ie mains cords, inks, CDs, plastic wrapping) and do not make modifications to the product.
- Multifunction Inkjet Printers
- Inkjet Printers
- Dot Matrix Printers
- Scanners
- Projectors
- EB-S7
- EB-S8
- EB-X8
- EB-W8
- EB-85
- EB-824
- EB-825
- EB-826W
- EB-410W
- EB-450We
- EB-460e
- EMP-1715
- EB-1723
- EB-1725
- EB-1735W
- EB-1830
- EB-1910
- EB-1925W
- EB-G5100
- EB-G5200W
- EB-G5350
- EMP-6110
- EB-Z8050W
- EB-Z8000WU
- "MovieMate" - DM3 Bundle
- EH-TW450
- EMP-TW700
- EH-TW3500
- EH-TW4500
- EH-TW5500
- Projector Accessories
- Large Format Printers
- Discproducer
- Multimedia Storage Viewers
- Back Catalogue Products
|
|
|
|
07/12
|
Olympus Olympus EZ-1454 14-54mm Lens MKII OVERVIEW
The high-quality ZUIKO DIGITAL 14-54mm 1:2.8-3.5 II zoom offers an equivalent range of 28-108mm on a 35mm film camera. It is a bright all-round zoom lens offering both wide angle and short telephoto, making it the ideal basic lens. It's strong light gathering power makes it ideal for shooting with available light.
FEATURES
* Bright 3.9x wide angle standard zoom
* Aspherical elements - for excellent quality
* Dust & splashproof
SPECIFICATIONS
Focal Length
* Focal length 14 mm - 54 mm
* Focal length (equiv. 35mm) 28 mm - 108 mm
Lens Construction
* Lens configuration 15 lenses / 11 groups
* Aspherical glass elements 3
* Lens mechanism Inner focus with floating mechanism
* Angle of view 75 - 23
* Closest focusing distance 0.22 m
* Maximum image magnification 0.26 x (Four Thirds) / 0.52 x (35mm format)
Aperture
* Number of aperture blades 7
* Maximum aperture 1:2.8 (wide) / 1:3.5 (tele)
* Minimum aperture 1:22
Dimensions
* Filter diamater 67 mm
* Dimensions 74.5 mm , 88.5 mm
* Weight 440 g
Compatibility
* Compatible to Extension Tube EX-25 Yes maximum image magnification: 0.65 x
* Compatible to Tele Converter EC-20 Yes
* Compatible to Tele Converter EC-14 Yes
|
|
|
|
Previous Page
|
Next Page
|
|
