Pocket UDD USB 2.0 9-in-1
Contents: Pocket UDD, USB 2.0/1.1 USIB interface cable, 4-in-1 DigiAdapter, CF-DigiAdapter, Driver CD, user guide. ( RoHS Compliant )

The Addonics Pocket UDD (Ultra DigiDrive) is the ultimate reader/writer for PCMCIA hard drive and ATA Flash memory with today fastest USB 2.0/1.1 or the latest 150 Mbytes/sec Serial ATA connection to any Desktop or Notebook computer. By using an optional CF DigiAdapter or the Addonics 4-in-1 DigiAdapter, the Pocket UDD can also be used like a regular floppy drive to read/write to other popular Flash media - CF-I, CF-II, Smart Media, Memory stick, Secure Digital Card, Multimedia Card or Micro Drive. Even the latest XD Card from Fuji and Olympus can now be easily used on your Desktop PC via the XD PCMCIA adapter. Such versatility together with the flexible interface design, the Addonics Pocket UDD will fast becoming the only Flash reader/writer that any computer will ever need.

The Addonics 4-Slot UDD integrates 4 Pocket UDDs into a compact, stylish and high performance Readers/Writer. The 4-Slot UDD adds further versatility to the Pocket UDDs by using 4 independent USB connections. You can read or write to as many as 4 PCMCIA hard drives or any combinations of 4 flash media simultaneously, or to transfer data between any of the 4 media, all at the full USB 2.0 speed!

The Pocket UDD and the 4-slot UDD now also come with choice of the lightning fast eSATA interface. You can also easily upgrade you current USB model with the Addonics eSATA USIB interface cale.

Key Features

• USB 2.0, USB 1.1, or eSATA
• Power from USB or optional AC/DC power adapter
• Read and write to PCMCIA hard drive, ATA Flash.*
• Read and write to CF-I, CF-II, Smart Memory, Memory Stick, Micro Drive, Multimedia Card, Secure Digital Card and XD Card using optional Flash adapter.
• Complete Plug and Play (1)
• USB Bootable from PCMCIA hard drive (depending on system BIOS support)
• Serial ATA Bootable from PCMCIA hard drive
• Up to 480 Mbits/sec (60 MB/sec) data transfer* for USB 2.0, 10 times the speed of USB 1.1
• Up to 1,500 Mbits/sec (150 MB/sec) data transfer for Serial ATA
• USB version works under Windows 98SE, Me, 2000, XP, Linux kernel 2.4 and higher
• eSATA version works under DOS, Windows 95, NT4.0, 98SE, Me, 2000, XP and Linux Kernel 2.4 and higher.
• RoHS Compliant (except for SATA)

note: The Panasonic P2 card is a 32-bit Cardbus device and therefore is not supported with the Pocket UDD. The Desktop Card Drive, PCI Cardbus/PCMCIA Controller, and ExpressCard Cardbus Adapter all support the Panasonic P2 Card.

(1) Serial ATA hot swap feature works only with controllers basing on Silicon Image chip set from our inhouse testing. Other controllers that are not Silicon Image based may not support hot swap. You may consider adding one of the Addonics Serial ATA host controllers to your systems to ensure the hot swap capability. New controllers from Intel and other suppliers may finally support this feature. Please verify with your controller manufacturer if you need to have hot swap in your application. Hot swap is supported in Windows 2000 and XP only. On other OS, drive can be removed without crashing system. But replacing with a different drive can result in crashing the OS.

Specifications

* maximum data transfer rate depends on type of media. Due to large number of flash memory types and suppliers, actual data transfer rate may also vary from brand to brand.

At the present moment, there is an incompatibility problem with following media: ATA flash with Ricoh or Hitachi controller chip, Viking ATA Flash, Olympus 32 MB XD, Fujitsu HDD Model 8340PA. and Viper 8340PA

The Addonics 4-in-1 DigiAdapter ExpressCard 34 is a great option for Notebook users which have the new ExpressCard 34 slot to read small size ultra flash cards, including Memory Stick, Memory Stick Duo , Secure Digital Card, Secure Digital High Capacity Card, or Multimedia Card. This ExpressCard DigiAdapter is lightweight, durable, and almost half the size of a PCMCIA card form factor, fitting easily into a pocket or even a wallet. The ExpressCard DigiAdapter flushes completely into the ExpressCard slot, making it the ideal solution for convenient transportation even when inserted into Notebook.

• ExpressCard 34 slot
• Complete Plug and Play
• Rugged and reliable stainless steel cover
• Ideal for small form factor and sealed systems
• Reads and writes to four different popular digital media - Memory Stick Duo , Memory Stick, Multimedia Card, Secure Digital Card
• Supports new Secure Digital High Capacity Card (SDHC)
• Power from ExpressCard slot - No adapter necessary

The CF DigiAdapter is a simple and economical solution for converting Compact Flash memory and Micro Drive into PCMCIA card.

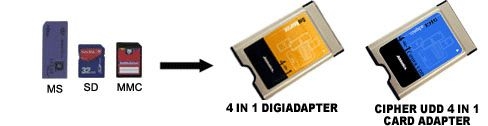

The Addonics 4-in-1 DigiAdapter is another convenient Flash Memory Reader solutions for the Notebook users and computers that are equipped with a PCMCIA slot. The DigiAdapter features an innovative design that reads / writes to four popular Flash media, Memory Stick, Secure Digital Card or Multimedia Card, via a PCMCIA type II slot. Comes in the size of a PCMCIA card, the 4-in-1 DigAdapter fits easily into any pocket or even a wallet. Installation is a breeze as it requires no additional drivers or other power source. The Cipher UDD (Ultra DigiDrive) 4-in-1 DigiAdapter carries the same features as the 4-in-1 DigiAdapter, but also supports the Cipher UDD.

Key Features

• PCMCIA connection
• Complete Plug and Play
• Reads and writes to four different popular digital media - Memory Stick, Multimedia Card, Secure Digital Card
• Size of a PCMCIA card
• Power from PCMCIA slot - No AC adapter needed

The Addonics 4-in-1 DigiAdapter is another convenient Flash Memory Reader solutions for the Notebook users and computers that are equipped with a PCMCIA slot. The DigiAdapter features an innovative design that reads / writes to four popular Flash media, Memory Stick, Secure Digital Card or Multimedia Card, via a PCMCIA type II slot. Comes in the size of a PCMCIA card, the 4-in-1 DigAdapter fits easily into any pocket or even a wallet. Installation is a breeze as it requires no additional drivers or other power source. The Cipher UDD (Ultra DigiDrive) 4-in-1 DigiAdapter carries the same features as the 4-in-1 DigiAdapter, but also supports the Cipher UDD.

Key Features

• PCMCIA connection
• Complete Plug and Play
• Reads and writes to four different popular digital media - Memory Stick, Multimedia Card, Secure Digital Card
• Size of a PCMCIA card
• Power from PCMCIA slot - No AC adapter needed
