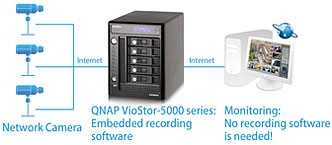

QNAP VS-5020 VioStor NVR is a high performance network video surveillance system for high-end, convenient, and reliable IP-based real-time monitoring and video recording. Powered by Intel 1.6GHz CPU and 1GB DDRII memory, the Linux-embedded NVR supports 20-channel M-JPEG/ MPEG4/ H.264 recording from AXIS, ACTi, Arecont, Canon, Cisco, D-Link, EDIMAX, ELMO, EtroVision, GANZ, iPUX, IQeye, LevelOne, Linksys, MOBOTIX, Panasonic BB/ BL/ i-Pro, SANYO, SONY, TOA, TOSHIBA, TRENDnet, VIVOTEK & Y-CAM IP-based security cameras. With five high-speed hot-swappable SATA hard drives, the VS-5020 VioStor NVR supports long-term and high performance megapixel recording (up to 8 megapixels) from various IP cameras anytime, anywhere over the web and independent of any PC. With advanced RAID protection by RAID 0/ 1/ 5/ 5+ Hot spare/ 6/ 6+ Hot spare/ JBOD, the NVR enables secure data protection.

The VS-5020 VioStor NVR offers high quality video recording and is yet simple to use and easy to maintain. It is an ideal end-to-end network surveillance system for system integrators, SMB, and enterprise users.

Powerful Features of VS-5020 VioStor NVR:

• Exclusive Linux-embedded system, Intel 1.6GHz CPU & 1GB DDRII memory. Ultra stable, reliable and high performance recording surveillance system
• Real-time monitoring and recording (video/ audio) from versatile network cameras (up to 20 channels)
• High quality recordings in motion-JPEG, MPEG-4 and H.264 (depends on camera)
• Support megapixel recording with high recording performance (up to 8 megapixels)
• Complete recording features: schedule recording, alarm recording, alarm recording schedule, motion-detection recording, pre-alarm, and post-alarm recordings, etc.
• Ultra large storage capacity (up to 10TB) for long-term recording
• CMS inside: Highly expandable for monitoring up to 120 channels from a remote PC
• Powerful remote management: access and playback recordings by web browser, FTP, and Network Neighborhood anytime, anywhere
• Trouble-free 6-step installation
• Smart search of IP cameras for quick configuration
• Centralized monitoring with "Click-to-Go" PTZ control and adjustable display mode
• Digital zoom for monitoring and playback
• Easy drag and drop to change the display order of the monitoring channels
• Event notification on monitoring and real-time email notification
• Detailed event and system logs (includes users' networking services and recordings access record)
• Schedule remote replication to NAS (Network Attached Storage) to back up recordings
• Unique online user list function and access authority control
• Multi-channel playback at different speeds
• Intelligent automatic system startup when power resumes after power outage
• Ultra-high-end RAID (RAID 0/ 1/ 5/ 5+ Hot spare / 6/ 6+ Hot spare/ JBOD) to protect all the important recordings in the most secure way!
• Hot-swap hard drive design
• Unique Online RAID Capacity Expansion & Online RAID Level Migration
• Touch-N-Go PC-less RAID setup via LCD panel for the first time installation
• One-touch video backup button for easy recording data copy
• Green NVR Solution: Power-saving design at only 57~76.39W!
  [71.54 ~ 76.39W Write/Read (RAID5)] [57.69 ~ 60.01W Write/Read (Single)]
  [PC-based is around 300W~350W ]
• Two Gigabit LAN ports for Load Balancing, Failover, or Multi-LAN configuration
• Support UPS (Uninterruptible Power Supply) for 24x7 service
• DOM architecture with embedded Fail-safe dual OS for enhanced reliability

Powerful Surveillance Features

Powerful remote live monitoring, recording and playback surveillance system The VS-5020 VioStor NVR is an instant surveillance system providing professional grade live video recording and real-time remote monitoring/playback service.

High quality recordings in motion-JPEG, MPEG-4 and H.264 (depends on camera)

All-in-one Recording Functions Continuous/ Manual/ Schedule recording Alarm recording (by motion detection or sensor triggered) Alarm recording schedule Users can set different recording schedules for different cameras. Up to 15 schedules are supported for each camera.

Variety Live Video Monitoring 1/ 4/ 6/ 8/ 9/ 10/ 12/ 16/ 20/ 25/ 36/ 42-channel and sequential display mode Exclusive Picture-in-Picture mode Digital Zoom for Monitoring and Playback The VS-5020 VioStor NVR supports digital zoom function for more flexible monitoring and playback. It is a powerful function for megapixel IP cameras.

CMS inside You can connect to the VS-5020 VioStor and add other QNAP NVR servers for monitoring up to 120 channels from a remote PC over LAN or WAN.

Easy Drag and Drop Function on Monitoring The VS-5020 VioStor NVR provides easy drag and drop to change the display order of the monitoring channels for different monitoring management target!

Audio Recording The VS-5020 VioStor NVR supports audio recording for complete surveillance. (depends on camera)

High Performance Megapixel Recording (Up to 8 Megapixels) The VS-5020 VioStor NVR supports high performance megapixel recording (up to 8 megapixels) from various IP cameras anytime, anywhere over the web and independent of any PC.

Smart Control of PTZ & Speed Dome Cameras The VS-5020 VioStor NVR enables the users to adjust the PTZ cameras directly by the web user interface.

Support Monitoring Preset Position Control You can view different preset positions of the camera by clicking the number buttons on the monitoring page.

Event Notification on Monitoring When alarm recording is enabled and an event occurs, an alarm icon is shown instantly on monitoring page. You can click the icon to view the alert details.

Powerful Pre-alarm and Post-alarm Recording The VS-5020 VioStor NVR supports pre-alarm and post-alarm recording, which is used to record additional details before and after an event occurs.

Real-time Email Notification The VS-5020 VioStor NVR sends alert e-mails to the administrator immediately in case of system error or emergent events.

E-map for Easy Preview of the Camera Location The VS-5020 VioStor NVR provides exclusive E-map function for users to upload the pictures of the monitoring locations.

Video Snapshot The VS-5020 VioStor NVR provides real-time monitoring as well as real-time snapshot. Users can take a snapshot of the monitoring screen anytime.

Multi-channel Playback at Different Speed The VS-5020 VioStor NVR supports playback of the recording data from different monitoring channels. It also provides the Express Quad View Playback that you can either divide the selected time equally into four playback views or load four consecutive cameras to play. Easy Data Search by Date & Time and Alarm Event The VS-5020 VioStor NVR supports quick search of recording data by date and time, and alert events.

Recordings can be Played by Windows Media Player Users can play the files by Windows Media Player. There is no need to install unique program or convert the files to other formats.

Flexible Adjustment of the Length of Recording Files The VS-5020 VioStor NVR enables the users to flexibly adjust the length of the recording files.

Powerful Schedule Remote Replication The VS-5020 VioStor NVR supports Schedule Remote Replication to NAS to back up recording data in a more secure way.

Detailed Record of All Events The VS-5020 VioStor NVR provides detailed event logs of system warning, hard disk error, network disconnection, UPS status, and users' networking services and recordings access record.

Easy to Use

Easy System Setup in 6 Steps The VS-5020 VioStor NVR provides quick setup for users to complete installation in 6 simple steps.

Intuitive Web-based User Interface All system configurations, monitoring, and playback can be finished by the web-based interface.

Smart Search of IP Camera for Quick Settings QNAP provides an intelligent software utility Finder for quick IP camera search and system settings.

Convenient Quick Link Buttons of Network Camera Besides configuring the network cameras by the administration interface of NVR, users can make use of the quick link buttons to access the management interface of the network cameras to configure the cameras.

Excellent Hardware Design

Intel 1.6GHz CPU and 1GB DDRII Memory for Superior System Performance
The VS-5020 VioStor NVR is an ideal & powerful network video surveillance system designed for SMB and Enterprise. Powered by Intel 1.6GHz CPU and 1GB DDRII memory, it delivers superior performance for surveillance applications.

Green NVR Solution: Linux Embedded System with Low Power Consumption
The Linux-based NVR is more power-saving and less vulnerable to virus attack compared to PC-based surveillance solution.

Touch-N-Go PC-less Installation by LCD Display
The handy LCD display on the VS-5020 VioStor NVR provides a speedy and easy approach to initialize the NVR and set up the RAID configuration without using any computer. You can use the handy LCD to finish the first time installation in 3 simple steps. The NVR will automatically complete the hard disk formatting and RAID building. When the system is ready, users can check or configure the IP settings, physical disk info, volume info, system info, shut down or reboot the NVR etc.

Ultra-low System Noise, Superior Cooling Design
The low-noise fan of the NVR keeps the hard disks and the system in low temperature for long-term operation. The mesh cover dissipates system heat effectively.

Dual Gigabit LAN Ports for More Deployment Options

Network Failover
Failover allows the VioStor to sustain the failure of one network port to provide continuous services.

Load-Balancing
Bandwidth aggregation is supported to boost the file transfer speed (works with managed Ethernet switch with 802.3ad configured).

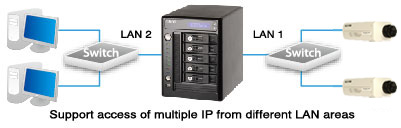

Multi-IP Setting

The VioStor can be deployed with two different IP settings for sharing among different workgroups in two different subnets.

Support 5 High-speed SATA Hard Drives
SATA hard drives are faster than IDE hard drives, which enhance recording and playback performance.

Storage Capacity up to 10 TB for Long-term Recording
The VS-5020 VioStor NVR is an excellent choice for long-time recording and saving large amount of recording data.

DOM Architecture with Embedded Fail-safe Dual OS for Enhanced Reliability
All the OS and applications are embedded on the DOM. The VS-5020 VioStor allows system booting without accessing the physical disk sectors and that prevents unsuccessful system startup caused by bad block sectors or file errors on the hard drives. Two operating systems are built on the DOM for system booting alternatively upon every system startup. When one fails, the other one will be used to boot up instead, and the failed OS is recoverable from the other healthy OS.

Lockable HDD Tray
The NVR provides lockable HDD trays to protect the physical hard drives.

High Reliability and Smart Features

Advanced RAID(0/ 1/ 5/ 6/ JBOD) Management with Hot-swap Design The VS-5020 VioStor NVR offers advanced RAID 0, 1, 5, 6, Single, and JBOD disk configurations. It also supports hot-swap design that a failed drive can be replaced by hot swapping without turning off the server. Besides, the best-in-class RAID on the VS-5020 VioStor NVR brings users a higher level of data security by allowing one more hard drive failure than other NVR of the same level.

Online RAID Capacity Expansion and Online RAID Level Migration Online RAID Capacity Expansion The storage capacity of a RAID configuration can be expanded by replacing the hard drives with larger ones. All the data will be kept and seamlessly moved to the newly installed hard drives. There is no need to turn off the server during the process.     Online RAID Level Migration Users can upgrade the disk configuration to higher RAID level with the data retained. There is no need to turnoff the server during the process.

S.M.A.R.T. & Advanced HDD Health Scanning (HHS) The NVR supports Hard Disk Drive S.M.A.R.T. (Self-Monitoring Analysis and Reporting Technology) for monitoring the hard drive status. The VS-5020 VioStor NVR is embedded with HHS Technology which supports disk checking and bad blocks scanning.

Intelligent automatic system startup when power resumes after power outage The NVR supports intelligent power-on support. When enabled, the system turns on automatically when power resumes after power outage.

Support UPS system for 24x7 service The NVR supports both APC and MGE UPS devices to enable stable and continuous recording 24x7. With UPS, the system can function normally in case of power outage or unstable power supply.

Convenient video backup to external USB storage by one touch auto backup button The NVR supports exclusive USB auto video backup button. By pressing the button once, all recording data on the NVR is copied to the external USB storage device immediately.

Powerful Security Control and Network Services

Powerful authority management The NVR enables the administrator to configure monitoring and playback authority of specified cameras for different users. The authority can be set for up to 32 users. Different monitoring and playback rights can be assigned for individual user.

Powerful host access control The administrator can specify the connections to be allowed and denied to access NVR. Provide On-line User list You can view the record of users currently logged on and previously logged on to the NVR. Built-in DDNS support The NVR supports dynamic DNS (DDNS). You can register a unique domain name from a DDNS service provider and assign it to your NVR. Built-in NTP server The date and time of the network cameras can be synchronized with the NVR. Convenient data access Users can access the recording data on the NVR by the following ways, multiple network resource sharing mechanisms are provided for users to access, maintain and play the recording files: Network Neighborhood (SMB/ CIFS) Web File Management (HTTP) FTP server



Processor
Intel Celeron Processor 1.6GHz



Memory
1GB DDRII RAM, 128MB flash (DOM)



HDD Capacity
5 x 3.5" SATA I/II HDD, up to 10TB (the standard system is shipped without HDD)



HDD Tray
5 x lockable tray



LAN Port
2 x Gigabit RJ-45 Ethernet port



LED Indicators
Status, HDD 1, HDD 2, HDD 3, HDD 4, HDD 5, LAN, USB



USB
5 x USB 2.0
Front: for USB storage device (One Touch Auto Video Backup)
Back: for UPS device



eSATA
1 x eSATA port (back); reserved for local backup



Buttons
Power, USB one-touch backup, reset



LCD Panel
Mono LCD display with backlight Enter button, Select button for configuration



Alarm Buzzer
System warning



Form Factor
Tower



Dimensions (Depth x Width x Height)
261.1(D) x 188.5(W) x 261.1((H) mm
10.28(D) x 7.42(W) x 10.28(H) inch



Shipping Weight
8 Kg
17.64lb



Operation Environment
Temperature 0~40°C
Humidity 0~95% R.H.



Power Supply
Input: 110-240V AC, 50/60Hz, Output: 250W



Power Consumption
71.54 ~ 76.39W    Write/Read (RAID5)
57.69 ~ 60.01W    Write/Read (Single)



Secure Design
K-Lock security slot for theft prevention



VGA
Reserved VGA interface for maintenance



RS-232
RS-232 x1



Fan
12 cm cooling fan (12V DC)

QNAP VS-5012 VioStor NVR is a highly reliable network video surveillance system for high performance IP-based real-time monitoring and video recording. Powered by Intel 1.6GHz CPU and 1GB DDRII memory, the Linux-embedded NVR supports 12-channel M-JPEG/ MPEG4/ H.264 recording from AXIS, ACTi, Arecont, Canon, Cisco, D-Link, EDIMAX, ELMO, EtroVision, GANZ, iPUX, IQeye, LevelOne, Linksys, MOBOTIX, Panasonic BB/ BL/ i-Pro, SANYO, SONY, TOA, TOSHIBA, TRENDnet, VIVOTEK & Y-CAM IP-based security cameras. With five high-speed hot-swappable SATA hard drives, the VS-5012 VioStor NVR supports long-term and high performance megapixel recording (up to 8 megapixels) from various IP cameras anytime, anywhere over the web and independent of any PC. The NVR provides advanced RAID protection by RAID 0/ 1/ 5/ 5+ hot spare/ 6/ 6+ hot spare/ JBOD for secure data protection.

The VS-5012 VioStor NVR supports high quality video recording and is affordable, easy-to-install and maintain. It is an ideal end-to-end network surveillance system for system integrators, SMB, and enterprise.

Powerful Features of VS-5012 VioStor NVR:

• Exclusive Linux-embedded system, Intel 1.6GHz CPU & 1GB DDRII memory. Ultra stable, reliable and high performance recording surveillance system
• Real-time monitoring and recording (video/ audio) from versatile network cameras (up to 12 channels)
• High quality recordings in motion-JPEG, MPEG-4 and H.264 (depends on camera)
• Support megapixel recording with high recording performance (up to 8 megapixels)
• Complete recording features: schedule recording, alarm recording, alarm recording schedule, motion-detection recording, pre-alarm, and post-alarm recordings, etc.
• Ultra large storage capacity (up to 10TB) for long-term recording
• CMS inside: Highly expandable for monitoring up to 120 channels from a remote PC
• Powerful remote management: access and playback recordings by web browser, FTP, and Network Neighborhood anytime, anywhere
• Trouble-free 6-step installation
• Smart search of IP cameras for quick configuration
• Centralized monitoring with "Click-to-Go" PTZ control and adjustable display mode
• Digital zoom for monitoring and playback
• Easy drag and drop to change the display order of the monitoring channels
• Event notification on monitoring and real-time email notification
• Detailed event and system logs (includes users' networking services and recordings access record)
• Schedule remote replication to NAS (Network Attached Storage) to back up recordings
• Unique online user list function and access authority control
• Multi-channel playback at different speeds
• Intelligent automatic system startup when power resumes after power outage
• Ultra-high-end RAID (RAID 0/ 1/ 5/ 5+ Hot spare / 6/ 6+ Hot spare/ JBOD) to protect all the important recordings in the most secure way!
• Hot-swap hard drive design
• Unique Online RAID Capacity Expansion & Online RAID Level Migration
• Touch-N-Go PC-less RAID setup via LCD panel for the first time installation
• One-touch video backup button for easy recording data copy
• Green NVR Solution: Power-saving design at only 57~76.39W!
  [71.54 ~ 76.39W Write/Read (RAID5)] [57.69 ~ 60.01W Write/Read (Single)]
  [PC-based is around 300W~350W]
• Two Gigabit LAN ports for Load Balancing, Failover, or Multi-LAN configuration
• Support UPS (Uninterruptible Power Supply) for 24x7 service
• DOM architecture with embedded Fail-safe dual OS for enhanced reliability

Powerful Surveillance Features

Powerful remote live monitoring, recording and playback surveillance system The VS-5012 VioStor NVR is an instant surveillance system providing professional grade live video recording and real-time remote monitoring/playback service.

High quality recordings in motion-JPEG, MPEG-4 and H.264 (depends on camera)

All-in-one Recording Functions Continuous/ Manual/ Schedule recording Alarm recording (by motion detection or sensor triggered) Alarm recording schedule Users can set different recording schedules for different cameras. Up to 15 schedules are supported for each camera.

Variety Live Video Monitoring 1/ 4/ 6/ 8/ 9/ 10/ 12/ 16/ 20/ 25/ 36/ 42-channel and sequential display mode Exclusive Picture-in-Picture mode Digital Zoom for Monitoring and Playback The VS-5012 VioStor NVR supports digital zoom function for more flexible monitoring and playback. It is a powerful function for megapixel IP cameras.

CMS inside You can connect to the VS-5012 VioStor and add other QNAP NVR servers for monitoring up to 120 channels from a remote PC over LAN or WAN.

Easy Drag and Drop Function on Monitoring The VS-5012 VioStor NVR provides easy drag and drop to change the display order of the monitoring channels for different monitoring management target!

Audio Recording The VS-5012 VioStor NVR supports audio recording for complete surveillance. (depends on camera)

High Performance Megapixel Recording (Up to 8 Megapixels) The VS-5012 VioStor NVR supports high performance megapixel recording (up to 8 megapixels) from various IP cameras anytime, anywhere over the web and independent of any PC.

Smart Control of PTZ & Speed Dome Cameras The VS-5012 VioStor NVR enables the users to adjust the PTZ cameras directly by the web user interface.

Support Monitoring Preset Position Control You can view different preset positions of the camera by clicking the number buttons on the monitoring page.

Event Notification on Monitoring When alarm recording is enabled and an event occurs, an alarm icon is shown instantly on monitoring page. You can click the icon to view the alert details.

Powerful Pre-alarm and Post-alarm Recording The VS-5012 VioStor NVR supports pre-alarm and post-alarm recording, which is used to record additional details before and after an event occurs.

Real-time Email Notification The VS-5012 VioStor NVR sends alert e-mails to the administrator immediately in case of system error or emergent events.

E-map for Easy Preview of the Camera Location The VS-5012 VioStor NVR provides exclusive E-map function for users to upload the pictures of the monitoring locations.

Video Snapshot The VS-5012 VioStor NVR provides real-time monitoring as well as real-time snapshot. Users can take a snapshot of the monitoring screen anytime.

Multi-channel Playback at Different Speed The VS-5012 VioStor NVR supports playback of the recording data from different monitoring channels. It also provides the Express Quad View Playback that you can either divide the selected time equally into four playback views or load four consecutive cameras to play. Easy Data Search by Date & Time and Alarm Event The VS-5012 VioStor NVR supports quick search of recording data by date and time, and alert events.

Recordings can be Played by Windows Media Player Users can play the files by Windows Media Player. There is no need to install unique program or convert the files to other formats.

Flexible Adjustment of the Length of Recording Files The VS-5012 VioStor NVR enables the users to flexibly adjust the length of the recording files.

Powerful Schedule Remote Replication The VS-5012 VioStor NVR supports Schedule Remote Replication to NAS to back up recording data in a more secure way.

Detailed Record of All Events The VS-5012 VioStor NVR provides detailed event logs of system warning, hard disk error, network disconnection, UPS status, and users' networking services and recordings access record.

Easy to Use

Easy System Setup in 6 Steps The VS-5012 VioStor NVR provides quick setup for users to complete installation in 6 simple steps.

Intuitive Web-based User Interface All system configurations, monitoring, and playback can be finished by the web-based interface.

Smart Search of IP Camera for Quick Settings QNAP provides an intelligent software utility Finder for quick IP camera search and system settings.

Convenient Quick Link Buttons of Network Camera Besides configuring the network cameras by the administration interface of NVR, users can make use of the quick link buttons to access the management interface of the network cameras to configure the cameras.

Excellent Hardware Design

Intel 1.6GHz CPU and 1GB DDRII Memory for Superior System Performance
The VS-5012 VioStor NVR is an ideal & powerful network video surveillance system designed for SMB and Enterprise. Powered by Intel 1.6GHz CPU and 1GB DDRII memory, it delivers superior performance for surveillance applications.

Green NVR Solution: Linux Embedded System with Low Power Consumption
The Linux-based NVR is more power-saving and less vulnerable to virus attack compared to PC-based surveillance solution.

Touch-N-Go PC-less Installation by LCD Display
The handy LCD display on the VS-5012 VioStor NVR provides a speedy and easy approach to initialize the NVR and set up the RAID configuration without using any computer. You can use the handy LCD to finish the first time installation in 3 simple steps. The NVR will automatically complete the hard disk formatting and RAID building. When the system is ready, users can check or configure the IP settings, physical disk info, volume info, system info, shut down or reboot the NVR etc.

Ultra-low System Noise, Superior Cooling Design
The low-noise fan of the NVR keeps the hard disks and the system in low temperature for long-term operation. The mesh cover dissipates system heat effectively.

Dual Gigabit LAN Ports for More Deployment Options

Network Failover
Failover allows the VioStor to sustain the failure of one network port to provide continuous services.

Load-Balancing
Bandwidth aggregation is supported to boost the file transfer speed (works with managed Ethernet switch with 802.3ad configured).

Multi-IP Setting

The VioStor can be deployed with two different IP settings for sharing among different workgroups in two different subnets.

Support 5 High-speed SATA Hard Drives
SATA hard drives are faster than IDE hard drives, which enhance recording and playback performance.

Storage Capacity up to 10 TB for Long-term Recording
The VS-5012 VioStor NVR is an excellent choice for long-time recording and saving large amount of recording data.

DOM Architecture with Embedded Fail-safe Dual OS for Enhanced Reliability
All the OS and applications are embedded on the DOM. The VS-5012 VioStor allows system booting without accessing the physical disk sectors and that prevents unsuccessful system startup caused by bad block sectors or file errors on the hard drives. Two operating systems are built on the DOM for system booting alternatively upon every system startup. When one fails, the other one will be used to boot up instead, and the failed OS is recoverable from the other healthy OS.

Lockable HDD Tray
The NVR provides lockable HDD trays to protect the physical hard drives.

High Reliability and Smart Features

Advanced RAID(0/ 1/ 5/ 6/ JBOD) Management with Hot-swap Design The VS-5012 VioStor NVR offers advanced RAID 0, 1, 5, 6, Single, and JBOD disk configurations. It also supports hot-swap design that a failed drive can be replaced by hot swapping without turning off the server. Besides, the best-in-class RAID on the VS-5012 VioStor NVR brings users a higher level of data security by allowing one more hard drive failure than other NVR of the same level.

Online RAID Capacity Expansion and Online RAID Level Migration Online RAID Capacity Expansion The storage capacity of a RAID configuration can be expanded by replacing the hard drives with larger ones. All the data will be kept and seamlessly moved to the newly installed hard drives. There is no need to turn off the server during the process.     Online RAID Level Migration Users can upgrade the disk configuration to higher RAID level with the data retained. There is no need to turnoff the server during the process.

S.M.A.R.T. & Advanced HDD Health Scanning (HHS) The NVR supports Hard Disk Drive S.M.A.R.T. (Self-Monitoring Analysis and Reporting Technology) for monitoring the hard drive status. The VS-5012 VioStor NVR is embedded with HHS Technology which supports disk checking and bad blocks scanning.

Intelligent automatic system startup when power resumes after power outage The NVR supports intelligent power-on support. When enabled, the system turns on automatically when power resumes after power outage.

Support UPS system for 24x7 service The NVR supports both APC and MGE UPS devices to enable stable and continuous recording 24x7. With UPS, the system can function normally in case of power outage or unstable power supply.

Convenient video backup to external USB storage by one touch auto backup button The NVR supports exclusive USB auto video backup button. By pressing the button once, all recording data on the NVR is copied to the external USB storage device immediately.

Powerful Security Control and Network Services

Powerful authority management The NVR enables the administrator to configure monitoring and playback authority of specified cameras for different users. The authority can be set for up to 32 users. Different monitoring and playback rights can be assigned for individual user.

Powerful host access control The administrator can specify the connections to be allowed and denied to access NVR. Provide On-line User list You can view the record of users currently logged on and previously logged on to the NVR. Built-in DDNS support The NVR supports dynamic DNS (DDNS). You can register a unique domain name from a DDNS service provider and assign it to your NVR. Built-in NTP server The date and time of the network cameras can be synchronized with the NVR. Convenient data access Users can access the recording data on the NVR by the following ways, multiple network resource sharing mechanisms are provided for users to access, maintain and play the recording files: Network Neighborhood (SMB/ CIFS) Web File Management (HTTP) FTP server



Processor
Intel Celeron Processor 1.6GHz



Memory
1GB DDRII RAM, 128MB flash (DOM)



HDD Capacity
5 x 3.5" SATA I/II HDD, up to 10TB (the standard system is shipped without HDD)



HDD Tray
5 x lockable tray



LAN Port
2 x Gigabit RJ-45 Ethernet port



LED Indicators
Status, HDD 1, HDD 2, HDD 3, HDD 4, HDD 5, LAN, USB



USB
5 x USB 2.0
Front: for USB storage device (One Touch Auto Video Backup)
Back: for UPS device



eSATA
1 x eSATA port (back); reserved for local backup



Buttons
Power, USB one-touch backup, reset



LCD Panel
Mono LCD display with backlight Enter button, Select button for configuration



Alarm Buzzer
System warning



Form Factor
Tower



Dimensions (Depth x Width x Height)
261.1(D) x 188.5(W) x 261.1((H) mm
10.28(D) x 7.42(W) x 10.28(H) inch



Shipping Weight
8 Kg
17.64lb



Operation Environment
Temperature 0~40°C
Humidity 0~95% R.H.



Power Supply
Input: 110-240V AC, 50/60Hz, Output: 250W



Power Consumption
71.54 ~ 76.39W    Write/Read (RAID5)
57.69 ~ 60.01W    Write/Read (Single)



Secure Design
K-Lock security slot for theft prevention



VGA
Reserved VGA interface for maintenance



RS-232
RS-232 x1



Fan
12 cm cooling fan (12V DC)

QNAP VioStor-2012 NVR is the 2-bay, hot-swappable network surveillance system designed for small and midsized business who demands for megapixel recording, mass storage capacity and high performance real-time monitoring. The VioStor-2012 is a highly reliable standalone NVR with powerful surveillance features. Based on Linux OS, the NVR supports M-JPEG, MPEG-4, H.264 recording from popular network camera brands, e.g. AXIS, ACTi, Arecont, Canon, Cisco, D-Link, EDIMAX, ELMO, EtroVision, GANZ, iPUX, IQeye, LevelOne, Linksys, MOBOTIX, Panasonic BB/ BL/ i-Pro, SANYO, SONY, TOA, TOSHIBA, TRENDnet, VIVOTEK & Y-CAM. The NVR adopts the innovative technology to support multi-server monitoring: the NVR can be cascaded to other QNAP NVR servers to monitor up to 120 IP cameras. No extra software is required on the PC.

The VioStor-2012 NVR supports diversified recording features, e.g. schedule recording, alarm recording, alarm recording schedule, motion-detection recording, pre-alarm, and post-alarm recordings. An intuitive user interface is provided for the users to view the monitoring screens, connection status, recording status, and network bandwidth, search the recording data, and play the recording data at different speed. Other class-leading server features of the NVR include advanced data protection by RAID 0, RAID 1 and JBOD, Online RAID Capacity Expansion, Online RAID Level Migration, two Giga LAN ports for network failover, load-balancing, and multi-LAN setting, etc. Moreover, the VioStor-2012 NVR can be easily set up in 6 simple steps by the web-based GUI using the IE browser.



Powerful Features of VioStor-2012 NVR:

Surveillance Features

Remote Live Monitoring, Recording and Playback
The VioStor NVR is an standalone surveillance system that supports professional grade video recording and real-time remote monitoring and playback.

High Quality Motion-JPEG, MPEG-4 and H.264 Recording (vary by camera models)

You can set different recording schedules for different cameras. Up to 15 schedules are supported for each camera.

Digital Zoom for Monitoring and Playback
The VioStor NVR supports digital zoom function for more flexible monitoring and playback. It is a powerful function for megapixel IP cameras.

Multi-server Monitoring
You can connect to the VioStor NVR and add other QNAP NVR servers to monitor up to 120 channels from a remote PC over LAN or WAN.

Change the Display Order of the Monitoring Channels
You can switch to display the monitoring channels by selecting the IP cameras on the drop down menu or by drag and drop.



Audio Recording
The VioStor NVR supports audio recording (vary by camera models).

High Performance Megapixel Recording (up to 8-megapixel)
The VioStor NVR supports high performance megapixel recording (up to 8-megapixel) from various IP cameras.

Smart Control of PTZ & Speed Dome Cameras
The VioStor NVR enables the users to adjust the PTZ cameras directly by the web user interface.



Support Monitoring Preset Position Control
You can view different preset positions of the camera by clicking the number buttons on the monitoring page.



Event Notification on Monitoring
When alarm recording is enabled and an event occurs, an alarm icon is shown instantly on monitoring page. You can click the icon to view the alert details.



Pre-alarm and Post-alarm Recording
The VioStor NVR supports pre-alarm and post-alarm recording, which is used to record additional details before and after an event occurs.



Real-time Email Alert
The VioStor NVR sends alert e-mails to the administrator immediately in case of system error or emergent events.

E-map for Easy Preview of the Camera Location
The VioStor NVR provides exclusive E-map function for users to upload the pictures of the monitoring locations.

Video Snapshot
The VioStor NVR provides real-time monitoring as well as real-time snapshot. Users can take a snapshot of the monitoring screen anytime.

Multi-channel Playback at Different Speed
The VioStor NVR supports playback of the recording data from different monitoring channels. It also provides the Express Quad View Playback that you can either divide the selected time equally into four playback views or load four consecutive cameras to play.

Easy Data Search by Date & Time and Alarm Event
The VioStor NVR supports quick search of recording data by date and time, and alarm event.

Recordings can be Played by Windows Media Player
Users can play the files by Windows Media Player. There is no need to install unique program or convert the files to other formats.



Flexible Adjustment of the Length of Recording Files
The VioStor NVR enables the users to flexibly adjust the length of the recording files.

Powerful Schedule Remote Replication
The VioStor NVR supports Schedule Remote Replication to NAS to back up recording data in a more secure way.

Detailed Record of All Events
The VioStor NVR provides detailed event logs of system warning, hard disk error, network disconnection, UPS status, and users' networking services and recordings access record.

Easy to Use

Easy System Setup in 6 Steps
The VioStor NVR provides quick setup for users to complete installation in 6 simple steps.

Intuitive Web-based User Interface
All system configurations, monitoring, and playback can be finished by the web-based interface.

Smart Search of IP Camera for Quick Settings
QNAP provides an intelligent software utility Finder for quick IP camera search and system settings.

Convenient Quick Link Buttons of Network Camera
Besides configuring the network cameras by the administration interface of NVR, users can make use of the quick link buttons to access the management interface of the network cameras to configure the cameras.

Excellent Hardware Design

Intel 1.6GHz CPU and 1GB DDRII Memory for Superior System Performance
The VioStor NVR is an ideal & powerful network video surveillance system designed for SMB and Enterprise. Powered by Intel 1.6GHz CPU and 1GB DDRII memory, it delivers superior performance for surveillance applications.

Green NVR Solution: Linux Embedded System with Low Power Consumption
The Linux-based NVR is more power-saving and less vulnerable to virus attack compared to PC-based surveillance solution.

Smart Fan
The fan rotation speed is automatically adjusted according to the server's temperature. You can also define the system temperatures to trigger high speed or low speed rotation of the fan.

Dual Gigabit LAN Ports
Two Gigabit LAN ports for load balancing, failover, or multi-IP setting.

Support 2 High-speed SATA Hard Drives
SATA hard drives are faster than IDE hard drives, which enhance recording and playback performance.

Up to 4TB Storage Capacity for Long-term Recording
The VioStor NVR is an excellent choice for long-term recording and saving large amount of recording data.

DOM Architecture with Embedded Fail-safe Dual OS for Enhanced Reliability
All the OS and applications are embedded on the DOM. The VioStor NVR allows system booting without accessing the physical disk sectors and that prevents unsuccessful system startup caused by bad block sectors or file errors on the hard drives. Two operating systems are built on the DOM for system booting alternatively upon every system startup. When one fails, the other one will be used to boot up instead, and the failed OS is recoverable from the other healthy OS.

Lockable HDD Tray
The NVR provides lockable HDD trays to protect the physical hard drives.

High Reliability and Smart Features

Advanced RAID (0/ 1/ JBOD) with Hot-swap Design
The VioStor NVR offers advanced RAID 0, 1, Single, and JBOD disk configurations. It also supports hot-swap design that a failed drive can be replaced by hot swapping without turning off the server. Besides, the best-in-class RAID on the VioStor NVR brings users a higher level of data security by allowing one more hard drive failure than other NVR of the same level.

Online RAID Capacity Expansion
The storage capacity of a RAID configuration can be expanded by replacing the hard drives with larger ones. All the data will be kept and seamlessly moved to the newly installed hard drives. There is no need to turn off the server during the process.

Online RAID Level Migration
Users can upgrade the disk configuration to higher RAID level with the data retained. There is no need to turnoff the server during the process.

S.M.A.R.T. & Advanced HDD Health Scanning (HHS)
The NVR supports Hard Disk Drive S.M.A.R.T. (Self-Monitoring Analysis and Reporting Technology) for monitoring the hard drive status. The VioStor NVR is embedded with HHS Technology which supports disk checking and bad blocks scanning.

Intelligent Automatic System Startup when Power Resumes after Power Outage
The NVR supports intelligent power-on support. When enabled, the system turns on automatically when power resumes after power outage.



Support UPS System for 24x7 Service
The NVR supports both APC and MGE UPS devices to enable stable and continuous recording 24x7. With UPS, the system can function normally in case of power outage or unstable power supply.

Convenient Video Backup to External USB Storage by One Touch Auto Video Backup Button
The NVR supports exclusive one touch auto video backup button. Press and hold the button for 3 seconds. The recording data on VioStor will start to be copied to the USB device instantly.

Powerful Security Control and Network Services

Powerful Authority Management
The NVR enables the administrator to configure monitoring and playback authority of specified cameras for different users. The authority can be set for up to 32 users. Different monitoring and playback rights can be assigned for individual user.

Powerful Host Access Control
The administrator can specify the connections to be allowed and denied to access NVR.

Provide On-line User List
You can view the record of users currently logged on and previously logged on to the NVR.

Built-in DDNS Support
The NVR supports dynamic DNS (DDNS). You can register a unique domain name from a DDNS service provider and assign it to your NVR.

Built-in NTP Server
The date and time of the network cameras can be synchronized with the NVR.

Convenient Data Access
Users can access the recording data on the NVR by the following ways, multiple network resource sharing mechanisms are provided for users to access, maintain and play the recording files:

Processor
Intel Processor 1.6GHz



Memory
1GB DDRII RAM, 128MB flash (DOM)



HDD Capacity
2 x 3.5" SATA I/II HDD, up to 4TB
(the standard system is shipped without HHD)



HDD Tray
2 x hot-swappable and lockable tray



LAN Port
2 x Gigabit RJ-45 Ethernet port



LED Indicators
HDD 1, HDD 2, LAN, eSATA



USB
3 x USB 2.0
Front: for USB storage device (One Touch Auto Video Backup)
Back: for UPS device



eSATA
2 x eSATA port (back); reserved



Buttons
Power, one touch auto video backup, reset



Alarm Buzzer
System warning



Form Factor
Tower



Dimensions
150(H) x 102(W) x 216(D) mm
5.91(H) x 4.02(W) x 8.5(D) inch



Shipping Weight
2.92 Kg (6.44 lb)



Operation Environment
Temperature 0~40°C
Humidity 0~95% R.H.



Power Supply
External power adaptor, 60W; input:110~240V



Power Consumption
37 ~ 44W Write/Read



Secure Design
K-Lock security slot for theft prevention



VGA
Reserved



Fan
7cm quiet cooling fan (12V DC)



Certification
CE, FCC, VCCI, BSMI

AF-S DX 55-200mm f4-5.6G ED - Silver Zoom Lens

AF-S DX 55-200mm f4-5.6G ED Black Zoom Lens

Dock Insert PV-10 for COOLPIX S5

QNAP VioStor-2008 NVR is the 2-bay, hot-swappable network surveillance system designed for small and midsized business who demands for megapixel recording, mass storage capacity and high performance real-time monitoring. The VioStor-2008 is a highly reliable standalone NVR with powerful surveillance features. Based on Linux OS, the NVR supports M-JPEG, MPEG-4, H.264 recording from popular network camera brands, e.g. AXIS, ACTi, Arecont, Canon, Cisco, D-Link, EDIMAX, ELMO, EtroVision, GANZ, iPUX, IQeye, LevelOne, Linksys, MOBOTIX, Panasonic BB/ BL/ i-Pro, SANYO, SONY, TOA, TOSHIBA, TRENDnet, VIVOTEK & Y-CAM. The NVR adopts the innovative technology to support multi-server monitoring: the NVR can be cascaded to other QNAP NVR servers to monitor up to 120 IP cameras. No extra software is required on the PC.

The VioStor-2008 NVR supports diversified recording features, e.g. schedule recording, alarm recording, alarm recording schedule, motion-detection recording, pre-alarm, and post-alarm recordings. An intuitive user interface is provided for the users to view the monitoring screens, connection status, recording status, and network bandwidth, search the recording data, and play the recording data at different speed. Other class-leading server features of the NVR include advanced data protection by RAID 0, RAID 1 and JBOD, Online RAID Capacity Expansion, Online RAID Level Migration, two Giga LAN ports for network failover, load-balancing, and multi-LAN setting, etc. Moreover, the VioStor-2008 NVR can be easily set up in 6 simple steps by the web-based GUI using the IE browser.

Powerful Features of VioStor-2008 NVR:

• Exclusive Linux-embedded system, Intel 1.6GHz CPU and 1GB DDRII memory
• Real-time monitoring and recording (video/ audio) from multiple network cameras (up to 8 channels)
• Supports streaming from network cameras and servers
• High quality motion-JPEG, MPEG-4 and H.264 recording (vary by camera models)
• Supports recording from megapixel IP cameras (up to 8-megapixel)
• Complete recording features: schedule recording, alarm recording, alarm recording schedule, motion-detection recording, pre-alarm, and post-alarm recordings, etc.
• Up to 4TB storage capacity for long-term recording
• Multi-server monitoring: Supports monitoring of up to 120 channels
• Remote management: access and playback recordings by web browser, FTP, and Network Neighborhood anytime, anywhere
• Trouble-free 6-step installation
• Smart search of IP cameras for quick configuration
• Centralized monitoring with "Click-to-Go" PTZ control and adjustable display mode
• Digital zoom for monitoring and playback
• The display order of the monitoring channels can be changed by drag and drop
• Event notification on monitoring screen; real-time email alert
• Detailed event and system logs (include users' networking services and recording data access record)
• Schedule remote replication to NAS (Network Attached Storage) for video backup
• Unique online user list function and access authority control
• Multi-channel playback at different speed
• Automatic system startup when the power resumes after power outage
• RAID 0, RAID 1, JBOD with hot-swap design
• Online RAID Capacity Expansion and Online RAID Level Migration
• Convenient video backup to external USB storage by one touch auto video backup button
• Power-saving design, consumes only 37-44W. (The power consumption of PC-based surveillance system is about 300W~350W)
• Two Gigabit LAN ports for failover, load-balancing, or multi-IP setting
• Supports UPS (Uninterruptible Power Supply) for 24x7 service
• DOM architecture with embedded fail-safe dual OS for enhanced reliability

Surveillance Features

Remote Live Monitoring, Recording and Playback
The VioStor NVR is an standalone surveillance system that supports professional grade video recording and real-time remote monitoring and playback.

High Quality Motion-JPEG, MPEG-4 and H.264 Recording (vary by camera models)

All-in-one Recording Functions

• Continuous/ manual/ schedule recording
• Alarm recording (by motion detection or sensor triggered)
• Alarm recording schedule

You can set different recording schedules for different cameras. Up to 15 schedules are supported for each camera.

Variety Live Video Monitoring

• 1/ 4/ 6/ 8/ 9/ 10/ 12/ 16/ 20/ 25/ 36/ 42-channel and sequential display mode
• Exclusive Picture-in-Picture mode

Digital Zoom for Monitoring and Playback
The VioStor NVR supports digital zoom function for more flexible monitoring and playback. It is a powerful function for megapixel IP cameras.

Multi-server Monitoring
You can connect to the VioStor NVR and add other QNAP NVR servers to monitor up to 120 channels from a remote PC over LAN or WAN.

Supports Streaming from Network Cameras and Servers

• Stream from the network camera
  The monitoring screens are streamed from the network cameras. When your network surveillance system (VioStor NVR), IP cameras, and PC are installed behind the router, virtual server, or firewall, you will have to configure port forwarding (port mapping) for some of the IP cameras. Please refer to http://www.qnapsecurity.com/Applications_nvrig.asp
• Stream from the server
  The monitoring screens are streamed from the video server. There is no need to configure port mapping. However, the NVR performance may be affected. You may have to adjust the recording settings according to the real performance.

Change the Display Order of the Monitoring Channels
You can switch to display the monitoring channels by selecting the IP cameras on the drop down menu or by drag and drop.



Audio Recording
The VioStor NVR supports audio recording (vary by camera models).

High Performance Megapixel Recording (up to 8-megapixel)
The VioStor NVR supports high performance megapixel recording (up to 8-megapixel) from various IP cameras.

Smart Control of PTZ & Speed Dome Cameras
The VioStor NVR enables the users to adjust the PTZ cameras directly by the web user interface.



Support Monitoring Preset Position Control
You can view different preset positions of the camera by clicking the number buttons on the monitoring page.



Event Notification on Monitoring
When alarm recording is enabled and an event occurs, an alarm icon is shown instantly on monitoring page. You can click the icon to view the alert details.



Pre-alarm and Post-alarm Recording
The VioStor NVR supports pre-alarm and post-alarm recording, which is used to record additional details before and after an event occurs.

Real-time Email Alert
The VioStor NVR sends alert e-mails to the administrator immediately in case of system error or emergent events.

E-map for Easy Preview of the Camera Location
The VioStor NVR provides exclusive E-map function for users to upload the pictures of the monitoring locations.

Video Snapshot
The VioStor NVR provides real-time monitoring as well as real-time snapshot. Users can take a snapshot of the monitoring screen anytime.

Multi-channel Playback at Different Speed
The VioStor NVR supports playback of the recording data from different monitoring channels. It also provides the Express Quad View Playback that you can either divide the selected time equally into four playback views or load four consecutive cameras to play.

Easy Data Search by Date & Time and Alarm Event
The VioStor NVR supports quick search of recording data by date and time, and alarm event.

Recordings can be Played by Windows Media Player
Users can play the files by Windows Media Player. There is no need to install unique program or convert the files to other formats.



Flexible Adjustment of the Length of Recording Files
The VioStor NVR enables the users to flexibly adjust the length of the recording files.

Powerful Schedule Remote Replication
The VioStor NVR supports Schedule Remote Replication to NAS to back up recording data in a more secure way.

Detailed Record of All Events
The VioStor NVR provides detailed event logs of system warning, hard disk error, network disconnection, UPS status, and users' networking services and recordings access record.

Easy to Use

Easy System Setup in 6 Steps
The VioStor NVR provides quick setup for users to complete installation in 6 simple steps.

Intuitive Web-based User Interface
All system configurations, monitoring, and playback can be finished by the web-based interface.

Smart Search of IP Camera for Quick Settings
QNAP provides an intelligent software utility Finder for quick IP camera search and system settings.

Convenient Quick Link Buttons of Network Camera
Besides configuring the network cameras by the administration interface of NVR, users can make use of the quick link buttons to access the management interface of the network cameras to configure the cameras.

Excellent Hardware Design

Intel 1.6GHz CPU and 1GB DDRII Memory for Superior System Performance
The VioStor NVR is an ideal & powerful network video surveillance system designed for SMB and Enterprise. Powered by Intel 1.6GHz CPU and 1GB DDRII memory, it delivers superior performance for surveillance applications.

Green NVR Solution: Linux Embedded System with Low Power Consumption
The Linux-based NVR is more power-saving and less vulnerable to virus attack compared to PC-based surveillance solution.

Smart Fan
The fan rotation speed is automatically adjusted according to the server's temperature. You can also define the system temperatures to trigger high speed or low speed rotation of the fan.

Dual Gigabit LAN Ports
Two Gigabit LAN ports for load balancing, failover, or multi-IP setting.

Support 2 High-speed SATA Hard Drives
SATA hard drives are faster than IDE hard drives, which enhance recording and playback performance.

Up to 4TB Storage Capacity for Long-term Recording
The VioStor NVR is an excellent choice for long-term recording and saving large amount of recording data.

DOM Architecture with Embedded Fail-safe Dual OS for Enhanced Reliability
All the OS and applications are embedded on the DOM. The VioStor NVR allows system booting without accessing the physical disk sectors and that prevents unsuccessful system startup caused by bad block sectors or file errors on the hard drives. Two operating systems are built on the DOM for system booting alternatively upon every system startup. When one fails, the other one will be used to boot up instead, and the failed OS is recoverable from the other healthy OS.

Lockable HDD Tray
The NVR provides lockable HDD trays to protect the physical hard drives.

High Reliability and Smart Features

Advanced RAID (0/ 1/ JBOD) with Hot-swap Design
The VioStor NVR offers advanced RAID 0, 1, Single, and JBOD disk configurations. It also supports hot-swap design that a failed drive can be replaced by hot swapping without turning off the server. Besides, the best-in-class RAID on the VioStor NVR brings users a higher level of data security by allowing one more hard drive failure than other NVR of the same level.

Online RAID Capacity Expansion and Online RAID Level Migration

Online RAID Capacity Expansion
The storage capacity of a RAID configuration can be expanded by replacing the hard drives with larger ones. All the data will be kept and seamlessly moved to the newly installed hard drives. There is no need to turn off the server during the process.

Online RAID Level Migration
Users can upgrade the disk configuration to higher RAID level with the data retained. There is no need to turnoff the server during the process.

S.M.A.R.T. & Advanced HDD Health Scanning (HHS)
The NVR supports Hard Disk Drive S.M.A.R.T. (Self-Monitoring Analysis and Reporting Technology) for monitoring the hard drive status. The VioStor NVR is embedded with HHS Technology which supports disk checking and bad blocks scanning.

Intelligent Automatic System Startup when Power Resumes after Power Outage
The NVR supports intelligent power-on support. When enabled, the system turns on automatically when power resumes after power outage.



Support UPS System for 24x7 Service
The NVR supports both APC and MGE UPS devices to enable stable and continuous recording 24x7. With UPS, the system can function normally in case of power outage or unstable power supply.

Convenient Video Backup to External USB Storage by One Touch Auto Video Backup Button
The NVR supports exclusive one touch auto video backup button. Press and hold the button for 3 seconds. The recording data on VioStor will start to be copied to the USB device instantly.

Powerful Security Control and Network Services

Powerful Authority Management
The NVR enables the administrator to configure monitoring and playback authority of specified cameras for different users. The authority can be set for up to 32 users. Different monitoring and playback rights can be assigned for individual user.

Powerful Host Access Control
The administrator can specify the connections to be allowed and denied to access NVR.

Provide On-line User List
You can view the record of users currently logged on and previously logged on to the NVR.

Built-in DDNS Support
The NVR supports dynamic DNS (DDNS). You can register a unique domain name from a DDNS service provider and assign it to your NVR.

Built-in NTP Server
The date and time of the network cameras can be synchronized with the NVR.

Convenient Data Access
Users can access the recording data on the NVR by the following ways, multiple network resource sharing mechanisms are provided for users to access, maintain and play the recording files:

• Network Neighborhood (SMB/ CIFS)
• Web File Management (HTTP)
• FTP server

Processor
Intel Processor 1.6GHz



Memory
1GB DDRII RAM, 128MB flash (DOM)



HDD Capacity
2 x 3.5" SATA I/II HDD, up to 4TB
(the standard system is shipped without HHD)



HDD Tray
2 x hot-swappable and lockable tray



LAN Port
2 x Gigabit RJ-45 Ethernet port



LED Indicators
HDD 1, HDD 2, LAN, eSATA



USB
3 x USB 2.0
Front: for USB storage device (One Touch Auto Video Backup)
Back: for UPS device



eSATA
2 x eSATA port (back); reserved



Buttons
Power, one touch auto video backup, reset



Alarm Buzzer
System warning



Form Factor
Tower



Dimensions
150(H) x 102(W) x 216(D) mm
5.91(H) x 4.02(W) x 8.5(D) inch



Shipping Weight
2.92 Kg (6.44 lb)



0~40°C

Humidity

0~95% R.H.



Power Supply
External power adaptor, 60W; input:110~240V



Power Consumption
37 ~ 44W Write/Read



Secure Design
K-Lock security slot for theft prevention



VGA
Reserved



Fan
7cm quiet cooling fan (12V DC)



Certification
CE, FCC, VCCI, BSMI

E Type screen



The Type E Focusing Screen is an optional focusing screen for the Nikon D3 SLR Digital Camera.

MH-72 Charger & EN-MH2-B2 Battery Combo

For COOLPIX L19 and L20

Interior Dimensions:
7.25" x 4.75" x 3.06" (18.4 x 12.1 x 7.8 cm)

Interior Dimensions:
7.25" x 4.75" x 3.06" (18.4 x 12.1 x 7.8 cm)

Interior Dimensions:
7.25" x 4.75" x 3.06" (18.4 x 12.1 x 7.8 cm)

PictureProject Coolpix Remote Control
PictureProject Coolpix Remote Control has been developed to offer a similar solution for the Nikon Coolpix 8400 and Nikon Coolpix 8800; remote camera operation can enable changing camera settings via computer, particularly useful when you cant access the camera's controls or if the camera is in an inaccessible remote location. Those involved in nature photography, studio work, or scientific and industrial photography will recognize the advantages of such remote control.

PictureProject Coolpix Remote Control - Benefits
Nikon PictureProject Coolpix Remote Control can be used on any computer (Mac and PC) that is equipped with PictureProject 1.1 or later, for control of Nikon 8400 and Nikon 8800 digital cameras. Key settings and shooting functions can be controlled remotely from the computer, including settings for the AF Mode, Flash Mode, image size and quality, as well as control over zoom operation and the shutter release. With Nikon Coolpix Remote Control, images taken remotely can be saved directly to the computer's hard disk drive; there is no need for concern about changing the camera's CompactFlash memory card during remote shooting. Because of the unique operation of Nikon Coolpix cameras, Nikon PictureProject Coolpix Remote Control is equipped with real-time preview monitoring on your computer, which improves workflow efficiency. As a Nikon PictureProject Plug-in, the Coolpix Remote Control System can also take advantage of the PictureProject Image Organizing Solution; with just a click, you can designate that the transferred image will be added to a Collection!

Nikon PictureProject Coolpix Remote Control features
- Shutter release operation
- Picture quality and image size setting
- AF mode setting
- Flash mode setting
- Zoom operation
- Automatic saving of new photos to a selected collection
- Camera battery level display
- Free disk space display (when saving to the computer's hard disk drive)
- Support of 11 languages: English, French, Spanish, German, Italian, Dutch, Swedish, Japanese, Simplified Chinese, Traditional Chinese, Korean.

This wireless shutter release, you can control the shutter of your camera about 100 meters away. The package comes with a wireless transmitter and a receiver to be plugged into the the shutter release port of the camera. This remote would support the bulb mode and continuous shooting. You also can obtain an exposure for as long as you wish. It has 16 channels for you to choose. It is useful if there are several photographers working nearby. Each photographer could choose their own channel to trigger off the shutter release of the camera they are going to use without triggering others because of overlapping signals.

CR2 Li-Battery This Battery is high quality Li-battery, provides a great power to give your digital camera the best performance.

Features:


-With the receiver connected to your camera's remote control socket, you can press the button on the remote control to trigger your camera's shutter wireless !

Two-Level Shutter Button, Autofocus, Continuous Drive & Bulb Mode Supported Too!

-The shutter button can be pressed halfway or all the way. -You can activate autofocus, release shutter, activate continuous drive mode or keep the shutter open for bulb photography as well.

16 Channels with Working Distance of 100 Meters!

-Strong resistance to interference. -There are 16 channels available so that you can switch to other channels to avoid jamming frequency. -Maximum working distance is about 100 Meters in open area without blockage.

-With its low voltage and energy saving design, you don't have to change the battery often.
-With a new battery, the receiver standby time is about 1000 hours.
-With a new battery, the remote control can trigger about 20,000 times.





Nikon Capture NX



CPU		1.0 GHz Pentium III or higher (2.0 GHz Pentium 4 or higher recommended).
OS		Windows XP Home Edition, Windows XP Professional, Windows 2000 Professional.
RAM		256 MB minimum (1.0 GB or more recommended).
Hard disk		200 MB required for installation.
Display		800 x 600 pixels (1024 x 768 or more recommended) with 16-bit color (High Color/thousands of colors) or 24-bit color (True Color/millions of colors) recommended.
Others		CD-ROM drive required for installation Internet connection required for some options

[Macintosh]

CPU		G4 or G5.
OS		Mac OS X (version 10.3.9 or later).
RAM		256 MB minimum (1.0 GB or more recommended).
Hard disk		200 MB required for installation.
Display		800 x 600 pixels (1024 x 768 or more recommended) with 16-bit color (High Color/thousands of colors) or 24-bit color (True Color/millions of colors) recommended.
Others		CD-ROM drive required for installation Internet connection required for some options





Mac OS X:

Operating System: Mac OS X 10.3.9, 10.4.11, 10.5.1

Model: PowerPC G4 or G5, or Intel-based Macintosh (Intel Core Solo, Intel Core Duo, Intel Core 2 Duo, Intel Xeon)

Windows OS:
Operating Systems:

Microsoft Windows Vista Home Basic (32-bit version)
Microsoft Windows Vista HomePremium (32-bit version)
Microsoft Windows VistaBusiness (32-bit version)
Microsoft Windows Vista Enterprise(32-bit version)
Microsoft Windows VistaUltimate (32-bit version)
Microsoft WindowsXP Professional(Service Pack 2)
Microsoft WindowsXP Home (Service Pack 2)
Microsoft Windows2000 Professional(Service Pack 2)
*Pre-installed versions only



Model: 1 GHz or higher Intel Celeron / Pentium 4 / Core Series

Designed for SMB and SOHO users, QNAP NVR-104V is an affordable and reliable network surveillance solution for remote monitoring and recording from AXIS, ACTi, Arecont, Cisco, D-Link, EDIMAX, ELMO, EtroVision, GANZ, iPUX, IQeye, LevelOne, Linksys, MOBOTIX, TOSHIBA, TRENDnet, VIVOTEK & Y-CAM IP-based cameras. The NVR-104V supports up to 4-channel M-JPEG and MPEG-4 recording, and one high-speed SATA hard disk (up to 1TB) for long-term recording.

The NVR-104V is a complete embedded system that you don't need to suffer from the maintenance difficulty of PC-based recording system. The NVR can record video actively from various IP cameras located in local or remote sites into a dedicated storage device instead of personal computer. It also supports real-time monitoring everywhere via the web. Furthermore, the NVR-104V provides a unique web-monitoring and management GUI, which enables users to conveniently monitor anytime, anywhere. Even novices can finish the installation easily!!!

The NVR-104V is a green surveillance solution. Its power consumption is less than 18W, and it is equipped with a low-noise fan for quiet operation. The NVR-104V is an ideal network surveillance solution for monitoring in home, office, campus, parking lots, and chain stores etc.

Powerful Features of NVR-104:

• Exclusive Linux + RISC CPU + embedded system, ultra stable and reliable recording solution (PC-less recording)
• Real-time monitoring and recording (video/ audio) from versatile network cameras (up to 4 channels)
• High quality recordings in motion-JPEG and MPEG-4 (depends on camera)
• Complete recording features: schedule recording, alarm recording, alarm recording schedule, pre-alarm, and post-alarm recordings, etc.
• CMS inside: Highly expandable for monitoring up to 120 channels from multiple QNAP NVR servers over LAN or WAN
• Supports one high-speed SATA hard disk (up to 1TB) for long-term recording
• Convenient data access: access and playback recordings by web browser, FTP, and Network Neighborhood anytime, anywhere
• Trouble-free 6-step installation
• Smart search of IP cameras for quick configuration
• Centralized monitoring with "Click-to-Go" PTZ control and adjustable display mode
• Digital zoom for monitoring and playback
• Easy drag and drop to change the display order of the monitoring channels
• Event notification on monitoring and real-time email notification
• Detailed event and system logs (includes users' networking services and recordings access record)
• Schedule remote replication to NAS (Network Attached Storage) to back up recordings
• Unique online user list function and access authority control
• Multi-channel playback at different speeds
• Intelligent automatic system startup when power resumes after power outage
• Advanced RAID1 hard disk mirroring to protect all the important recordings in the most secure way!
  * RAID function is enabled via an external eSATA device, e.g. QBack-35S
• One touch auto video backup button for easy recording data copy
• Green NVR Solution: Power-saving design at only 18W (PC-based is around 350W)
• Support UPS (Uninterruptible Power Supply) for 24x7 service

Powerful Surveillance Features

Most affordable Remote Live Monitoring, Recording and Playback Surveillance System
The NVR-104 is the most affordable surveillance system providing professional grade live video recording and real-time remote monitoring/playback service.

High Quality Recordings in Motion-JPEG and MPEG-4 (depends on camera)

All-in-one Recording Functions

• Continuous/ manual/ schedule recording
• Alarm recording (by motion detection or sensor triggered)
• Multiple alarm recording schedules
  * Up to 15 schedules are supported for each camera



CMS inside
You can connect to the NVR-104 and add other QNAP NVR servers for monitoring up to 120 channels from a remote PC over LAN or WAN.





Variety Live Video Monitoring

• 1/ 4/ 6/ 8/ 9/ 10/ 12/ 16/ 20-channel and sequential display mode
• Exclusive Picture-in-Picture mode

Digital Zoom for Monitoring and Playback
The NVR-104 supports digital zoom function for more flexible monitoring and playback. It is a powerful function for megapixel IP cameras.

Easy Drag and Drop Function on Monitoring
The NVR-104 provides easy drag and drop to change the display order of the monitoring channels for different monitoring management target!



Smart Control of PTZ & Speed Dome Cameras
The NVR-104 enables the users to adjust the PTZ cameras directly by the web user interface.



Preset Position Control
You can view different preset positions of the camera by clicking the number buttons on the monitoring page.



E-map
The NVR-104 provides exclusive E-map function for users to upload the pictures of the monitoring locations.

Event Notification on Monitoring
When alarm recording is enabled and an event occurs, an alarm icon is shown instantly on monitoring page. You can click the icon to view the alert details.



Real-time Email Notification
The NVR-104 sends alert e-mails to the administrator immediately in case of system error or emergent events.



Audio Recording (Optional)
The NVR-104 supports audio recording for complete surveillance (depends on camera).





Recordings can be Played by Windows Media Player
No need to install unique program or convert the files to other formats.



Flexible Adjustment of the Length of Recording Files
The NVR-104 enables the users to flexibly adjust the length of the recording files.



Multi-channel Playback at Different Speed
You can playback the recording data from different monitoring channels.

Easy Data Search by Date & Time and Recording Type
The NVR-104 supports quick search of recording data by date and time, and alert events.

Video Snapshot
The snapshot function is supported on monitoring and playback page.

Powerful Pre-alarm and Post-alarm Recording
The NVR-104 supports pre-alarm and post-alarm recording, which is used to record additional details before and after an event occurs.

Detailed Record of All Events
The NVR-104 provides detailed event logs of system warning, hard disk error, network disconnection, UPS status, and users' networking services and recordings access record.

Easy to Use

Easy System Setup in 6 Steps
The NVR-104 provides quick setup for users to complete installation in 6 simple steps.

Intuitive Web-based User Interface
All system configurations, monitoring, and playback can be finished by the web-based interface.

Smart Search of IP Camera for Quick Settings
QNAP provides an intelligent software utility Finder for quick IP camera search and system settings.

Convenient Quick Link Buttons of Network Camera
Besides configuring the network cameras by the administration interface of NVR, users can make use of the quick link buttons to access the management interface of the network cameras to configure the cameras.

Excellent Hardware Design

Green NVR Solution: Linux Embedded System with Low Power Consumption
The Linux-based NVR is more power-saving and less vulnerable to virus attack compared to PC-based surveillance solution.

Ultra-low System Noise, Superior Cooling Design
The low-noise fan of the NVR keeps the hard disks and the system in low temperature for long-term operation. The mesh cover dissipates system heat effectively.

Support 1 high-speed SATA Hard Drives
SATA hard drives are faster than IDE hard drives, which enhance recording and playback performance.

Storage Capacity up to 1 TB, Expandable to 2TB through an External eSATA Device
NVR is an excellent choice for long-term recording and saving large amount of recording data
* It is suggested to use an external eSATA device, e.g. QBack-35S.

Small-sized, Easy to Deploy
NVR occupies small space. It is easy to install and maintain.

High Reliability and Smart Features

Support Extra Secure Data Protection by RAID 1 Mirroring
To enhance data security and protection, NVR-104 provides RAID 1 (mirroring) configuration. Recording data is highly secured and the reading rate is also increased.
* It is suggested to use an external eSATA device, e.g. QBack-35S.

Support RAID 0, JBOD
In addition to RAID 1 (mirroring) function, NVR supports RAID 0 and JBOD configurations for larger storage capacity and higher reading and writing performance.
* It is suggested to use an external eSATA device, e.g. QBack-35S.

Intelligent Automatic System Startup When Power Resumes after Power Outage
NVR supports intelligent power-on support. When enabled, the system can turn on automatically when power resumes after power outage.



Support UPS System for 24 x 7 Service
With UPS, the system can function normally in case of power outage or unstable power supply.



Convenient Video Backup to External USB Storage by One Touch Auto Video Backup Button
NVR supports exclusive one touch auto video backup button. By pressing the button once, the recording data of definable period on NVR will start to be copied to external USB storage device immediately.

Detailed Record of All Events
NVR provides detailed event logs covering system warning, hard disk error, network disconnection and UPS status etc. for users to maintain and manage NVR. The logs can be classified to all events, warning & errors, and errors for quick searching.

Powerful Security Control and Network Services

Powerful Authority Management
The NVR enables the administrator to configure monitoring and playback authority of specified cameras for different users. The authority can be set for up to 32 users. Different monitoring and playback rights can be assigned for individual user.

Powerful Host Access Control
The administrator can specify the connections to be allowed and denied to access NVR.

Provide On-line User List
You can view the record of users currently logged on and previously logged on to the NVR.

Built-in DDNS Support
The NVR supports dynamic DNS (DDNS). You can register a unique domain name from a DDNS service provider and assign it to your NVR.

Built-in NTP Server
The date and time of the network cameras can be synchronized with the NVR.

Convenient Data Access
Users can access the recording data on the NVR by the following ways, multiple network resource sharing mechanisms are provided for users to access, maintain and play the recording files:

• Network Neighborhood (SMB/ CIFS)
• Web File Management (http)
• FTP server

HDD
Supports 1 x 3.5" SATA I/II HDD, up to 1 TB or above, expandable to 2TB via eSATA (the HDD is not included)



LAN Port
1 x Gigabit RJ-45 Ethernet port



LED Indicators
Power, USB, status, LAN, hard disk



USB
3 x USB; for USB storage device (one touch auto video backup) and UPS device



Buttons
one touch auto video backup button, power button, reset button



Form Factor
Portable desktop



Hardware Dimensions
218.4 (D) x 60 (W) x 165.5 (H) mm
8.6 (D) x 2.36 (W) x 6.52 (H) inch



Weight
Hardware net weight: 0.71 kg/ 1.57 lbs (without HDD)
Color box shipping weight: 1.57 kg/ 3.46 lbs (without HDD)



Temperature
0~40*c



Humidity
0%~85% R.H.



Power Supply
Input: 100-240V AC, 50/60Hz, Output: 12V DC, 3A



Energy-saving Design
Low power consumption



Thermal Solution
low noise design



Secure Design
K-Lock Security Slot for Theft Prevention
Power cord hook for kicking-off prevention

Nik Color Efex Pro 2.0 Select Edition



This set of plug-in filters and effects allows you to enhance and transform your images within Nikon Capture (version 4.1 ~ 4.4.2) and Nikon Capture NX



Brilliance/Warmth, Colorize, Burnt Sienna, Contrast: Color Range, Contrast; Only Darken/Lighten Center, Graduated Blue Flux, Graduated Coffee, Graduated Neutral Density, Graduated Olive, Graduated User Defined, Graduated Orange, Infrared: Thermal Camera, Midnight Blue, Ink Old Photo: Black and White, Midnight Green, Old Photo; Color, Midnight Sepia, Pastel Midnight Violet, Photo Styler; Cool Ice, Monday Morning, Remove Color Cast, Monday Morning Blue, Skylight Filter, Monday Morning Green, Solarization; Black and White, Monday Morning Sepia, Solarization; Color Paper, Toner Sunshine, Polarization, Weird Lines, Pop Art B/W, Conversion, Remove Brightness, Bi-Color: User Defined, Vignette: Classical Soft Focus, Vignette Blur, Color Stylizer.









		Action 7x35 CF
Magnification (x)		7
Objective diameter (mm)		35
Angular field of view (Real/degree)		9.3
Angular field of view (Apparent/degree)		59.3
Field of view at 1,000m (m)		163
Exit pupil (mm)		5.0
Relative brightness		25.0
Eye relief (mm)		11.9
Close focusing distance (m)		5.0
Weight (g)		715
Length (mm)		123
Width (mm)		182
Interpupillary distance adjustment (mm)		56-72



Note: Nikon has adopted a calculation method based on ISO 14132-1:2002, and therefore, values for the apparent field of view have changed from those previously stated.



Forestry surveys

Exploring ruins

Golfing or caddying

Sailing



				Laser 350G
Measurement range				10-500m/11-550 yd.
Distance display (Increment)				Every 0.5m/yd. (shorter than 100m/yd.) Every 1.0m/yd. (greater than 100m/yd.)
Finder		Magnification (x)		6
		Effective objective diameter (mm)		21
		Actual field of view ()		6.0
		Exit pupil (mm)		3.5
		Eye relief (mm)		18.2
Dimensions (LxHxW) (mm)				130x69x37
Weight (g) (excluding battery)				180
Power source				CR2 lithium battery x 1 (DC3V) Auto power shutoff function equipped (after 8 sec.)
Safety and EMC				VCCI class B, Class 1M laser product (IEC60825-1:2001), Class 1 laser product (21CFR 1040.10 and 1040.11) CE, EMC directive, Fcc Part15 subpart B Class B, c-tick, WEEE



The specifications of the product may not be achieved depending on the target object's shape, surface texture and nature, and/or weather conditions.

When it comes to CD Technology, Verbatim rewrote the book. Verbatim CDRW is the industry standard for performance, compatibility, and the ultimate in reliability. Verbatim CDRW utilises an advanced super-eutectic phase change recording layer which ensures durability and reliability while archiving data at higher rewrite speeds. These discs allow you to rewrite data without errors up to 1,000 times. All backed by a Limited Lifetime Warranty.





    * 2X-4X speed rewrite compatibility
    * Rewritable up to 1000 times
    * Read compatible with multi-read CD & DVD drives
    * Verbatim Lifetime Warranty

Heavy duty, real working flashlight. Records video with audio & takes photos day or night. 3 levels of flashlight brightness. 128MB built-in memory. Highly durable with precision tooled aluminum housing.



Award winning video camera & recorder in a real working flashlight!



The Swann FlashlightDVR™ is a heavy duty, real working flashlight that also allows you to record video and take photos during the day or at night. Featuring strong aluminum construction the FlashlightDVR™ can be used in varying weather conditions. The FlashlightDVR™ has 128MB of built-in memory and supports mini-SD cards up to 2GB for extra storage. The flashlight includes 3 levels of brightness to customize the intensity of light to the environment it is being used. The infrared sensors provide night vision up to 13ft (4m). This flexible monitoring solution is ideal for security applications where discreet video or image recording may be necessary. The FlashlightDVR™ is also ideal for leisure activities such as camping or fishing where a flashlight and camera are both needed. Easily view/store videos or photos on your computer using the FlashlightDVR’s USB port. The FlashlightDVR™ is an ingenious piece of innovation with monitoring and recording concealed in a portable flashlight!





    * Heavy duty, real working flashlight
    * Records video with audio & takes photos day or night
    * 3 levels of flashlight brightness
    * 128MB built-in memory
    * Highly durable with precision tooled aluminum housing
    * Supports 1.5 hours VGA recording with 1GB Mini SD card (not included)
    * USB compatible for easy transfer of data to PC
    * Ideal for security applications
    * Built in Ni-MH battery charger



Flashlight
Built-in Cool-White 3Watt LED



Brightness
3-Levels of Brightness



Over Heat Protection
Shut Down at 80 Degree C



Imaging Sensor
Color CMOS Sensor



Active Pixel Array
300K pixels



Sensor Resolution
VGA 640 x 480



Horizontal View Angle
66°



Gain Control
Automatic



White Balance
Automatic



Number of IR LED
17pcs



Wavelength of IR LED
850nM



Night Vision Range
Up to 13ft (4m)



Video Compression system
MPEG-4



Record File Format
MP4



Built-In Memory
128MB



Storage Media
Mini SD Card, Supports Up to 2GB



User Interface
TN-LCD display



Recording Time
Maximum 18 minute /128MB @VGA
Maximum 1.5 Hours for 1G SD Card



Backup Method
Compliant with USB1.1 Interface



Recording Rate
Maximum Image Transfer Rate 30 fps

Audio Input
Built-In Microphone



Audio Engine
Single Channel 16-bit ADC,Gain:35.25dB



Charging Input Voltage
Adaptor 12VDC 800mA



Charging Current
Ni-MH 3A/h 3 x C size rechargeable battery



Full Charge Protection
Yes



Over Charge protection
6 Hour Timer



Power Source
3 x C size battery, Alkaline or Ni-MH rechargeable



Power consumption
Below 7 Watt



Operating Temperature
-10 to 35°C



Operating Humidity
20-95% (Non-Condensation)



Weight
520 grams Without Battery



Dimensions
79(W) x 97(H) x 323(L)mm



USB cable
Yes



Weather Proof
Yes



Approval
FCC, CE, RoHS, C-Tick

View cameras on the go with 3G compatible cell phones. Speaker output allows you to communicate both ways anywhere in the world. Motion detection can capture images and send alerts directly to your email inbox. Suitable for multiple camera setups.



The most advanced in Swann web network cameras! The IP-3G ConnectCam has Pan/Tilt/Zoom functionality



The IP-3G ConnectCam 3000™ network camera is designed to work with your existing wired or wireless network and is compatible with standard 802.11b/g wireless devices including compatible 3G cell phones. With the flexibility to operate the camera without a network cable the IP-3G ConnectCam 3000™ can be placed anywhere within your wireless network range. Utilizing SSID filtering and powerful 64/128 bit WEP encryption, the IP-3G ConnectCam 3000™ helps to protect your wireless network camera from illegal intrusion. Watch your kids at home from the office or monitor your home while on vacation with peace of mind thanks to the IP-3G ConnectCam 3000™ network camera. You can also Pan/Tilt/Zoom the camera, to zoom in on an object or pan the camera around the room! There will be no hiding from the camera with the Swann IP-3G ConnectCam 3000™!





    * View cameras on the go with 3G compatible cell phones
    * Speaker output allows you to communicate both ways anywhere in the world
    * See in the dark with built in infrared LEDs up to 16ft (5m)
    * Connects to existing wired or wireless 802.11b/g modems and viewable over the internet or local network
    * Motion detection can capture images and send alerts directly to your email inbox
    * MPEG compression for higher quality images or MPEG4 compression to save storage space and transmit quickly over the internet
    * The added Benefit of the IP-3G ConnectCam 3000 is that also is capable of Pan/Tilt/Zoom functions





    * Ideal for recording home or business
    * Connect up to 16 cameras for complete monitoring
    * Use for conference calls, job sites, and other events where two-way communication is necessary
    * Day and night monitoring with built in night vision
    * Suitable for multiple camera setups
    * Indoor use





    * Can Communicate both ways
    * Built in night vision
    * Can broadcast on cell/mobile phones
    * Has USB Connection





    * Pan/Tilt/Digital Zoom over internet



Image Sensor
1/4" Color Super CMOS



Number of Effective Pixels
640 x 480



Minimum Illumination
0.5 Lux @ F2.0



Lens
4.6mm



Viewing Angle
60°

Microphone
Yes



Audio Range
9ft / 3m



Audio Output
Yes (external speakers required)



2-Way Communication
Yes



Compression Format
MPEG4



LAN Connection
Yes



Network Interface
LAN: 10Base-T Ethernet, 100Base-TX Fast Ethernet



Wireless LAN:
802.11b/g



Network Protocol
HTTP, FTP, TCP/IP, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, PPPoE, UPnP, RTP, RTSP, RTCP



Remote Operation
Yes



Night Vision Distance
Up to 32ft / 10m



IR Cut Filter
No



Number of Infra-Red LEDs
7



Infra-Red Wavelength
850nm



Infra-Red LED Life
10,000 hours

Operating Power
DC 12V



Operating Temperature
32°F ~ 113°F / 0°C ~ 45°C



Body Construction
Heavy Duty Plastic

CPU
Pentium III 800Mhz or above



RAM
512MB or above



Resolution
800x600 or above



Browser Requirements
Internet Explorer 6.0 or above
Mozilla Firefox 2.00 or above
Apple Safari 2 or above



Operating System
Windows 2000 / XP / Vista
