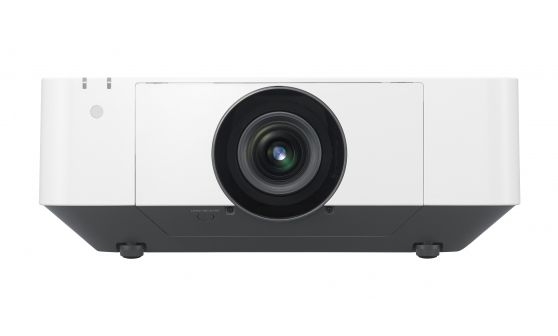

Sony VPLFHZ60 Laser Light Source Projector - 5000 Lumens
WUXGA (1920 x 1200 x 3) Pixels, 3 LCD System, 10000:1 Contrast Ratio, DVI-D, HDMI, LAN

Product May Vary From Image
Part No:
448877
Brand:
Manuf No:
VPLFHZ60
Ship Weight:
19.92 KG  Details
Usually Ships:
No Longer Available   More info
Product Description

Sony VPLFHZ60 5,000 Lumens WUXGA Laser Light Source Projector



Overview

Bright, beautiful images with low running costs, minimal maintenance and flexible installation

The VPL-FHZ60 laser projector is ideal for a wide range of business, education and entertainment applications. The powerful Z-Phosphor laser light source is teamed with Sony's advanced BrightEra 3LCD projection engine to deliver extremely bright, detail-packed WUXGA resolution images with generous 5000 lumens brightness and rich, stable colours. Constant Bright Maintains the same brightness throughout the 20,000 hours recommended life span.

The laser light source allows up to 20,000 hours* of virtually zero maintenance operation without the worry of sudden lamp failures. A new automated filter system cuts the hassle of regular dust cleaning. Near-zero maintenance needs are complemented by a range of energy-saving feature, significantly driving down total lifetime ownership costs.

Offering a stylish new blend-in design, tidy cable management and low fan noise, the VPL-FHZ60 fits smoothly into almost any environment from academic institutions, corporate, medical training and public sector organisations to visitor attractions and retail spaces. Seamlessly blend images from multiple projectors to create super-sized displays, or project accurately proportioned images onto angled or curved surfaces. Mount the projector at any angle, even on its side or upside down. Set-up's easier than ever with a friendly new installation menu.

Features

Very high image quality with Sony's advanced BrightEra 3LCD projection engine and Z-Phosphor laser light source

The Z-Phosphor laser light source is coupled with Sony's acclaimed BrightEra 3LCD projection engine to ensure high 5000 lumen image brightness with vivid, natural colour reproduction.

Crisp, detail-packed WUXGA resolution images

See the finest detail in PC presentations, videos or multimedia signage with WUXGA (1920 x 1200) 16:10 resolution.

Hassle-free automatic filter cleaning

Focus on great-looking images instead of arduous maintenance tasks: new automated filter cleaning system removes dust every 100 hours.

Energy saving features

Reduce running costs even further with convenient energy-saving features: Picture Mute and Auto Dimming.

360° free-angle installation capability

Enjoy greater installation flexibility: position the projector freely at any angle or its side or even upside down.

Included powered standard zoom lens plus wide choice of lens options

Installation flexibility is increased by a wide range of compatible lens options to suit virtually any size of room and throw requirements. New quick-release bayonet mount simpifies quick lens exchange.

Create super-size displays with Edge Blending

Seamlessly join accurately colour-matched images from multiple projectors, simplifying creation of stunning super-size displays for corporate and education.

Picture Mode

New Picture Mode ensures great-looking pictures in any presentation conditions. Select Standard, Dynamic, Brightness Priority or Multi Screen mode for optimised image quality, with any source and in every room.

Project Side by Side

Project images from two inputs at the same time: ideal for applications such as video conferencing and medical training where two images need to be seen simultaneously.

Constant Brightness

Constant Bright Maintains the same brightness throughout the 20,000 hours recommended life span.

Advanced picture refinement technologies

Picture quality is boosted by advanced processing featured on Sony home cinema projectors. Reality Creation uses a powerful pattern-matching database to optimise every pixel. Contrast Enhancer actively analyses and refines dark and light image areas for sparkling highlights and rich, deep blacks.

Up to 20,000 hours* operation with virtually no maintenance

The advanced laser light source offers up to 20,000 hours* operation without lamp exchange, reducing lifetime running costs compared with traditional projectors.

*Actual hours may vary depending on usage environment.

Save time with every presentation

Quick power On/Off dramatically cuts warm-up time after switch-on before you can start presenting at full brightness.

Powered Wide Lens Shift

Generous lens shift adjustments give more flexibility for positioning the projector where you need it: close to ceilings or even horizontally offset.

Supports HDBaseT

Simpler, more cost-effective installation and connectivity with digital transmission of HD video, audio and networking/control over a single Ethernet cable.

Project onto non-flat surfaces with Image Warping

Easily correct image geometry for natural-looking projections even on convex or concave surfaces. Corner and edge correction can be easily adjusted with the supplied remote and on-screen menu.

Slim, attractive new blend-in design

The slim, stylish case design features a flat top surface that blends in discreetly when the projector is ceiling mounted. The clean appearance is accentuated by a new terminal cover that reduces cable clutter.

Simple set-up with friendly new Installation menu

Easily adjust projector settings with remote commander, including warping and edge blending.

Specifications

Display system

Display system

3 LCD system

Display device

Size of effective display area

0.76 (19 mm) x 3 BrightEra LCD Panel, Aspect ratio: 16:10

Number of pixels

6,912,000 (1920 x 1200 x 3) pixels

Projection lens

Focus

Powered

Zoom - Powered/Manual

Powered

Zoom - Ratio

Approx. x 1.6

Throw ratio

1.39:1 to 2.23:1

Lens shift - Powered/Manual

Powered

Lens shift - Range Vertical

-5%, +60%

Lens shift - Range Horizontal

+/- 32%

Light source

Type

Laser diode

Filter cleaning / replacement cycle (Max.)

Filter cleaning / replacement cycle (Max.)

20000 H (service maintenance)

Screen size

Screen size

40'' to 600'' (1.02 m to 15.24 m) (measured diagonally)

Light output

Mode: High

5000 lm

Mode: Standard

3500 lm

Color light output

Mode: High

5000 lm

Mode: Standard

3500 lm

Contrast ratio (full white / full black)

Contrast ratio (full white / full black)

10000:1

Displayable scanning frequency

Horizontal

15 kHz to 92 kHz

Vertical

48 Hz to 92 Hz

Display resolution

Computer signal input

Maximum display resolution: 1920 x 1200 dots *4

Video signal input

NTSC, PAL, SECAM, 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i

The following items are available for digital signal (HDMI input) only; 1080/60P, 1080/50p, 1080/24p

Color system

Color system

NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N, PAL60

Keystone correction (Max.)

Horizontal

+/- 30 degrees

Vertical

+/- 30 degrees

INPUT OUTPUT (Computer/Video/Control)

INPUT A

RGB / Y PB PR input connector:Mini D-sub 15 pin (female)

Audio input connector: Stereo mini jack

INPUT B

DVI input connector: DVI-D 24-pin (single link), HDCP support

Audio input connector: Shared with input A

INPUT C

HDMI input connector: HDMI 19-pin, HDCP support

Audio input connector: HDMI audio support

INPUT D

HDBaseT interface connector: RJ45, 4 play (Video, Audio, LAN, Control)

VIDEO IN

Video input connector: BNC

Audio input connector: Shared with input A

OUTPUT A

Monitor output for Input A Connector: Mini D-sub 15-pin (female)

Audio output connector: Stereo mini jack

OUTPUT B

Monitor output for Input B Connector: DVI-D 24-pin (single link), HDCP not supported

Audio output, Monitor out connector: Stereo mini jack

REMOTE

D-sub 9-pin (male) / RS232C

LAN

RJ45, 10BASE-T/100BASE-TX

IR (Control S)

Stereo mini jack, Plug in power DC5V

Acoustic Noise

Lamp mode: Standard

28 dB

Operating temperature / Operating humidity

Operating temperature / Operating humidity

0C to 40C (32F to 104F) / 20% to 80% (no condensation)

Storage temperature / Storage humidity

Storage temperature / Storage humidity

-10C to +60C (14F to +140F) / 20% to 80% (no condensation)

Power requirements

Power requirements

AC 100 V to 240 V, 4.5 A to 1.9 A, 50 Hz / 60 Hz

Power consumption

AC 100 V to 120 V

Mode: High: 420 W

AC 220 V to 240 V

Mode: High: 408 W

Power Consumption (Standby Mode)

AC 100 V to 120 V

0.5W (when Standby mode is set to Low)

AC 220 V to 240 V

0.5W (when Standby mode is set to Low)

Power Consumption (Networked Standby Mode)

AC 100 V to 120 V

15.0 W (LAN)

15.0 W (HDBaseT)

15.0 W (All Terminals and Networks Connected) (when "Standby Mode" is set to "Standard")

AC 220 V to 240 V

13.3 W (LAN)

13.3 W (HDBaseT)

13.3 W (All Terminals and Networks Connected) (when "Standby Mode" is set to "Standard")

Standby Mode / Networked Standby Mode Activated

Standby Mode / Networked Standby Mode Activated

Approx. 10 Minutes

Heat dissipation

AC 100 V to 120 V

1433 BTU/h

AC 220 V to 240 V

1393 BTU/h

Dimensions (W x H x D)

Dimensions (W x H x D) (without protrusions)

460 x 169 x 515 mm

18 1/8 x 6 21/32 x 20 9/32 inches

Mass

Mass

16 kg (34 lb)

Supplied accessories

Remote commander

RM-PJ27

Optional accessories

Projection Lens

VPLL-3007 / Z3009 / Z3024 / Z3032




Product Warranty


12 Month Return To Base
