NEC SB-01HC Internal HD-SDI Input
Card
Overview
Enjoy seamless integration within your NEC display or
projector
- Enjoy seamless integration within your NEC display or projector. Achieve
broadcast-grade video with the SB-01HC internal card, which provides an
SD/HD-SDI input in a small package.
- Please note, the OPS device adaptor (SB-02AM) is required for select NEC V
Series, P Series, and X Series products.
Internal HD-SD/SDI card for NEC large-screen LCD displays and
installation projectors
Enjoy seamless integration within your NEC display or
projector
The Open Pluggable Specification (OPS) is the industrys first standardized
input, which increases flexibility for the broadcast industry or digital signage

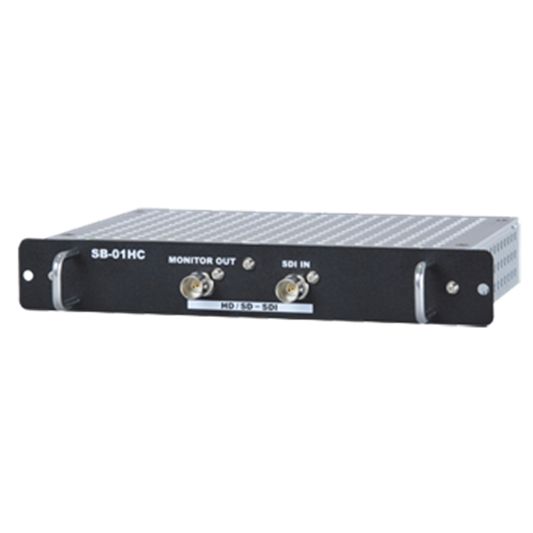

applications. Achieve broadcast-grade video with the SB-01HC internal card,
which provides an SD/HD-SDI input in a small package. This option board provides
SD/HD-SDI input and loopthrough in order to daisy chain the signal to other
displays or projectors.
|
SD/HD-SDI Video
Input |
|
|
SMPTE272M @ 270Mb/s
SMPTE299M to 1485Mb/s |
1x via BNC
Connector |
|
Video
Processing |
24-bit,
4:4:4 |
|
|
|
SD/HD-SDI Video
Output A |
|
|
Active Looping
Signal |
Equalized &
Relocked |
|
|
|
Audio
Extraction |
|
|
Input Format Number of
Channels |
SD-SDI or HD-SDI 1
stereo channel |
|
Sample
Rate |
32k Hz, 44.1 kHz, 48
kHz |
|
Input
Signal |
Digital Video Output
Signal |
|
480i SD-SDI @ 60
Hz |
1440 x 480 interlace
DVI-D or HDMI @ 60HzNumber of Channels |
|
576i SD-SDI @ 50
Hz |
1440 x 576 DVI-D or
HDMI @ 50Hz |
|
720p HD-SDI @ 24Hz,
25Hz, 30Hz, 50Hz, 60Hz |
720-line progressive
DVI-D or HDMI @ same frame rate as input |
|
1080p HD-SDI @ 24Hz,
25Hz, 30Hz, sf24 |
1080-line progressive
DVI-D or HDMI @ same frame rate as
input |
|
Operating
Temperature |
41 - 95DegreeF / 5 - 35
DegreeC |
|
Humidity |
10% -
80% |
|
Storage
Temperature |
32 - 140 DegreeF / 0 -
60DegreeC |
|
Net Dimensions
(WxHxD) |
7.9 x 5.7 x 1.2 in. /
200 x 145 x 30mm |
|
Net Weight
|
0.75 lbs. / 0.34
kg |
|
Regulatory Approvals
|
USA: FCC Part15 Class
B, Canada: ICES-003 Class B |
|
Accessories |
Installation Guide, Ferrite Core
x2 |
|
Limited
Warranty |
3 years, parts and
labor |
NEC Displays Supported
- NEC V Series
- NEC P Series
- NEC X Series
NEC Projectors Supported
- NEC PX Series
- NEC PH Series
