Overview
The Tone Generator & Probe can be used to verify cable continuity,
identify wiring faults, determine line polarity and voltage in network (Cat-5
and Coax) and modular telephone lines.
Details
-

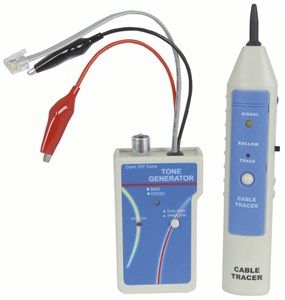

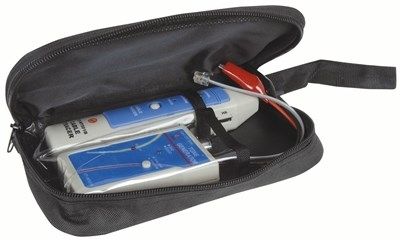

The Tone Generator is a highly
practical network installation and troubleshooting tool, which features a
single or multi-tone signal, two test leads and a 4-conductor modular
cable.
-
The signal emitted by the Tone
Generator can be easily traced by the Probe, even when cables are in a bundle
or hidden in a mess of punch down blocks or wall plates.
-
The Tone Generator & Probe can
be used to verify cable continuity, identify wiring faults, determine line
polarity and voltage in network (Cat-5 and Coax) and modular telephone
lines.
Features
Probe
Features:
-
Special inductive plastic tip,
which prevents accidental shorts (possible with copper-tip tracers) when using
near high voltage devices
-
Traces and identifies wires or
cable in a bundle or group without damaging cable insulation
-
Adjustable volume level for
various work environments
-
Both amplifier and LED for loud or
dark work environments
-
Can work with any existing tone
generator in the market
-
Power switch to prevent battery
drain
Tone Generator
Features:
-
2-position switch for single tone
or multi-tone signal
-
Toggle switch to control 3 modes
of operation
-
3-color LED indicator display for
telephone line polarity, continuity and voltage testing
-
Black and red testing leads and
standard 4-pin modular cable for individual wire tests or modular jack
tests
-
Convenient compact size and simple
application
Specifications
- Power Source:
- Probe:
1 x DC 9V battery
- Tone
Generator: 1 x DC 9V
battery
- Power Consumption:
- Probe:
90mA
- Tone
Generator: 4mA
- Environment:
- Operating
Temp. 0C ~ 50C
- Storage
Temp. -10C ~ 60C
- Humidity:
0 to 95% (non-condensing)
- Dimension:
256 x 36 x 37mm
- Safety
Approve: CE
- Approx.
Weight:
225g
