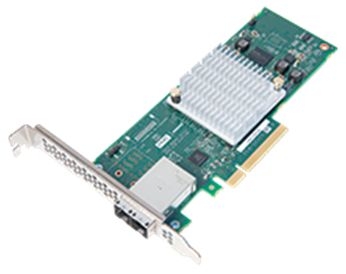

Microsemi Adaptec HBA 1000 Host Bus Adapters
(2288500-R)
Overview
The Microsemi Adaptec HBA 1000 is
the first product in the new Microsemi Adaptec Smart Storage Solutions family
that is being forged through the convergence of Microsemi SAS/SATA protocol
controller expertise, 30+ years of Adaptec board innovation, and acquired Smart
IP technology.
Resiliency
and Efficiency
The new unified Smart storage stack delivers
resiliency by combining the best of the eighth-generation Adaptec ARC software
and drivers with the acquired Smart IP of the most broadly deployed server
storage stack. Combined with Microsemi's SSCi (16x12G/8x12G) SmartIO SAS/SATA
protocol controller, the HBA 1000 Series provides a robust and stable solution
that can handle the toughest system workloads and configurations. It is fully
compatible with all existing and future Adaptec HBA, RAID and Expander
solutions.
Available in five different 12Gb/s
configurations with up to 16 internal or 16 external SAS/SATA ports, the HBA
1000 Series offers the highest port count in a low-profile, MD2 form factor and
60% less power consumption than competing HBAs.
Ease
of Use
The HBA 1000 with its broad operating system support and
ecosystem compatibility is easy to implement, and easy to scale when directly
connecting up to 16 storage devices or scaling out with full compatibility using
expanders. The unified management tools and drivers across the Microsemi Adaptec
HBA, RAID and expander solutions enables customer easy manageability across the
entire product line.
Maximum
Performance
The HBA 1000 Series provides the highest levels of
storage performance and scalability for next generation data centers by
connecting numerous state of the art 12Gb/s storage devices that can aggregate
their performance to the limits of the PCIe Gen 3 host bus at 6600 MB/s and
achieve over 1.3 million IOPs with minimal overhead or additional
latency.
Specifications
Benefits
Ideal for high performing I/O
solutions supporting SAS/SATA HDDs and SSDs requiring maximum
connectivity.
Key Differentiators
- Low-profile, MD2, form
factor for up to 16 native SAS/SATA ports
- Lowest power, highest
density solution
- Unified management tools
with Adaptec RAID adapter family
Customer Needs
I/O connectivity offers the
highest bandwidth, lowest latency and highest I/O performance paired with
broad operating system support.
Key Features
- Support for up to 256*
SAS/SATA target devices
- Multi-LUN support
- SAS expander support
- TLR
- SATA NCQ
- Hot Plug Drive
- S.M.A.R.T.
- MPIO
- Multi-Initiator
(Host)/Clustering for SAS
- Enclosure
Management
SES-2, SES-3
SFF-8485, SGPIO
SFF-8489, IBPI
- BMC
Support
Management Utilities
Adaptec maxView Storage
Manager
- Web based GUI Management
Utility
- OS Support: Windows,
Linux, VMware
- Remote configuration,
monitoring & notification
- Remote firmware updates
- SMI-S Support
- SMTP
Adaptec
BIOS Configuration Utility (CTRL+A)
- Legacy configuration
utility
- Flashable BIOS
support
Adaptec
uEFI BIOS Configuration Utility
- HII GUI support
- Flashable BIOS
support
ARCCONF
Operating System
- Microsoft Windows
- Red Hat Linux
- SuSE Linux
- CentOS
- Ubuntu Linux
- VMware
ESXi
For a detailed list seeASK Answer ID
17431.
Data Transfer Rate
Bus System Interface
Form Factor
Connector Configuration
- 1000-16i:Four
internal mini SAS HD (SFF-8643)
- 1000-16e:Four
external mini SAS HD (SFF-8644)
- 1000-8i8e:Two
internal mini SAS HD (SFF-8643),
Two (x4) external mini SAS HD (SFF-8644)
- 1000-8i:Two
internal mini SAS HD (SFF-8643)
- 1000-8e:Two
external mini SAS HD (SFF-8644)
Package Contents
Model
1000-16i
- Microsemi Adaptec HBA
1000-16i adapter
- Additional low profile
vented bracket
Model
1000-16e
- Microsemi Adaptec HBA
1000-16e adapter
- Additional low profile
vented bracket
Model
1000-8i8e
- Microsemi Adaptec HBA
1000-8i8e adapter
- Additional low profile
vented bracket
Model
1000-8i
- Microsemi Adaptec HBA
1000-8i adapter
- Additional low profile
vented bracket
Model
1000-8e
- Microsemi Adaptec HBA
1000-8e adapter
- Additional low profile
vented bracket
Physical Size
2.535"H x 6.6"L (64mm x
167mm)
Operating Temperature
0C to 55C (with 200 LFM
airflow)
Note: This Adaptec card contains a powerful processor which
requires adequate airflow to operate reliably. Please install this card only
into server or PC chassis with recommended airflow (200 LFM).
* Ambient
temperature measured 1" away from the processor
Operating Voltage
- 1000-16i:0.3A
@ 3.3V; 0.9A @ 12V
- 1000-16e:0.1A
@ 3.3V; 0.9A @ 12V
- 1000-8i8e:0.1A
@ 3.3V; 1A @ 12V
- 1000-8i:0.3A
@ 3.3V; 0.7A @ 12V
- 1000-8e:0.1A
@ 3.3V; 0.7A @ 12V
Regulatory Certification
CE, FCC, C-tick, VCCI, CNS, KCC,
UL
Mean Time Before Failure
(MTBF)
Typical Power
- 1000-16i:11.8
W
- 1000-16e:11.1
W
- 1000-8i8e:12.3
W
- 1000-8i:9.4
W
- 1000-8e:8.7
W
Warranty
