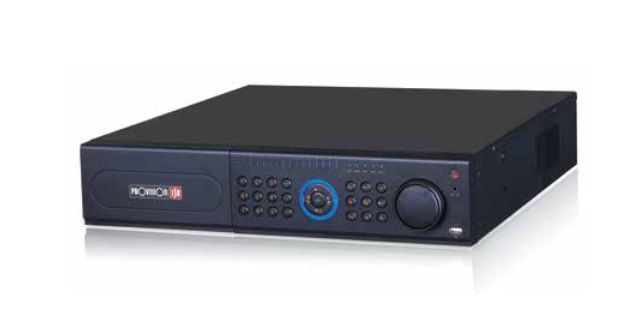

Provision NVR-24600-16P Video Recorder - 24 Channel, 720p Real-Time, Master Stream 1-16/20FPS@1080P, Sub-Stream 1-25/30FPS@CIF, USB2.0, VGA, HDMI, RJ45

Product May Vary From Image
Our Price:
$1,318.70
Quantity:
Part No:
399589
Brand:
Manuf No:
NVR-24600-16P

NVR2460016P
Ship Weight:
2.5 KG  Details
Usually Ships:
1-3 Days   More info
Product Description
NVR-24600-16P (2U)

24 Channel NVR (16Ch PoE)

24CH NVR (16Ch PoE)

Input: 24 Channel (Via Network) + 16 Channel (Via PoE/Network)

Output: HDMI, VGA

2U Case, 8 HDD

Audio In/Out, Alarm In/Out, RS-485

1000Mbps Network

Features

Video:

Input: 24 Channel Support (17 x RJ-45 Ports)
16 Channel PoE / Conventional Connection (16 x RJ-45 / 1 x RJ-45 Network)
24 Channel Conventional Connection (Via 1 RJ-45 Network Port)
Output: VGA, HDMI

Recording:

Real-Time 24CH

Playback:

4 Channels Simultaneously

Audio:

Input: Depend on Camera
Output: 1 Channel (RCA)
Mic In: 1 Channel (RCA)
2 Way audio

Storage:

8 x SATA (Up to 3TB)

USB Port:

2 x USB2.0

Network:

RJ-45: 1000Mbps

Alarm:

Input: 16 (Dry-Contact)
Output: 4 (Dry-Contact)

PTZ / Keyboard:

2 x RS485
Protocol: Pelco DP/Samsung/Visca

Specifications

Model: NVR-24600-16P (2U)

System

PoE: 16 (RJ-45/Network)
Onvif: Yes
OS: Embedded Linux

Video

Input: 24CH Over Network / 16CH PoE

Standard Output: VGA

Advanced Output: HDMI

Audio

Input: Depend on Camera Stream

Output: 1CH

Two Way Audio: Yes

Recording

Real-Time Recording: 24CH 720P Real-Time

3MP: No

1080P: 480FPS (NTSC)/400FPS (PAL)

960P: No

720P: 720FPS (NTSC)/600FPS (PAL)

960H: No

D1: 720FPS (NTSC)/600FPS (PAL)

CIF: No

Recording Modes: Schedule, Manual, Motion, Sensor

Playback

Playback Channel: 4CH

Search Mode: Time, Event, File Management

Backup

USB: 1 USB 2.0 Port

DVD Burner: Optional

Backup Format: AVI/DAT

Remote Application

Dual Stream: Master Stream 1-16/20FPS@1080P, Sub-Stream 1-25/30FPS@CIF

Browser: IE, Chrome, Safari, Firefox (Mac OS, Windows XP/Vista/7/8)

Master Stream in Network: Yes

CMS: Yes

3G: ProvisionCAM for iPhone/Android Phone Provision HD for iPad/Android Tablet

User Access: 20 Users Online with Professional Autorithy Management

Alarm

Input: 16

Output: 4

Storage

HDD: 8 SATA (3TB)

E-SATA: 2

PTZ

Connection: Yes via Network
Supported Controls: Pan, Tilt, Zoom, Preset, Iris, Focus

RS-485: Yes

Network

Ethernet: 1000 Mbps (RJ-45)
Protocol: TCP/IP, DHCP, DDNS, NTP, SMTP

Other

Dimention: W430 x D450 x H89

IR Controller: Yes

Power Supply: AC110V/220V

Operation Temperature: 0oC~50oC

Product Warranty


1 Year Return to Base
