Camerafarm Surveillance & Security products from Folksafe
Image Product description Price Buy
Folksafe FS-4504SR-II

Folksafe FS-4504SR-II 4-CH Passive Video Balun (Small And Compact), RJ45 And Detachable Terminal Blocks - For UTP CAT5E/6 :: FS-4504SR-II

4-CH Passive Video Balun (Small And Compact), RJ45 And Detachable Terminal Blocks For UTP CAT5E/6


Description

Folksafe: FS-4504SR

4-CH Passive Video Balun

Dimensions: 180*102*33mm ( BNC connector+mounting bracket included)

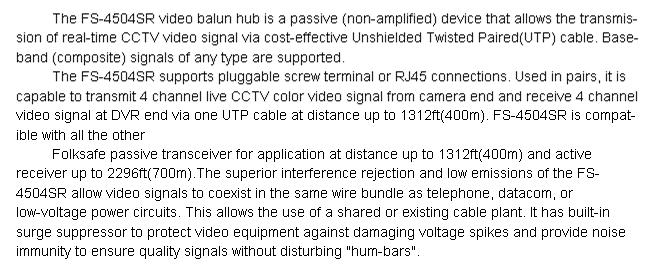

Overview


Wire and Cable Recommendations

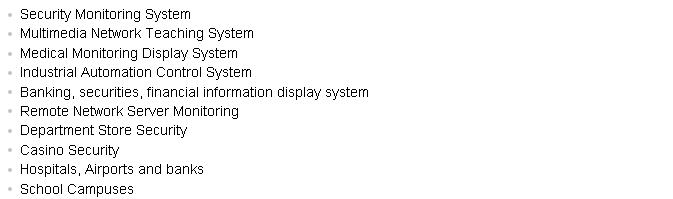

Applications


Features




Specifications

Model FS-4504SR
Product Name 4 Channel Passive Video Transceiver Hub
Applied Devices CCTV cameras, monitors, DVR, switchers, IP encoders, and other CCTV equipment
Video Video Format PAL, NTSC, SECAM
Operating Frequency DC to 5MHz
Max Distance UTP Category 5e (24AWG) Color: 1312ft(400m) B&W: 1968ft(600m)
Common-mode/Differential-mode rejection 15 KHz to 5 MHz 60 dB typ
Impedance Coax, female BNC 75 unbalanced
UTP, screw terminal block or RJ45 100 balanced
Attenuation 1.5 dB typ Max
Wire Type Network Wiring One Unshielded Twisted Pair (for each video signal) 24-16 AWG (0.5-1.31mm)
Category Type 2 or better
Impedance 100 20 ohms
DC Loop Resistance 52 ohms per 1,000ft (18 ohms per 100m)
Differential Capacitance 19 pF/ft max (62 pF/m max)
Power No external power required
Connector Video input/output Female BNC connector
Video output/input pluggable screw terminal block and RJ45 for UTP ( select one connection)
Protection Surge Protection renewable solid state surge protection
Antistatic YES
Video Input 2KV(common mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999)
Video Output 2KV(different mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999)
Mechanical Dimensions(L*W*H) BNC connector & mounting bracket excluded
180*85*32mm
Housing Galvanized
Body Color Black
Net Weight 480g
Environmental Operating Temperature -20 ~ 70 C
Relative Humidity 0~95% (non-condensing)
Storage Temperature -40 ~ 150 C
Link to product page    $23.25
Folksafe FS-4103SR

Folksafe FS-4103SR 1-CH Mini Passive Video Balun with 15cm Mini-Coax Pigtail Lead/Screw Terminal :: FS-4103SR

1-CH Mini Passive Video Balun with 15cm Mini-Coax Pigtail Lead/Screw Terminal

Description

Folksafe: FS-4103SR

  • 1-CH Mini Passive Video Balun with mini-coax pigtail lead
  • Screw terminal connection for UTP cat5e/6 cable
  • Dimensions: 180*16*17mm (L*W*H BNC connector and pigtail included)

Overview


Wire and Cable Recommendations


Applications



Specifications

Model FS-4103SR
Product Name Single Channel Passive Video Transceiver
Applied Devices CCTV cameras, monitors, DVR, switchers, IP encoders, and other CCTV equipment
Video Video Format PAL, NTSC, SECAM
Operating Frequency DC to 5MHz
Max Distance UTP Category 5e (24AWG) Color: 1312ft(400m) B&W: 1968ft(600m)
Common-mode/Differential-mode rejection 15 KHz to 5 MHz 60 dB typ
Impedance Coax, Male BNC 75 unbalanced UTP, Screw terminal 100 balanced
Attenuation 1.5 dB typ Max
Wire Type Network Wiring One Unshielded Twisted Pair (for each video signal) 24-16 AWG (0.5-1.31mm)
Category Type 2 or better
Impedance 100 20 ohms
DC Loop Resistance 52 ohms per 1,000ft (18 ohms per 100m)
Differential Capacitance 19 pF/ft max (62 pF/m max)
Power No external power required
Connector Video input/output Male BNC connector
Video input/output Screw terminal
Protection Surge Protection renewable solid state surge protection
Video Input 2KV(common mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999)
Video Output 2KV(different mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999)
Mechanical Housing ABS engineering plastic
Body Color Black
Dimensions (L*W*H) 42.4*17.8*17.4mm (BNC connector & cable excluded)
Net Weight 40g
Environmental Operating Temperature -20 ~ 70 C
Relative Humidity 0~95% (non-condensing)
Storage Temperature -40 ~ 150 C
Link to product page    $13.05
Folksafe FS-4102SR

Folksafe FS-4102SR 1-CH Mini Passive Video Balun/Screw Terminal :: FS-4102SR

1-CH Mini Passive Video Balun/Screw Terminal

FS-4102SR

Description

Model:FS-4102SR

1-CH Mini Passive Video Balun
Screw terminal connection for UTP cat5e/6 cable
Dimensions: 50*16*17mm


Overview


Wire and cable Recommendations



Applications


Specifications

Model FS-4102SR
Product Name Single Channel Passive Video Transceiver
Applied devices CCTV cameras, monitors, DVR, switchers, IP encoders, and other CCTV equipment
Video Video Format PAL, NTSC, SECAM
Operating Frequency DC to 5MHz
Max Distance UTP Category 5e (24AWG) Color: 1312ft(400m) B&W: 1968ft(600m)
Common-mode/Differential-mode rejection 15 KHz to 5 MHz 60 dB typ
Impedance Coax, Male BNC 75 unbalanced UTP, Screw terminal 100 balanced
Attenuation 1.5 dB typ Max
Wire Type Network Wiring One Unshielded Twisted Pair (for each video signal) 24-16 AWG (0.5-1.31mm)
Category Type 2 or better
Impedance 100 20 ohms
DC Loop Resistance 52 ohms per 1,000ft (18 ohms per 100m)
Differential Capacitance 19 pF/ft max (62 pF/m max)
Power No external power required
Connector Video input/output Male BNC connector
Video input/output Screw terminal
Protection Surge Protection renewable solid state surge protection
Video Input 2KV(common mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999)
Video Output 2KV(different mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999)
Mechanical Housing ABS engineering plastic
Body Color Black
Dimensions(L*W*H) 42.4*17.8*17.4mm (BNC connector excluded)
Net Weight 20g
Environmental Operating Temperature -20 ~ 70 C
Relative Humidity 0~95% (non-condensing)
Storage Temperature -40 ~ 150 C
Link to product page    $13.20
Folksafe FS-4100SR

Folksafe FS-4100SR 1-CH Passive Video Transceiver (Tool-Less Mini Balun) :: FS-4100SR

1-CH Mini Passive Video Balun/ Push Pin Terminal

Folksafe: FS-4100SR

  • 1-CH Mini Passive Video Balun
  • Push pin terminal connection
  • Built-in TVS for surge protection

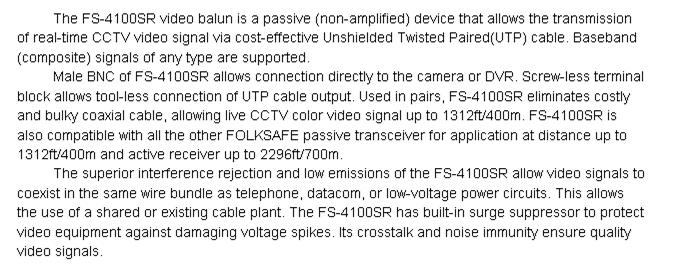

Overview



Wire and Cable Recommendations


Applications


Features



Specifications

Model FS-4100SR
Product Name Single Channel Passive Video Transceiver
Applied Devices CCTV cameras, monitors, DVR, switchers, IP encoders, and other CCTV equipment
Video Video Format PAL, NTSC, SECAM
Operating Frequency DC to 5MHz
Max Distance UTP Category 5e (24AWG) Color: 1312ft(400m) B&W: 1968ft(600m)
Common-mode/Differential-mode rejection 15 KHz to 5 MHz 60 dB typ
Impedance Coax, Male BNC 75 unbalanced
UTP, two push-pins terminal block 100 balanced
Attenuation 1.5 dB typ Max
Wire Type Network Wiring One Unshielded Twisted Pair (for each video signal) 24-16 AWG (0.5-1.31mm)
Category Type 2 or better
Impedance 100 20 ohms
DC Loop Resistance 52 ohms per 1,000ft (18 ohms per 100m)
Differential Capacitance 19 pF/ft max (62 pF/m max)
Power No external power required
Connector Video input/output Male BNC connector
Video input/output Tool-less push-pin terminal block
Protection Surge Protection renewable solid state surge protection
Video Input 2KV(common mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999)
Video Output 2KV(different mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999)
Mechanical Housing ABS engineering plastic
Body Color Black
Dimensions(L*W*H) 35.1*16.7*18.7mm (BNC connector excluded)
Net Weight 20g
Environmental Operating Temperature -20 ~ 70 C
Relative Humidity 0~95% (non-condensing)
Storage Temperature -40 ~ 150 C
Link to product page    $13.20
