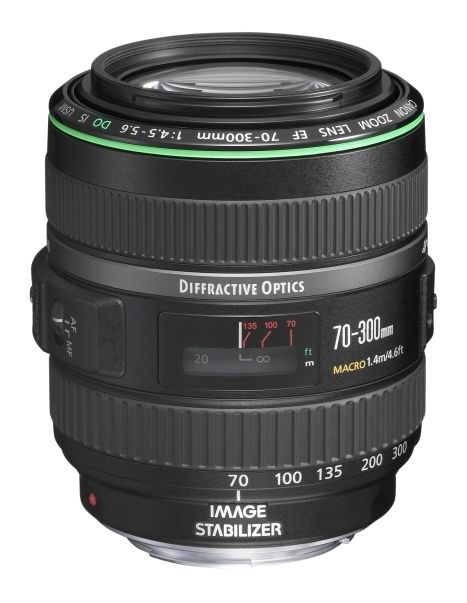

Canon EF 70-300mm F4.5-5.6 DO IS USM Telephoto Zoom Lens

Product May Vary From Image
Part No:
87204
Brand:
Canon  Web Site
Manuf No:
EF70-300DO

EF70300DO
Ship Weight:
1.5 KG  Details
Usually Ships:
No Longer Available   More info
Product Description
EF 70-300mm F4.5-5.6 DO IS USM
  • High magnification 70-300mm zoom lens with Image Stabilizer
  • Image Stabilizer gives equivalent effect of a shutter speed three stops faster during hand-held shooting
  • Three-layer type DO (Diffractive Optics) lens optimised for zoom lens optics
  • DO design offering more compact size than other zoom lenses with equivalent focal lengths and aperture
  • Optimised lens coating to minimise ghosting and flare
  • Zoom ring locking mechanism that locks the lens at its shortest total length
  • Circular aperture producing attractive background defocus
  • Rear focusing, ring USM and new AF algorithms for fast and quiet autofocusing
  • Manual focusing enabled even during the AF mode
  • Only lead-free glass used in lens

Optional Accessories
- Lens hood ET-65B (included)
- Lens cap E-58U
- Lens case LP1116 soft case (included)
- Dust cap E

Focal Length & Max. Aperture:

70-300mm 1:4.5-5.6

Filter Diameter:

58mm

Magnification with Extension Tube EF12 II:

0.26x - 0.04x (at tele)

Magnification with Extension Tube EF25 II:

0.35x - 0.09x (at tele)

Diagonal Angle of View:

34 - 8 15' (43.2mm)

Horizontal Angle of View:

29 - 6 50' (36mm)

Lens construction:

18 elements in 12 groups

Minimum aperture:

f/32-38 (f/32-40 for cameras featuring 1/3-stop increments also)

No. of aperture blades:

6 (circular aperture)

Closest focusing distance (m):

1.4m

Focus drive:

Ring USM

Dimensions:

82.4mm dia. x 99.9mm (max. length 159.1mm)

Weight:

720g

Product Warranty


1 Year Return to Base
