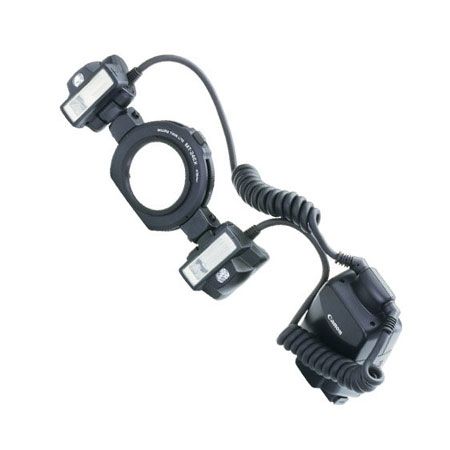

The MT-24EX mounting ring can be attached directly to the front of the macro lens and has a forward tilting control unit. As the control unit will not hit the flash, even when the mounting ring is rotated, the design makes the MT-24EX ideal for use with any of 5 Canon EF macro lenses.
The flash heads are fitted to the rotating mounting ring and can be individually rotated both horizontally and vertically for maximum flexibility and control.As well as this it is possible to detach the flash heads from the mounting ring further expanding the range of possible lighting setups.
The MT-24EX is a highly adaptable lighting system for all kinds of close-up and creative photography.
HIGHLY FLEXIBLE- High power output offering a maximum guide number of 22 when shooting with both flash heads or guide number of 24 when shooting with a single flash head (ISO 100, metres)
- Mounting ring can be rotated 50 degrees upwards or 30 degrees downwards - the control unit is designed to not interfere with the mounting ring with smaller Canon macro lenses
- Individual flash heads can be tilted vertically by 45 degrees upwards or downwards as well as horizontally by 60 degrees inwards or 30 degrees outwards for total flexibility
- Flash heads can also be removed from the mounting ring for advanced lighting set-ups
E-TTL CONTROL- Evaluative through-the-lens autoflash control balances natural light with flash to deliver natural looking photographs
- E -TTL features include high-speed FP sync mode, Flash Exposure (FE) Lock, flash exposure compensation and flash exposure bracketing for complete photographic control
- Flash ratio control1 possible that allows flash output to be controlled between each flash head - control is possible in 13 steps of stop increments from 8:1 ratio through to 1:8 ratio
- Wireless flash control allowing multiple Speedlites to be controlled by the MT-24EX - up to 3 groups can be controlled when used with EOS-1D, EOS D30, EOS-1v, EOS 3 and EOS 30/33
ADVANCED FEATURES- Ideal for use on any of 5 Canon EF macro lenses including the MP-E65mm f/2.8 1-5X
- Built in modelling light enabled by the depth of field preview button or shutter button
- Nine Custom Functions (CF) that enables the MR-24EX to be customised to the user
- Compatible with external power packs for faster recycle time
- Powered by four AA-size batteries (alkaline, lithium, Ni-Cd or Ni-MH)
1 Advanced E-TTL operation includes flash ratio control and 3 wireless slave groups, EOS models that support full advanced E-TTL operation are EOS-1D, EOS D30, EOS-1v, EOS 3 and EOS 30/33
|
Type:
|
Macro photography Speedlite with twin flash heads with E-TTL/TTL autoflash control.
|
|
Configuration:
|
Control unit (with LCD), connecting cord, flash heads (A,B) and mounting ring.
|
|
Compatible Cameras:
|
All Canon EOS cameras (flash exposure system differs depending on the model).
|
|
Guide No. (ISO100,in metres) Zoom/Guide:
|
22 with twin flash heads, 24 (with single flash head).
|
|
Compatible Lenses:
|
|
COMPACT MACRO :
|
EF 50mm f/2.5
|
|
MACRO :
|
EF 100mm f/2.8
|
|
MACRO USM :
|
EF 100mm f/2.8
|
|
MACRO USM:
|
EF 180mm f/3.5L (requires adapter 72C)
|
|
MACRO LENS :
|
MP-E 65mm f/2.8 1-5X.
|
|
Bounce Flash:
|
Applicable to a single flash head oriented vertically on a horizontal plane:
|
|
Vertical:
|
45 degrees upwards and downwards
|
|
Horizontal :
|
60 degrees inwards, 30 degrees outwards
|
|
Mounting Ring:
|
50 degrees upwards, 30 degrees downwards
|
|
Flash Coverage:
|
A: Approx. 70 degrees, B: Approx. 53 degrees
|
|
Exposure Control Modes:
|
ETTL/TTL.
|
|
Flash Range :
|
(at ISO100 at f/2.8)
|
|
Normal flash:
|
approx. 20mm-7.9m (twin).
|
|
High speed sync:
|
approx. 20mm - 8.6m (twin).
|
|
Custom Functions:
|
9
|
|
Power Switch:
|
ON/OFF sliding main switch. SE mode provided.
|
|
Power Sources:
|
Four AA alkaline/NiCd/NiMH batteries.
|
|
Dimensions :
|
(WxHxD) mm
|
|
Control unit:
|
74 x 125.9 x 97.4 mm
|
|
Flash head :
|
235 x 90.4 x 49 mm
|
