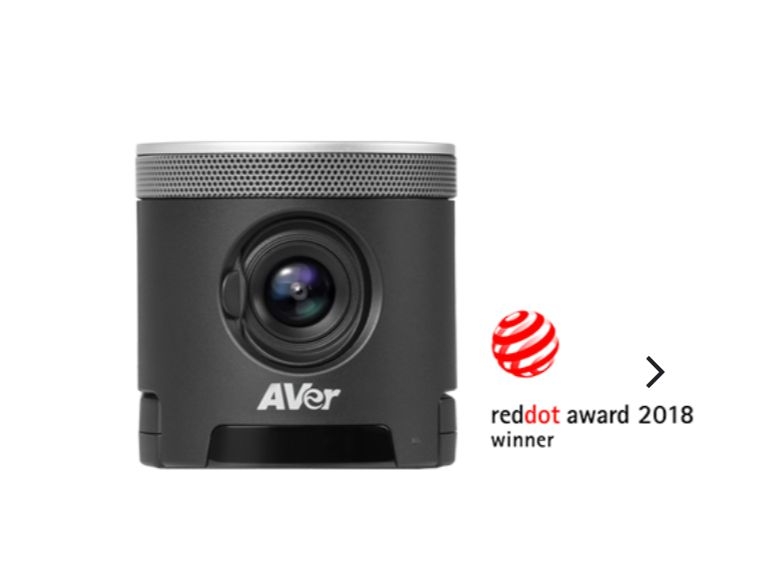

Aver CAM340 Industry Leading Professional Ultra HD 4K Huddle Room
Collaboration USB Cameras
Overview
Meet the CAM340 - the next generation of intelligent camera that gives you
the freedom to express yourself and collaborate anywhere. Unbox, unfold, and
connect to your computer and instantly start a next generation video
communication experience for huddle and small conference rooms. The CAM340 is
compatible with all of your favorite applications; connecting to virtually any
desktop or laptop, via a single USB cable.
Features
Cutting Edge 4K Ultra HD
The CAM340 uses a Sony high quality sensor and multi-lens glass to provide
you the sharpest video you can find. The CAM340s advanced image processing
engine allows for natural, vividly colored details to be displayed even under
challenging lighting conditions and very low latency.
94 Wide Angle, No Distortion!
Fit everyone into frame! The high quality multi-glass lens with deep focus,
fast-F stop, and super high resolution allow for everyone at the table and
whiteboard to be in perfect focus all at the same time, with minimal
distortion.
Pan, Tilt, and Zoom Like 4X Optical Zoom
Camera
With our Ultra 4K CAM340 you can zoom in up to 4X* as if it was a traditional
optical camera. Zoom in and move around, no moving parts, and no quality lost as
with typical digital zoom, because this is 4K.
Tricky Light Conditions, No Worry!
No matter if you are in low or bright light, natural or fluorescent, or have
multiple types of lighting AVers CAM340 white balance and exposure will provide
you with accurate color to its fullest.
Easy Plug-and-Play For Any App
Just plug in the USB cable and go, no drivers to install, no power cable
needed. Have the freedom to use the tools of your trade and as long as you have
a USB3.0 port, youre good to go!
Specifications
Package contents
- USB3.0 4K camera
- Power adapter (for USB 2.0 usage)
- USB3.0 type-C to type-A (6ft) cable
- USB3.0 type-A to type-C adapter
- Quick guide
Camera
- Sensor: 1/2.5" Sony Exmor R 4K CMOS sensor
- Frame rate: 4K 25fps; 1080p, 720p, 960x540, 848x480, 640x480, 640x360,
424x240, 320x240, 320x180 at 60, 30, 15 fps
- Lens iris, focus, zoom: fixed
- AE, white balance: auto, manual override by PTZApp
- Lens focal length: 3.37 mm +/- 5%
- Lens F#: 2.8
- Field of view: diagonal 94, horizontal 85, vertical 55
- S/N ratio: > 50dB
- Minimal illumination: 1.4 lx (50 IRE, F2.8, shutter 1/30)
- 2D noise reduction
- Back light compensation
- Minimum working distance: 80cm
- Zoom, pan and tilt movement
- Zoom: up to 4X leveraging 4K sensor (not available in 4K or 60
fps)
- Pan and tilt: when zoom in leveraging 4K sensor
Microphone
- 1 uni-directional microphones
- Frequency response: 100~12K Hz
- Sensitivity: -37dB
Connectors
- USB type-C connector
- DC jack for power adapter (for USB2.0 connection)
- 3.5mm audio jack for line output
- Reset button
Video format
USB
- 2.0, 3.0, type-C
- UVC (USB Video Class) 1.1
- UAC (USB Audio Class) 1.0
Control
- UVC
- PTZApp
- Optional IR remote control (compatible with CAM520/VC520 remote
control)
Security and mount
- Built-in TV mount (above TV, up to 46mm deep)
- Kensington slot
- 1/4" tripod mounting screw
Other features
- Privacy shutter door
- Infra-red receiver supports optional CAM520/VC520 remote
control
System requirement
- Windows 7/8/8.1/10
- Google Chromebook version 29.0.1547.70 Platform 4319.79.0
- Mac OS X 10.7 or higher
Hardware spec
- 2.4GHz Intel Core 2 Duo processor
- 2GB RAM or more
- 4K or 1080p 60fps require higher system configuration
- USB 2.0 port and above (USB 3.0 required for 4K or
60fps)
PTZApp
- Free download for Windows
- Firmware field upgrade
- Advance device setting and diagnostic
Power adaptor
- AC 100V ~240V, 50/60Hz
- Consumption: EIAJ 5V, 2A
Environmental data
- Operation temperature: 0 ~40C
- Operation humidity: 20% ~80%
- Storage temperature: -20 ~60C
- Storage humidity: 20% ~80%
Dimension & package
- Package dimensions: 138 x 138 x 149mm
- Package weight: 0.622kg
- Camera (folded): 60 x 60 x 75mm
- Camera weight: 0.251kg
Optional accessories
- Wall mount
- Remote control
Compatible applications
- Skype, Skype for Business, Zoom, BlueJeans, FaceTime, Cisco Webex, Google
Hangouts, GoToMeeting, V-CUBE, Adobe Connect, Vidyo, Fuze, WebRTC, Cisco
Jabber, Youtube, CyberLink U Meeting
Warranty
- Camera: 3+2 year
- Accessories: 1-year
