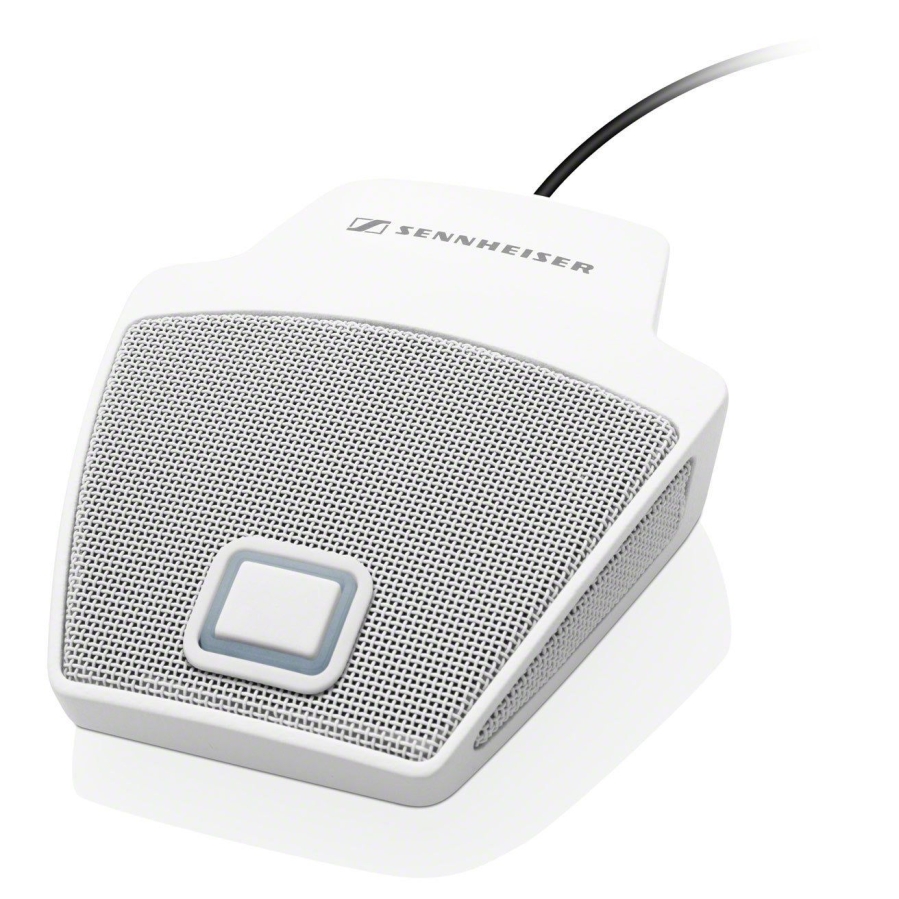

Sennheiser MEB 114-S TC W White
Overview
The sturdy boundary layer microphone MEB 114-S TC is the perfect on-table
microphone solution for the TeamConnect Audio Conferencing System. The fixed
cable allows a simple and direct connection to the TeamConnect system via SL Mic
Hub 1. The integrated mute button with bi-color status LED controls the mute
function of the whole system and gives a clear visual status feedback. Thanks to
its rugged housing and its high-quality microphone capsule the MEB 114-S TC
ensures the best speech intelligibility.
Features
- Award winning design
- Easy installation with TeamConnect specific cable
- Optimized for speech
- Sturdy housing
- Fixed cable
- Made in Germany
What's in the box?
- 1 boundary microphone with 3m fixed cable
- Leaflet
Specifications
Dimensions |
85 x 100 x 25
mm |
Connector |
Terminal block
5-pin |
Frequency
response |
40 Hz 20
kHz |
Max. sound pressure
level |
140
dB |
Transducer
principle |
pre-polarized condenser
microphone |
Weight |
533
g |
Pick-up
pattern |
cardioid |
Nominal
impedance |
200 (at 1
kHz) |
Phantom
powering |
P 24 P
48 |
Operating
temperature |
-10 C +50
C |
Equivalent noise
level |
29 dB
(A) |
Equivalent noise
level weighted as per CCIR 468-3 |
39 dB
(CCIR) |
Current
consumption |
5,3
mA |
Acoustics |
boundary layer
microphone |
Dynamic
range |
111 dB
(A) |
Sensitivity |
10
mV/Pa |
