Generic 4 Channel RC Relay Board

Product May Vary From Image
Part No:
444781
Brand:
Generic
Manuf No:
LR8857
Ship Weight:
0.5 KG  Details
Usually Ships:
No Longer Available   More info
Product Description

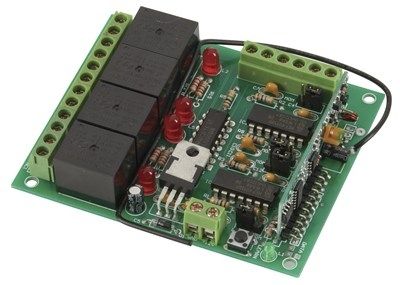

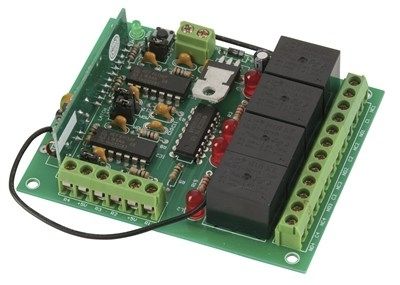

Add remote control functions to a new project or existing installation with these handy remote control relay boards. Each output relay is controlled by a separate button on the key fob controller. Each channel can be set to momentary or latching mode allowing you to customise the setup to suit your application. Operating on the robust 433MHz band the key fob remotes work over distances up to 40m and feature rolling code transmitting for added security.

Features:
Selectable momentary or latching mode for each channel
Relay contact rating: 30VDC 10A max / 250VAC 10A max

Specifications

Length : 90.0mm
Width : 73.0mm
Height : 20.0mm
Power Supply Voltage : 12.0V
Current Draw : 80.0mA
Type of Remote : RF
Number of Buttons : 4.0
Panic Button : false
Learning Function : true
Remote Frequency : 433.0Hz
Range : 40m



Product Warranty


1 Year Return to Base
