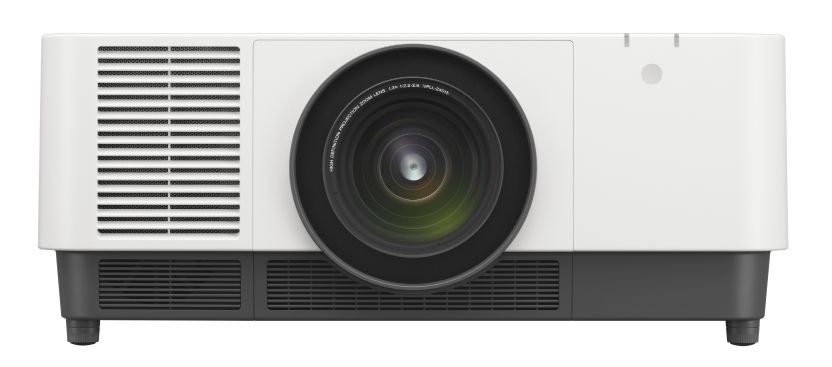

Display
system |
3
LCD system |
|
|
Display
device |
Size
of effective display area |
|
1”
x 3 BrightEra LCD Panel, Aspect ratio: 16:10 |
Number
of pixels |
6,912,000
(1920 x 1200 x 3) pixels |
Aspect
ratio |
16:10 |
Resolution |
WUXGA
(1920 x 1200 pixels) |
|
|
Projection
lens |
|
Focus |
Powered/Manual(Depend
on lens) |
Zoom
- Powered/Manual |
Powered/Manual(Depend
on lens) |
Zoom
- Ratio |
Depend
on Lens |
Throw
ratio |
Depend
on Lens |
Lens
shift - Powered/Manual |
Powered |
Lens
shift - Range Vertical/Horizontal |
Range
Vertical: Depend on Lens |
|
Range
Horizontal: Depend on Lens |
|
|
Light
source |
|
Type |
Laser
diode |
Filter
replacement cycle (Max.) |
10,000
H |
Screen
size |
Depend
on Lens |
|
|
Light
output *1 |
|
Light
output mode: Standard |
12,000lm |
Light
output mode: Middle |
10,000lm |
|
|
Colour
light output *1 |
|
Light
output mode: Standard |
12,000lm |
Light
output mode: Middle |
10,000lm |
|
|
Colour
space |
sRGB
100% (Picture mode: sRGB) |
|
|
Displayable
scanning frequency |
|
Horizontal |
15
kHz to 92 kHz |
Vertical |
48
Hz to 92 Hz |
|
|
Display
resolution |
|
Computer
signal input |
Maximum
display resolution: 1920 x 1200 dots |
Video
signal input |
480/60i,
576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i,
1080/50i |
|
The
following items are available for digital signal only; 1080/60p, 1080/50p,
1080/24p, 1080/30p *3 |
|
|
Keystone
correction (Max.) |
|
Horizontal |
+/-
30 degrees |
Vertical |
+/-
30 degrees |
|
|
INPUT
OUTPUT (Computer/Video/Control) |
|
INPUT
A |
RGB
/ Y PB PR input connector: 5 BNC (female) |
INPUT
B |
RGB
input connector: Mini D-sub 15-pin (female) |
INPUT
C |
DVI
input connector: DVI-D 24-pin (single link), HDCP
support |
|
HDCP:
v1.4 |
INPUT
D |
HDMI
input connector: HDMI 19-pin, HDCP support |
|
HDCP:
v1.4 |
INPUT
E |
HDBaseT
interface connector: RJ45, 3 play |
INPUT
F |
Optional
adaptor slot for 3G-SDI Input Adaptor (BKM-PJ20) |
INPUT
G |
HTML
Viewer |
OUTPUT
1 |
Monitor
output for Input A/Input B Connector: Mini D-sub 15-pin
(female) |
USB |
Type-A
x 1 |
|
|
INPUT
OUTPUT (Others) |
|
USB-1 |
Type-A
x 1 |
|
|
Control
signal input/output |
|
REMOTE |
D-sub9pin
male/RS232C |
LAN |
RJ45,
10BASE-T/100BASE-TX/1000BASE-T |
|
|
Acoustic
Noise *2 |
|
Light
output mode: Standard |
42dB |
Light
output mode: Middle |
39dB |
|
|
Operating
temperature / Operating humidity |
|
Operating
temperature / Operating humidity |
0°C
to 45°C (32°F to 109°F) / 20% to 80% (no
condensation) |
|
|
Storage
temperature / Storage humidity |
|
Storage
temperature / Storage humidity |
-10°C
to +60°C (14°F to +140°F) / 20% to 80% (no
condensation) |
|
|
Power
requirements |
AC
100 V to 240 V, 10.8 A to 4.4 A, 50 Hz / 60 Hz |
|
|
Power
consumption (Maximum) |
|
AC
100 V to 120 V |
1076
W |
AC
220 V to 240 V |
1033
W |
|
|
Power
Consumption (Standby Mode) |
|
AC
100 V to 120 V |
0.50W
(when “Standby mode” is set to “Low” |
AC
220 V to 240 V |
0.50W
(when “Standby mode” is set to “Low” |
|
|
Power
Consumption (Networked Standby Mode) |
|
AC
100 V to 120 V |
21.6W
(LAN) |
|
26.5W
(HDBT) |
|
26.6W
(ALL Terminals and Networks Connected, when "Standby Mode" is set to
"Standard") |
AC
220 V to 240 V |
21.3W
(LAN) |
|
26.5W
(HDBT) |
|
26.6W
(ALL Terminals and Networks Connected, when "Standby Mode" is set to
"Standard") |
|
|
Dimensions
(W x H x D) (without protrusions) |
|
Dimensions
(W x H x D) (without protrusions) |
Approx.
544 x 205 x 564 mm |
|
(21
13/32 x 8 1/16 x 22 7/32 inches) |
|
|
Mass |
|
Mass |
Approx.
27 kg (58 lb) |
|
|
Supplied
accessories |
|
Remote
commander |
RM-PJ30 |
|
|
Projection
Lens |
|
Projection
Lens |
VPLL-4008,
Z4111, Z4015, Z4019, Z4025, Z4045 |
|
|
Optional
Projection Lens |
|
VPLL-4008 |
Throw
Ratio: 1:00:1 |
|
Lens
Shift - Range Vertical: +/-32% |
|
Lens
Shift - Range Horizontal: +/-15% |
VPLL-Z4111 |
Throw
Ratio: 1:30:1 to 1:96:1 |
|
Lens
Shift - Range Vertical: +/-99% |
|
Lens
Shift - Range Horizontal: +/-51% |
VPLL-Z4015 |
Throw
Ratio: 1:85:1 to 2:44:1 |
|
Lens
Shift - Range Vertical: +/-98% |
|
Lens
Shift - Range Horizontal: +/-51% |
VPLL-Z4019 |
Throw
Ratio: 2:41:1 to 3:07:1 |
|
Lens
Shift - Range Vertical: +/-107% |
|
Lens
Shift - Range Horizontal: +/-57% |
VPLL-Z4025 |
Throw
Ratio: 3:02:1 to 5:58:1 |
|
Lens
Shift - Range Vertical: +/-107% |
|
Lens
Shift - Range Horizontal: +/-57% |
VPLL-Z4045 |
Throw
Ratio: 5.56:1 to 7.5:1 |
|
Lens
Shift - Range Vertical: +/-107% |
|
Lens
Shift - Range Horizontal: +/-57% |
|
|
Notes |
|
*1 |
Value
is in accordance with ISO 21118, and may differ depending on the actual
unit. Brightness and contrast vary depending on use conditions and
environments. |
*2 |
The
figures are approximate. They vary depending on the environment or how the
projector is used. |
*3 |
When
using BKM-PJ20 |
