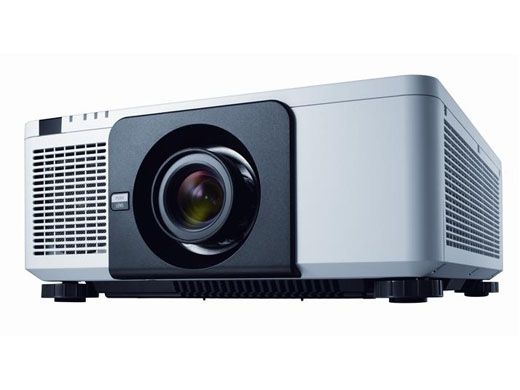

NEC NP-PX803UL Laser Hybrid Installation Projector, 8000
lumens: PX803UL
Overview
NEC innovation in light source technology brings to market the new NEC
PX803UL, a DLP Laser Installation Projector delivering all the benefits
associated with the latest laser light source. With no lamp replacement
necessary, maintenance is not required and longevity is assured. Achieving an
outstanding colour gamut and supreme image detail at high resolutions, laser is
the light source of the future.
Addressing the demanding large venue environment, the new NEC PX803UL
presents professional installation features for superior projection performance
within Rental/Staging, Higher Education, Museums, large Corporates and Signage
installations.
DELIVERING GENUINE BENEFITS
- Easy installation - selection of wide zoom bayonet
lenses, wide vertical and horizontal lens shift and control code emulation
guarantees hassle-free installation and replacement of old installation
projectors.
- Easy way to a big picture - up to 4K interface, HDMI-out
signal loop through, built-in signal splitter and edge blending capability
enables large presentation pictures without any external devices. PiP function
allows additional sources to be displayed.
- Perfect Image quality - high brightness, up to 4K input
signal and unique picture and colour processing technology based on the latest
NEC scaler chip achieves outstanding picture quality.
- Rich connectivity - including HDBaseT, the world’s first
HDMI-out interface, 1xHDMI and DisplayPort technology guarantees outstanding
connectivity.
- Widest application support - portrait mode projection,
360-degree free tilt installation, unique geometric adjustment and 3D support
offers unrivalled installation capability.
- No lamp replacement - up to 20000 h maintenance free
operation possible due to Laser Light Source. Free Download of Multi-Display
Management Software - with NaViSet Administrator 2 you can manage all your
connected display devices from a centralised location.
Specifications
IMAGE |
|
Projection
Technology |
1-chip DLP
Technology |
Native
Resolution |
1920 x 1200
(WUXGA) |
Contrast
Ratio |
10000:1 |
Brightness |
8000 ANSI Lumen, with
std. optional lenses |
Lamp |
Laser Light
Source |
Lamp Life
[hrs] |
20000 |
Lens |
8 optional bayonet
lenses |
Projection
Factor |
depending on lens
selection |
Projection Distance
[m] |
0.8
54 |
Screen Size (diagonal)
[cm] / [inch] |
Maximum: 760 / 300";
Minimum: 127 / 50" |
Zoom |
Motorized |
Focus
Adjustment |
Motorized |
Supported
Resolutions |
4096 x 2160 (4k); 2560
x 1600 (WQXGA); 2048 x 1080 (2k); 1920x1200 (WUXGA) - 640x480 (VGA);
1080i/50/60; 1080p/24/25/30/50/60; 720p/60; 720p/50; 576i/50; 576p/50;
480p/60; 480i/50 |
Frequency
Horizontal: |
Horizontal: analogue:
15/24-100 kHz, digital: 15/24-153 kHz; Vertical: analogue: 48-120 Hz,
digital: 24-120 Hz |
|
|
CONNECTIVITY |
|
RGB
(analogue) |
Input: 1 x 5BNC, shared
with Component Signal (YPbPr); 1 x Mini D-sub 15 pin |
Digital |
Input: 1 x DisplayPort
supporting HDCP; 1 x HDBaseT; 1 x HDMI supporting
HDCP |
|
Output: 1 x HDMI
supporting HDCP |
Video |
Input: 1 x BNC R
Share |
S-Video |
Input: 1 x BNC G/B
Share |
Control |
Input: 1 x 3.5 mm
Stereo Mini Jack (Wired Remote); 1 x D-Sub 9 pin (RS-232), Ethernet; 1 x
Ethernet shared with HDBaseT |
Option
Slot |
Input: 1 x Slot for
optional OPS modules |
USB |
1 x Type A (USB 2.0
high speed for mouse support) |
3D
Sync |
Output: 1 x Mini DIN
3pin |
Video
Signals |
NTSC; NTSC 4.43; PAL;
PAL-M; PAL-N; PAL60; SECAM |
|
|
REMOTE
CONTROL |
|
Remote
Control |
Auto Adjust; AV Mute;
Direct Info; Direct Source Select; Eco Mode Control; Freeze-function; Full
Lense control; Help-function; ID Select; Illuminated Buttons; Input
Control; Magnify-function; On Screen On/Off Selection; Picture Adjust; PIP
Function; Power (On-OFF); Select (up, down, left, right); Shutter
function; Test Picture; Wired / Wireless Connection |
|
|
ELECTRICAL |
|
Power
Supply |
100-240 V AC; 50 - 60
Hz |
Power Consumption
[W] |
830 Normal
Mode |
|
|
MECHANICAL |
|
Dimensions (W x H x D)
[mm] |
500 x 205 x 580
(without lens and feet) |
Weight
[kg] |
26 |
Fan Noise [dB
(A)] |
38 |
Colour
Versions |
Black;
White |
|
|
ERGONOMICS |
|
Safety and
Ergonomics |
CE; ErP; RoHS; TV
GS |
|
|
ADDITIONAL
FEATURES |
|
Special
Characteristics |
4K Interface; AMX
Beacon; Built-in Display/Multiscreen Splitter; Cinema Quality Picture
(CQP) Processing for best image quality; Crestron RoomView; DICOM
Simulation; Digital 3D Reform; Direct Power-Off Function; Edge Blending
Function (Build In); Free Tilt; Full 3D HDMI Support; Geometric
Correction; HDBaseT; Keystone Correction (H=40, V=40); LAN; Lens Shift
(vertical +0.5 max/-0.3 max, horizontal 0.15 max.); Light Source
Adjustment; Manual Wall Color Correction; Multi-Screen compensation mode;
NaViSet Administrator 2; OPS module support; Optional User Logo; OSD with
27 languages; Password Security System; PIP/Side by Side, HDMI - Input; PJ
LINK; Portrait Setting; RS-232 Control; Stacking Function; Timer-Function;
Virtual Remote for direct PC control |
|
|
GREEN
FEATURES |
|
Energy
Efficiency |
Laser Light
Source |
Ecological
Materials |
100% recyclable
packaging; Downloadable manuals |
Ecological
Standards |
ErP
compliant |
|
|
WARRANTY |
|
Projectors |
3 years conditional
warranty |
Light
Source |
3 years or 10000h
(whatever comes first) |
|
|
SHIPPING
CONTENT |
|
Shipping
Contents |
IR Remote Control (RD -
465E); Network Set-up Guide; Power Cord; Projector; Quick Setup Guide;
Users Manual on CD-ROM; Utility software |
|
|
OPTIONAL
ACCESSORIES |
|
Optional
Accessories |
Brackets
(PROJBUN1L/2L/3L) |
Lenses |
NP16FL (0.76:1); NP17ZL
(1.25-1.79:1); NP18ZL (1.73-2.27:1); NP19ZL (2.22-3.67:1); NP20ZL
(3.6-5.4:1); NP21ZL (5.3-8.3:1); NP31ZL (0.79-0.98:1); NP39ML
(0.38:1) |
OPS Slot-in
Modules |
Digital Signage Player;
HD/SD-SDI Module; HDBaseT Receiver; Slot-in
PCs |
