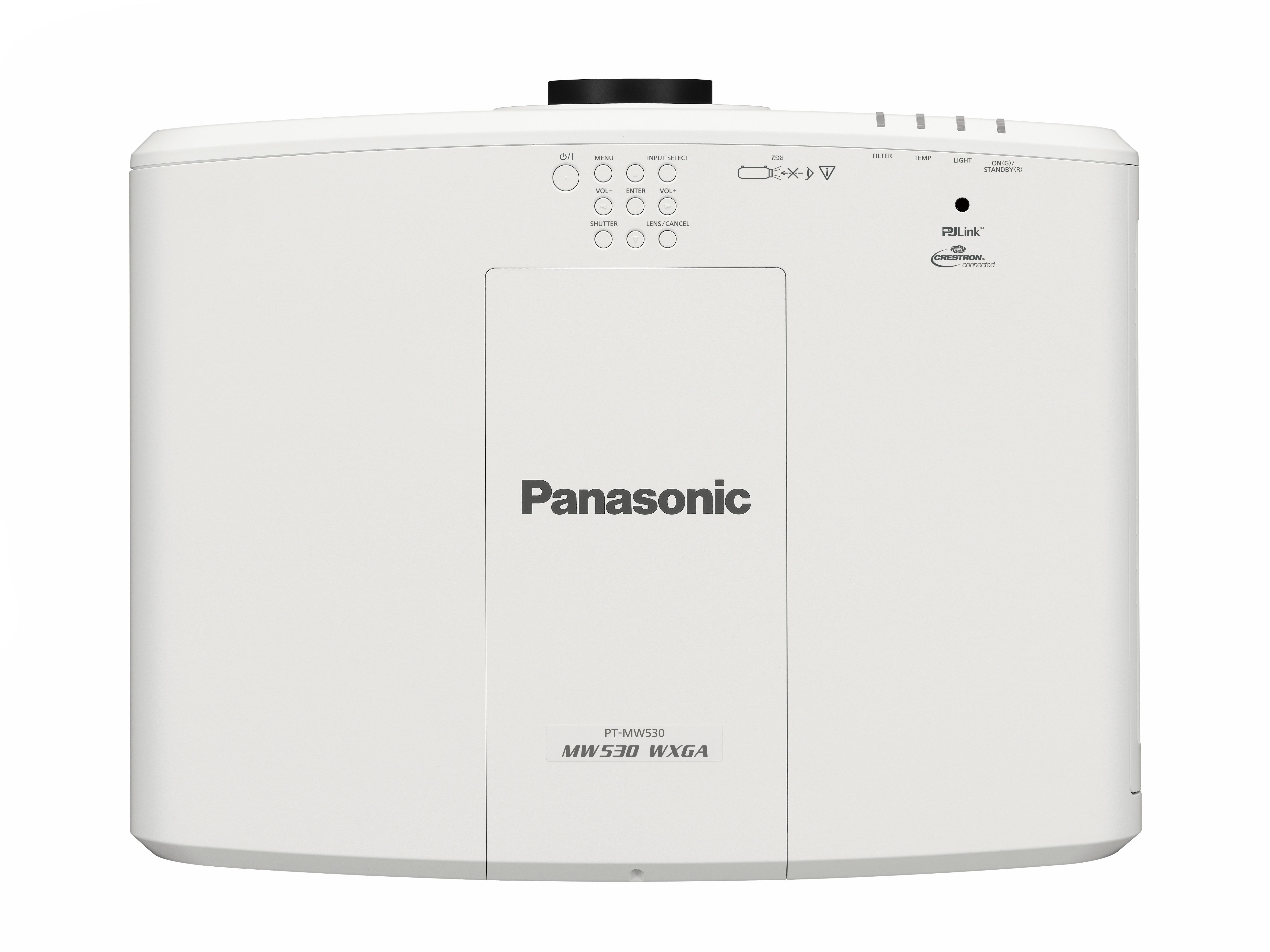

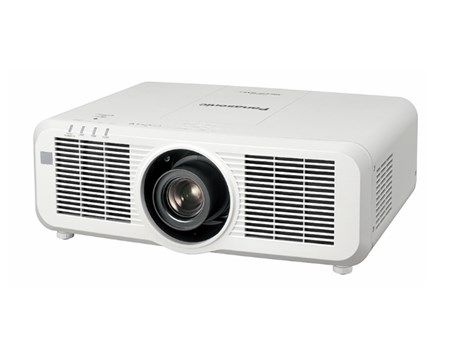

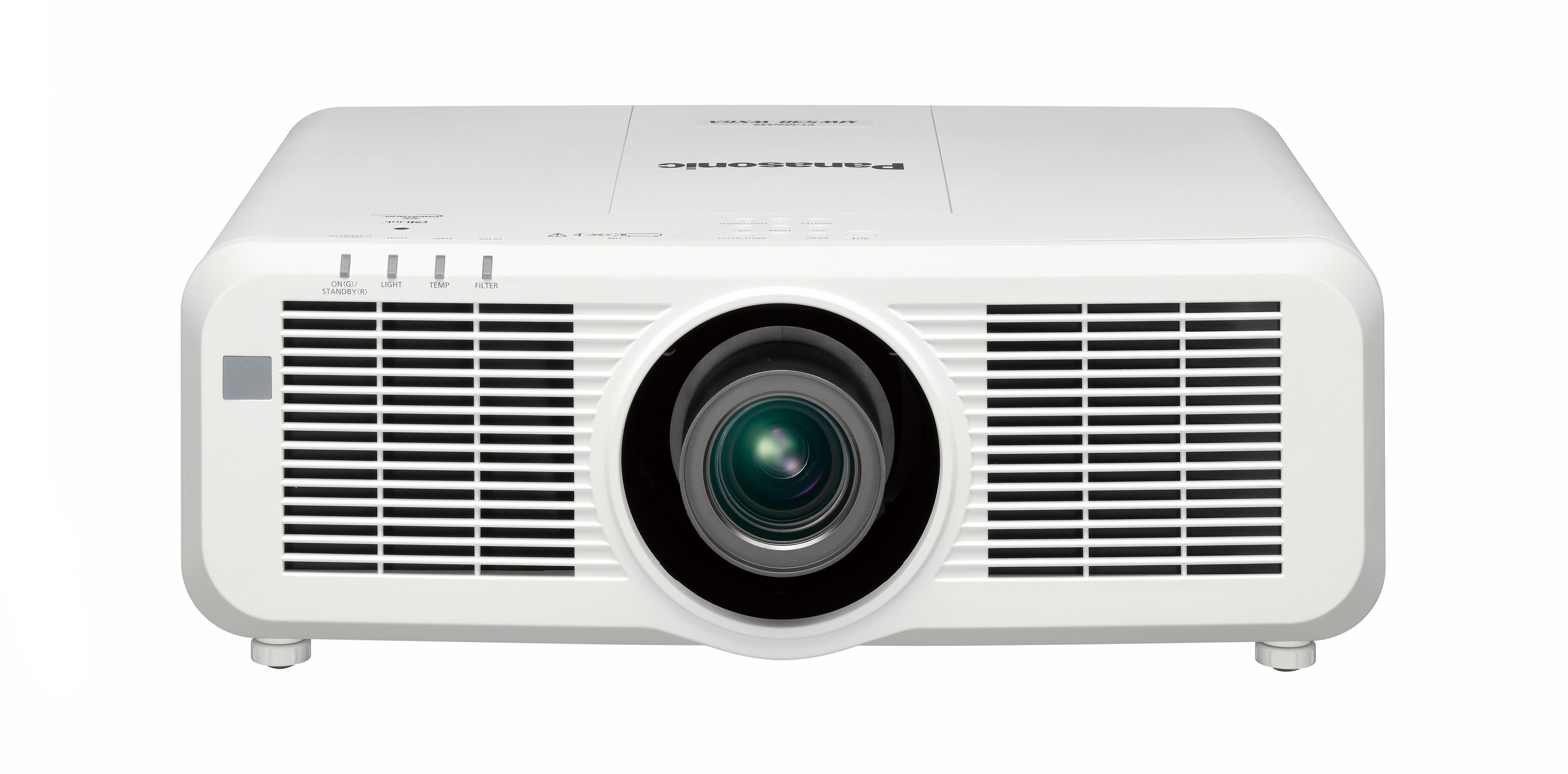

Panasonic PT-MW530E LCD Laser Projector - No Lens
WXGA, 1280x800, 5500 Lumens, 3000000:1, Wifi, Digital Link, HDMI, VGA, Video Out, Audio In/Out, D-Sub 9-Pin, Speaker

[More images available]
Product May Vary From Image

Our Price:
5663.05
RRP:$7,699.00
You Save:$2,035.95

Part No:428728
Brand:Panasonic  Web Site
Manuf No:PT-MW530E
 PTMW530E
Ship Weight:18 KG  Details
Usually Ships: Order In  More info
Date Added:26/5/2018
Rating: Not Rated
Quantity:
Product Description

Panasonic PT-MW530E LCD Laser Projector - No Lens

Features

  • Brightness: 5500 lumens
  • Resolution: 1280 x 800 (WXGA)
  • Lens shift function (vertical: 67%, horizontal: 35%, powered)
  • 0.76" 16:10 LCD panel
  • Brightness: 5500 lumens; Contract ratio: 3000000:1
  • Resolution: 1280 x 800 (WXGA)
  • Lens shift function (vertical: 67%, horizontal: 35%, powered)
  • Wide selection of optional lens
  • Built-in 10W speaker
  • Optional digital interface box ET-YFB100G or ET-YFB200G
  • Optional wireless module ET-WM300
  • Laser diode source
  • Digital Link transmits digital signals up to 100 m with a single cable

Overview

Specifications

General

Panel Type

0.76" LCD panel x 3

Lamp

N.A.

Brightness

5,500 lumens

Lens

F1.7-2.3, f26.8-45.5mm (powered zoom: 1.6-2.8:1)

Contrast (Full on / Full off)

3,000,000:1

Resolution (Native / maximum)

WXGA

Screen Size

40" - 400"

Lens Shift

Vertical 67%, horizontal 35%

Keystone Correction Range

Vertical 35 or horizontal 35

Weight

approximately 16.9kg

Dimensions (W x H x D)

560 x 205 x 443.2 mm

Power Consumption

415W

Terminals

HDMI in (19-pin x 1)

RGB1&2 in (D-sub HD 15-pin x 1, 5BNC x 1)

Video in (Pin Jack x 1)

Monitor out (D-sub 15-pin x 1)

Audio in (Pin jack x 2, M3 x 2)

Audio out (M3 x 1)

Serial in (D-sub 9-pin x 1)

Remote In x2 (M3 x 1),(D-sub 9-pin x 1)

LAN (RJ-45 x 1)

Digital Link (RJ-45 x 1)

Memory Viewer/Pairing (USD type A x 1)

DC out (USB Type A x 1, DC5 5 V/S A)

Optional Accessories

ET-PKE301B (Bracket assembly)

ET-PKE200H (High ceiling mount bracket)

ET-PKE200S (Low ceiling mount bracket)

ET-RMF100 (Replacement filter unit

ET-WM300 (Wireless module)

Optional Lens

Zoom lens

ET-ELW22 (0.8-1.0:1)

ET-ELW20 (1.2-1.7:1)

ET-ELT20 (2.7-4.5:1)

ET-ELT21 (4.4-7.1:1)

Fixed focus lens

ET-ELW21 (0.8:1)

Standard Accessories

Software CD-ROM

Wireless / wired remote control & batteries

Power cord

Product Warranty


60 Month Manufacturers Return To Base
