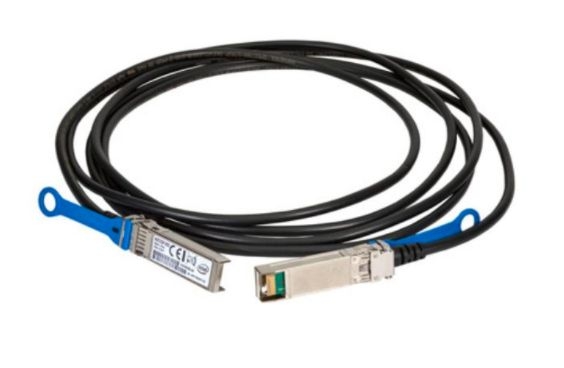

Intel XXVDACBL1M Ethernet SFP28 Twinaxial Cables - 1m
Features
- 1 m (3.3 ft), 2 m (6.6 ft), and 3 m (9.8 ft) SFP28 and QSFP28 to SFP28
direct attach passive copper cables with hot pluggable pull-to-release
latching
- SFP28 Direct Attach 25GBASE-CR cables offer a highly cost effective way to
connect within racks and across adjacent racks
- QSFP28 100Gb/s Rated Connector (SFF-8665), SFP28 25Gb/s Rated Connectors
(SFF-8402)
- Fully compatible with the Intel Ethernet Network Adapter XXV710
- Reduced power budget and lower port cost compared to optical solutions
- High-speed electrical interface compliant to IEEE 802.3by
- Supports 10GbE and 25GbE standards
- Operating case temperature of 0 C to 70 C
- Three year warranty
Overview
Intel Ethernet SFP28 Twinaxial Cables are for customers who would like to
deploy the Intel Ethernet Network Adapter XXV710 with an SFP28 direct attach
cable. Intel Ethernet Network Adapters with SFP28 connectivity deliver proven,
reliable solutions for deployments of high density Ethernet 10/25GbE network
connections. These SFP28 adapters use the latest PCI Express* v3.0 bus
technology for maximum bandwidth, and utilize the increasing capabilities of
systems using the latest Intel Xeon processor.
Intel Ethernet SFP28 Twinaxial Cables are available in 1 m, 2 m, and 3 m
lengths. The single channel SFP28 interface features the same compact profile as
the popular 10Gb SFP+ standard, but has been upgraded internally to support
25Gb/s data rates.
The Intel Ethernet QSFP28 to SFP28 Twinaxial Breakout Cables offer IT
professionals a cost-effective interconnect solution for merging QSFP28 and 25Gb
SFP28 enabled adapters, switches, and servers. With the rapid evolution of
high-speed networking standards, the Intel Ethernet QSFP28 to SFP28 Twinaxial
Breakout Cables enable customers to aggregate traffic between one 100Gb QSFP28
port with up to four 25Gb SFP28 ports
Intel Ethernet SFP28 Twinaxial Cables provide a high density, high bandwidth
solution at low cost and reduced power budget.
Both cable types are fully compliant with MSA standards. Customers can move
efficiently to 25GbE for high bandwidth application requirements.
To ensure maximum flexibility, Intel supports the ability to use a
combination of Intel Ethernet SFP28 Optics, Intel Ethernet SFP28 Twinaxial
Cables or Intel Ethernet QSFP28 to SFP28 Twinaxial Breakout Cables. This enables
customers to create the configuration that best meets the needs of their data
center environment, while ensuring compatibility between adapter and
accessories
Specifications
| Product Description |
Intel direct attach cable - 1 m |
| Type |
Direct attach cable |
| Technology |
Twinaxial |
| Length |
1 m |
| Connector |
SFP28 |
| Connector (Second End) |
SFP28 |
