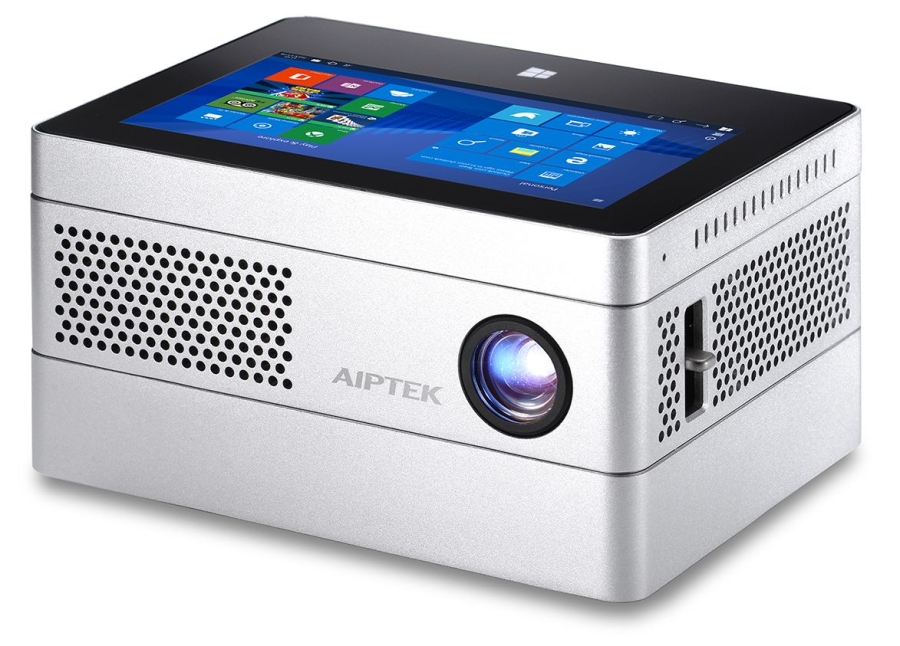

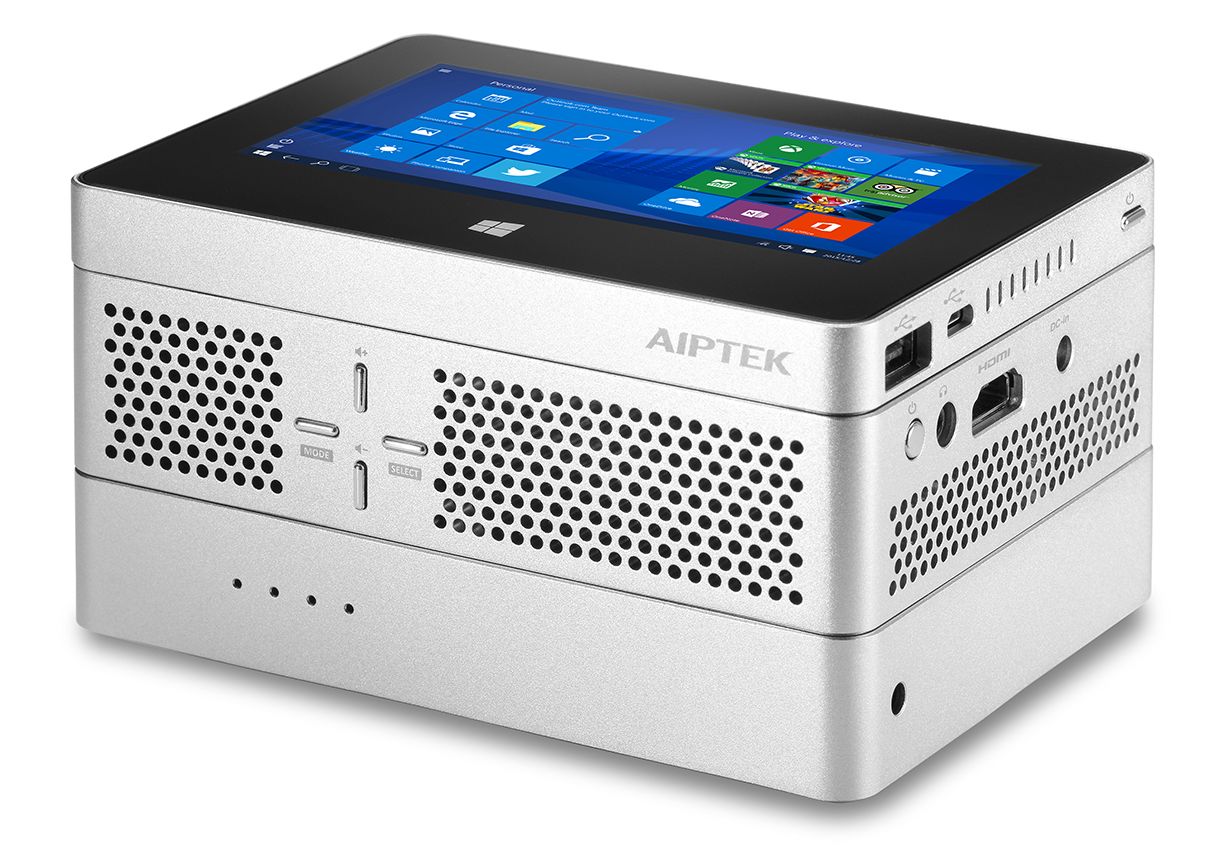

Aiptek iBeamBLOCK L400 Deluxe Computing Projection System - Silver
HD, 1280x720, 400 Lumens, 500:1, 20000Hrs, 4.5" LCD, Wifi, BT, HDMI, Audio Jack, Micro-SD Slot, USB2.0, 13200mAh Battery, Speakers

[More images available]
Product May Vary From Image

Our Price:
You Save:$131.00
Part No:426495
Manuf No:iBeamBLOCK
Ship Weight:1 KG  Details
Usually Ships: 1-3 Days  More info
Date Added:2/3/2018
Rating: Not Rated
Product Description

Aiptek iBeamBLOCK L400 Deluxe Computing Projection System - Silver

The „iBeamBlock“ is the first stackable HD projector with Windows 10 tablet and power bank for mobile usage. Its three components are stacked together cordlessly and hold together due to magnetic pogo-pins. If required, the projector can also be used as standalone device. It convinces with 400 lumens of brightness, an automatically keystone correction, integrated speakers and RGB LEDs with DLP technology. Particular useful for business applications: the “iBeamBlock” provides crystal clear presentations of Excel, Word, Power Point and PDF documents with an image diagonal of up to 120“ (305 cm) and a resolution of 1280x720 pixels. The projector is equipped with an audio port, DC-in and four menu keys for an easy control as well as a HDMI interface to connect external end devices. Full Configuration System

Thanks to the Windows 10 tablet, which has a Wi-Fi, Bluetooth, USB, micro USB as well as a micro SD card interface, data can be transferred quickly and easily. Furthermore, the powerful 4.5 tablet with multi-touch IPS LCD acts as control unit. Thereby the Intel Z3735F Quad Core processor with 1.33 GHz and 2 GB RAM ensures a smooth operation.

With a total weight of less than 1 kg and dimensions of only 125x95x67 mm (LxWxH), the compact system fits in every briefcase and is therefore perfect for presentations during business trips. But the iBeamBLOCK also performs perfectly at home during movie nights or photo shows.


  • Stackable 3 Component Design
  • Win10 PC Tablet for Business Usage
  • Projection of a 100 Display at 2.7 meter distance
  • 400 Lumens of Brightness, HD (1280x720) resolution
  • Crystal Clear in Excel, Word, PowerPoint and PDF Presentations


Optical Technology DLP
Light Source RGB LED
Native Resolution 1280x720 Pixel (720P)
LED Lifetime Up to20.000 h
Contrast 500:1
Throw Ratio 1.2
Aspect Ratio 16:9
Offset 100 %
Projection Image Size (Diagonal) 51 cm ~ 305 cm (20 ~ 120 )
Projection Distance 50 cm ~ 319 cm (19.6 ~ 125 )
Brightness Up to 400 sensual lumens
Focus Manual
Keystone Auto / Manual
Speaker Built-in stereo speaker (1W*2)
Interfaces HDMI,Audio jack, Pogo Pins
Projection Source HDMI, PAD unit
Power Adapter

100~240V AC input ,50~60Hz,

DC IN:12V/3.5A

Power Consumption 36W
Colour Silver
Dimensions (L*W*H) 125*95*32 mm
Weight 330g
Product Features PAD Unit (Tablet)
CPU Intel Z3735F Quad Core 1.33Ghz
Display 4.5 Multi-touch LCD
OS Win10
Internal Memory 2GB DDR/32GB Flash
External Memory micro SD slot support
Wireless 802.11b/g/n, BT4.0
Interfaces Pogopins, USB 2.0, microUSB 2.0 (OTG), microSD slot
Colour Silver
Dimensions (L*W*H) 125*95*12 mm
Weight 165g
Product Features PB-120 (Batterie)
DC-in DC 12V/3.5A
DC-out USB: 5V/2A
Pogopin: 11V/3A
Battery type Integrated, 3.7V 13200mAH, Li-Polymer, rechargeable
Battery Power Up to120 Min Projection
Colour Silver
Dimensions (L*W*H) 125*95*23 mm
Weight 395g

Package Content

  • iBB L400 (Projector)
  • iBB PAD-45D (Tablet)
  • iBB PB-120 (Power Bank)
  • HDMI cable
  • Power Adapter
  • AC cable(EU+US)
  • Manual
Product Warranty

12 Month Return To Base
